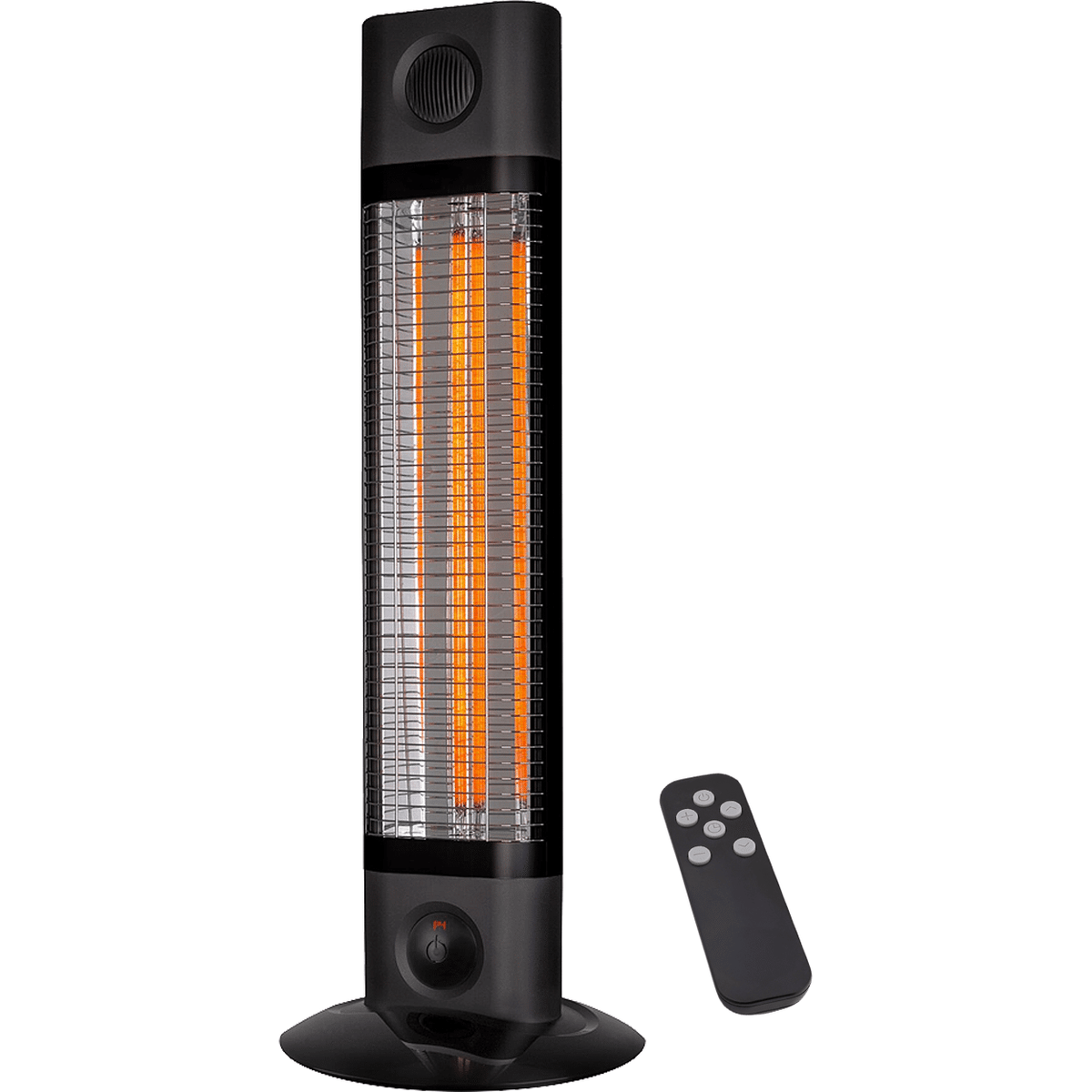

Thermogroup CO1200RB Cedar 1200W Mid-Wave Outdoor Heater

• Carbon radiant heating: provides rapid, directional warmth using mid-wave infrared technology.
• Three heat outputs: select 400W, 800W or 1200W to adjust the level of heating.
• Freestanding design: an upright body and separate base avoid the need for wall or ceiling brackets.
• Integrated carry handle: supports repositioning once the heater has been disconnected and allowed to cool.
• Remote operation: control the heating level, thermostat and countdown timer using the supplied handset.
• Temperature control: the built-in thermostat adjusts heater operation when the selected temperature is reached.
• Automatic tip-over shutoff: switches the heater off if it is knocked over.
• Silent operation: radiant heating delivers warmth without operating noise from an air-moving fan.

• Low heat: 400W.
• Medium heat: 800W.
• High heat: 1200W.
• Thermostat control: use the remote’s plus and minus buttons to select the required temperature.
• Countdown timer: select a running period from 1 to 9 hours; the heater switches off when that period ends.
• Local control: the button on the heater selects the three power settings; thermostat and timer settings are controlled using the remote.

• Brand: Thermogroup
• Model: CO1200RB
• Range: Cedar
• Product type: freestanding mid-wave infrared heater
• Heating technology: carbon
• Application: indoor and outdoor heating
• Maximum output: 1200W
• Selectable outputs: 400W / 800W / 1200W
• Supplier-rated coverage: up to 15m²
• Electrical supply: 240V AC, 50/60Hz
• Ingress protection: IP55
• Connection: lead and plug
• Lead length: 1.5m
• Controls: remote control and on-unit power button
• Timer: 1–9 hours
• Safety feature: automatic tip-over shutoff
• Finish: Black
• Construction material: Aluminium body

• Base assembly: unpack the separately packed base and fix it to the heater using the four supplied screws before use.
• Before connection: remove protective packaging and plastic. Do not assemble or adjust the heater while it is plugged in.
• Electrical connection: connect the supplied lead and plug to a correctly rated, earthed 240V supply in accordance with the installation guide.
• Positioning: use the heater in its intended freestanding configuration. Keep combustible materials at least 150cm from the front and follow all manufacturer positioning restrictions.
• Safe operation: do not cover the heater or place articles on or against it. Keep the supply cord clear of heated surfaces.
• Remote batteries: two AAA batteries are required and are not included.
• Final reference: read the complete Installation Instructions before assembly and operation.

Warranty Coverage

Thermogroup is an Australian company offering a comprehensive range of heated towel rails, underfloor heating, space heating, mirrors and bathroom furniture under the Thermorail, Thermomat, Thermofan and Ablaze brands. Its products are backed by manufacturer's warranties against defects in materials and workmanship.

For a manufacturing fault identified within the first 12 months of purchase that requires replacement by a licensed electrician, Thermogroup will arrange troubleshooting and replacement at no cost. After the first 12 months, Thermogroup will supply replacement parts for the remainder of the applicable warranty period but will not cover removal or installation costs.

Thermonet — Underfloor Heating

• Underfloor heating cable and mat: Lifetime warranty against manufacturing defects, subject to registration within 60 days of installation.
• Thermotouch thermostat: Three-year replacement warranty.

Thermorail — Heated Towel Rails

• Polished stainless steel rails, including Thermorad: 10-year replacement warranty.
• Brushed, black, white and other coloured or plated rails: Seven-year replacement warranty.
• Custom-plated rails: Five-year replacement warranty.
• 12V transformer: One-year replacement warranty.
• TRTS, TRTSL and TRTSB timers: Two-year replacement warranty.
• EB11 timer: Three-year replacement warranty.
• ET12C, ET12CB and 5289 timers: One-year replacement warranty.

Thermofan — Space Heating

• Thermofan fan heaters: Two-year replacement warranty.
• Outdoor heaters: Two-year replacement warranty.

Ablaze Mirrors

• Standard Thermomirror demister pads: 10-year replacement warranty.
• 5312 and 5312P Thermomirror 12V demister pads: Five-year replacement warranty. The mirror and transformer carry a separate one-year warranty.
• Premium back-lit mirrors: Three years on the mirror and electrical components.
• Framed and frameless mirrors and mirror cabinets: Two-year replacement warranty.
• Magnifying mirrors: One year on the mirror and electrical components.

Solid-Surface Bathroom Furniture

• Bath caddies and shower stools: Five-year replacement warranty.

Proof of purchase is required for every warranty claim. Lifetime coverage on Thermomat underfloor heating requires product registration within 60 days of installation.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of faulty products within the applicable warranty period.
• Troubleshooting and replacement, including an electrician where required, for eligible manufacturing faults identified within the first 12 months of purchase.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's installation instructions.
• Misuse, carelessness or accidental damage.
• Damage caused by floods, fires, lightning or other events beyond Thermogroup's control.
• Use of incompatible components or accessories not supplied by Thermogroup.
• Normal maintenance and care procedures.
• Failure to power up due to an inadequate or interrupted electrical supply.
• Changes in appearance that do not affect product performance.
• Products installed outside Australia.

Conditions

• The product must be installed by a licensed electrician in accordance with the AS/NZS 3000 Wiring Rules and applicable local regulations.
• The product must be installed and used in accordance with the manufacturer's installation guide.
• Thermomat underfloor heating must be registered within 60 days of installation to qualify for the lifetime warranty.
• Proof of purchase must be provided with every claim.
• Lifting, replacing or repairing floor coverings over the underfloor heating will void the lifetime warranty.

Making a Claim

Contact Thermogroup on 1300 368 631 or email sales@thermogroup.com.au. For technical enquiries or underfloor heating issues, contact the Technical Helpline on 1300 989 464. Claims may also be submitted through the Thermogroup warranty page. Have your proof of purchase and relevant installation or registration details available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The heater’s display identifies the selected power level as P1, P2 or P3. These correspond to low, medium and high respectively, providing an on-unit indication of the setting selected with either control.

During a countdown period, pressing the clock button once displays the remaining running time. The screen also shows the selected temperature when the thermostat is adjusted, so the remote settings can be checked on the heater.

• Heater: one Thermogroup CO1200RB Cedar heater.
• Base: separate freestanding base with four assembly screws.
• Remote control: supplied handset; two AAA batteries must be purchased separately.
• Power connection: 1.5m lead and plug.
