Product Description

Product Overview:

The Spezialist S30643 is a 64cm proud gas cooktop designed and built in Melbourne. Its three-burner layout combines responsive brass burners, cast iron trivets and direct rotary controls in a purpose-built platform for cooks who prefer the immediacy and visual control of gas. Its proud-mounted surface plate sits visibly above the surrounding benchtop rather than finishing level with it.

Super, Rapid and Mini burners provide dedicated high-output, everyday and simmer cooking areas. The burner system supports stronger outer-ring heat and controlled inner-ring simmering, while single-spark ignition, electronic flame detection, automatic re-ignition and flame-failure shut-off support confident everyday operation.

The available surface finish is variant dependent. Natural Gas and LPG versions are separately identified by supplier SKU and barcode, allowing the correct configuration to be selected before cabinetry and gas services are finalised.

Product Features:

• 3 brass burners: Super, Rapid and Mini burners provide dedicated high-output, everyday and simmer cooking areas
• Electronic flame detection: Monitors burner operation and supports automatic gas shut-off if a flame is lost.
• Automatic re-ignition: Attempts to restore the selected flame following an interruption during normal cooking.
• Cast iron trivets: Provide stable support for cookware across the cooking surface.
• LED status indication: Provides a clear operating reference at the control area.
• Proud mounting: The surface sits proudly above the benchtop using the verified 620 × 500mm cut-out.
• Australian design and manufacture: Proudly Australian owned, designed in Australia and built in Melbourne.

Colour / Finishes:

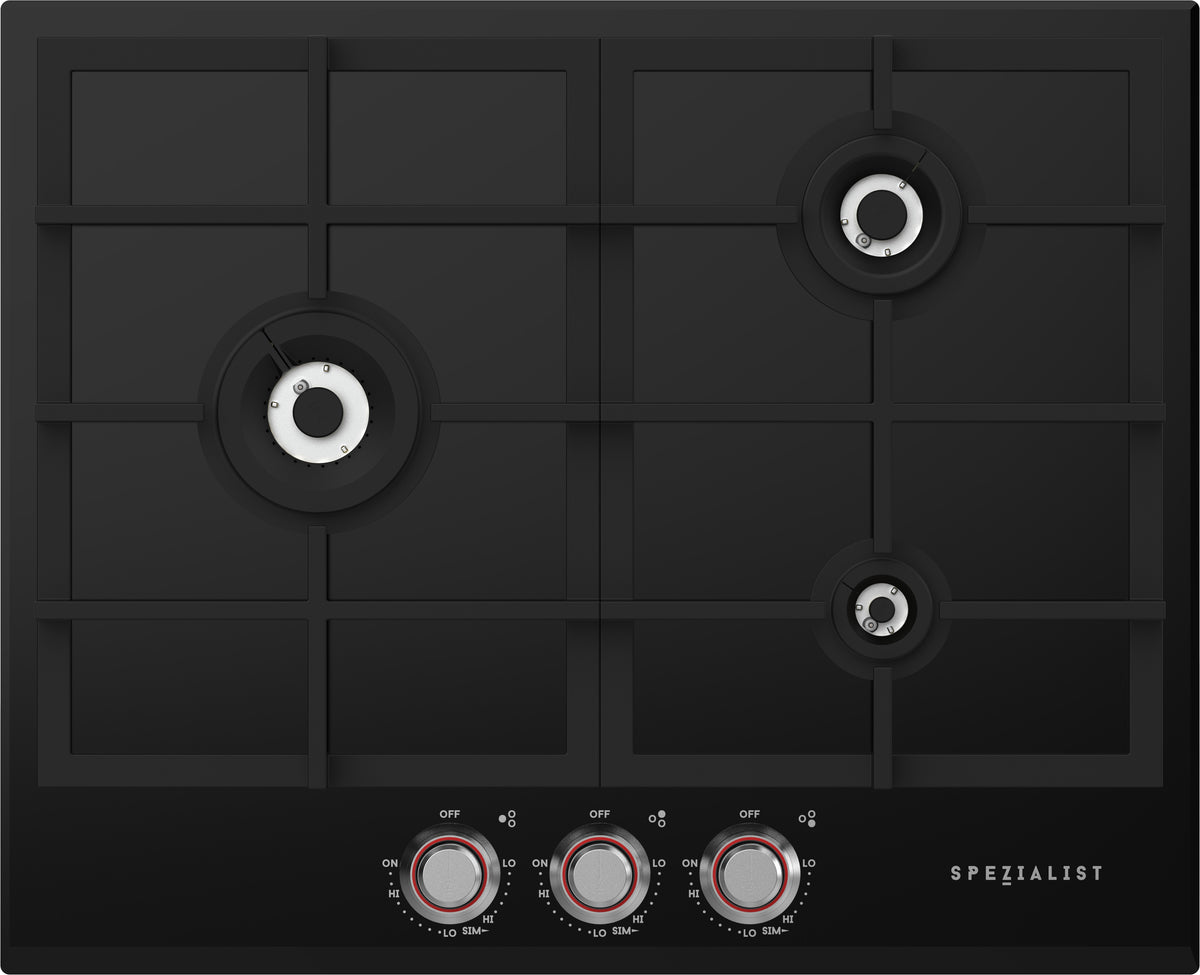

• Black Vitroceramic — S30643VC

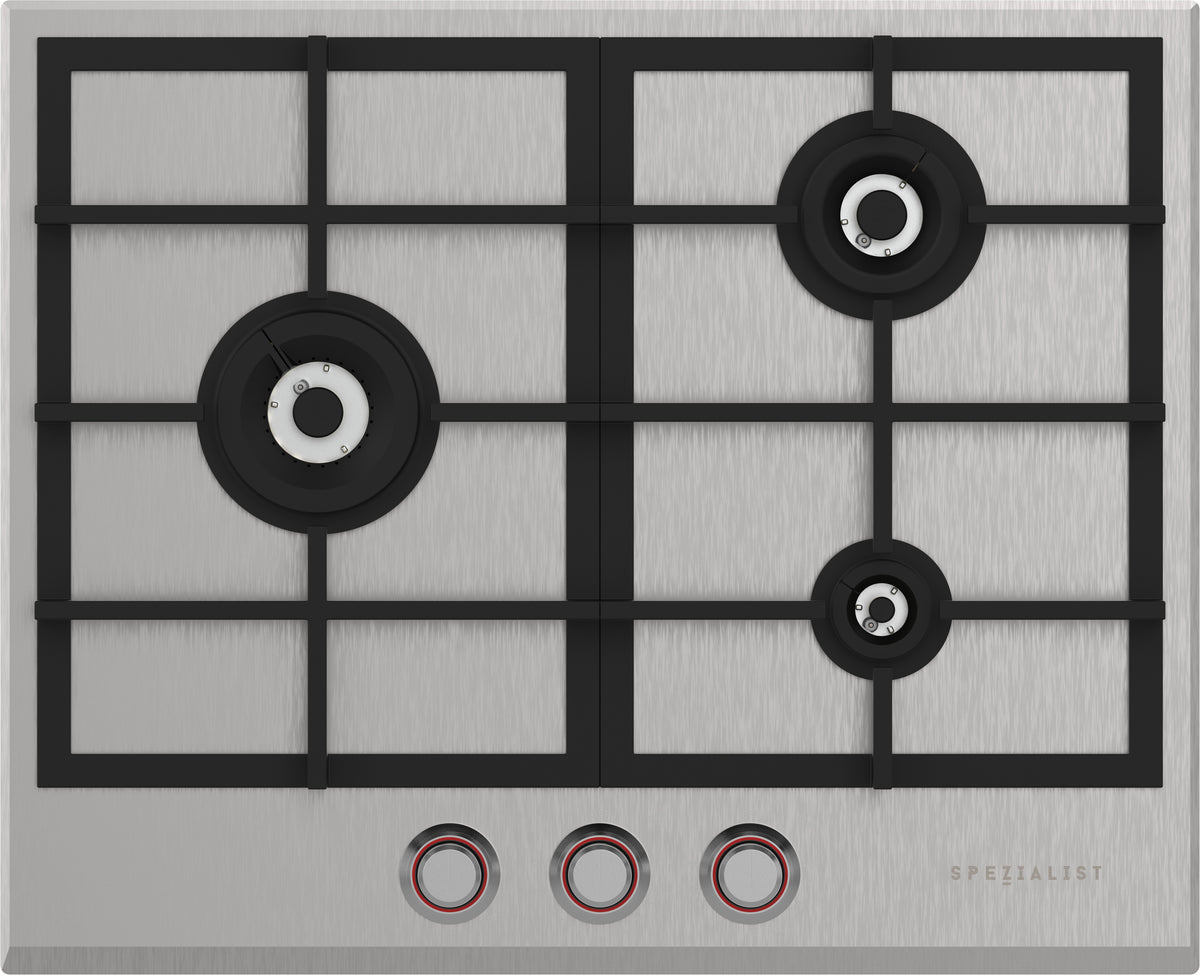

• Stainless Steel Plate — S30643SP
• Brushed Brass — S30643SP.BBR

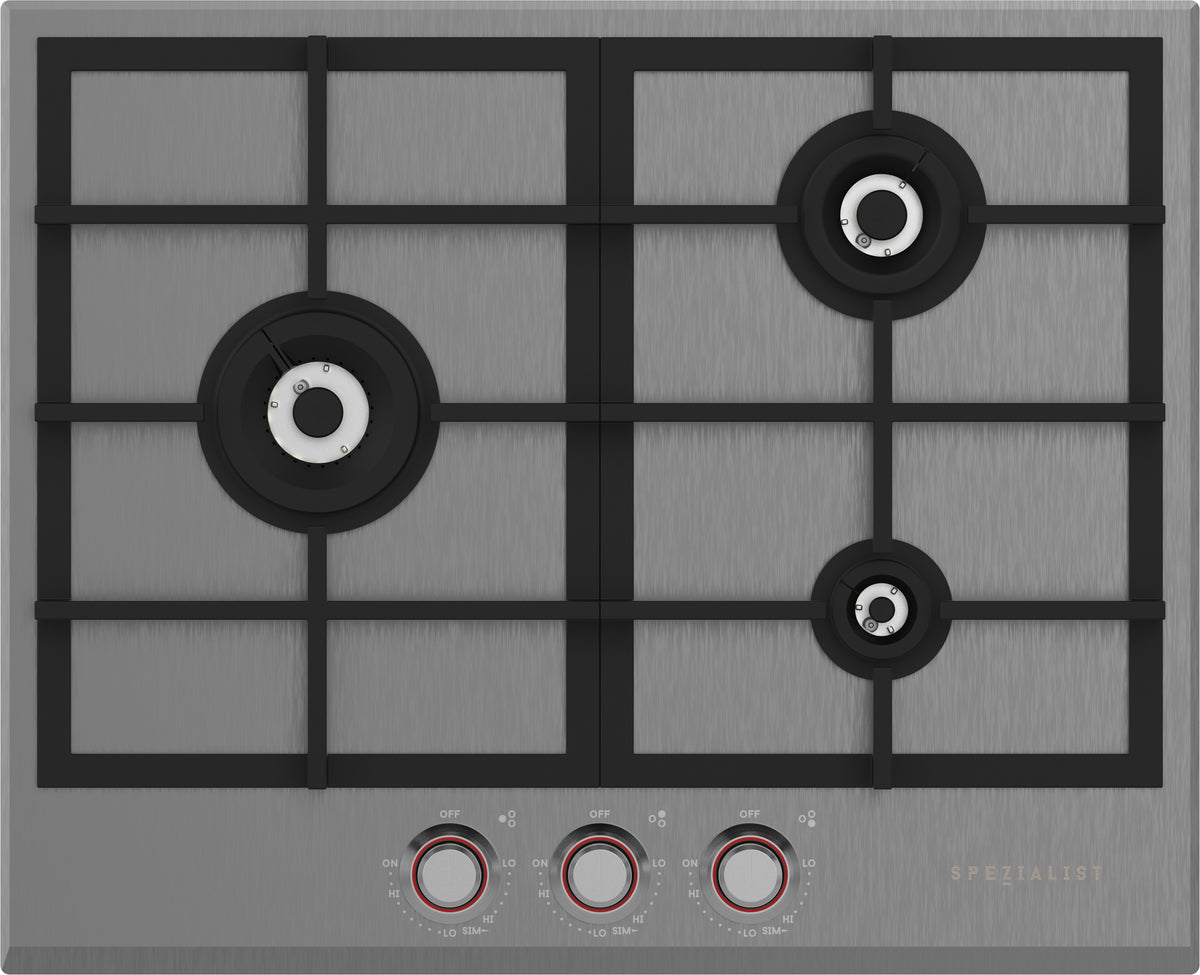

• Brushed Black Metal — S30643SP.BBM
• Brushed Copper — S30643SP.BCU

Programmes / Functions:

• Single-spark ignition: Starts the selected burner directly from its control knob.
• Variable flame control: Moves from higher-output cooking to a controlled simmer.
• Electronic flame failure protection: Automatically interrupts the gas supply if the flame cannot be maintained.
• Natural Gas or LPG configuration: Select the factory-specified fuel version that matches the installation.
• Wok cooking support: A wok cradle is included on models fitted with a Super or Power burner.

Cleaning & Maintenance:

• Cool before cleaning: Switch off the appliance and allow all surfaces, trivets and burner furniture to cool.
• Removable components: Lift away trivets and burner furniture for careful separate cleaning, drying and correct reassembly.
• Surface care: Use a soft cloth and a mild non-abrasive cleaner suitable for the selected finish.
• Protect the finish: Avoid steel wool, harsh scouring products and chlorine-based cleaners.
• Ignition components: Keep the ignitor and flame-sensing components clean and dry.

Specifications:

• Brand: Spezialist
• Base model: S30643
• Product type: Built-in gas cooktop
• Cooking areas: 3
• Fuel options: Natural Gas or LPG — variant dependent
• Burner material: Brass
• Trivet material: Cast iron
• Control type: Rotary control knobs
• Ignition: Single-spark electronic ignition
• Flame failure protection: Electronic automatic gas shut-off
• Gas inlet connection: G 1/2-inch male
• Electrical connection: C13 plug
• Power cable length: 2 metres
• Mounting type: Proud — the surface plate sits visibly above the surrounding benchtop
• Surface: Vitroceramic or stainless steel plate — variant dependent

Product Measurements:

• Product dimensions (W × D × H including trivet): 640 × 520 × 133.5 mm
• Recommended cut-out (W × D): 620 × 500 mm
• Cut-out height including clearance: 105 mm
• Minimum clearance beneath cooktop: 25 mm

Installation & Requirements:

• Licensed gas fitter: Gas connection and commissioning must be completed by an authorised and registered installer.
• Operating pressure: Natural Gas 1.0kPa; ULPG 2.75kPa.
• Electrical supply: Connect the supplied C13 power lead to an accessible compliant outlet.
• Mounting and benchtop preparation: This proud configuration is top-mounted so its surface plate remains visibly above the benchtop. Use the model-specific 620 × 500mm cut-out for this proud configuration. Confirm the model-specific drawing before cutting.
• Rangehood clearance: Maintain at least 650mm from the cooktop trivet supporting surface to the underside of the rangehood filters.
• Application: Domestic indoor food cooking only; not suitable for outdoor use.

Country of Origin:

• Designed and built in Melbourne, Australia.

Extra Information:

Spezialist is proudly Australian owned. The cooktop uses brass burner assemblies and cast iron pan supports, with safety electronics designed to monitor flame status during operation.

Confirm the required Natural Gas or LPG variant before ordering, as each fuel configuration has its own supplier identifier.

Warranty:

Spezialist cooking surfaces are manufactured by Haus Group Australia and are backed by a 5-year manufacturer's warranty covering parts and labour. All warranties are in addition to your rights under the Australian Consumer Law.

Included Products / Accessories:

• Cooktop chassis unit: 1
• Cast iron trivets: Supplied to suit the burner layout
• Wok cradle: Included where the configuration contains a Super or Power burner
• Burner furniture: Caps, rings and burner components
• Cabinet fixing clips: Included
• Natural Gas regulator: Included with Natural Gas variants only
• Operating and installation instructions: Shared Spezialist gas cooktop manual

Downloads / Product Files:

• S30643VC SPECIFICATIONS SHEET (PDF)

• S30643SP SPECIFICATIONS SHEET (PDF)

• S30643SP BBR SPECIFICATIONS SHEET (PDF)

• S30643SP BBM SPECIFICATIONS SHEET (PDF)

• S30643SP BCU SPECIFICATIONS SHEET (PDF)

• SPEZIALIST USER MANUAL (PDF)
