Product Description

Product Overview:

The Qasair DR-200/90 (125) 200 Bend 90 is a purpose-designed round duct bend for 200mm-diameter round ducting. It forms part of Qasair’s coordinated rigid-metal ducting system, helping installers create an appropriately sized extraction path without reducing the duct cross-sectional area specified for the rangehood.

Its 90° configuration redirects the duct run while maintaining compatibility with the relevant single-motor system. Qasair duct pieces are CAD-designed, manufactured in Australia from zinc-alume and intended for correctly sealed, non-flammable installations vented to the outside atmosphere.

Product Features:

• Purpose-built Qasair compatibility: Designed for 200mm-diameter round ducting to maintain the correct connection through the extraction path.
• 90° directional change: Provides the required change in direction while retaining the stated 200mm-diameter round ducting configuration.
• Rigid metal construction: Zinc-alume construction provides a non-flammable alternative to flexible or plastic ducting.
• Maintains the intended duct format: Supports the single-motor system without deliberately reducing the duct size.
• Australian made: Qasair ducting is manufactured in Ringwood, Victoria.

Colour / Finishes:

• Zinc Alume

Specifications:

• Brand: Qasair
• Model: DR-200/90
• Product type: Round Duct Bend
• Ducting system: single motor Qasair ducting
• Material: Zinc-alume rigid metal
• Construction: CAD-designed, non-flammable duct component
• Country of manufacture: Australia
• Duct format: 200mm diameter
• Bend angle: 90°

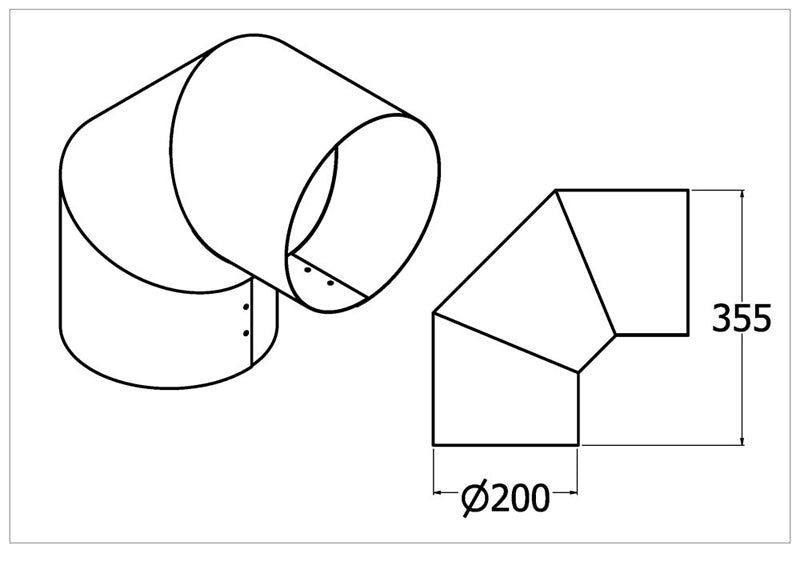

Product Measurements:

• Duct connection: 200mm diameter
• Direction change: 90°

Installation & Requirements:

• Professional planning recommended: Confirm the complete duct route, rangehood outlet and compatible component sequence before installation.
• Vent to outside atmosphere: The rangehood duct run must discharge outdoors and must not terminate in a ceiling or wall cavity.
• Do not reduce duct size: Maintain the duct cross-sectional area specified for the single-motor rangehood system.
• Use rigid, non-flammable ducting: Do not substitute flexible ducting or plastic PVC pipe.
• Seal every joint: Fit and seal all connections with suitable duct tape or silicone so fumes cannot escape into the building.

Extra Information:

This component is intended to be selected as part of a complete Qasair ducting design rather than as a universal fitting. The model code, motor configuration and adjoining duct format should all be checked before ordering.

Effective duct design is critical to rangehood performance. Qasair advises planning the route early, avoiding unnecessary restrictions and using correctly sized rigid metal ductwork throughout the installation.

Included Products / Accessories:

• 1 × Qasair DR-200/90 round duct bend

Warranty:

Covered by Condari’s 36-month warranty against defects in materials and workmanship, subject to the manufacturer’s terms, correct domestic use and compliant installation.

Downloads / Product Files:

• QASAIR DUCTING BROCHURE (PDF)
