Product Description

Product Overview:

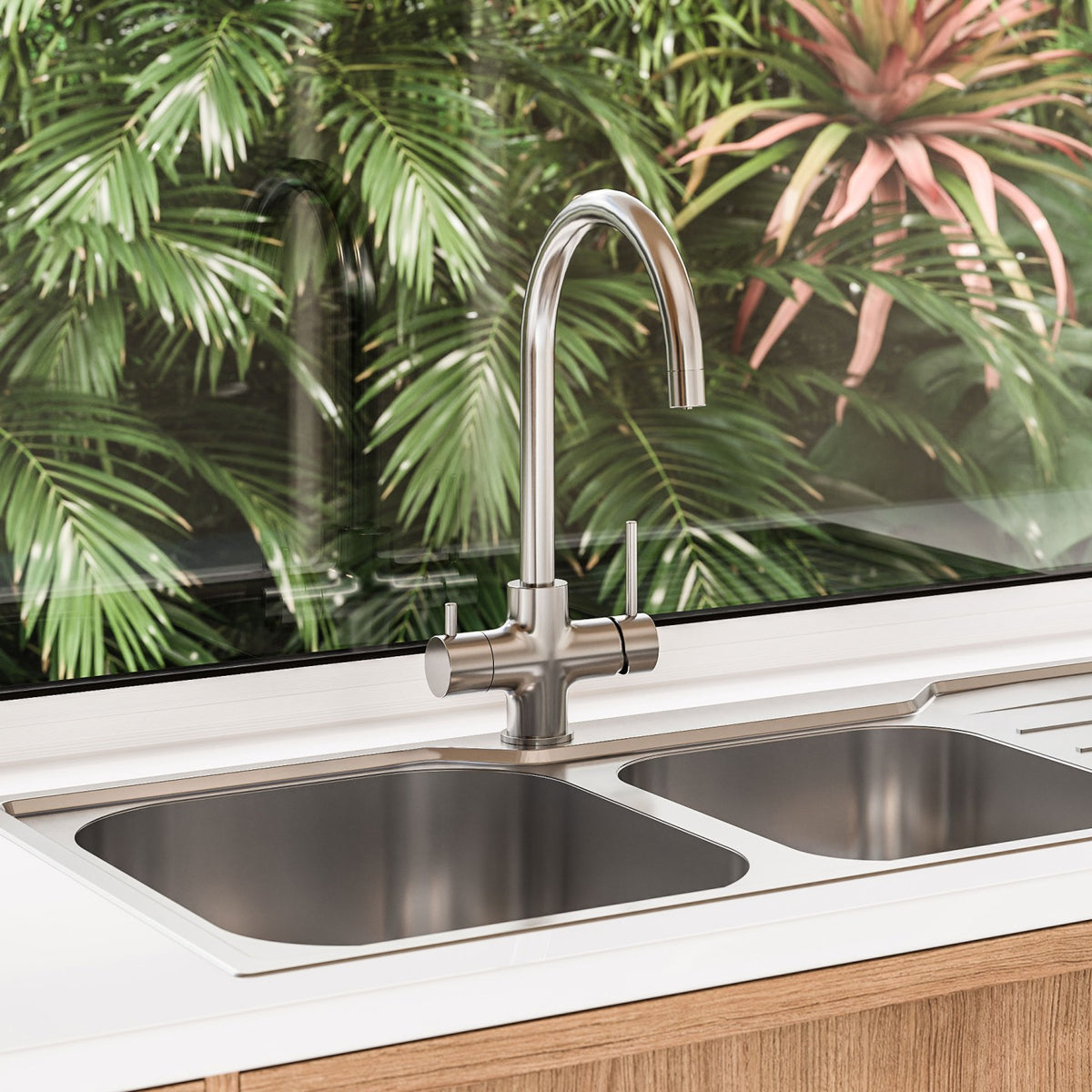

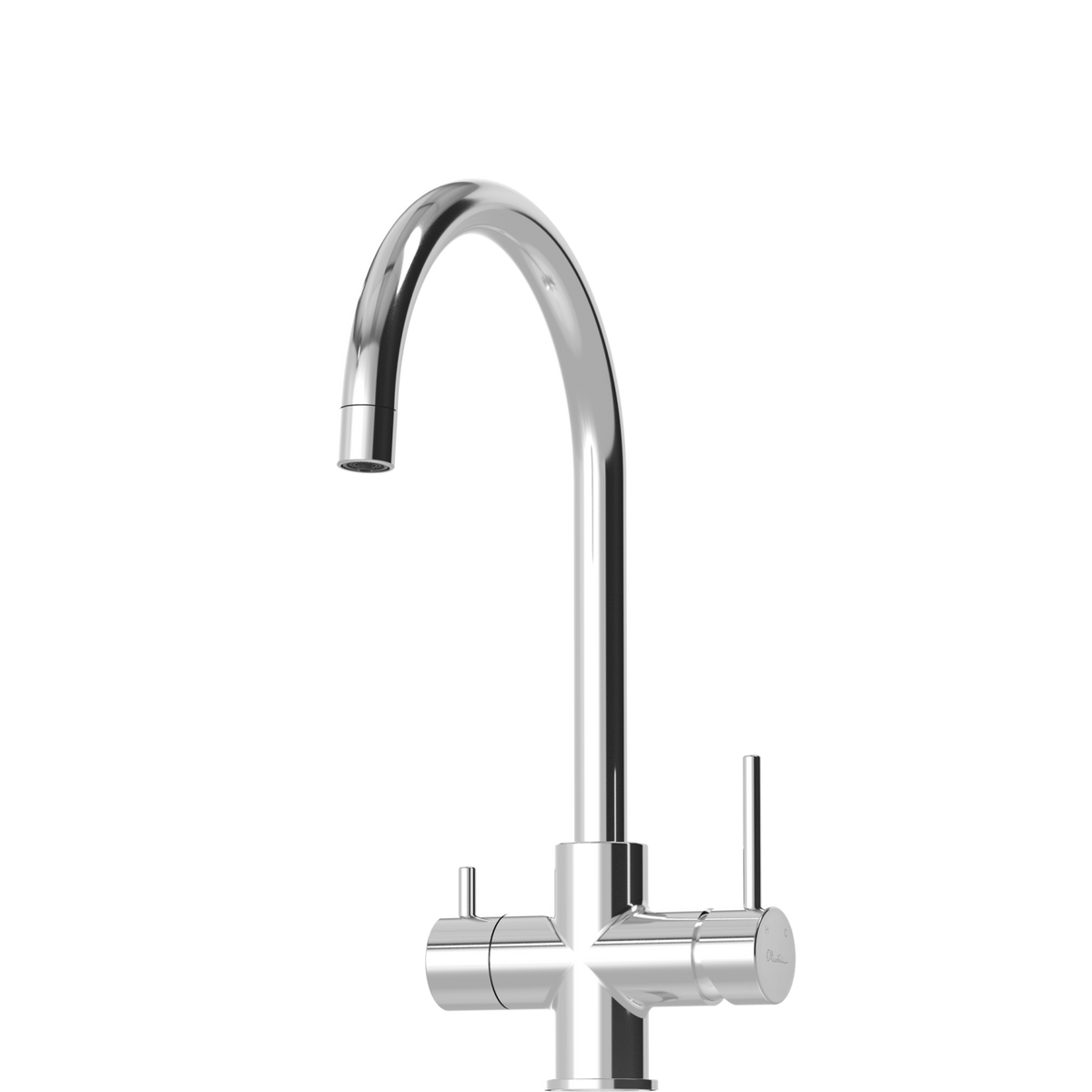

The Oliveri VE523FCR Venice Gooseneck 3 Way Filter Tap brings hot, cold and filtered water together through one elegant kitchen mixer, helping keep the benchtop uncluttered without compromising everyday convenience. Its tall 382mm gooseneck profile provides practical clearance over the sink, while the polished chrome finish gives the mixer a clean, versatile appearance.

Filtered water is kept separate from the mains supply inside the tap. The two water systems travel through independent internal paths and leave through different outlets, while a dedicated side lever controls the filtered-water flow. Connect it to a compatible under-bench filtration system, such as the separately available Oliveri FS7005, for fresh filtered water at the main kitchen sink.

A lead-free brass body, 35mm ceramic-disc cartridge and 5 Star WELS performance support confident daily use. With a 6L/min flow rate, defined temperature and pressure ranges, and an included installation guide, the VE523FCR is designed for considered kitchen or laundry installations.

Product Features:

• Three-way water delivery: Provides hot, cold and filtered water from a single kitchen mixer.
• Separated filtered-water path: Filtered and mains water travel through independent internal systems and exit through different outlets.
• Dedicated filter lever: Makes filtered-water delivery easy to control without disturbing the hot and cold mixer setting.
• Lead-free brass body: Durable construction developed for modern potable-water installations.
• 5 Star WELS efficiency: Delivers mains water at 6L/min under WELS registration T46532.
• Tall gooseneck profile: The 382mm mixer height provides useful sink clearance while creating a refined focal point.

Colour / Finishes:

• Chrome — VE523FCR

Programmes / Functions:

• Hot and cold mains mixing: The primary lever controls everyday mains-water temperature and flow.
• Dedicated filtered-water delivery: A separate lever activates the independent filtered-water pathway.
• Three-way outlet system: Keeps filtered water separate from mains water through to the spout outlets.

Cleaning & Maintenance:

• Routine cleaning: Wipe with a soft cloth and warm water, then dry to preserve the chrome finish.
• Avoid abrasive cleaners: Do not use harsh chemicals, scouring pads or abrasive powders.
• Filter maintenance: Replace cartridges according to the instructions supplied with the separately selected filtration system.
• Aerator and outlet care: Keep the outlets clear of mineral build-up to support consistent water flow.

Specifications:

• Brand: Oliveri
• Model: VE523FCR
• Collection: Venice
• Product type: Gooseneck three-way filter mixer tap
• Application: Kitchen or laundry
• Finish: Chrome
• Body material: Lead-free brass
• Cartridge: 35mm ceramic disc
• WELS rating: 5 Stars, 6L/min
• WELS registration: T46532
• Temperature range: 1°C–80°C
• Pressure range: 150–500kPa
• Pull-out function: No

Product Measurements:

• Mixer height: 382mm
• Spout height: 249mm
• Product weight: 2.7kg
• Carton dimensions (L × W × H): 54 × 30 × 6cm

Installation & Requirements:

• Installation type: Bench mounted.
• Professional installation: Installation should be completed in accordance with local plumbing requirements and the supplied guide.
• Operating pressure: Maintain the incoming water supply between 150 and 500kPa.
• Operating temperature: Suitable for water temperatures from 1°C to 80°C.
• Filtration system required: Connect to a compatible under-bench inline filtration system; the filter system is sold separately.

Extra Information:

The three-way design is particularly useful where homeowners want filtered drinking water at the main sink but prefer not to install a separate satellite tap. By combining the services in one mixer, the Venice helps preserve workspace and maintains a more cohesive sink area.

The filtered-water path remains separate from hot and cold mains water through the body of the tap and exits through its own outlet. This separation is an important part of the product design and helps ensure that filtered water is not mixed with the mains supply inside the mixer.

Included Products / Accessories:

• Oliveri VE523FCR Venice three-way filter tap
• Installation components supplied with the mixer
• Installation guide
• Under-bench filtration system: Not included; sold separately.

Warranty:

Oliveri products are backed by a comprehensive manufacturer's warranty, with coverage ranging from a lifetime warranty on stainless steel kitchen sinks, laundry tubs, and basins, through to 20 years on vitreous china basins and toilets, and 15 years on bathroom tapware and shower bodies. Warranty periods vary by product category. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• INSTALLATION GUIDE (PDF)
