Product Description

Product Overview:

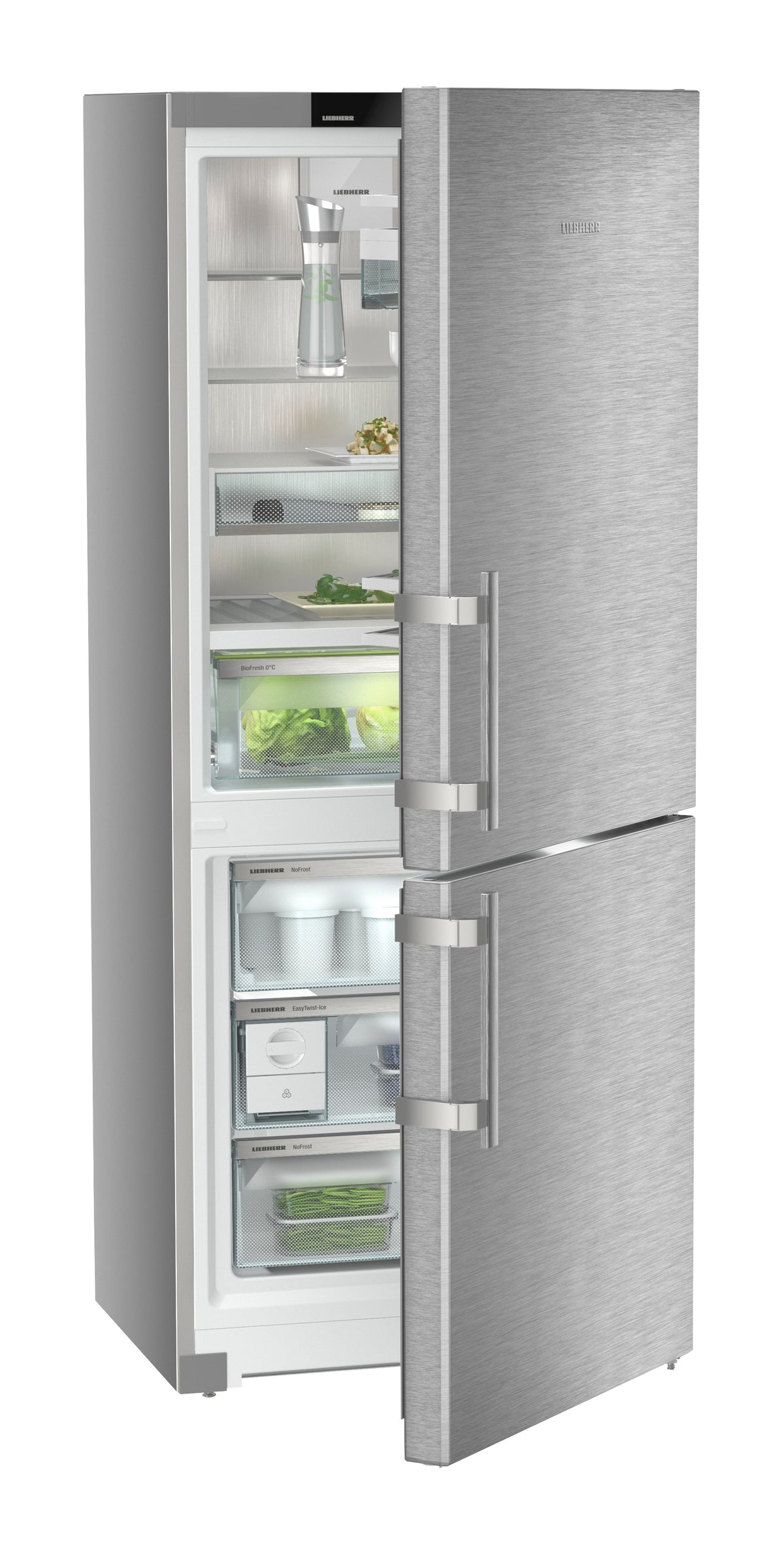

The Liebherr CBNsdh 7653 Prime is a generously proportioned 75 cm freestanding fridge-freezer for households that want substantial fresh-food and frozen storage without moving to a side-by-side format. Its 423 litre total volume is divided between a 285 litre refrigerator and a 138 litre freezer, with two dedicated BioFresh safes creating specialised storage for produce, meat and dairy. A SmartSteel stainless-steel door and silver side panels give the appliance a refined, understated finish that is designed to resist fingerprints.

Food preservation is central to the design. BioFresh maintains temperatures close to 0°C, while the sealed Fruit & Vegetable safe retains the higher humidity unpackaged produce needs. DuoCooling uses separate refrigeration circuits for the refrigerator and freezer, preventing air and odours from moving between compartments and helping reduce moisture loss. NoFrost circulates cold air through the freezer to prevent ice build-up and remove routine manual defrosting.

Everyday use is equally considered. A 2.4-inch TFT Touch & Swipe display provides clear digital control, LightTower panels illuminate the refrigerator from both sides and SoftTelescopic runners support smooth access to the BioFresh safes. VarioTemp adds exceptional flexibility: the freezer can operate conventionally from -15°C to -26°C, convert to additional cooling or cellar storage from -2°C to +14°C, or be switched off independently when it is not required.

Product Features:

• BioFresh storage: Two dedicated safes maintain conditions close to 0°C for fresh produce, meat and dairy products.
• Fruit & Vegetable safe: An airtight closure retains higher humidity for unpackaged fruit and vegetables without requiring manual adjustment.
• DuoCooling: Two completely separate refrigeration circuits prevent odour transfer and reduce moisture loss between the refrigerator and freezer.
• NoFrost: Circulating cold air prevents unwanted ice build-up, eliminating routine manual freezer defrosting.
• VarioTemp: The freezer can be used from -15°C to -26°C, converted to cooling or cellar storage from -2°C to +14°C, or switched off independently.
• EasyTwist Ice: A removable water tank produces and releases ice cubes without a fixed plumbing connection.
• PowerCooling with FreshAir: Forced-air circulation distributes cool air evenly while an activated-charcoal filter helps manage unwanted odours.
• Touch & Swipe display: A 2.4-inch TFT colour interface provides digital temperature control for the refrigerator, BioFresh and freezer areas.
• SoftTelescopic safes: Telescopic runners and gentle self-retraction make the BioFresh drawers smooth and comfortable to use.
• LightTower illumination: LED light panels on both sides, supported by dedicated BioFresh lighting, provide a clear view across the interior.
• Flexible storage: VarioSafe, an integrated bottle rack, Premium GlassLine door storage, two VarioBoxes and VarioSpace help organise items of different sizes.
• SmartSteel finish: The coated stainless-steel surface minimises fingerprints and improves resistance to minor scratches.
• SmartDevice ready: An optional SmartDeviceBox can add compatible connected functions where the service is available.

Colour / Finishes:

• Door: SmartSteel stainless steel
• Side walls: Silver
• Interior fittings: GlassLine shelves with transparent and stainless-steel details

Programmes / Functions:

• SuperCool: Temporarily increases refrigerator cooling performance for recently purchased groceries before automatically returning to normal operation.
• SuperFrost: Provides maximum freezer performance for fresh food and then returns automatically to the previous setting.
• PartyMode: Activates appliance functions suited to short periods of higher use when entertaining.
• HolidayMode: Reduces refrigerator operation during longer absences while the freezer continues at its selected temperature.
• EnergySaver: Raises selected temperatures within the permitted range to reduce energy consumption when appropriate.
• SabbathMode: Restricts lighting, display activity and audible signals for Sabbath and holiday observance.
• CleaningMode: Keeps the refrigerator light active while cooling is switched off, allowing the compartment to be cleaned more conveniently.
• VarioTemp: Changes the freezer to suit frozen storage, additional refrigeration or cellar-style use across -26°C to +14°C.
• EasyTwist Ice: Supports manually filled, plumbing-free ice production using the removable internal water tank.
• Display lock: Prevents unintended changes to settings from the Touch & Swipe display.
• Alerts and alarms: Visual and acoustic warnings cover open doors, temperature deviations, malfunctions and power failures.
• SmartDevice connectivity: Optional Wi-Fi functions are available with a compatible SmartDeviceBox and supported service.

Cleaning & Maintenance:

• Automatic freezer defrosting: NoFrost prevents ice accumulation, so routine manual defrosting of the freezer is not required.
• Before cleaning: Disconnect the appliance from power, or use CleaningMode for refrigerator-interior cleaning where appropriate.
• Recommended materials: Use soft cloths, lukewarm water and a small amount of pH-neutral all-purpose detergent.
• Exterior care: Use glass cleaner on suitable glass surfaces; clean plastic and coated metal parts with lukewarm water and mild detergent.
• Interior components: Remove shelves, door racks, drawers and other detachable fittings only as described in the operating instructions, then clean and refit them securely.
• Drain opening: Check and clean the refrigerator drain opening regularly so condensation can flow away correctly.
• Avoid damage: Do not use abrasive sponges, steel wool, sharp tools, steam cleaners, or cleaners containing sand, chloride or acid.
• After cleaning: Wipe all surfaces dry, reconnect the appliance and return food only after the storage areas are clean and operating correctly.
• Replaceable care items: Replace the FreshAir activated-charcoal filter and door seal when required using compatible Liebherr parts.

Specifications:

• Appliance type: Freestanding fridge-freezer
• Series: Prime
• Total volume: 423 L
• Refrigerator volume: 285 L
• Freezer volume: 138 L
• BioFresh safes: 2
• Freezer drawers: 3 with VarioSpace
• Energy consumption: 228 kWh per year
• Energy rating: 6 stars
• Noise level: 34 dB
• Climate rating: SN-T (+10°C to +43°C)
• Freezing capacity: 10 kg per 24 hours
• Temperature rise time: 20 hours
• Control: 2.4-inch TFT colour Touch & Swipe display
• Temperature display: Digital display for refrigerator, BioFresh and freezer
• Door and malfunction alarms: Visual and acoustic
• Door hinging: Right, reversible
• Door seal: Replaceable
• Electrical connection: 220–240 V, 50–60 Hz
• Connection rating: 1.4 A / 183 W
• SmartDevice connectivity: Optional SmartDeviceBox required
• EAN: 4016803057437

Product Measurements:

• Height: 1855 mm
• Width: 747 mm
• Depth: 675 mm
• Depth with supplied wall spacers: Approximately 690 mm

Product Weight:

• Net weight: 98.4 kg

Installation & Requirements:

• Installation type: Freestanding; this appliance is not designed as a built-in refrigerator.
• Power supply: Connect to an accessible, correctly earthed 220–240 V, 50–60 Hz outlet in accordance with local requirements.
• Minimum ventilation cross-section: Provide at least 300 cm² of unobstructed ventilation.
• Rear clearance: Allow approximately 50 mm behind the appliance, subject to the installation instructions and surrounding layout.
• Side wall clearance: Allow approximately 57 mm beside an adjacent wall so the door and internal fittings can operate correctly.
• Wall spacers: Fit the supplied spacers to achieve the declared energy performance; they add approximately 15 mm to the overall depth.
• Door configuration: Supplied right-hinged and reversible by following the installation instructions.
• Positioning: Install on a stable, level floor in a dry, ventilated interior location and keep ventilation openings clear.
• Cabinet alignment: When positioned beside cabinetry, the appliance may need to project by the door depth to allow full opening and drawer removal.
• Final checks: Level the appliance, confirm the door closes and seals correctly, and allow safe access to the plug after installation.

Country of Origin:

• Bulgaria

Extra Information:

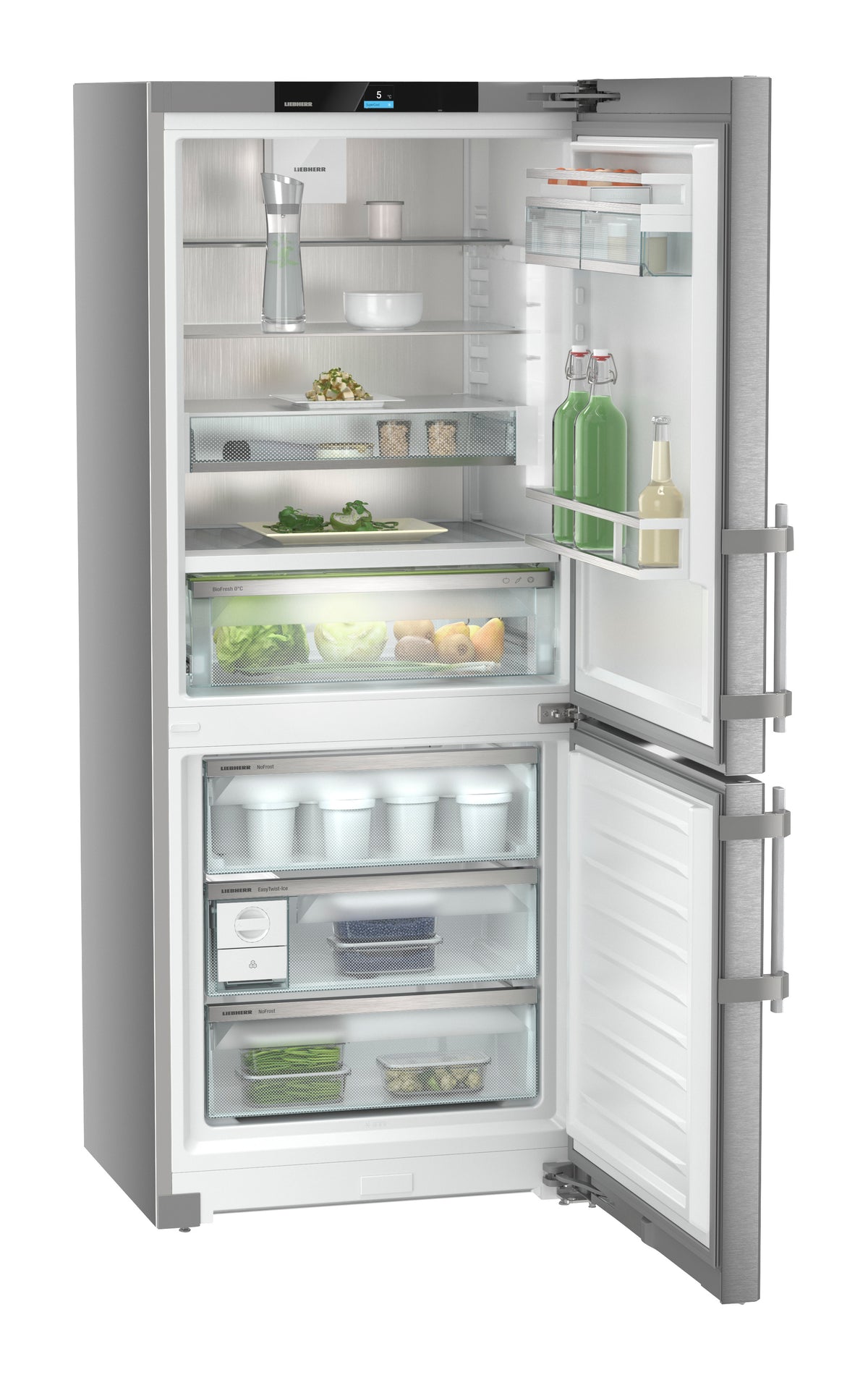

Interior storage is designed for both daily groceries and larger items. Premium GlassLine door shelves include a bottle holder, two removable VarioBoxes organise smaller packages, the adjustable egg tray adapts to different quantities and the VarioSafe creates a dedicated place for tubes, jars and small containers. The integrated bottle shelf stores drinks securely without sacrificing a conventional glass shelf.

The three freezer drawers and intermediate glass shelves can be removed to create VarioSpace for bulky frozen food or tall containers. EasyTwist Ice is filled manually, so no plumbing connection is required; the tank and ice system should be cleaned in accordance with the operating instructions before first use and at the recommended intervals.

SmartDevice connectivity requires the separately available SmartDeviceBox, a compatible network and service availability in Australia. Climate class SN-T is intended for ambient temperatures from +10°C to +43°C. Capacity, energy use and performance depend on correct installation, ventilation, loading and ambient conditions.

Included Products / Accessories:

• Adjustable egg tray
• 2 x removable VarioBoxes
• Premium GlassLine door shelves with bottle holder
• Integrated bottle shelf
• VarioSafe organiser
• EasyTwist Ice system with removable water tank
• FreshAir activated-charcoal filter

Warranty:

Liebherr appliances are backed by a 5-year manufacturer's warranty against defects in materials and workmanship, distributed in Australia by Andi-Co Australia Pty. Ltd. All warranties are in addition to your rights under the Australian Consumer Law.
