Product Description

Product Overview:

Designed to deliver powerful extraction without compromising kitchen aesthetics, the Kleenmaid RHSOG Hybrid Concealed Swing-Out Rangehood integrates discreetly within overhead cabinetry while offering the flexibility of both concealed fixed undermount and swing-out operation. Available in 60cm and 90cm widths, the RHSOG range provides a streamlined appearance that complements contemporary kitchen designs while delivering the extraction performance required for everything from everyday meal preparation through to high-intensity cooking.

Powered by an advanced Brushless Direct Current (BLDC) motor, the RHSOG range delivers extraction rates of up to 900m³/h while consuming less energy than conventional motors. Three standard extraction speeds together with two Boost settings provide precise control over ventilation performance, allowing cooking vapours, grease and odours to be removed quickly during demanding cooking sessions. Operating noise ranging from 41dB to 55dB helps maintain a more comfortable kitchen environment without compromising extraction effectiveness.

Designed for everyday convenience, the rangehood features elegant glass touch controls, adjustable LED lighting with selectable colour temperature and brightness, dishwasher-safe aluminium grease filters and an intelligent Air Refresh mode that automatically ventilates the kitchen for five minutes every hour to help minimise lingering odours. Installation flexibility is equally impressive, allowing the appliance to operate as either a ducted extraction system or a recirculating rangehood when fitted with optional activated carbon filters. Backed by Kleenmaid's 5 Year appliance warranty together with a 10 Year BLDC motor warranty, the RHSOG range combines premium European design with long-term reliability for modern Australian kitchens.

Product Features:

• Powerful 900m³/h Extraction: Delivering extraction performance of up to 900m³/h, the RHSOG range rapidly removes cooking vapours, grease, smoke and odours, helping maintain a cleaner and more comfortable cooking environment during everything from gentle simmering to intensive wok cooking.

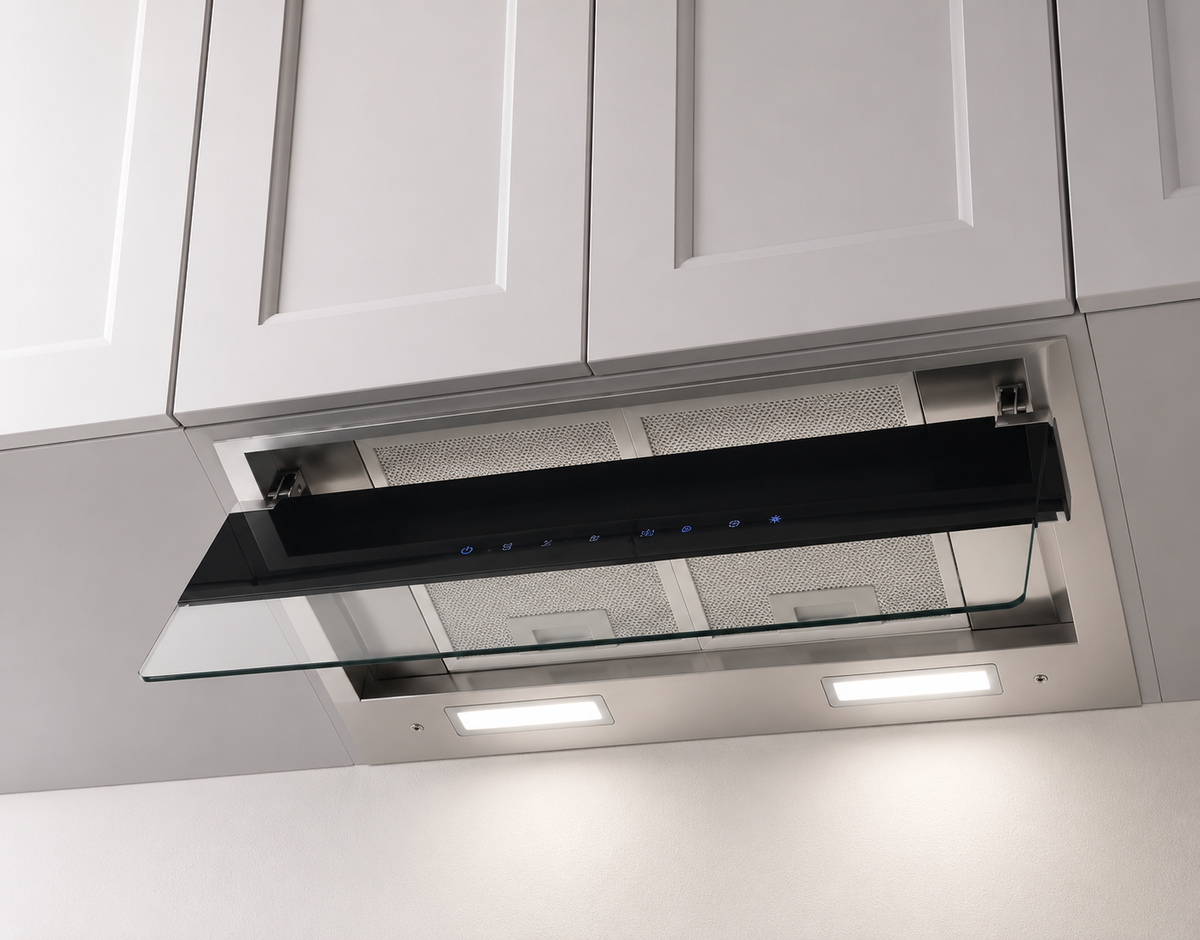

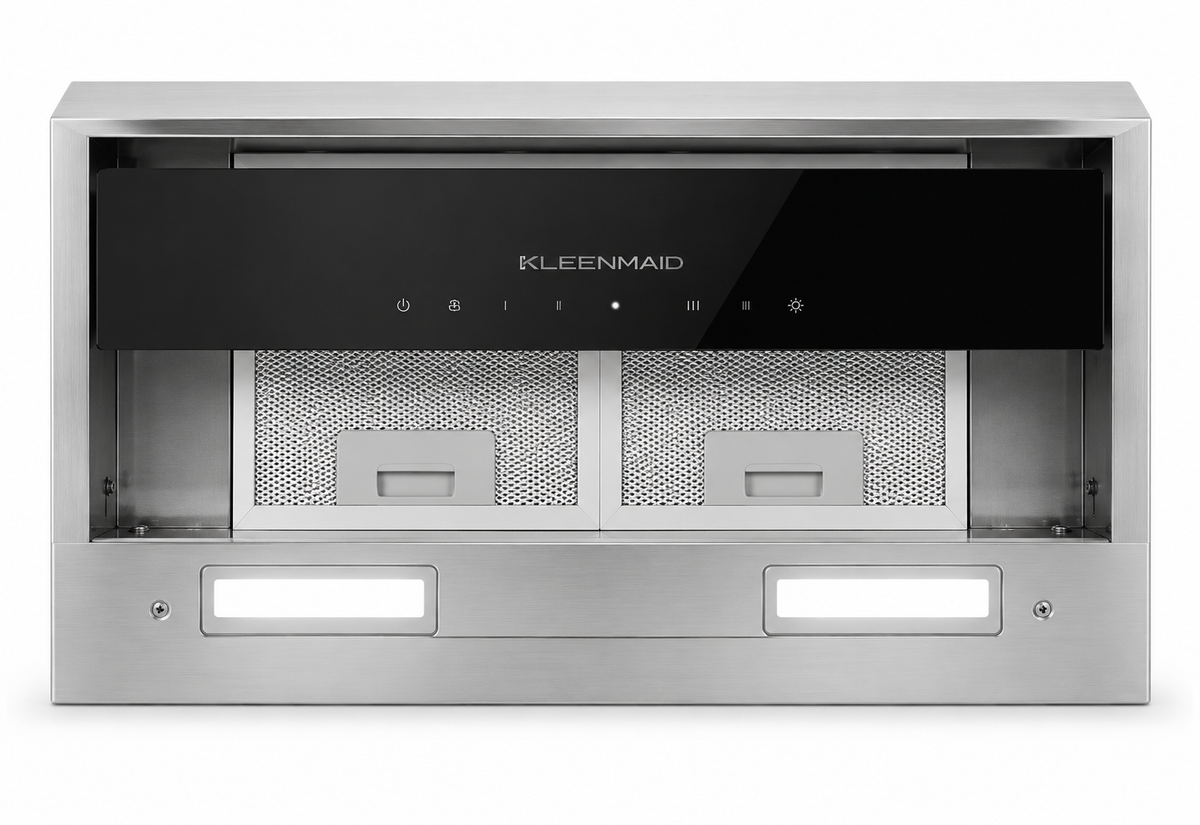

• Hybrid Installation Design: The hybrid design allows the appliance to be installed as either a concealed swing-out rangehood or as a fixed undermount unit with perimeter aspiration, providing greater flexibility to suit different cabinetry styles and kitchen layouts.
• Energy Efficient BLDC Motor: At the heart of the RHSOG range is a high-performance Brushless Direct Current (BLDC) motor. Compared with conventional motors, BLDC technology delivers powerful airflow with reduced energy consumption, quieter operation and enhanced long-term durability.
• 10 Year Motor Warranty: The premium BLDC motor is backed by a dedicated 10 Year Warranty, providing additional confidence in the long-term reliability of the appliance while complementing Kleenmaid's comprehensive appliance warranty.
• Three Speeds Plus Two Boost Levels: Three everyday extraction speeds together with two Boost settings allow ventilation performance to be tailored to different cooking methods, delivering additional extraction power whenever higher volumes of steam or smoke are generated.
• Quiet Kitchen Performance: Operating between 41dB and 55dB, the RHSOG range has been engineered to provide effective ventilation while helping reduce kitchen noise during everyday cooking.
• Automatic Air Refresh Mode: The selectable Air Refresh function automatically operates the rangehood for five minutes every hour, helping maintain fresher indoor air throughout the day by reducing lingering cooking odours even after meal preparation has finished.
• Glass Touch Controls: Premium glass touch controls provide intuitive operation while contributing to the appliance's contemporary appearance. The smooth glass surface is also easy to wipe clean, helping maintain the rangehood's premium finish.
• Adjustable LED Lighting: Two integrated LED lamps illuminate the cooking surface while offering selectable colour temperature and adjustable brightness, allowing lighting to be tailored to both cooking tasks and kitchen ambience. LED technology also delivers long service life with lower energy consumption than conventional lighting.
• Dishwasher Safe Aluminium Grease Filters: Multi-layer aluminium grease filters efficiently capture airborne grease while remaining fully removable for convenient cleaning in a household dishwasher, supporting ongoing extraction performance with minimal maintenance.
• 150mm High Performance Duct Outlet: A large 150mm air outlet promotes improved airflow efficiency and reduced duct resistance, helping maximise extraction performance when installed as a ducted ventilation system.
• Outside Air Non-Return Mechanism: An integrated non-return mechanism helps prevent outside air from re-entering the kitchen through the ducting system when the rangehood is switched off, contributing to improved energy efficiency and indoor comfort.
• Ducted or Recirculating Operation: The RHSOG range may be installed as a conventional ducted rangehood or configured for recirculating operation using optional KAA2.0061 activated carbon filters, providing greater installation flexibility where external ducting is impractical.
• Plug-and-Play Installation: Supplied with a factory-fitted 10A plug and power cord, the appliance is ready for connection following installation, simplifying the commissioning process where a suitable power outlet is available.

Colour / Finishes:

• Stainless Steel - RHSOG62 – 60cm
• Stainless Steel - RHSOG92 – 90cm

Programmes / Functions:

• 3 Extraction Speeds – Provides three everyday ventilation levels to suit everything from light simmering to intensive cooking.
• 2 Boost Speeds – Delivers maximum extraction power when cooking generates high levels of steam, smoke or odours.
• Air Refresh Mode – Automatically operates the rangehood for five minutes every hour to help maintain fresher indoor air throughout the day.
• Adjustable LED Lighting – Select the preferred LED colour temperature and brightness to suit both cooking tasks and kitchen ambience.

Cleaning & Maintenance:

• Dishwasher-Safe Aluminium Grease Filters – Removable aluminium filters can be cleaned in the dishwasher to help maintain optimum extraction performance.
• Smooth Glass Touch Controls – The flat glass control panel is easy to wipe clean, helping maintain the appliance's premium appearance.
• Air Refresh Function – Regular automatic ventilation helps reduce lingering cooking odours and contributes to a fresher kitchen environment between cooking sessions.
• Optional Carbon Filters – When operating in recirculating mode, the optional KAA2.0061 activated carbon filters should be replaced periodically in accordance with the manufacturer's recommendations to maintain effective odour removal.
• Routine Maintenance – Clean the grease filters regularly and keep the air outlet free from obstructions to ensure efficient airflow and reliable long-term performance.

Specifications:

• Product Type: Hybrid Concealed Swing-Out Rangehood
• Installation Type: Concealed Fixed Undermount or Swing-Out
• Available Widths: 60cm / 90cm
• Finish: Stainless Steel with Black Glass Control Panel
• Maximum Extraction Rate: Up to 900m³/h
• Extraction Speeds: 3
• Boost Speeds: 2
• Air Refresh Function: Yes – 5 minutes per hour
• Control Type: Glass Touch Controls
• Motor Type: Brushless Direct Current (BLDC)
• Motor Warranty: 10 Years
• Noise Level: 41–55dB
• Lighting: 2 × Adjustable LED Lamps
• Adjustable LED Colour Temperature: Yes
• Adjustable LED Brightness: Yes
• Grease Filters: Aluminium, dishwasher safe
• Duct Outlet Diameter: 150mm
• Outside Air Non-Return Mechanism: Yes
• Ventilation Options: Ducted or Recirculating
• Optional Carbon Filters: KAA2.0061
• Electrical Connection: 10A plug and cord supplied

Product Measurements:

RHSOG62 – 60cm

• Overall Width: 568mm
• Overall Depth (Closed): 311mm
• Overall Height: 130mm
• Upper Motor Housing Depth: 402mm
• Upper Motor Housing Height: 351mm
• Duct Outlet Diameter: 150mm

RHSOG92 – 90cm

• Overall Width: 868mm
• Overall Depth: 311mm
• Overall Height: 130mm
• Upper Motor Housing Depth: 402mm
• Upper Motor Housing Height: 351mm
• Duct Outlet Diameter: 150mm

Installation & Requirements:

• Installation Configuration: Hybrid concealed installation suitable for either fixed undermount perimeter aspiration or swing-out operation beneath overhead cabinetry.
• Ventilation Options: Suitable for fully ducted extraction or recirculating installation using optional KAA2.0061 activated carbon filters.
• Duct Diameter: 150mm round duct for optimum airflow performance.
• Electrical Supply: 220–240V / 50Hz.
• Connection Type: Factory-fitted 10A plug and power cord supplied, ready for connection following installation.
• Cabinet Integration: Designed for concealed installation within overhead cabinetry, allowing the rangehood to operate as either a fixed undermount perimeter aspiration unit or a swing-out rangehood while maintaining a streamlined kitchen appearance.
• Control System: Premium glass touch controls provide intuitive operation of fan speeds, Boost modes, Air Refresh mode and LED lighting.
• Air Refresh Mode: Selectable automatic Air Refresh function operates the rangehood for five minutes every hour to assist with maintaining fresher indoor air.
• Recommended Installation: Installation should be completed by a suitably qualified installer in accordance with the manufacturer's installation instructions and all applicable electrical and building regulations.
• Maintenance Access: Dishwasher-safe aluminium grease filters can be removed from below the appliance for routine cleaning without removing the rangehood from the cabinetry.

Country of Origin:

• Made in Italy

Extra Information:

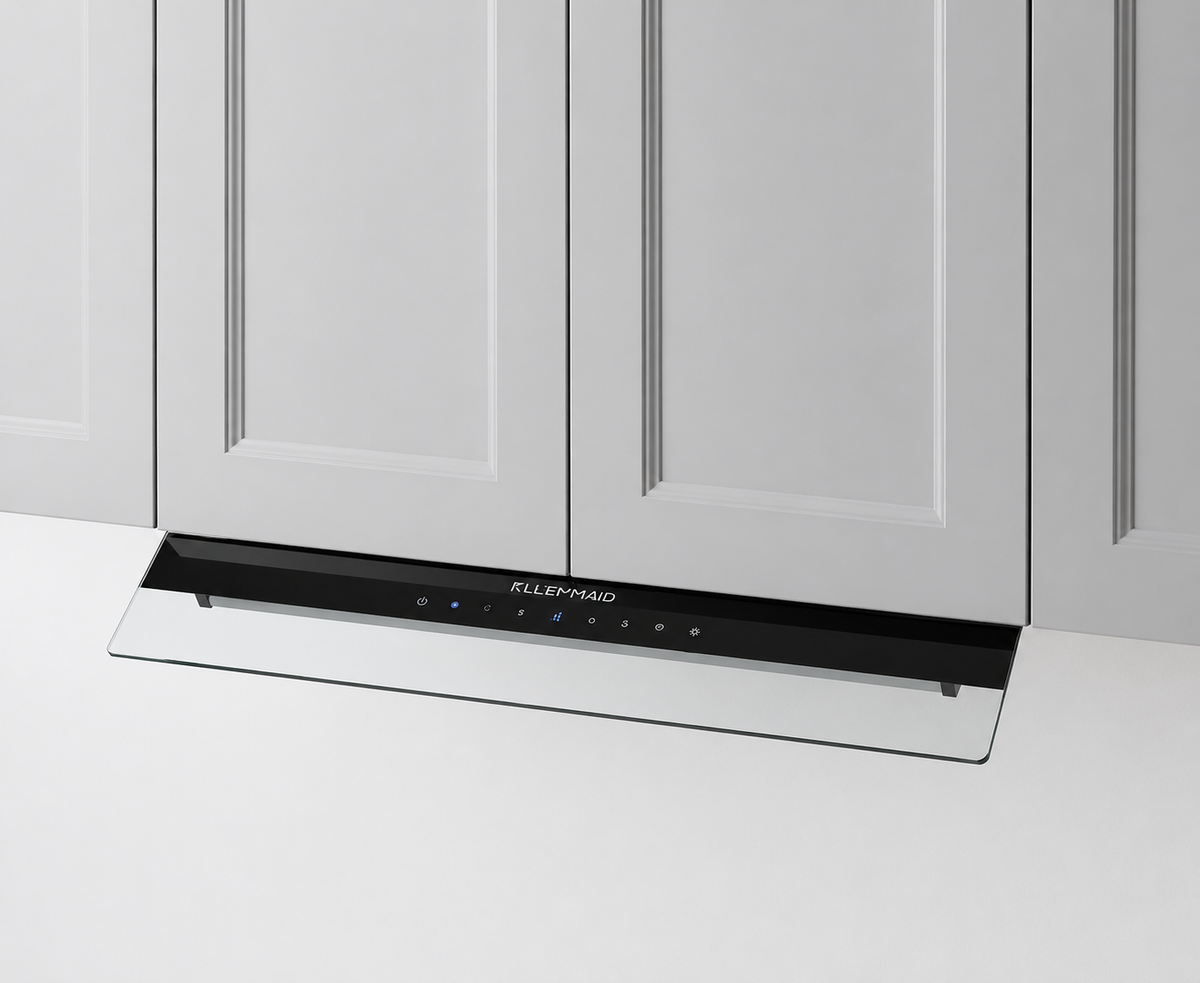

The RHSOG range has been engineered for homeowners seeking the appearance of a fully integrated kitchen without sacrificing extraction performance. When retracted, only the slim stainless steel fascia remains visible beneath the cabinetry, helping maintain uninterrupted cabinet lines while keeping the ventilation system immediately accessible during cooking.

The hybrid ventilation system provides greater installation flexibility than conventional ducted-only rangehoods. Where external ducting is available, cooking vapours are exhausted outdoors for maximum extraction efficiency. In apartments or kitchens where ducting is impractical, the rangehood can operate in recirculating mode when fitted with the optional Kleenmaid KECF189 activated carbon filters.

Automatic operation further simplifies everyday use by activating the extraction system as the slide-out canopy is extended. Together with quiet operation, energy-efficient LED lighting and dishwasher-safe aluminium grease filters, the RHSOG range has been designed to minimise day-to-day maintenance while providing reliable ventilation for everyday family cooking.

Kleenmaid's KwikFit installation system has also been developed to simplify appliance installation and future replacement, reducing installation complexity while ensuring secure integration within standard overhead cabinetry.

Included Products / Accessories:

• 2 x Aluminium grease filters
• 2 x Integrated LED lamps
• Outside air non-return flap
• 120mm duct outlet connection
• 10A power cord and plug
• Installation hardware
• Installation instructions
• User manual

Warranty:

Backed by a 5 Year Parts and Labour Warranty when installed and operated in accordance with Kleenmaid's installation and operating instructions.

Downloads / Product Files:

• RHSOG62 SPECIFICATIONS SHEET (PDF)

• RHSOG92 SPECIFICATIONS SHEET (PDF)

• USER MANUAL (PDF)
