Product Description

Product Overview:

New In Box Clearance: This product is offered as a new-in-box clearance item. Clearance availability is limited; the technical specifications, installation requirements and manufacturer documentation remain the same as the standard Tastic Vivid model.

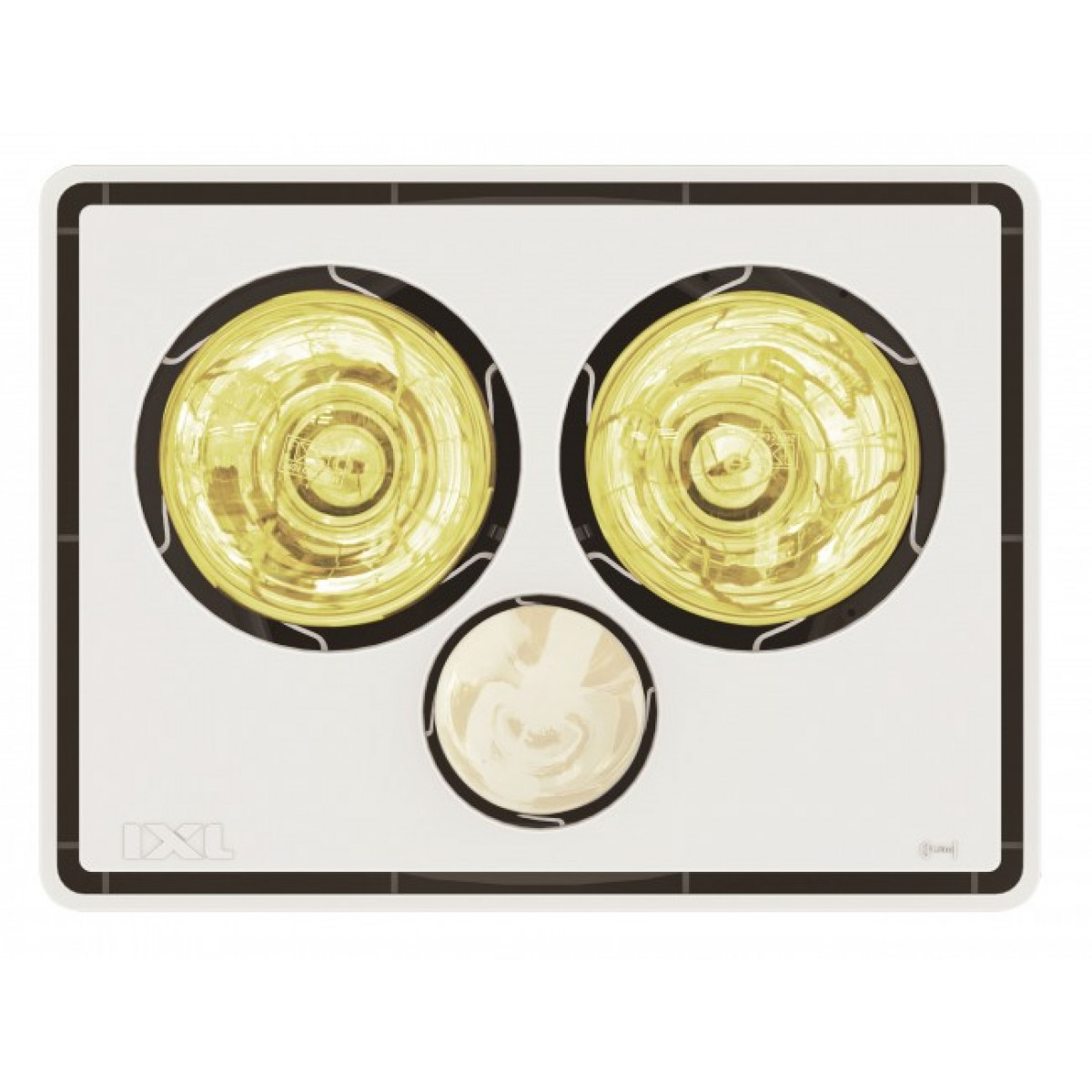

The IXL Tastic Vivid 11323 brings heating, ventilation and adaptable bathroom lighting together in one compact ceiling-mounted unit. Designed for everyday family bathrooms, it delivers fast radiant warmth from two 275W infrared heat lamps, a 310m³/hr exhaust fan and a 10W multi-option LED centre globe.

Its selectable Warm, Cool and Daylight lighting makes it easy to shift from a softer early-morning atmosphere to clear task lighting, while the powerful fan helps remove steam and humidity after showers. The clean white fascia keeps the overall appearance simple and easy to coordinate with a wide variety of bathroom finishes.

Proudly designed and manufactured in Australia, the Vivid is suited to rooms up to 6.46m² with a shower or 16.15m² without a shower. Independent wall-switch controls allow the heat, light and exhaust functions to be used as needed.

Product Features:

• Three functions in one: Combines radiant bathroom heating, steam extraction and adaptable LED lighting in a single ceiling unit.
• Fast infrared warmth: Two 275W heat lamps provide immediate directional warmth when stepping out of the shower.
• Powerful extraction: A 310m³/hr exhaust fan helps clear steam, humidity and condensation from the bathroom.
• Multi-option lighting: The 10W R80 LED globe switches between Warm, Cool and Daylight illumination.
• Australian made: Designed and manufactured in Australia for local homes and installation requirements.
• Clean white fascia: A simple neutral finish integrates easily into contemporary and traditional bathrooms.
• Independent wall controls: Operate the heating, light and ventilation functions according to the room’s needs.
• Room-matched performance: Suitable for bathrooms up to 6.46m² with a shower or 16.15m² without a shower.

Colour / Finishes:

• White

Programmes / Functions:

• Heat: Independently controlled twin 275W infrared heat lamps provide fast directional warmth.
• Ventilation: The 310m³/hr exhaust fan helps remove steam and humidity from the bathroom.
• Lighting: A 10W R80 centre globe provides selectable Warm, Cool or Daylight illumination.
• Wall-switch control: Heat, light and ventilation functions can be selected to suit the moment.

Cleaning & Maintenance:

• Before cleaning: Switch the appliance off, isolate the power and allow the heat lamps to cool completely.
• Fascia and air inlet: Wipe accessible surfaces with a soft damp cloth and keep the air inlet free from dust.
• Lamp care: Handle replacement heat lamps only when cool and use genuine IXL-approved replacements.
• Ongoing maintenance: Inspect and clean the fascia, air inlet and lamps periodically in accordance with the supplied user guide.

Specifications:

• Product type: 3-in-1 bathroom heater, exhaust fan and light
• Model: Tastic Vivid 11323
• Barcode: 9332048028939
• Finish: White
• Airflow extraction: 310 m³/hr (86 L/s)

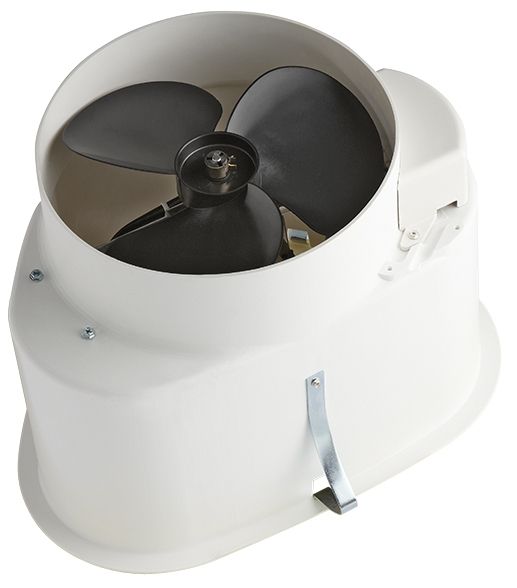

• Fan size: 200 mm
• Heat lamps: 2 x 275W infrared
• Centre light: 10W R80 multi-option LED
• Lighting modes: Warm, Cool and Daylight
• Total wattage: 590W (40W fan)
• Room suitability with shower: Up to 6.46 m²
• Room suitability without shower: Up to 16.15 m²
• Minimum ceiling height: 2.1 m
• Maximum ceiling height: 2.4 m
• Maximum unit height: 230 mm
• Minimum ceiling cavity including clearance: 305 mm
• Back draught flaps: No
• Wall switch: Included
• Ducted: No
• Warranty: 5-year in-home unit warranty; 2-year replacement coverage on specified components

Product Measurements:

• Fascia Dimensions (W x D): 381 x 296 mm
• Cut-out: Template supplied
• Maximum Unit Height: 230 mm

Product Weight:

• Net Weight: 2.8 kg

Installation & Requirements:

• Installation type: Horizontal ceiling installation.
• Required trade: Installation must be completed by a qualified electrical tradesperson.
• Ceiling height: Suitable for ceiling heights from 2.1 to 2.4 metres.
• Ceiling cavity: Allow at least 305 mm including the required clearance.
• Ventilation planning: Provide adequate replacement air into the bathroom and follow the supplied positioning guidance.
• Safety: Do not cover the appliance with ceiling insulation and install in accordance with AS/NZS 3000 requirements for damp locations.

Country of Origin:

• Australia

Extra Information:

The Tastic Vivid uses radiant infrared heating, which is designed to warm the person standing beneath the unit rather than heat the entire bathroom. Positioning the appliance near the drying area provides the most effective comfort.

Bathrooms with open showers, unusually high moisture loads or restricted replacement air may require additional ventilation.

Clearance condition: New in box. Clearance stock is limited to the quantity shown online.

Included Products / Accessories:

• Wall switch
• 2 x 275W infrared heat lamps
• 10W R80 multi-option LED globe
• Cut-out template

Warranty:

IXL appliances are backed by a 5-year in-home warranty on all Tastic units, a 3-year warranty on Ventflo exhaust fans, and a 3-year in-home service warranty on Aeroflow ceiling fans. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• USER GUIDE (PDF)

• PRODUCT SPECIFICATIONS CHART (JPG)
