Product Description

Product Overview:

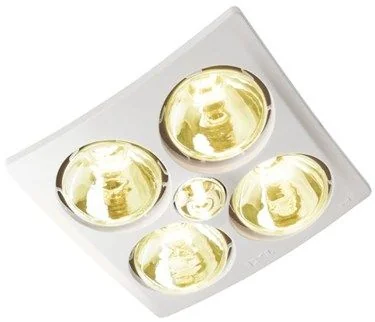

The IXL Tastic Easy Duct Sensation 12511 is a high-output 3-in-1 bathroom heater, exhaust fan and light designed for larger bathrooms and households that want stronger radiant warmth. Four 275W infrared heat lamps provide up to 1100W of immediate heating, with a half-heat function available when full output is not required.

A 223m³/hr inline exhaust fan draws steam and humidity outdoors through the supplied six metres of 150mm ducting. The centred 10W R80 light provides practical illumination, while the square white fascia gives the unit a clean, balanced appearance in the ceiling.

Proudly manufactured in Australia, the Sensation suits bathrooms up to 4.65m² with a shower or 11.61m² without a shower. The included ducting, exterior grille and wall switch support a well-planned installation, while the dishwasher-safe fascia helps make ongoing maintenance easier.

Product Features:

• Four-lamp heating: Four 275W infrared lamps deliver powerful, immediate radiant warmth.
• Half-heat flexibility: Select reduced heat output when the full four-lamp setting is not needed.
• Ducted steam removal: A 223m³/hr inline fan exhausts humid air outdoors through the supplied ducting.
• Complete Easy Duct package: Includes six metres of 150mm flexi-duct, exterior grille and wall switch.
• Practical centre lighting: A 10W R80 globe provides clear illumination for daily bathroom routines.
• Dishwasher-safe fascia: The removable fascia supports easier regular cleaning.
• Australian manufactured: Built in Australia for local bathroom conditions and requirements.
• Larger-room suitability: Suitable for rooms up to 4.65m² with a shower or 11.61m² without a shower.

Colour / Finishes:

• White

Programmes / Functions:

• Full heat: Four 275W infrared lamps deliver the maximum radiant heating output.
• Half heat: Operate a reduced lamp setting when less warmth is required.
• Ventilation: The 223m³/hr inline fan extracts steam through the supplied external ducting.
• Lighting: A 10W R80 centre globe provides everyday bathroom illumination.
• Wall-switch control: The supplied switch provides direct access to the heating, fan and lighting functions.

Cleaning & Maintenance:

• Before cleaning: Switch off and isolate the power, then allow every heat lamp to cool completely.
• Dishwasher-safe fascia: Remove and clean the fascia as instructed in the supplied user guide.
• Ventilation care: Keep air inlets, ducting and the exterior outlet free from dust and obstruction.
• Lamp replacement: Use genuine IXL-approved lamps and follow the user guide replacement procedure.

Specifications:

• Product type: 3-in-1 bathroom heater, exhaust fan and light
• Model: Tastic Easy Duct Sensation 12511
• Barcode: 9313416125115
• Finish: White
• Airflow extraction: 223 m³/hr (62 L/s)
• Fan size: 170 mm
• Heat lamps: 4 x 275W infrared
• Half-heat function: Yes
• Centre light: 10W R80 LED
• Total wattage: 1140W (40W fan)
• Ducting: 6 m x 150 mm diameter flexi-duct included
• Room suitability with shower: Up to 4.65 m²
• Room suitability without shower: Up to 11.61 m²
• Minimum ceiling height: 2.1 m
• Maximum ceiling height: 2.7 m
• Total ceiling cavity required: 230 mm
• Inline fan maximum height: 215 mm
• Back draught flaps: Yes
• Wall switch: Included
• Ducted: Yes
• Warranty: 5-year in-home unit warranty; 2-year replacement coverage on heat lamps and inline fan

Product Measurements:

• Fascia Dimensions (W x D): 381 x 381 mm
• Cut-out Dimensions (W x D): 330 x 330 mm
• Total Unit Height excluding Fascia: 215 mm
• Required Ceiling Cavity: 230 mm

Product Weight:

• Net Weight: 6.2 kg

Installation & Requirements:

• Installation type: Horizontal ceiling installation with externally ducted inline fan.
• Required trade: Installation must be completed by a qualified electrical tradesperson.
• Ducting: Use the supplied 6 m x 150 mm flexi-duct and exterior grille to vent outdoors.
• Ceiling height: Suitable for ceiling heights from 2.1 to 2.7 metres.
• Cut-out: Provide a 330 x 330 mm ceiling opening and the required 230 mm cavity.
• Ventilation planning: Ensure sufficient replacement air can enter the bathroom for effective extraction.

Country of Origin:

• Australia

Extra Information:

The half-heat function gives households a practical choice between lighter everyday warmth and the full output of all four infrared lamps.

Open showers, restricted replacement air and unusually high moisture loads may require additional ventilation beyond the Tastic unit.

Included Products / Accessories:

• Wall switch
• 4 x 275W infrared heat lamps
• 10W R80 LED centre globe

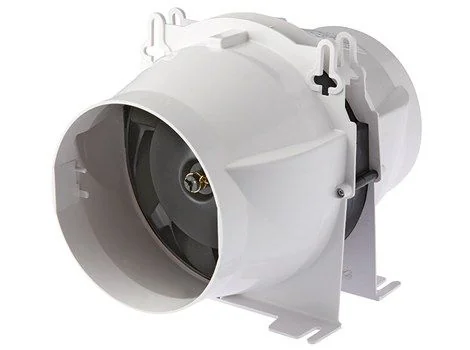

• Inline exhaust fan

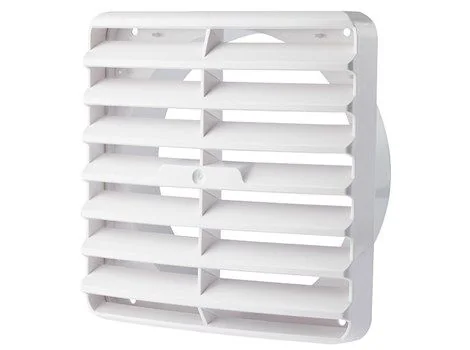

• Exterior grille

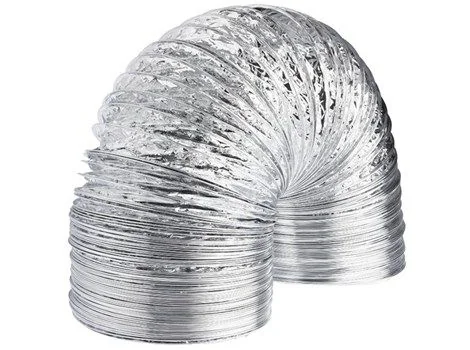

• 6 m x 150 mm flexi-duct

Warranty:

IXL appliances are backed by a 5-year in-home warranty on all Tastic units, a 3-year warranty on Ventflo exhaust fans, and a 3-year in-home service warranty on Aeroflow ceiling fans. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• USER GUIDE (PDF)

• PRODUCT SPECIFICATIONS CHART (JPG)
