Product Description
ABOUT THIS MODEL:

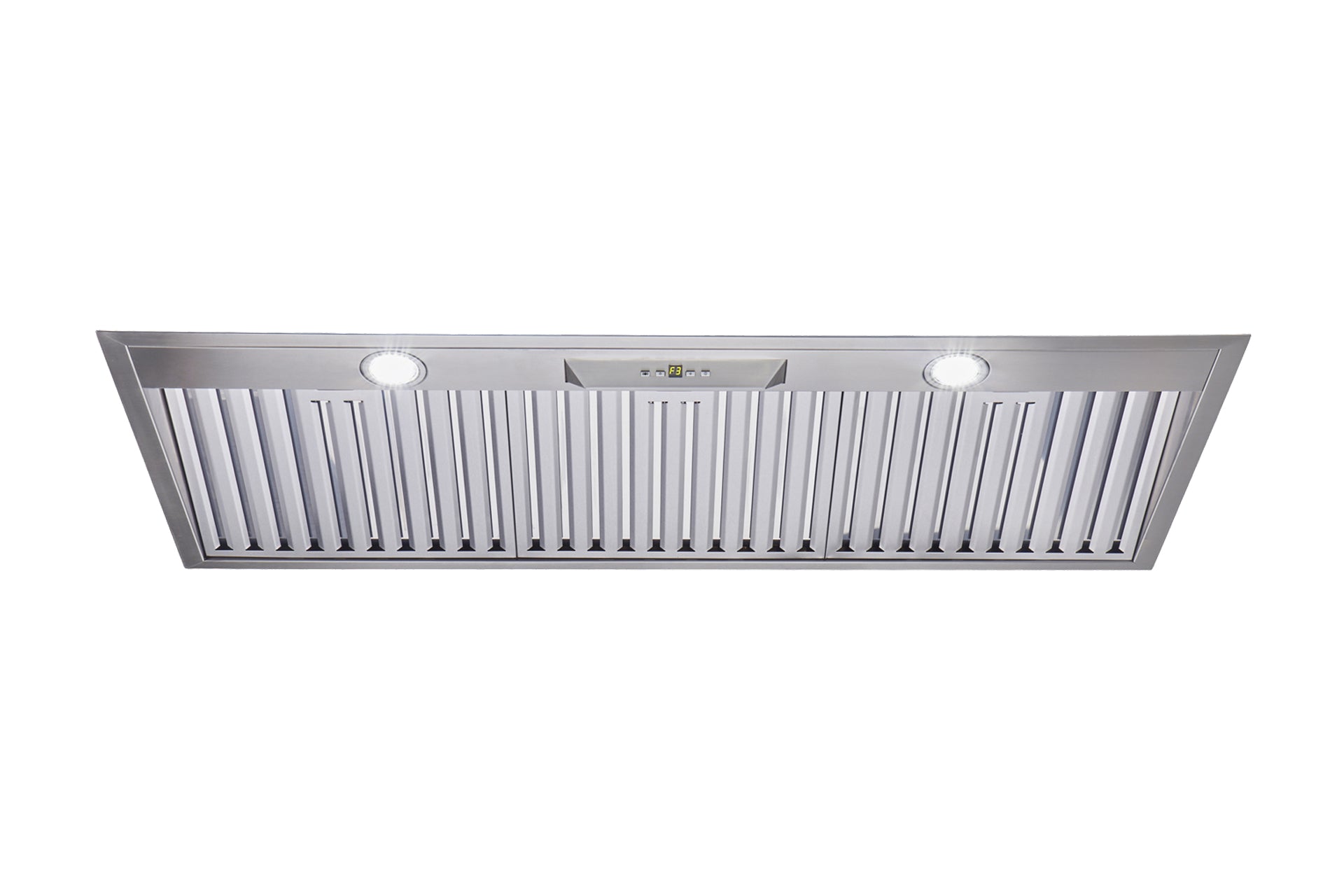

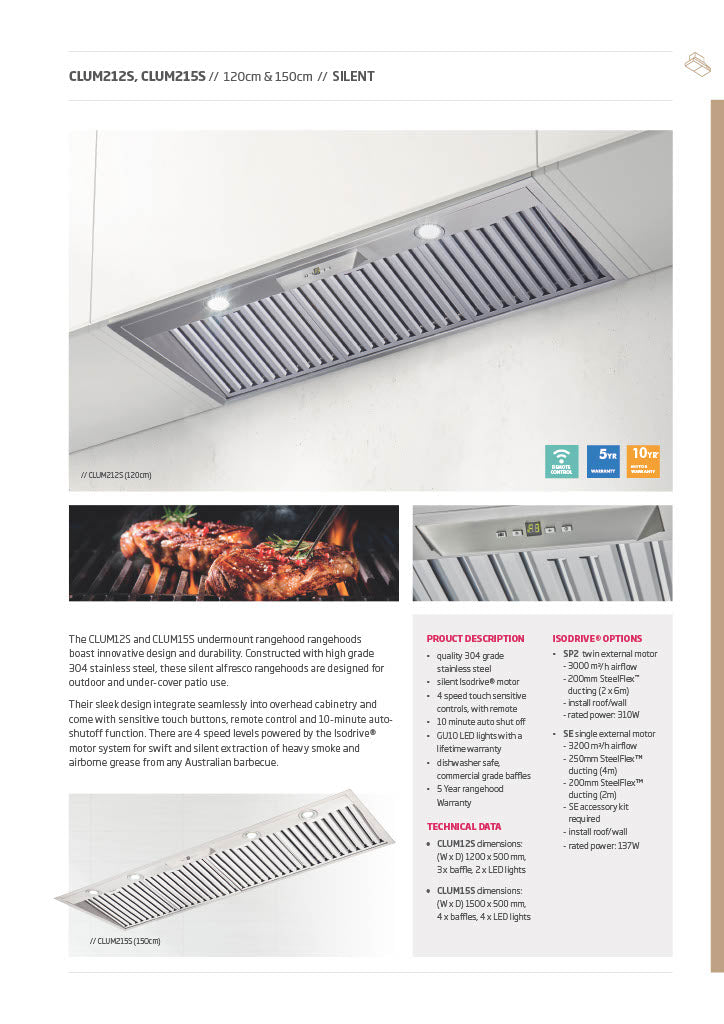

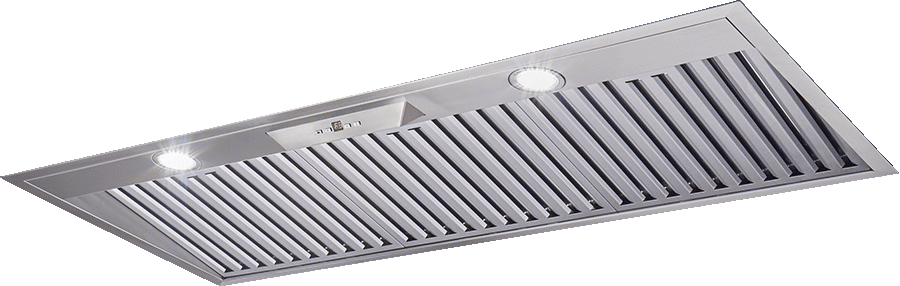

The CLUM212S undermount rangehood boasts power, innovative design and durability. Constructed with high grade 304 stainless steel, this silent alfresco rangehood is designed for outdoor and under-cover patio use.
Its sleek design integrates seamlessly into overhead cabinetry and comes with sensitive touch buttons, remote control and 10-minute auto-shutoff function. There are 5 speed levels powered by the Isodrive® motor system for swift and silent extraction of heavy smoke and airborne grease from any Australian barbecue.
WARRANTIES:
- 10 Years: Motor Warranty
- 5 Years: Canopy Warranty
- Lifetime: Filter Warranty
- Lifetime: GU10 LED Globe Warranty
FEATURES:
- Powerful silent extraction - The German-engineered Isodrive® motor delivers silent, efficient extraction of steam, smoke and odours - leaving your kitchen fresher for longer.
- Energy-efficient - The Schweigen Isodrive® motors are amongst the most energy-efficient in the market, requiring just 57 watts of power to run on some models.
- Discreet design - Integrates seamlessly into cabinetry and bulkheads in alfresco/outdoor dining areas.

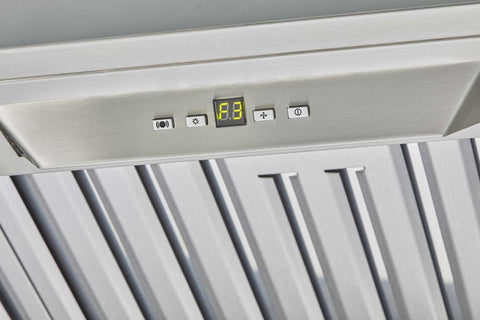

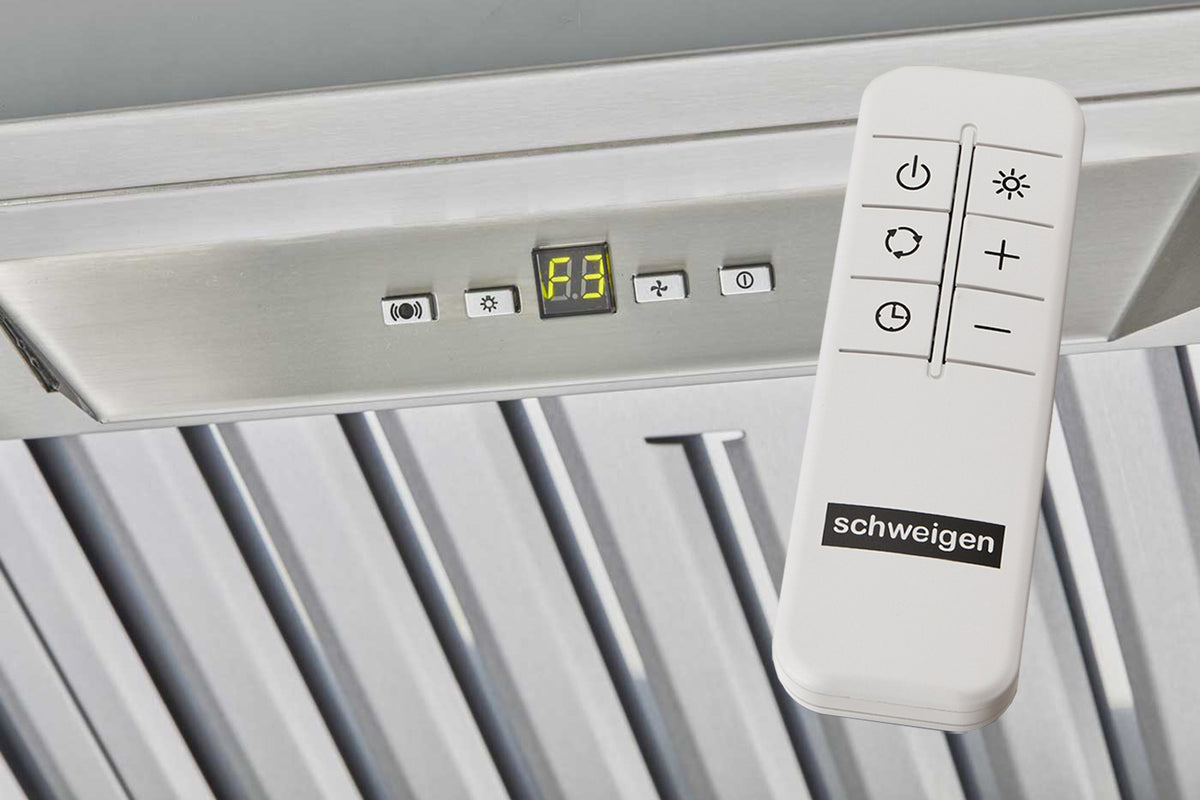

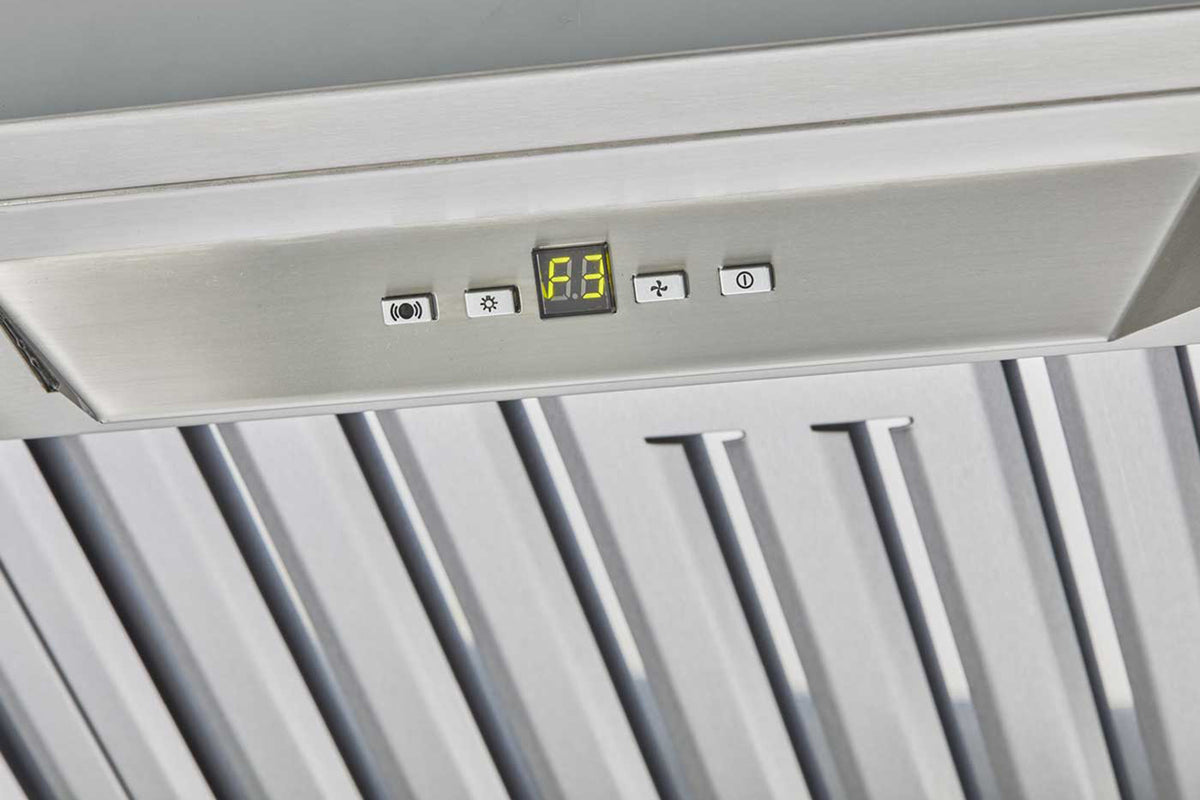

- Convenient features - Touch and remote controlled with 5 speed levels, auto shut-off timer and LED lighting.
- Flexible & functional - With multiple motor options, there is a suitable extraction power for all cooking styles.
- High-quality construction - 304-grade stainless steel canopy to withstand the harshest of our Australian climates.
- High-quality baffles - Easy to remove, dishwasher safe stainless steel baffles that are guaranteed for life.
- Schweigen SteelFlexâ„¢ included - Comes with free Schweigen SteelFlexâ„¢ high-performance safety ducting - fire, pest and crush proof, guaranteed for life.
- Warranties - Enjoy peace of mind with 10-year warranty on silent Isodrive® system, 5-year warranty on canopy, plus lifetime warranty on baffles and GU10 LED globes.*
SPECIFICATIONS:

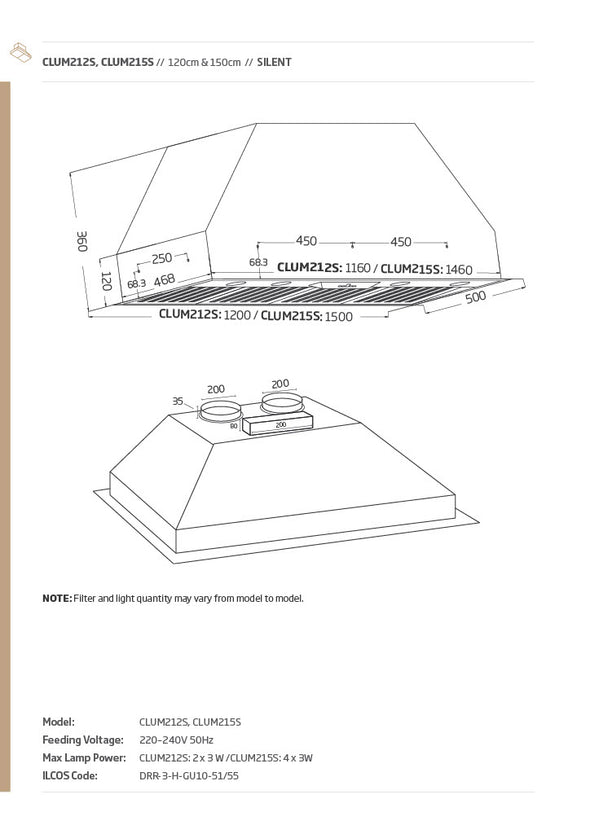

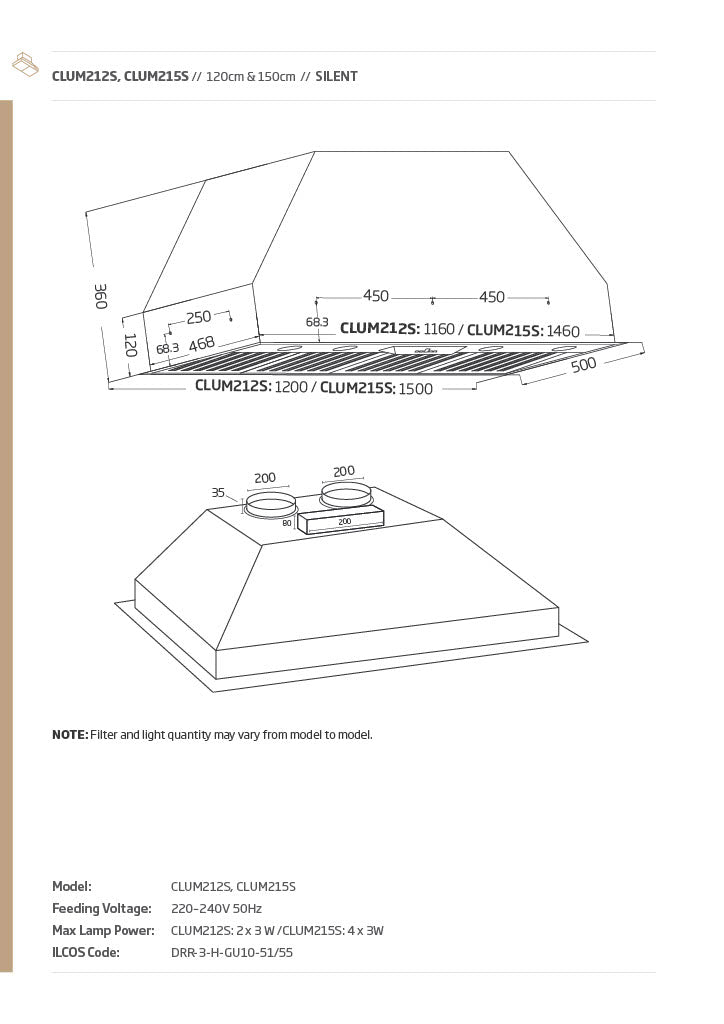

Dimensions:
- Width: 1200mm
- Depth: 500mm
- Height: 360mm
Lights + Filters:

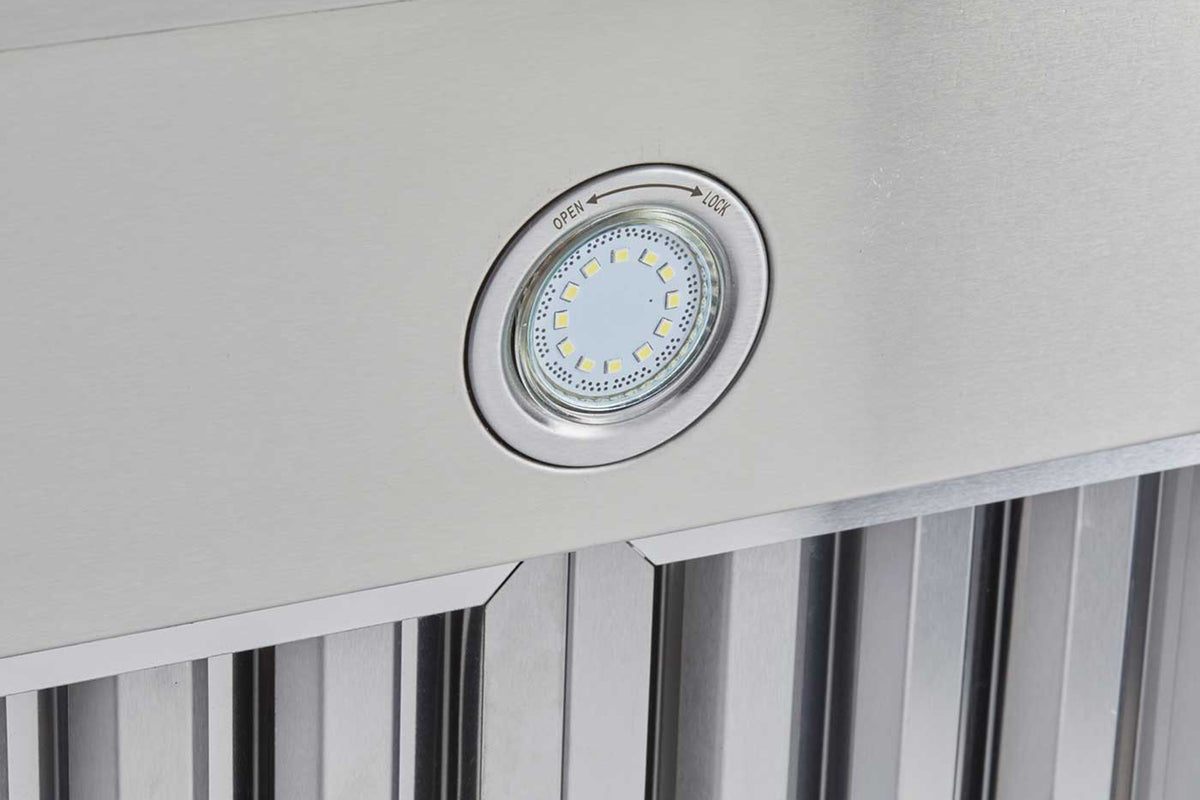

- Lights: 2 LED
- Light Wattage: 4
- Filter Type: Stainless Steel - Baffle
- Filter Qty.: 3
Product Details:
- Product Code: CLUM212S
- Finish: 304 Stainless Steel
- Fan Speed Levels: 5
- Airflow: 3000 | 3200 | 5000
- Control: Touch & Remote
MOTOR OPTIONS:
Isodrive SP2 Motor - 3000m3/h (SUPREME)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 3000 m3/hr airflow from twin motors.
- Minimum ducting run required for silent operation with each motor: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motors and fans made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 155W each - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 200mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (200mm/6m),
- 3.5m 10amp cable, weather guard, metal riser pipe (200mm), wall hanging bracket, backdraft shutter and ring clamps.
- 10-year warranty.
Isodrive SE Motor - 3200m3/h (EXTREME)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 3200 m3/hr airflow.
- Minimum ducting run required for silent operation: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motor and fan made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 135W - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 250mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (250mm/4m, 200mm/2m), 3.5m 10amp cable, weather guard, reducer (250mm to 200mm), metal riser pipe (250mm), backdraft shutter and ring clamps.
- 10-year warranty.
Isodrive SE2 Twin Motors - 5000m3/h (EXTREME TWIN)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 5000 m³/hr airflow from twin motors.
- Minimum ducting run required for silent operation with each motor: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fans.
- Industrial quality motors and fans made in Germany and rated at 40,000 hours.
- Motors are high efficiency PSC type and rated at 135W each – about as much to run two 70W light globes per motor.
- Roof and wall mounting with IPX4 degree of weather protection – electrics are totally concealed.
- Motor housings are powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motors mount onto a 250mm metal pipe for ultimate strength and allow for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (250mm/4m, 200mm/2m per motor), 3.5m 10amp cable, weather guards, reducers (250mm to 200mm), metal riser pipes (250mm), backdraft shutters and ring clamps.
- 10-year warranty.
DOWNLOADS
Model
Motors
Isodrive SP2 Twin Motors - 3000m3/hÂ
Isodrive SE Motor - 3200m3/hÂ
