Product Description
ABOUT THIS MODEL:

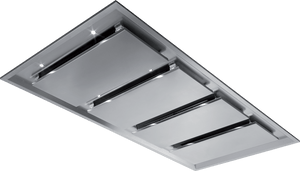

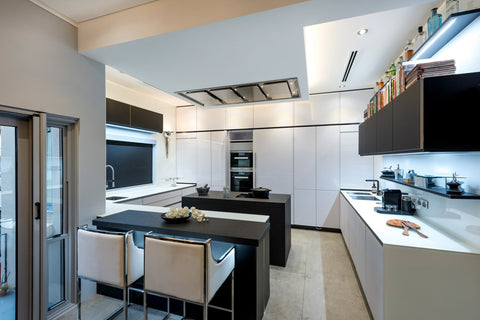

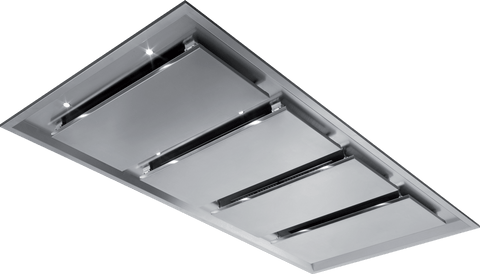

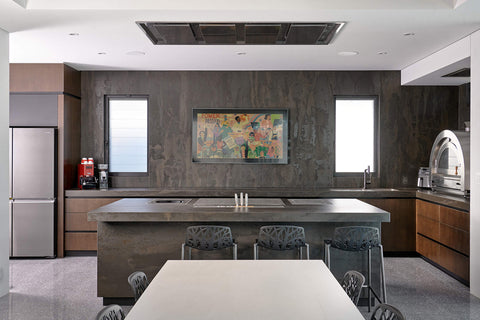

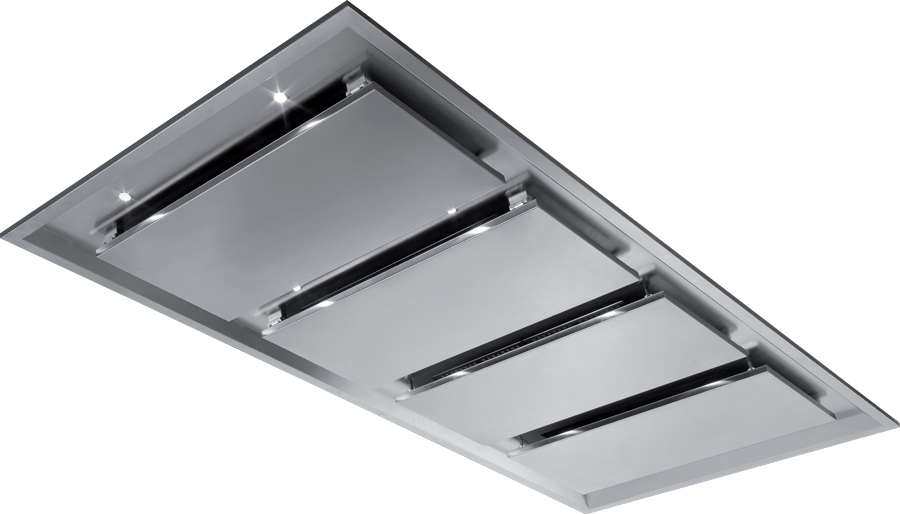

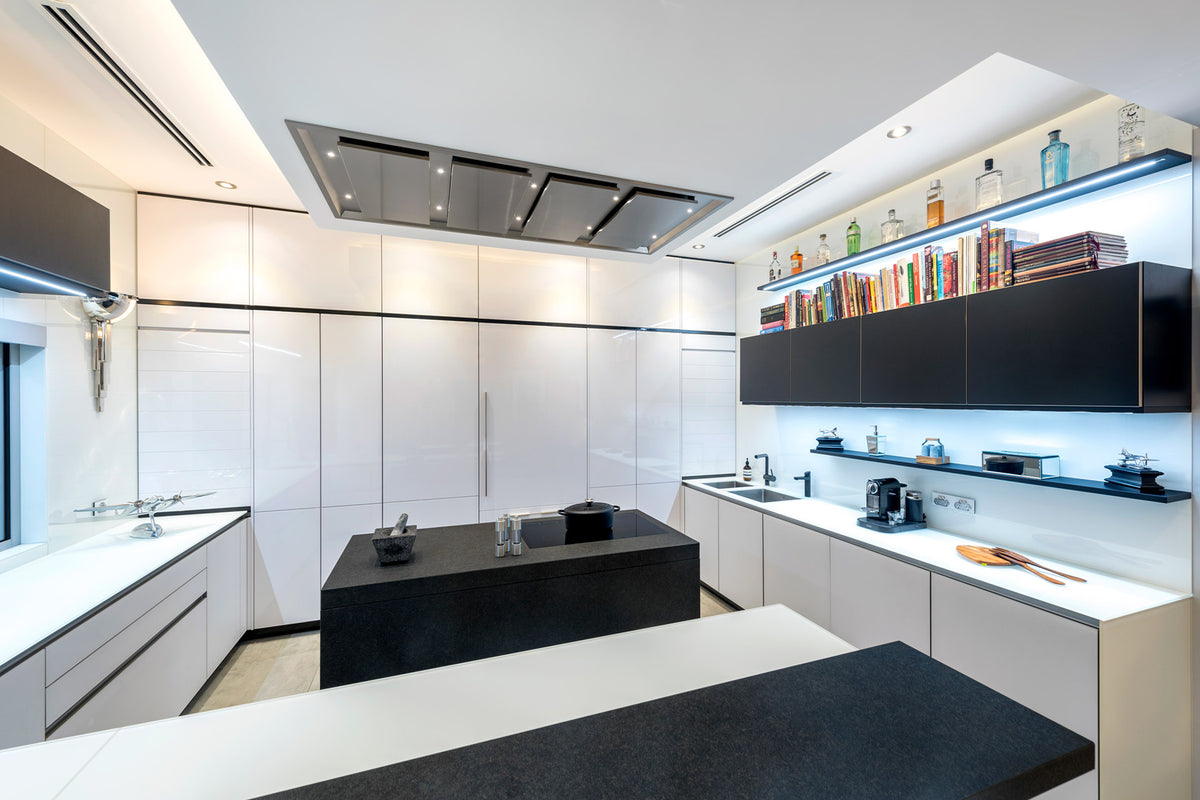

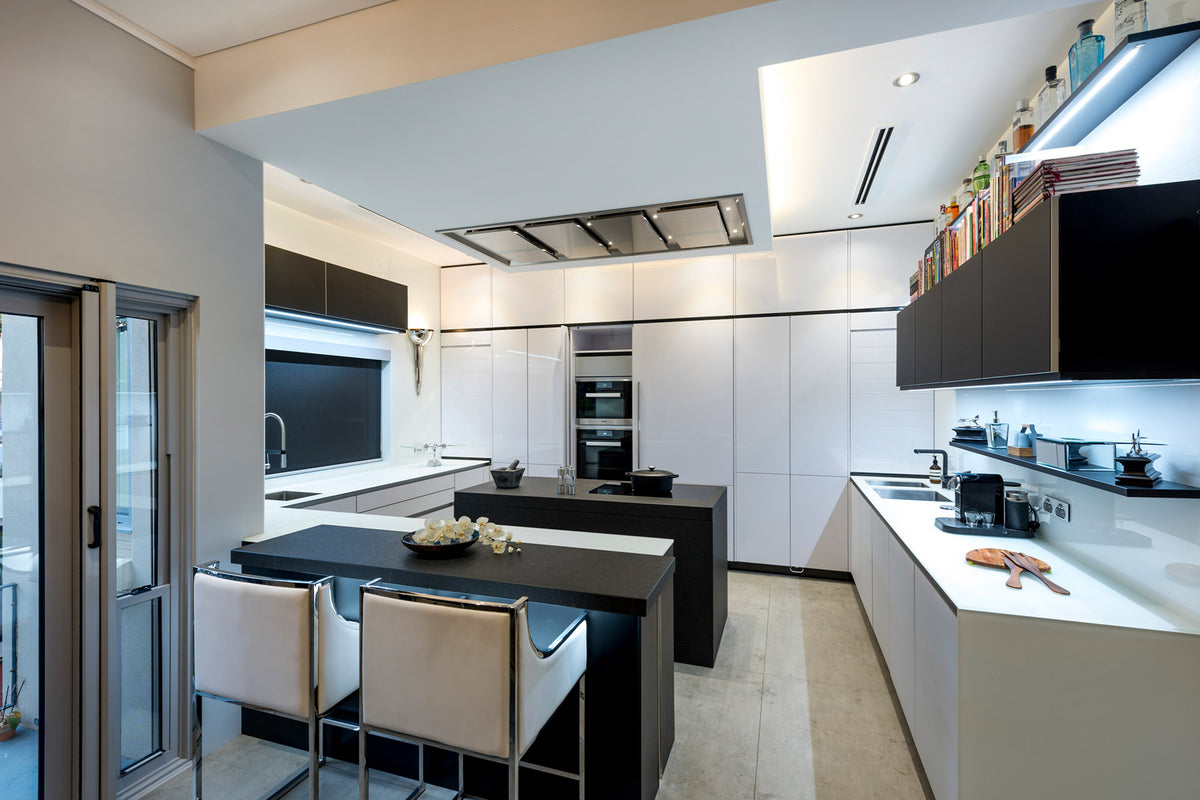

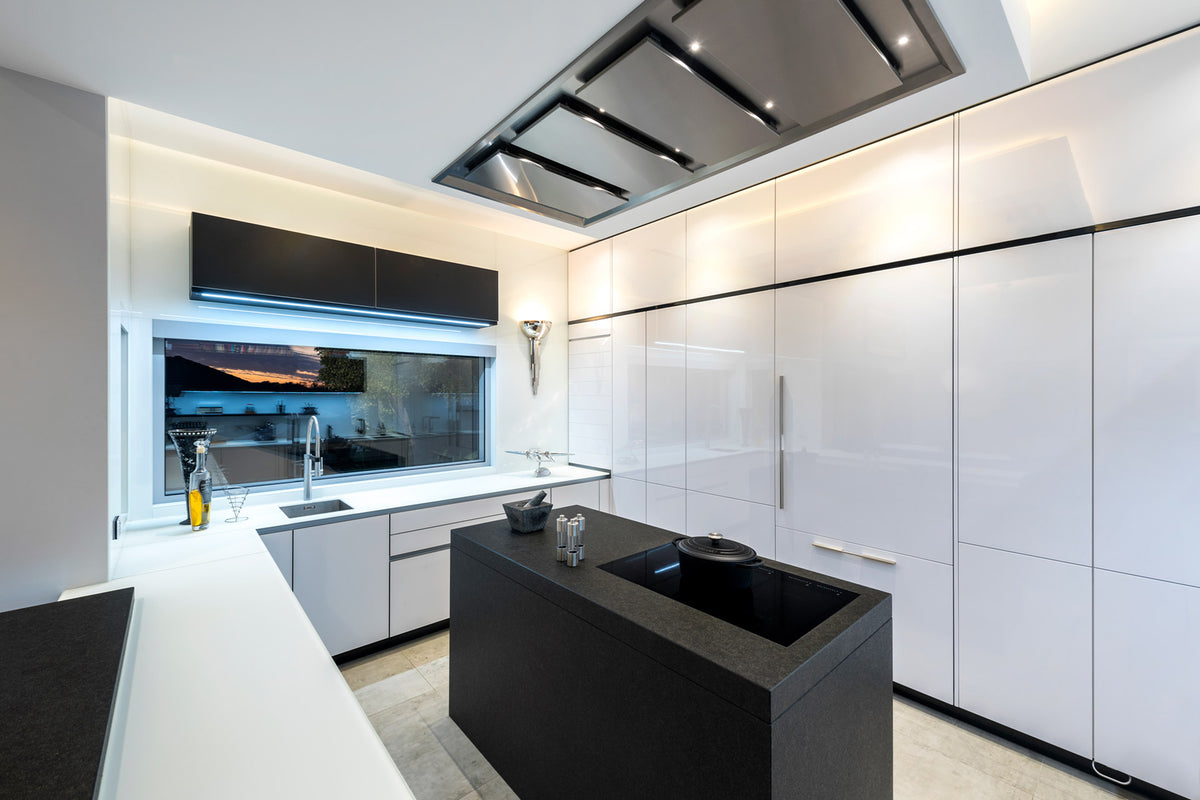

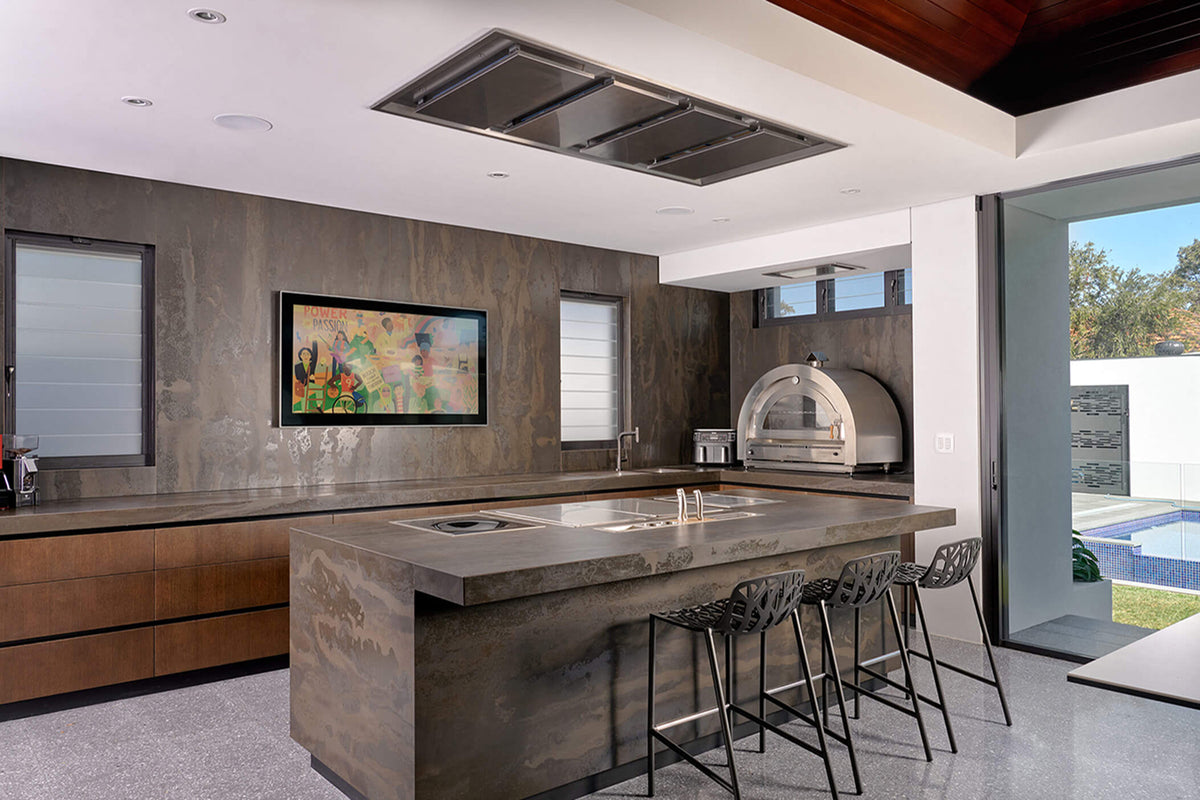

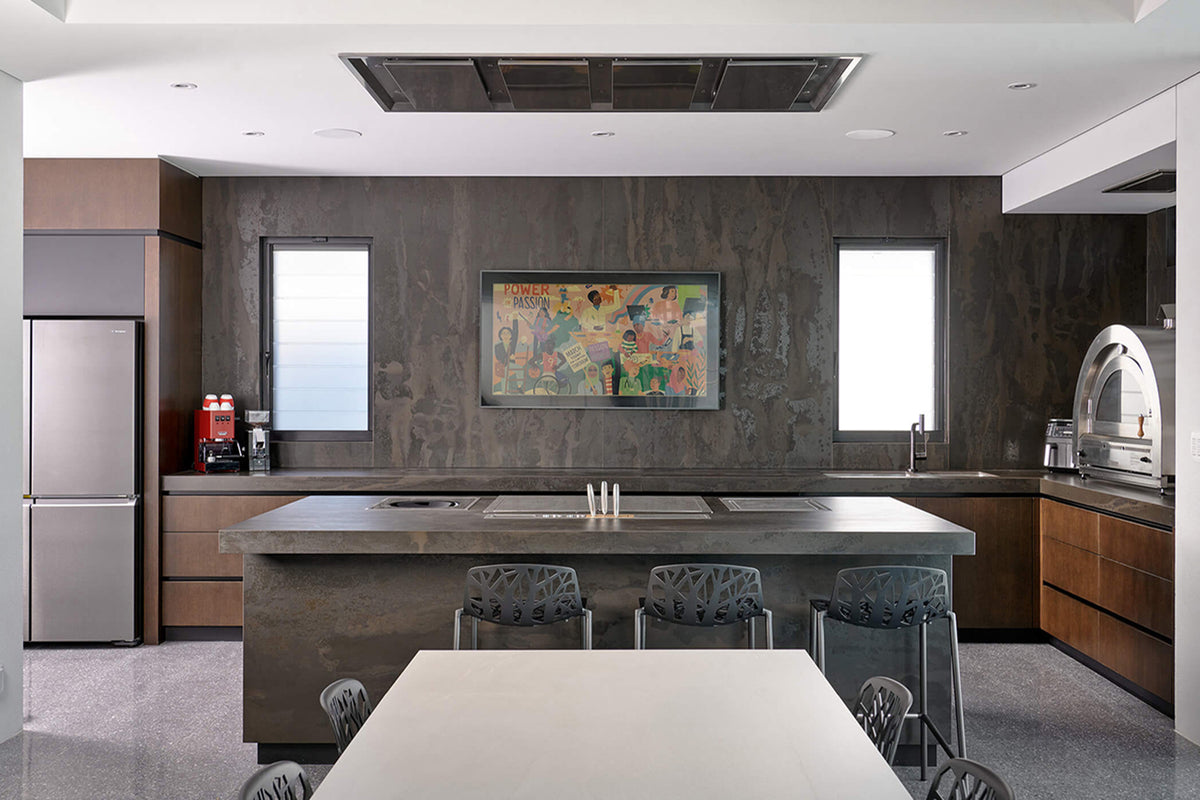

INART 4M ceiling cassette fuses a glamorous stainless steel ‘cloud’ with generous dimensions, substantial power and intense draw that employs perimeter extraction. The INART 4M handles intense cooking with ease.
WARRANTIES:
-
10 Years:Â Motor Warranty
-
5 Years: Canopy Warranty
- Lifetime: Filter Warranty
FEATURES:
- Powerful silent extraction: The German-engineered Isodrive® motor delivers silent, efficient extraction of steam, smoke and odours - leaving your kitchen fresher for longer.
- Perimeter Aspiration:Â Uses an additional panel to create a Venturi effect along its edges, helping capture smoke, steam, odours and airborne grease more effectively.
- Energy-efficient: The Schweigen Isodrive® motors are amongst the most energy-efficient in the market, requiring just 57 watts of power to run on some models.
- Eye-catching design: A glamorous stainless steel ‘cloud’ of generous dimensions and power that extracts as well as it looks.
- Convenient features:Â Remote controlled with 4 speed levels, 15-minute auto shut-off timer and LED lighting.
- Flexible & functional:Â With multiple motor options, there is a suitable extraction power for all cooking styles.
- High-quality filters: Designed to minimise the edges where grease and oil can lodge, Schweigen’s high-quality filters are easy to remove and dishwasher-safe.
- Schweigen SteelFlexâ„¢ included:Â Comes with free Schweigen SteelFlexâ„¢ high-performance safety ducting - fire, pest and crush proof, guaranteed for life.
- Warranties: Enjoy peace of mind with 10-year warranty on silent Isodrive® system, 5-year warranty on canopy and lifetime warranty on filters.*
SPECIFICATIONS:
Dimensions:
-
Width:Â 2000mm
-
Depth: 1000mm
- Height: 355mm
Lights + Filters:
-
Lights:Â 10 LED
-
Light Wattage: 2.1
-
Filter Type: Aluminium - Mesh
- Filter Qty.: 8
Product Details:
-
Product Code:Â CC-INARTS
-
Finish: Stainless Steel
-
Fan Speed Levels: 4
-
Airflow (m3/h): 3000 | 3200 | 5000
- Control: Remote
MOTOR OPTIONS:
Isodrive SP2 Motor - 3000m3/h (SUPREME)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 3000 m3/hr airflow from twin motors.
- Minimum ducting run required for silent operation with each motor: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motors and fans made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 155W each - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 200mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (200mm/6m),
- 3.5m 10amp cable, weather guard, metal riser pipe (200mm), wall hanging bracket, backdraft shutter and ring clamps.
- 10-year warranty.
Isodrive SE Motor - 3200m3/h (EXTREME)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 3200 m3/hr airflow.
- Minimum ducting run required for silent operation: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motor and fan made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 135W - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 250mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (250mm/4m, 200mm/2m), 3.5m 10amp cable, weather guard, reducer (250mm to 200mm), metal riser pipe (250mm), backdraft shutter and ring clamps.
- 10-year warranty.
Isodrive SE2 Twin Motors - 5000m3/h (EXTREME TWIN)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 5000 m³/hr airflow from twin motors.
- Minimum ducting run required for silent operation with each motor: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fans.
- Industrial quality motors and fans made in Germany and rated at 40,000 hours.
- Motors are high efficiency PSC type and rated at 135W each – about as much to run two 70W light globes per motor.
- Roof and wall mounting with IPX4 degree of weather protection – electrics are totally concealed.
- Motor housings are powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motors mount onto a 250mm metal pipe for ultimate strength and allow for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (250mm/4m, 200mm/2m per motor), 3.5m 10amp cable, weather guards, reducers (250mm to 200mm), metal riser pipes (250mm), backdraft shutters and ring clamps.
- 10-year warranty.
