Product Description

Product Overview:

The Oliveri VE570F-P Venice Pull Out Right Angle Mixer brings the Venice collection's graceful, flowing character to the kitchen through a clean right-angle profile with pull-out hose. Smooth rounded contours and an elegantly proportioned lever create a refined focal point that remains comfortable and intuitive through everyday preparation and clean-up.

Constructed from solid lead-free brass and zinc castings with durable premium finishes, the mixer is designed for dependable household use. Its swivel outlet broadens access across the sink, while the pull-out handpiece adds flexible reach for larger cookware, fresh produce and hard-to-reach areas.

A ceramic-disc cartridge provides smooth control of water temperature and flow. WELS 5 Star performance delivers 6L/min under registration T43017, balancing useful kitchen performance with considered water efficiency.

Available in Chrome, Brushed Nickel and Matte Black, the Venice mixer coordinates easily with Oliveri sinks, appliances, cabinet hardware and surrounding kitchen finishes.

Product Features:

• Graceful Venice styling: Rounded contours and elegant lines create a soft, enduring kitchen focal point.
• Lead-free brass construction: Built for confident potable-water use and dependable everyday performance.
• Swivel outlet: Improves access across single and double-bowl sink layouts.
• Pull-out handpiece: Extends working reach for rinsing produce, filling cookware and cleaning around the sink.
• Weighted hose return: Helps the handpiece return neatly after use.
• Ceramic-disc cartridge: Supports smooth, reliable single-lever temperature and flow control.
• WELS 5 Star efficiency: Delivers 6L/min under registration T43017.
• Three coordinated finishes: Available in Chrome, Brushed Nickel and Matte Black.

Colour / Finishes:

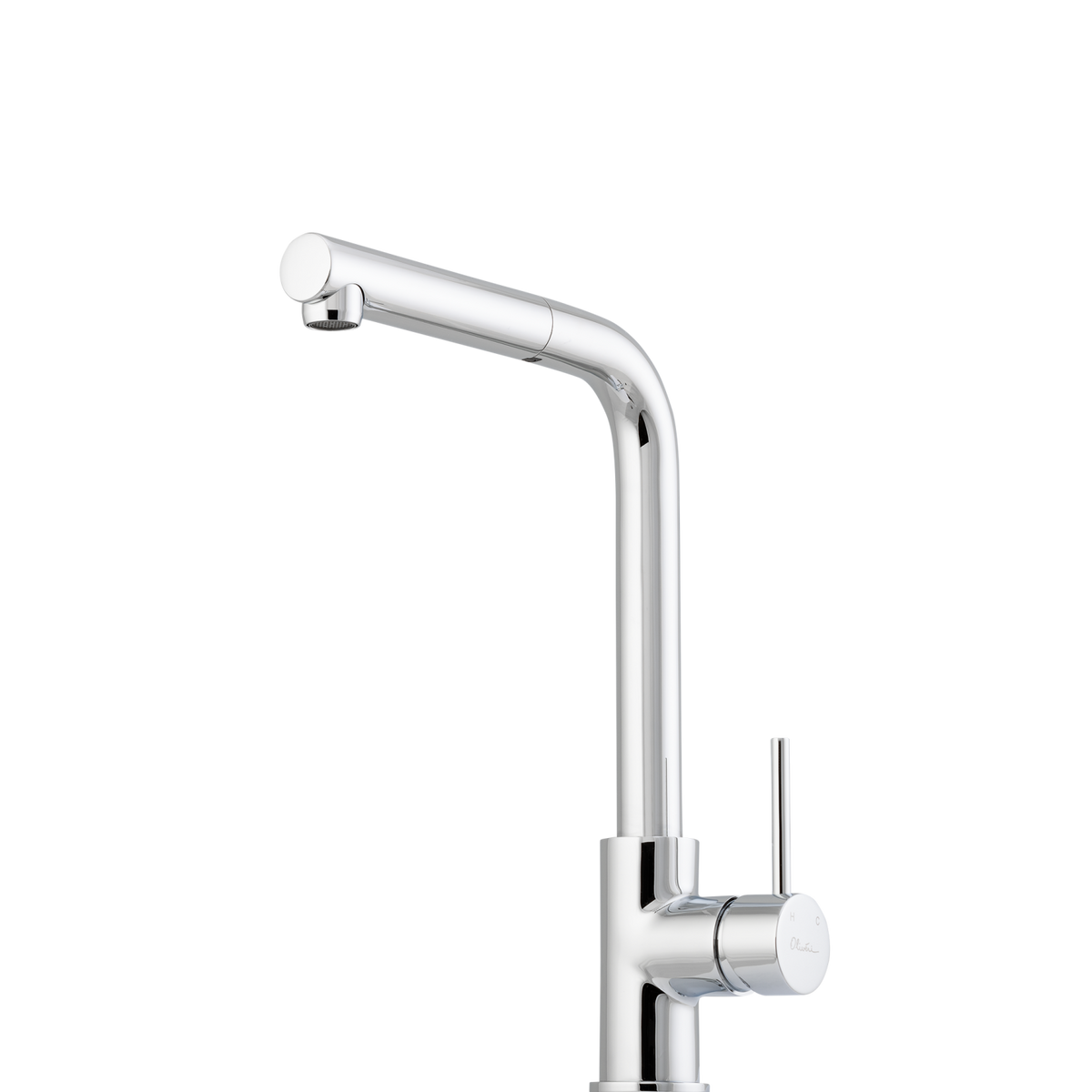

• Chrome - VE570FCR-P

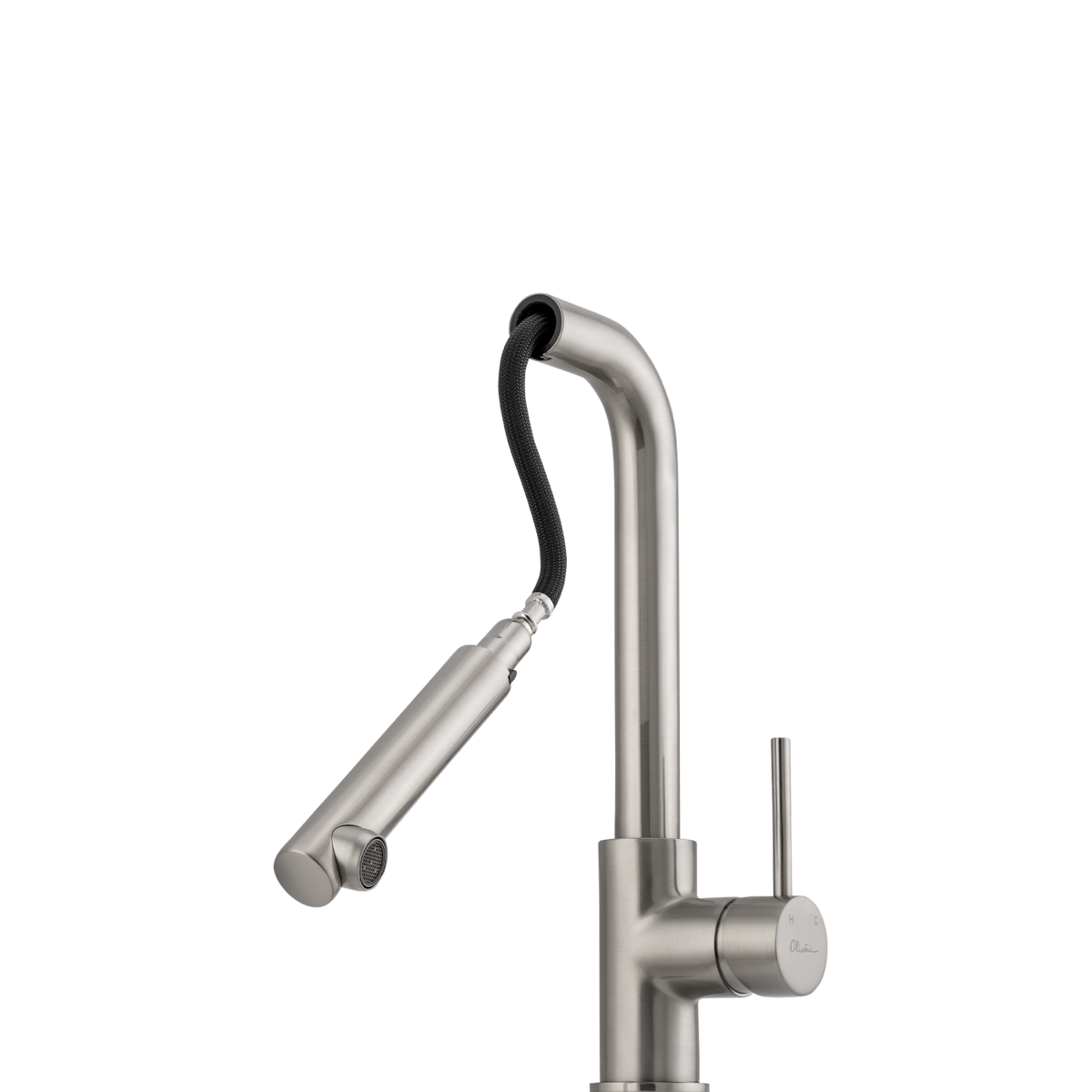

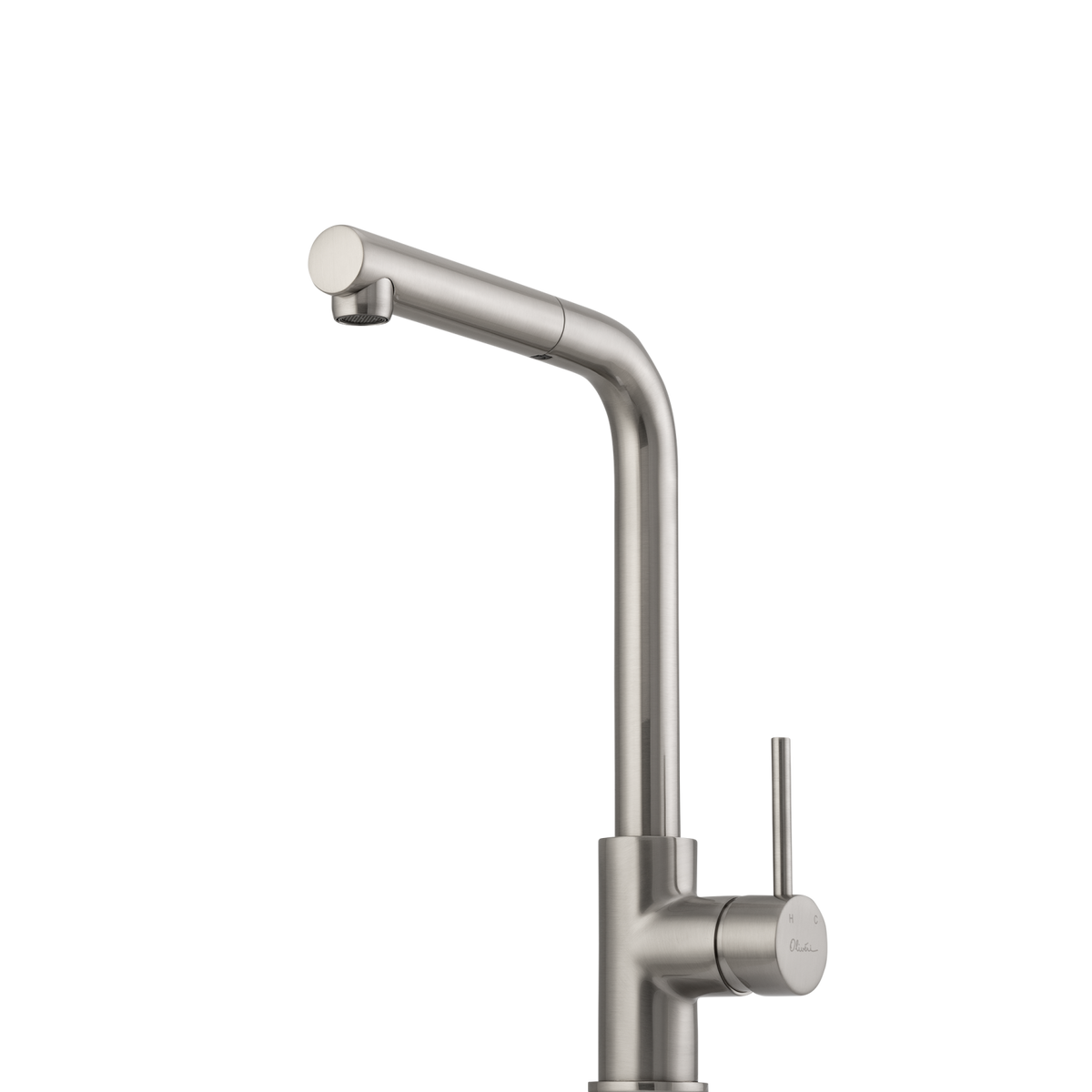

• Brushed Nickel - VE570FBN-P

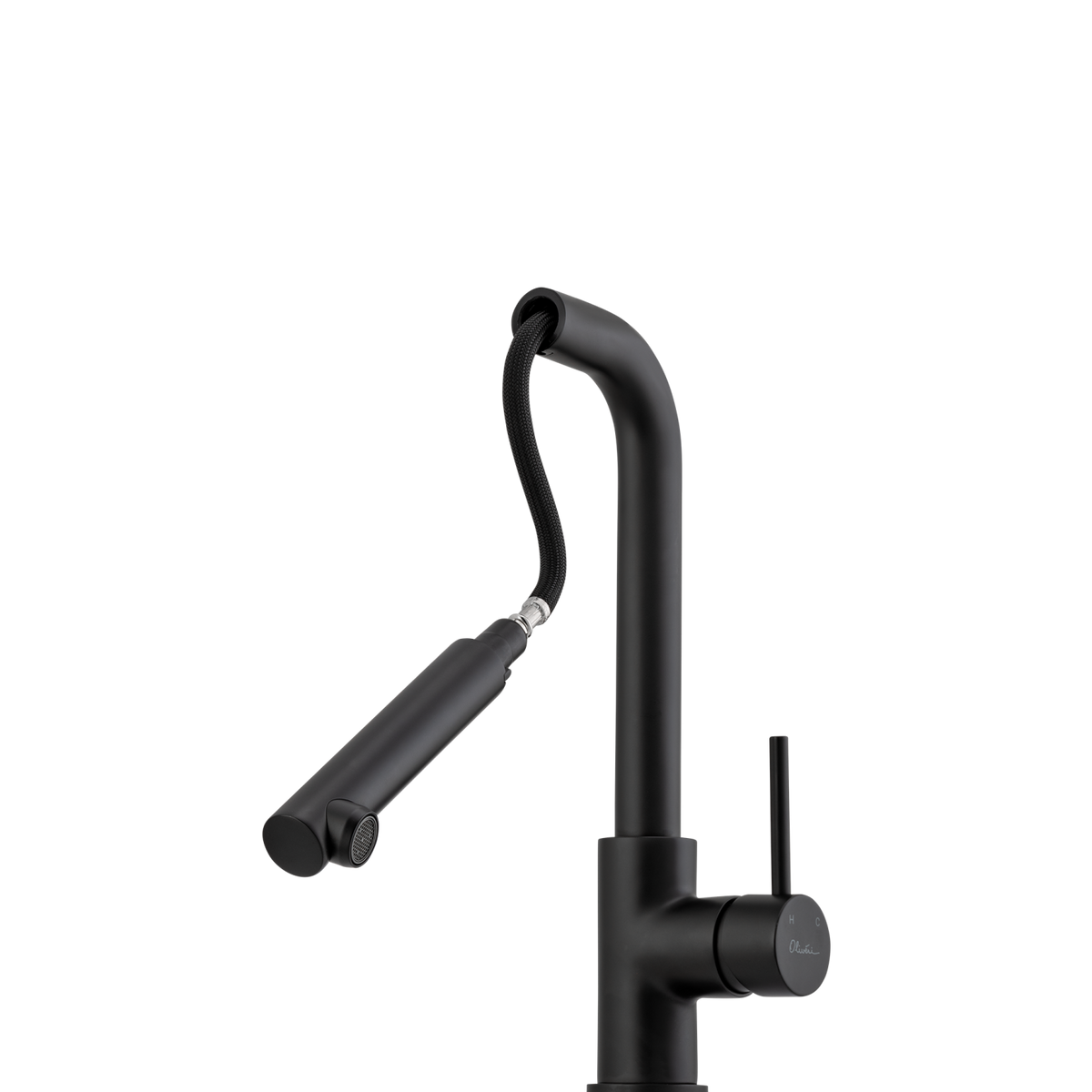

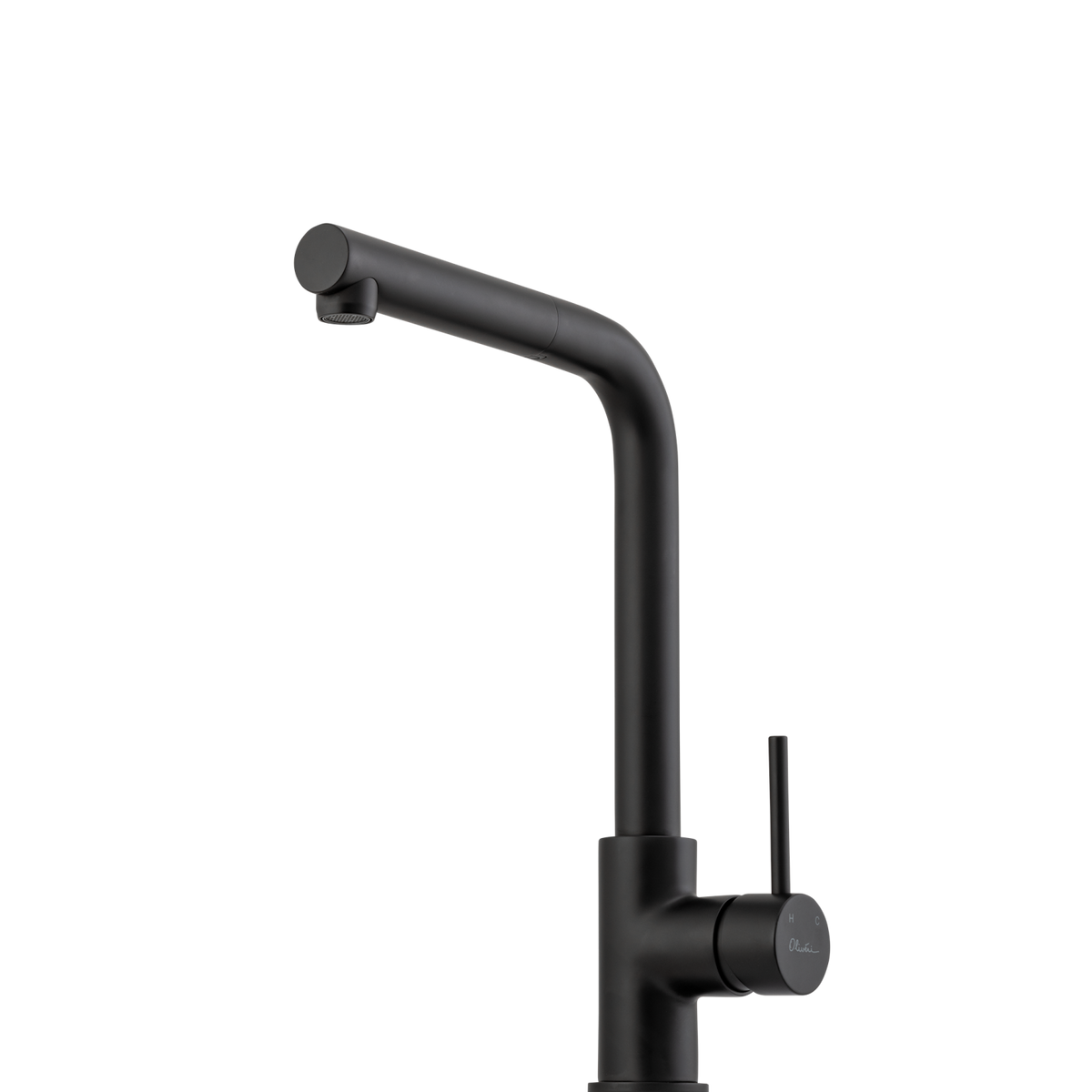

• Matte Black - VE570FMB-P

Cleaning & Maintenance:

• Routine cleaning: Wipe with warm soapy water and a soft cloth, then rinse and dry.
• Protect the finish: Avoid abrasive, cream or acid-based cleaners, harsh chemicals, citrus products and scouring pads.
• Aerator care: Keep the certified flow regulator installed and clean the outlet carefully if flow becomes restricted.
• Inspect flexible hoses: Check supply hoses regularly and replace them immediately if bulging, corrosion, moisture, wear or damage is visible.

Specifications:

• Brand: Oliveri
• Model: VE570F-P
• Collection: Venice
• Product type: Pull-out kitchen mixer
• Installation: Bench mounted
• Material: Lead-free brass body with zinc castings
• Cartridge: 35mm ceramic disc
• Water supply: Mains
• WELS rating: 5 Stars, 6L/min
• WELS registration: T43017
• Temperature range: 1°C to 80°C
• Operating pressure: 150–500kPa

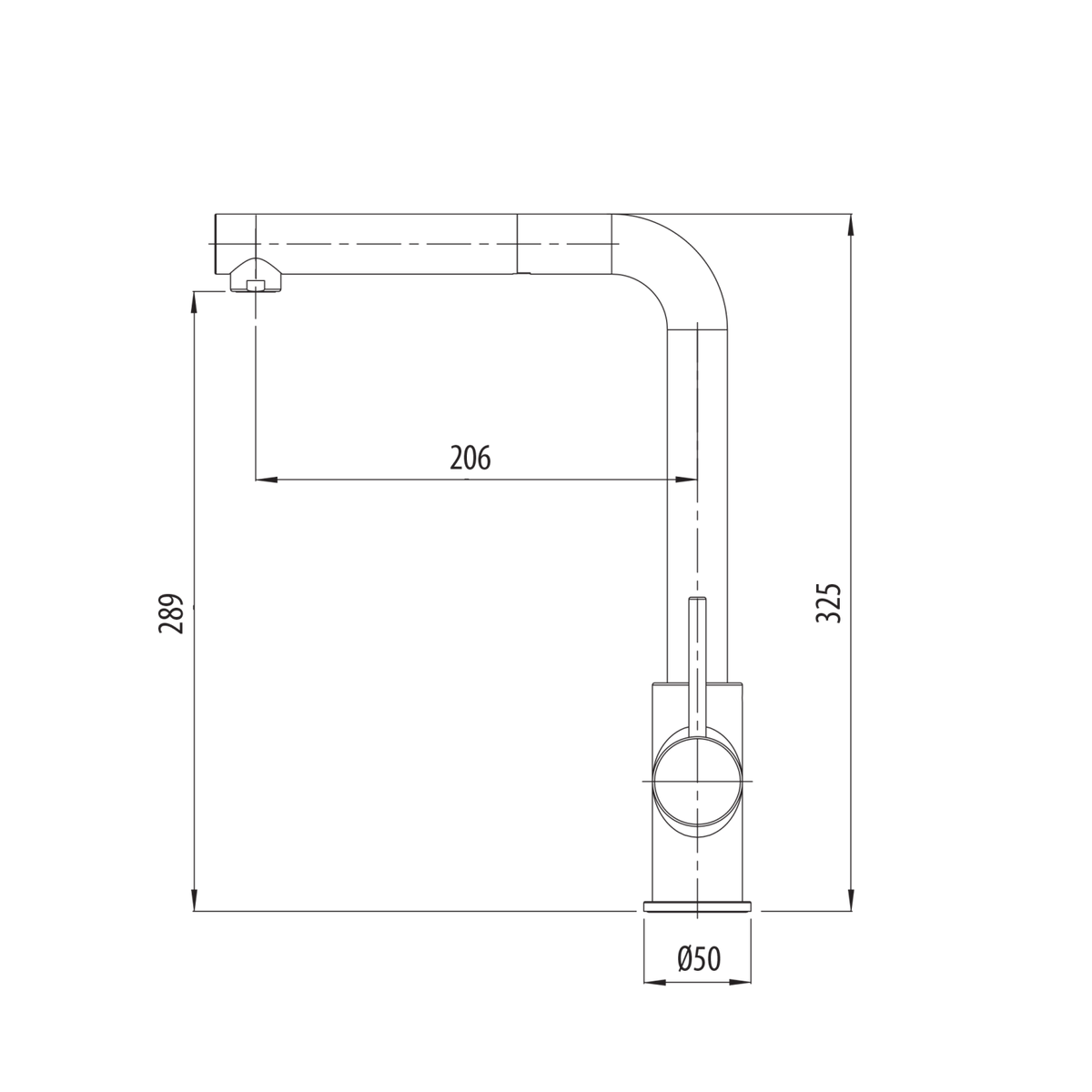

Product Measurements:

• Mixer height: 325mm
• Carton dimensions: 49 × 29 × 6cm

Product Weight:

• Net product weight: 2.6kg

Installation & Requirements:

• Licensed installation: Must be installed by a licensed plumber in accordance with applicable Australian Standards, local regulations and Oliveri instructions.
• Bench-mounted installation: Confirm all dimensions and clearances before drilling or cabinetry completion.
• Flush water lines: Supply lines must be flushed before connecting the mixer.
• Pressure control: Install a pressure-limiting device where supply pressure can exceed 500kPa.
• Accessible flexible tails: Keep hoses indoors, above ground, accessible and free from kinks, twisting and abrasion.

Extra Information:

The Venice collection carries a coordinated design language across kitchen and bathroom tapware, allowing renovators to repeat its rounded contours and premium finishes throughout adjoining wet areas. The three kitchen finishes also make it easy to complement common sink, appliance and cabinet-hardware palettes.

All published dimensions are approximate and should be checked before installation. Correct pressure control, professional installation, regular hose inspection and gentle finish care are essential for preserving reliable performance and appearance over time.

Included Products / Accessories:

• Oliveri VE570F-P Venice mixer: One complete bench-mounted mixer in the selected finish.
• Pull-out handpiece and hose: Integrated with the mixer.
• Return weight: Supplied for the pull-out hose system.
• Hot and cold flexible tails: Supplied for mains connection.
• Mounting components: Included for suitable bench installation.
• WELS-compliant aerator: Pre-installed for the certified 6L/min flow.

Warranty:

Oliveri products are backed by a comprehensive manufacturer's warranty, with coverage ranging from a lifetime warranty on stainless steel kitchen sinks, laundry tubs, and basins, through to 20 years on vitreous china basins and toilets, and 15 years on bathroom tapware and shower bodies. Warranty periods vary by product category. All warranties are in addition to your rights under the Australian Consumer Law.
