Product Description
Product Overview:

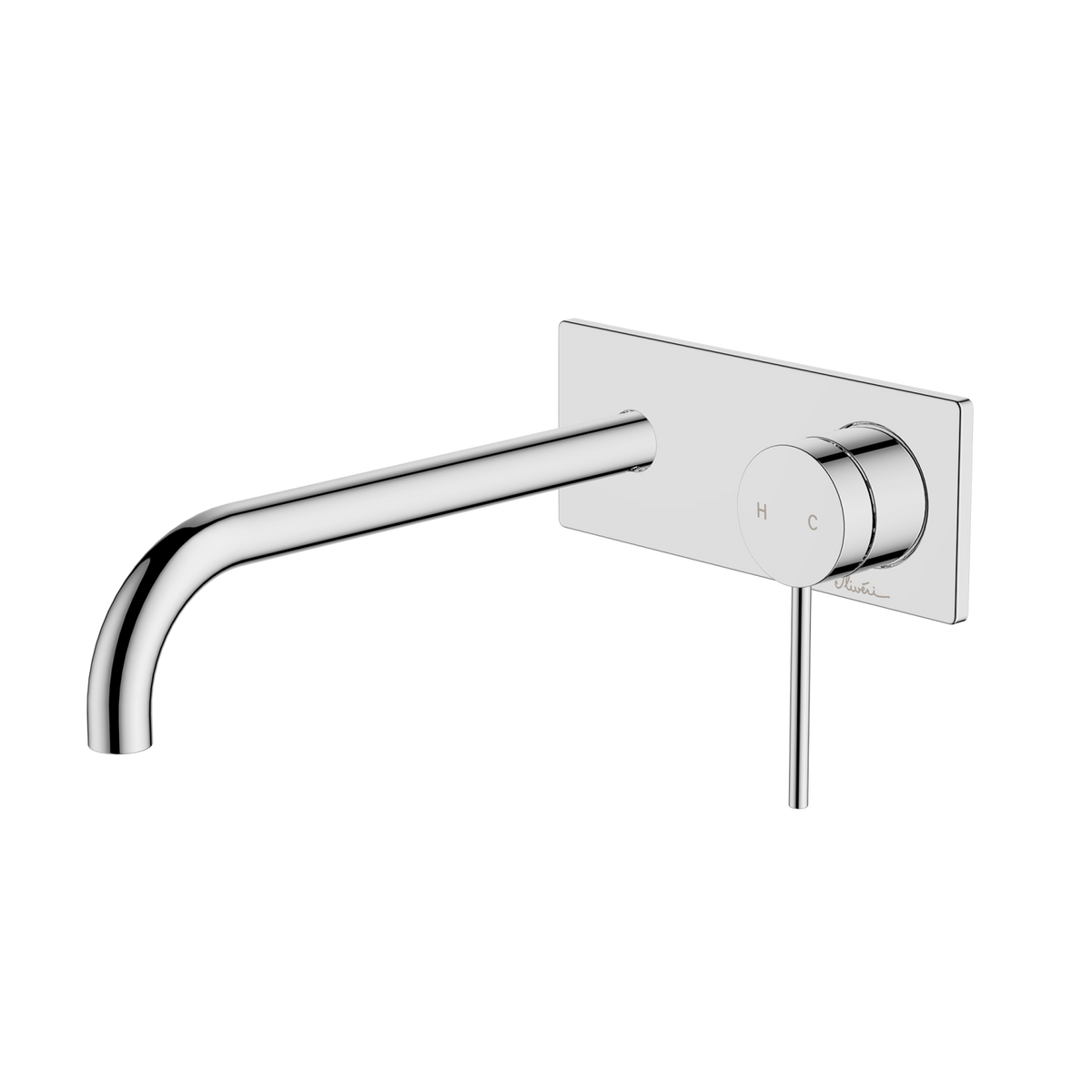

The Oliveri VE1055 Venice Curved Wall Mixer Set combines a graceful 200mm curved spout with a refined pin-lever mixer for a clean, coordinated wall-mounted installation. Supplied as a complete SERIES 2 package, it includes both the UNI-C2-BY in-wall body and the selected Venice trim kit.
Its interchangeable SERIES 2 design allows compatible London, Paris and Venice trim kits to be changed later without replacing the concealed body. Lead-free brass construction, a 35mm Kerox ceramic cartridge and dual WELS aerators support dependable, flexible everyday use.
Product Features:
- Complete SERIES 2 package: Includes the UNI-C2-BY concealed in-wall body and coordinated Venice mixer-and-spout trim kit.
- Elegant curved wall-spout design: Combines a graceful Venice outlet with a refined pin-lever mixer control for a cohesive wall-mounted result.
- Adjustable installation reach: The 202–224mm spout reach accommodates the specified 51–74mm concealed installation depth.
- Interchangeable trim platform: Compatible London, Paris and Venice SERIES 2 trims can be changed later without replacing the concealed body.
- Dual WELS configuration: Supplied with a 6 Star 4.5L/min aerator installed and an alternative 5 Star 6L/min aerator.
- Smooth ceramic-disc control: A 35mm Kerox cartridge supports precise everyday adjustment of flow and temperature.
- Lead-free construction: Lead-free brass body components, a zinc handle and stainless-steel lever provide durable bathroom performance.
- Five coordinated finishes: Available in Chrome, Brushed Nickel, Classic Gold, Gunmetal and Matte Black.
Colour / Finishes:
- Chrome - VE105500FCR

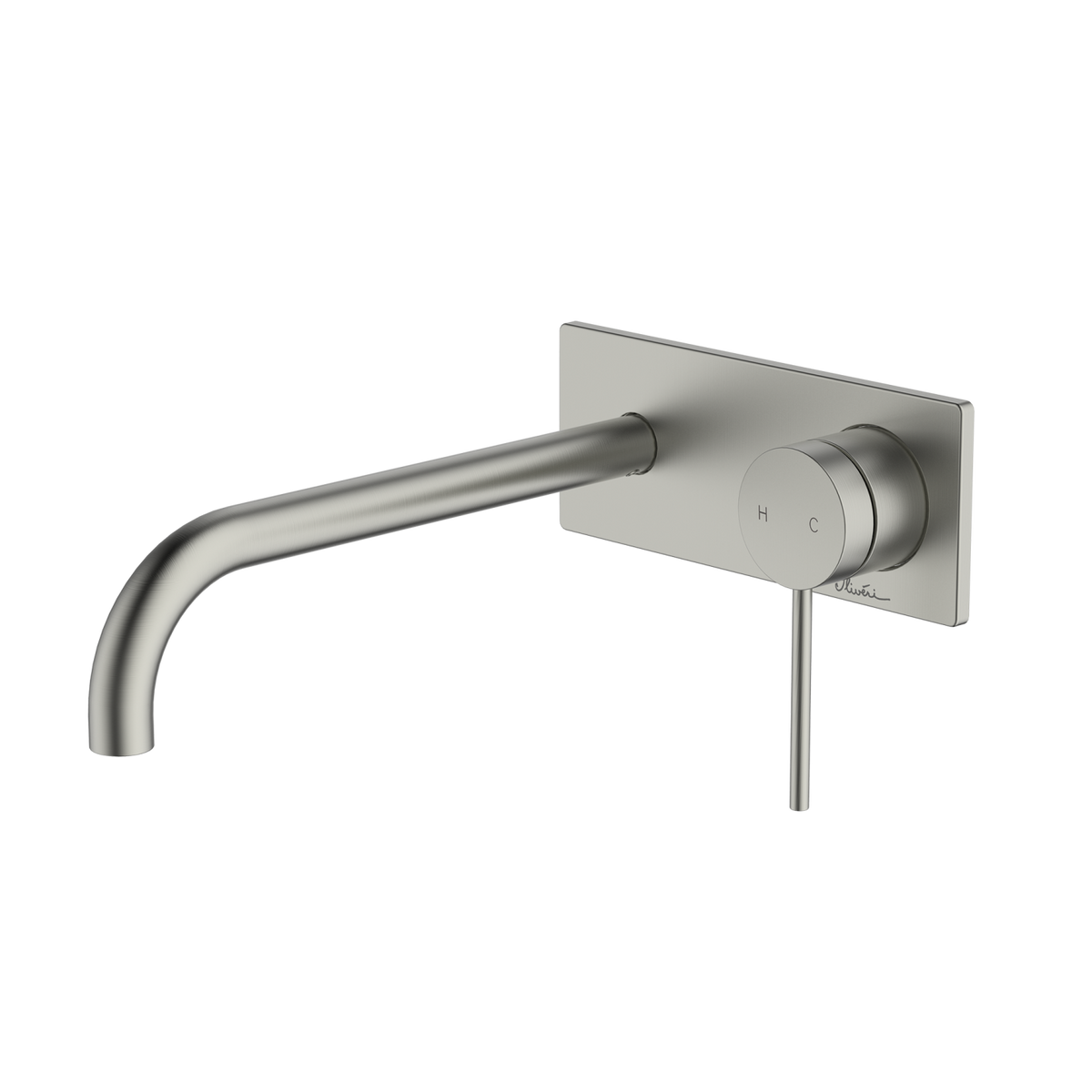

- Brushed Nickel - VE105504FBN
- Classic Gold - VE105503FCG

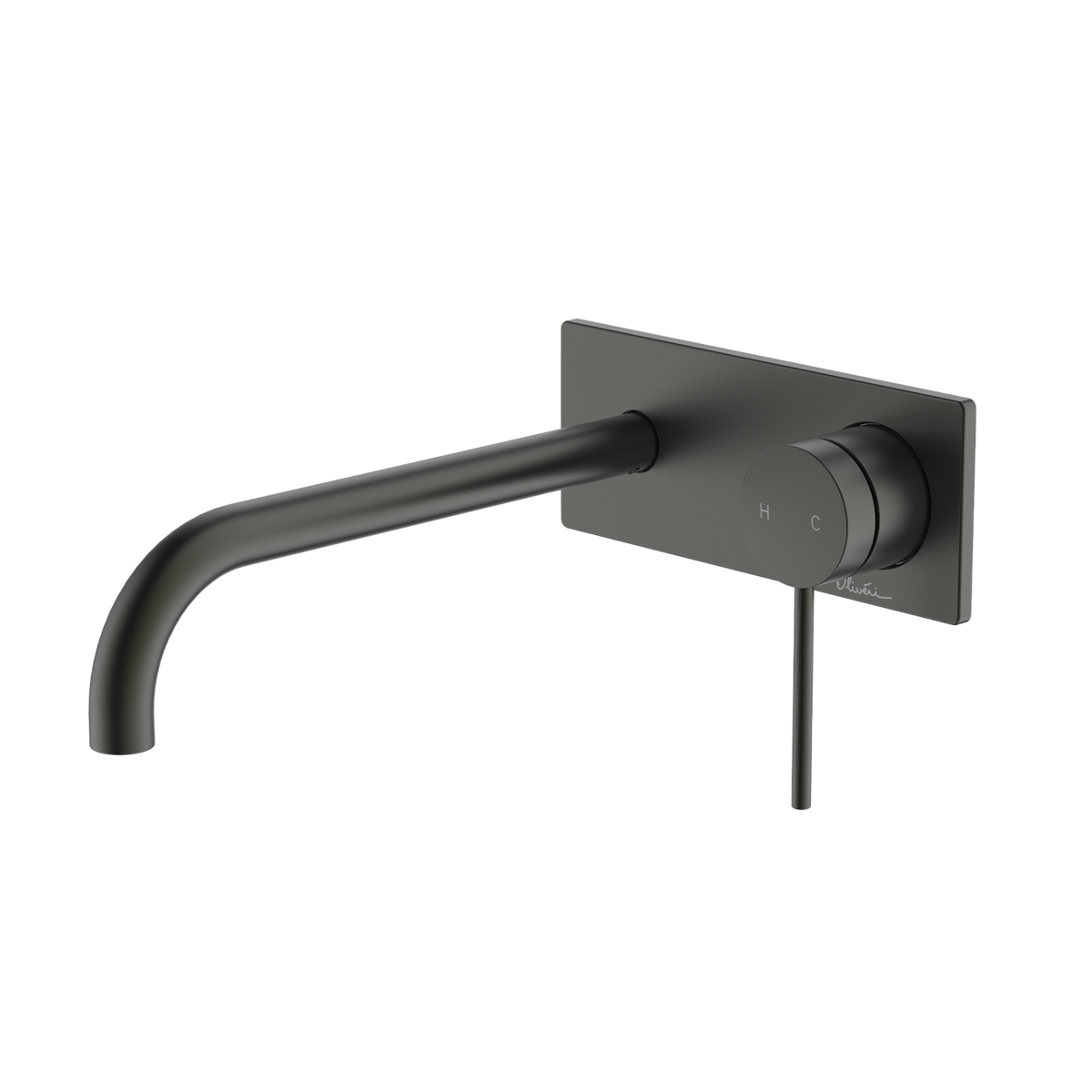

- Gunmetal - VE105505FGM

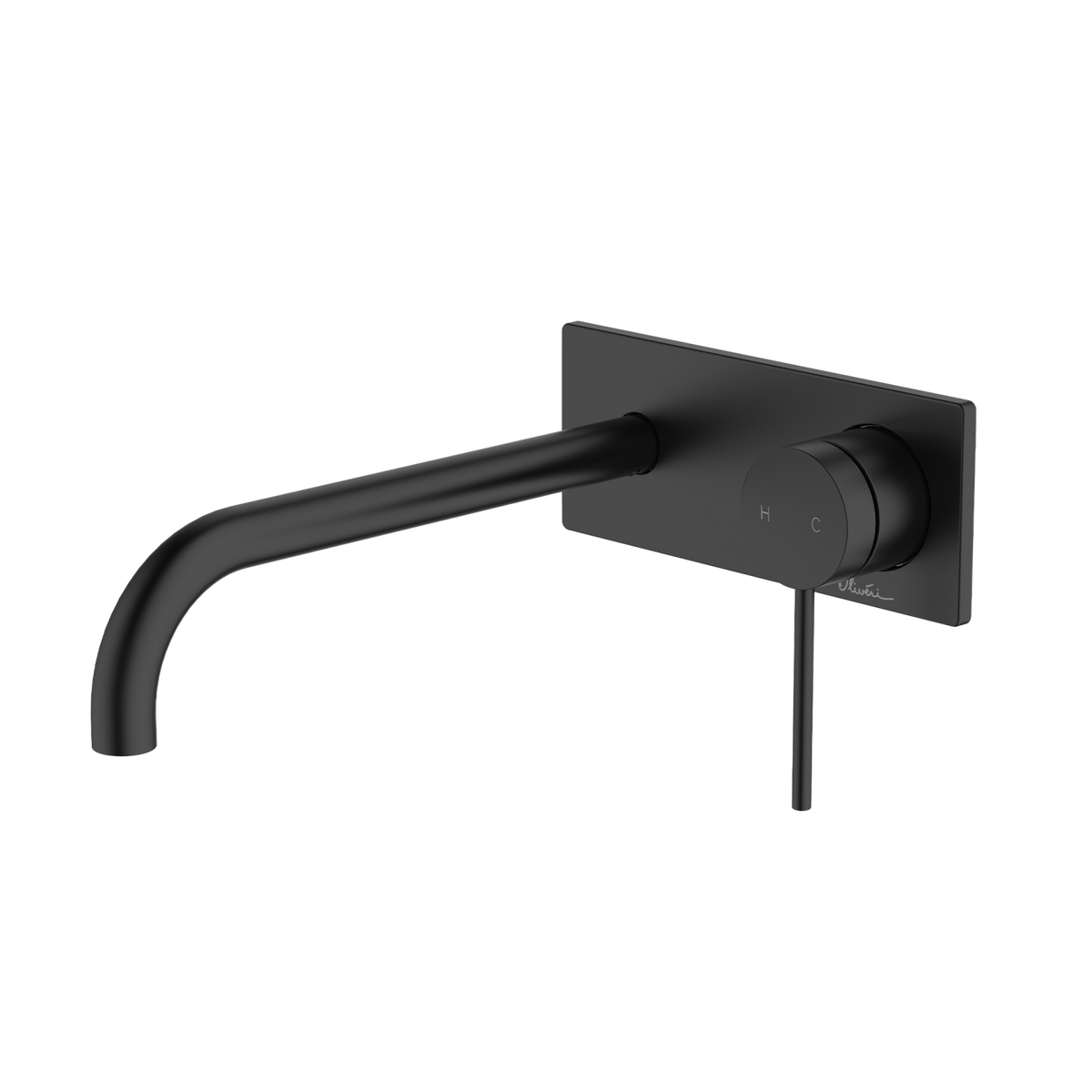

- Matte Black - VE105516FMB
Cleaning & Maintenance:
- Clean with mild liquid detergent or warm soapy water and a soft cloth.
- Rinse and dry after cleaning.
- Avoid abrasive, acidic, cream and citrus-based cleaners.
- Clean the aerator periodically and inspect flexible hoses annually.
Specifications:
- Installation: Wall mounted
- Construction: Lead-free brass body, zinc handle and stainless-steel lever
- In-wall body: UNI-C2-BY
- Cartridge: 35mm Kerox ceramic disc
- Water supply: Mains
- Operating pressure: 150–500kPa
- Maximum operating temperature: 65°C
- WELS rating: 6 Stars at 4.5L/min
- WELS registration: T43969
- WELS licence: 1416
- Compliance: In accordance with AS/NZS 6400

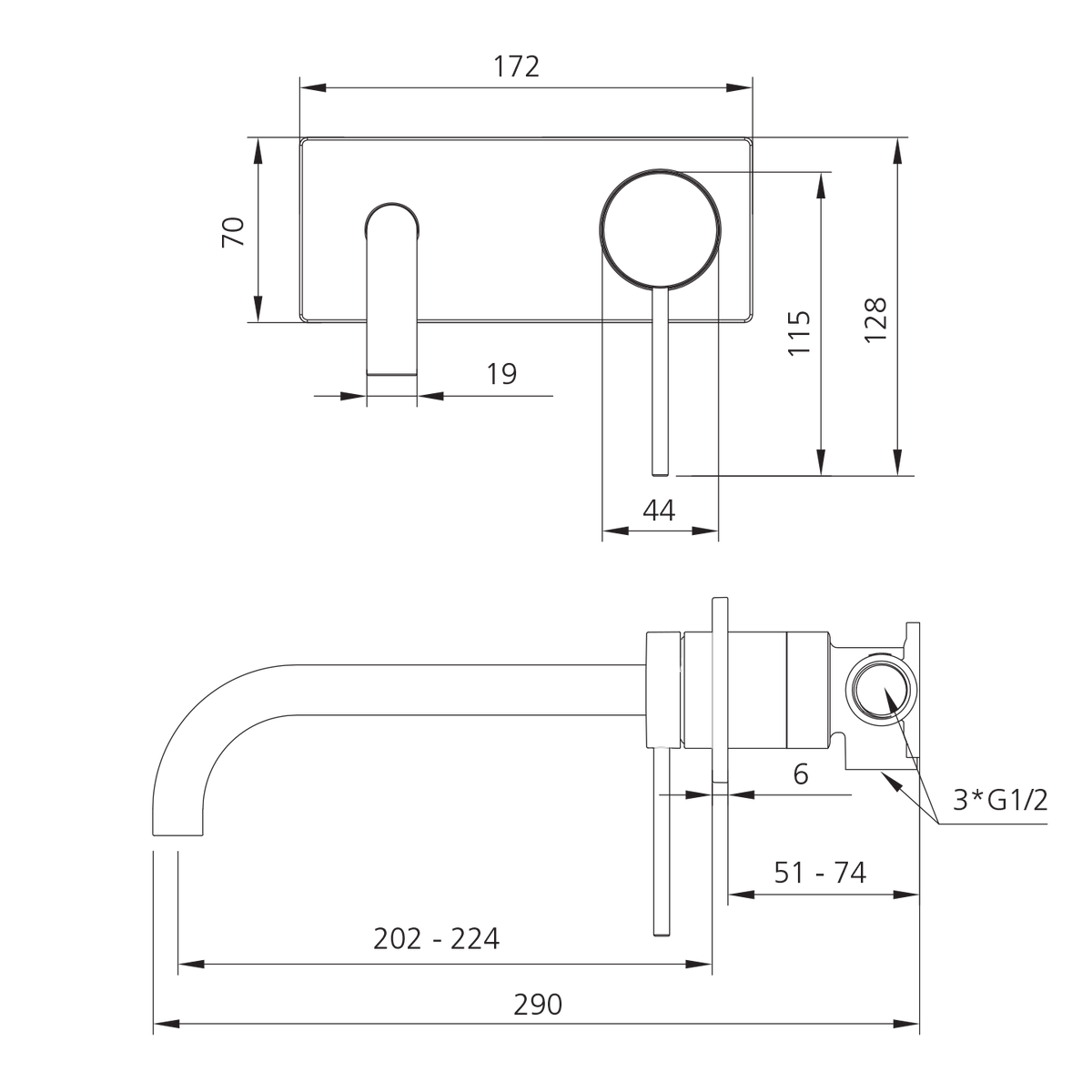

Product Measurements:
- Backplate Width: 172mm
- Backplate Height: 70mm
- Overall Assembly Height: 128mm
- Handle Length: 115mm
- Mixer Trim Diameter: 44mm
- Overall Projection: 290mm
- Spout Reach: 202–224mm
- Required In-Wall Depth: 51–74mm
Product Weight:
- Net Product Weight: 1.55kg
Installation & Requirements:
- Must be installed by a licensed plumber in accordance with local regulations.
- Flush supply lines before installation and keep static pressure below 500kPa.
- Plan the in-wall body depth, basin position and water landing point before wall finishing.
- Provide access to concealed fittings for future servicing.
Extra Information:
The complete VE1055 package is suited to new installations where both the concealed mixer body and visible trim are required. Separating the in-wall body from the interchangeable trim provides design flexibility while maintaining a consistent internal platform.
The installed WELS 6 Star aerator delivers 4.5L/min for efficient use, while the included WELS 5 Star aerator offers an optional 6L/min flow. Five finishes allow the wall mixer set to coordinate across the broader Venice bathroom collection.
Included Products / Accessories:
- UNI-C2-BY SERIES 2 in-wall mixer body
- Venice curved wall-mixer trim kit in selected finish
- WELS 6 Star, 4.5L/min aerator installed
- Alternative WELS 5 Star, 6L/min aerator
- Installation components supplied by Oliveri
Warranty:
Oliveri products are backed by a comprehensive manufacturer's warranty, including lifetime cover on selected stainless steel kitchen sinks, laundry tubs and basins, 20 years on selected vitreous china basins and toilets, and 15 years on selected bathroom tapware and shower bodies. Warranty periods vary by product category and are in addition to your rights under the Australian Consumer Law. Refer to the Oliveri Warranty page for full terms and conditions.
