Product Description
Product Overview:
The Oliveri PA1025-TK Paris Wall Mixer Set Trim Kit provides the visible spout, mixer handle and wall plates for a SERIES 2 wall-mounted bathroom installation. Its angular Paris styling is balanced by softened edges, giving the vanity area a polished architectural finish.
This is a trim-only product designed for use with the separately purchased Oliveri UNI-C2-BY SERIES 2 Wall Mixer Set Inwall Body. It is ideal where the concealed body has already been installed during rough-in and the finish selection is being completed later in the project.
The trim uses lead-free brass construction with a zinc handle and is available in five coordinated finishes. Dual WELS aerators support either 6 Star 4.5L/min or 5 Star 6L/min operation when installed with the compatible inwall body.
Product Features:
- Trim-only configuration: Provides the visible Paris spout, handle and wall plates for an existing SERIES 2 inwall body.
- Design flexibility: Allows the visible style or finish to be selected after the concealed UNI-C2-BY body is installed.
- Dual WELS performance: Supplied with a 6 Star 4.5L/min aerator installed and a 5 Star 6L/min aerator included.
- Lead-free construction: Durable lead-free brass body components are paired with a zinc handle.
- Five finish choices: Coordinate Chrome, Brushed Nickel, Classic Gold, Gunmetal or Matte Black with the wider bathroom palette.
Colour / Finishes:
- Gunmetal - PA102505FGM-TK

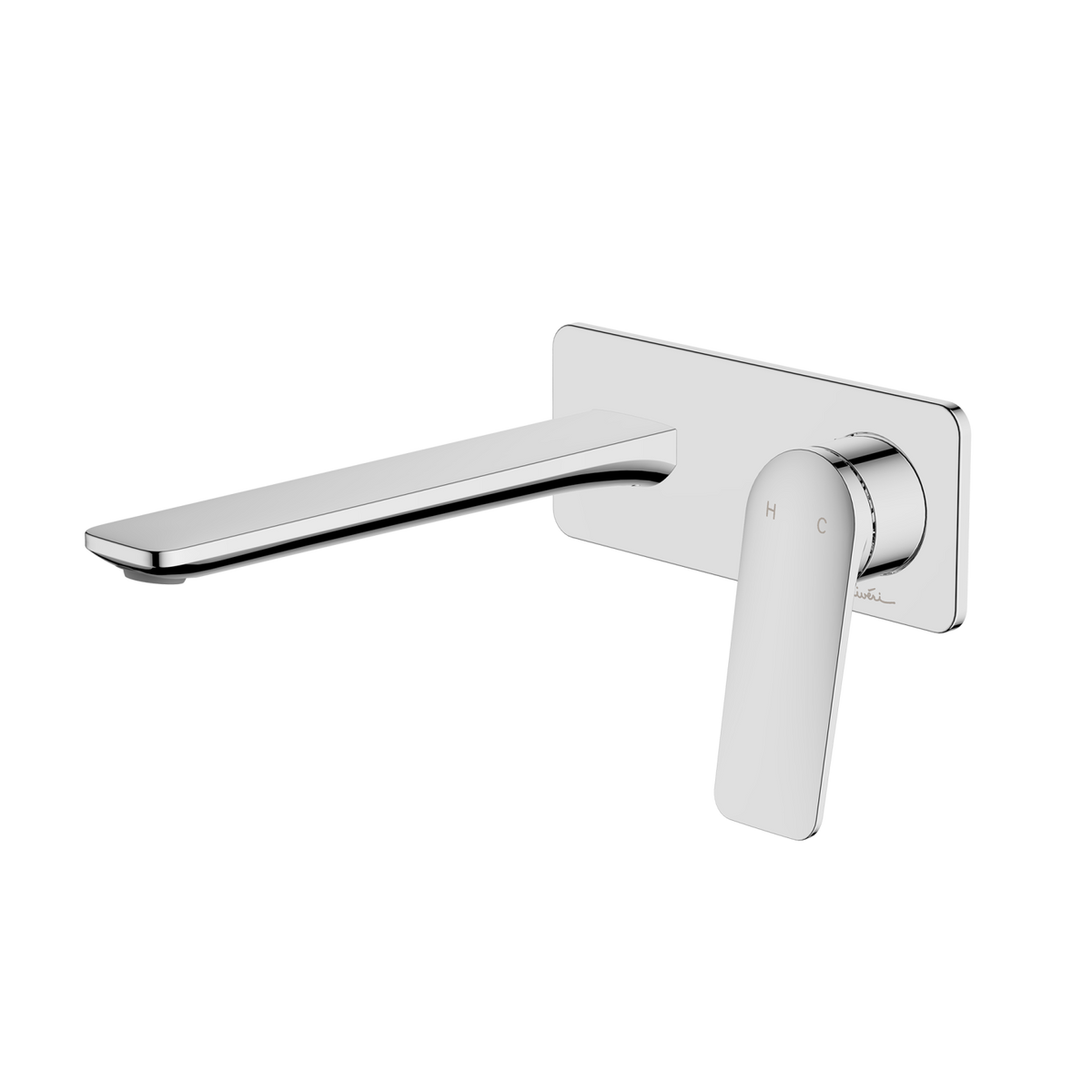

- Chrome - PA102500FCR-TK

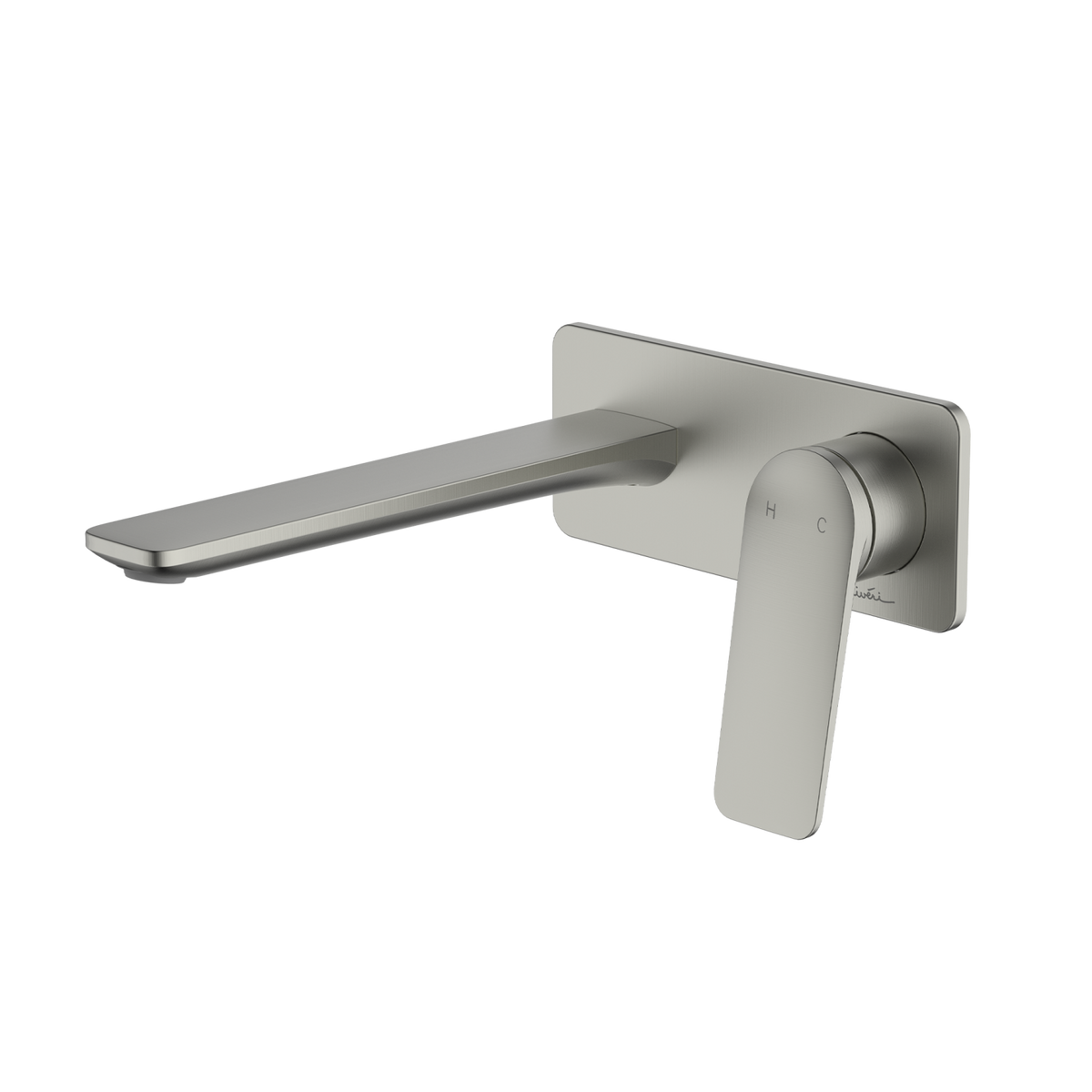

- Brushed Nickel - PA102500FBN-TK
- Gold - PA102503FCG-TK

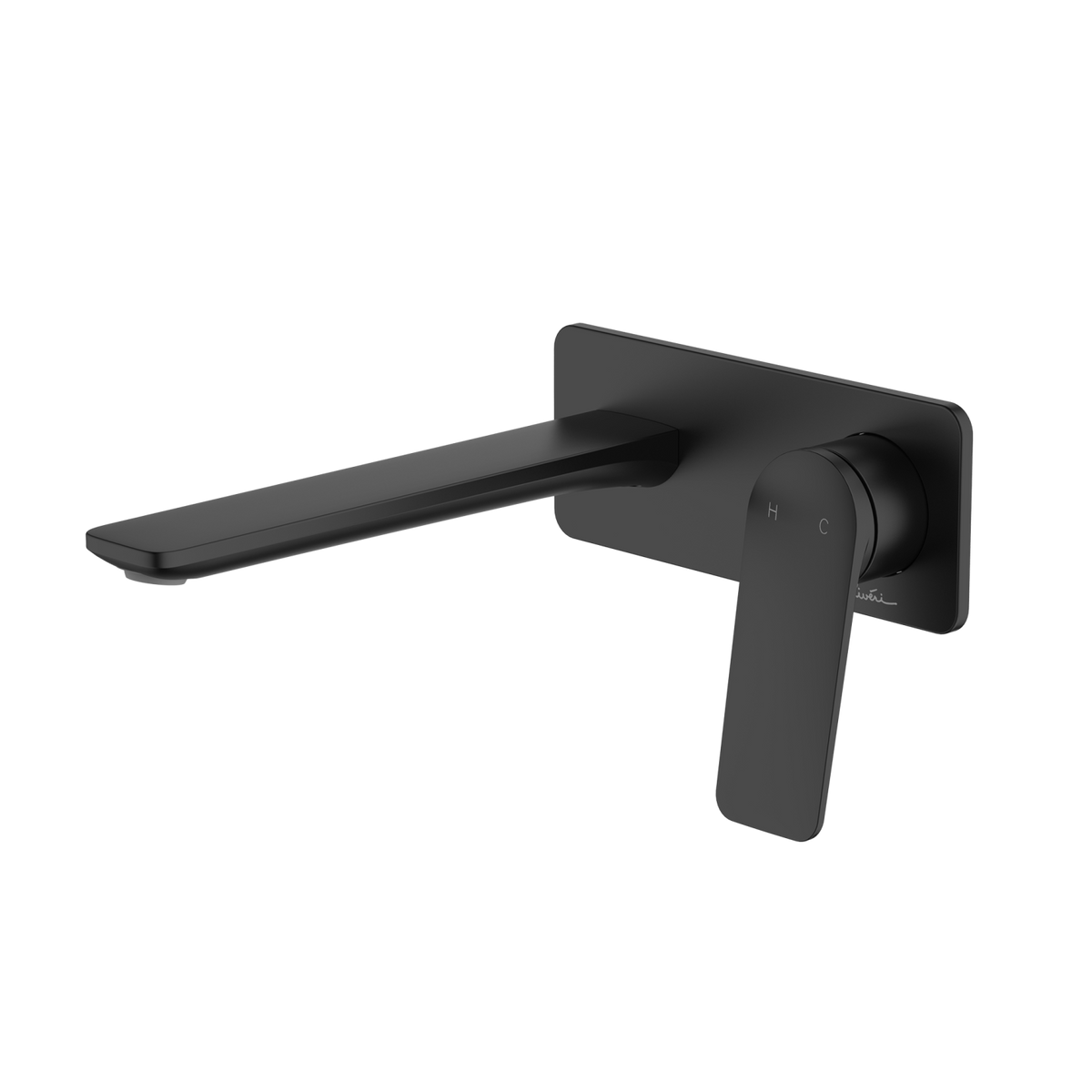

- Matte Black - PA102516FMB-TK
Cleaning & Maintenance:
- Routine cleaning: Clean with a soft cloth and warm soapy water, then rinse and dry.
- Protect the finish: Avoid abrasive, cream, citrus-based and acid-based cleaning products.
- Aerator care: Keep the chosen WELS aerator clean and securely installed to maintain registered flow performance.
Specifications:
- Brand: Oliveri
- Model family: PA1025-TK
- Collection: Paris
- Product type: Wall mixer set trim kit
- Configuration: Trim only
- Compatibility: Oliveri UNI-C2-BY SERIES 2 Wall Mixer Set Inwall Body
- Materials: Lead-free brass components with zinc handle
- Water supply: Mains via compatible inwall body
- WELS rating: 6 Stars at 4.5L/min; optional 5 Stars at 6L/min
- WELS registration: T43980 / T43979
Product Measurements:
- Wall plate dimensions: 175 × 175mm
- Overall spout projection: 281mm
- Estimated carton dimensions (L × W × H): 30 × 20 × 10cm
Product Weight:
- Estimated net product weight: 1.2kg
Installation & Requirements:
- Required inwall body: Must be installed with the Oliveri UNI-C2-BY SERIES 2 Wall Mixer Set Inwall Body, sold separately.
- Licensed installation: Fit-off must be completed by a licensed plumber.
- Pre-installation check: Confirm the concealed body is correctly positioned, pressure-tested and compatible before fitting the trim.
- Surface protection: Protect the finish during construction and remove protective materials only when the surrounding work is complete.
Country of Origin:
- Made In China
Extra Information:
The trim-only format separates rough-in plumbing from the final decorative selection. Builders and renovators can install the universal inwall body earlier, then choose the Paris finish once tiles, cabinetry and other bathroom fittings have been finalised.
Because the visible trim is part of Oliveri's SERIES 2 platform, it also provides a practical path for future style updates without replacing the concealed body. Compatibility and the condition of the existing installation should always be confirmed before ordering replacement trim.
Included Products / Accessories:
- Paris wall mixer set trim: Spout, mixer handle and matching wall plates in the selected finish.
- 6 Star aerator: Factory fitted for 4.5L/min flow.
- 5 Star aerator: Included for optional 6L/min flow.
- Important: UNI-C2-BY inwall body is not included and must be purchased separately.
Warranty:
Oliveri products are backed by a comprehensive manufacturer's warranty, with coverage ranging from a lifetime warranty on stainless steel kitchen sinks, laundry tubs, and basins, through to 20 years on vitreous china basins and toilets, and 15 years on bathroom tapware and shower bodies. Warranty periods vary by product category. All warranties are in addition to your rights under the Australian Consumer Law.
