Product Description

Product Overview:

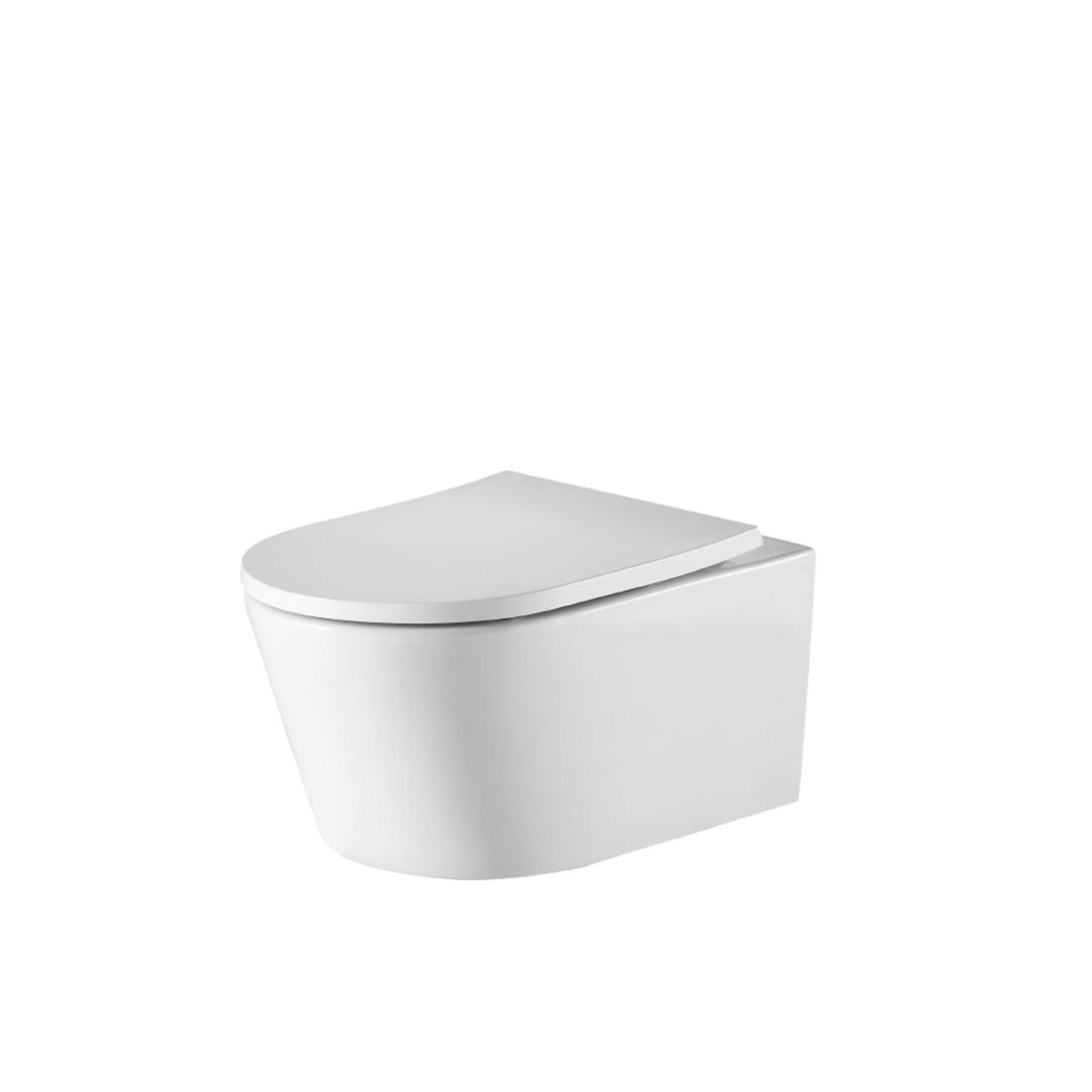

The Oliveri OS513-PSC Oslo Wall Hung Toilet Suite creates a light, minimalist bathroom finish by lifting the rimless pan clear of the floor and concealing the cistern and support frame within the wall. Its understated white vitreous china form is paired with a Geberit Sigma8 Duofix frame and dual-flush cistern for a complete structural installation package.

A soft-close quick-release seat supports quiet everyday use and easy cleaning, while the open floor beneath the pan simplifies bathroom maintenance. WELS 4 Star performance balances the refined wall-hung design with efficient 4.5L/3L flushing.

Product Features:

• Wall-hung design: Creates a floating appearance and leaves the floor clear for easier cleaning.
• Duofix frame included: Provides the concealed structural support required for the wall-hung pan.
• Rimless pan: Improves cleaning access and supports a more hygienic bowl design.
• Geberit Sigma8 dual flush: Delivers dependable 4.5L full and 3L half-flush operation.
• Soft-close quick-release seat: Reduces noise and removes more easily for cleaning.
• WELS 4 Star efficiency: Uses an average of 3.5 litres per flush.

Colour / Finishes:

• High Gloss White - OS513-PSC

Cleaning & Maintenance:

• Routine cleaning: Clean with a soft cloth and warm soapy water as necessary.
• Rinse and dry: Rinse away cleaner residue and dry the surface after cleaning.
• Avoid harsh products: Do not use abrasive, acid-based or aggressive chemical cleaners.
• Protect the finish: Avoid abrasive pads, sharp tools and impacts that may mark the surface.

Specifications:

• Brand: Oliveri
• Collection: Oslo
• Model: OS513-PSC
• Product type: Wall hung toilet suite with concealed cistern and frame
• Pan: Rimless vitreous china
• Trap: P-trap

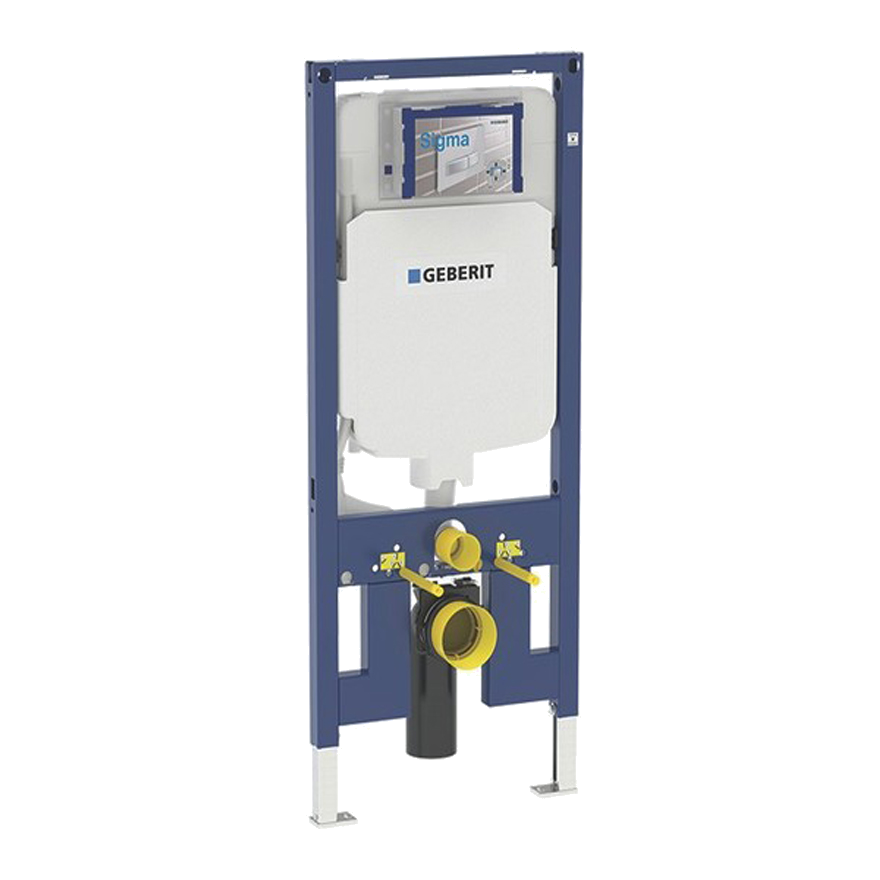

• Cistern and frame: Geberit Sigma8 Duofix concealed cistern with frame, 4.5L / 3L
• Seat: Soft-close quick-release seat with metal hinges
• WELS rating: 4 Stars, 3.5L average flush
• WELS registration: L06654
• Flush plate: Required and sold separately

Product Measurements:

• Refer to manufacturer specifications: Confirm pan height, frame position and wall-cavity requirements before construction.
• Estimated carton dimensions: 120 × 55 × 50cm

Product Weight:

• Net product weight: 26.8kg

Installation & Requirements:

• Applicable standard: Install in accordance with AS/NZS 3500.2 and local building and plumbing requirements.
• Structural installation: Secure and level the supplied Duofix frame to an appropriate structural substrate before wall lining.
• Finished pan height: Determine the desired seat height during frame set-up, before the wall is closed.
• Flush plate: Select a compatible flush plate separately and maintain service access through the actuator opening.
• Qualified trades: Framing, plumbing, waterproofing and final installation must be coordinated by appropriately qualified trades.
• Commissioning: Confirm pan stability, flush performance and leak-free concealed connections before handover.

Extra Information:

The OS513-PSC is ideal for design-led bathrooms where clear floor space and visual simplicity matter. Suspending the pan above the floor helps the room feel more open, makes routine mopping easier and allows floor finishes to continue uninterrupted beneath the suite.

The included Geberit Sigma8 Duofix frame removes uncertainty from the core structural specification, while the separately selected flush plate lets the visible detail coordinate with the wider bathroom palette. Its rimless pan and removable seat ensure the refined appearance remains practical to maintain.

Included Products / Accessories:

• Pan: Oslo rimless wall-hung toilet pan
• Seat: Soft-close quick-release seat
• Frame and cistern: Geberit Sigma8 Duofix concealed cistern and support frame
• Fixings: Manufacturer-supplied fittings and fixtures
• Documentation: Manufacturer installation and care information
• Not included: Flush plate actuator

Warranty:

Oliveri products are backed by a comprehensive manufacturer's warranty, with coverage ranging from a lifetime warranty on stainless steel kitchen sinks, laundry tubs, and basins, through to 20 years on vitreous china basins and toilets, and 15 years on bathroom tapware and shower bodies. Warranty periods vary by product category. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• INSTALLATION GUIDE (PDF)

• DUOFIX CISTERN SPECIFICATIONS SHEET (PDF)
