Product Description

Product Overview:

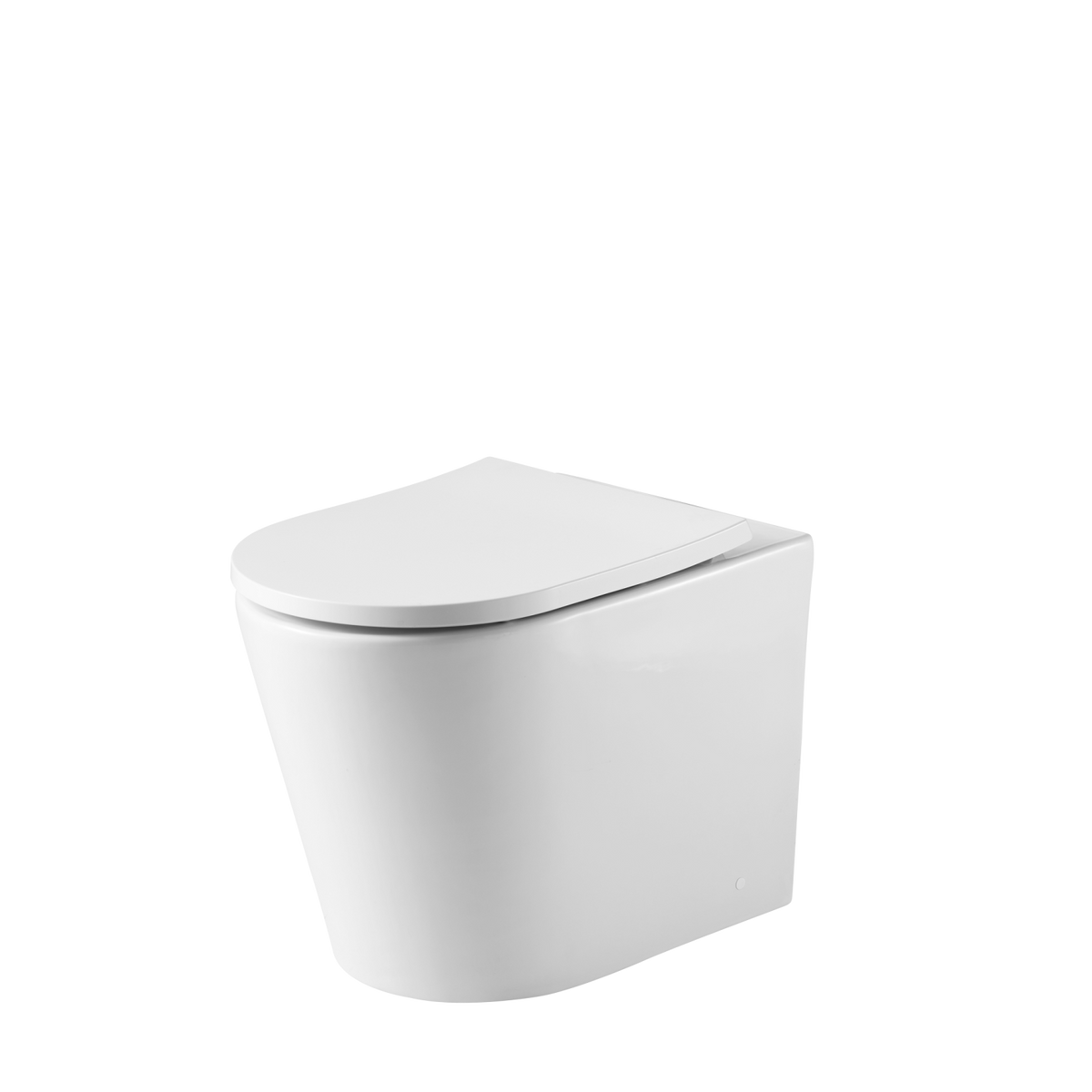

The Oliveri OS127-PSC Oslo Wall Faced Toilet Suite is designed for bathrooms that favour understated lines and concealed functionality. Its rimless white vitreous china pan sits neatly against the wall, while the included Geberit Sigma8 concealed cistern keeps the installation visually quiet and uncluttered.

Universal S- or P-trap compatibility, a soft-close quick-release seat and WELS 4 Star flushing make it a practical package for contemporary projects. The concealed cistern provides reliable 4.5L/3L dual-flush operation, with the decorative flush plate selected separately to suit the room.

Product Features:

• Concealed-cistern package: Includes a Geberit Sigma8 concealed cistern for a streamlined wall-faced installation.
• Rimless pan: Provides easier access around the bowl for more hygienic routine cleaning.
• Universal trap compatibility: Supports suitable S-trap or P-trap installations.
• Soft-close quick-release seat: Improves everyday comfort and simplifies cleaning access.
• Selectable flush plate: Allows the visible actuator to be coordinated with the bathroom finish; sold separately.
• WELS 4 Star efficiency: Uses an average of 3.5 litres per flush.

Colour / Finishes:

• High Gloss White - OS127-PSC

Cleaning & Maintenance:

• Routine cleaning: Clean with a soft cloth and warm soapy water as necessary.
• Rinse and dry: Rinse away cleaner residue and dry the surface after cleaning.
• Avoid harsh products: Do not use abrasive, acid-based or aggressive chemical cleaners.
• Protect the finish: Avoid abrasive pads, sharp tools and impacts that may mark the surface.

Specifications:

• Brand: Oliveri
• Collection: Oslo
• Model: OS127-PSC
• Product type: Wall faced toilet suite with concealed cistern
• Pan: Rimless vitreous china
• Trap: Universal S or P trap
• Cistern: Geberit Sigma8 concealed cistern, 4.5L / 3L
• Seat: Soft-close quick-release seat with metal hinges
• WELS rating: 4 Stars, 3.5L average flush
• WELS registration: L06556
• Standard set-out: S-trap 50–75mm; P-trap 185mm floor to outlet centre
• Optional S-trap set-out: 140–150mm with SPB0202 sold separately
• Flush plate: Required and sold separately

Product Measurements:

• Refer to manufacturer specifications: Confirm pan, cistern cavity and set-out dimensions before construction.
• Estimated carton dimensions: 70 × 50 × 50cm

Product Weight:

• Net product weight: 32.88kg

Installation & Requirements:

• Applicable standard: Install in accordance with AS/NZS 3500.2 and local plumbing requirements.
• Wall preparation: Allow the required cavity and service access for the Geberit Sigma8 concealed cistern.
• Trap selection: Confirm S-trap or P-trap configuration and set-out before rough-in.
• Flush plate: Select a compatible Geberit/Oliveri flush plate separately before completion.
• Qualified installation: Installation, waterproofing interfaces and commissioning must be completed by appropriately qualified trades.
• Commissioning: Check flush volumes, seat alignment and every concealed and visible connection for leaks.

Extra Information:

The Oslo wall-faced suite suits customers who want the calm appearance of a concealed cistern while retaining the grounded familiarity of a floor-mounted pan. With the cistern hidden inside the wall, the finished bathroom feels more spacious and architecturally resolved.

The separately selected flush plate creates an opportunity to coordinate the visible control with tapware and accessories. Rimless flushing and a removable soft-close seat keep the suite practical after installation, while the included Sigma8 cistern provides trusted dual-flush operation behind the wall.

Included Products / Accessories:

• Pan: Oslo rimless wall-faced toilet pan
• Seat: Soft-close quick-release seat

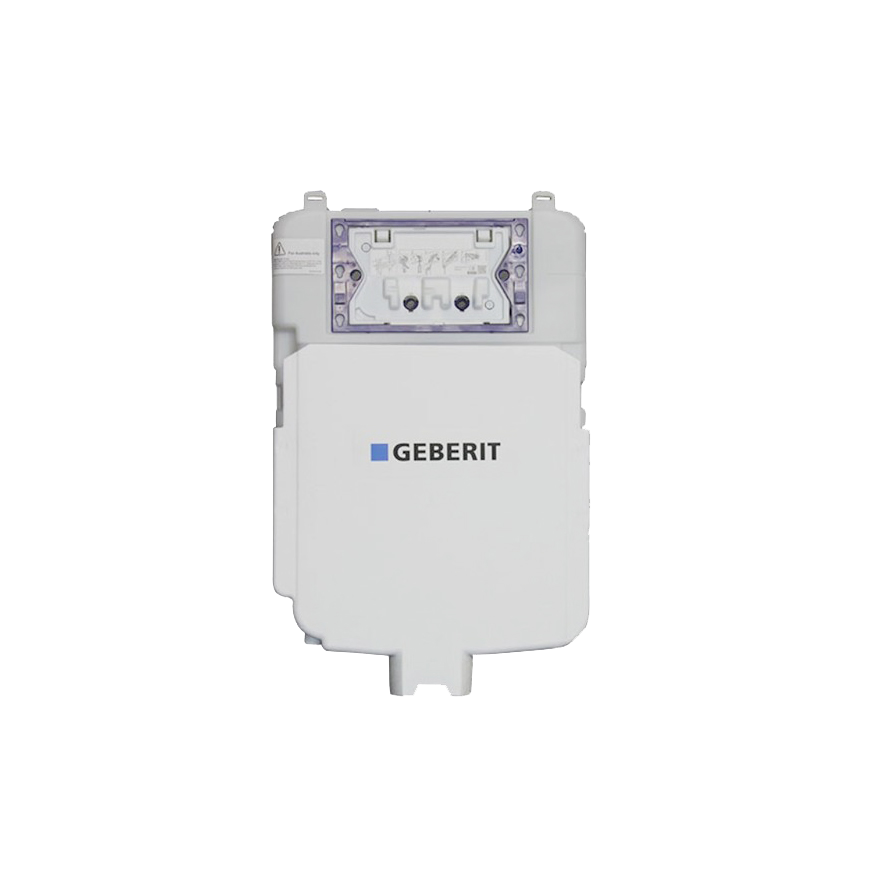

• Concealed cistern: Geberit Sigma8 dual-flush concealed cistern
• Fixings: Manufacturer-supplied fittings and fixtures
• Documentation: Manufacturer installation and care information
• Not included: Flush plate actuator and optional SPB0202 variance bend

Warranty:

Oliveri products are backed by a comprehensive manufacturer's warranty, with coverage ranging from a lifetime warranty on stainless steel kitchen sinks, laundry tubs, and basins, through to 20 years on vitreous china basins and toilets, and 15 years on bathroom tapware and shower bodies. Warranty periods vary by product category. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• INSTALLATION GUIDE (PDF)

• CONCEALED CISTERN GUIDE (PDF)
