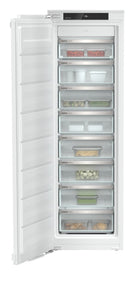

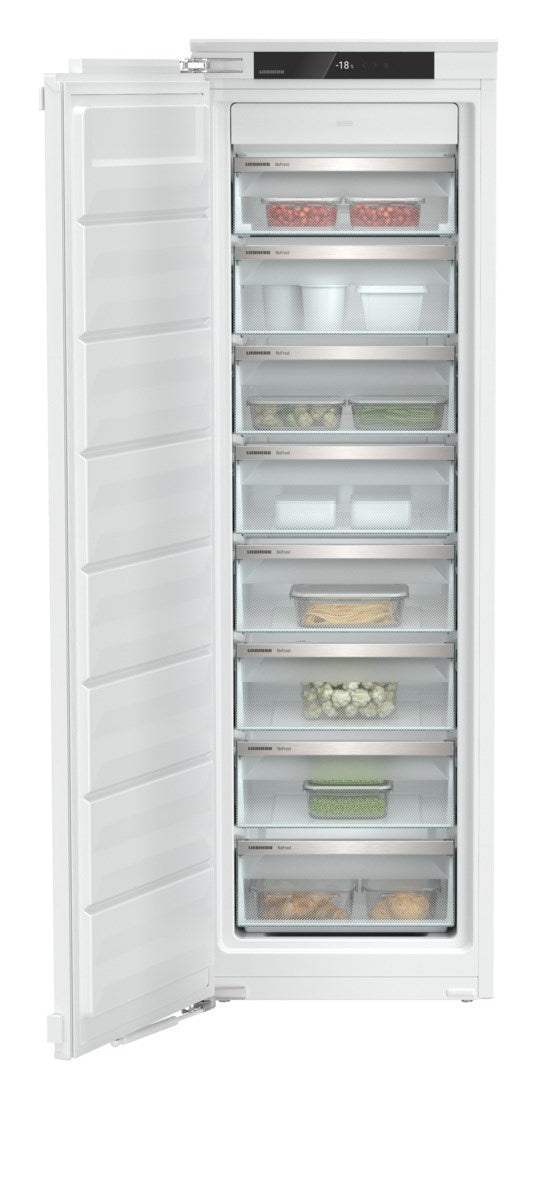

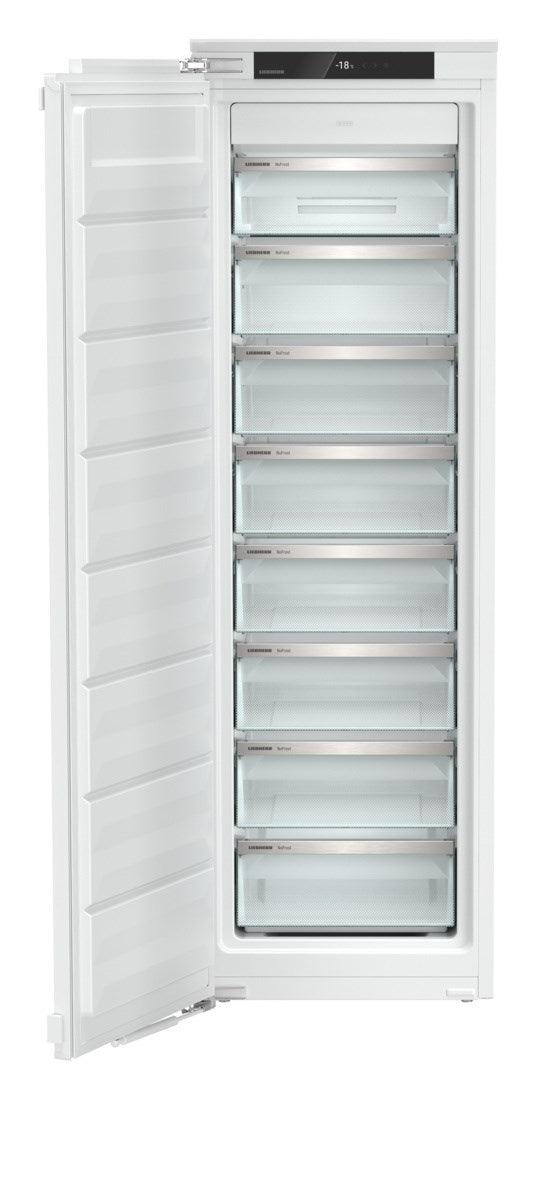

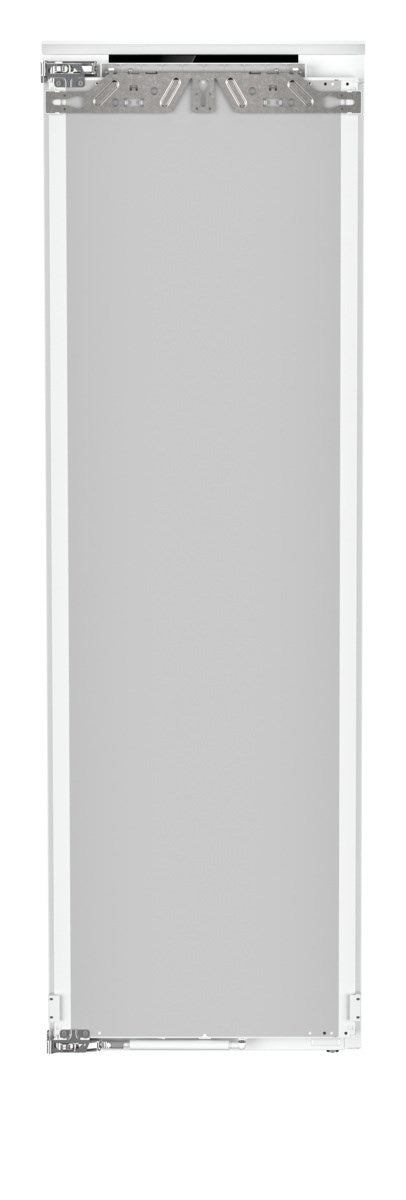

Liebherr SIFNh 5128 Plus NoFrost Integrated Freezer

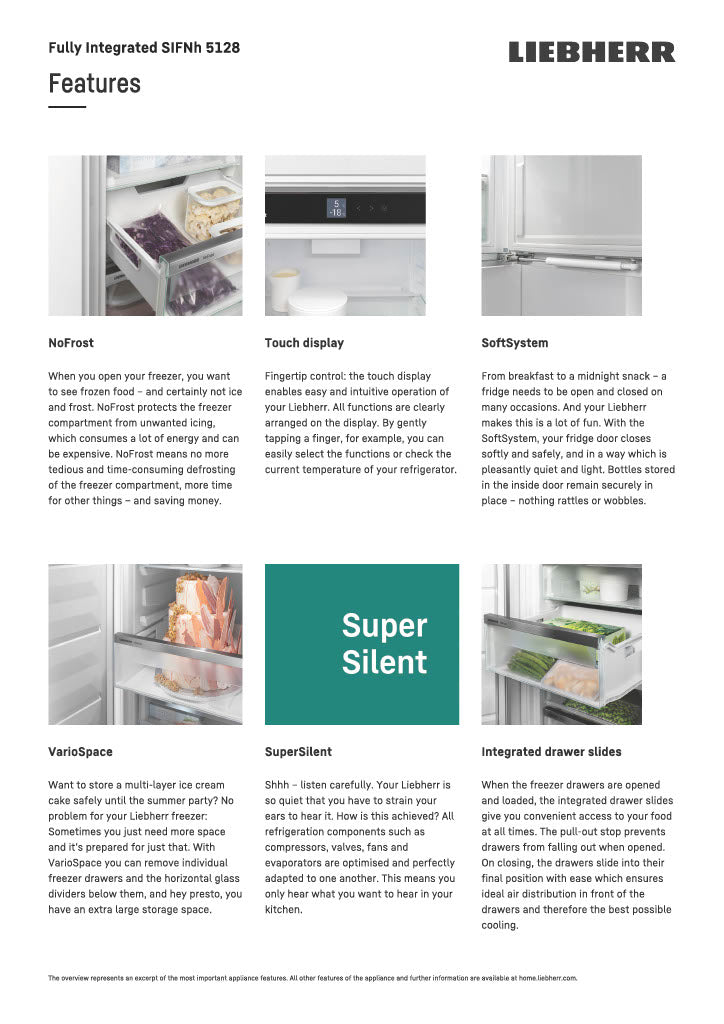

NoFrost

• When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.

Touch display

• Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.

SoftSystem

• From breakfast to a midnight snack – a fridge needs to be open and closed on many occasions. And your Liebherr makes this is a lot of fun. With the SoftSystem, your fridge door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place – nothing rattles or wobbles.

VarioSpace

• Looking for somewhere to safely store a multi-tiered ice cream cake until the summer party? No problem for your Liebherr freezer: it knows that sometimes you just need more space. Thanks to VarioSpace, you can simply remove individual freezer drawers – and voilà: here’s your extra-high storage space!

SuperSilent

• Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.

Integrated drawer slides

• When the freezer drawers are opened and loaded, the integrated drawer slides give you convenient access to your food at all times. The pull-out stop prevents drawers from falling out when opened. On closing, the drawers slide into their final position with ease which ensures ideal air distribution in front of the drawers and therefore the best possible cooling.

Party Mode

• Now you’re ready to receive guests – because even your Liebherr is in the mood for a party. In PartyMode, functions such as SuperCool and/or SuperFrost are activated. After 24 hours, your Liebherr goes back to normal mode automatically.

Side-by-side concept

• Whether they’re next to or on top of one another, you can position your modular Liebherr appliances however you want. Create your own personal freshness centre from a combination of fridge, freezer, wine storage cabinets or full-space BioFresh. Typical Liebherr quality: A special technology in the ceiling and the side walls prevents condensation between the appliances – keeping the furniture fully protected.

Freezer tray

• Do you want your frozen berries to be fresh and firm after defrosting – and to not turn into a compote? The freezer tray is ideal for this type of delicate food. When spread out well on the plastic tray, fruits and herbs freeze quickly and without being squashed. You can easily insert the freezer tray in the freezer drawer and remove it again.

Dishwasher-safe features

• The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Want to clean the easily removable drawers? Just put them in the dishwasher. Then you’ll have more time for other things.

Replaceable door seal

• Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.

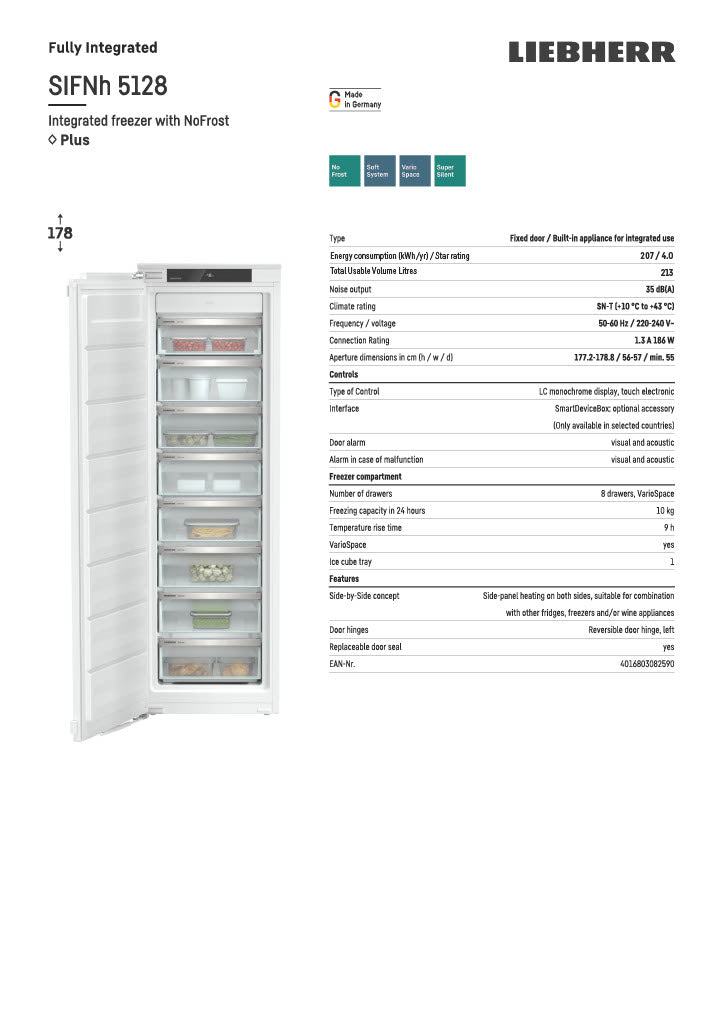

General Product Information:

• Model type: Freezer for integrated use with NoFrost
• GTIN: 4016803082590
• Series: plus

Output & Consumption:

• Climate class: SN-T
• Humidity range: Yes
• Noise level: 35 dB
• Voltage: 220-240 V ~
• Frequency: 50-60 Hz
• Connection rating: 1.3 A 186 W
• Energy consumption per year: 207 kWh/a
• Energy rating: 4

Control & Functions:

• Control: Monochrome LC display , touch display
• Control unit: Touch
• Number of temperature zones: 1
• Number of regulated refrigeration circuits: 1
• Temperature display: Freezer
• Front frame heating: Refrigerator and freezer compartment
• SuperCool: —
• SuperFrost: Adjustable on appliance and via app
• Door alarm, freezing: Adjustable on appliance and via app
• BottleTimer: Adjustable on app
• IceCubeTimer: —
• NightMode: Adjustable on app
• Display lock: Adjustable on appliance

Freezer Compartment:

• Temperature range freezer compartment: -15 °C to -28 °C
• Cooling technology: NoFrost
• Defrosting method: automatic
• Storage time in case of fault according to GS *: 9 h
• Freezing capacity in 24 hours according to GS *: 12.00 kg / 24h
• No. of drawers in freezer compartment: 8
• FrostSafe: Drawers closed on all sides with transparent front
• Drawer pull-out system, freezer compartment: Integrated drawer guide
• Interior light, freezer compartment: —
• VarioSpace: Yes
• IceMaker: No
• IceMaker safe lighting: —
• IceTower: —
• Ice cube tray: —
• Number of ice cube trays: 1
• Number of water filters: 0
• Freezer tray: 1
• Star-rating: 4

Set-up & Installation:

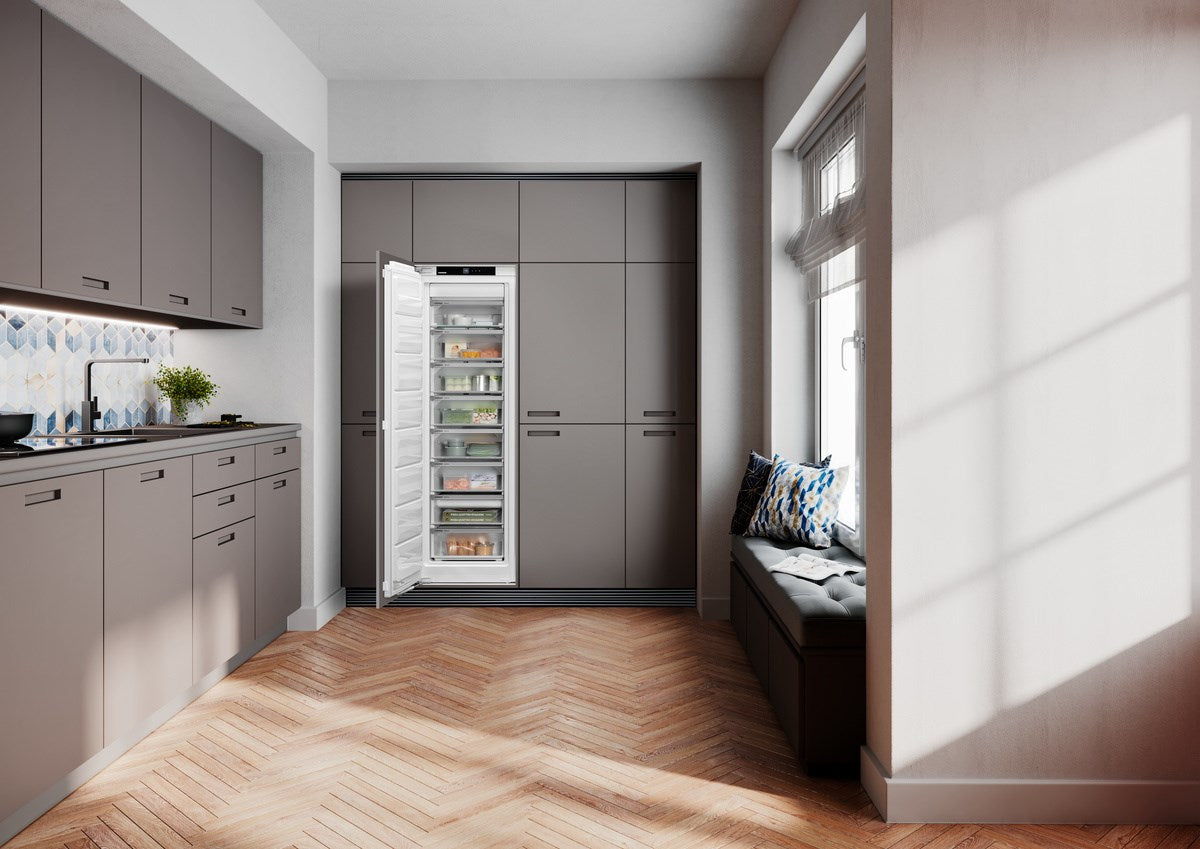

• Type of installation: Designed for integrated use
• Door assembly: Fixed door
• Max. kitchen unit door weight: 26
• Door hinges: Left reversible
• Door hinge replacement: Possible for customer
• Door opening angle: 115°
• Door seal: Replaceable
• Height-adjustable feet: 2
• Levelling bars: Yes
• Number of levelling bars: 2

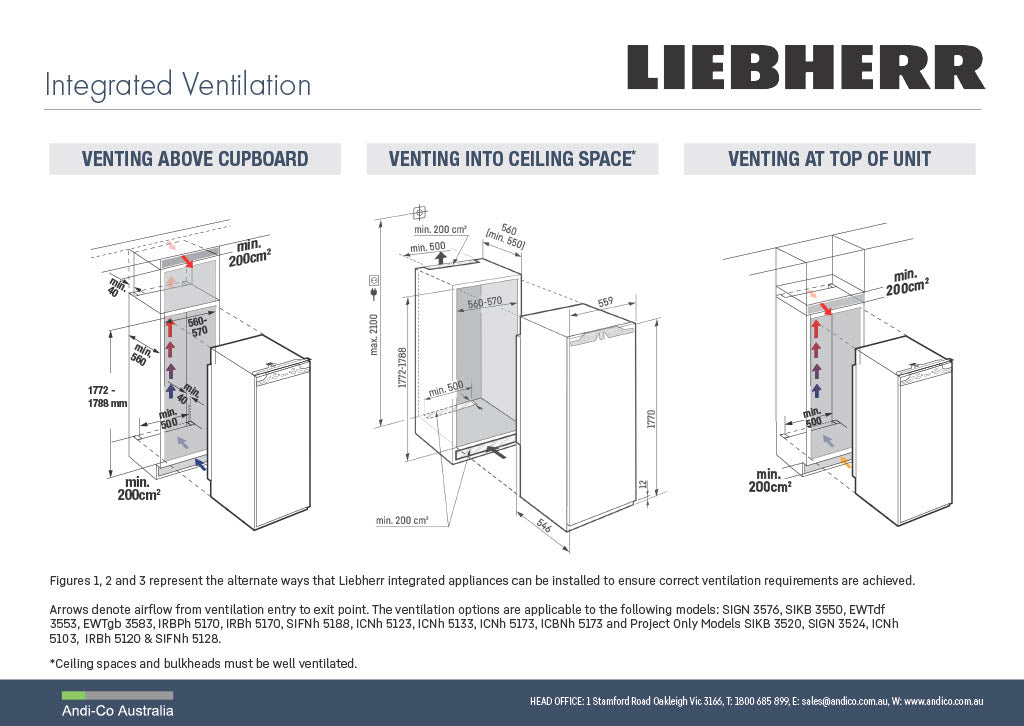

• Ventilation: Ventilation grates
• Plug type: Australia
• Connector cable (length): 2,200 mm

Specifications:

• Total volume: 213 l
• Dimensions H/W/D: 177 / 55.9 / 54.6 cm
• Volume, freezer compartments: 213 l
• Of which 4-star compartment: 213.3 l

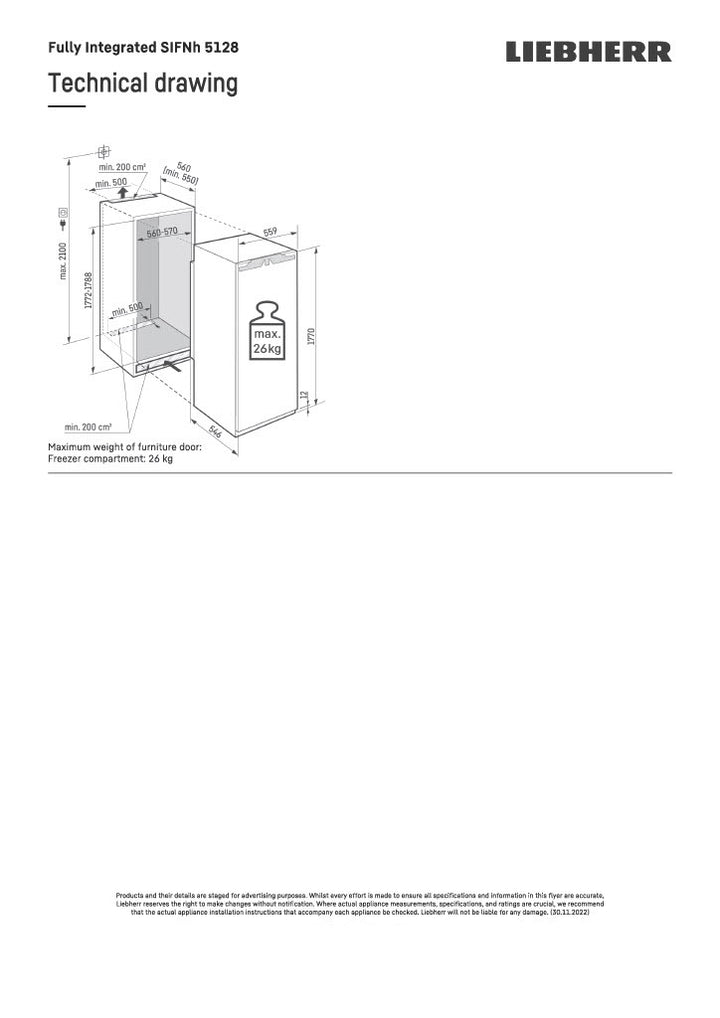

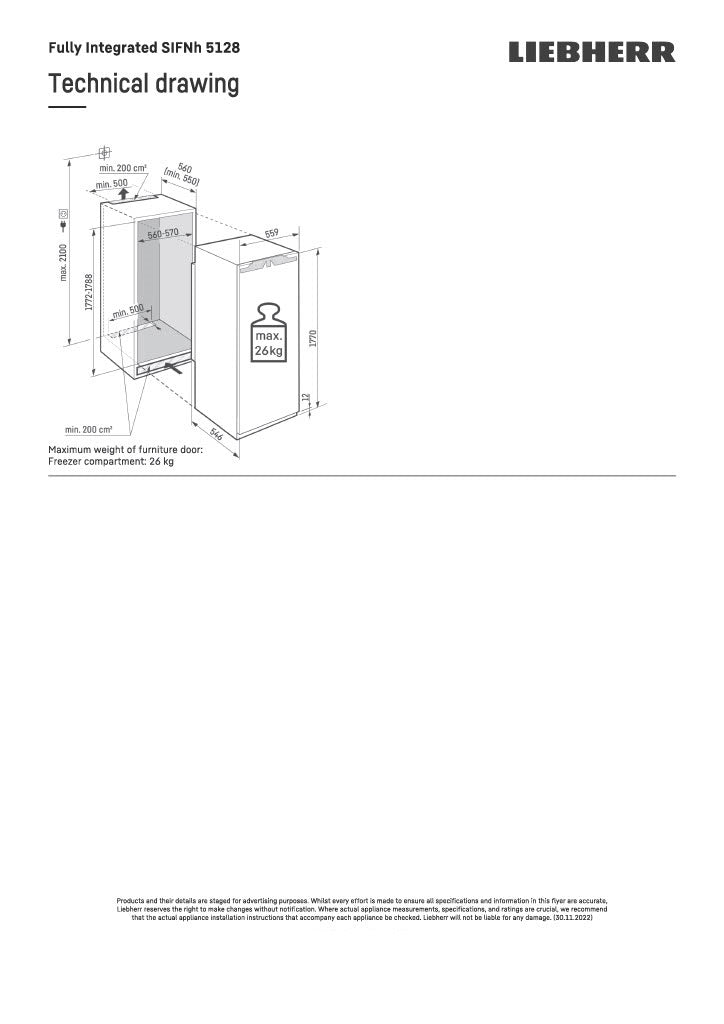

• Aperture dimensions height/width/depth: 177.2 - 178.8 / 56 - 57 / 55.0 cm
• Height / Width / Depth (with packaging): 1,877.0 / 575.0 / 622.0 mm
• Weight (without packaging): 63.9 kg
• Weight (with packaging): 67.5 kg

Warranty Coverage

Liebherr appliances are distributed in Australia by Andi-Co Australia Pty Ltd and are backed by a comprehensive five-year manufacturer's warranty, reflecting the quality and engineering behind every product.

• All household appliances: Five years' warranty against defects in materials and workmanship when used for domestic purposes.
• Cosmetic damage: Dents, scratches and blemishes must be reported in writing within 14 days of delivery.

The warranty applies to the original purchaser and any subsequent owner during the warranty period. Registering the appliance at andico.com.au may help provide faster after-sales service. Proof of purchase is required for all warranty claims.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of defective parts within the warranty period.
• Cosmetic damage reported in writing within 14 days of delivery.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's instructions.
• Misuse, abuse, accidental damage or neglect.
• Damage caused by power surges, electrical storms or an incorrect power supply.
• Damage caused by vermin or insect infestation.
• Normal wear and tear.
• Consumable items such as filters, light globes and batteries.
• Damage to drawers or shelves.
• Repairs or modifications carried out by unauthorised parties.
• Appliances purchased through unauthorised resellers or third-party auction websites.

Conditions

• The appliance must be used for domestic purposes only.
• The appliance must be installed and maintained in accordance with the manufacturer's instructions.
• Cosmetic damage must be reported in writing within 14 days of delivery.
• The warranty applies only to appliances purchased and used within Australia.
• Proof of purchase must be provided with every claim.

Making a Claim

Warranty claims should be made through the original place of purchase or directly with Andi-Co Australia. Have your proof of purchase available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
