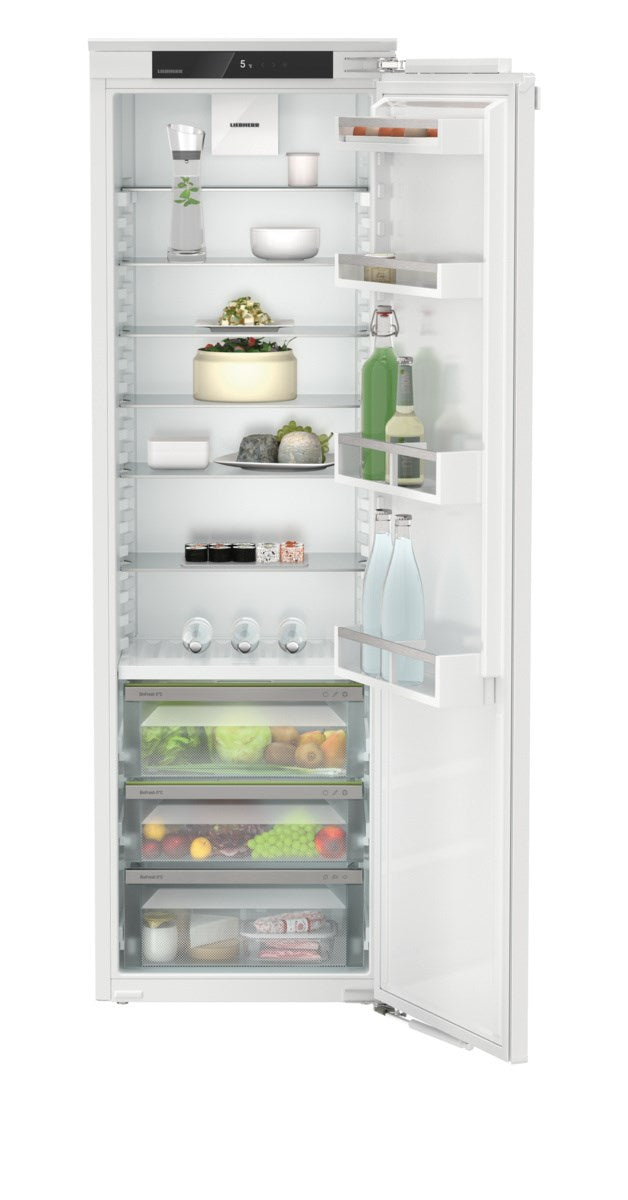

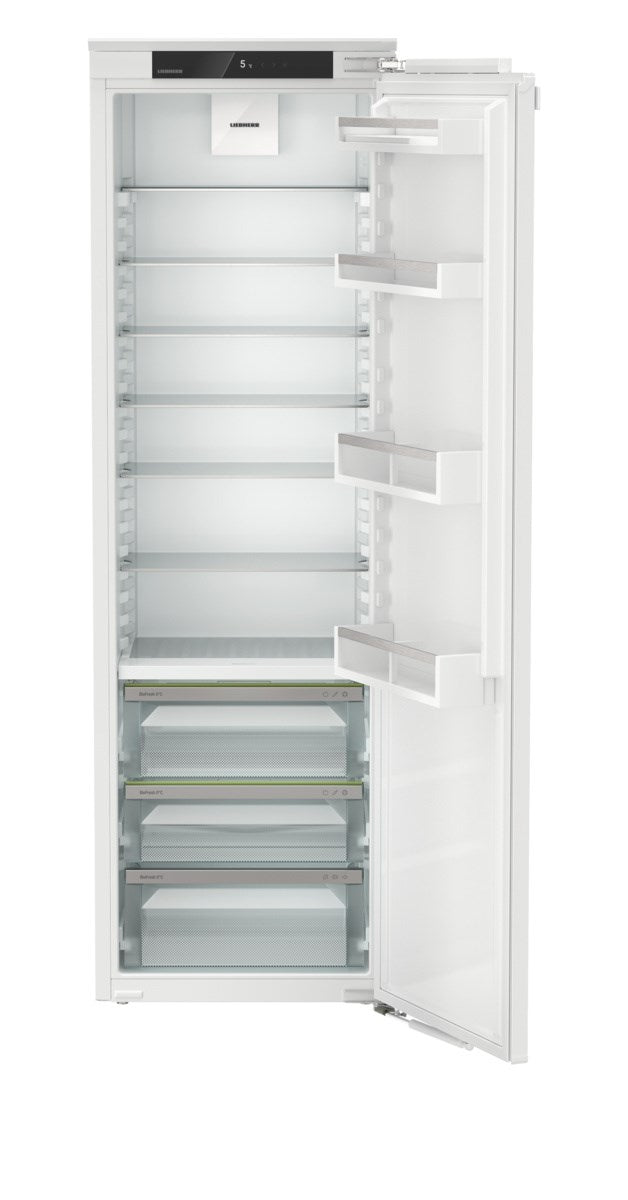

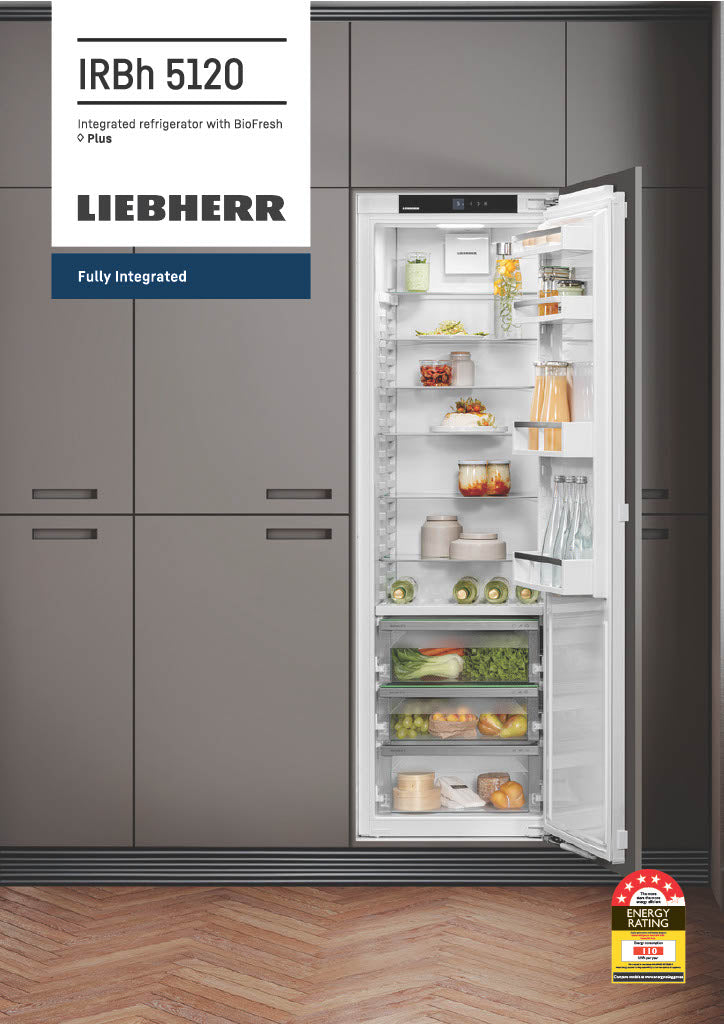

Liebherr IRBh 5120 Plus BioFresh Integrated Refrigerator

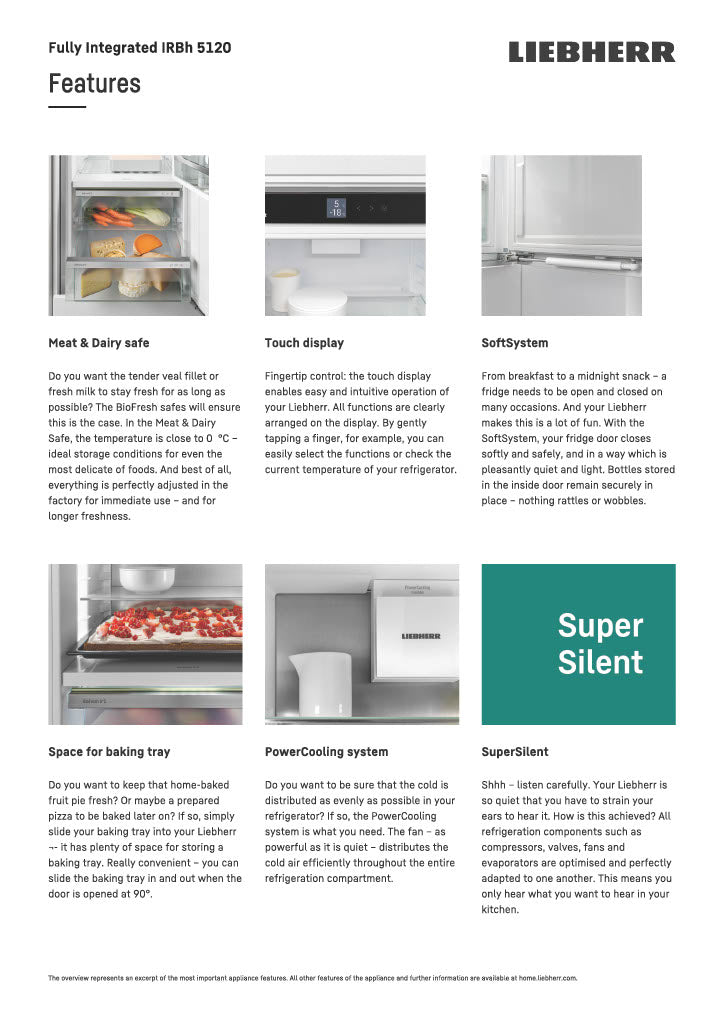

Meat & Dairy safe

• Do you want the tender veal fillet or fresh milk to stay fresh for as long as possible? The BioFresh safes will ensure this is the case. In the Meat & Dairy Safe, the temperature is close to 0 °C – ideal storage conditions for even the most delicate of foods. And best of all, everything is perfectly adjusted in the factory for immediate use – and for longer freshness.

Touch display

• Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.

SoftSystem

• From breakfast to a midnight snack – a fridge needs to be open and closed on many occasions. And your Liebherr makes this is a lot of fun. With the SoftSystem, your fridge door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place – nothing rattles or wobbles.

Space for baking tray

• Do you want to keep that home-baked fruit pie fresh? Or maybe a prepared pizza to be baked later on? If so, simply slide your baking tray into your Liebherr ¬- it has plenty of space for storing a baking tray. Really convenient – you can slide the baking tray in and out when the door is opened at 90°.

PowerCooling system

• Do you want to be sure that the cold is distributed as evenly as possible in your refrigerator? If so, the PowerCooling system is what you need. The fan – as powerful as it is quiet – distributes the cold air efficiently throughout the entire refrigeration compartment.

SuperSilent

• Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.

LED ceiling lighting

• The LED ceiling lighting illuminates the interior from above – providing a good overview of your food. Another highlight: the LEDs are positioned in front of the glass shelves so that even a full refrigerator is well lit.

Egg tray

• Do you want to store eggs in your refrigerator safely and without a box? This is no problem with the egg tray. This will store up to 10 chicken eggs, keeping them stable and protected, and well cooled. The tray fits both in the inside door and on the glass shelves.

Convenient height adjustment for glass shelves

• Do you need a large container to go in the fridge? If so, simply adjust the heights at which you insert the glass shelves. The convenient height adjustment means this can be done quickly and individually – even with food stored on the shelves.

FlexSystem

• Small and delicate fruit in the refrigerator can easily roll out of sight or become crushed. That's why your Liebherr comes with the FlexSystem. Two flexibly positionable boxes in the BioFresh safe ensure everything is clearly arranged and organised. And they also safely protect even the smallest raspberry from bruising or from being mixed up with other foods.

Party Mode

• Now you’re ready to receive guests – because even your Liebherr is in the mood for a party. In PartyMode, functions such as SuperCool and/or SuperFrost are activated. After 24 hours, your Liebherr goes back to normal mode automatically.

Replaceable door seal

• Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.

FreshAir activated charcoal filter

• The smell of some foods is sometimes less pleasant. However, this is no problem for your Liebherr. Thanks to FreshAir activated carbon filters, there is always fresh air in the interior. The filter is located right on the air flow in the fan housing and neutralises odours as far as possible. The display reminds you to change the filter.

Dishwasher-safe features

• The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Does the butter dish, FlexSystem or ice cube tray need to be cleaned? Just put them in the dishwasher. Then you’ll have more time for other things.

General Product Information:

• Model type: Refrigerator with BioFresh for integrated use
• GTIN: 4016803078753
• Series: plus

Output & Consumption:

• Humidity range: Yes
• Energy consumption per year: 110 kWh/a
• Climate class: SN-T
• Noise level: 32 dB
• Energy rating: 5.5
• Voltage: 220-240 V ~
• Frequency: 50-60 Hz
• Connection rating: 1.2 A

Control & Functions:

• Control: Monochrome LC display , touch display
• Control unit: Touch
• Number of temperature zones: 2
• Number of regulated refrigeration circuits: 1
• Temperature display: Refrigerator
• SuperCool: Adjustable on appliance and via app
• Door alarm, cooling: Adjustable on appliance and via app
• Door alarm, freezing: —
• BottleTimer: —
• NightMode: Adjustable on app
• Display lock: Adjustable on appliance

Refrigerator Compartment:

• Adjustable temperature range, refrigerator compartment: +3 °C to +9 °C
• Refrigerator compartment climate zones: Fruit & Vegetable safe / Meat & Dairy safe
• Freshness technology: BioFresh
• Number of BioFresh safes: 3
• Of which on castors: 0
• Interior light of BioFresh safe: —
• Defrosting method: automatic
• Forced air cooling: Yes
• FreshAir filter: in valve
• Pull-out system drawer, refrigerator compartment: Partially-extendible telescopic rails
• SoftSystem: SoftSystem
• Illumination cooling compartment: LED ceiling lighting
• Number of storage shelves, refrigerator compartment: 7
• Of which separable: 1
• of which height-adjustable: 6
• VarioSafe: —
• InfinitySpring: —
• OpenStage drawers: —
• Bottle storage: Integrated
• Bottle rack: 2
• Number of can racks: 2
• VarioBox: —
• VarioBoxes: 0
• Egg tray: 10 eggs
• Number of FlexSystems: 1
• Type of door rack Cooling compartment: Bottle and can rack
• Height-adjustable inner door shelf: Gradual adjustment

Design & Materials:

• Dry rear panel: Yes
• Inner back wall material: plastic
• Inner door décor: —
• Material inner door rack: White plastic
• Storage shelf material, refrigerator compartment: Glass

Set-up & Installation:

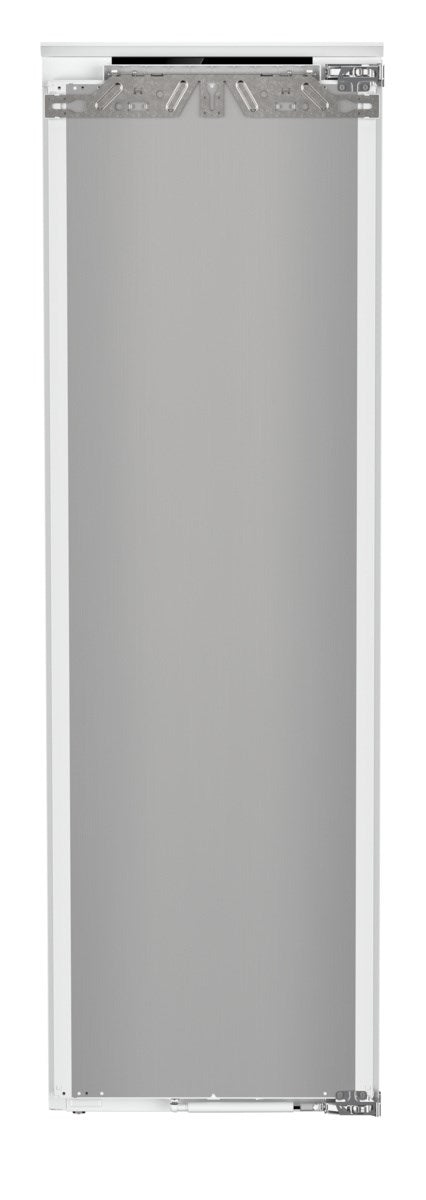

• Type of installation: Designed for integrated use
• Door assembly: Fixed door
• Max. kitchen unit door weight: 26
• Door hinges: Right reversible
• Door hinge replacement: Possible for customer
• Door opening angle: 115°
• Door seal: Replaceable
• Height-adjustable feet: 2
• Levelling bars: Yes
• Number of levelling bars: 2
• Ventilation: Ventilation grates
  Plug type: Australia
• Connector cable (length): 2,200 mm

Specifications:

• Total volume: 294 l

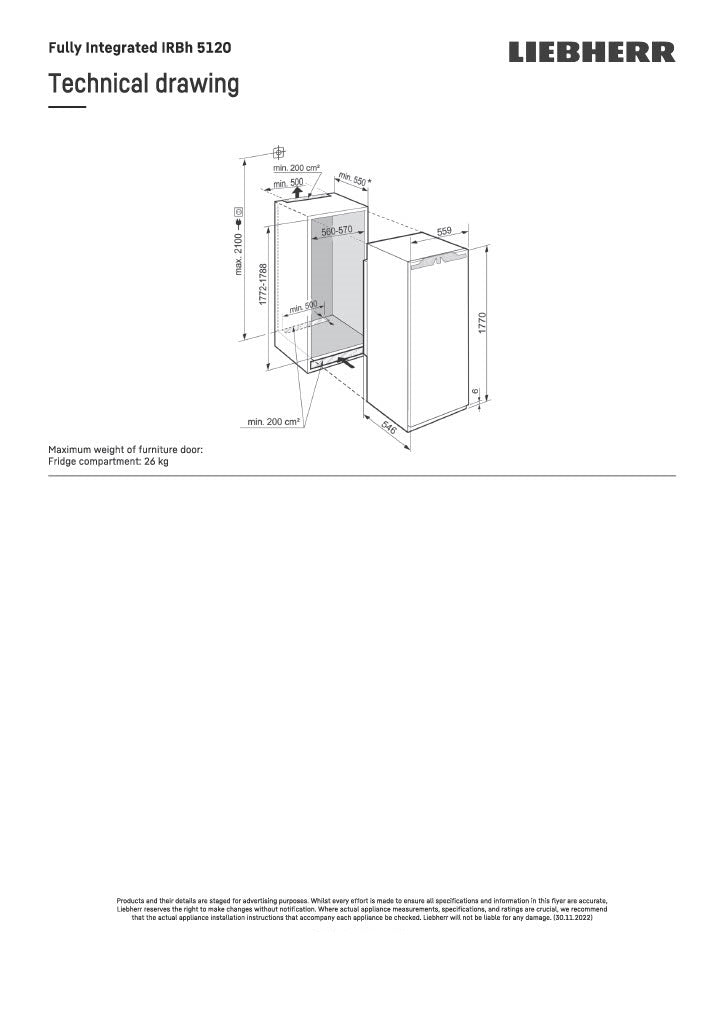

• Aperture dimensions height/width/depth: 172.2 - 177.8 / 56 - 57 / 55.0 cm
• Height / Width / Depth (with packaging): 1,877.0 / 575.0 / 622.0 mm
• Dimensions H/W/D: 177 / 55.9 / 54.6 cm
• Weight (without packaging): 68.2 kg
• Weight (with packaging): 72.6 kg
• Volume, refrigerator compartments: 294 l
• of which BioFresh: 98.2 l

Warranty Coverage

Liebherr appliances are distributed in Australia by Andi-Co Australia Pty Ltd and are backed by a comprehensive five-year manufacturer's warranty, reflecting the quality and engineering behind every product.

• All household appliances: Five years' warranty against defects in materials and workmanship when used for domestic purposes.
• Cosmetic damage: Dents, scratches and blemishes must be reported in writing within 14 days of delivery.

The warranty applies to the original purchaser and any subsequent owner during the warranty period. Registering the appliance at andico.com.au may help provide faster after-sales service. Proof of purchase is required for all warranty claims.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of defective parts within the warranty period.
• Cosmetic damage reported in writing within 14 days of delivery.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's instructions.
• Misuse, abuse, accidental damage or neglect.
• Damage caused by power surges, electrical storms or an incorrect power supply.
• Damage caused by vermin or insect infestation.
• Normal wear and tear.
• Consumable items such as filters, light globes and batteries.
• Damage to drawers or shelves.
• Repairs or modifications carried out by unauthorised parties.
• Appliances purchased through unauthorised resellers or third-party auction websites.

Conditions

• The appliance must be used for domestic purposes only.
• The appliance must be installed and maintained in accordance with the manufacturer's instructions.
• Cosmetic damage must be reported in writing within 14 days of delivery.
• The warranty applies only to appliances purchased and used within Australia.
• Proof of purchase must be provided with every claim.

Making a Claim

Warranty claims should be made through the original place of purchase or directly with Andi-Co Australia. Have your proof of purchase available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

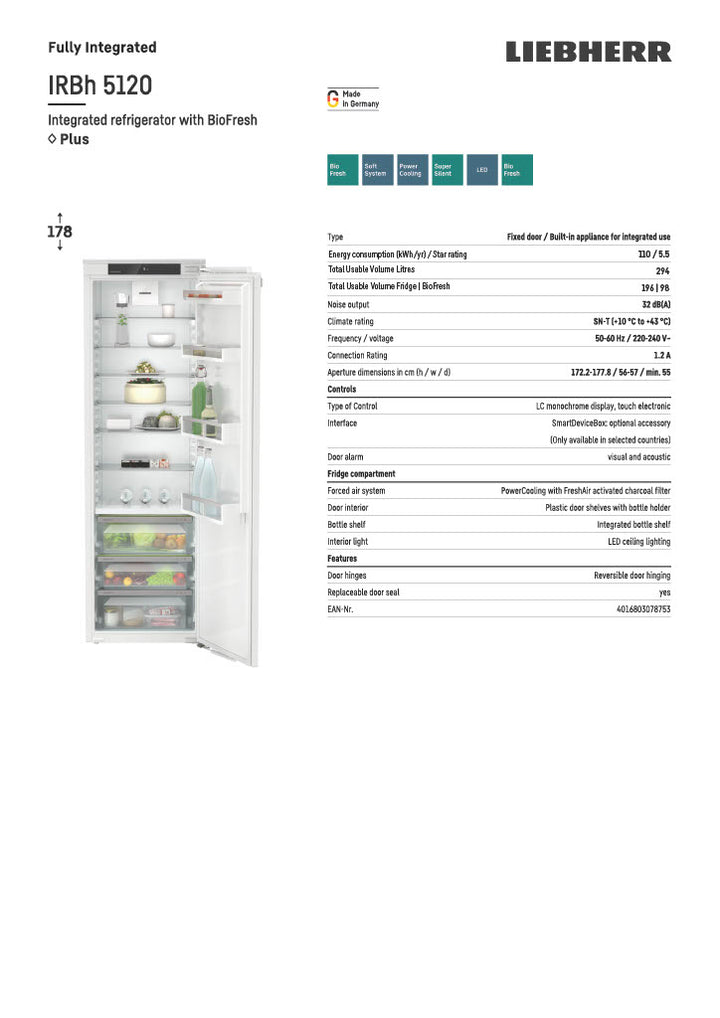

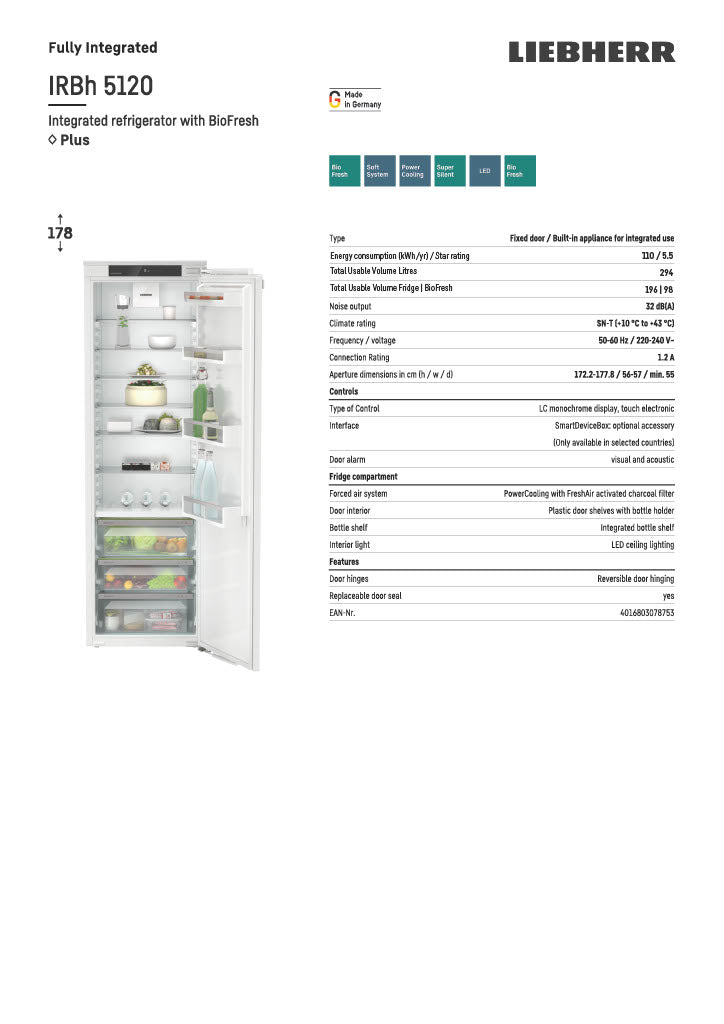

SPECIFICATIONS SHEET

OPERATING INSTRUCTIONS

ASSEMBLY & INSTALLATION INSTRUCTIONS

SAFETY INFORMATION

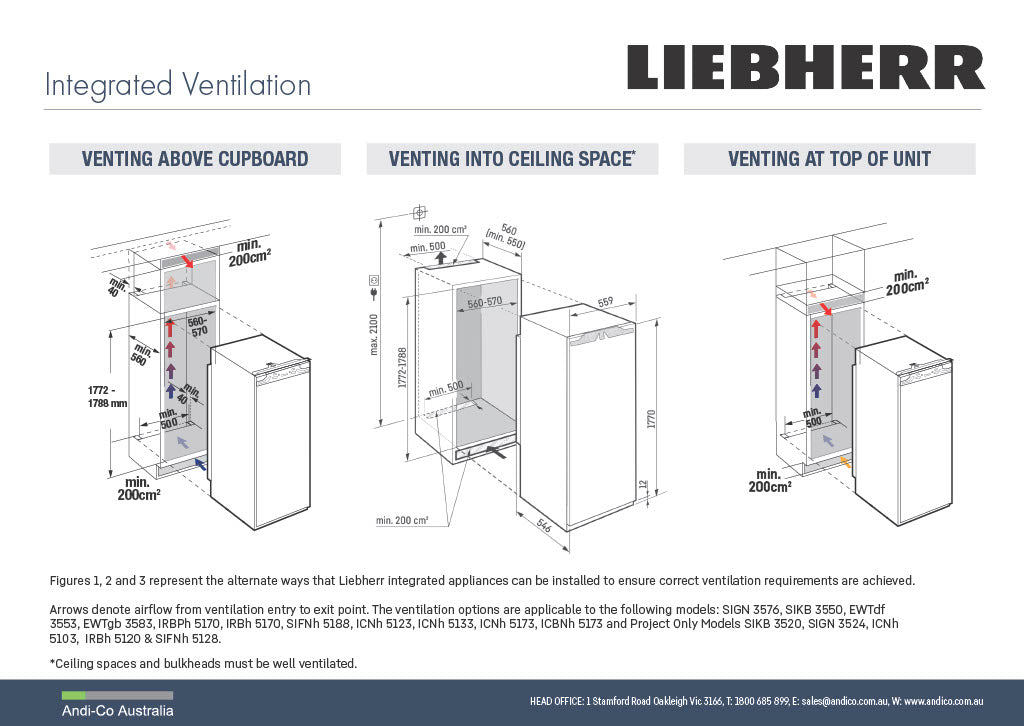

INTEGRATED VENTILATION INFORMATION
