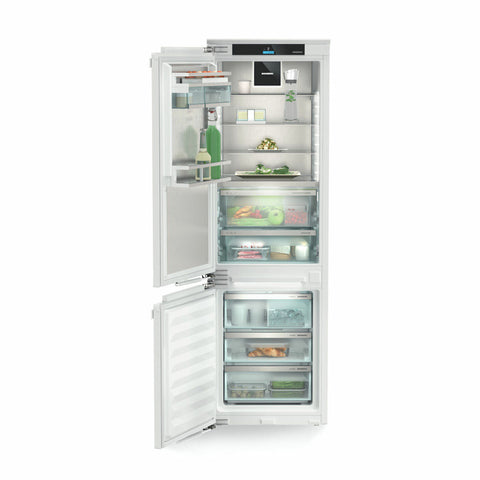

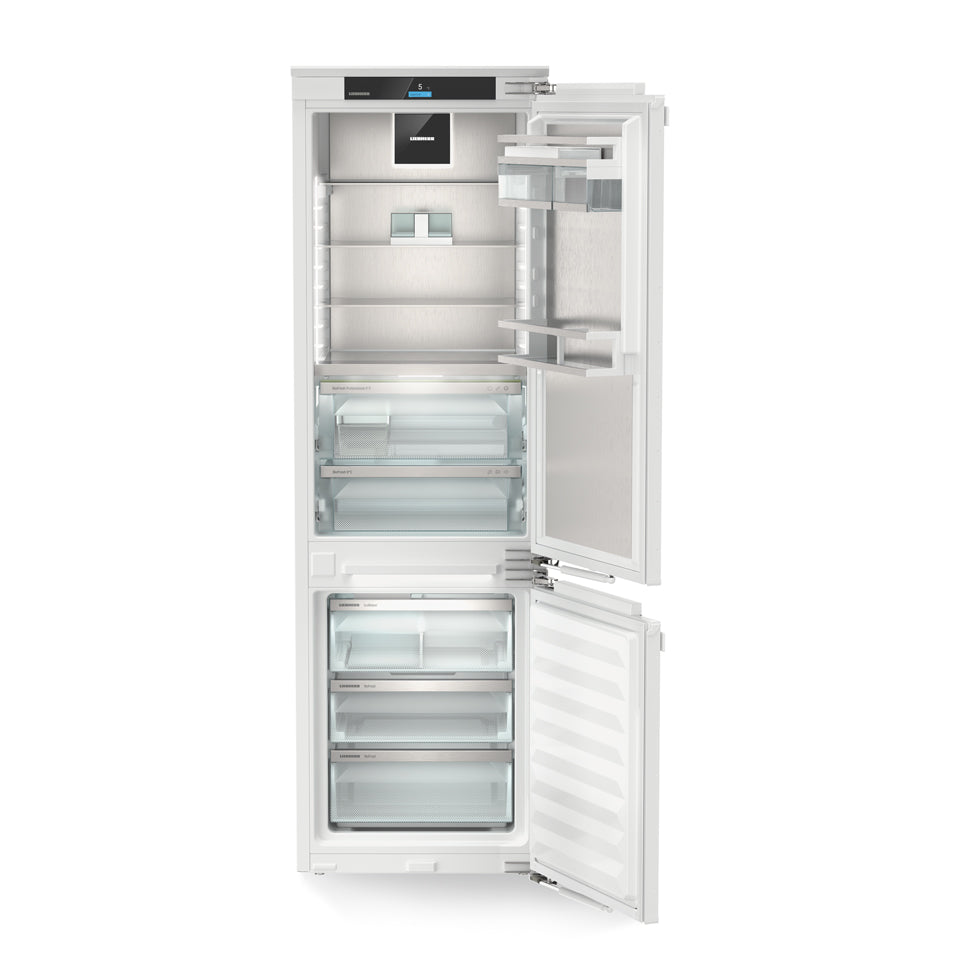

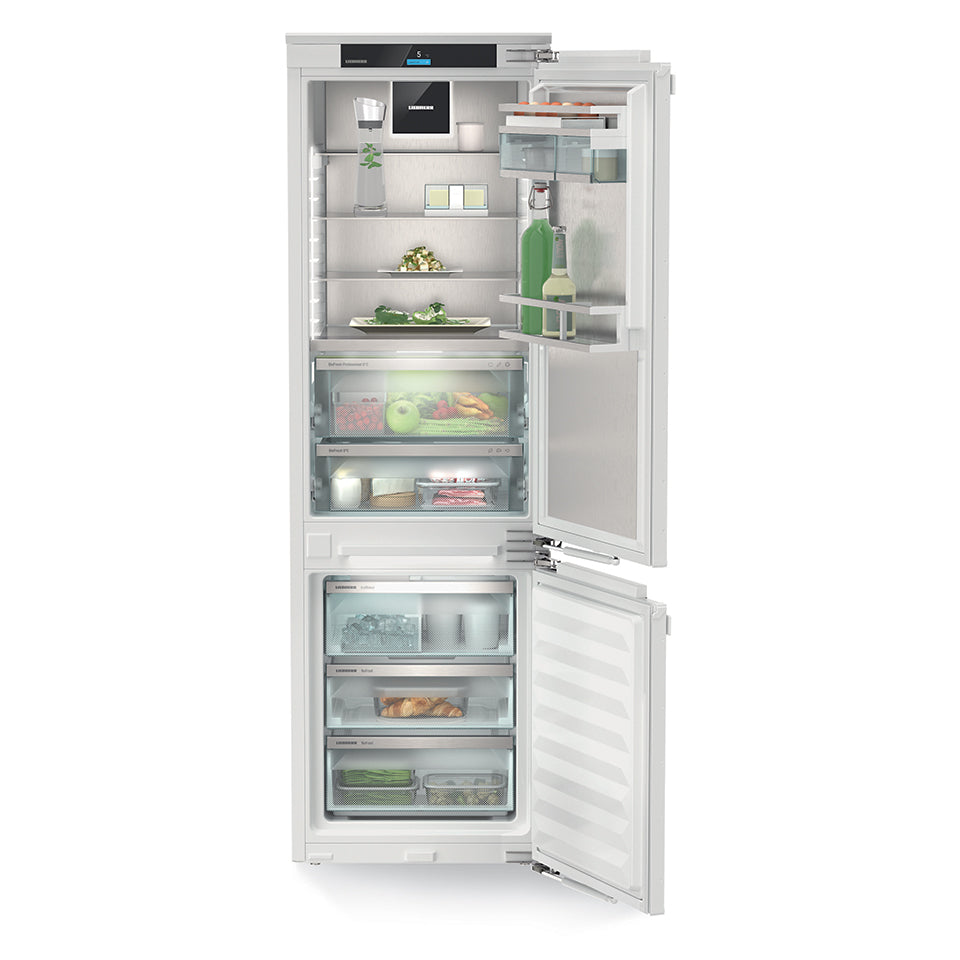

Liebherr ICBNh 5173 Integrated 'Peak' Fridge/Freezer

• BioFresh Professional: The BioFresh Professional safe gives food an additional boost of freshness for a long shelf life – wow effect included: Thanks to HydroBreeze a cold mist covers fruit and vegetables like a protective balm. In combination with a temperature just above 0 °C and high humidity, unpackaged fruits and vegetables feel right at home.
• BioFresh with HydroBreeze: Do you want to cool fruit and vegetables like professionals? You’ll be inspired by HydroBreeze. The cold mist combined with a temperature in the safe of just over 0 °C gives food that extra boost for longer shelf life. And it creates a genuine visual wow effect. HydroBreeze is activated every 90 minutes for 4 seconds and for 8 seconds when the door is opened.
• Meat & Dairy safe: Do you want the tender veal fillet or fresh milk to stay fresh for as long as possible? The BioFresh safes will ensure this is the case. In the Meat & Dairy Safe, the temperature is close to 0 °C – ideal storage conditions for even the most delicate of foods. And best of all, everything is perfectly adjusted in the factory for immediate use – and for longer freshness.
• DuoCooling: DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the fridge and freezer compartments. The food neither dries out nor is odour transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.
• Ambient lighting: Our ambient lighting brings a special design touch to your refrigerator. The all-around lighting produces unique effects in the interior, enhancing the overall atmosphere. Paired with the SmartSteel-designed rear wall and the sleek black high-gloss fan, it creates a captivating and ambient space.
• LightTower: Enjoy an optimally illuminated interior: the LightTower shows off the food in its best light and is positioned so that all of your filled fridge is illuminated at all times. The flush mounting of the LightTower in the side walls means there is also more space for your food.
• Touch & Swipe display: Control of your Liebherr at your fingertips: thanks to the Touch & Swipe display, you can operate your refrigerator intuitively and with ease. Simply select functions such as SuperCool on the colour display by tapping and swiping. The temperature is controlled just as easily. And, what if you are not actively using the display? Well, it then shows you the actual temperature.
• SmartSteel in the interior: SmartSteel on the inside door and rear wall gives your Liebherr a stylish look and feel. Your food will also love SmartSteel as stainless steel is food-safe and hygienic. SmartSteel also reduces the visibility of fingerprints – making the appearance even more pleasing.
• IceMaker with fixed water connection: Are there any ice cubes left? The IceMaker means you never have to ask. With the IceMaker with fixed water connection, the water comes directly from the tap. The MaxIce function allows you to produce up to 1.5 kg of ice cubes a day. The versatile ice compartment separator lets you choose the amount of ice cubes you want to store; easy and just as you like it.
• LED IceMaker lighting: Allow yourself a small moment of happiness every day – by simply taking a look at your fresh ice cubes. The IceMaker lighting coolly places your ice cubes centre stage. The LED lighting activates automatically when the door is opened. The illuminated ice cubes are fun to look at – and whet your appetite for an ice-cold drink.
• SoftSystem: From breakfast to a midnight snack – a fridge needs to be open and closed on many occasions. And your Liebherr makes this is a lot of fun. With the SoftSystem, your fridge door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place – nothing rattles or wobbles.
• SoftTelescopic: Look forward to opening your BioFresh safes. And this is not just because of the fresh food – but also because opening is so easy, and closing is automatic and cushioned. The telescopic rails slide the safe gently towards you. And because these extend fully, you have the best overview of the contents.
• Space for baking tray: Do you want to keep that home-baked fruit pie fresh? Or maybe a prepared pizza to be baked later on? If so, simply slide your baking tray into your Liebherr ¬- it has plenty of space for storing a baking tray. Really convenient – you can slide the baking tray in and out when the door is opened at 90°.
• VarioSpace: Looking for somewhere to safely store a multi-tiered ice cream cake until the summer party? No problem for your Liebherr freezer: it knows that sometimes you just need more space. Thanks to VarioSpace, you can simply remove individual freezer drawers – and voilà: here’s your extra-high storage space!
• SuperSilent: Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.
• LED freezer compartment lighting: The LED freezer compartment lighting ensures your freezer drawers are pleasantly lit. This makes it even easier for you to find the food you want. The energy-efficient LED unit is elegantly positioned above the drawers to save space.
• LED BioFresh lighting: Experience the pleasure of brightly lit fresh fruit and vegetables. The LED BioFresh lighting shows off the contents of your BioFresh safe in its best light. The lighting is positioned centrally above the BioFresh safes and supplemented by LED light columns on both sides. These extend into the topmost BioFresh safe ensuring bright illumination.
• Door shelf: Do you want a safe storage area for your drinks or food? And do you still want to reach them easily? Our door shelves offer you both. They are height-adjustable and therefore meet all your requirements. The sliding and removable bottle holder is also convenient. This holds your bottles securely at all times.
• Separable glass shelf: If you store a carafe or tall container in the refrigerator, you don't want to have to remove an entire glass shelf. And why should you? Because there are separable glass shelves. Simply slide the front half of the glass shelf under the back half. This allows you to place higher containers at the front and still have enough space for other food.
• Convenient height adjustment for glass shelves: Do you need a large container to go in the fridge? If so, simply adjust the heights at which you insert the glass shelves. The convenient height adjustment means this can be done quickly and individually – even with food stored on the shelves.
• VarioBoxes: Where did I put that little packet of yeast? And where's the tube of mustard? To easily find the small items in the fridge, there are the VarioBoxes. They keep everything clearly arranged and organised in the inside door. Their transparent design means you immediately see what's inside. The boxes are easy to remove – and thanks to the pull-out stop, nothing will fall to the floor- guaranteed.
• Egg tray 2in1: Do you like chicken eggs? So does your Liebherr – that's why it has the 2in1 egg tray. This not only provides space for up to 20 chicken eggs, but also for up to 24 quail eggs. The egg tray consists of an outer and an inner part which can be slid into each other in different ways. By turning the tray over, the quail egg holes can be used.
• Freezer tray: Do you want your frozen berries to be fresh and firm after defrosting – and to not turn into a compote? The freezer tray is ideal for this type of delicate food. When spread out well on the plastic tray, fruits and herbs freeze quickly and without being squashed. You can easily insert the freezer tray in the freezer drawer and remove it again.
• FlexSystem: small and delicate fruit in the refrigerator can easily roll out of sight or become crushed. That's why your Liebherr comes with the FlexSystem. Two flexibly positionable boxes in the BioFresh safe ensure everything is clearly arranged and organised. And they also safely protect even the smallest raspberry from bruising or from being mixed up with other foods.
• Drawer: Convenient to pull out and push in: the drawer has plenty of extra space. And when you pull it out, it slides out gently, as it rests on telescopic rails. The drawer slides back in just as gently and quietly.
• Replaceable door seal: Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.
• Dishwasher-safe features: The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Does the butter dish, FlexSystem or ice cube tray need to be cleaned? Just put them in the dishwasher. Then you’ll have more time for other things.
• FreshAir activated charcoal filter: The smell of some foods is sometimes less pleasant. However, this is no problem for your Liebherr. Thanks to FreshAir activated carbon filters, there is always fresh air in the interior. The filter is located right on the air flow in the fan housing and neutralises odours as far as possible. The display reminds you to change the filter.
• PowerCooling system: Do you want to be sure that the cold is distributed as evenly as possible in your refrigerator? If so, the PowerCooling system is what you need. The fan – as powerful as it is quiet – distributes the cold air efficiently throughout the entire refrigeration compartment.

GENERAL PRODUCT INFORMATION:

• Model type: Integrated fridge-freezer with BioFresh Professional and NoFrost
• GTIN: 4016803115274
• Series: peak

OUTPUT & CONSUMPTION:

• Humidity range: Yes
• Energy consumption per year: 181 kWh/a
• Climate class: SN-T
• Noise level: 34 dB
• Energy rating: 5.5
• Voltage: 220-240 V ~
• Frequency: 50-60 Hz
• Connection rating: 1.4 A 183 W

CONTROLS & FUNCTIONS:

• Control: 2,4“ TFT colour display, Touch & Swipe display
• Control unit: Touch & Swipe
• Number of temperature zones: 3
• Number of regulated refrigeration circuits: 2
• Temperature display: Fridge & freezing compartment
• Front frame heating: Refrigerator and freezer compartment
• BottleTimer: —

REFRIGERATOR COMPARTMENT:

• Adjustable temperature range: +3 °C to +9 °C
• Moisture regulation: DuoCooling
• Refrigerator compartment climate zones: BioFresh with HydroBreeze / Fruit & Vegetable safe / Meat & Dairy safe
• Number of BioFresh safes: 2
• Of which on castors: 0
• Interior light of BioFresh safe: LED light
• Defrosting method: automatic
• Forced air cooling: Yes
• FreshAir filter: in valve
• Pull-out system drawer, refrigerator compartment: Fully extendible telescopic rails with self-closing mechanism and soft stop mechanism
• SoftSystem: SoftSystem
• Illumination cooling compartment: Light panel, both sides
• Number of storage shelves, refrigerator compartment: 4
• Of which separable: 1
• of which height-adjustable: 3
• VarioSafe: —
• OpenStage drawers: —
• Bottle storage: Integrated
• Bottle rack: 1
• Number of can racks: 1
• VarioBox: Pull-out
• VarioBoxes: 2
• Egg tray: Variable
• Number of FlexSystems: 1
• Type of door rack Cooling compartment: Bottle and can rack
• Height-adjustable inner door shelf: Gradual adjustment

FREEZER COMPARTMENT:

• Adjustable temperature range: -15 °C to -26 °C
• Freezer compartment position: Bottom
• Defrosting method: automatic
• Storage time in case of fault according to GS *: 9 h
• Freezing capacity in 24 hours according to GS *: 6.00 kg / 24h
• No. of drawers in freezer compartment: 3
• FrostSafe: Drawers closed on all sides with transparent front
• Drawer pull-out system, freezer compartment: Partially extendible telescopic rails
• Interior light, freezer compartment: LED light
• 4-star freezer compartment door: —
• VarioSpace: Yes
• Type of hose: Mains water hose with WaterStop
• IceMaker safe lighting: Yes
• Water inlet: Fixed water connection
• MaxIce function: 1.5 kg / 24h
• Ice cube production: 1.2 kg / 24h
• Ice cube storage: 5 kg
• Ice cube tray: —
• Number of ice cube trays: 0
• Number of water filters: 0
• Freezer tray: 1
• Star-rating: 4

DESIGN & MATERIALS:

• Dry rear panel: Yes
• Inner back wall material: stainless steel with SmartSteel
• Inner door décor: SmartSteel
• Design of inner door rack: Premium GlassLine
• Material inner door rack: Glass with stainless steel trim
• Storage shelf material, refrigerator compartment: Glass
• Material of adjustable shelves in the freezer compartment: Glass
• Door material: Steel

SETUP & INSTALLATION:

• Type of installation: Designed for integrated use
• Door assembly: Fixed door
• Max. kitchen unit door weight: 18/12
• Door hinges: Left
• Door hinge replacement: Possible for customer
• Door opening angle: 115°
• Door seal: Replaceable
• Height-adjustable feet: 2
• Levelling bars: Yes
• Number of levelling bars: 2
• Ventilation: Ventilation grates
• Plug type: Australia
• Connector cable (length): 2,200 mm

SPECIFICATIONS:

• Total volume: 246 l

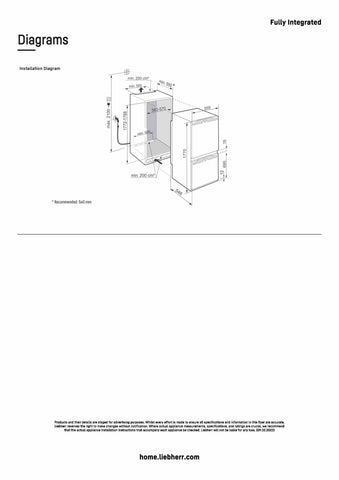

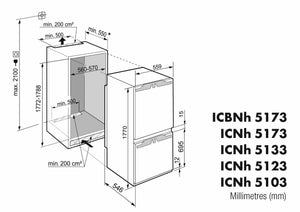

• Aperture dimensions height/width/depth: 177.2 - 178.8 / 56 - 57 / 55.0 cm
• Height / Width / Depth (with packaging): 1,877.0 / 575.0 / 622.0 mm
• Dimensions H/W/D: 177 / 55.9 / 54.6 cm
• Weight (without packaging): 77.4 kg
• Weight (with packaging): 82.6 kg
• Volume, refrigerator compartments: 175 l
• of which BioFresh: 70.7 l
• Volume, freezer compartments: 71 l
• Of which 4-star compartment: 70.9 l
• Of which 4-star compartment: 70.9 l

Warranty Coverage

Liebherr appliances are distributed in Australia by Andi-Co Australia Pty Ltd and are backed by a comprehensive five-year manufacturer's warranty, reflecting the quality and engineering behind every product.

• All household appliances: Five years' warranty against defects in materials and workmanship when used for domestic purposes.
• Cosmetic damage: Dents, scratches and blemishes must be reported in writing within 14 days of delivery.

The warranty applies to the original purchaser and any subsequent owner during the warranty period. Registering the appliance at andico.com.au may help provide faster after-sales service. Proof of purchase is required for all warranty claims.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of defective parts within the warranty period.
• Cosmetic damage reported in writing within 14 days of delivery.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's instructions.
• Misuse, abuse, accidental damage or neglect.
• Damage caused by power surges, electrical storms or an incorrect power supply.
• Damage caused by vermin or insect infestation.
• Normal wear and tear.
• Consumable items such as filters, light globes and batteries.
• Damage to drawers or shelves.
• Repairs or modifications carried out by unauthorised parties.
• Appliances purchased through unauthorised resellers or third-party auction websites.

Conditions

• The appliance must be used for domestic purposes only.
• The appliance must be installed and maintained in accordance with the manufacturer's instructions.
• Cosmetic damage must be reported in writing within 14 days of delivery.
• The warranty applies only to appliances purchased and used within Australia.
• Proof of purchase must be provided with every claim.

Making a Claim

Warranty claims should be made through the original place of purchase or directly with Andi-Co Australia. Have your proof of purchase available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

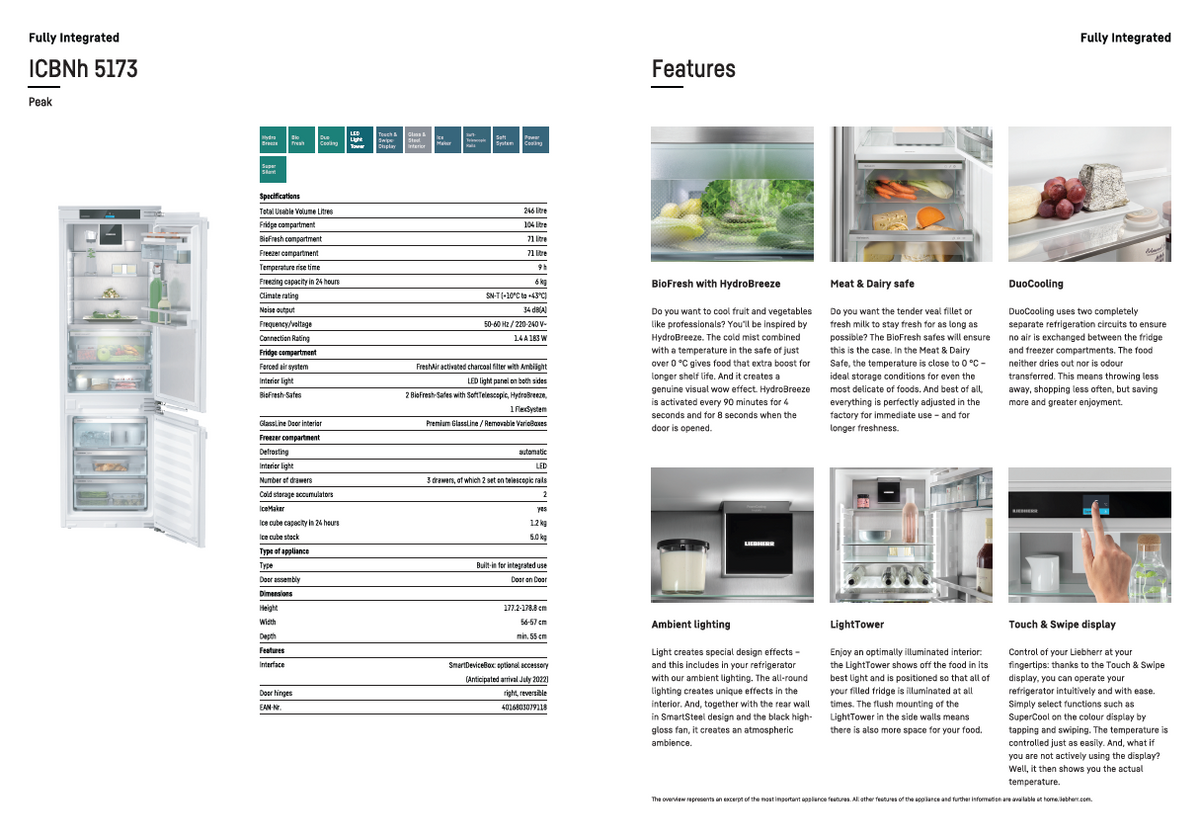

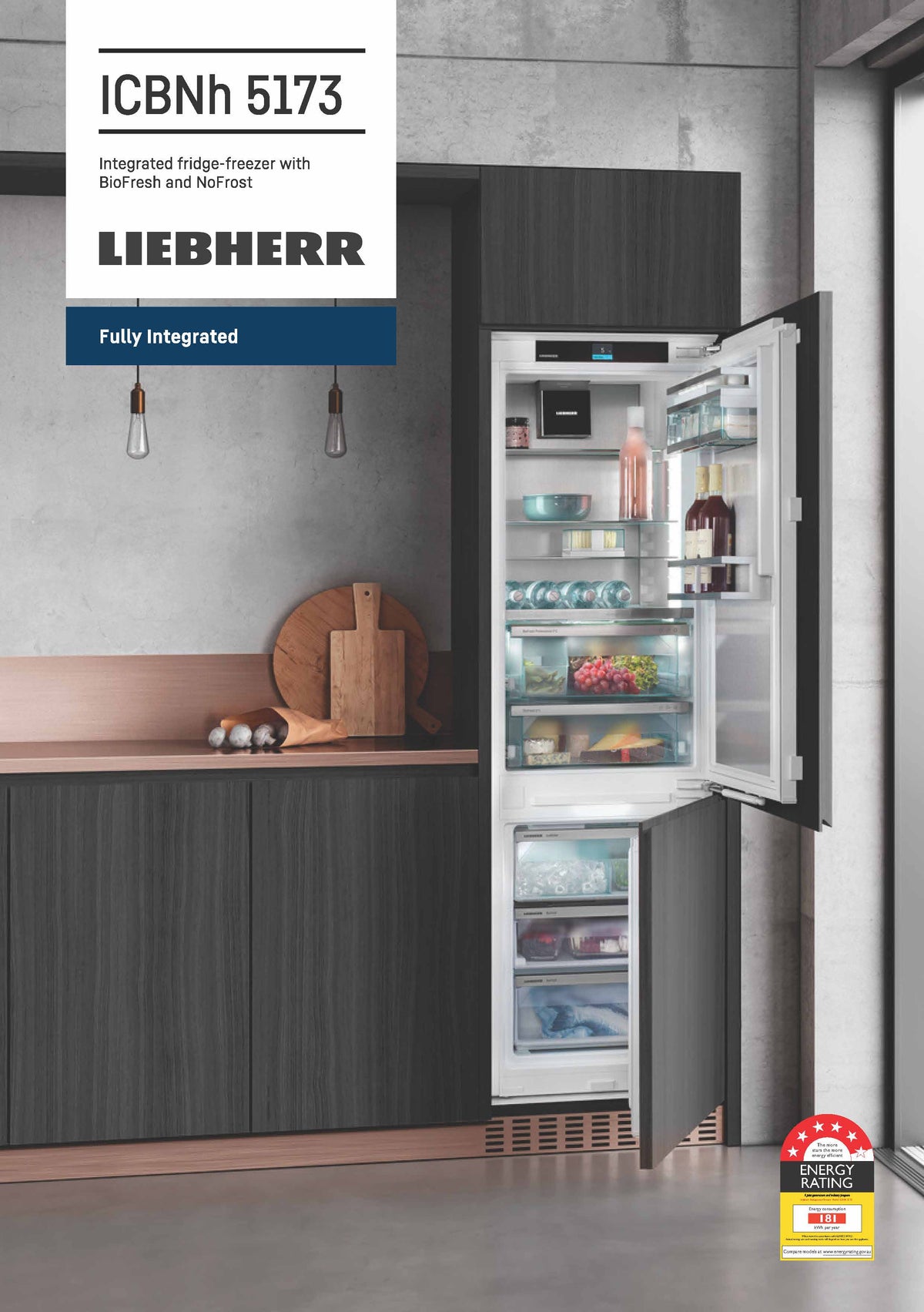

SPECIFICATIONS SHEET

OPERATING INSTRUCTIONS

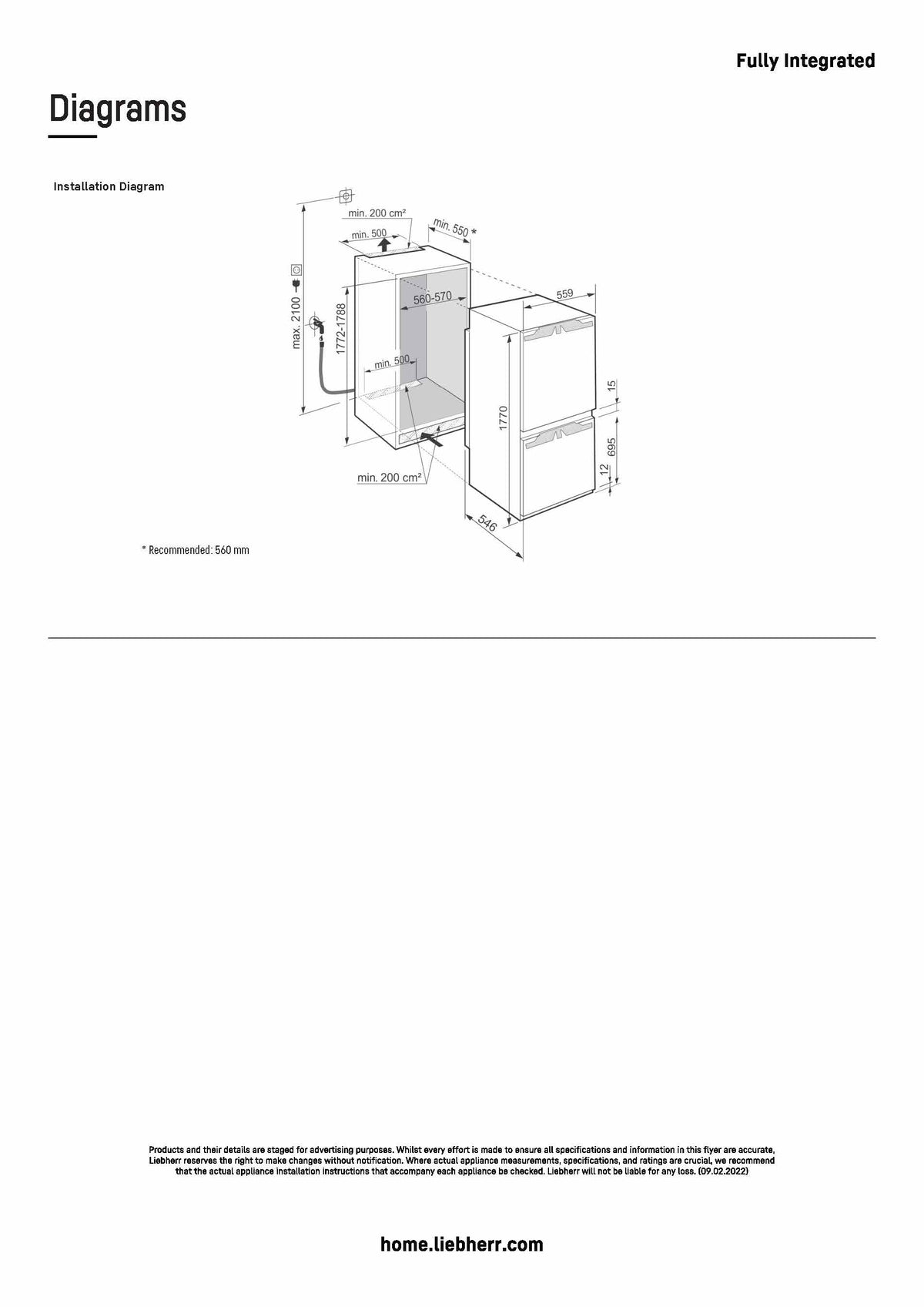

ASSEMBLY & INSTALLATION INSTRUCTIONS
