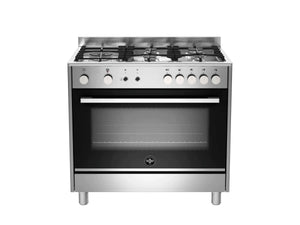

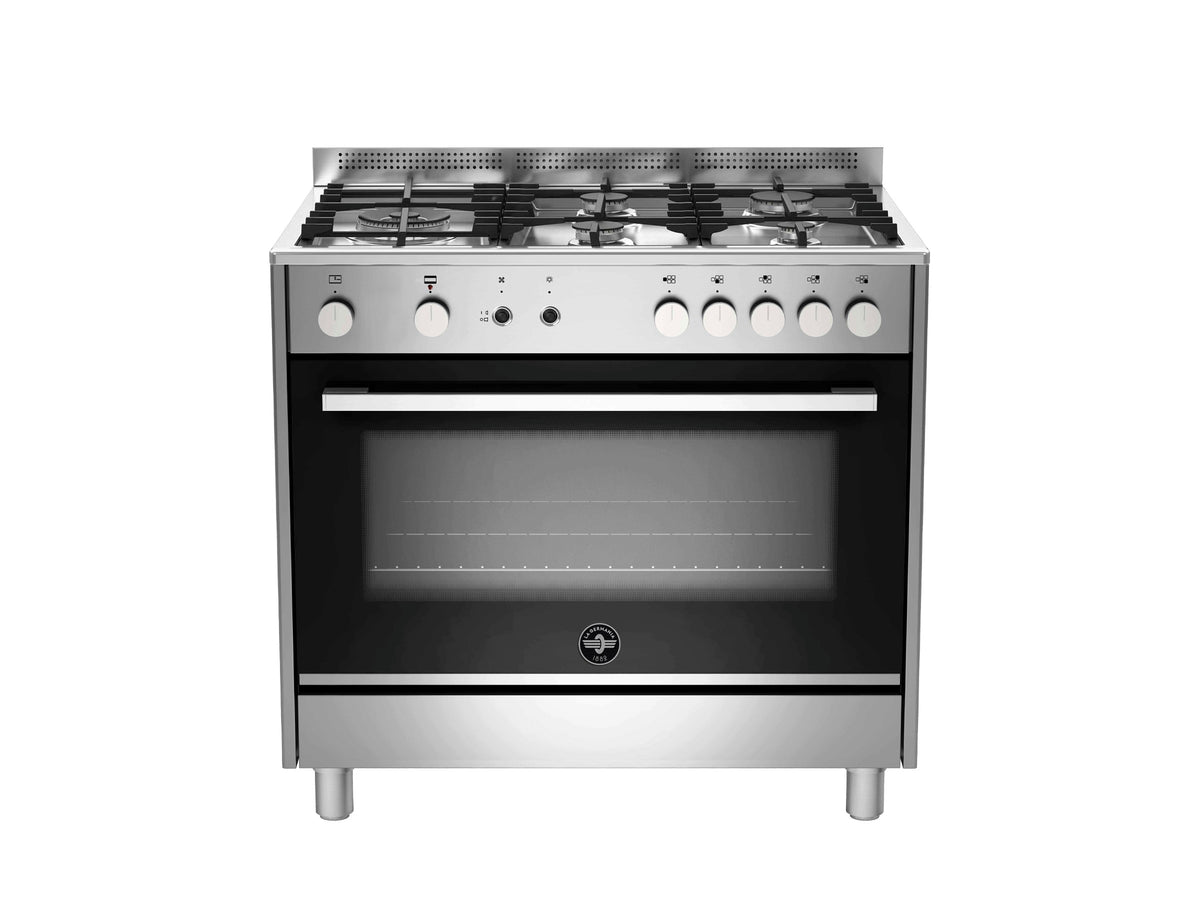

La Germania TUS95L71DX 90cm 5-Burners Gas Oven Electric Grill

• Worktop Design: This 90 cm single-oven cooker features a durable stamped stainless steel worktop equipped with five gas burners, including a central burner that allows precise temperature control, ranging from low simmer to high output. The sturdy cast iron pan supports ensure stability during cooking, and the metal-coated knobs offer a sleek, ergonomic interface. A flame failure device enhances safety, and the unit includes a stainless steel upstand for added convenience.
• Gas Oven Capabilities: The oven operates on gas with fan assistance, providing even heat distribution for consistent cooking results. It features 11 cooking functions, including bottom bake, defrosting, gas convection, and grill options, making it versatile for various culinary tasks. The generous oven volume of 142 liters accommodates large dishes, and the double-glass door with an extractable inner glass facilitates easy cleaning.
• Convenient Features: The oven is designed with a minute minder for precise timing and includes five adjustable oven levels. It comes with one telescopic slide shelf for easy access, two standard wire shelves, and a 20 mm deep tray, making it user-friendly for all cooking needs.
• Storage Solutions: A flap storage compartment at the bottom provides convenient access to kitchen essentials, ensuring a tidy workspace.
• Eco-Friendly Commitment: La Germania prioritizes sustainability, with products and packaging being 99% recyclable, supporting environmentally responsible practices.
• Technical Specifications: This cooker operates on standard electrical requirements of 240V, 50Hz, with a power output of 1800W and a 10A rating. It holds an energy rating of A+, reflecting its efficiency in energy consumption.

Worktop

• Size: 90
• Cooking zones: 5
• Gas zones: 5
• Worktop type: gas
• Worktop design: stainless steel pressed
• Worktop controls: knobs
• Knobs: metal coated
• Burner type: aluminium
• Pan supports: cast iron
• Flame failure device: yes
• Upstand: yes

Cooking Zones

• Wok: 5,4mj - 14,4 mj

Oven Cavity

• Oven fuel: gas
• Oven type: fan assisted gas
• Oven grill: type electric
• Oven functions: bottom bake, defrosting, gas convection, grill, oven light
• Oven volume: 142
• Oven controls: minute minder
• Inner oven door: double
• Oven levels: 5
• Telescopic slide shelves: 1
• Wire-shelves: 2 - standard
• Tray: 1 – 20 mm deep
• Oven lights: 1

Bottom

• Storage compartment: flap
• Legs: stainless steel

Technical Specifications

• Electrical requirements: 240V, 50Hz, 1800W, 10A
• Energy rating: A+

• Warranty: 2 Year Manufacture's Warranty
