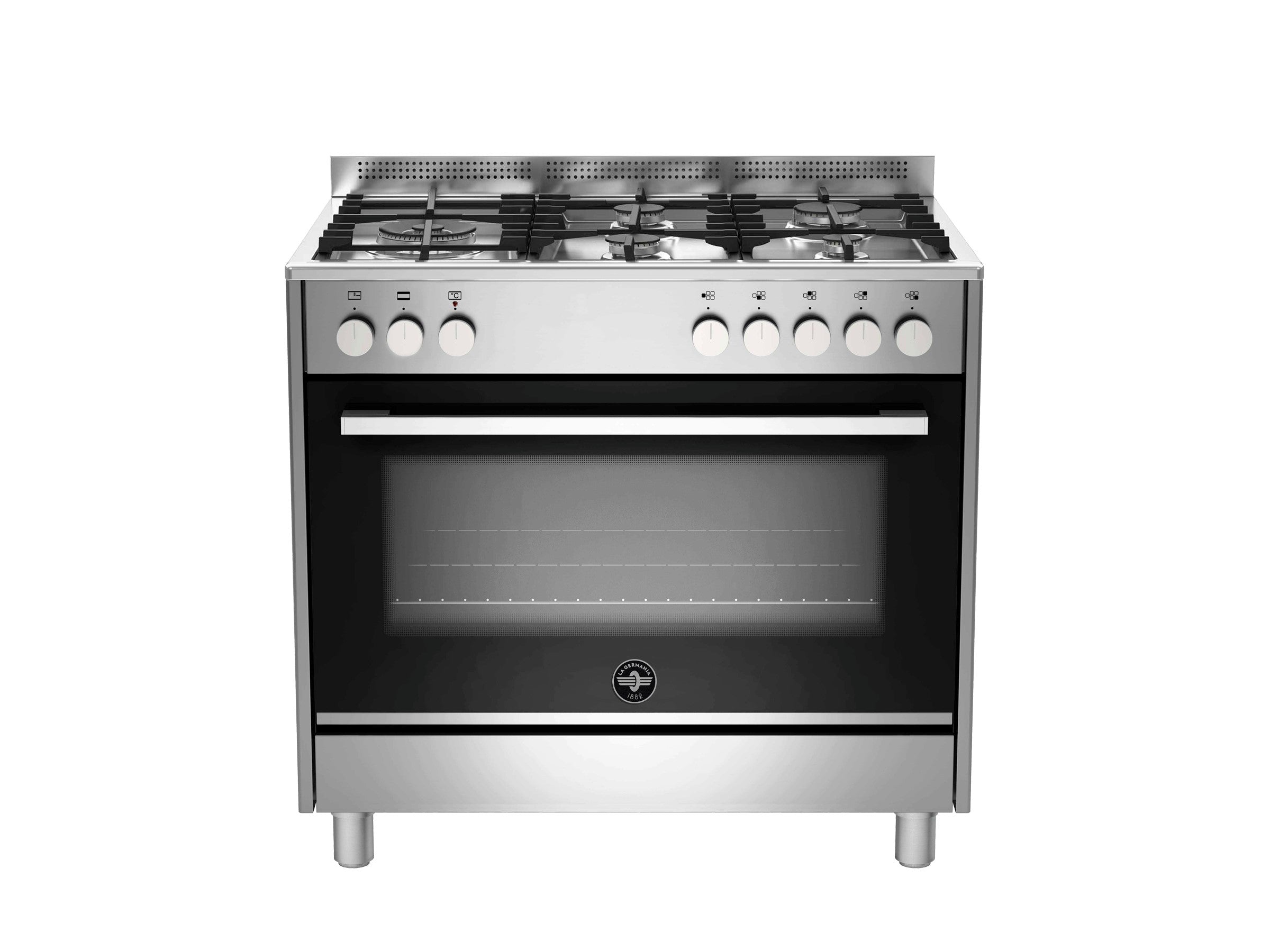

La Germania TUS95L61LDX Futura 90cm 5-Burners Eletric Oven Electric Grill

• Worktop Design: This 90 cm single-oven cooker features a robust stainless steel pressed worktop, equipped with five gas burners, including a powerful central burner that allows precise control from low simmer to high output. The sturdy cast iron pan supports provide excellent stability for pots and pans, while metal-coated knobs offer a durable and stylish interface for easy operation. A flame failure device ensures safety during cooking.
• Electric Oven Capabilities: The multifunction electric oven boasts 11 cooking functions, including bake, convection, and grill options, providing versatility for all your culinary needs. The oven cavity has a generous volume of 142 liters, allowing you to cook multiple dishes simultaneously. It features a double-glass oven door with an extractable inner glass for easy cleaning and a minute minder for precise timing.
• Enhanced Cooking Performance: The oven includes a cooling fan for efficient heat distribution and safety, along with five adjustable oven levels and one telescopic slide shelf for easy access to your dishes. Additionally, the setup comes with two standard wire shelves and a 20 mm deep tray.
• Convenient Storage: The unit features a flap storage compartment at the bottom for easy access to cooking essentials, complementing its functional design.
• Eco-Friendly Features: La Germania is committed to sustainability, with products and packaging being 99% recyclable, promoting environmentally responsible choices.
• Technical Specifications: Designed for standard electrical requirements of 240V, 50Hz, with a power output of 3500W and a 15A rating, the oven has an energy rating of A, ensuring efficiency in energy consumption.

Worktop

• Size: 90
• Cooking zones: 5
• Gas zones: 5
• Worktop type: gas
• Worktop design: stainless steel pressed
• Worktop controls: knobs
• Knobs: metal coated
• Burner type: aluminium
• Pan supports: cast iron
• Flame failure device: yes
• Upstand: yes

Cooking Zones

• Wok: 5,4mj - 14,4 mj

Oven Cavity

• Oven fuel: electric
• Oven type: electric multifunction
• Oven grill type: electric
• Oven functions: bake, bottom bake, convection, convection bake, convection grill, defrosting, fast preheat, gas convection, grill, oven light, upper bake
• Oven volume: 142
• Oven controls: minute minder
• Inner oven door: double
• Cooling fan: 1
• Oven levels: 5
• Telescopic slide shelves: 1
• Wire-shelves: 2 - standard
• Tray: 1 – 20 mm deep
• Oven lights: 1

Bottom

• Storage compartment: flap
• Legs: stainless steel

Technical Specifications

• Electrical requirements: 240V, 50Hz, 3500W, 15A
• Energy rating: A

• Warranty: 2 Year Manufacture's Warranty

TUS95L61LDX COOKERS USE & CARE MANUAL

TUS95L61LDX INSTALLATION DRAWING
