Product Description

Product Overview:

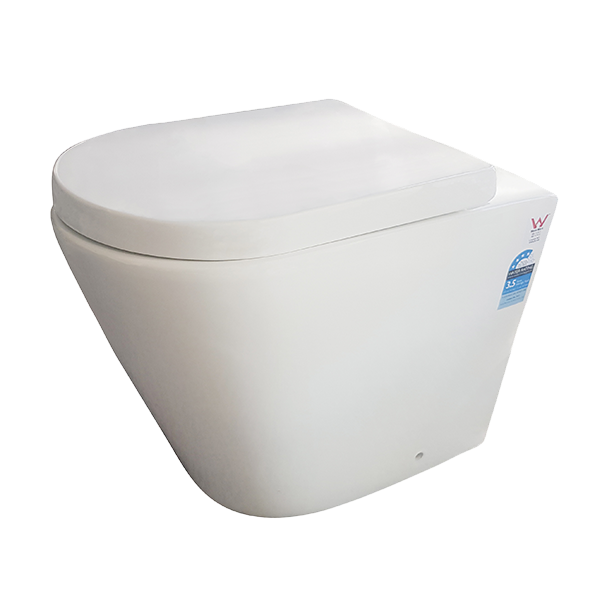

The Gareth Ashton LT-1003D-R Park Avenue Rimless Pan combines a streamlined wall-faced profile with practical rimless flushing for a cleaner, more contemporary bathroom finish. Inspired by the sharp architectural lines of New York, its compact 580mm projection helps it integrate neatly into modern bathrooms, ensuites and multi-residential projects.

Manufactured from vitreous china, the floor-mounted pan is supplied with a thick soft-close seat, a universal connector for either S-trap or P-trap installation, and a floor-fixing bracket. Its back-inlet configuration is designed for use with a compatible concealed cistern, allowing the cistern and plumbing to remain hidden from view.

The pan carries a 4-star WELS rating and supports a 4.5L full flush and 2.9L half flush, with a nominal average consumption of 3.4L per flush. Always confirm the selected concealed cistern, inlet position and trap set-out with your licensed plumber before ordering.

Product Features:

• Rimless pan design: Removes the traditional rim ledge to support easier cleaning and improved bowl access.
• Wall-faced profile: Conceals the rear trapway for a streamlined appearance and fewer difficult-to-reach external surfaces.
• Universal trap connection: Supplied for compatible S-trap or P-trap installation.
• Thick soft-close seat: Provides controlled closing and a substantial everyday seating surface.
• Back inlet: Designed to connect with a compatible concealed cistern.
• Floor-fixing bracket included: Supports secure floor-mounted installation.
• 4-star WELS efficiency: Uses 4.5L for a full flush and 2.9L for a half flush.

Colour / Finishes:

• White

Cleaning & Maintenance:

• Routine cleaning: Clean the vitreous china and seat regularly using a soft cloth and mild, non-abrasive bathroom cleaner.
• Rimless bowl care: Wipe around the open flush channel and bowl surfaces to prevent residue build-up.
• Avoid damage: Do not use abrasive pads, harsh chemicals or impact tools on the pan or seat.
• Connection checks: Have leaks, movement or flushing irregularities inspected promptly by a licensed plumber.

Specifications:

• Product Type: Rimless wall-faced toilet pan
• Model: Park Avenue
• SKU: LT-1003D-R
• Material: Vitreous china
• Mounting: Wall-faced pan, floor mounted
• Water Inlet: Back inlet
• Trap Compatibility: Universal S-trap or P-trap connection
• S-Trap Set-Out: 110–145 mm
• P-Trap Set-Out: 180 mm
• Seat Type: Thick soft-close seat
• WELS Rating: 4 stars
• Water Consumption: 4.5L full flush / 2.9L half flush / 3.4L nominal average flush
• WELS Registration Number: L05694
• WELS Licence Number: 1641
• Compliance: In accordance with AS/NZS 6400

Product Measurements:

• Overall Dimensions (W x D x H): 370 x 580 x 430 mm
• Pan Projection: 580 mm
• Pan Height: 430 mm
• S-Trap Set-Out: 110–145 mm
• P-Trap Set-Out: 180 mm

Installation & Requirements:

• Installation Type: Wall-faced, floor-mounted pan.
• Cistern Requirement: Requires a compatible concealed cistern; a cistern and actuator plate are not included.
• Inlet Requirement: Confirm the back-inlet position and compatibility with the selected concealed cistern.
• Trap Connection: Use the supplied universal connector for an S-trap set-out of 110–145mm or P-trap set-out of 180mm.
• Pre-Installation Check: Confirm all set-outs, clearances and finished-floor levels before installation.
• Professional Installation: Installation must be completed by a licensed plumber in accordance with the supplied instructions and applicable plumbing requirements.

Country of Origin:

• Made In: Asia

Extra Information:

The Park Avenue collection is defined by clean, sharp lines and a restrained architectural character. The wall-faced format allows the pan to sit neatly against the finished wall, hiding the trapway and simplifying access to the external surfaces during routine bathroom cleaning.

This listing is for the toilet pan package rather than a complete exposed-cistern suite. It includes the pan, thick soft-close seat, universal trap connector and floor-fixing bracket; the compatible concealed cistern, actuator plate and installation consumables must be selected separately. Verify plumbing compatibility before purchase.

Included Products / Accessories:

• Toilet Pan: 1 x Gareth Ashton Park Avenue rimless wall-faced pan
• Seat: 1 x thick soft-close toilet seat
• Trap Connector: 1 x universal connector for compatible S-trap or P-trap installation
• Fixing Hardware: 1 x floor-fixing bracket

Warranty:

Backed by a 10-year replacement warranty for faulty product. Refer to Abey Australia’s current warranty terms and conditions for eligibility, exclusions and claim requirements.
