• PerfectDry with Zeolith: mineral-based drying technology designed to improve drying performance while reducing energy consumption.
• 15 place setting capacity: large internal loading capacity suited to family households and entertaining.
• VarioHinge system: specialised hinge mechanism for integrated cabinetry installations with low plinth heights.
• DoorOpen Assist: push-to-open mechanism designed for handleless kitchen cabinetry.

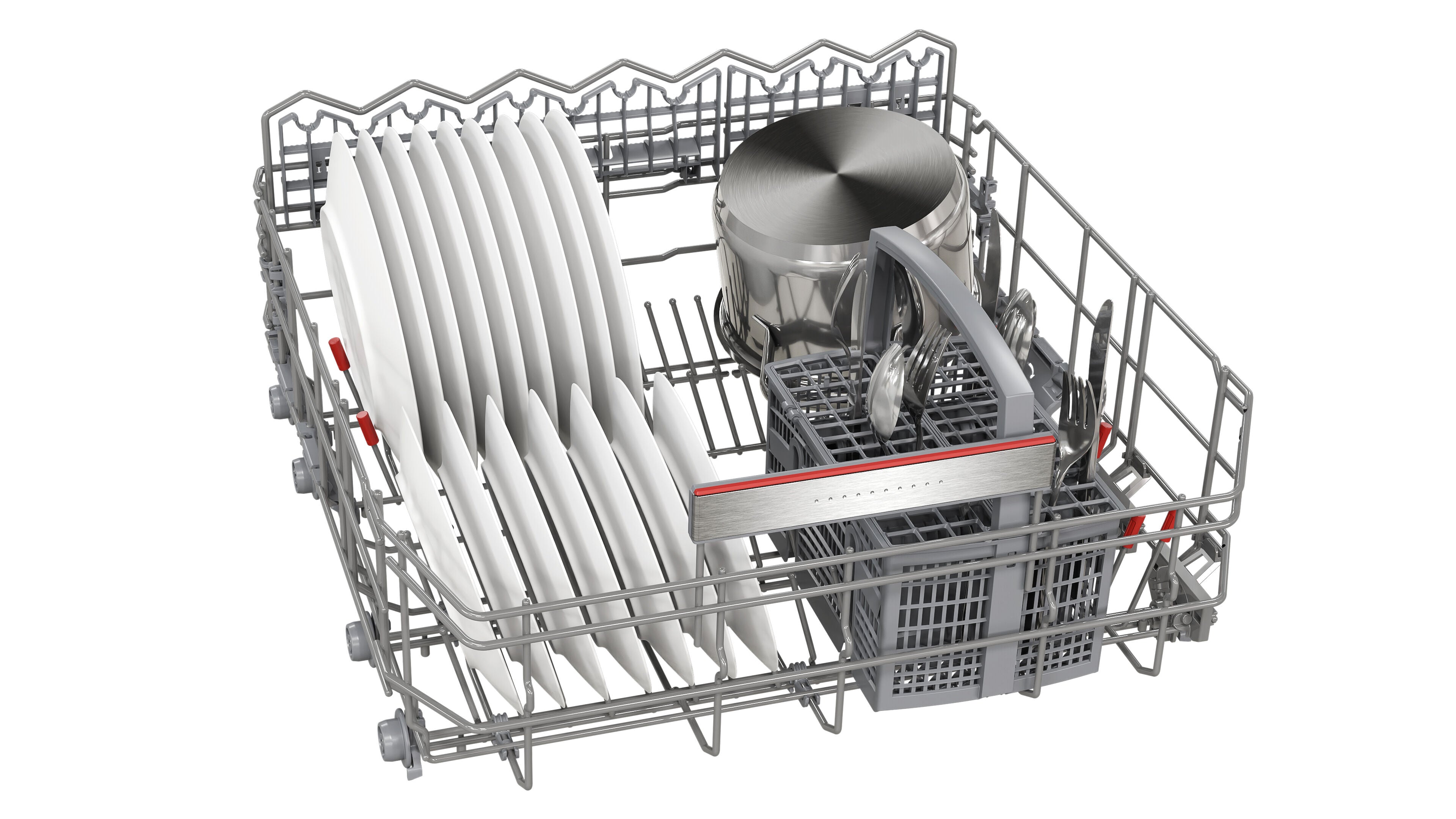

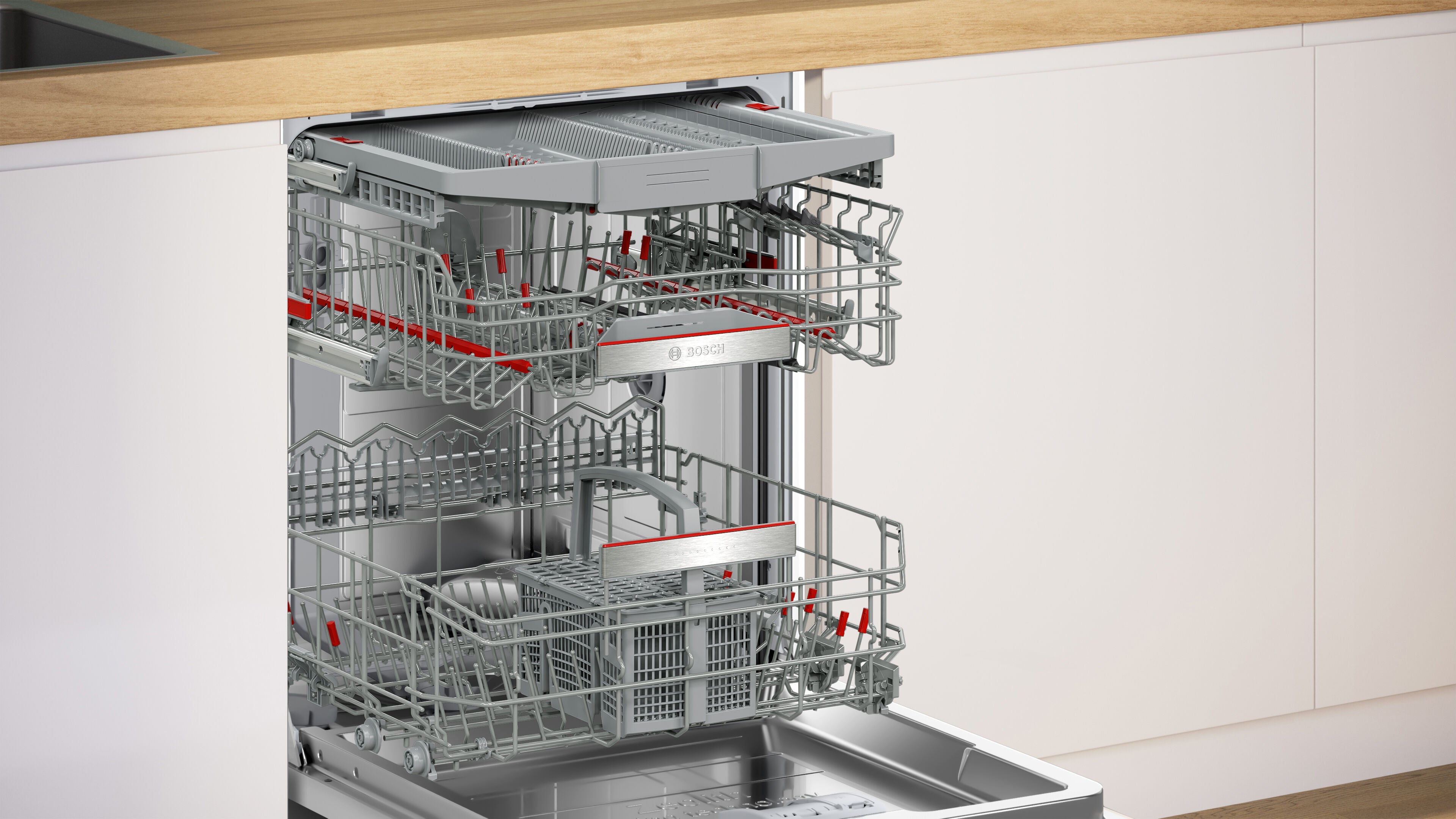

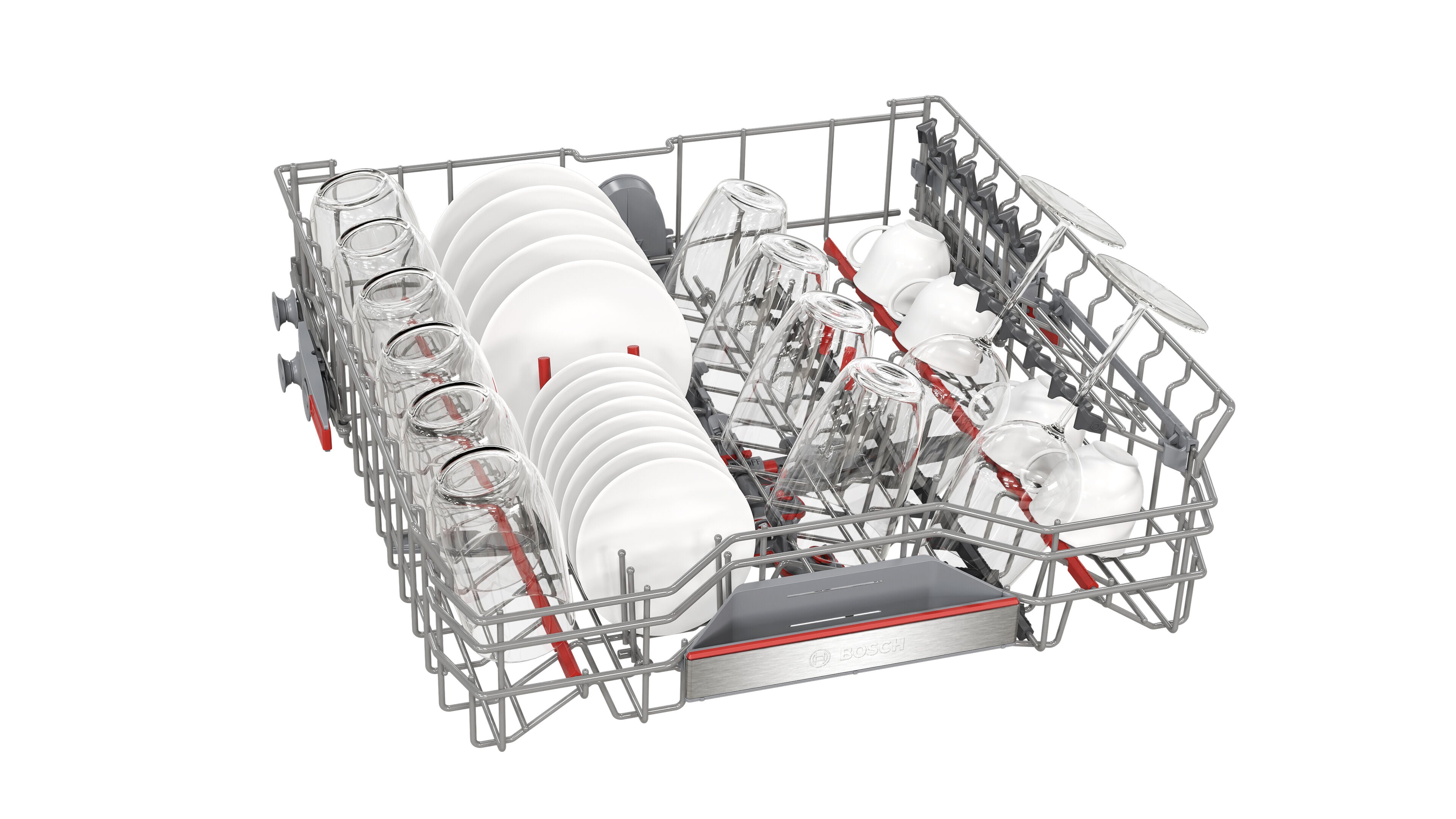

• Max Flex Pro baskets: flexible basket system with adjustable loading zones for cookware, dishes, and glassware.

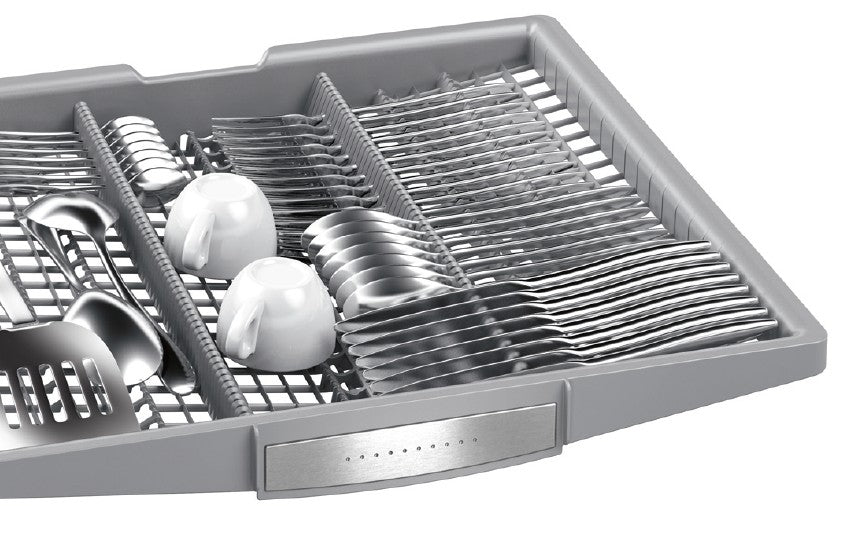

• VarioDrawer Pro: third-level loading drawer for cutlery and utensils.
• RackmaticPlus: height-adjustable upper basket with multiple height positions.

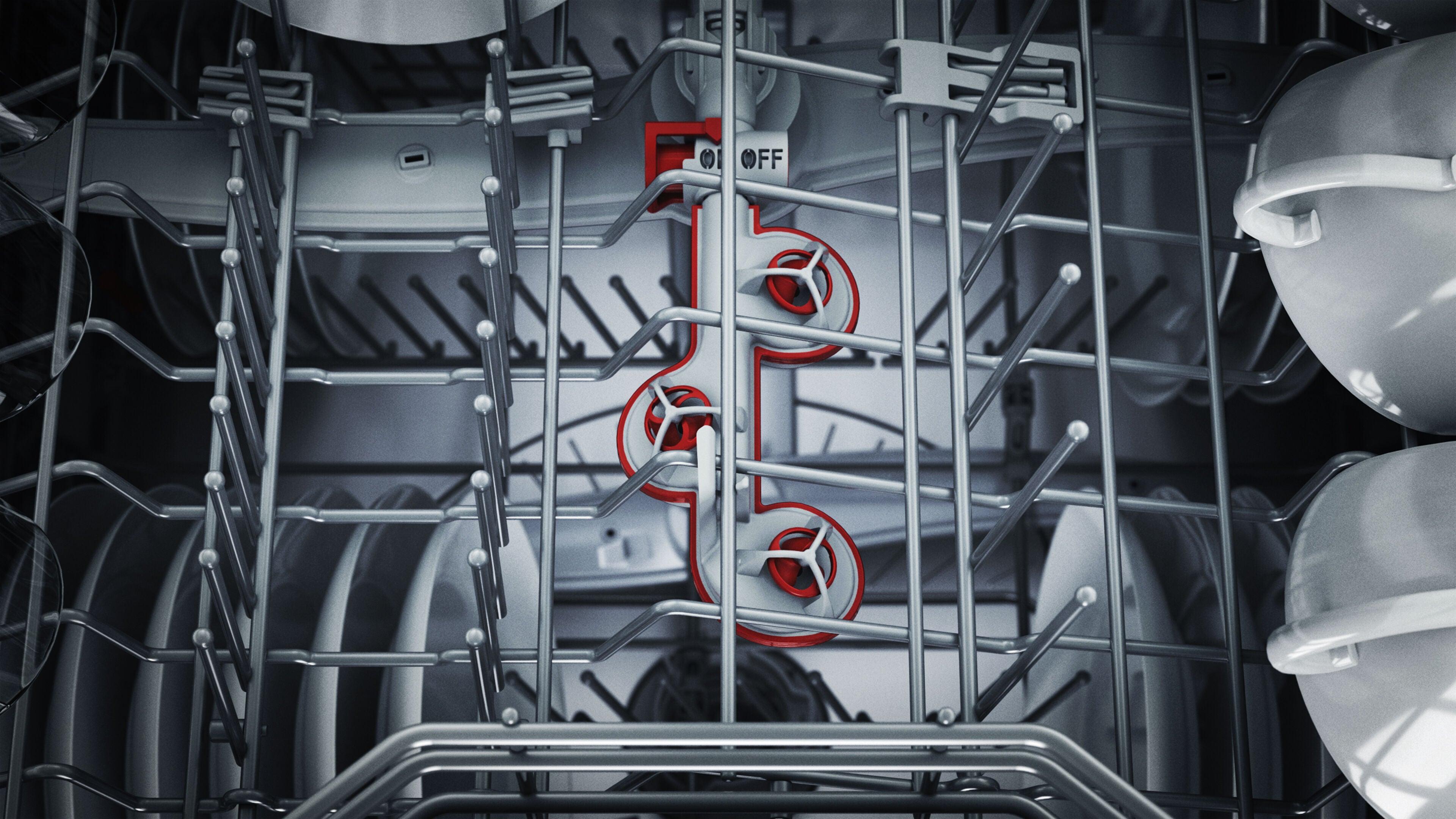

• Extra Clean Zone: additional rotating spray nozzles for heavily soiled items in the upper basket.
• EcoSilence Drive: brushless motor system engineered for quieter operation and long-term efficiency.
• EmotionLight: internal illumination system activated when the door is opened.
• Home Connect: Wi-Fi connectivity enabling remote monitoring and programme control via compatible smart devices.

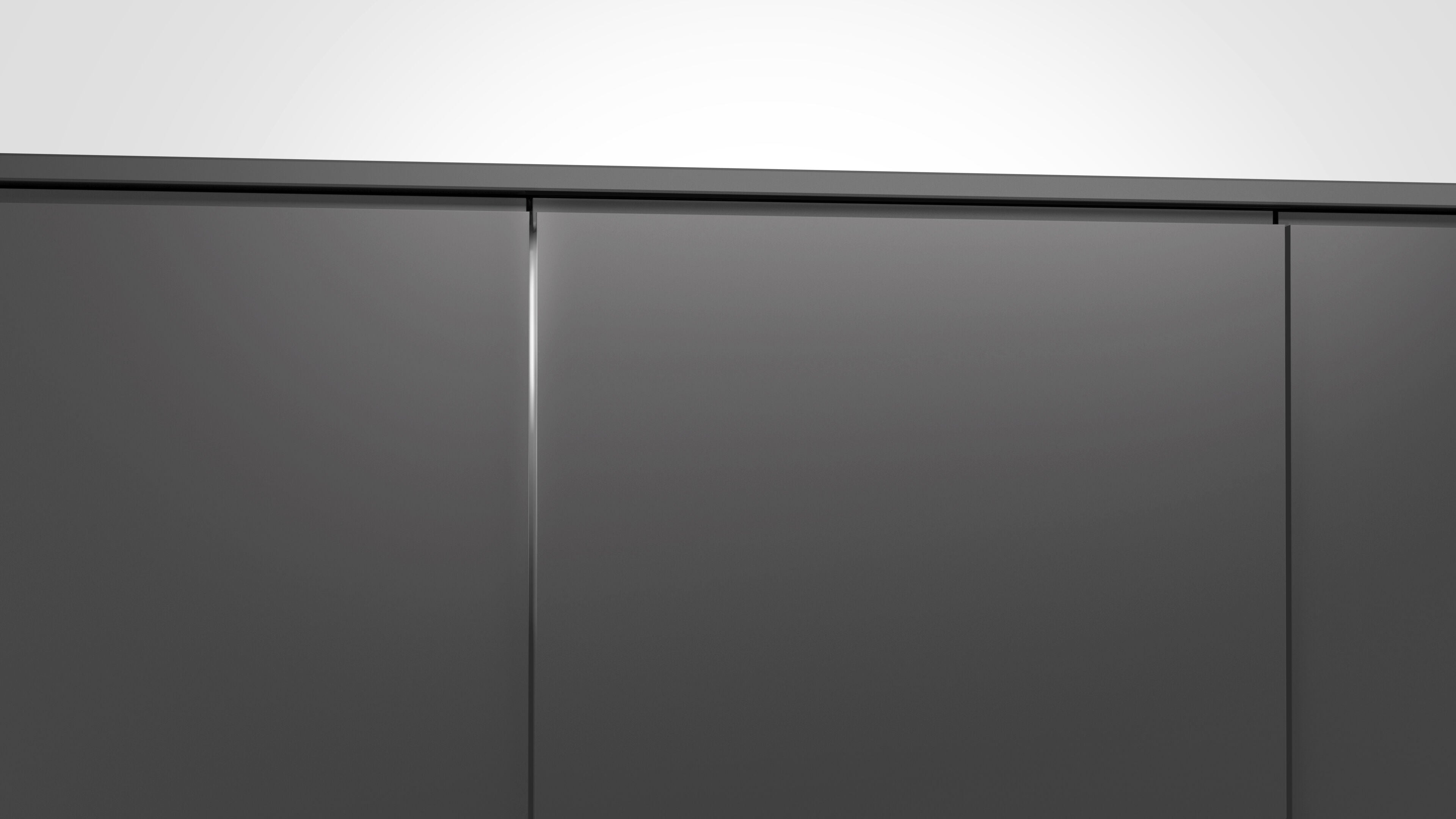

• TimeLight: projected floor display showing remaining cycle time and programme information.
• AquaStop Plus: anti-flood protection system with Bosch lifetime leak protection.
• DosageAssist: detergent tablet dispensing system designed to optimise detergent dissolution.

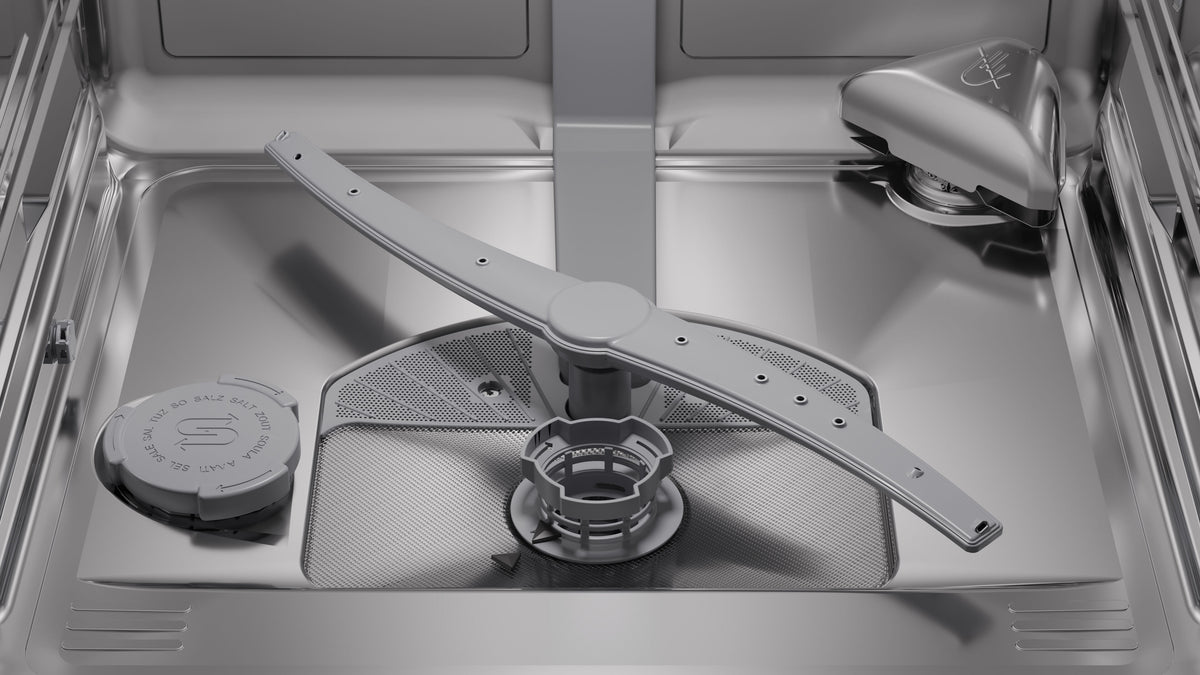

• 3-stage self-cleaning filter system: filtration system designed to reduce blockage build-up and maintenance frequency.
• Heat exchanger drying support: assists with gentle drying performance for delicate items.
• Favourite function: saves commonly used programme and option combinations for one-touch access.

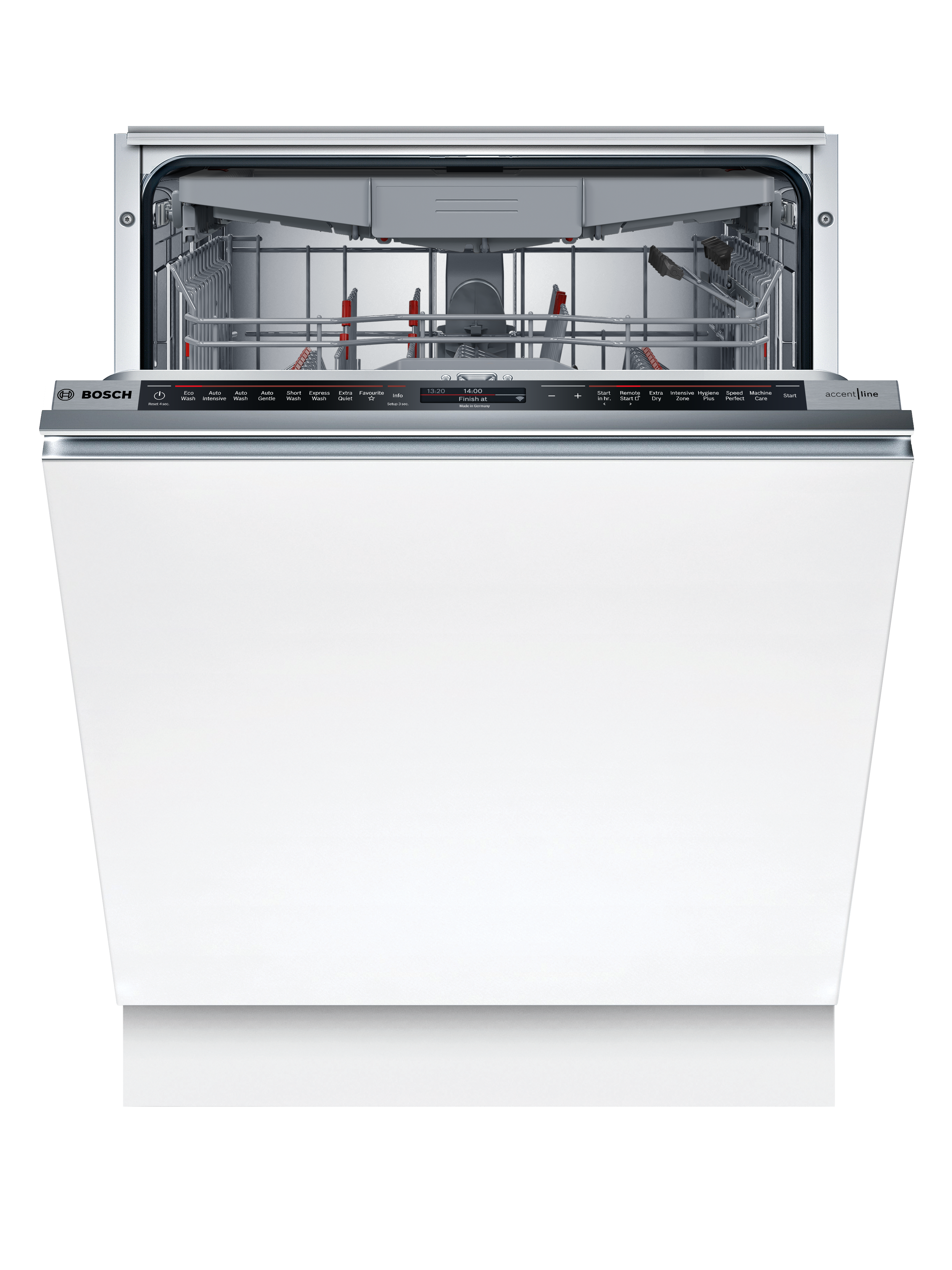

• Dishwasher type: Fully integrated built-in dishwasher
• Series: Bosch Series 8
• Capacity: 15 place settings
• Wash programmes: 8
• Special options: 5
• Drying system: Zeolith + Heat Exchanger drying
• Basket system: Max Flex Pro baskets
• Cutlery system: VarioDrawer Pro

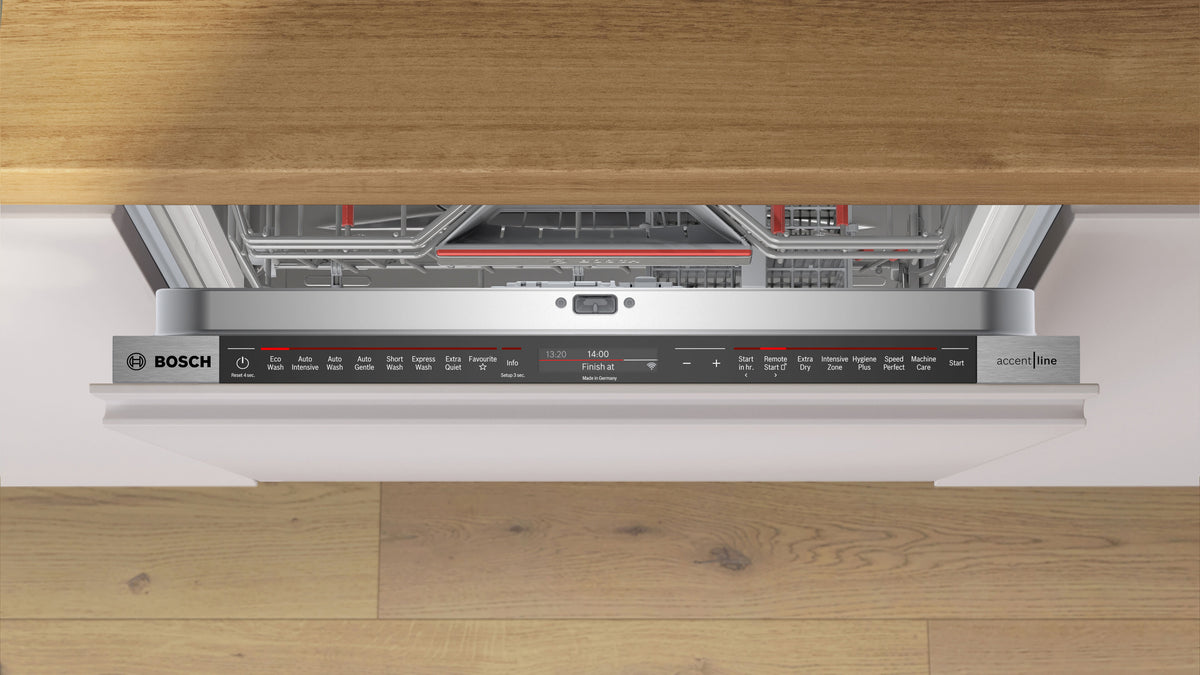

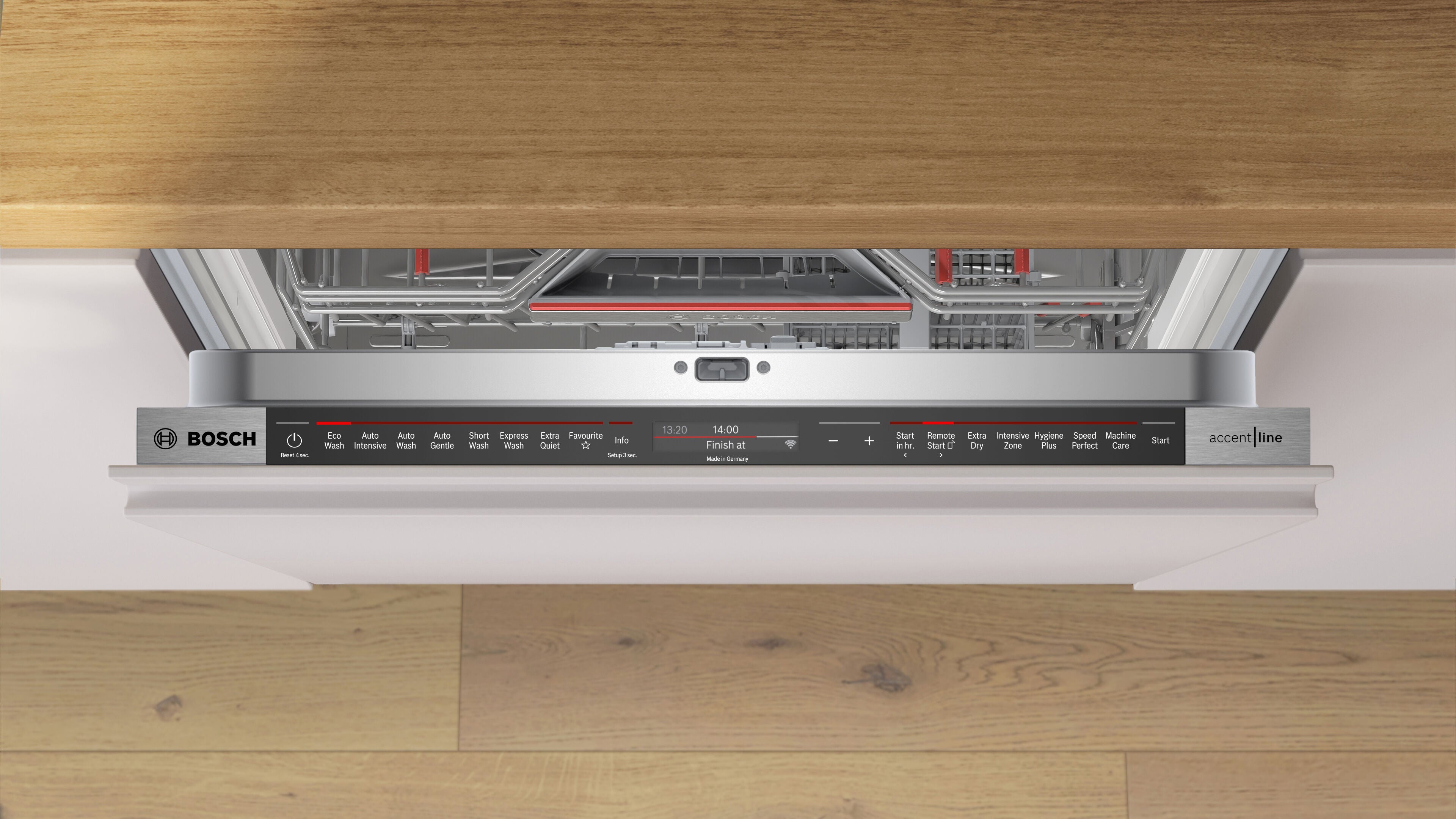

• Control type: Hidden top-edge controls with TFT display
• Interior tub material: Stainless steel
• Noise level: 42 dB(A)
• WELS rating: 5 stars
• WELS registration number: D02845
• Water consumption: 12.2 L per wash
• Energy rating: 4.5 stars
• Energy consumption: 206 kWh per year
• Water connection: Cold water connection
• Wi-Fi connectivity: Yes — Home Connect compatible
• AquaStop: Yes
• Delay start timer: Yes
• Child lock: Yes
• Interior lighting: EmotionLight
• Floor projection indicator: TimeLight

• Installation type: Fully integrated built-in
• Hinge system: VarioHinge
• Panel requirement: Custom cabinetry door panel required
• Connection type: Plug-in
• Power supply: 220–240 V / 50–60 Hz
• Connection rating: 2400 W
• Fuse protection: 10 A
• Power cord length: 175 cm

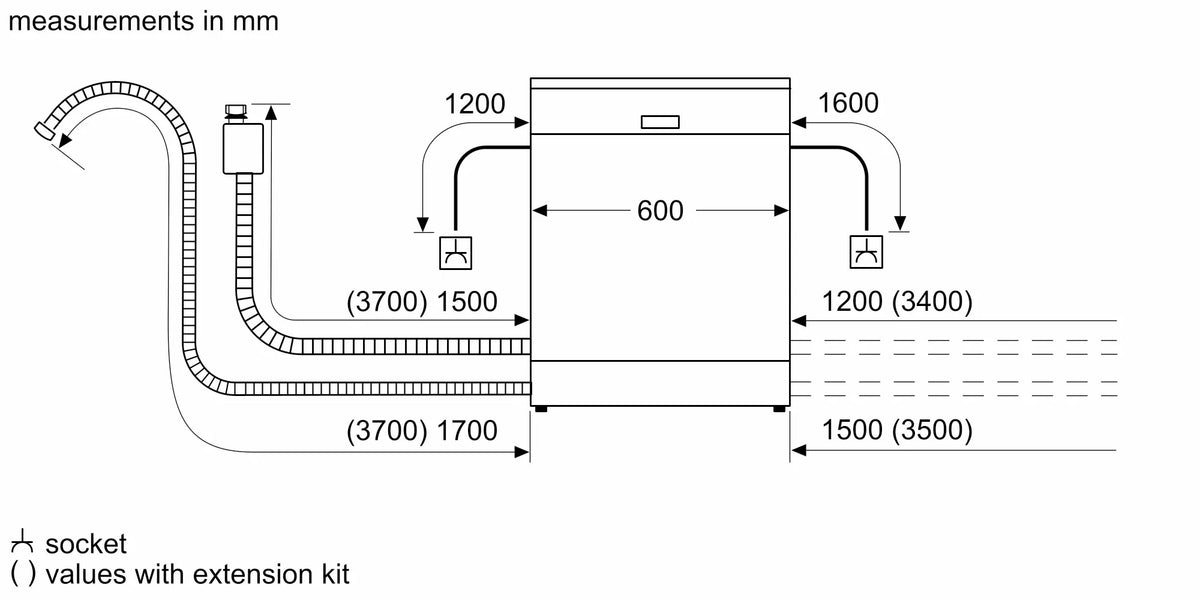

• Inlet hose length: 165 cm
• Outlet hose length: 190 cm
• Adjustable feet: Front adjustable rear feet system
• Water pressure range: 0.05 MPa – 1 MPa

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

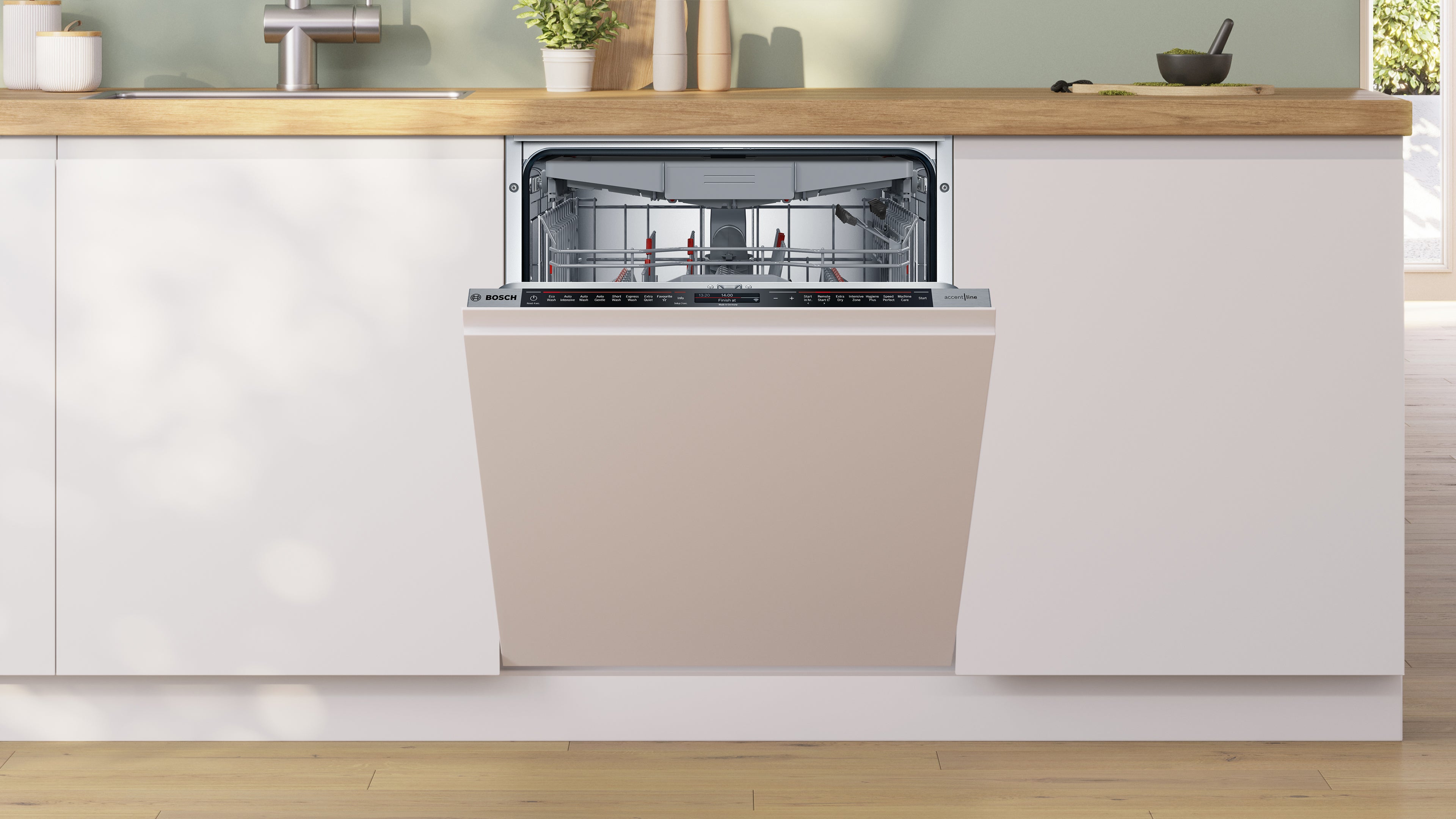

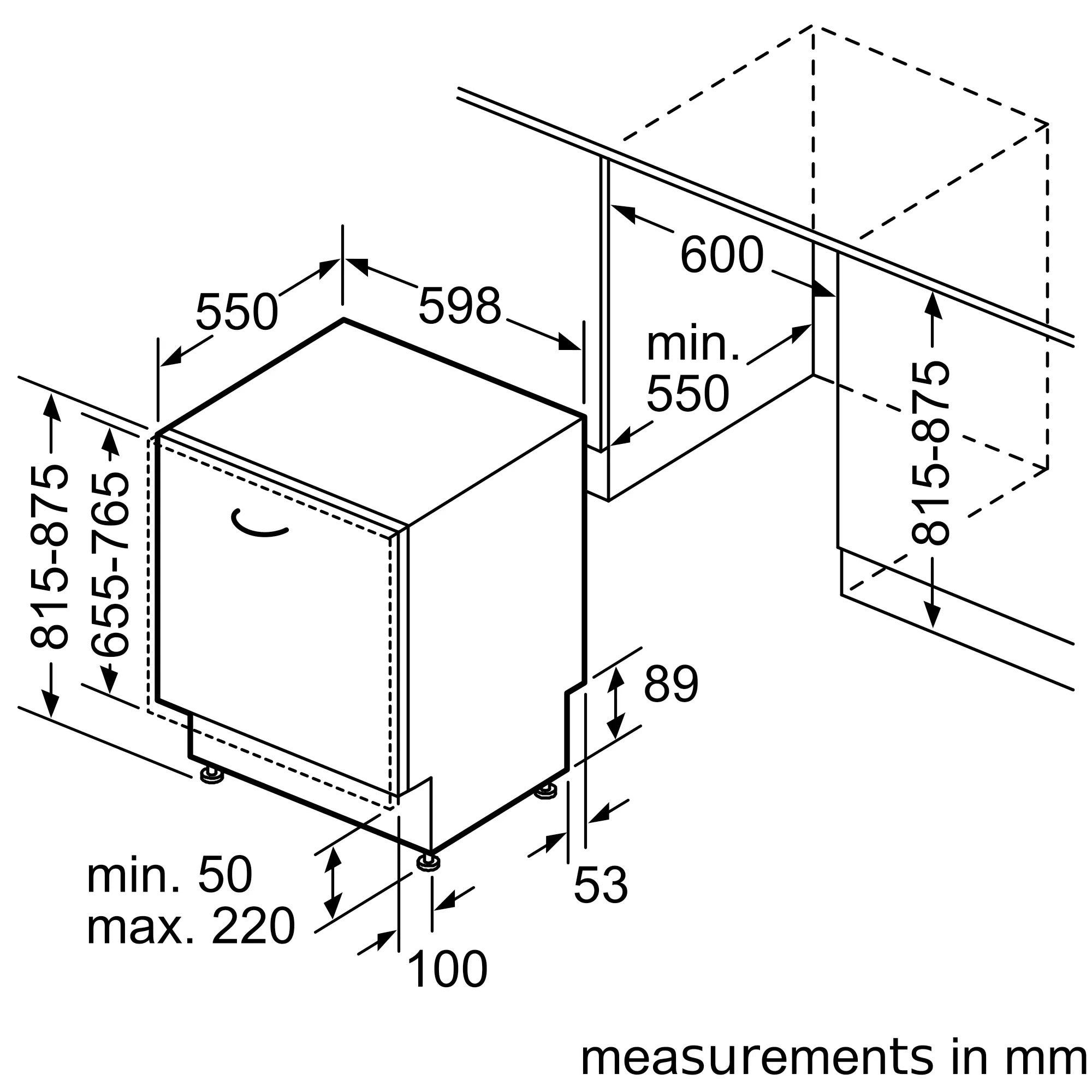

The SMT8ZC801A is designed for fully integrated installation behind custom kitchen cabinetry and requires a cabinetry door panel supplied separately by the kitchen manufacturer or cabinetmaker. Bosch’s VarioHinge mechanism is engineered specifically for installations with reduced plinth heights, allowing the cabinetry panel to move upward during door opening to minimise floor clearance interference.

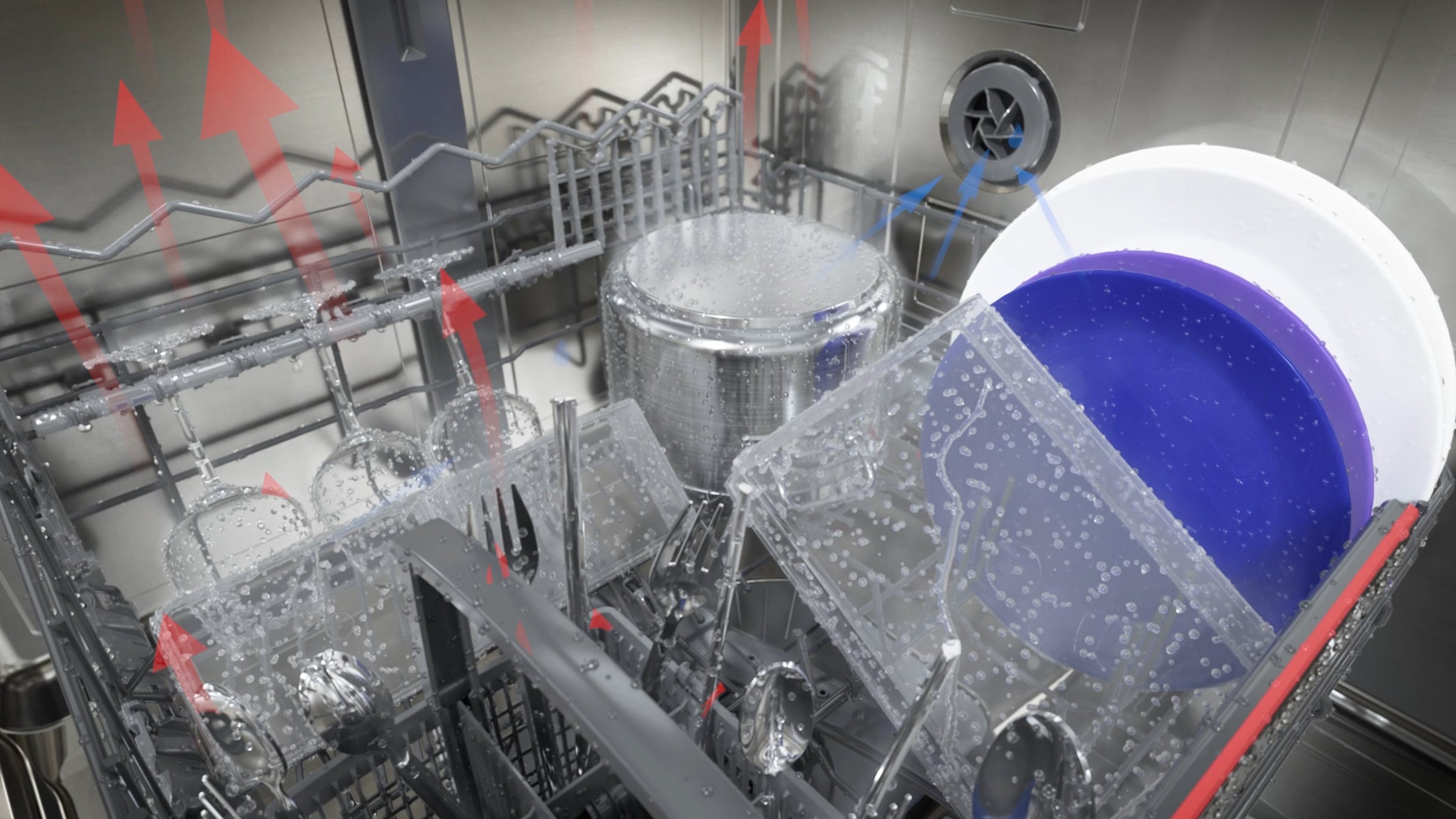

PerfectDry with Zeolith technology uses natural mineral material to absorb moisture and release warm air during the drying cycle. This assists with drying performance on difficult materials such as plastics while supporting lower energy consumption compared to conventional drying systems.

Home Connect functionality enables compatible smartphone control, programme monitoring, remote notifications, and access to additional programme customisation through the Bosch Home Connect platform. Wi-Fi setup and compatible mobile device are required.

• Large item spray head
• Vapour barrier protection plate
• Inlet hose
• Drain hose
• Power supply cord
• Installation hardware
