Product Description

Product Overview:

The Bosch DWB97LM50A Series 6 Wall Mounted Canopy Rangehood combines powerful extraction performance with a clean stainless steel design suited to contemporary kitchen environments. Designed for installation above 90cm cooktops, it delivers effective removal of cooking odours, steam and airborne grease while maintaining a refined visual presence within the kitchen.

Powered by Bosch's SilentPowerDrive motor technology, the DWB97LM50A achieves strong airflow performance with impressively quiet operation. Three extraction levels plus an intensive setting provide flexibility for everyday cooking through to high-output frying, searing and wok cooking. The intensive setting automatically returns to normal operation after six minutes, helping maintain efficient ventilation without unnecessary energy consumption.

Integrated LED lighting provides bright, energy-efficient illumination across the cooking surface, while TouchControl operation and a white LED display deliver intuitive day-to-day usability. Dishwasher-safe metal grease filters and Bosch's easy-clean interior design simplify ongoing maintenance and help keep the rangehood performing at its best.

Product Features:

• SilentPowerDrive Motor: High-performance brushless motor technology designed for powerful extraction with reduced operating noise.
• Intensive Extraction Setting: Boost mode quickly removes heavy cooking odours and vapours.
• Automatic Intensive Reset: Returns automatically to normal extraction after approximately six minutes.

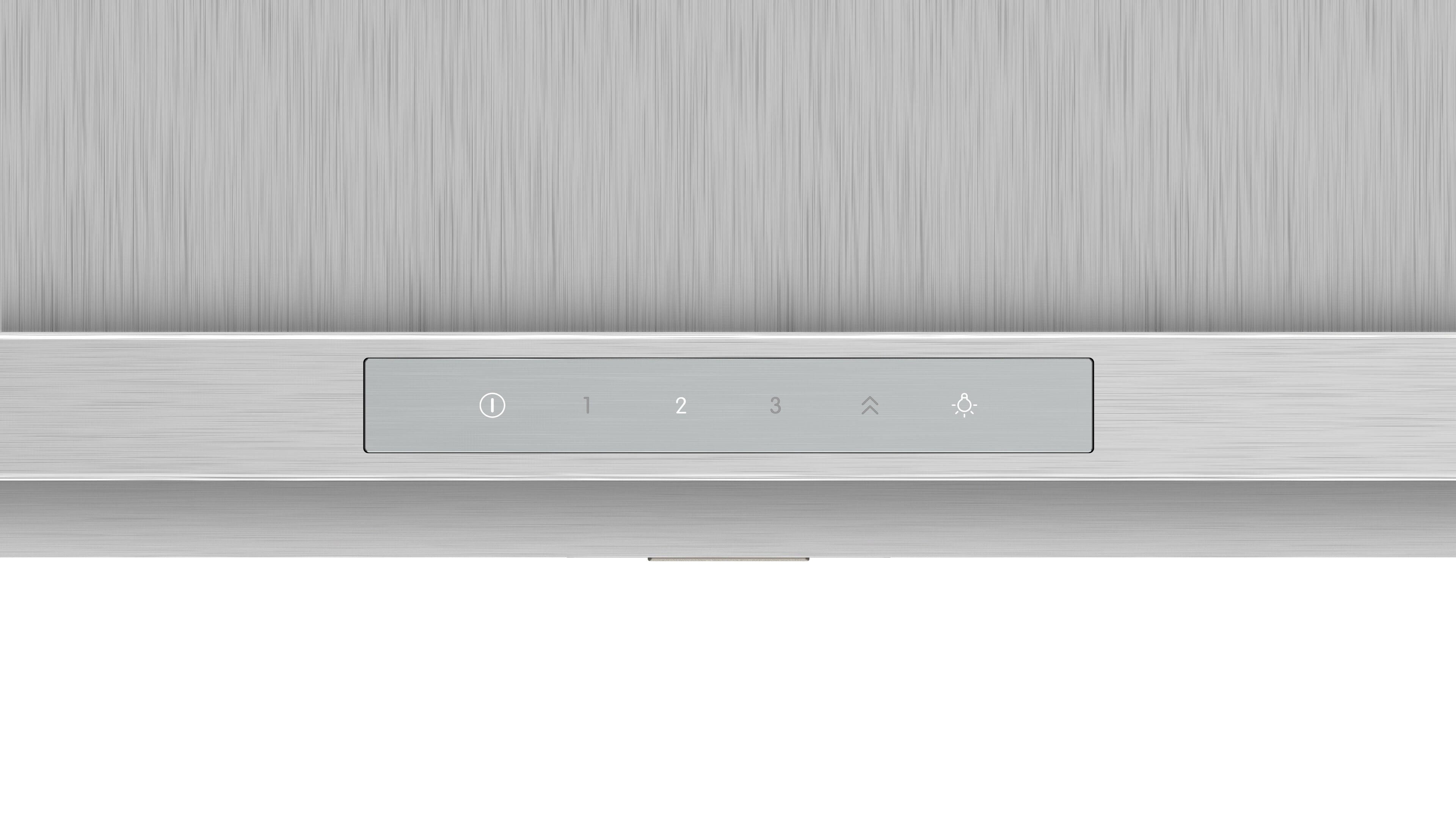

• TouchControl Operation: Simple touch controls with white LED display.
• LED Cooktop Lighting: Three integrated LED lights provide bright, even illumination.

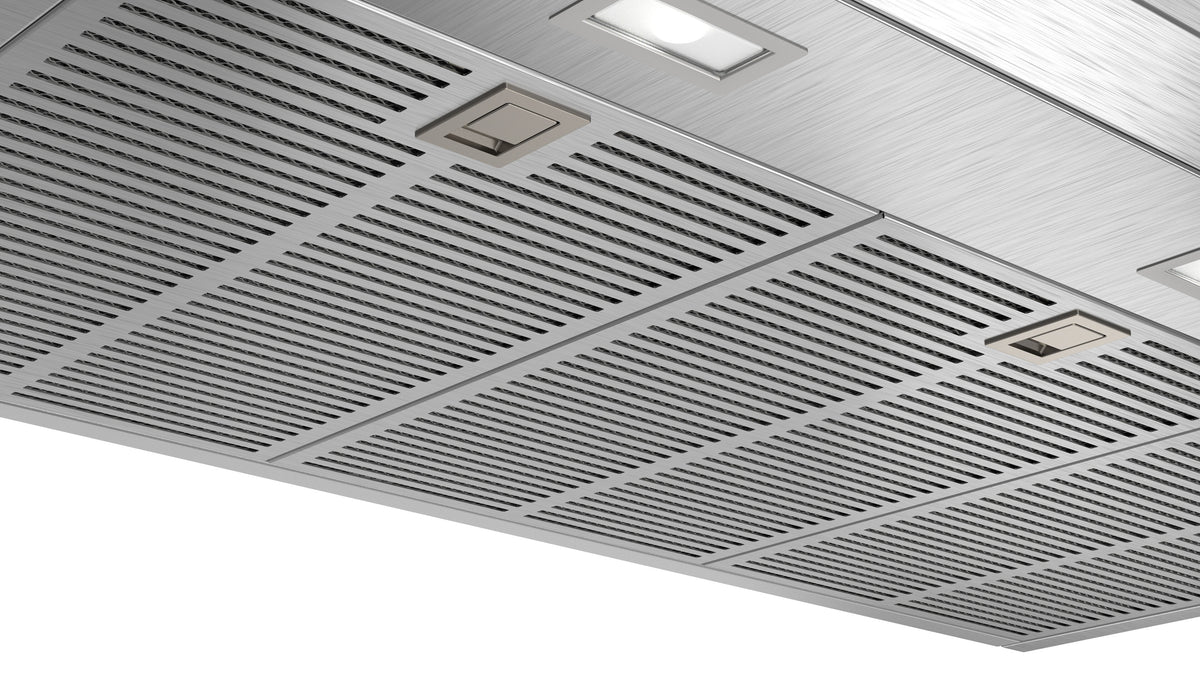

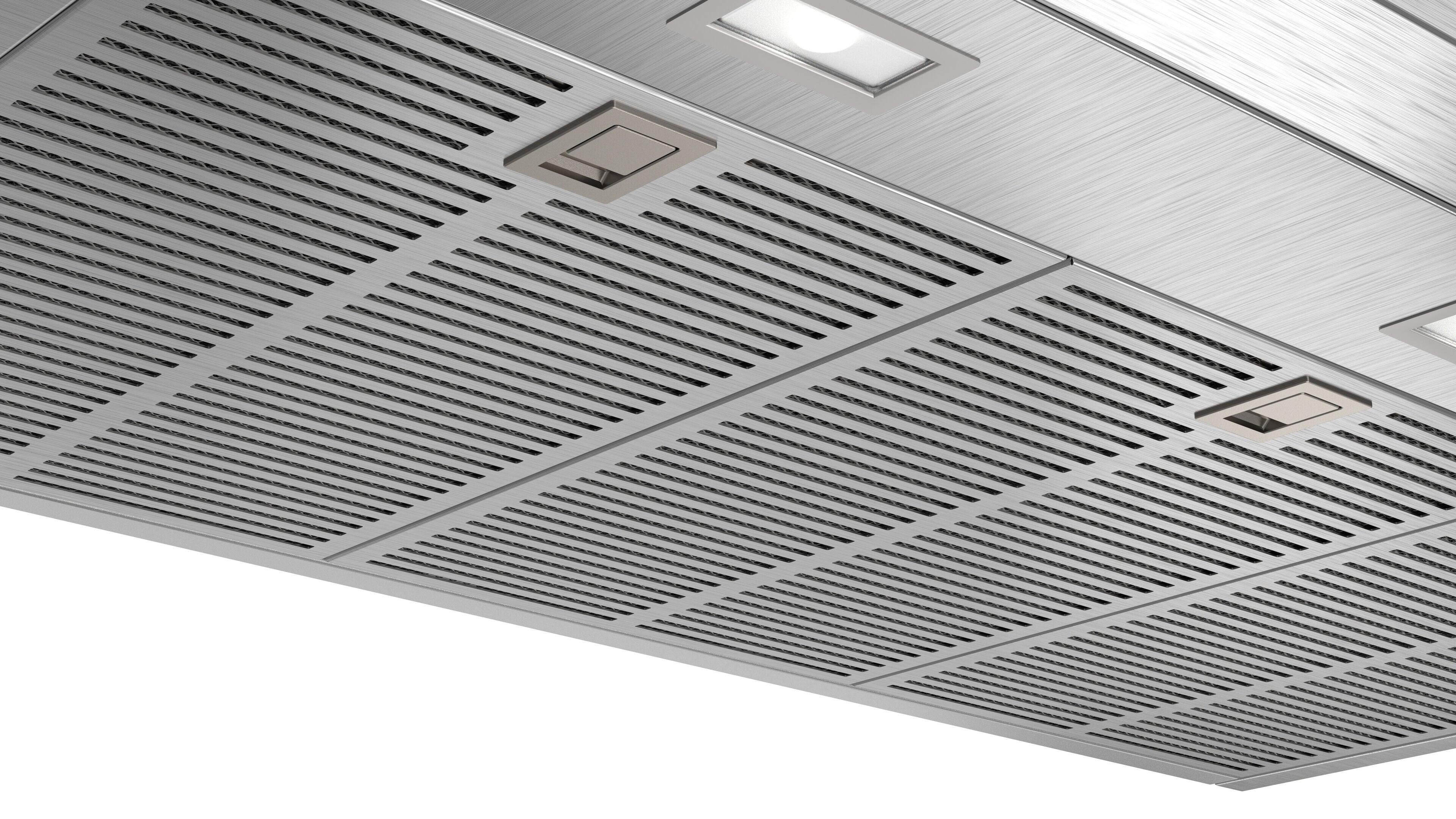

• Dishwasher-Safe Filters: Metal grease filters can be removed and cleaned in the dishwasher.
• Ducted or Recirculating Installation: Flexible installation options to suit a range of kitchen designs.
• Easy-Clean Interior: Hidden screws, concealed cables and rounded internal surfaces assist cleaning.
• Low Noise Performance: Designed to provide strong extraction without excessive operating noise.
• Wall Mounted Design: Contemporary stainless steel canopy profile suitable for modern kitchens.
• Multiple Fan Speeds: Three standard speeds plus intensive mode.
• Bosch Series 6 Engineering: Built to integrate seamlessly with Bosch cooking appliances.

Colour / Finishes:

• Stainless Steel — DWB97LM50A

Programmes / Functions:

• 3 fan speed levels: Allows extraction performance to be adjusted to suit everyday cooking requirements.
• Intensive extraction mode: Provides a temporary boost in extraction power for heavy cooking vapours and odours.
• Automatic intensive reset: Returns automatically to a normal extraction setting after approximately six minutes.
• LED lighting function: Independent cooktop illumination for improved visibility during cooking.
• TouchControl operation: Electronic touch controls provide quick access to extraction and lighting functions.

Cleaning & Maintenance:

• Dishwasher-Safe Metal Grease Filters: Designed for simple ongoing maintenance.
• Washable Filter System: Helps maintain extraction efficiency over time.
• Easy-Clean Internal Design: Hidden screws and rounded surfaces reduce grease build-up points.
• Accessible Filter Removal: Filters can be easily removed for routine cleaning.
• Recirculation Filter Compatibility: Optional odour filters available when operating in recirculation mode.

Specifications:

• Series: Series 6
• Rangehood Type: Wall Mounted Canopy
• Installation Type: Wall Mounted
• Operating Modes: Ducted or Recirculating
• Maximum Air Extraction: 431 m³/h
• Intensive Air Extraction: 697 m³/h
• Maximum Recirculation Rate: 319 m³/h
• Fan Speeds: 3
• Intensive Setting: Yes
• Control Type: TouchControl
• Display Type: White LED Display
• Motor Technology: SilentPowerDrive
• Lighting Type: LED
• Number of Lights: 3
• Lighting Power: 3 x 1.5 W
• Grease Filter Type: Metal Grease Filters
• Filter Cleaning: Dishwasher Safe
• Noise Level (Min): 45 dB
• Noise Level (Max): 55 dB
• Connected Load: 145 W
• Frequency: 50–60 Hz
• Voltage: 220–240 V

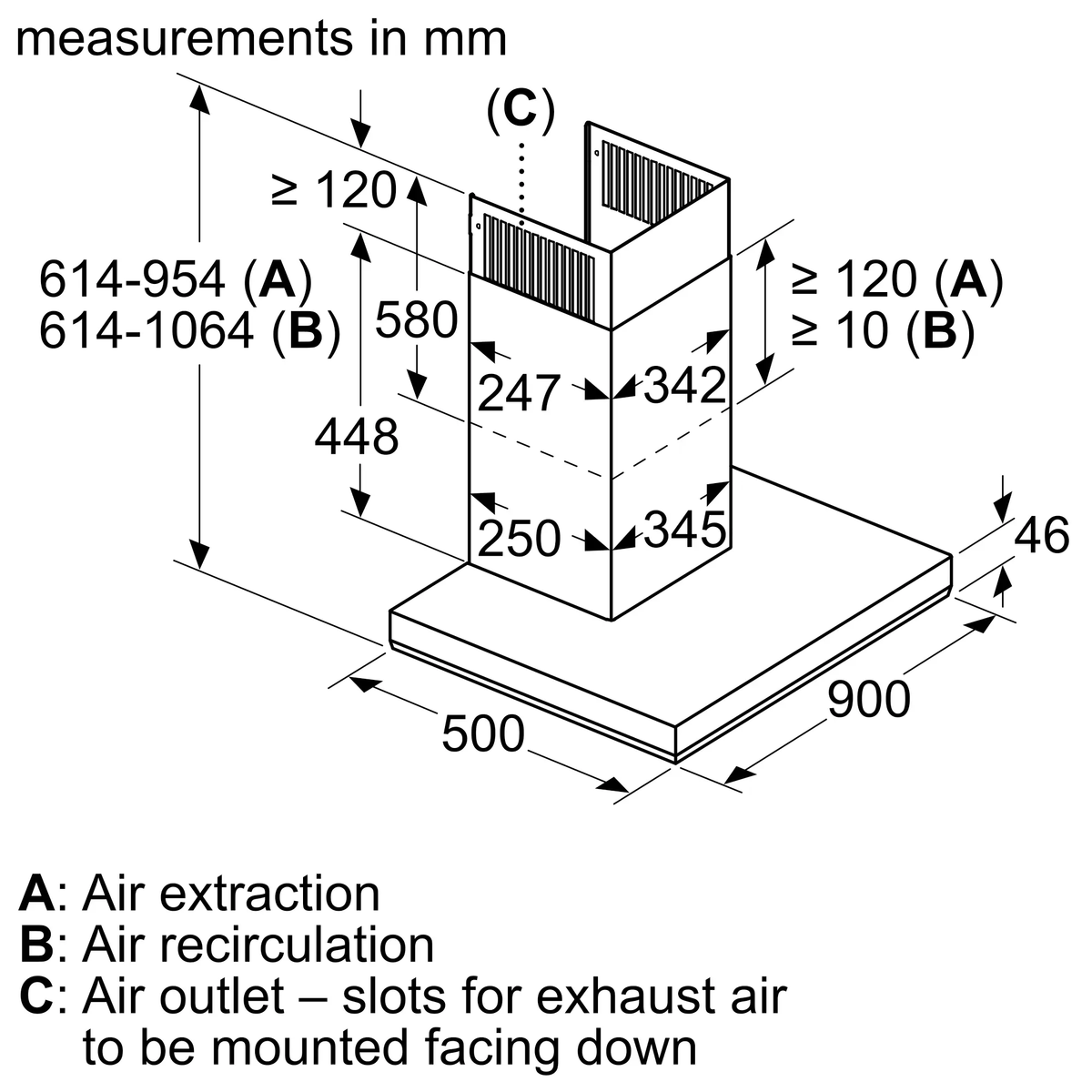

Product Measurements:

• Dimensions (W x D): 898 x 500 mm
• Height – Ducted Installation: 614–954 mm
• Height – Recirculating Installation: 614–1064 mm
• Width Category: 90 cm

Product Weight:

• Net Product Weight: 18.8 kg

Installation & Requirements:

• Installation Type: Wall Mounted Canopy
• Operation Type: Ducted or Recirculating

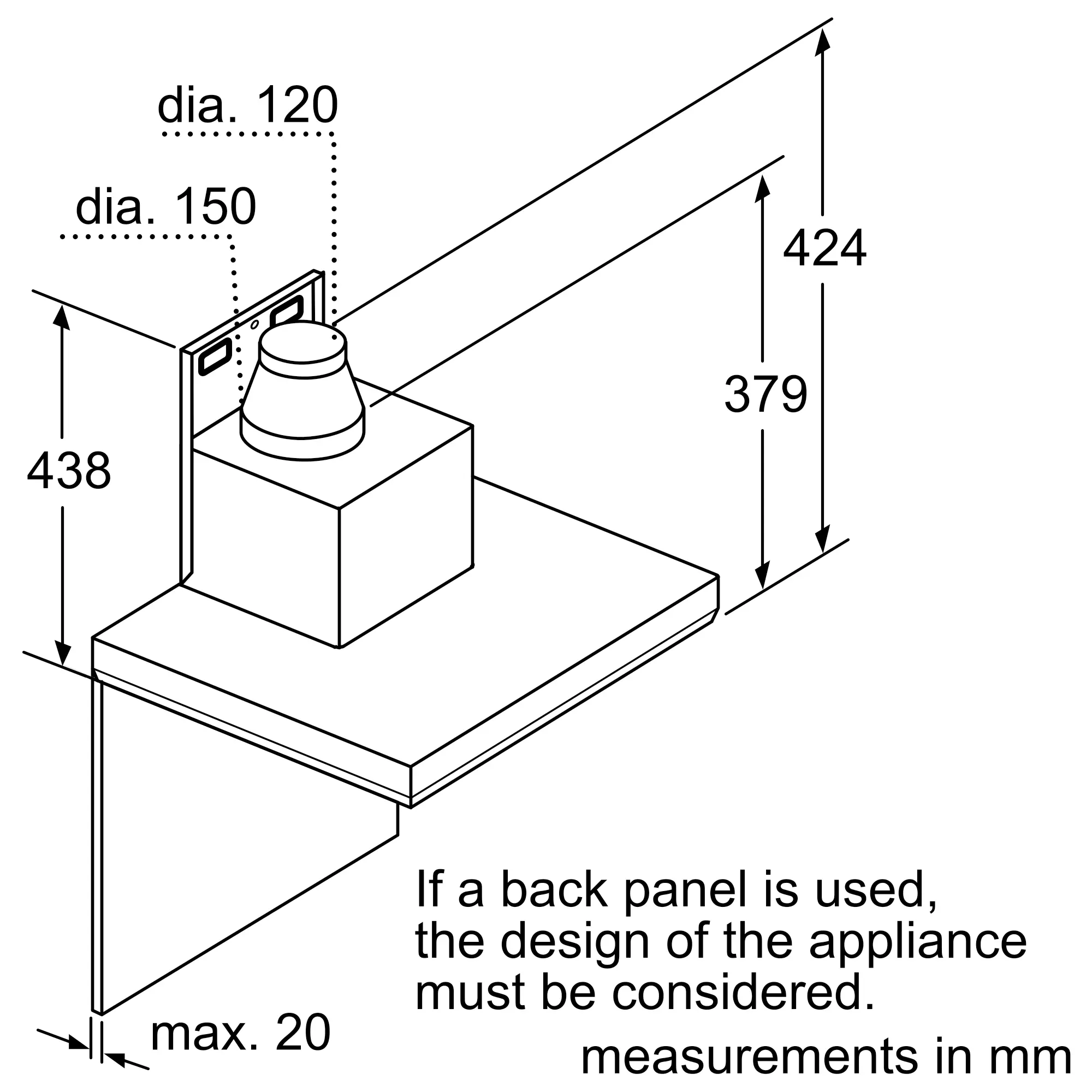

• Recommended Duct Diameter: 150 mm
• Alternative Duct Diameter: 120 mm
• Power Supply: 220–240 V
• Frequency: 50–60 Hz
• Connection Type: 10 Amp Plug and Lead
• Connected Load: 145 W

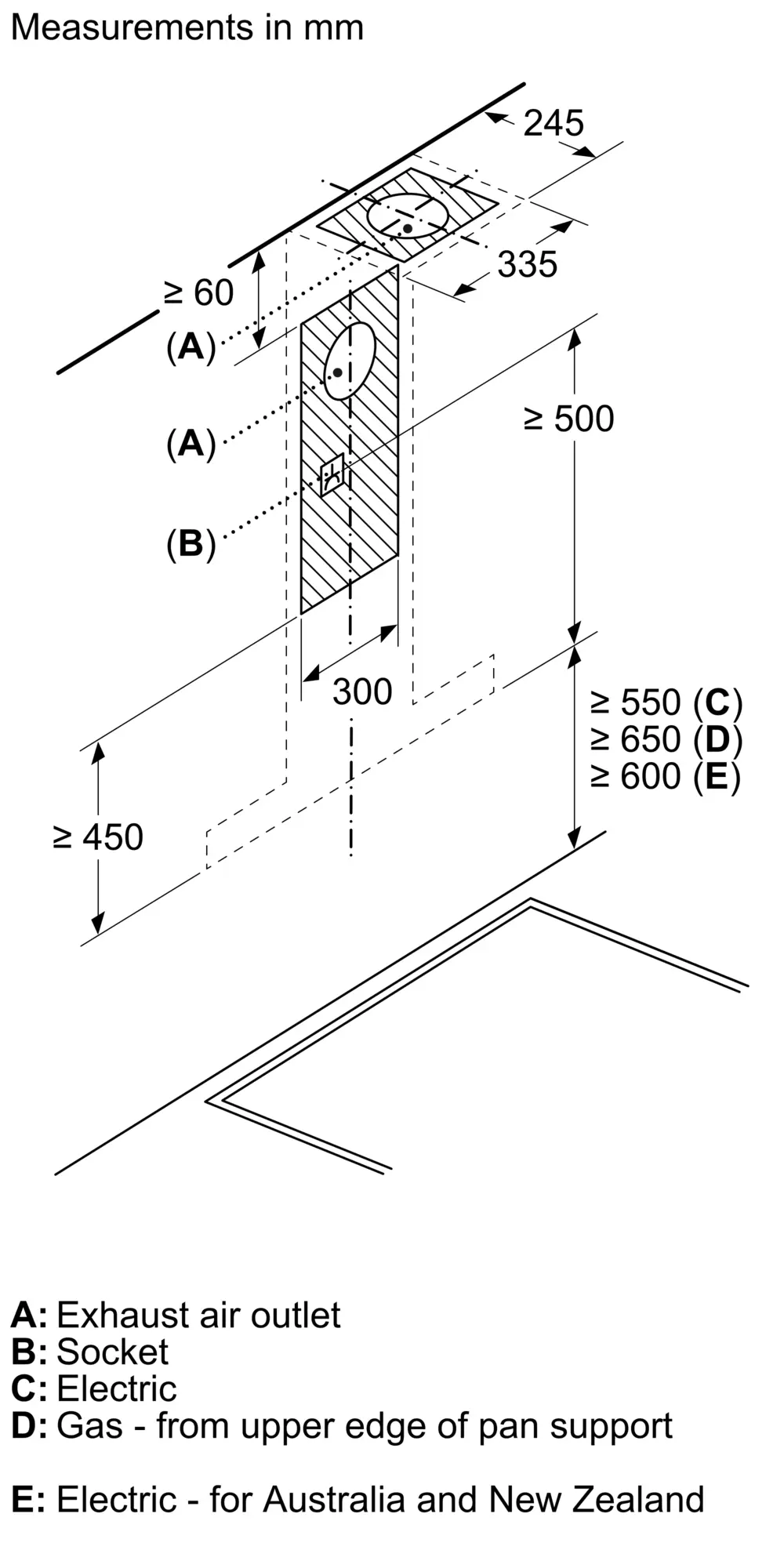

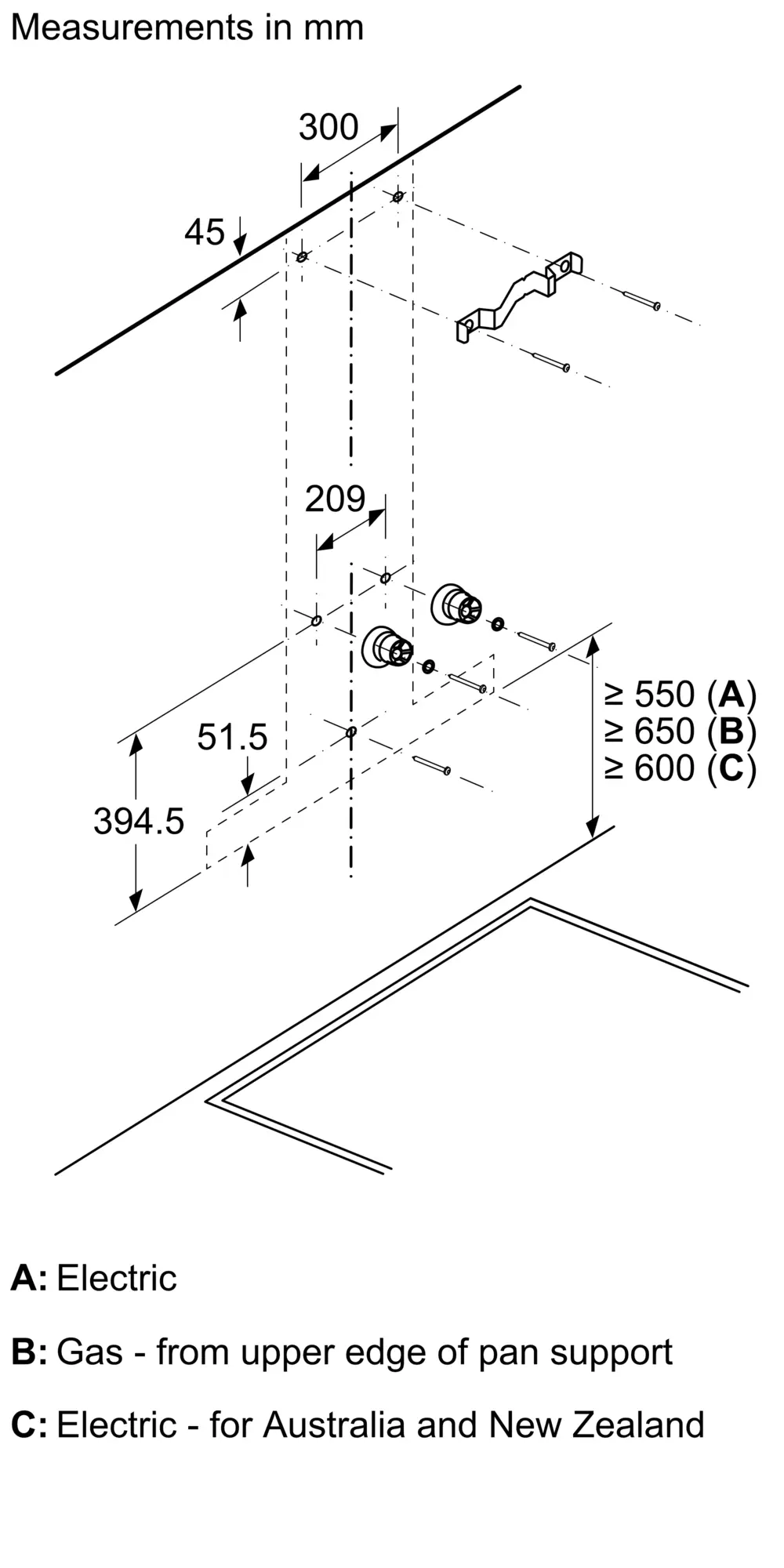

• Minimum Clearance Above Electric Cooktop: Refer to Bosch Installation Instructions
• Minimum Clearance Above Gas Cooktop: Refer to Bosch Installation Instructions
• Recirculation Operation: Requires optional recirculation accessories
• Professional Installation: Recommended in accordance with manufacturer instructions.

Country of Origin:

• Made in Germany

Extra Information:

The DWB97LM50A combines Bosch's SilentPowerDrive motor technology with a stainless steel canopy design suited to both contemporary renovations and new kitchen builds. The powerful intensive extraction mode is particularly useful during high-temperature cooking, helping rapidly clear smoke, steam and cooking odours from the kitchen environment.

For households unable to duct externally, the rangehood can also be configured for recirculating operation using compatible Bosch recirculation accessories. Integrated LED lighting improves visibility across the cooking surface while maintaining low energy consumption.

Included Products / Accessories:

• 2 x Stainless Steel Flue Covers
• Metal Grease Filters
• Installation Documentation

Warranty:

Backed by a 2 Year Bosch manufacturer's warranty covering domestic parts and labour when installed and operated in accordance with Bosch guidelines.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
