Product Description

Product Overview:

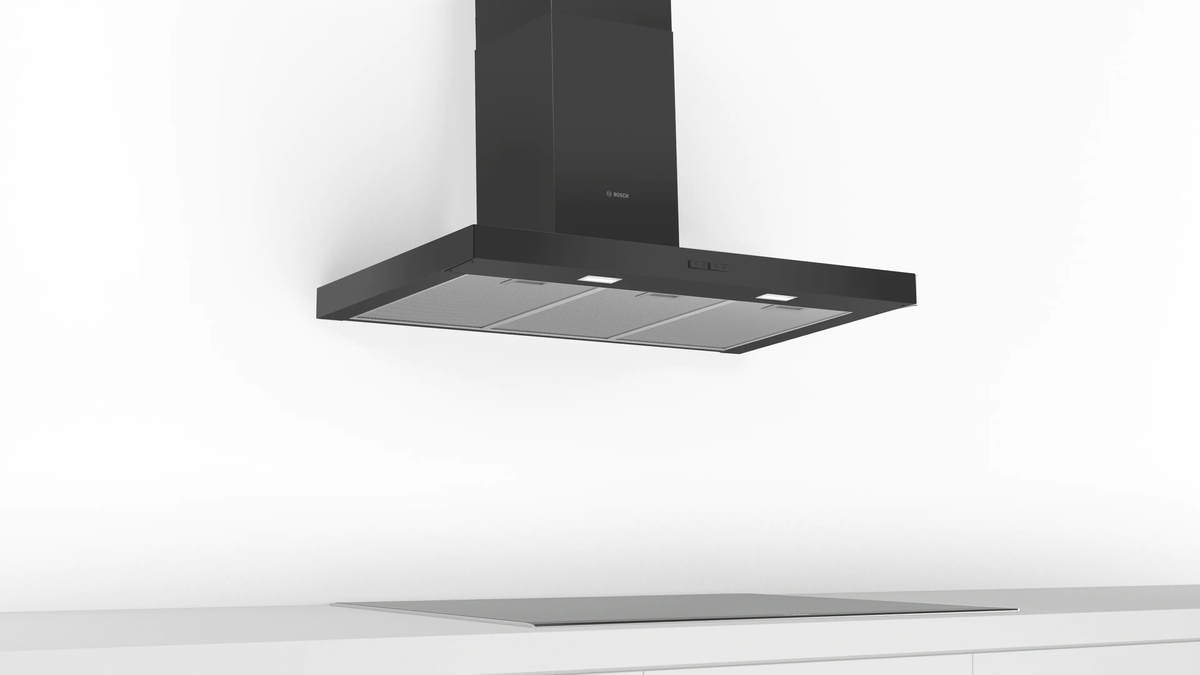

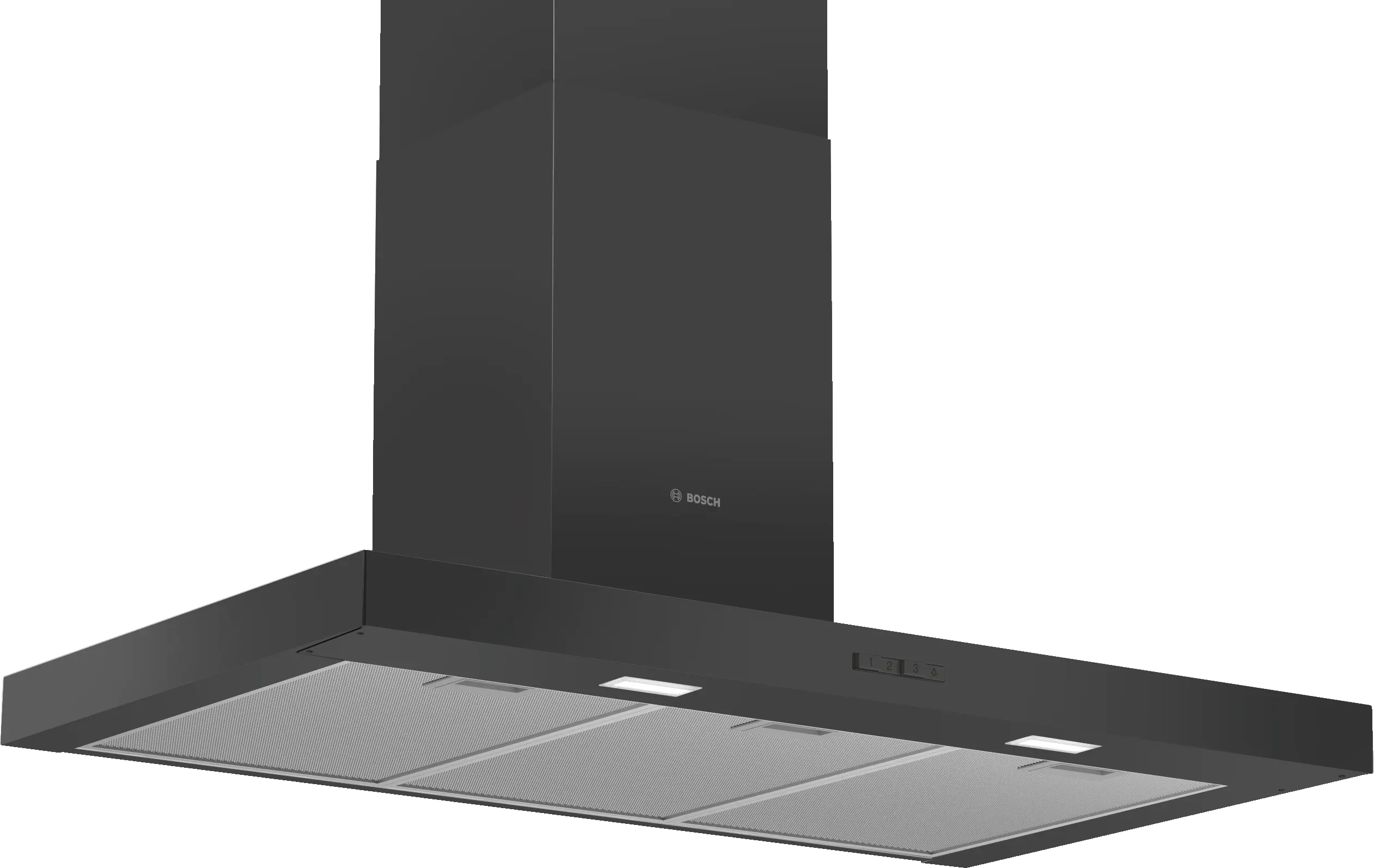

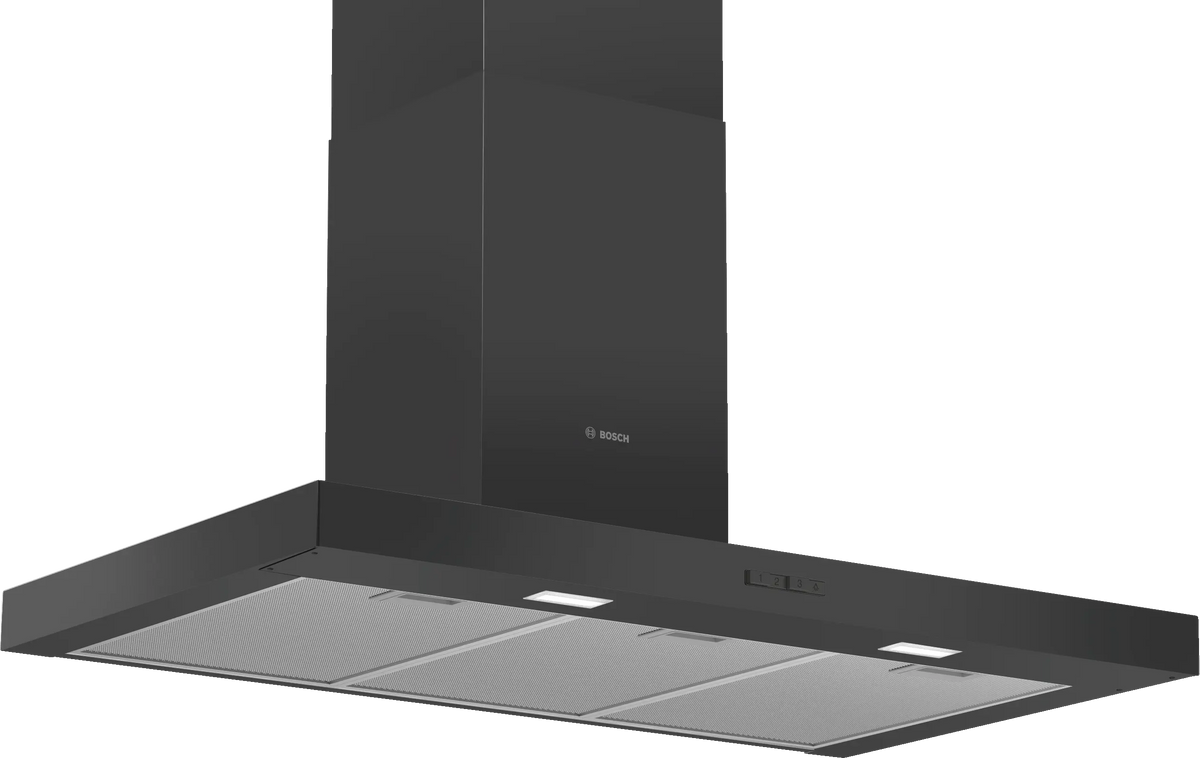

The Bosch DWB96BC60A is a 90cm wall mounted canopy rangehood from the Bosch Series 2 collection, finished in matte black to complement contemporary kitchen designs. Its traditional canopy profile combines practical extraction performance with clean, understated styling suited to a wide range of cooking environments.

Powered by a twin channel high-performance fan motor, the DWB96BC60A delivers extraction rates of up to 619m³/h in ducted operation. Three fan speeds allow extraction performance to be adjusted according to cooking intensity, helping remove steam, grease and cooking odours from the kitchen environment.

The rangehood also incorporates energy-efficient LED lighting, dishwasher-safe aluminium grease filters and support for both ducted and recirculated installation configurations, providing flexibility for new kitchen projects and renovation applications.

Product Features:

• Twin channel fan motor: High-performance extraction system designed for effective removal of cooking vapours.
• Three speed settings: Adjustable extraction levels to suit everyday cooking requirements.
• Maximum extraction capacity: Up to 619m³/h in ducted mode.
• Recirculation compatible: Can be configured for recirculating operation with optional accessories.

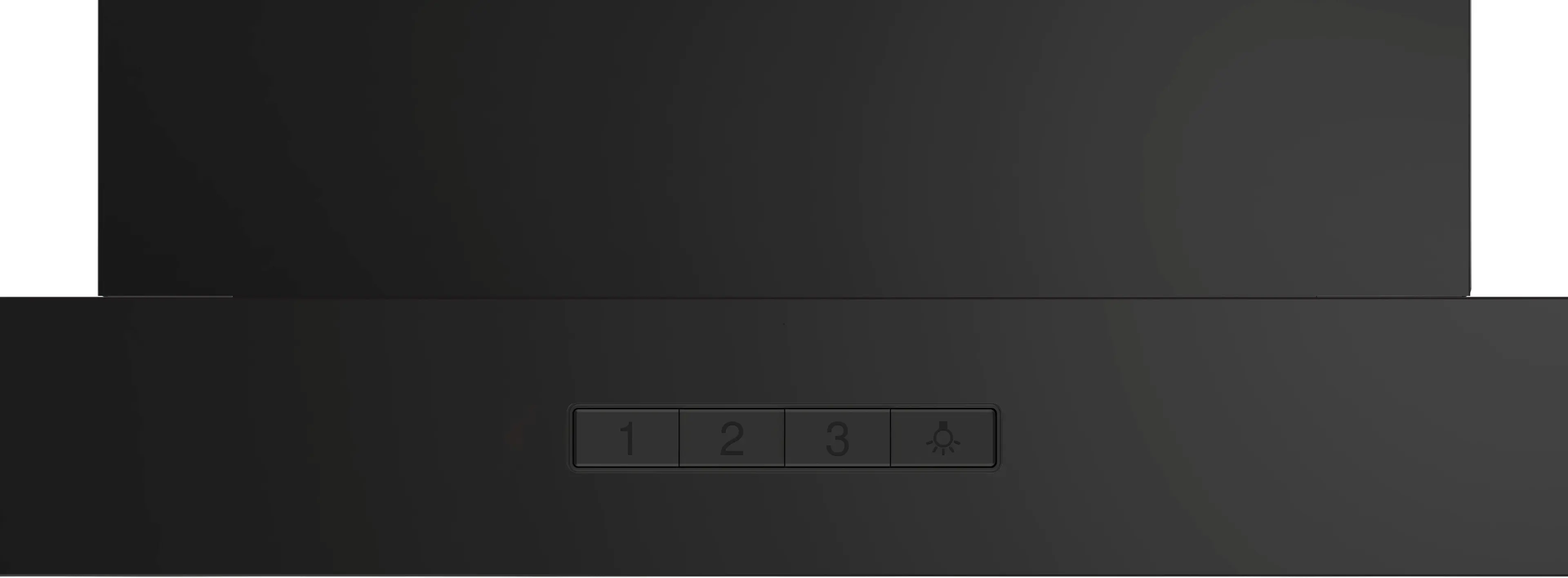

• Push-button controls: Simple mechanical controls for fan speed and lighting operation.
• LED cooktop lighting: Bright and energy-efficient illumination of the cooking surface.

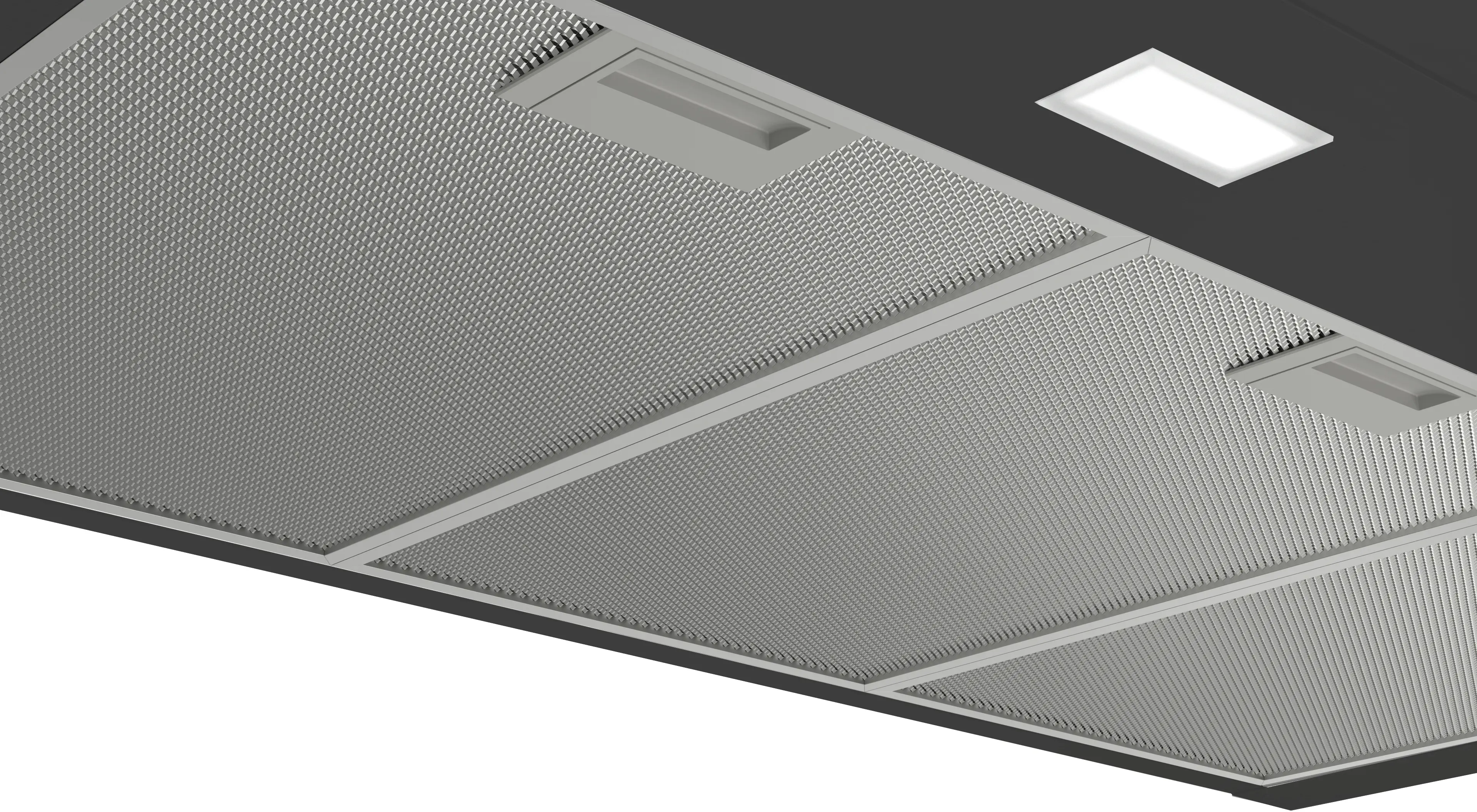

• Dishwasher-safe grease filters: Aluminium filters designed for easy maintenance.
• Wall-mounted canopy design: Traditional canopy style suited to installation above cooktops and ranges.
• Low operating noise: Noise range from 49dB to 70dB depending on speed selected.
• Bosch Series 2 design: Practical ventilation solution with Bosch engineering and reliability.

Colour / Finishes:

• Matte Black — DWB96BC60A

Programmes / Functions:

• Speed 1: Low extraction setting for light cooking and general ventilation.
• Speed 2: Medium extraction setting for everyday cooking activities.
• Speed 3: Maximum extraction setting for intensive cooking, steam and odour removal.
• LED Lighting Function: Independently controlled cooktop illumination for improved visibility during cooking.
• Ducted Operation: Extracts cooking vapours externally through connected ductwork.
• Recirculation Operation: Filters and returns cleaned air back into the kitchen when fitted with the optional recirculation kit.

Cleaning & Maintenance:

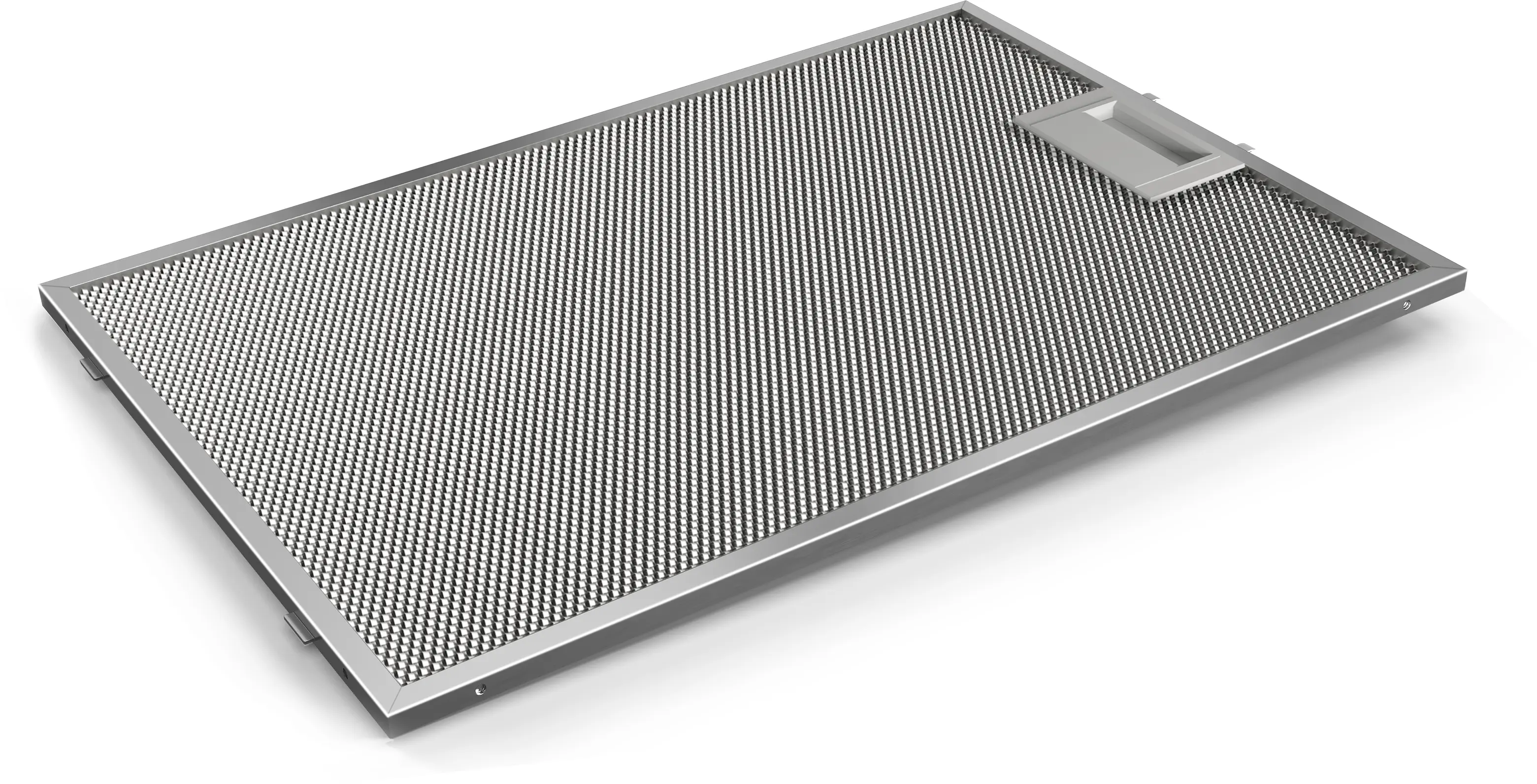

• Dishwasher-safe aluminium grease filters: Filters can be removed and cleaned in a dishwasher for simplified maintenance.
• Multi-layer grease filtration: Designed to capture airborne grease particles generated during cooking.
• Removable filter system: Filters can be accessed and removed without specialised tools.
• Washable filter construction: Supports repeated cleaning and long-term use.
• LED lighting system: Long-life LED illumination reduces routine lamp replacement requirements.
• Accessible canopy design: Smooth external surfaces can be wiped clean with a soft cloth and suitable cleaning products.

Specifications:

• Rangehood type: Wall-mounted canopy
• Series: Series 2
• Extraction type: Ducted or recirculated
• Maximum extraction rate (ducted): 619m³/h
• Maximum recirculation rate: 422m³/h
• Fan speeds: 3
• Control type: Mechanical push-button
• Motor configuration: Twin channel high-performance fan motor
• Number of motors: 1
• Lighting type: LED
• Number of lights: 2
• Light temperature: 3500K
• Light intensity: 91 lux
• Filter type: Washable aluminium grease filters
• Filter cleaning: Dishwasher-safe
• Air outlet diameter: 150mm (120mm adaptor enclosed)
• Operating mode: Exhaust or recirculation
• Noise level: 49–70dB
• Appliance width: 900mm
• Connection rating: 220W
• Voltage: 220–240V
• Frequency: 50/60Hz
• Fuse protection: 10A
• Plug type: Australian plug
• Electrical cord length: 130cm

Product Measurements:

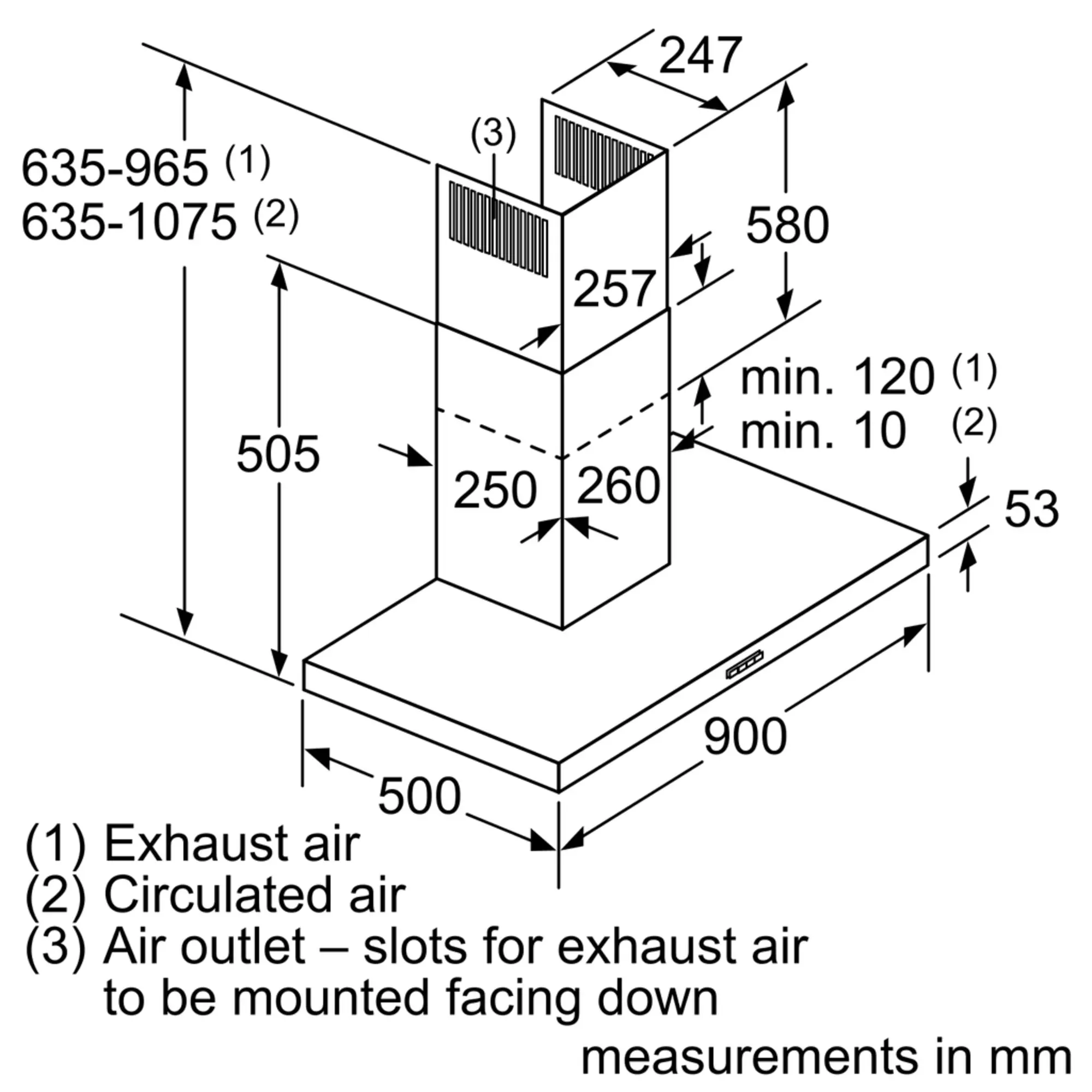

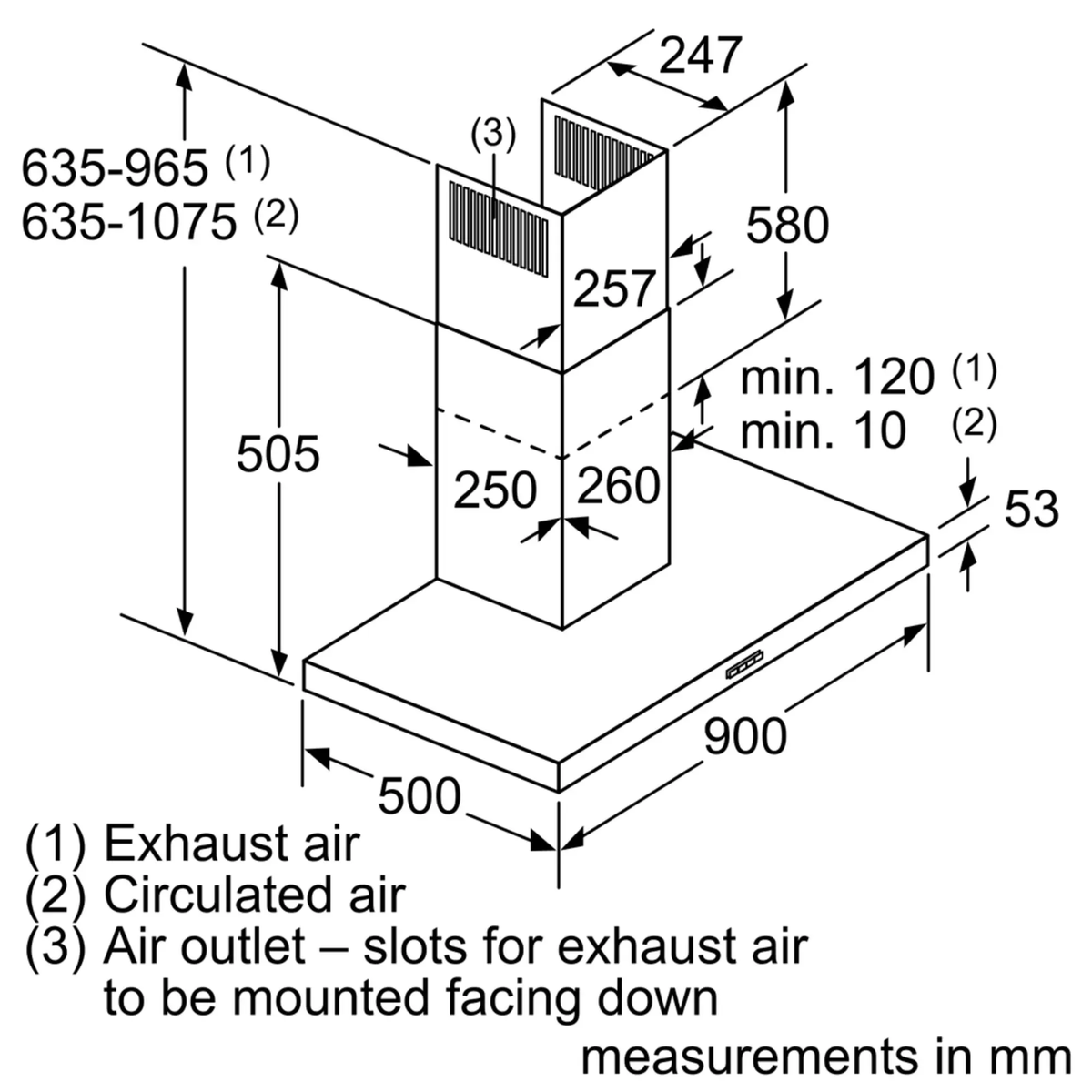

• Dimensions - Ducted Installation (W x H x D): 900 x 635–965 x 500 mm
• Dimensions - Recirculating Installation (W x H x D): 900 x 635–1075 x 500 mm
• Height without chimney: 53 mm
• Chimney height range: 583–912 mm
• Extended recirculation chimney height: 583–1022 mm

Product Weight:

• Net Product Weight: 13.2 kg

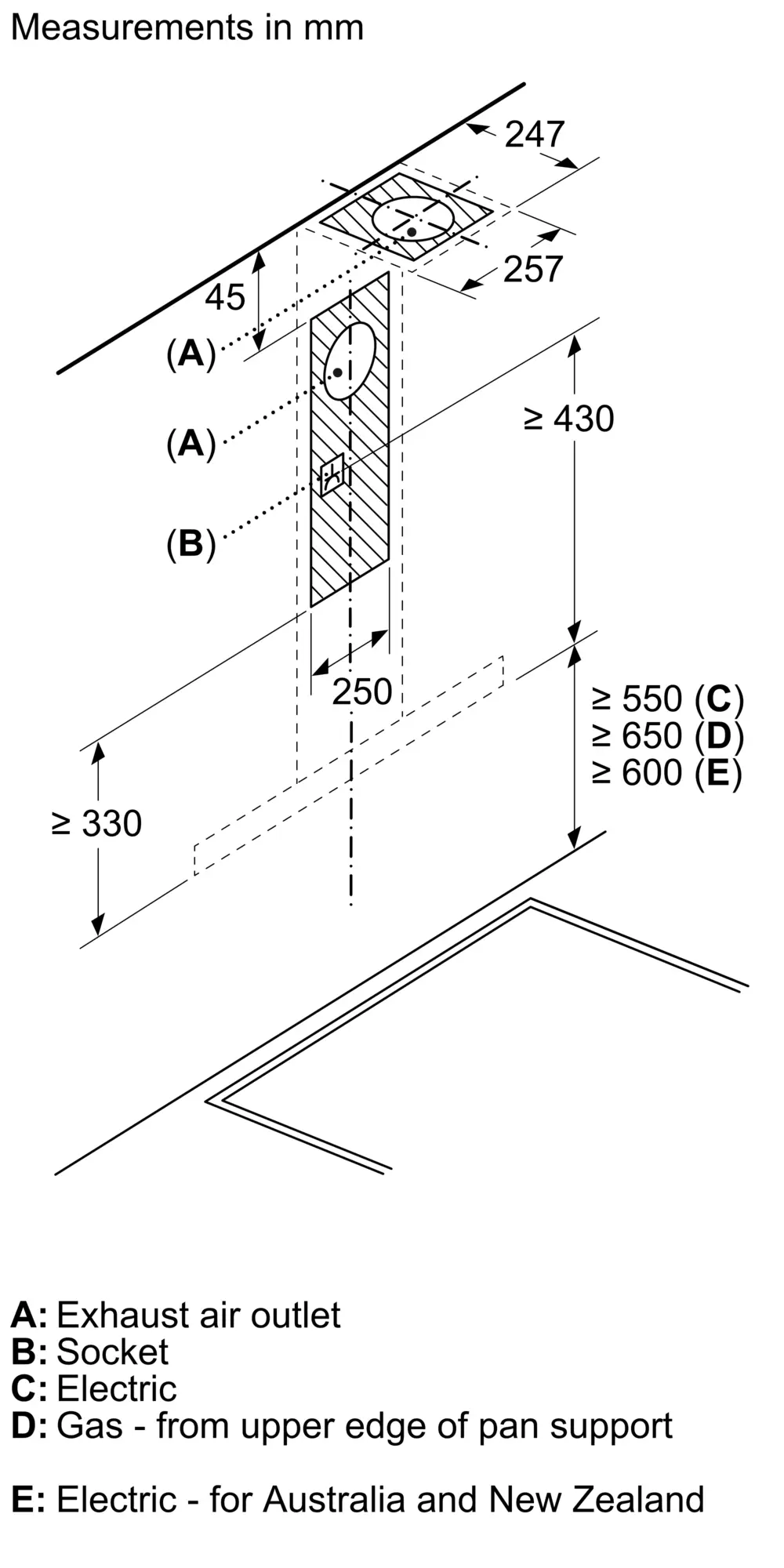

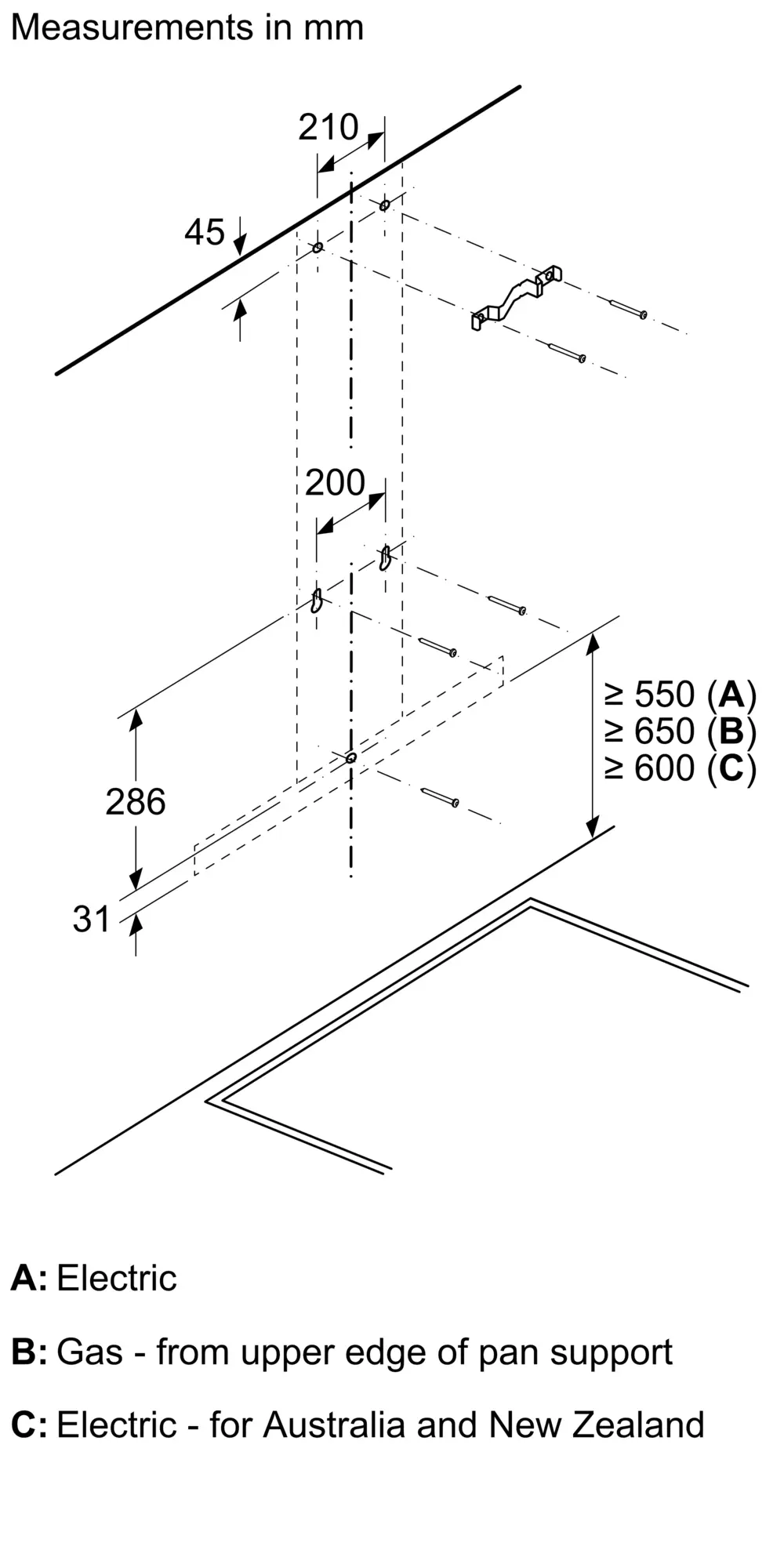

Installation & Requirements:

• Installation type: Wall-mounted
• Extraction configuration: Ducted or recirculated
• Recommended duct diameter: 150 mm
• Alternative duct diameter: 120 mm adaptor supplied
• Minimum clearance above electric cooktop: 600 mm
• Minimum clearance above gas cooktop: 650 mm
• Power supply: 220–240V / 50–60Hz
• Connection type: Standard Australian plug connection
• Electrical cable length: 1.3 m
• Installation location: Above cooktop against wall surface
• Recirculation installation: Requires compatible Bosch recirculation kit sold separately

Country of Origin:

• Made in Germany

Extra Information:

Bosch specifies the DWB96BC60A for both exhaust-air and recirculating operation. In exhaust mode, extracted air passes through the grease filters before being ducted externally for optimal kitchen air quality. For kitchens where external ducting is not possible, the rangehood can be converted to recirculating operation using Bosch's compatible Clean Air Standard recirculation kit.

The integrated LED lighting system provides a colour temperature of 3500K and illumination output of 91 lux across the cooking surface, assisting visibility during food preparation and cooking.

Included Products / Accessories:

• 3 x Aluminium grease filters
• 2 x Black chimney flue covers
• 150mm duct connection spigot
• 120mm duct adaptor

Warranty:

Backed by a 2-year Bosch manufacturer's warranty when installed and operated in accordance with Bosch Australia requirements.
