Product Description

Product Overview:

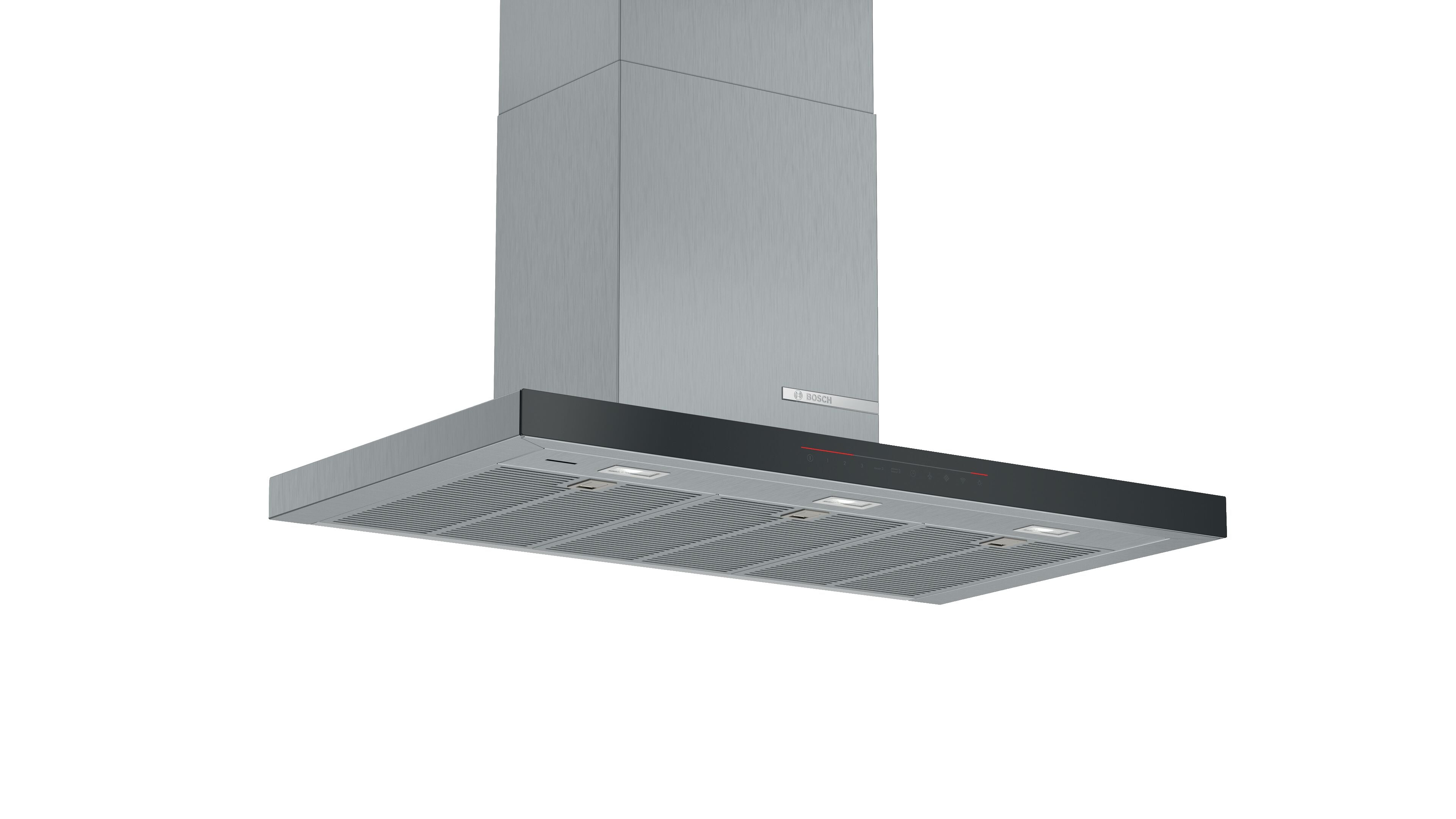

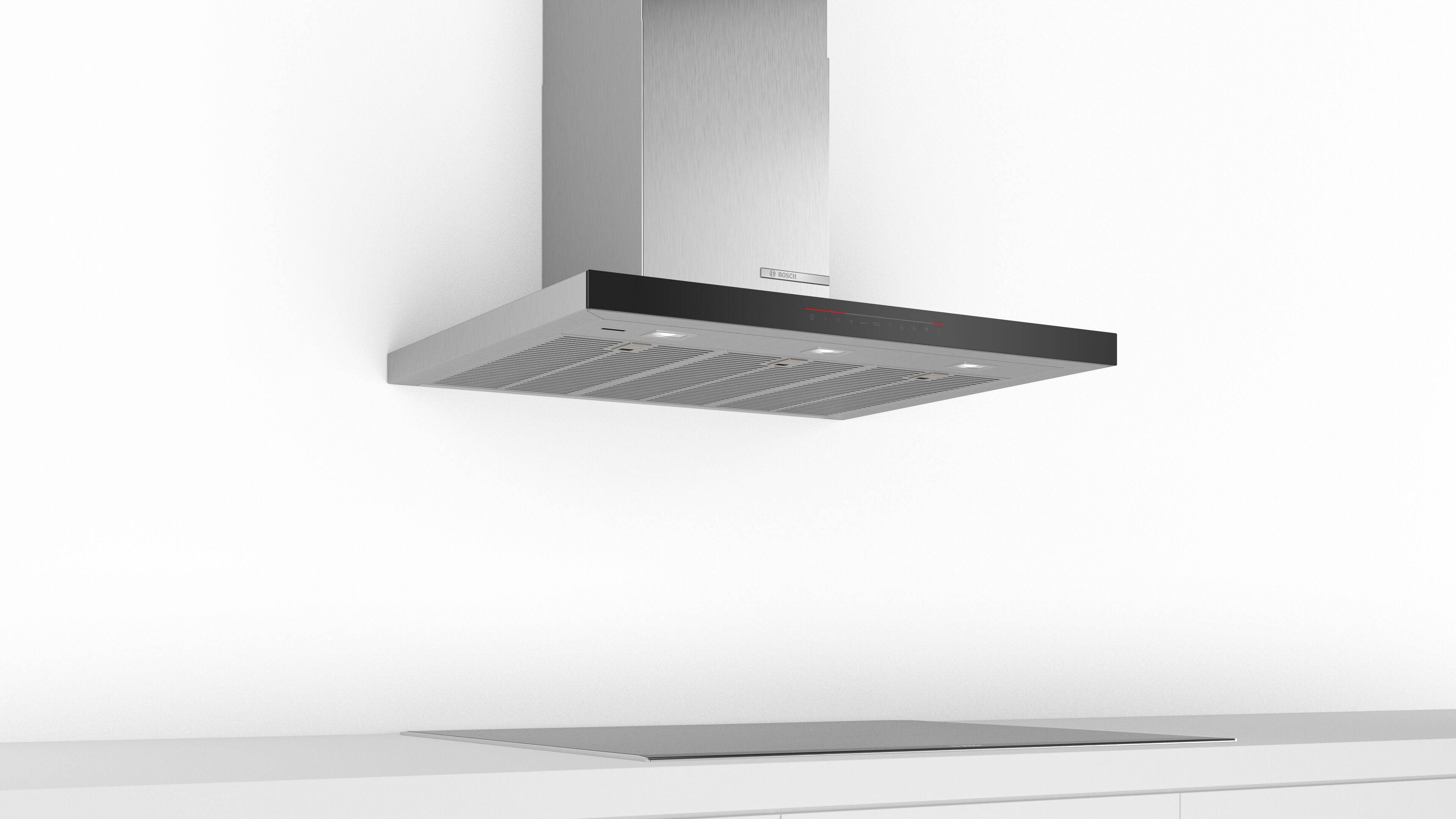

The Bosch DWB91PR50A is a 90cm wall mounted canopy rangehood from the premium Series 8 collection, combining powerful extraction performance with intelligent automation and refined stainless steel styling. Designed for contemporary kitchens, the rangehood integrates Bosch's PerfectAir sensor technology, automatically monitoring cooking vapours and adjusting extraction levels as required.

Delivering up to 965m³/h extraction performance on intensive mode, the DWB91PR50A is engineered to effectively remove steam, grease and cooking odours generated by large cooktops and high-output cooking. The EcoSilence Drive motor provides strong airflow performance while maintaining low operating noise and improved energy efficiency.

The integrated Home Connect platform enables enhanced functionality, including compatible cooktop-based hood control. Combined with dimmable LED lighting, automatic intensive mode reset and dishwasher-safe metal grease filters, the DWB91PR50A is designed for everyday convenience and simplified maintenance.

Product Features:

• PerfectAir Sensor: automatically monitors air quality and adjusts extraction performance.
• EcoSilence Drive Motor: energy-efficient brushless motor technology designed for quieter operation.
• Intensive Extraction Mode: delivers additional extraction capacity during heavy cooking.
• Automatic Intensive Reset: returns extraction level to normal operation after intensive mode.
• Cooktop-Based Hood Control: compatible Bosch cooktops can communicate directly with the rangehood.
• Home Connect: smart connectivity and appliance integration.

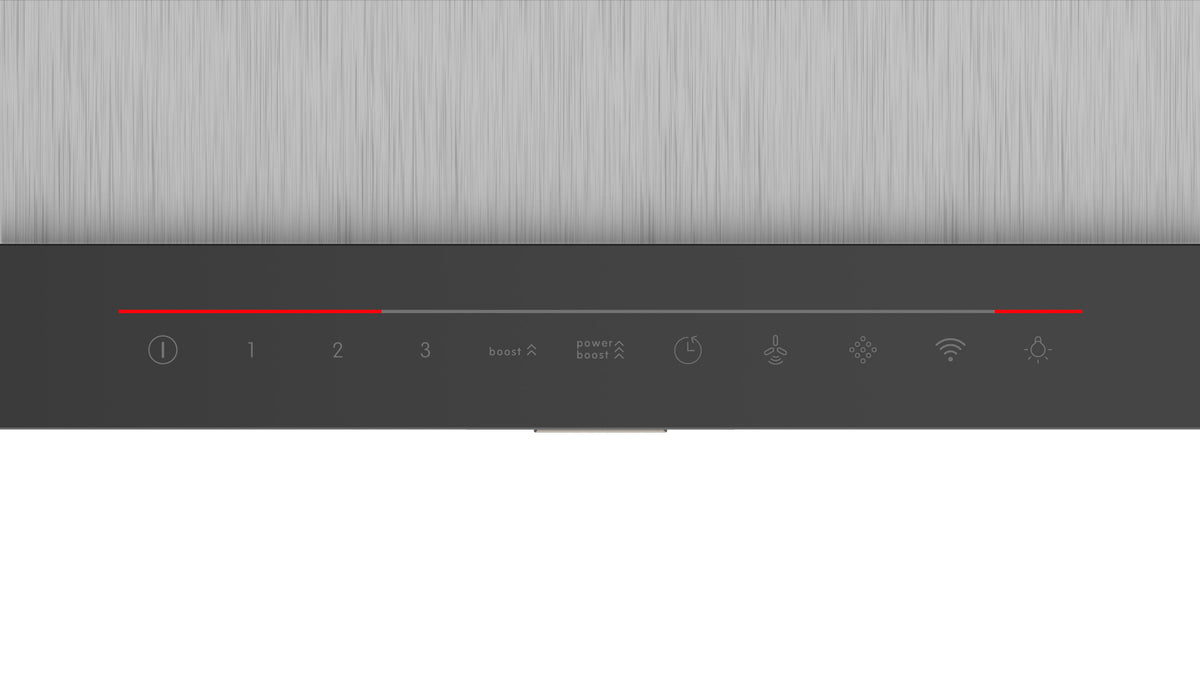

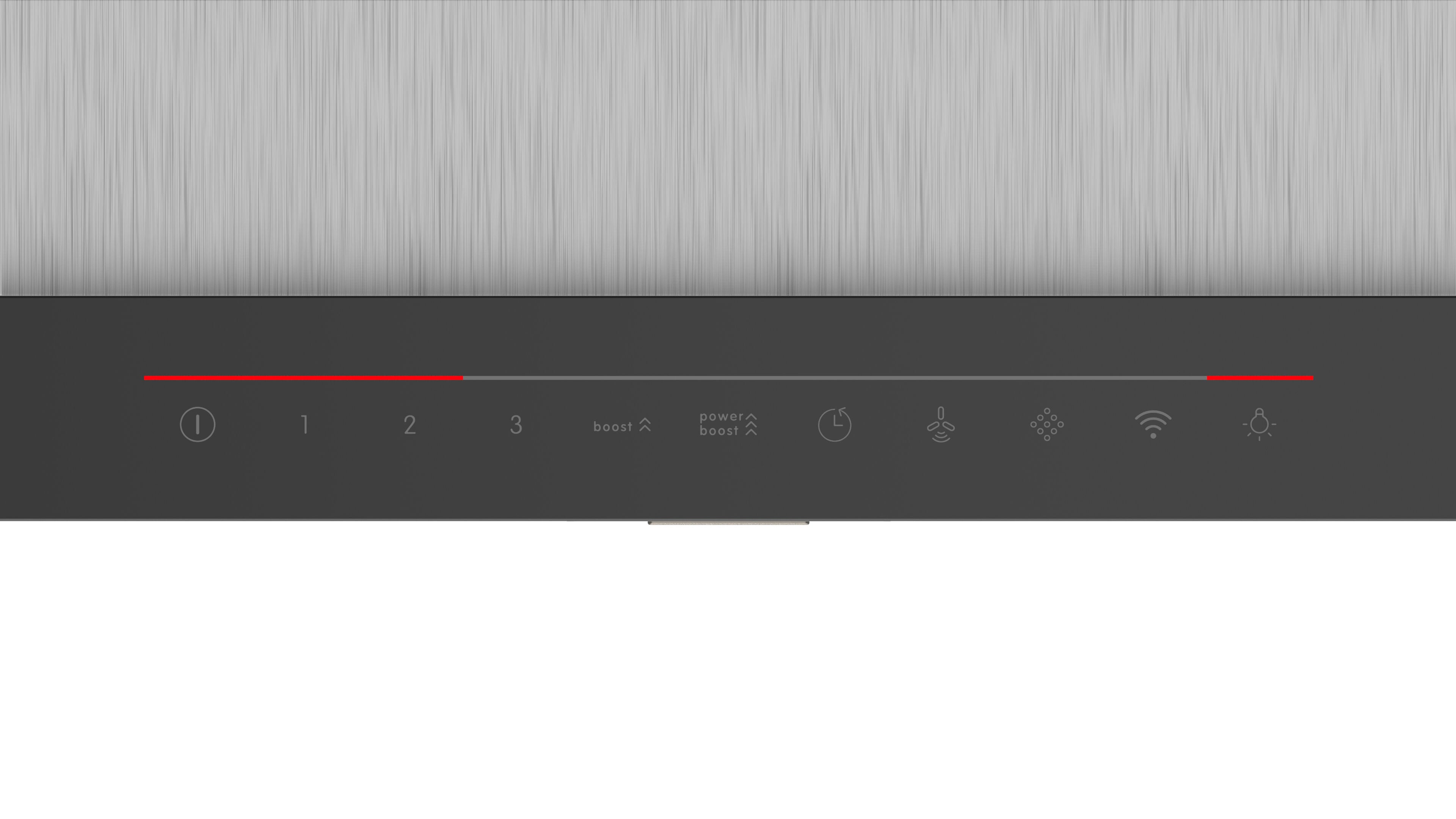

• TouchControl with LightLine: electronic touch controls with illuminated interface.
• LED Lighting: energy-efficient cooktop illumination.
• SoftLight Function: gradual light activation and deactivation.
• Dimmable Lighting: adjustable lighting intensity.
• Filter Saturation Indicator: alerts when filter maintenance is required.
• Dishwasher-Safe Metal Filters: simplified cleaning and maintenance.
• Recirculation Compatible: suitable for ducted or recirculated installation with optional accessories.

Colour / Finishes:

• Stainless Steel — DWB91PR50A

Programmes / Functions:

• Fan Speed 1: Low-level extraction for light cooking and background ventilation.
• Fan Speed 2: Medium extraction for everyday cooking activity.
• Fan Speed 3: High extraction for increased steam, smoke and odour removal.
• Intensive Level 1: Temporary high-power extraction for heavy cooking vapours.
• Intensive Level 2: Maximum extraction performance up to 965m³/h for demanding cooking conditions.
• Automatic Mode (PerfectAir): Continuously monitors cooking vapours and automatically adjusts extraction performance.
• Cooktop-Based Hood Control: Compatible Bosch cooktops can automatically regulate extraction levels.
• LED Lighting Mode: Illuminates the cooking surface independently of extraction operation.
• SoftLight Function: Gradually increases and decreases light intensity when switching lighting on or off.
• Dimming Function: Allows adjustment of LED lighting brightness to suit kitchen conditions.

Cleaning & Maintenance:

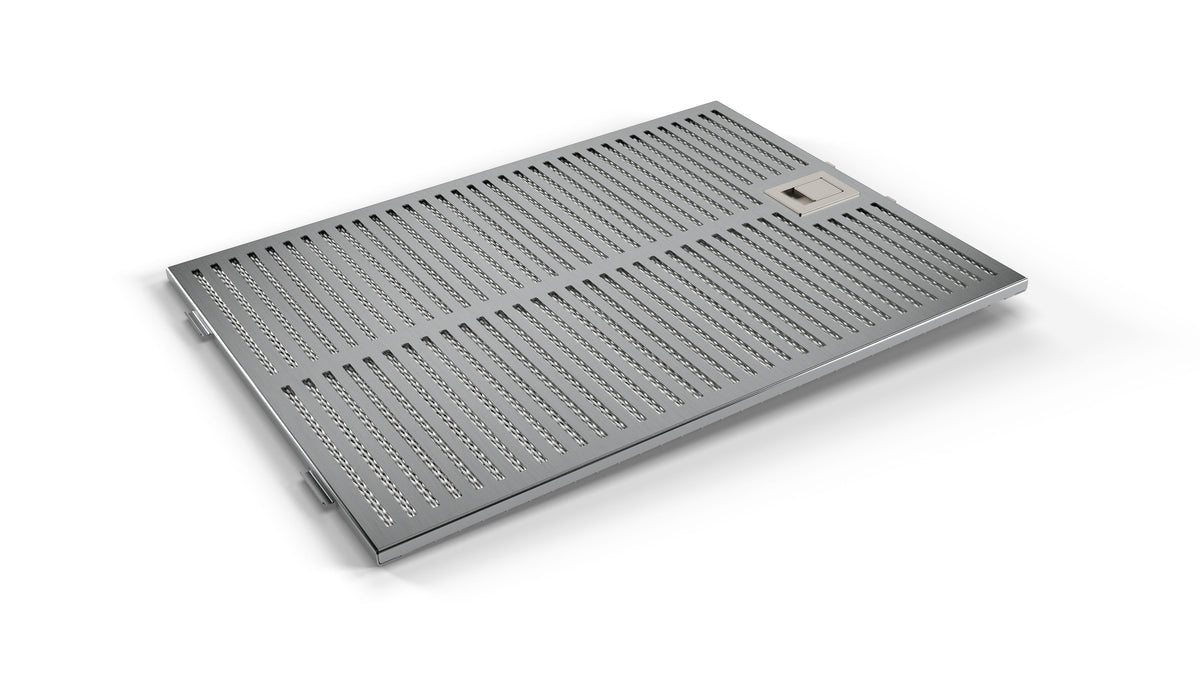

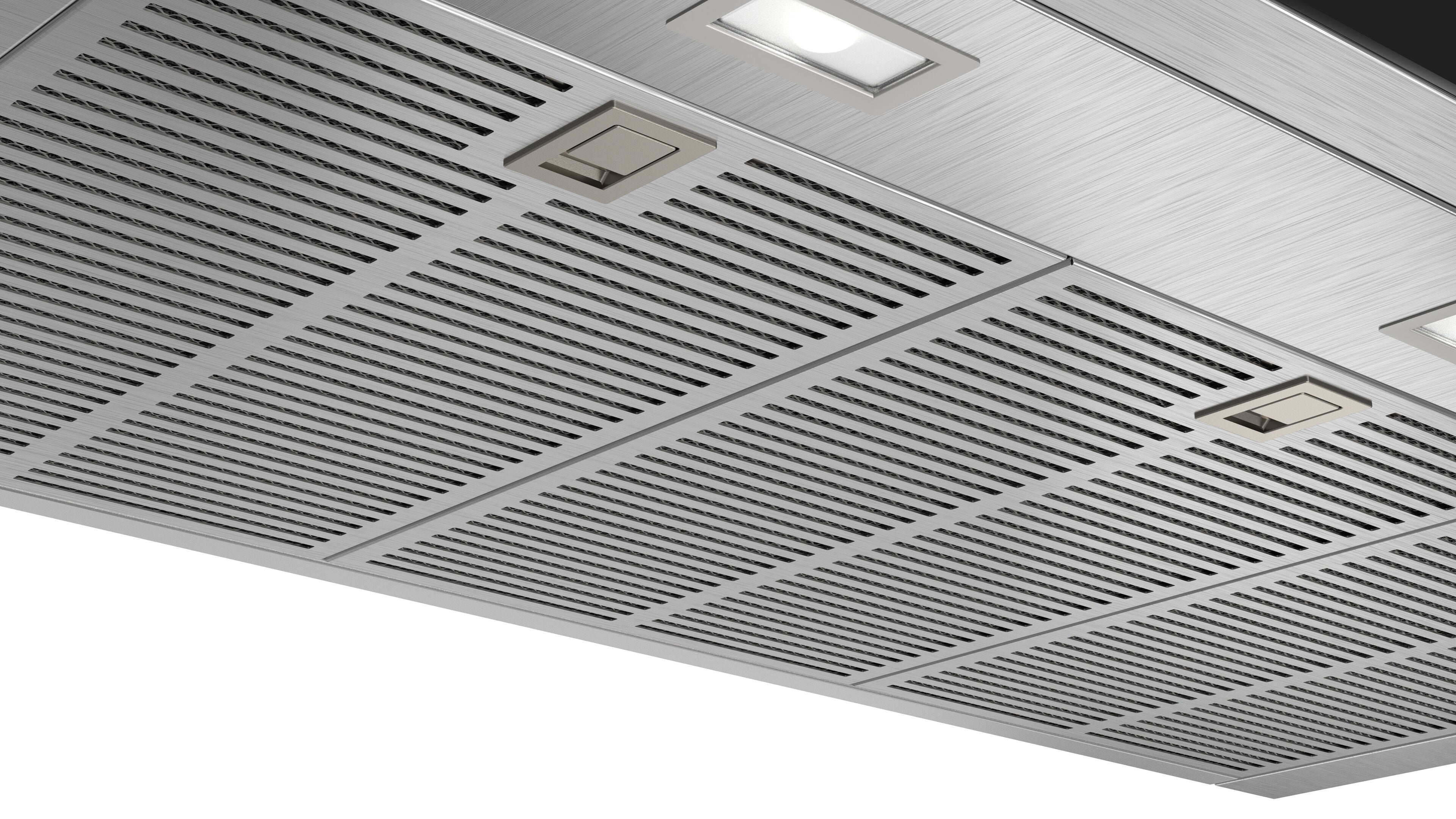

• Dishwasher-Safe Metal Grease Filters: Stainless steel grease filters can be removed and cleaned in a dishwasher.
• Filter Saturation Indicator: Alerts when grease filters require cleaning to maintain extraction efficiency.
• Filter Cover Design: Stainless steel filter covers are designed for straightforward removal and maintenance.
• Interior Surface Access: Accessible internal components assist routine cleaning around filter areas.
• LED Lighting System: Long-life LED modules reduce maintenance requirements compared with conventional lighting.
• Recirculation Filter Maintenance: Optional CleanAir recirculation filters should be replaced according to Bosch maintenance recommendations when operating in recirculation mode.

Specifications:

• Product Series: Series 8
• Rangehood Type: Wall Mounted Canopy
• Extraction Type: Ducted or Recirculating
• Control Type: Electronic TouchControl with LightLine
• Motor Type: EcoSilence Drive
• PerfectAir Sensor: Yes
• Home Connect: Yes
• Cooktop-Based Hood Control: Yes
• Fan Speeds: 3
• Intensive Levels: 2
• Maximum Air Extraction: 602m³/h
• Boost Air Extraction: 965m³/h
• Maximum Recirculation Output: 462m³/h
• Boost Recirculation Output: 561m³/h
• Lighting Type: LED
• Number of Lights: 3
• Lighting Power: 3 x 1.5W
• SoftLight Function: Yes
• Dimmable Lighting: Yes
• Grease Filter Type: Metal Grease Filter
• Dishwasher Safe Filters: Yes
• Filter Saturation Indicator: Yes

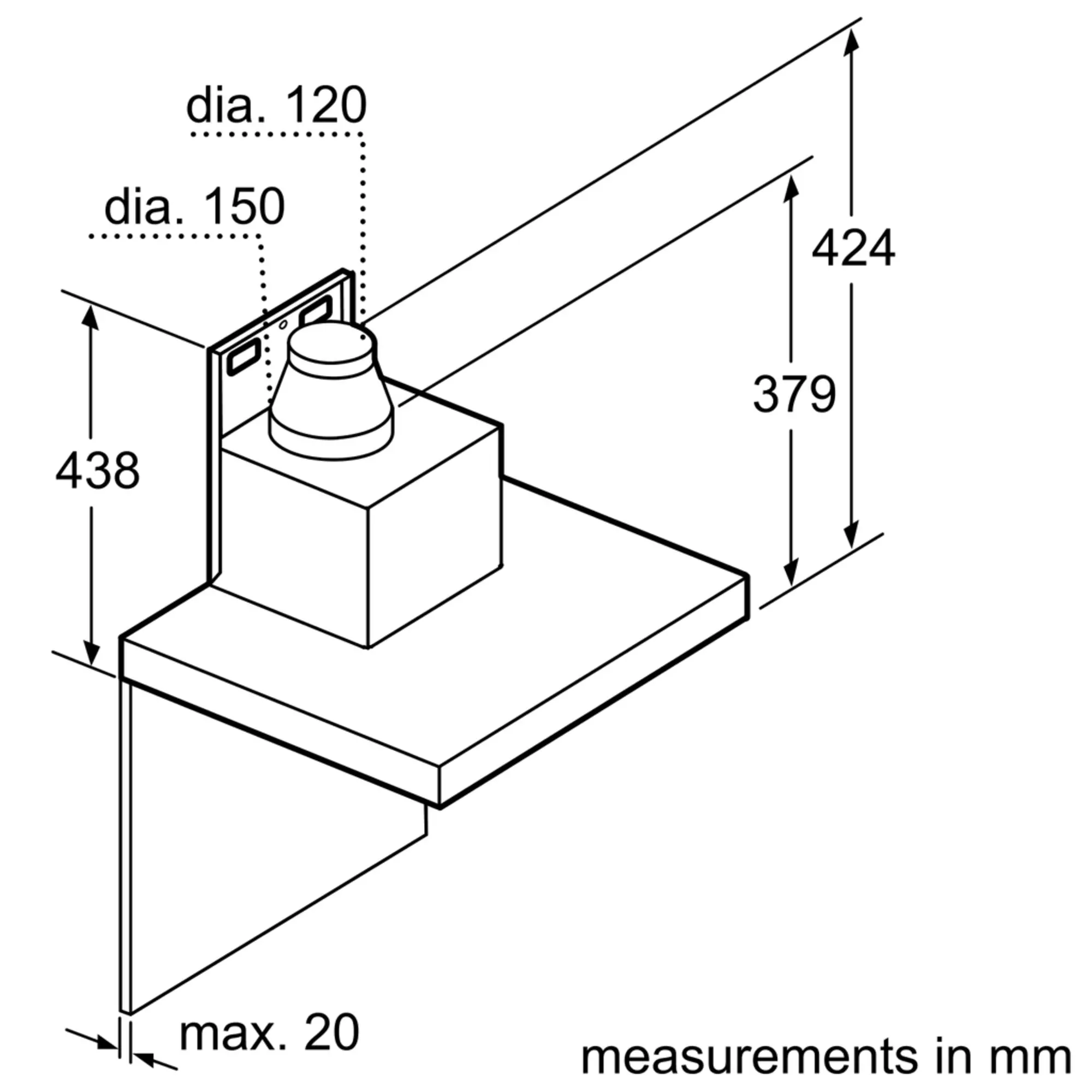

• Air Outlet Diameter: 150mm (120mm enclosed adaptor)
• Total Connected Load: 265W
• Voltage: 220–240V
• Frequency: 50–60Hz
• Approval Certificates: Australia

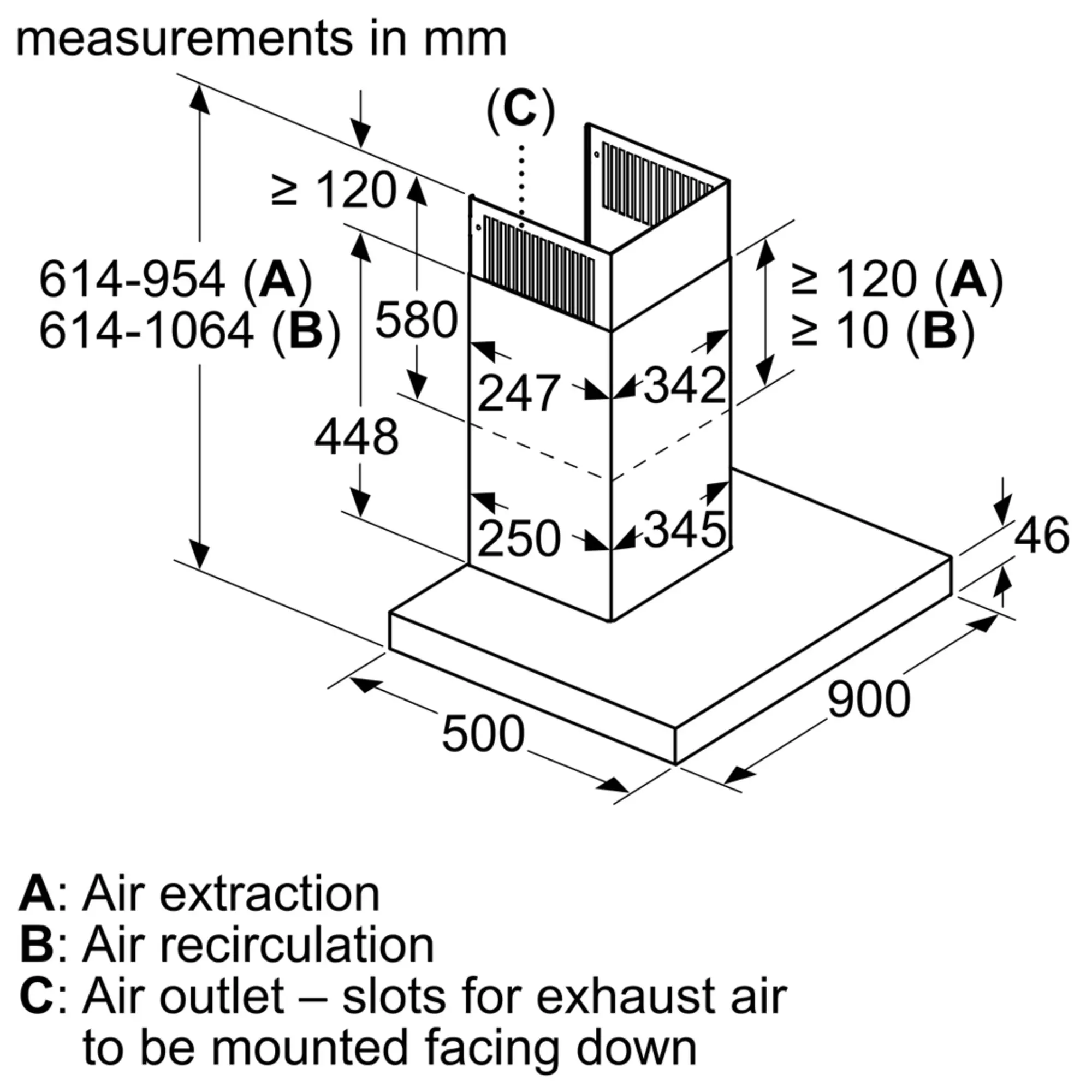

Product Measurements:

• Dimensions (W x D): 898 x 500 mm

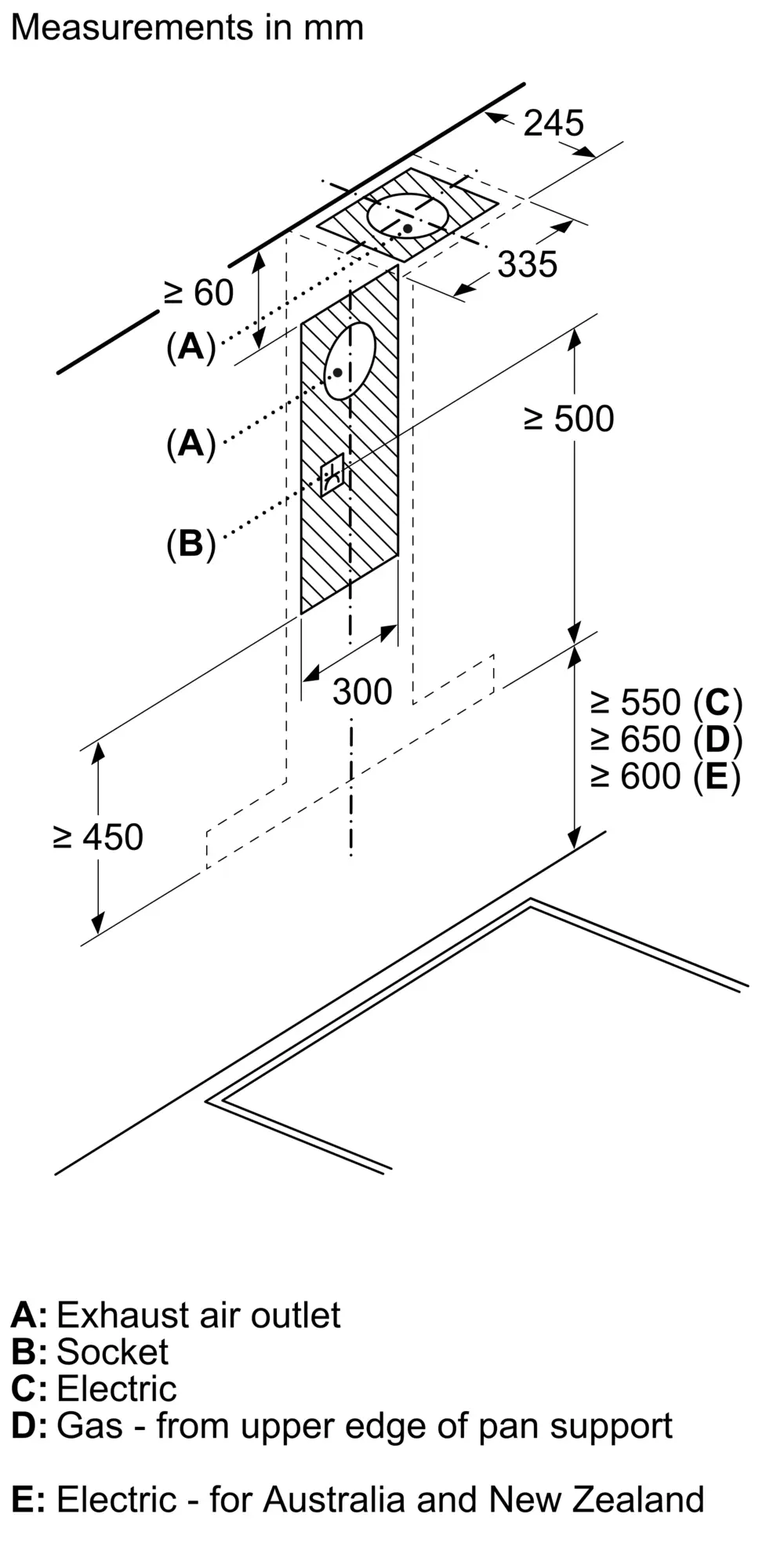

• Ducted Installation Height: 614–954 mm
• Recirculating Installation Height: 614–1064 mm
• Height Without Chimney: 46 mm

Product Weight:

• Net Weight: 19.1 kg

Installation & Requirements:

• Installation Type: Wall Mounted
• Operating Modes: Ducted or Recirculating
• Connection Type: Plug-In
• Power Supply: 220–240V / 50–60Hz
• Connected Load: 265W
• Fuse Protection: 10A
• Power Cord Length: 130cm
• Recommended Duct Diameter: 150mm
• Alternative Duct Diameter: 120mm

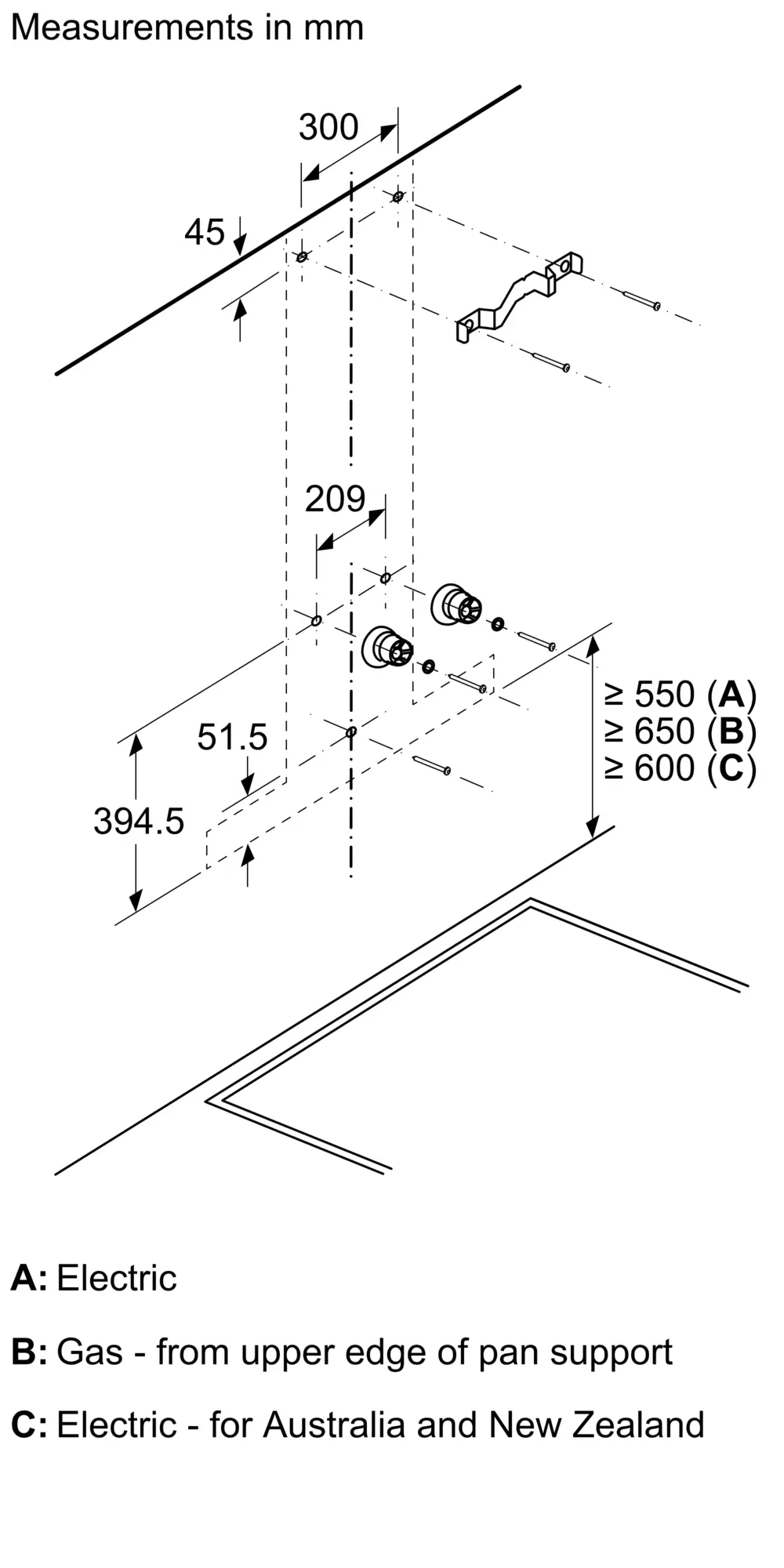

• Minimum Distance Above Electric Cooktop: 600mm
• Minimum Distance Above Gas Cooktop: 650mm

Country of Origin:

• Made in Germany

Extra Information:

The integrated PerfectAir sensor continuously measures cooking vapours and automatically adjusts extraction performance to maintain effective ventilation while minimising unnecessary fan noise. This allows the rangehood to respond dynamically to changing cooking conditions without requiring manual speed adjustments.

The DWB91PR50A supports Bosch Home Connect functionality and compatible cooktop-based hood control, allowing selected Bosch cooktops to automatically communicate with the rangehood and adjust extraction settings based on cooking activity.

For kitchens where external ducting is not practical, the rangehood can be configured for recirculation using Bosch compatible CleanAir recirculation accessories available separately.

Included Products / Accessories:

• 2 x Stainless Steel Chimney Flues
• 3 x Metal Grease Filters
• 120mm–150mm Exhaust Transition Adaptor
• Installation Hardware

Warranty:

Backed by a 2-year Bosch manufacturer's warranty for domestic use when installed and operated in accordance with Bosch installation and operating instructions.
