• Fully integrated design: concealed installation for a clean, seamless kitchen look
• Intensive speed setting: boosts extraction up to 650 m³/h for fast odour removal
• LED lighting: bright, energy-efficient illumination for your cooktop

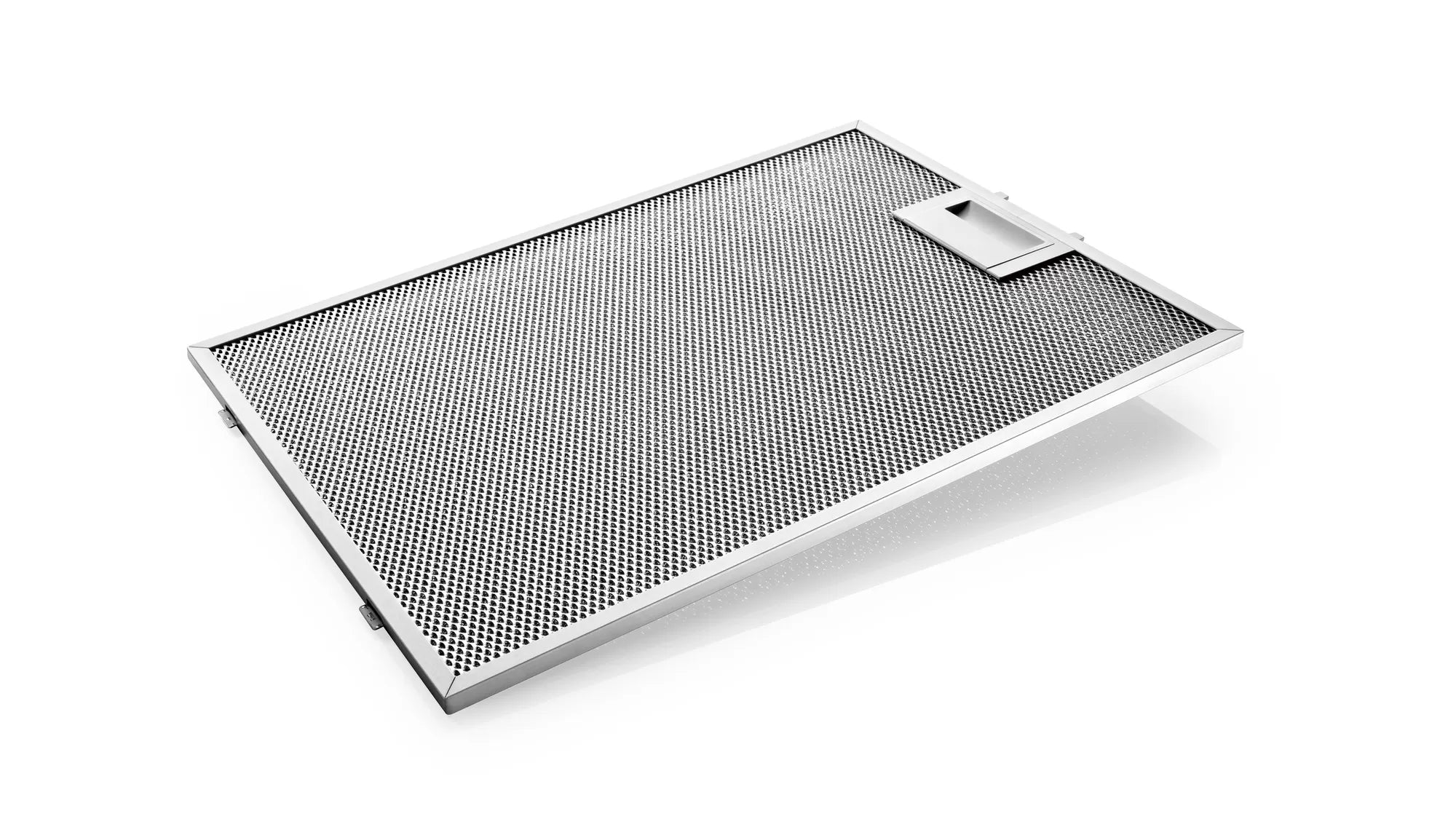

• Metal grease filters: washable aluminium filters for easy maintenance
• 3 power levels + intensive: flexible extraction control for all cooking styles
• Slide switch controls: simple and intuitive operation
• Dual motor system: consistent and reliable extraction performance

• Installation Type: Built-in / Integrated
• Width: 53 cm
• Operating Mode: Ducted or Recirculated (kit required)
• Max Extraction Rate: 420 m³/h
• Boost Extraction Rate: 650 m³/h
• Max Recirculation: 320 m³/h
• Noise Level: 59 dB(A)
• Energy Rating: D
• Lighting: 2 x LED lights
• Grease Filters: Washable aluminium

• Niche Dimensions (H x W x D): 255 x 500 x 350 mm
• Minimum Distance Above Cooktop: Electric: 600 mm | Gas: 650 mm
• Electrical Connection: Standard AU plug
• Professional installation recommended

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

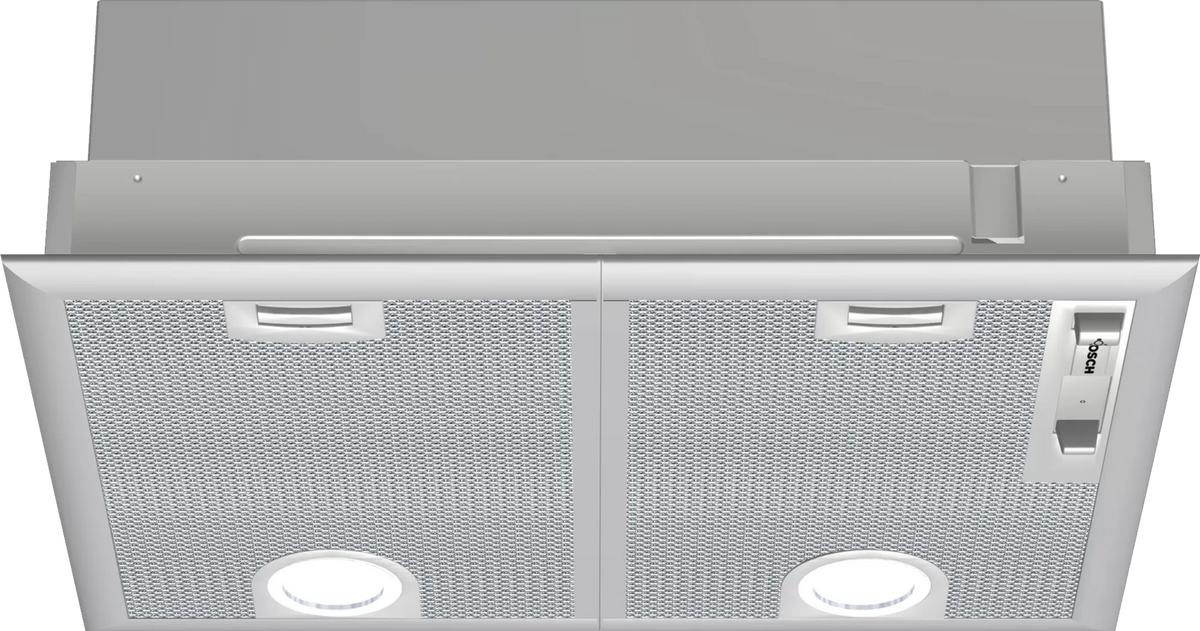

This integrated Bosch rangehood is ideal for kitchens where a clean, minimal aesthetic is preferred. It provides strong extraction performance while remaining hidden within cabinetry, making it perfect for modern and open-plan designs.

• Metal grease filters
• LED lighting

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL (PDF)
• INSTALLATION INSTRUCTIONS (PDF)
