Product Description

Product Overview:

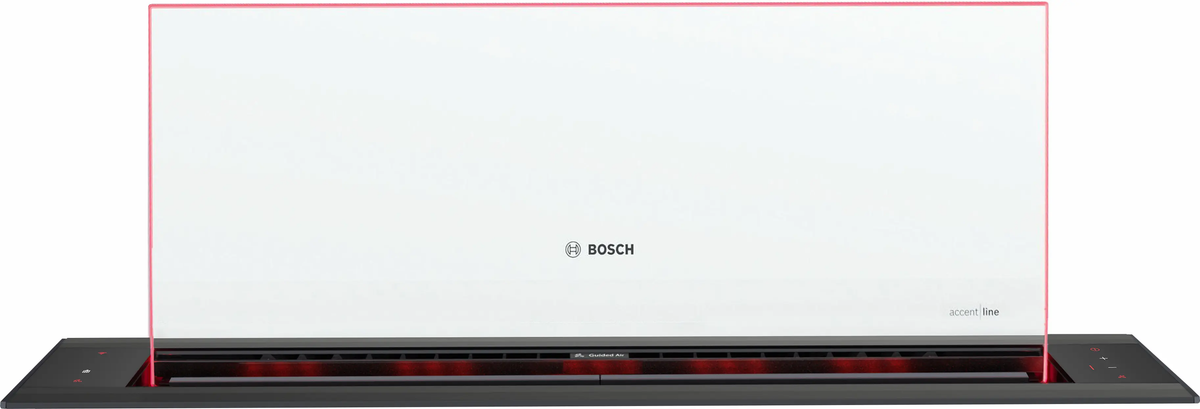

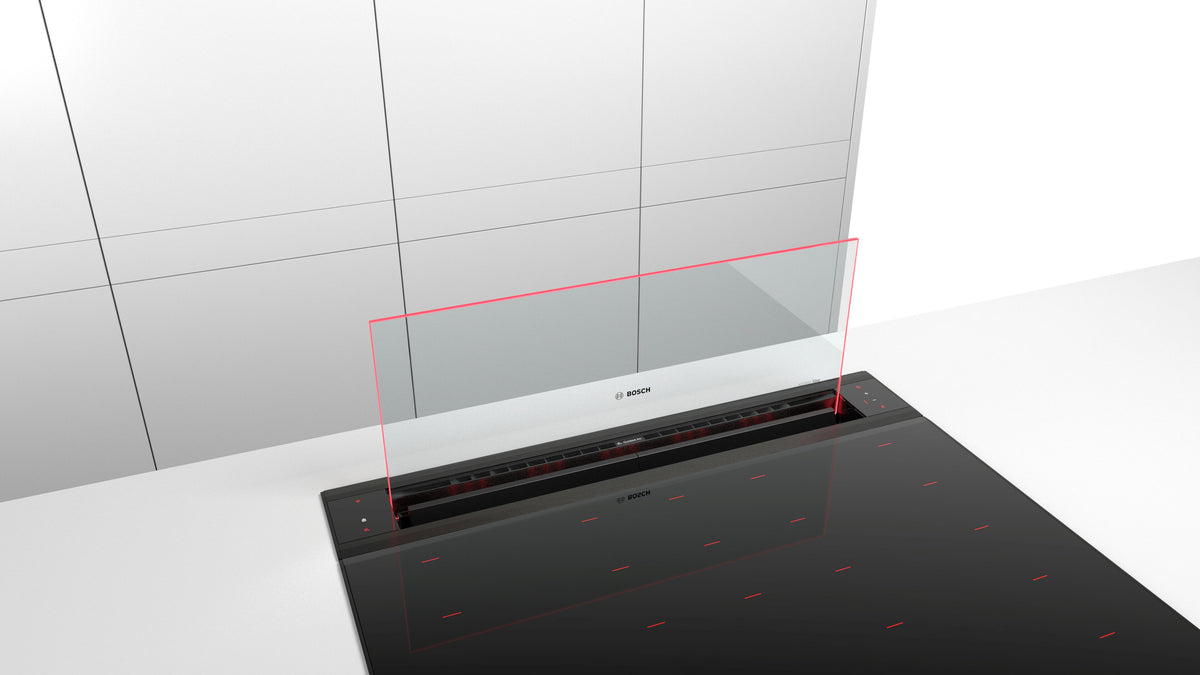

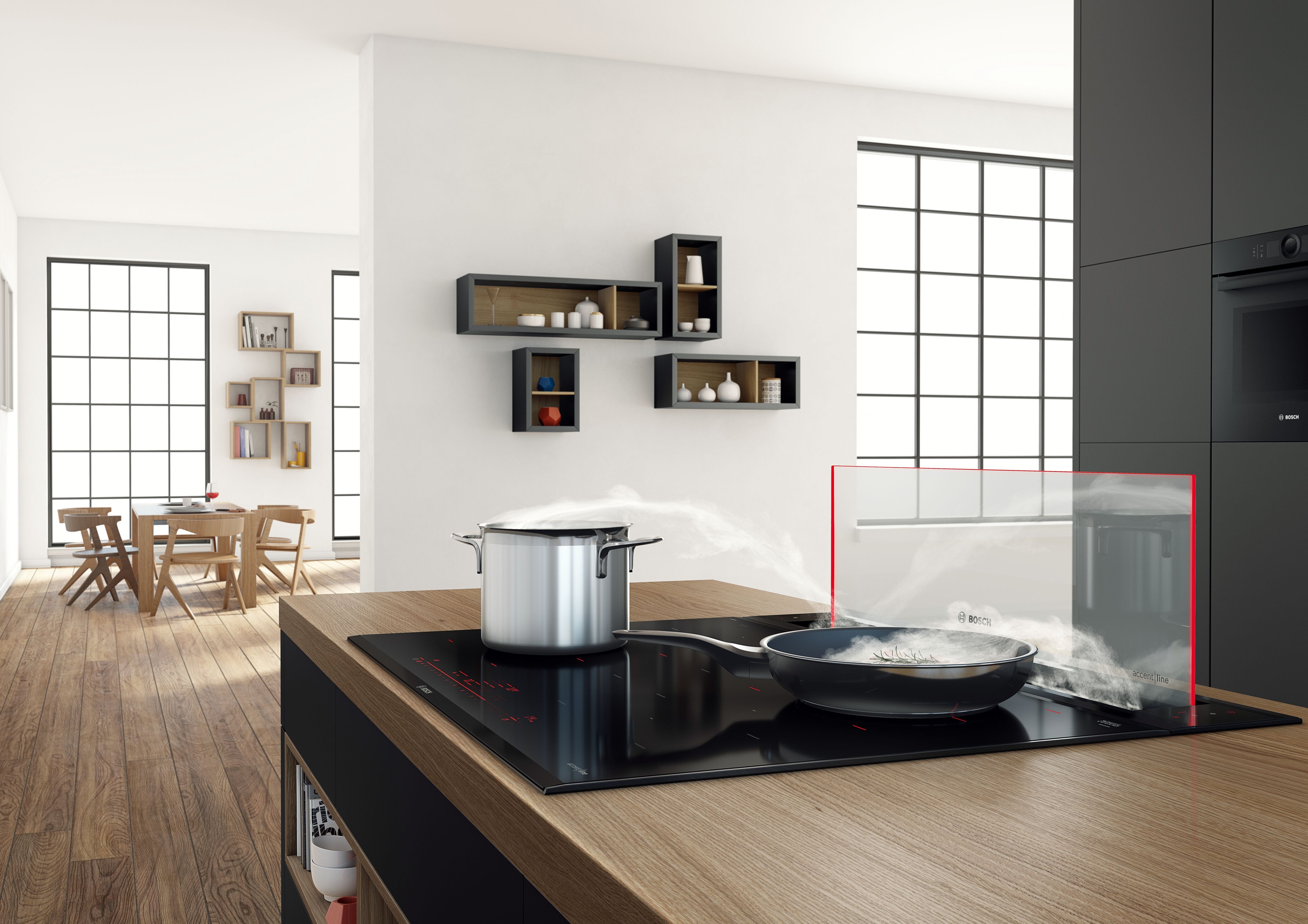

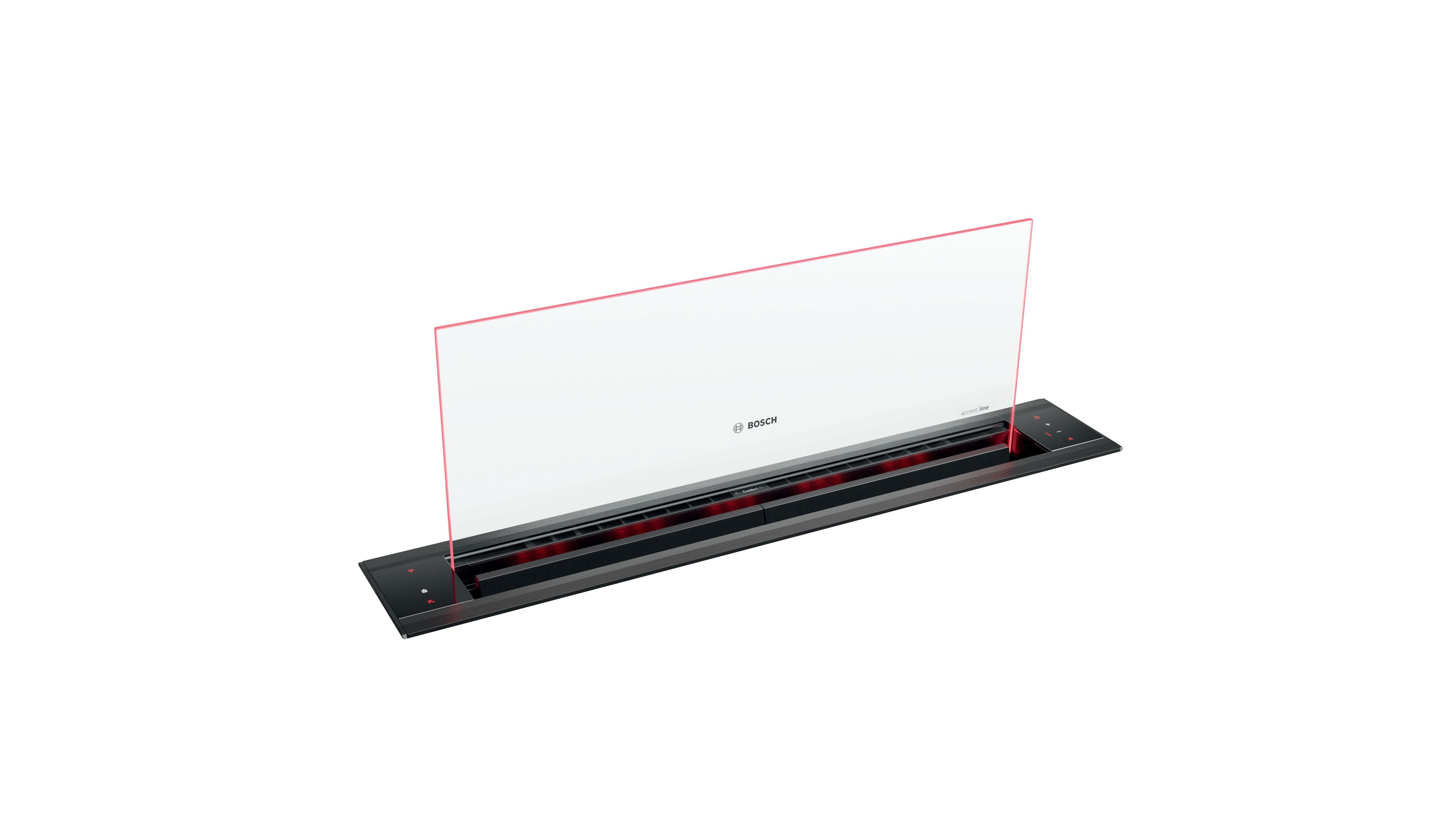

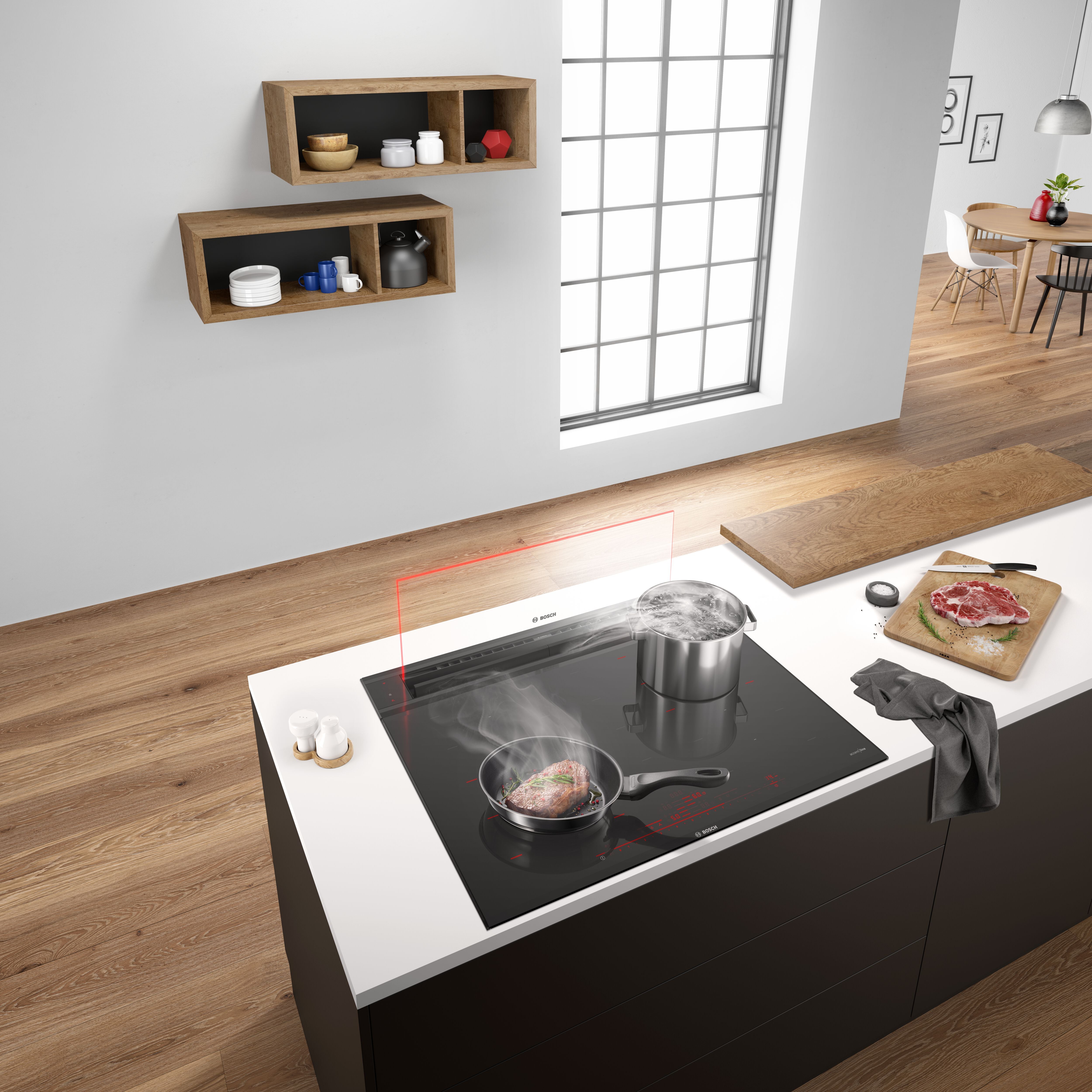

The Bosch DDW88MM66 is an 80cm Series 8 GlassDraft downdraft ventilation system finished in black clear glass, engineered for seamless integration into premium contemporary kitchens. Designed to install directly behind compatible induction cooktops, the retractable glass panel rises only when ventilation is required, maintaining uninterrupted benchtop sightlines when not in use.

Guided Air technology creates an airflow curtain behind the retractable glass panel, improving extraction consistency regardless of cookware size or cooking position. Combined with Bosch PerfectAir sensor technology, the system automatically adjusts extraction performance according to cooking vapours and odours while maintaining quieter operation levels throughout use.

Part of the Bosch Accent Line collection, the DDW88MM66 supports integrated cooktop-based control functionality, Home Connect smart connectivity, ambient LED lighting customisation, and flexible motor positioning for easier cabinetry integration and improved under-bench storage planning.

Product Features:

• GlassDraft seamless design: retractable clear glass ventilation module designed to integrate directly beside the cooktop.
• Guided Air technology: airflow curtain improves extraction consistency across all cooking zones.
• PerfectAir sensor: automatic extraction adjustment based on vapour and odour intensity.
• Cooktop-based hood control: compatible Bosch cooktops can directly operate the ventilation system.
• Home Connect compatibility: remote monitoring and control via smartphone or tablet.
• EcoSilence Drive motor: brushless inverter motor engineered for quieter and more efficient operation.
• Ambient LED illumination: customisable edge lighting with selectable colours through Home Connect.
• 3 power levels + 2 intensive settings: flexible airflow adjustment for varying cooking conditions.
• Automatic intensive reset: intensive extraction automatically reverts to standard operation after use.
• Automatic after-run function: continues extraction for approximately 10 minutes after cooking.
• Air Quality sensor: monitors cooking vapours and adjusts operation automatically.
• Dishwasher-safe grease filters: removable stainless steel filters for simplified maintenance.

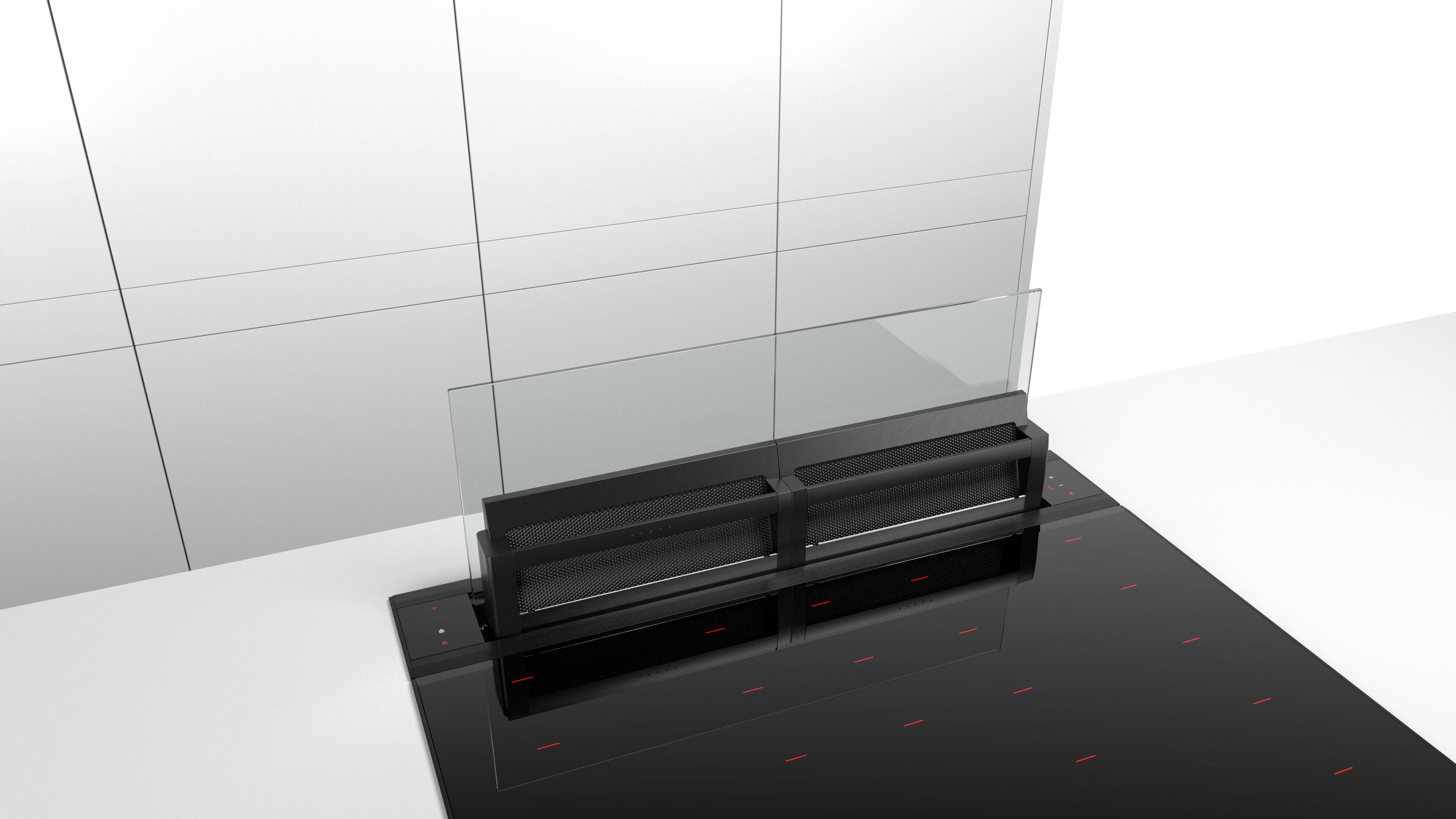

• Filter service position: filters automatically raise for easier removal and cleaning.

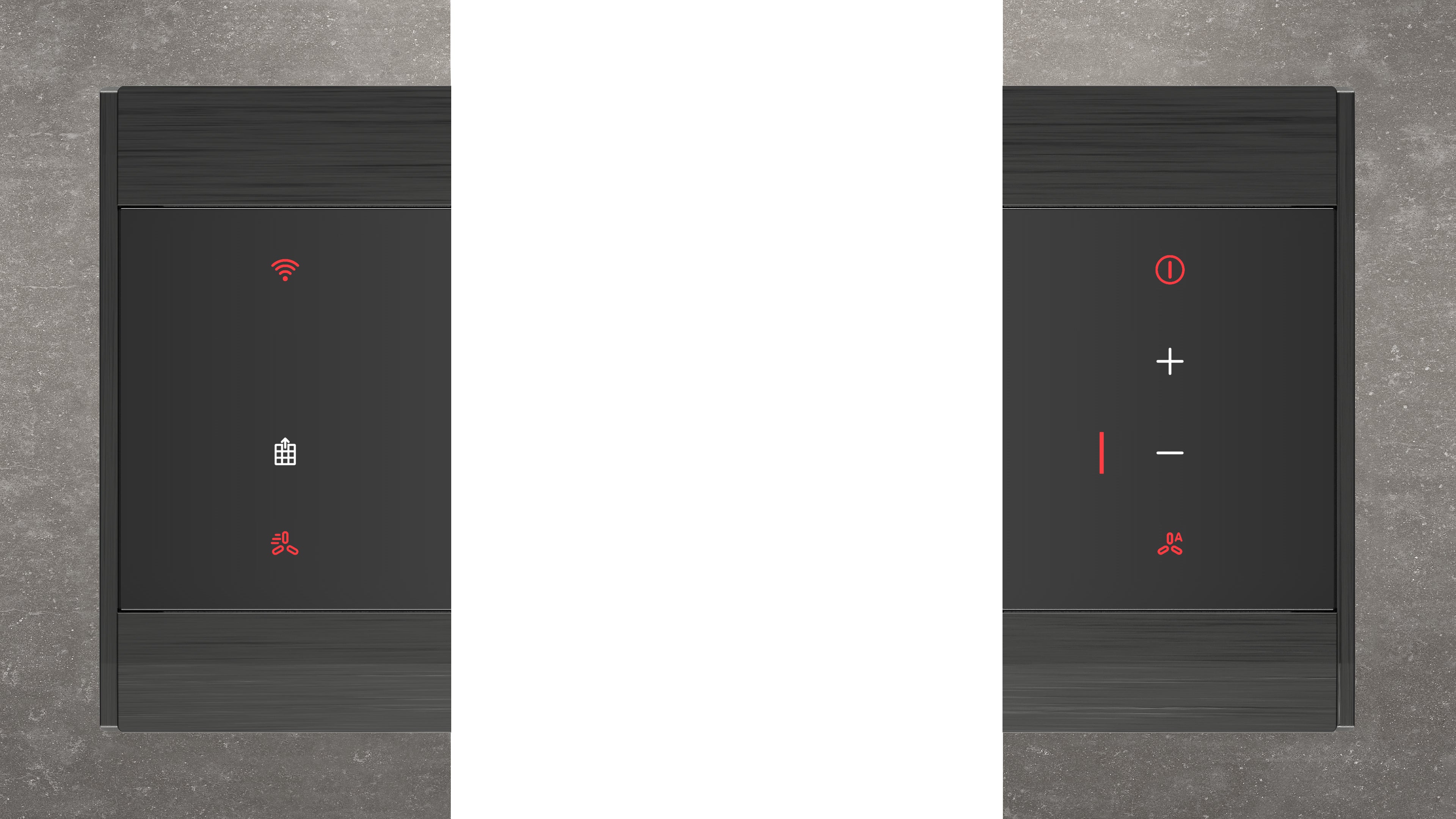

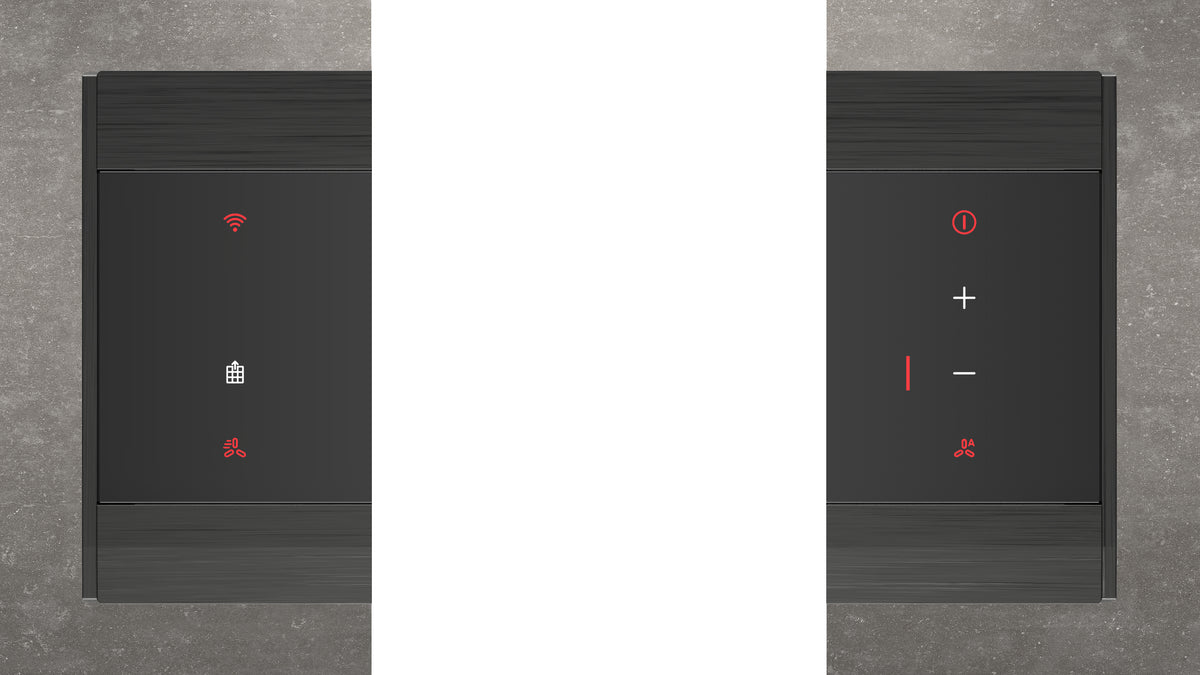

• Soft-touch controls: electronic touch controls with LED indicators integrated into the glass module.
• Voice control support: compatible with supported smart assistant ecosystems.

Colour / Finishes:

• Black Clear Glass — DDW88MM66

Programmes / Functions:

• 3 fan speeds: adjustable extraction levels for everyday cooking requirements.
• 2 intensive extraction levels: temporary high-power extraction for heavy cooking vapours.
• Automatic mode: PerfectAir sensor adjusts extraction automatically according to cooking conditions.
• Automatic after-run: ventilation continues briefly after cooking to assist odour removal.
• Ambient lighting control: adjustable LED edge lighting through Home Connect functionality.
• Boost function: rapid extraction mode for intensive cooking environments.
• Cooktop-based control: compatible Bosch cooktops can operate the ventilation system directly.
• Home Connect remote operation: smartphone and tablet control compatibility.

Cleaning & Maintenance:

• Dishwasher-safe grease filters: removable stainless steel filters designed for simplified cleaning.
• Filter saturation indicator: alerts when grease filters require cleaning.
• Easy-access filter system: filters raise automatically into service position for maintenance access.
• Glass surface cleaning: black glass exterior designed for wipe-clean maintenance.
• Recirculation filter replacement: optional recirculation filters require periodic replacement depending on usage.
• Automatic after-run drying: assists internal moisture reduction after extraction use.

Specifications:

• Series: Bosch Series 8 Accent Line
• Product type: Downdraft ventilation system
• Installation type: Built-in
• Operating modes: Ducted / Recirculating
• Maximum extraction rate: 501 m³/h
• Boost extraction rate: 775 m³/h
• Maximum recirculation rate: 416 m³/h
• Boost recirculation rate: 525 m³/h
• Fan speeds: 3 standard + 2 intensive
• Control type: Electronic soft-touch controls
• Motor type: EcoSilence Drive brushless inverter motor
• Noise level: 62 dB(A)
• Lighting type: Decorative LED edge illumination
• Filter type: Washable stainless steel grease filters
• Cooktop connectivity: Yes
• Home Connect: Yes
• Voice control compatibility: Yes
• Duct outlet size: 150 mm
• Power rating: 300 W
• Fuse protection: 10 A
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz

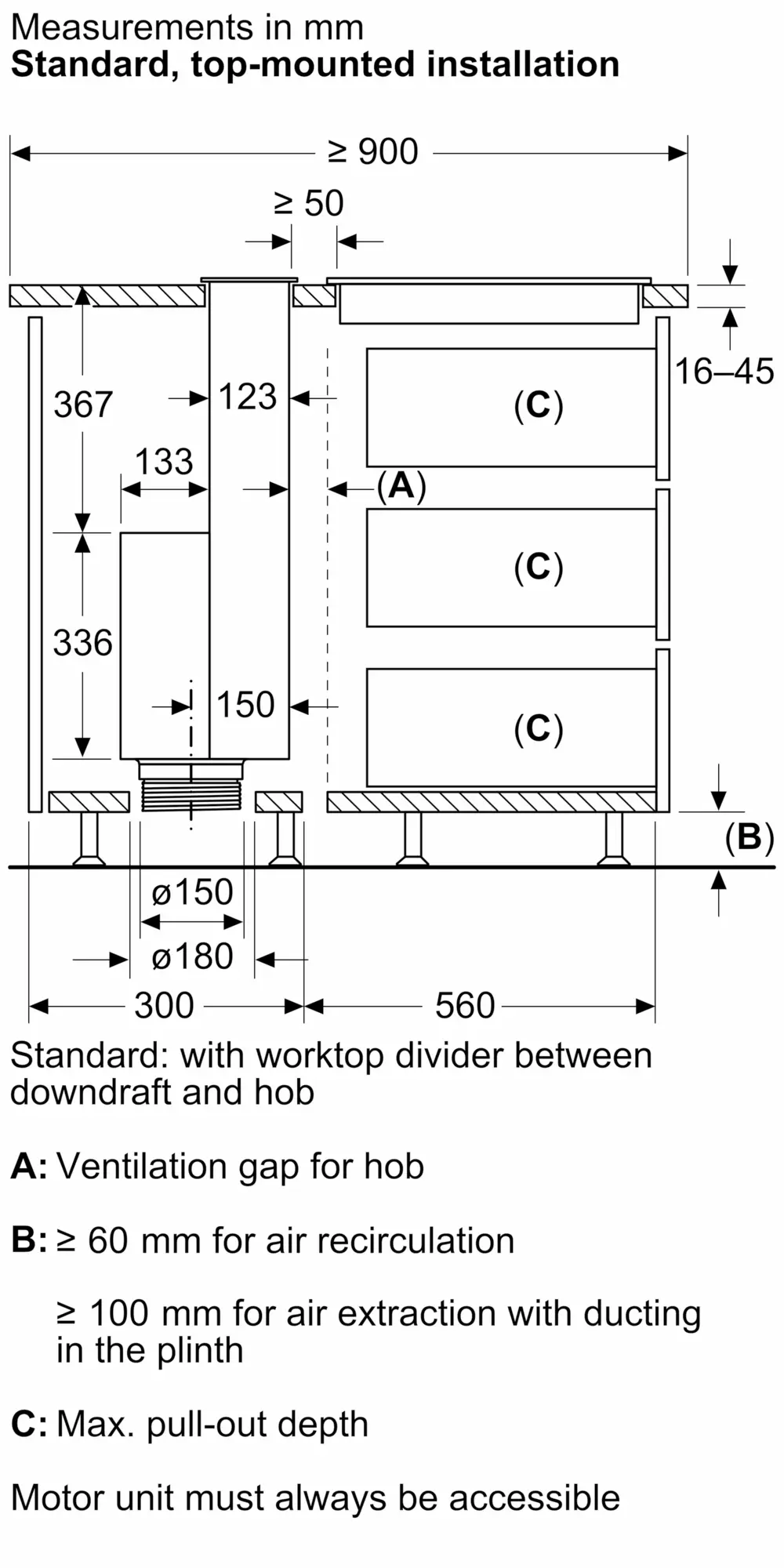

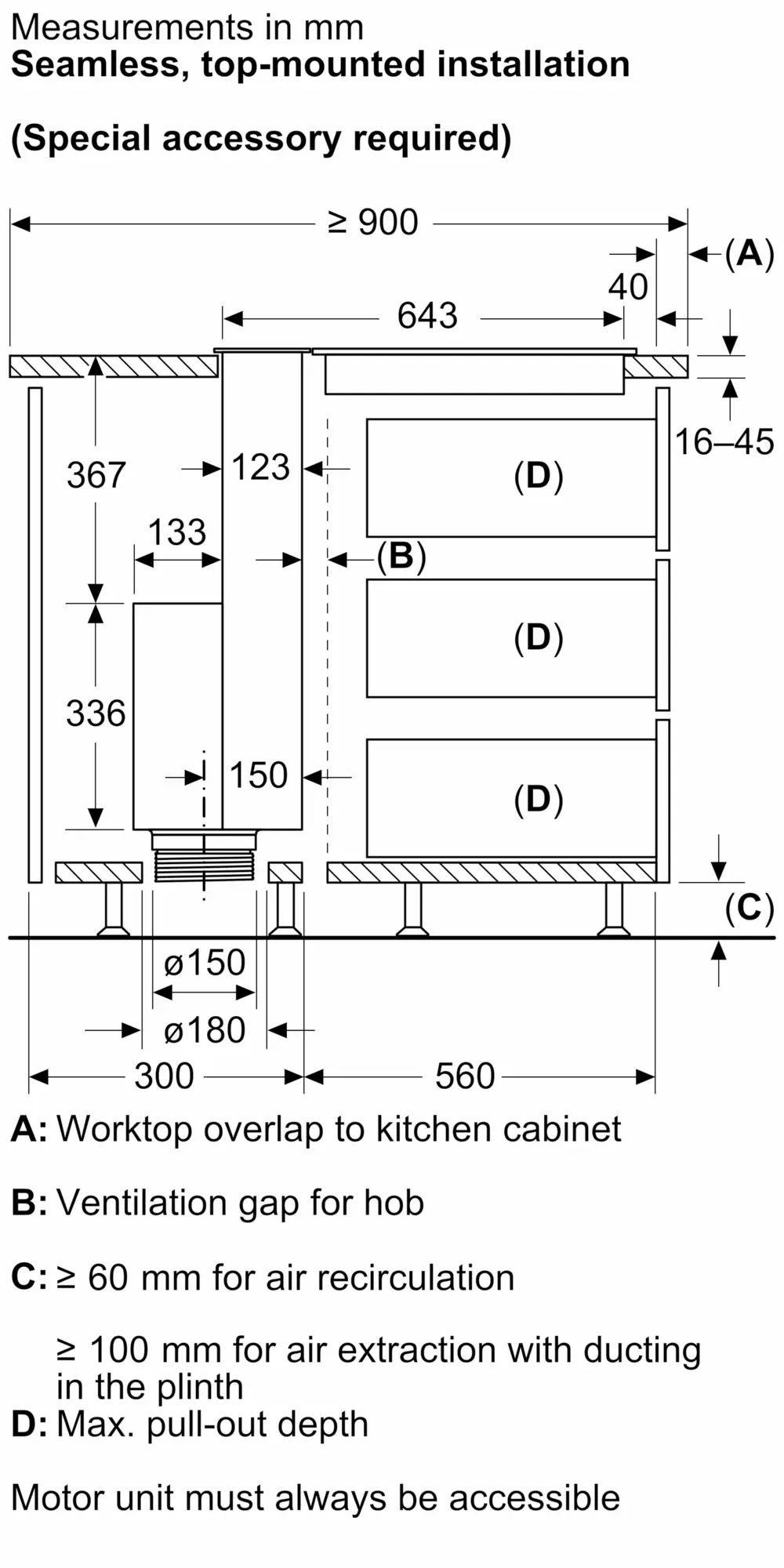

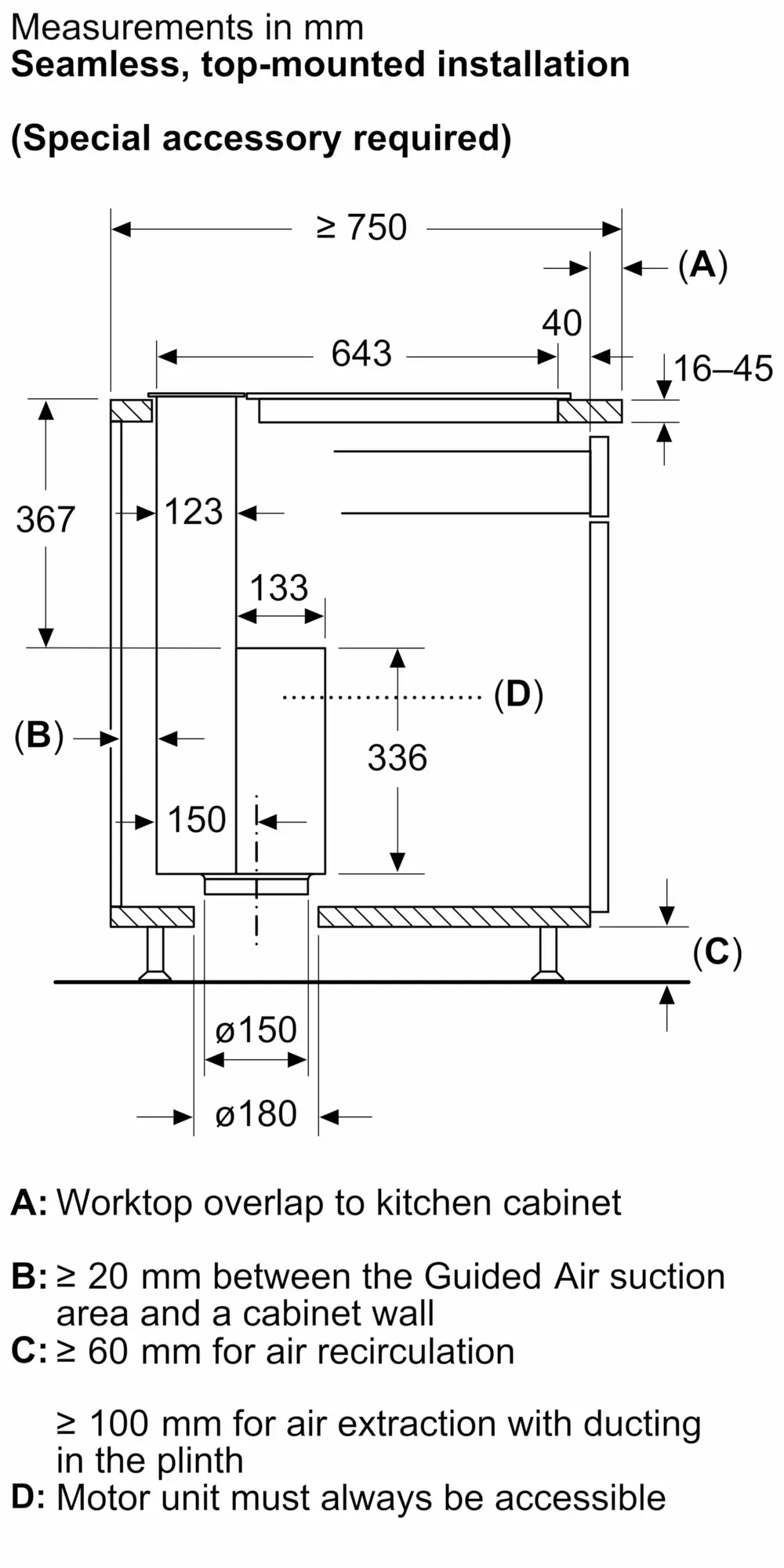

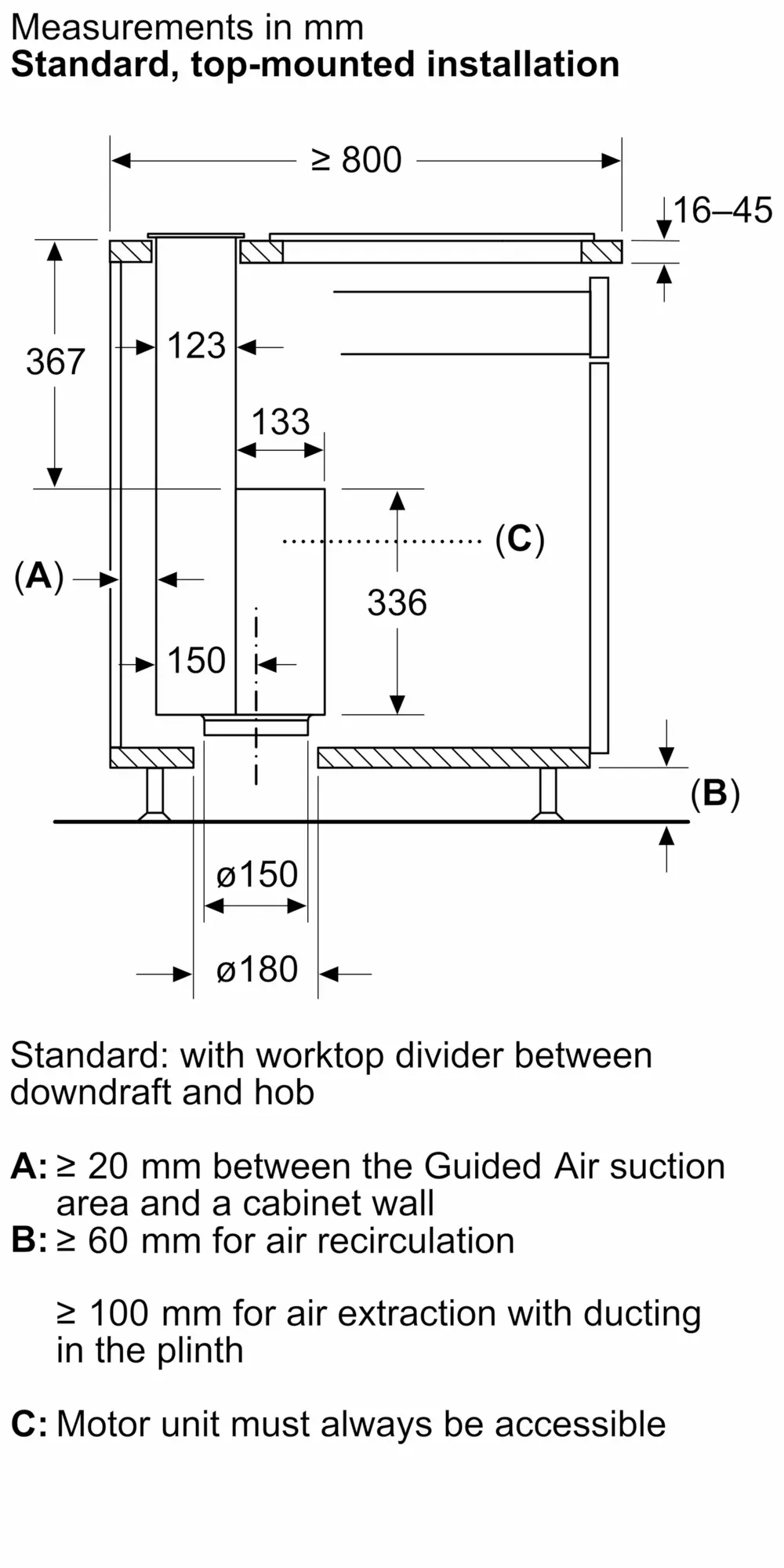

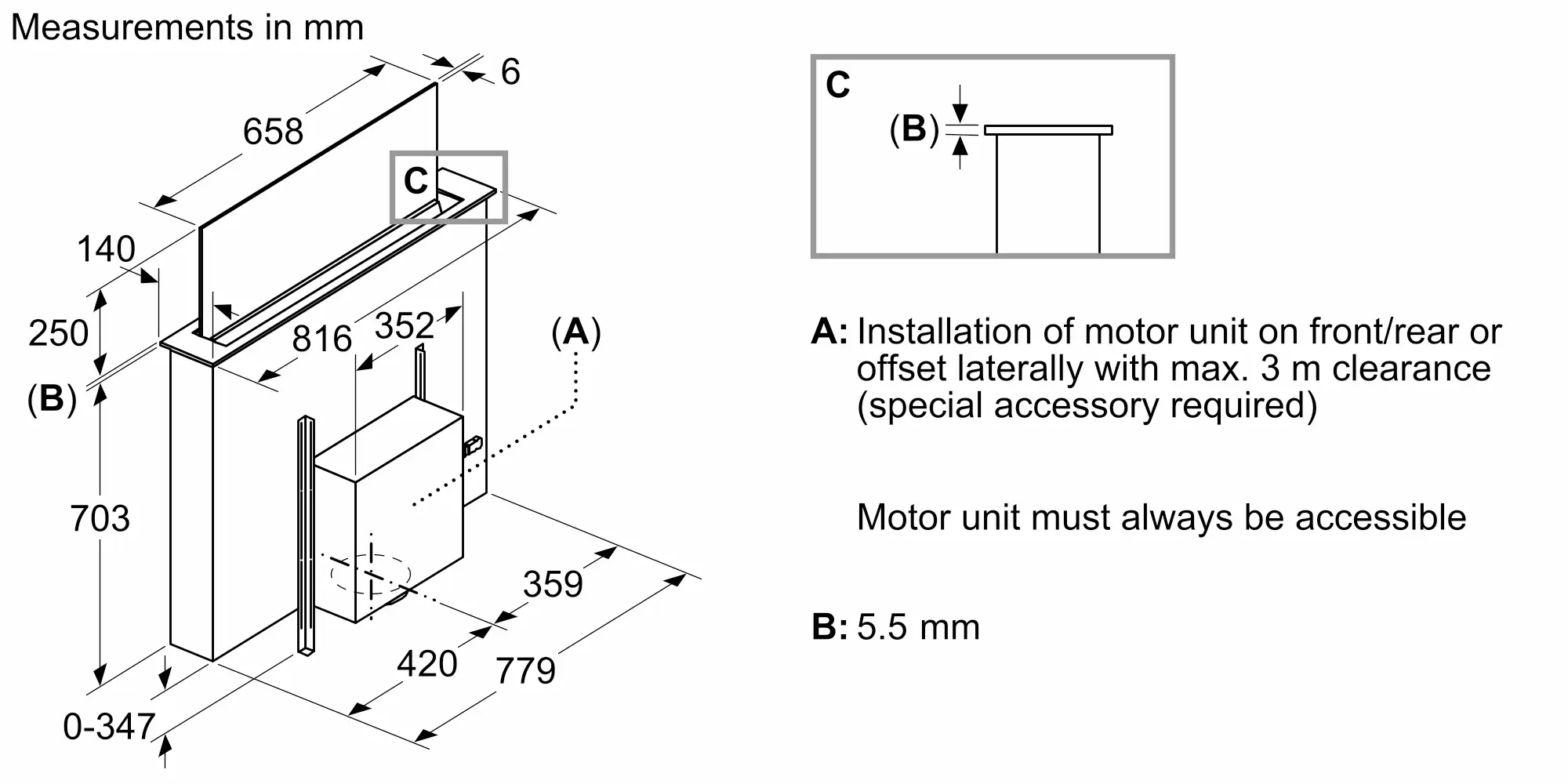

Product Measurements:

• Product Dimensions (W x H x D): 816 x 709 x 140 mm

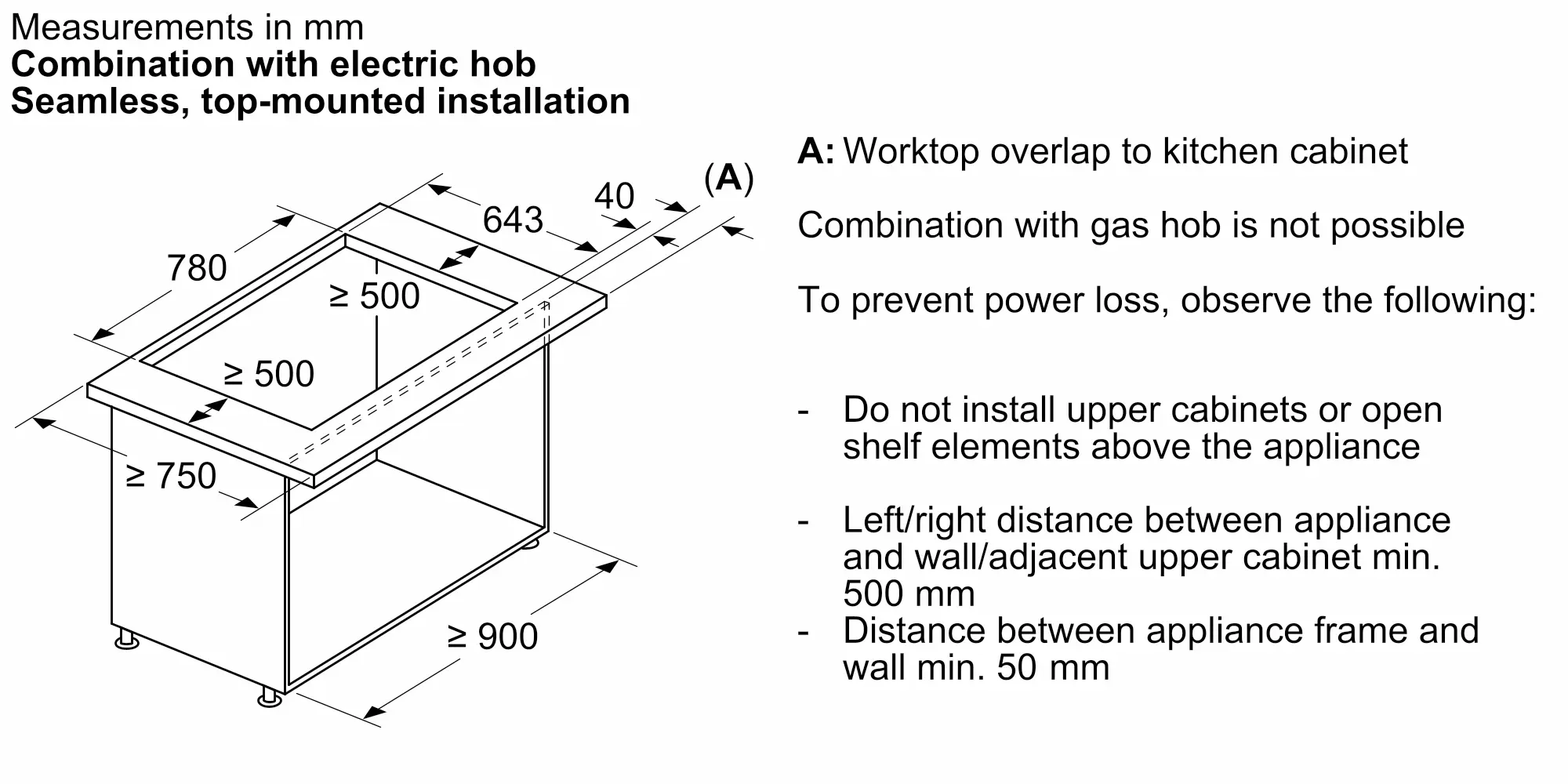

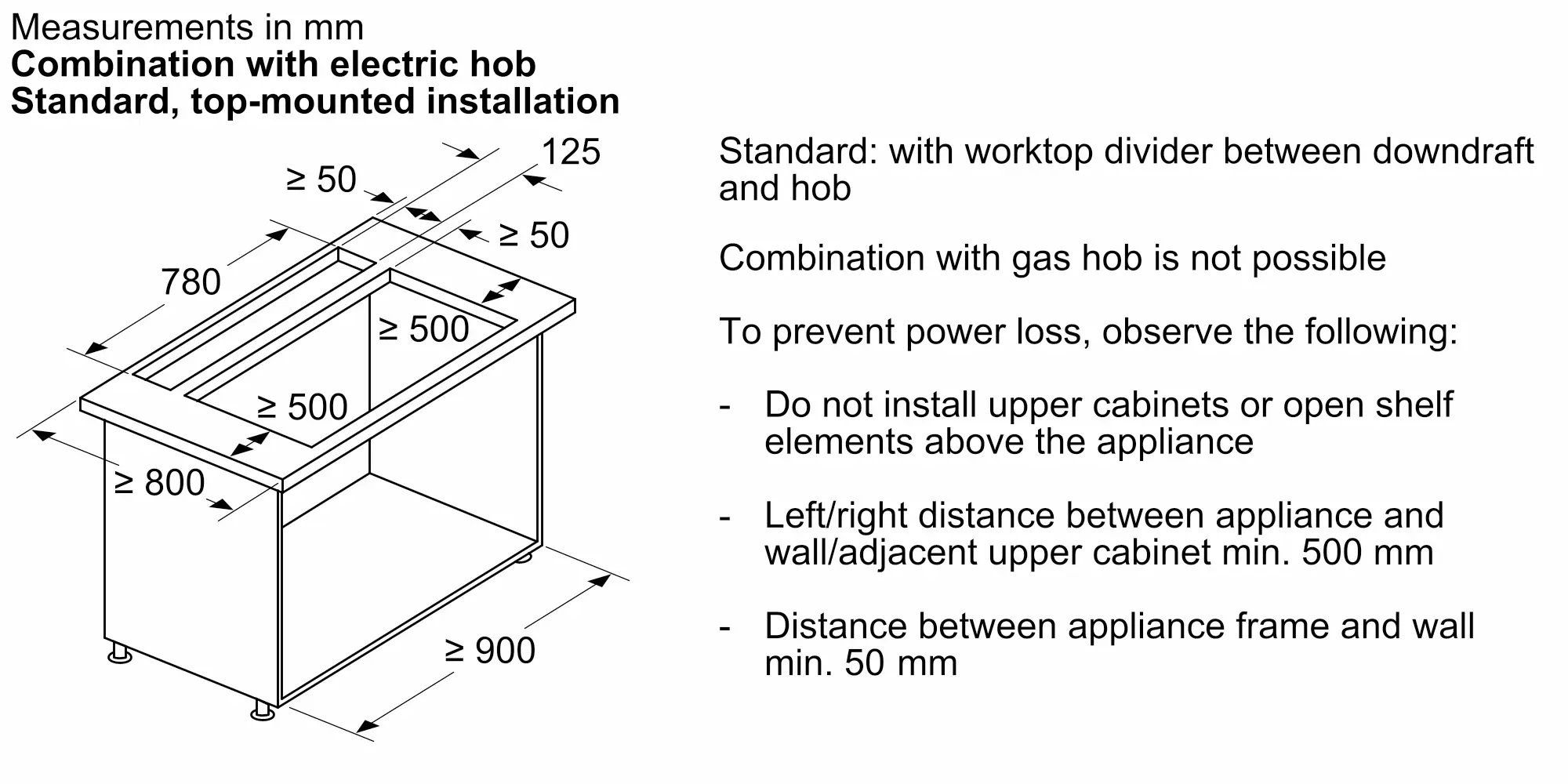

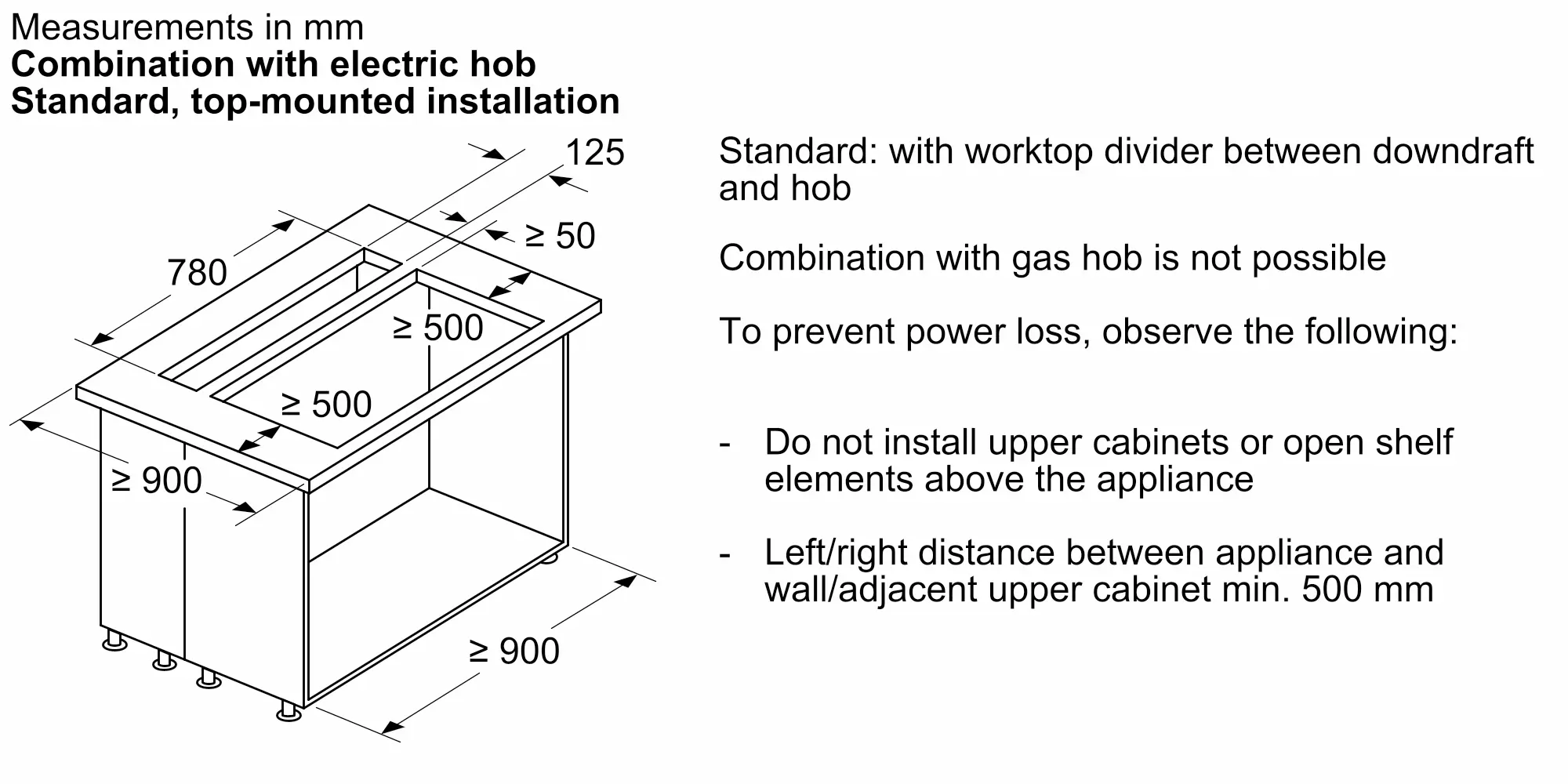

• Cut-Out Size (W x H x D): 781 x 703 x 123 mm
• Minimum distance above electric cooktop: 600 mm
• Cord length: 1.3 m

Product Weight:

• Net Weight: 37.5 kg

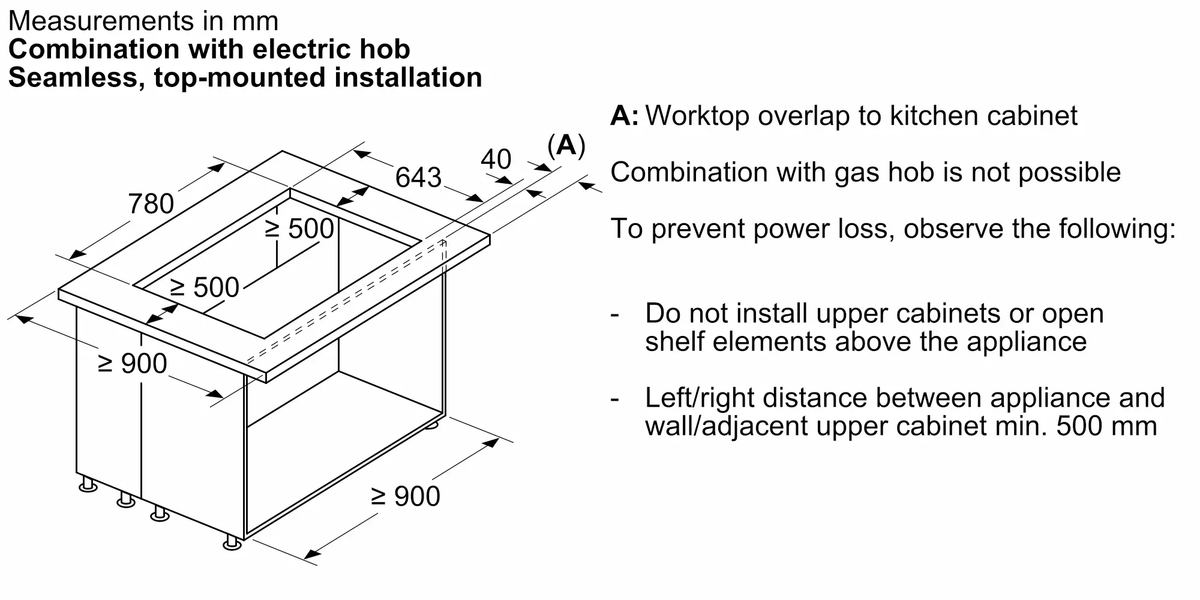

Installation & Requirements:

• Installation type: Built-in downdraft ventilation
• Suitable cooktop type: Induction cooktops only
• Gas cooktop compatibility: Not suitable for gas cooktops
• Operating configuration: Ducted or recirculated extraction
• Recirculation compatibility: Requires optional recirculation kit
• Ducting outlet: 150 mm
• Connection type: Hardwired
• Power supply: 220–240 V / 50–60 Hz
• Cabinet installation: Suitable for island or semi-island kitchen configurations
• Motor positioning: Flexible installation layout for improved under-bench storage access
• Professional installation: Recommended for cabinetry integration and ventilation planning

Country of Origin:

• Made in Germany

Extra Information:

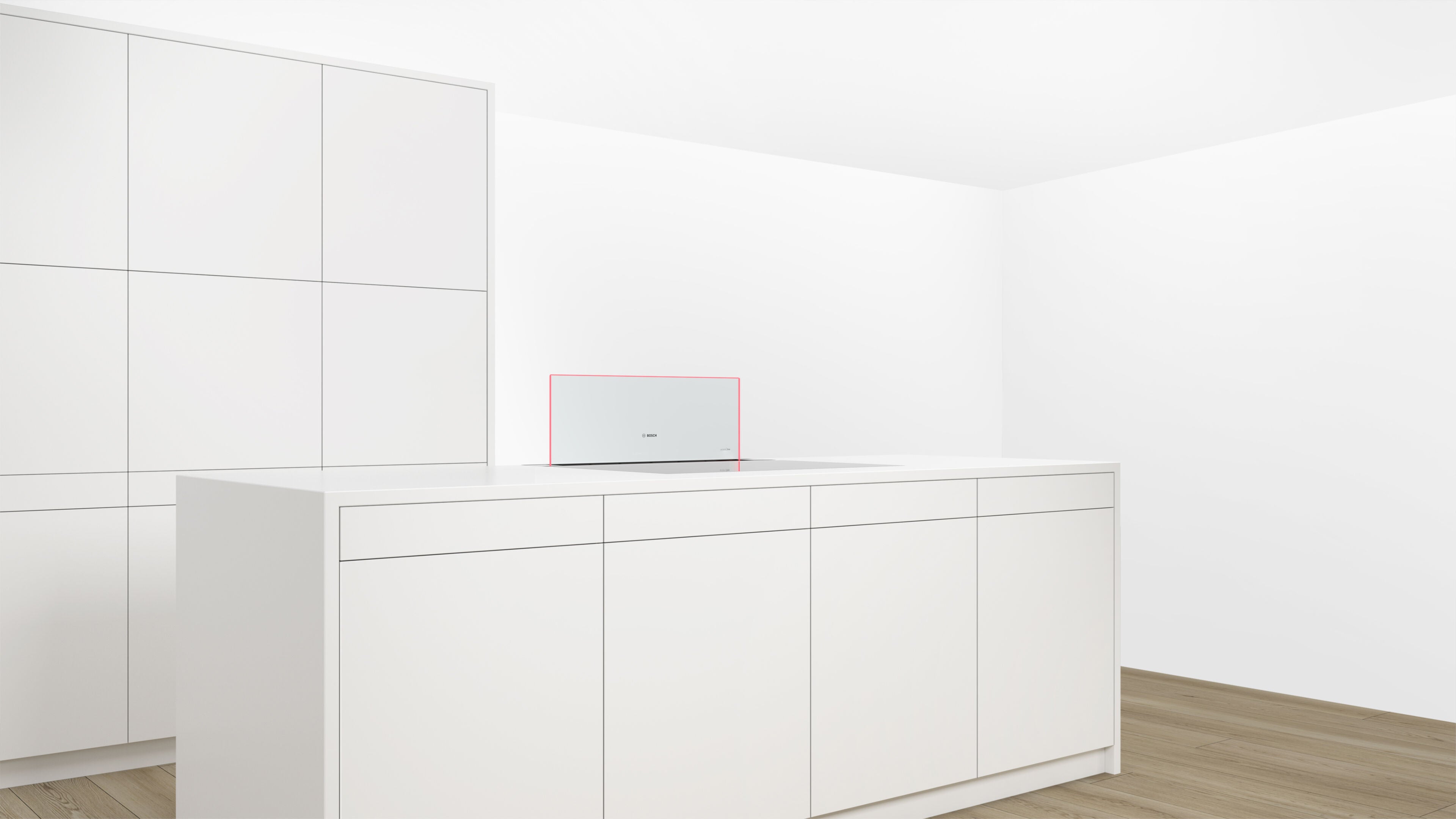

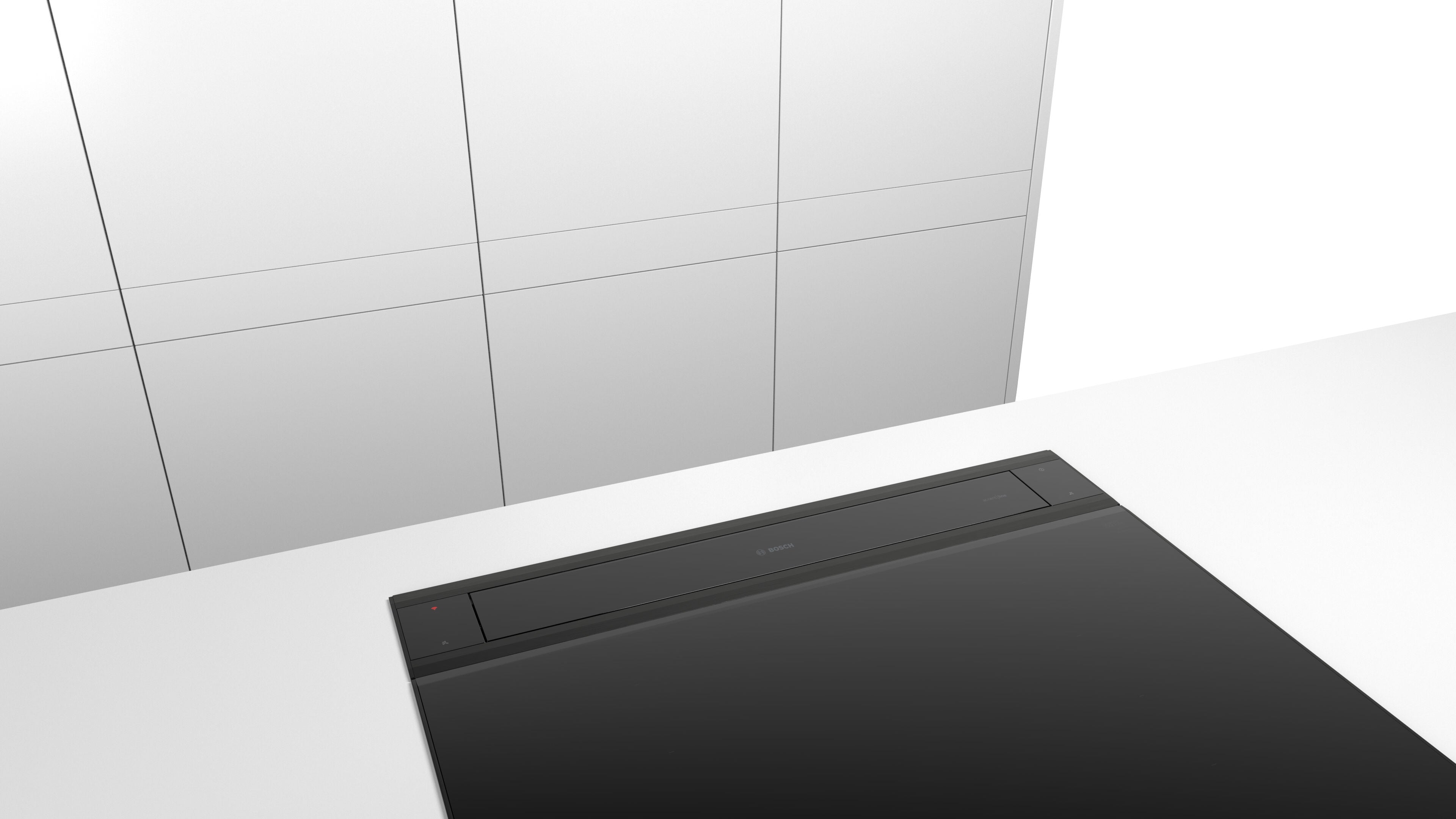

The DDW88MM66 is designed specifically for integration with Bosch induction cooktops and is not approved for use alongside gas cooktops. The retractable glass panel remains concealed below bench level when inactive, making the system particularly suited to minimalist kitchen designs and open-plan living spaces where overhead rangehoods are undesirable.

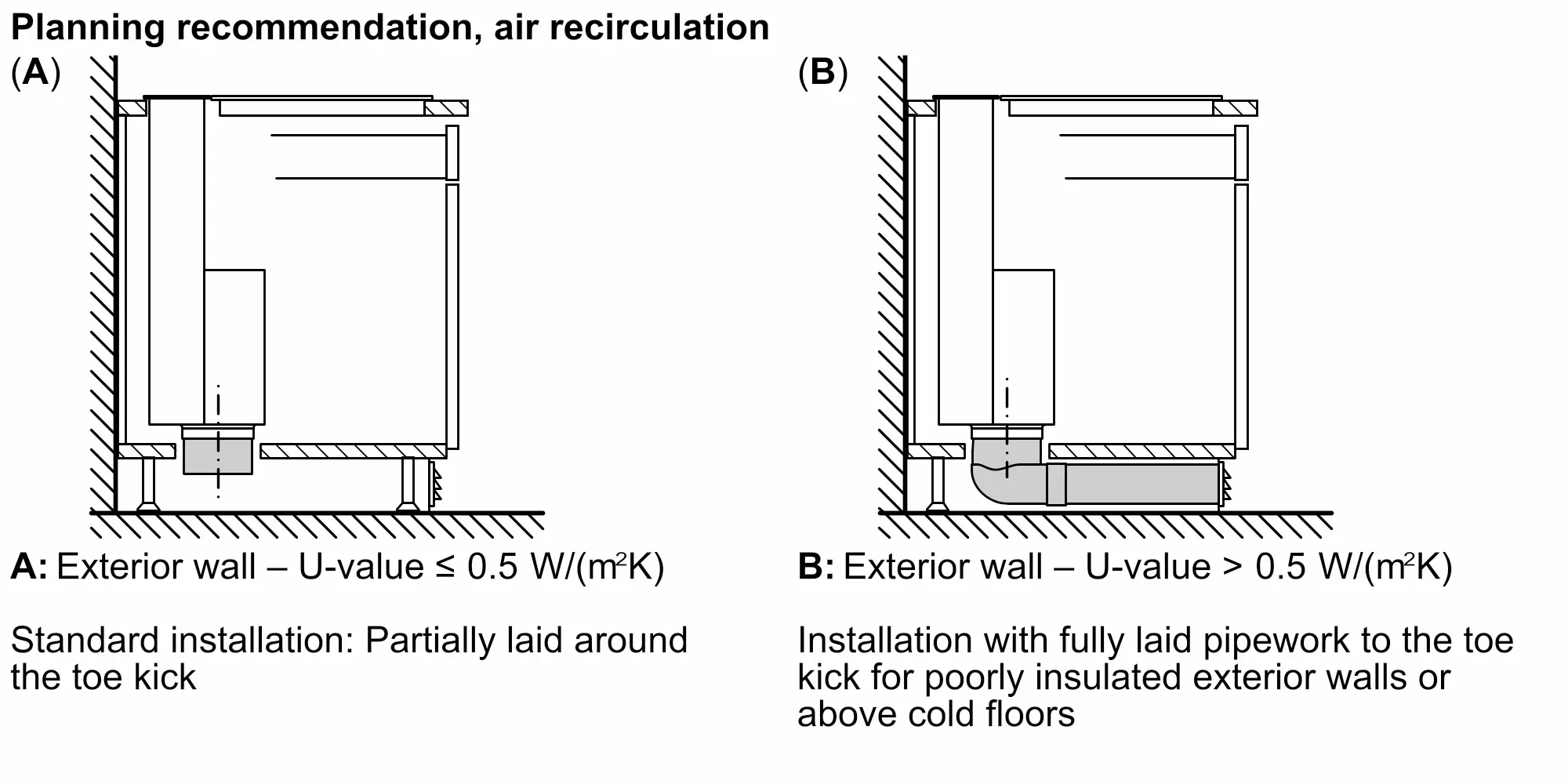

The ventilation module supports both ducted and recirculated extraction configurations depending on kitchen layout requirements. Bosch optional Clean Air Plus and Long Life recirculation kits are available separately for recirculating installations. Ducting components are also sold separately.

Home Connect functionality allows remote operation, lighting customisation, and integration with compatible smart home ecosystems. The ambient edge lighting colour can be adjusted through the Home Connect application to suit surrounding kitchen lighting schemes.

Included Products / Accessories:

• Washable stainless steel grease filters
• Integrated retractable glass ventilation module
• Installation documentation

Warranty:

Backed by a 2-year manufacturer's warranty for peace of mind when installed and used according to manufacturer guidelines.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)


• HOME CONNECT (PDF)
