• Vacuum drawer system: designed for vacuum sealing food prior to sous vide cooking.
• Up to 99% chamber vacuum: removes air efficiently for food preservation and preparation.
• Three vacuuming levels: adjustable vacuum intensity for different food types.
• Three heat-sealing durations: suitable for varying bag thicknesses and food moisture levels.
• External vacuuming capability: supports vacuum sealing outside the chamber using supplied adaptors.
• Bottle vacuum sealing: compatible with supplied bottle adaptors for resealing opened bottles.
• Push-pull opening mechanism: spring-assisted handleless drawer operation.
• Electronic TouchSelect controls: illuminated touch controls integrated into the drawer fascia.
• Stainless steel vacuum chamber: durable internal cavity construction.
• Drying programme: assists with maintenance of the vacuum pump system.
• Soft integrated design: aligns visually with Bosch Series 8 cooking appliances.
• Crevice-free front design: cleaner integrated appearance with easier maintenance.
• Automatic chamber ventilation: releases pressure safely at the completion of sealing cycles.
• Integrated bag holder: stabilises vacuum bags during operation.
• Suitable for sous vide preparation: supports controlled low-temperature cooking workflows.

• Vacuuming inside chamber: Creates up to 99% vacuum sealing for sous vide preparation, food preservation, and freezer storage.
• Vacuuming outside chamber: Allows external vacuum sealing of containers and bottles using the supplied accessories.
• Heat sealing function: Provides three sealing duration levels for different bag thicknesses and food types.
• Early sealing function: Reduces vacuum intensity for delicate foods prone to crushing or liquid expansion.
• Bottle sealing mode: Reseals opened wine or beverage bottles using compatible vacuum bottle stoppers.
• Container vacuuming: Supports vacuum sealing of suitable external vacuum storage containers.
• Pump drying programme: Removes residual moisture from the vacuum pump system after operation.

• Product type: Built-in vacuum drawer
• Series: Series 8
• Control type: Electronic TouchSelect
• Installation configuration: Integrated built-in
• Maximum chamber vacuum: 99%
• Maximum external vacuum: 90%
• Vacuum levels: 3
• Heat sealing levels: 3
• Cavity material: Stainless steel
• Usable cavity volume: 8 L
• Door opening system: Push-pull mechanism
• Home Connect: No
• Door contact switch: Yes
• Safety locking mechanism: Yes
• Maximum installation altitude: 4000 m above sea level
• EAN: 4242005330133

• Installation type: Built-in integrated appliance

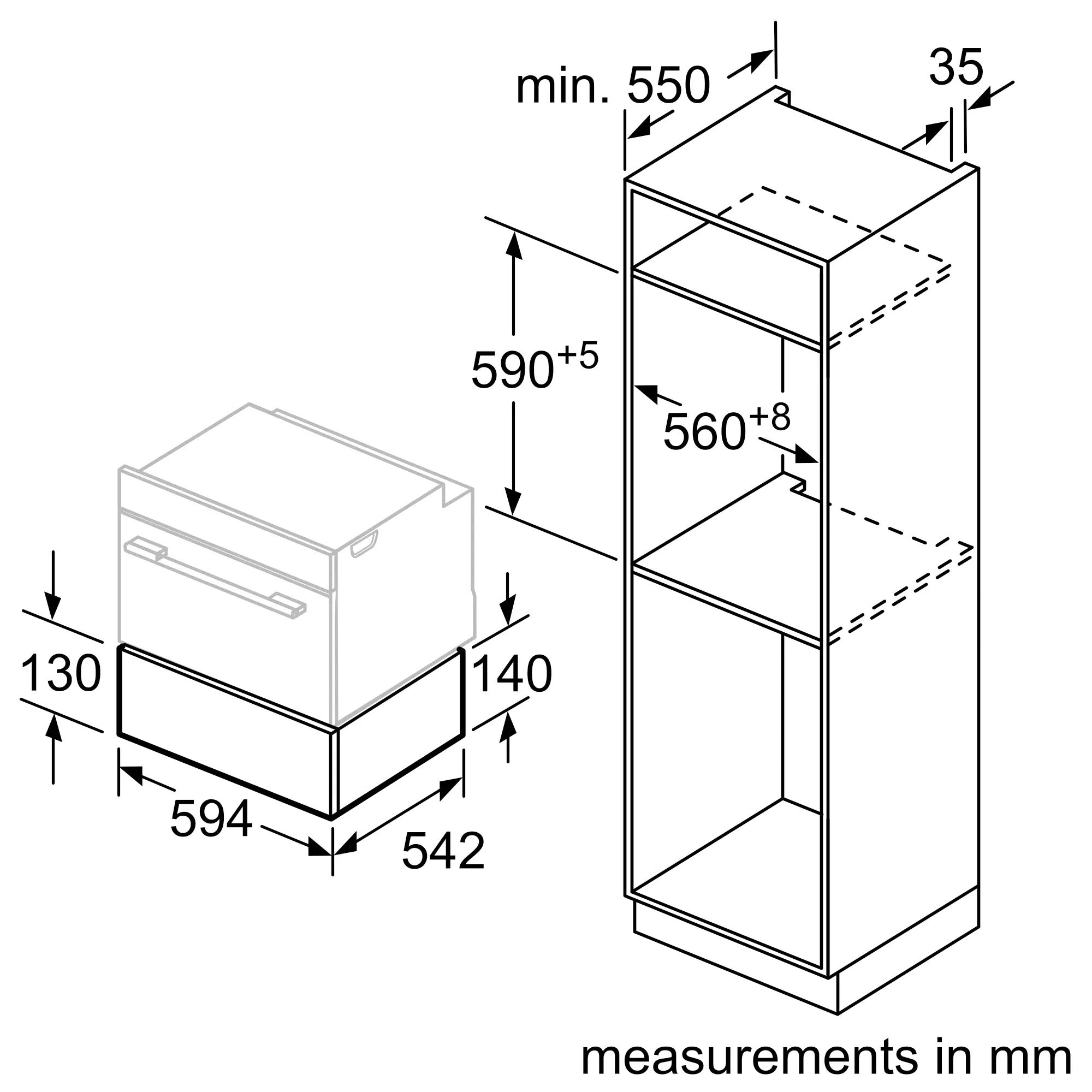

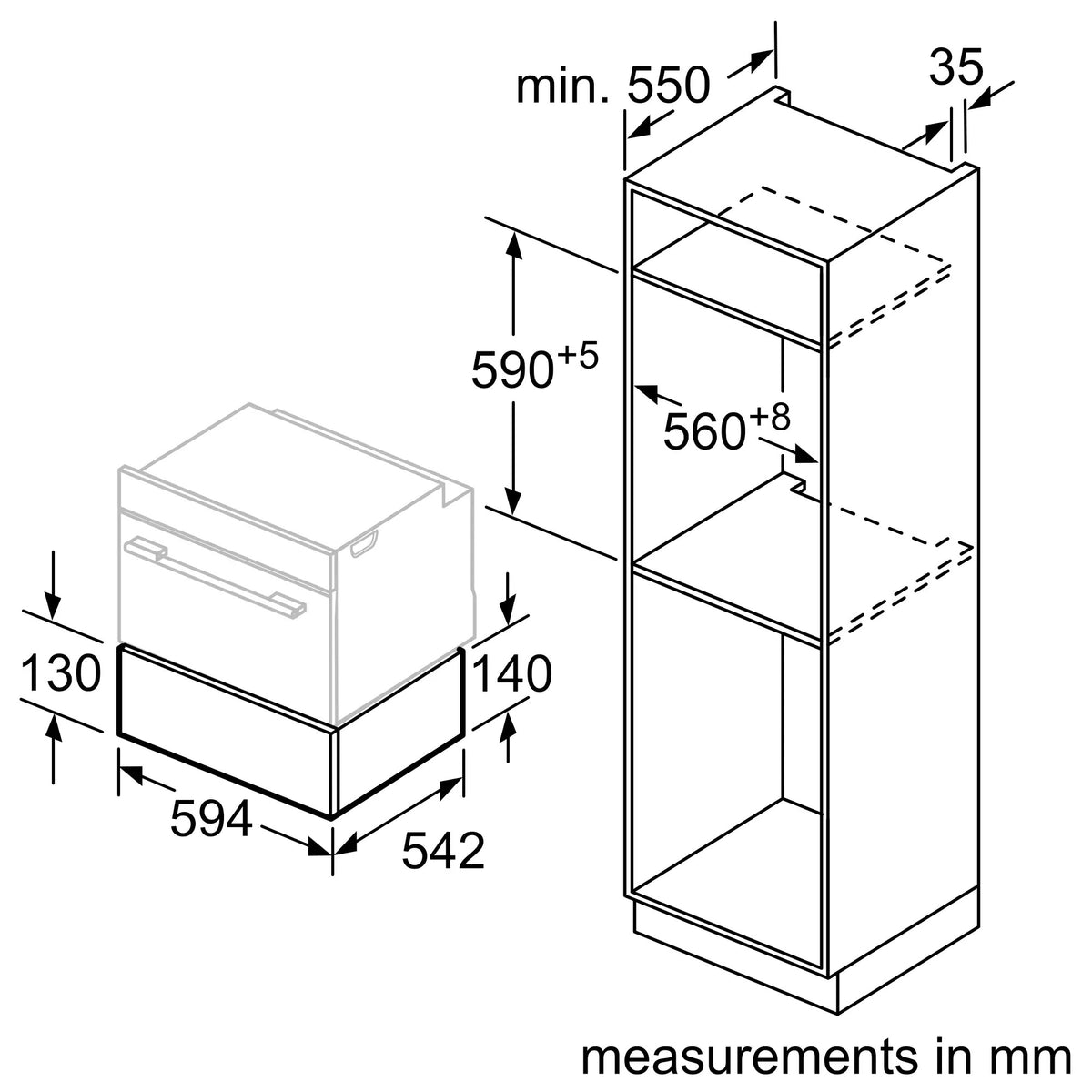

• Suitable installation position: beneath compact ovens, steam ovens, coffee machines, or warming drawers
• Electrical connection: Plug-in
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Connection rating: 0.32 kW
• Fuse protection: 6 A
• Power cord length: 150 cm
• Professional installation: recommended for integrated cabinetry applications
• Cabinet ventilation requirements: refer to Bosch installation instructions

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The BVE9101B1 is designed to support sous vide cooking preparation by vacuum sealing ingredients prior to low-temperature steam cooking. Vacuum sealing removes oxygen from the storage environment, assisting with flavour retention, freezer protection, controlled marinating, and extended refrigerated storage when food is stored appropriately.

Bosch specifies that only suitable vacuum sealing bags and approved vacuum containers should be used with the appliance. The drawer is also suitable for vacuum sealing jars, containers, marinades, liquids, fruit, vegetables, meats, fish, and opened wine bottles using the supplied accessories.

The push-pull drawer mechanism enables operation without a visible handle, supporting clean integrated kitchen designs commonly used in contemporary appliance stacks. The integrated spring-assisted opening system allows operation even when hands are occupied during food preparation.

• Vacuum sealing bags: 50 x small bags
• Vacuum sealing bags: 50 x large bags
• External vacuum adaptor: for vacuum sealing outside the chamber
• Vacuum hose: external vacuum connection hose
• Bottle adaptor: adaptor for bottle sealing
• Bottle plugs: 3 x bottle vacuum plugs
• Integrated bag support clip: for stabilising bags during operation
