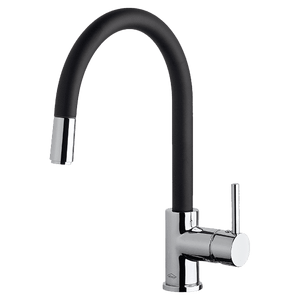

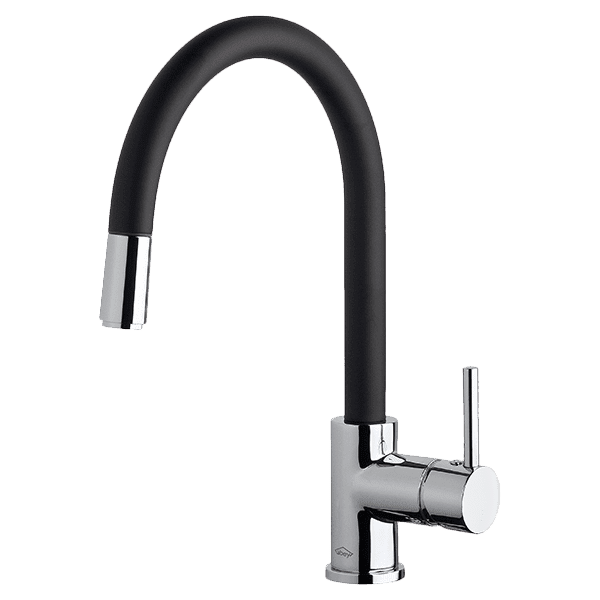

Armando Vicario SK5-AV Kitchen Mixer

Italian Designed & Manufactured

• Crafted in Italy with precision engineering and premium materials for long-lasting performance.

Classic Gooseneck Spout Design

• High-arc profile offers generous clearance for large pots, pans, and deep kitchen sinks.

Pull-Out Spray with Extended Reach

• 1500mm pull-out hose provides flexibility and control for cleaning, rinsing, and food prep.

360° Swivel Spout

• Full spout rotation allows easy access across single or double-bowl sinks.

Smooth Pin Lever Operation

• Ergonomic pin lever delivers precise temperature and flow control with minimal effort.

Water-Efficient Performance

• Available in 6-Star and 5-Star WELS rated models, delivering excellent water savings without compromising usability.

Lead-Free Chrome Option

• Chrome finish is lead-free, supporting healthier water use in the kitchen.

Durable European Construction

• Built to withstand daily use in high-traffic kitchens while maintaining a refined appearance.

Multiple Contemporary Finishes

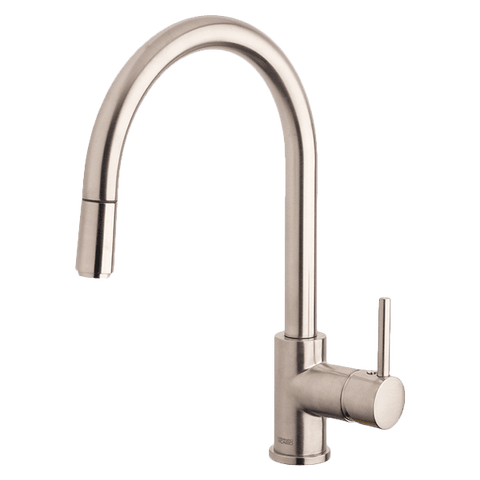

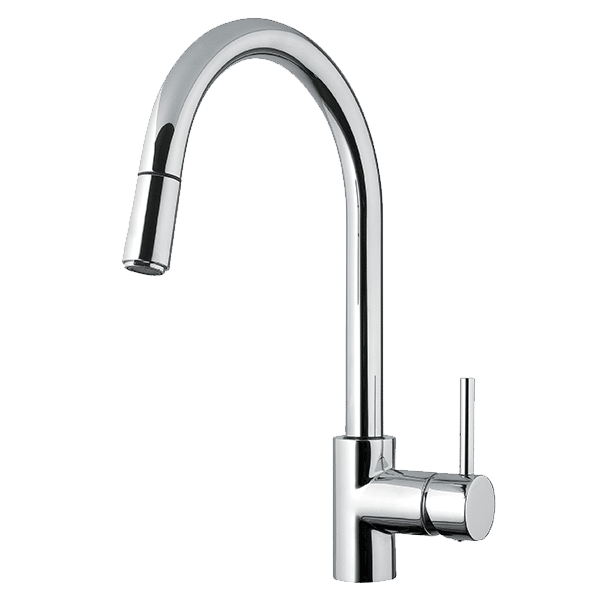

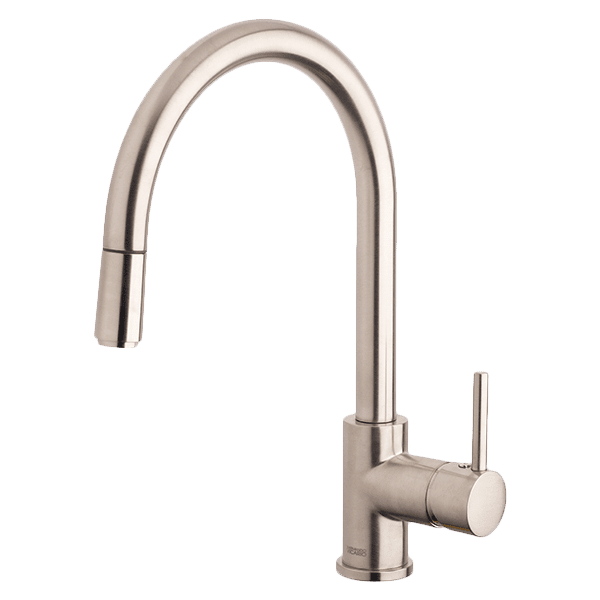

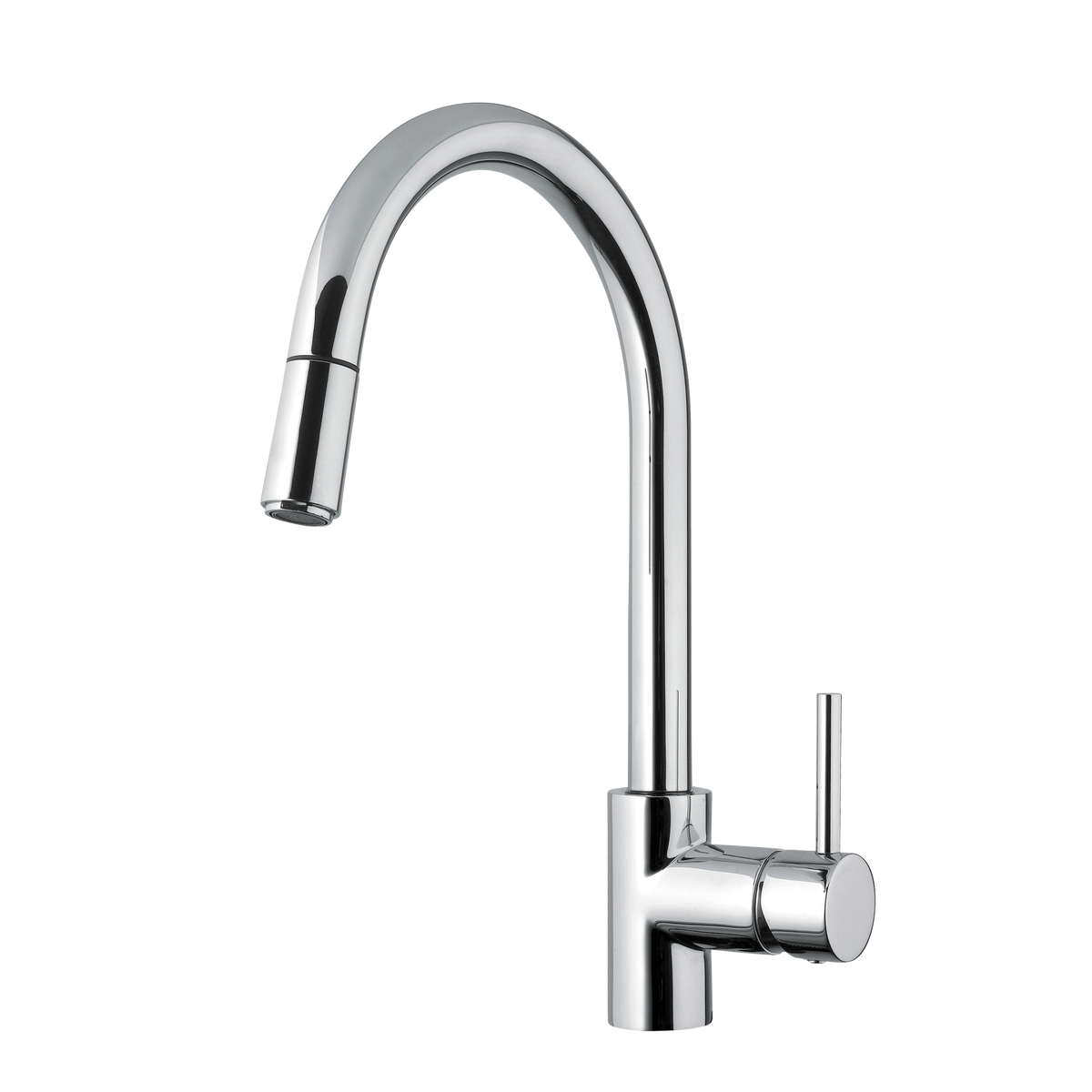

• Available in Chrome (Lead Free), Black, and Brushed Nickel to suit a wide range of kitchen styles.

High Pressure Compatibility

• Rated for operating pressures up to 500kPa, suitable for most Australian installations.

• Collection: SK5-AV
• Design Style: Contemporary
• Made In: Italy
• Room: Kitchen
• Pull Out: Yes
• Pull Out Length: 1500mm
• WELS Rating: 6 Star (SK5-AV-LF), 5 Star (SK5-AV-B/BN)
• Flow Rate: 4.5L/min (SK5-AV-LF), 5L/min (SK5-AV-B/BN)
• WELS Registration Number: T45550 (SK5-AV-LF), T10360 (SK5-AV-B/BN)
• Max. Operating Pressure: 500KPA
• Spout Rotation (Degrees): 360
• Handle Direction: Forwards (Hot), Backwards (Cold)

Armando Vicario tapware is designed and manufactured in Italy to exceptional quality standards and is backed by Abey Australia, the official importer.

Warranty periods (domestic use):

• Cartridge: 20 years replacement (where applicable)
• Product or Parts: 10 years replacement for manufacturing faults
• Labour: 1 year
• Finishes:

- PVD finishes: 5 years
- Other finishes: Covered for manufacturing defects only, subject to care and maintenance guidelines

This warranty is provided in addition to your rights under Australian Consumer Law.

Installation & Inspection Requirements

To ensure warranty coverage:

• Products must be installed by a licensed plumber
• Maximum water pressure must not exceed 500kPa
• Water lines must be thoroughly flushed prior to installation
• Isolation stop taps and flow regulators must be installed as required
• Products must be installed in accordance with Abey installation instructions and Australian Standards

Important:
All products must be inspected for scratches, blemishes, or defects before installation. Installation constitutes acceptance of the product’s condition.

Warranty Exclusions

The warranty does not cover:

• Normal wear and tear or ageing of components
• Damage caused by incorrect installation or unlicensed installation
• Damage caused by excessive water pressure or temperature
• Blocked aerators, cartridges, or outlets due to debris or poor water quality
• Use of harsh or abrasive cleaners, chemicals, or solvents
• Modifications or use of non-approved accessories or devices (e.g. water filters)
• Damage caused by misuse, neglect, or improper maintenance
• Products with altered or removed serial numbers
• Ex-display or clearance products

Warranty Claim Process

If you need to make a warranty claim:

1. Ensure the product has been installed (uninstalled items must be returned to point of purchase)
2. Visit www.abey.com.au/after-sales
3. Complete the online warranty claim form and upload proof of purchase
4. A warranty claim number will be issued for reference
5. An Abey Warranty Representative will contact you within 2 business days

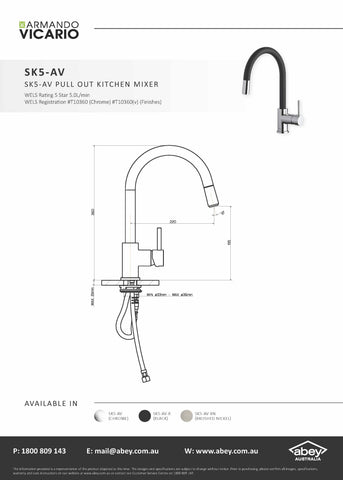

• SPECIFICATIONS SHEET (PDF
• INSTALLATION GUIDE (PDF)
