Product Description

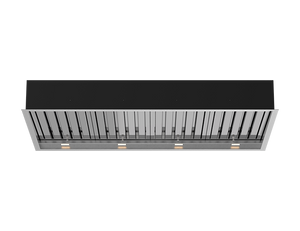

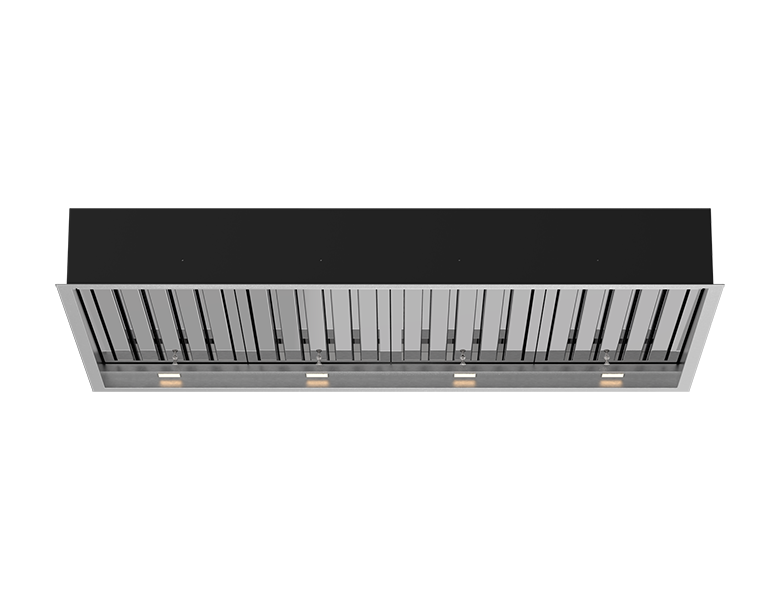

Boston 120 Alfresco Ceiling Cassette
Model Number – X9B12S
- The Whispair Boston 120 alfresco (BBQ) ceiling cassette rangehood is designed for use over a BBQ and is ideal for cooking surfaces 75cm to 120cm in width. A revolutionary design that enables installation in a bulkhead where roof space (height) is limited. Offering maximum coverage with a 680mm depth the Whispair Boston 120 alfresco (BBQ) ceiling cassette rangehood is the ideal addition to your alfresco area. All Whispair alfresco (BBQ) hoods AISI316 ‘marine-grade’ stainless steel which will ensure even in coastal conditions your hood will stand the test of time.
Product Specifications:
- Hood Mounting: Ceiling Cassette (BBQ)
- Cooking Coverage: Suits 100cm – 120cm cooking surfaces

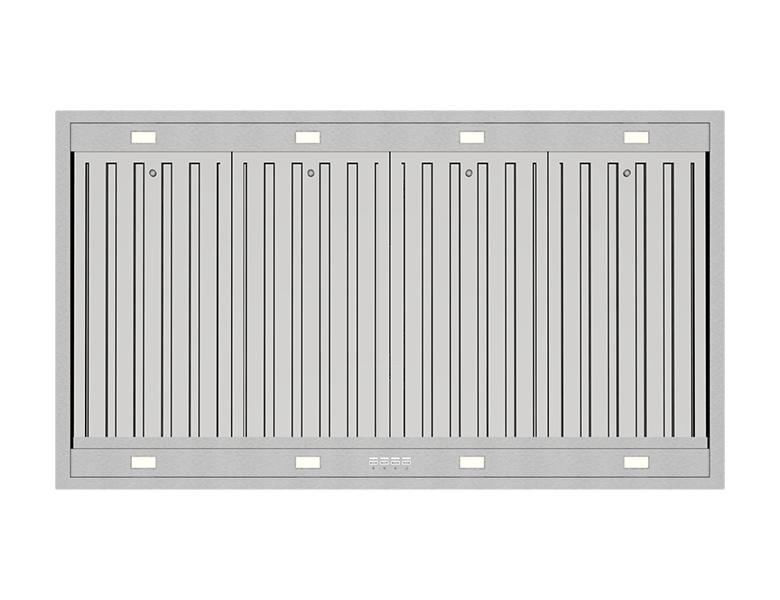

- Filtration: Baffle Filters 3x (H-25)
- Finish: AISI316 1.0mm High Grade Stainless Steel
- Controls: LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator
- Speed Settings: 3 Speed + Boost Mode
- Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
- Ducting (Remote)
- Hood Width: 1200mm
- Hood Depth: 680mm
- Hood Height: 152mm (plus 25mm Top Outlet)
Sound Pressure Levels (Nominal):
Hood on Boost (Max) Speed Level
Remote (External or Inline) Motor Solutions
- Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)
Product Variations:
- X9B12S5.EPP - Remote Motor – External - Pro Plus 2010m3/hr - Through Roof or Wall
- X9B12S5.2IP - Remote Motor – Inline - Pro 1140m3/hr - Through Wall or Eave
- X9B12S5.2EP - Remote Motor – External - Pro 1140m3/hr - Through Roof or Wall
- X9B12S5.2EPP - "Twin" Remote Motor – External - "Twin" Pro Plus 2010m3/hr - Through Roof or Wall
For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

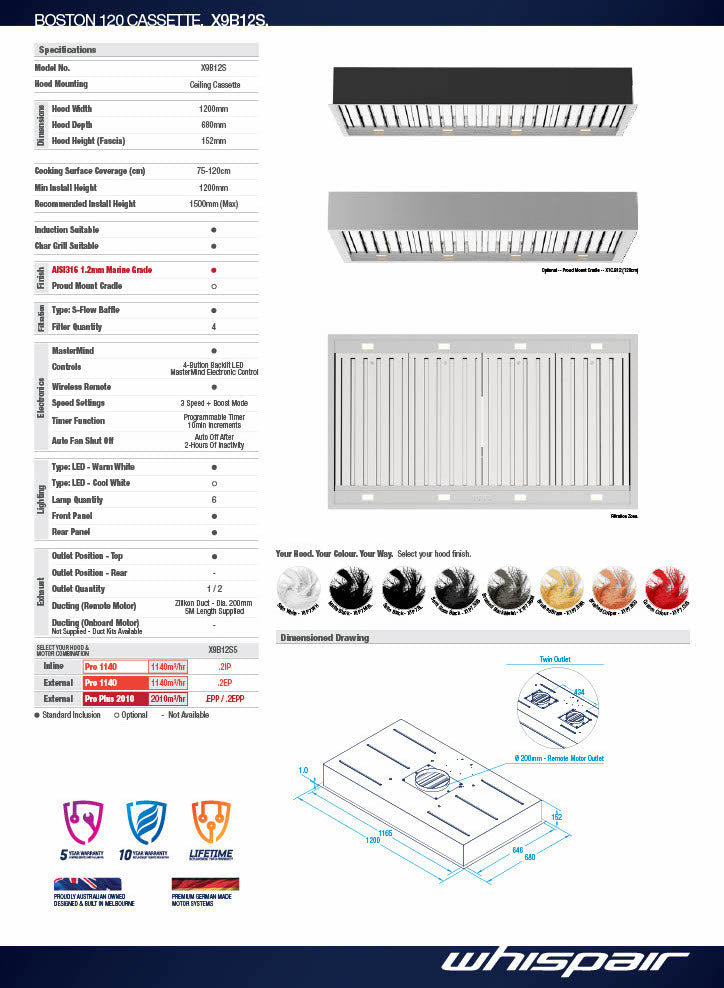

SPECIFICATIONS SHEET

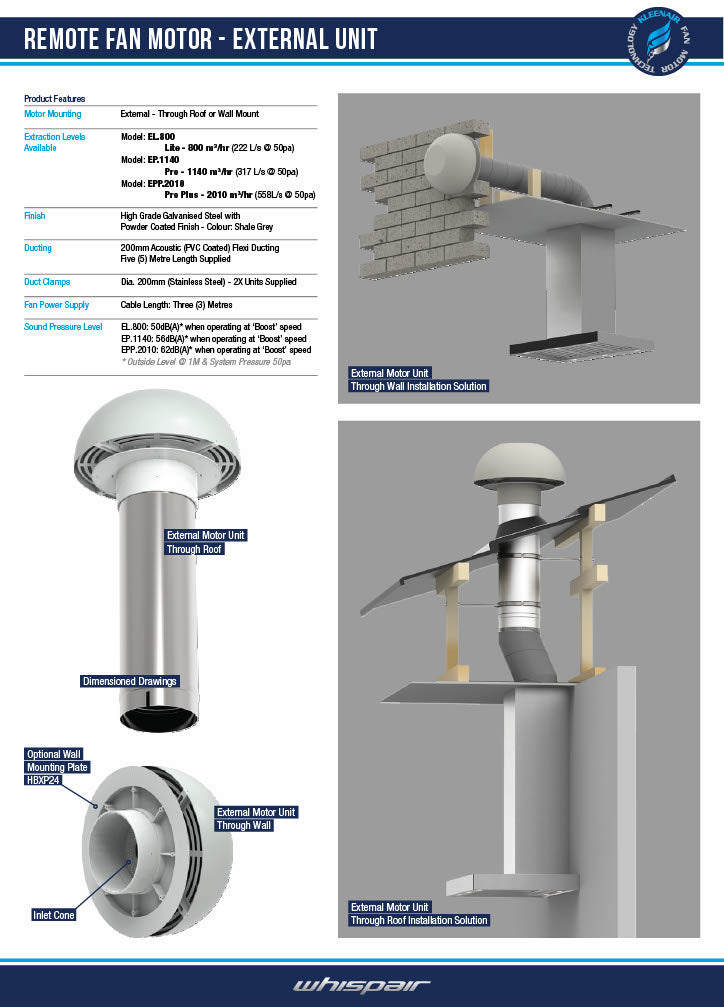

EXTERNAL REMOTE MOTOR SPEC SHEET 1

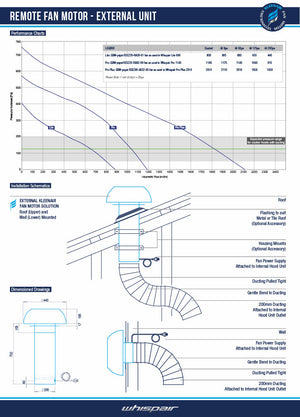

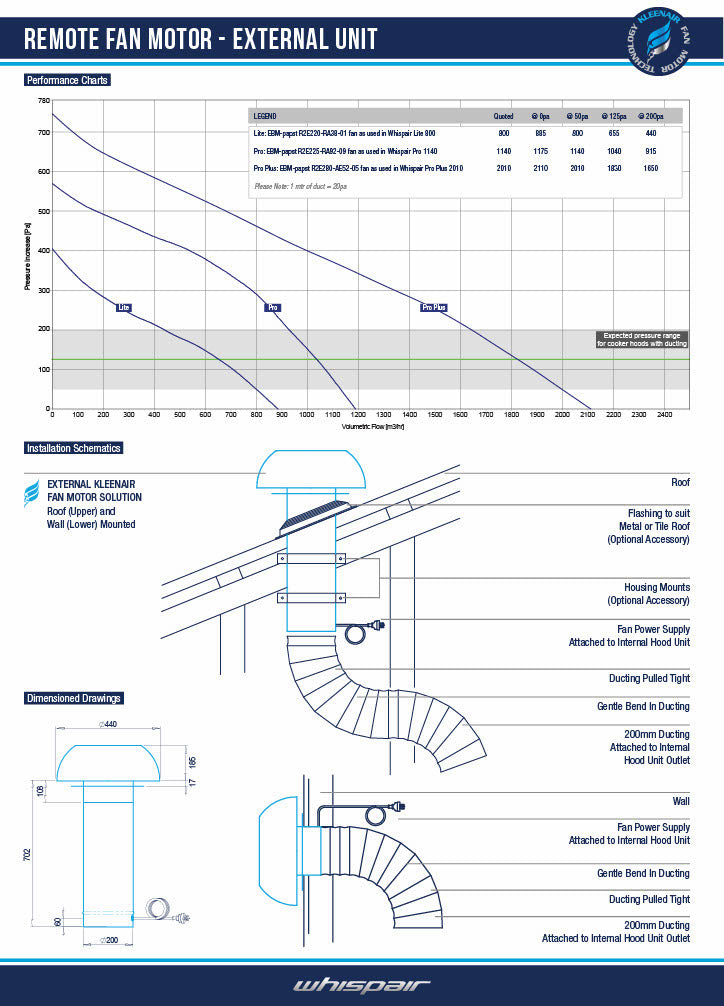

EXTERNAL REMOTE MOTOR SPEC SHEET 2

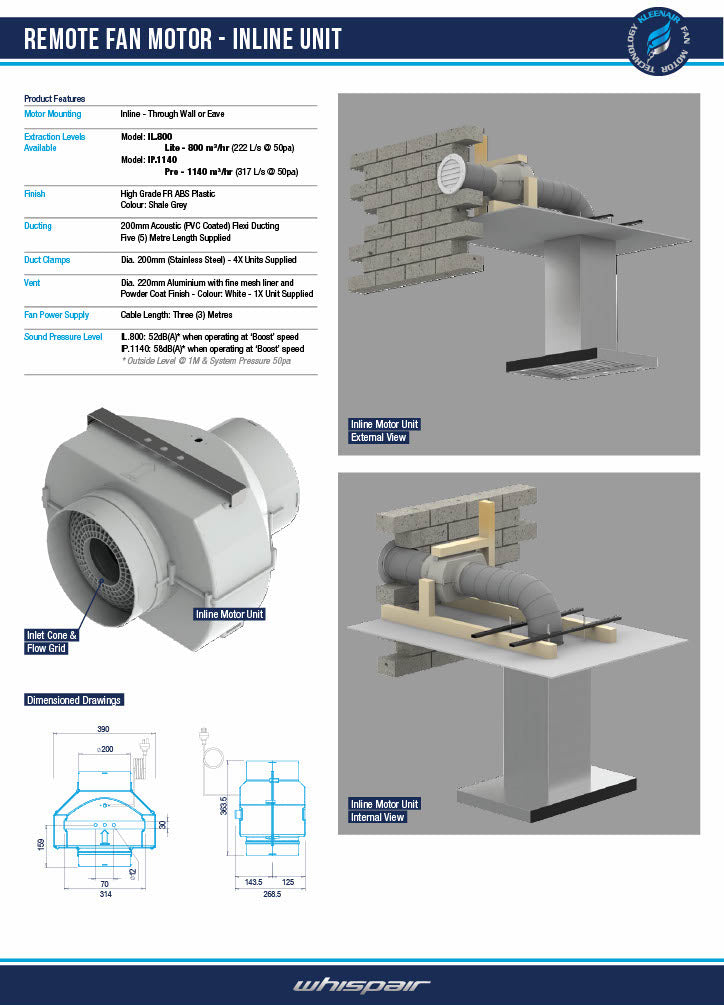

INLINE REMOTE MOTOR SPEC SHEET 1

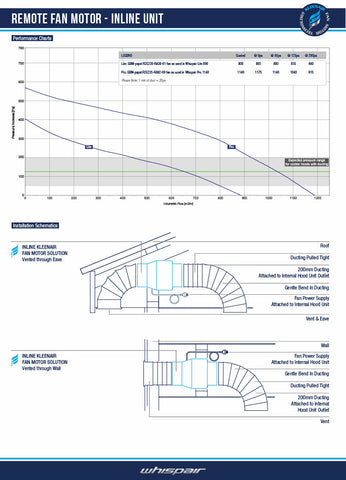

INLINE REMOTE MOTOR SPEC SHEET 2
