Product Description

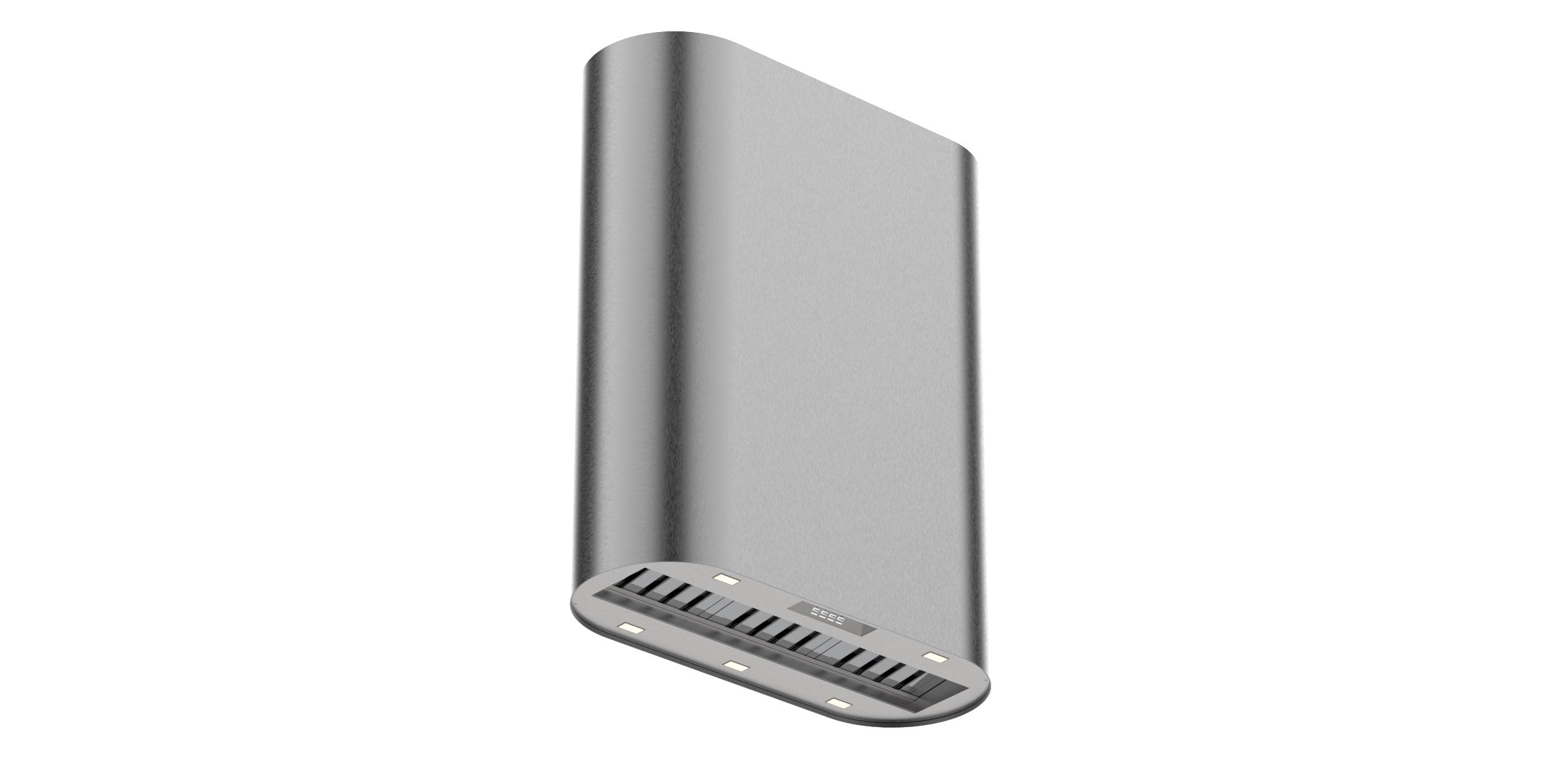

Zurich 120 Island Mounted
Model Number – X7Z12S
- The Whispair Zurich 120 island canopy rangehood is ideal for cooking surfaces 100cm to 130cm in width. Available in custom heights (800mm standard) and colours, the Whispair Zurich 120 island canopy rangehood is the ultimate interior design statement.
Product Specifications:
- Hood Mounting: Island Hung (Canopy)
- Cooking Coverage: Suits 100cm – 130cm cooking surfaces
- Filtration: Baffle Filters 4x (H-25)
- Finish: AISI304 1.0mm High Grade Stainless Steel
- Controls: LED Backlit 4 Button mastermind Touch Control with LED Speed Indicator
- Speed Settings: 3 Speed + Boost Mode
- Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
- Ducting (Remote)
- Hood Width: 1200mm
- Hood Depth: 360mm
- Hood Height: 800mm
Sound Pressure Levels (Nominal):
Hood on Boost (Max) Speed Level
On Board Motor Solutions
- Power 1,020 Motor: 53.9dB(A)
- Ultra 1,680 Motor: 56.5dB(A)
Remote (External or Inline) Motor Solutions
- Lite 800 Motor: 39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
- Pro 1140 Motor: 49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
- Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)
Product Variations:
- X7Z12S5.IP - Remote Motor – Inline - Pro 1140m3/hr - Through Wall or Eave
- X7Z12S5.EP - Remote Motor – External - Pro 1140m3/hr - Through Roof or Wall
- X7Z12S5.EPP - Remote Motor – External - Pro Plus 2010m3/hr - Through Roof or Wall
- X7Z12S6.OU/T - On Board - Ultra 1680m3/hr - Top Ducted
- X7Z12S5.OP/T - On Board - Remote Motor – External - Remote Motor – Inline - Power 1020m3/hr - Through Roof or Wall - Through Wall or Eave - Top Ducted
For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

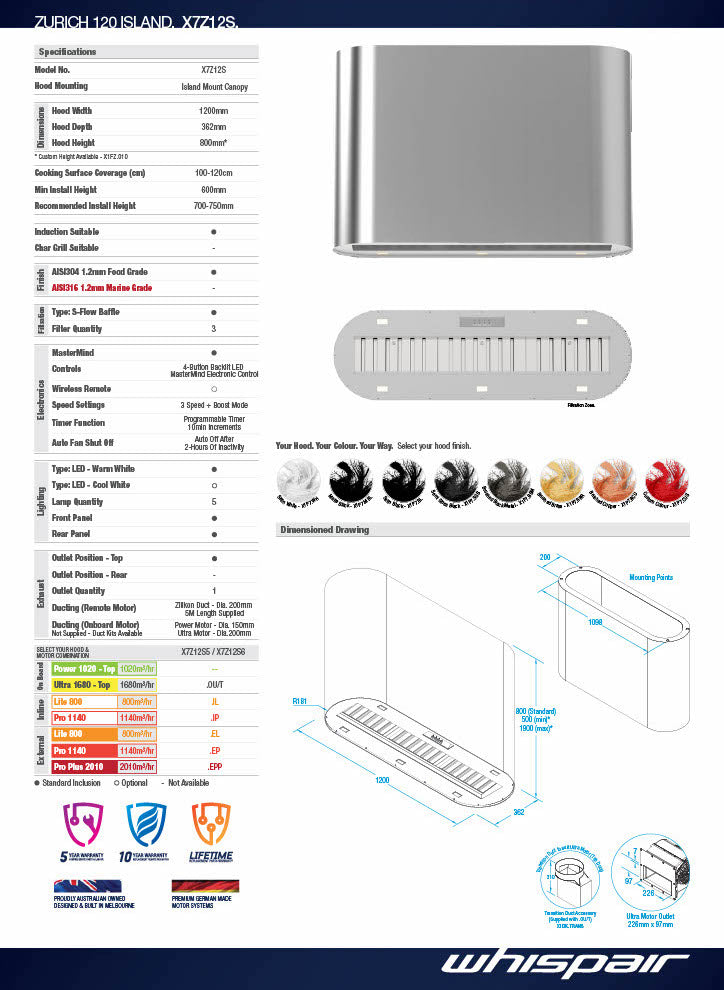

SPECIFICATIONS SHEET

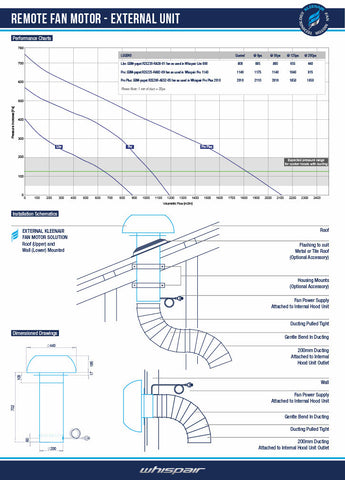

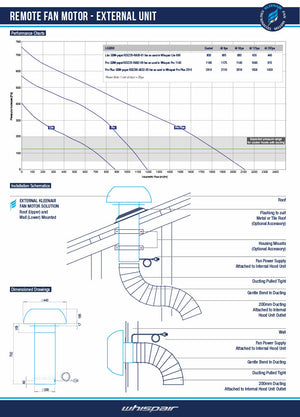

EXTERNAL REMOTE MOTOR SPEC SHEET 1

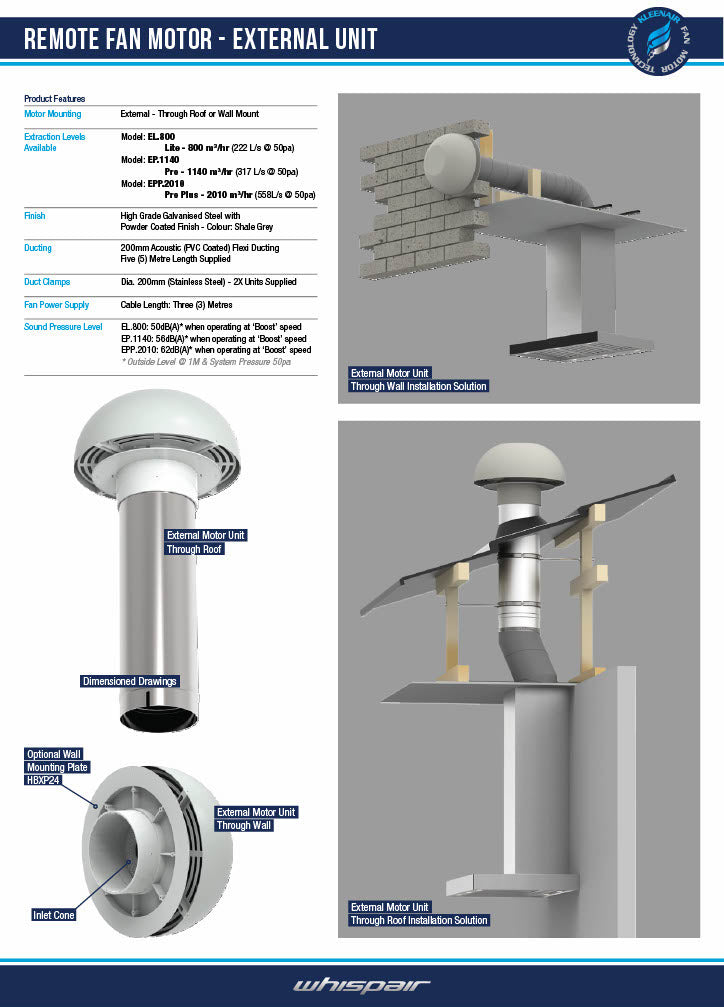

EXTERNAL REMOTE MOTOR SPEC SHEET 2

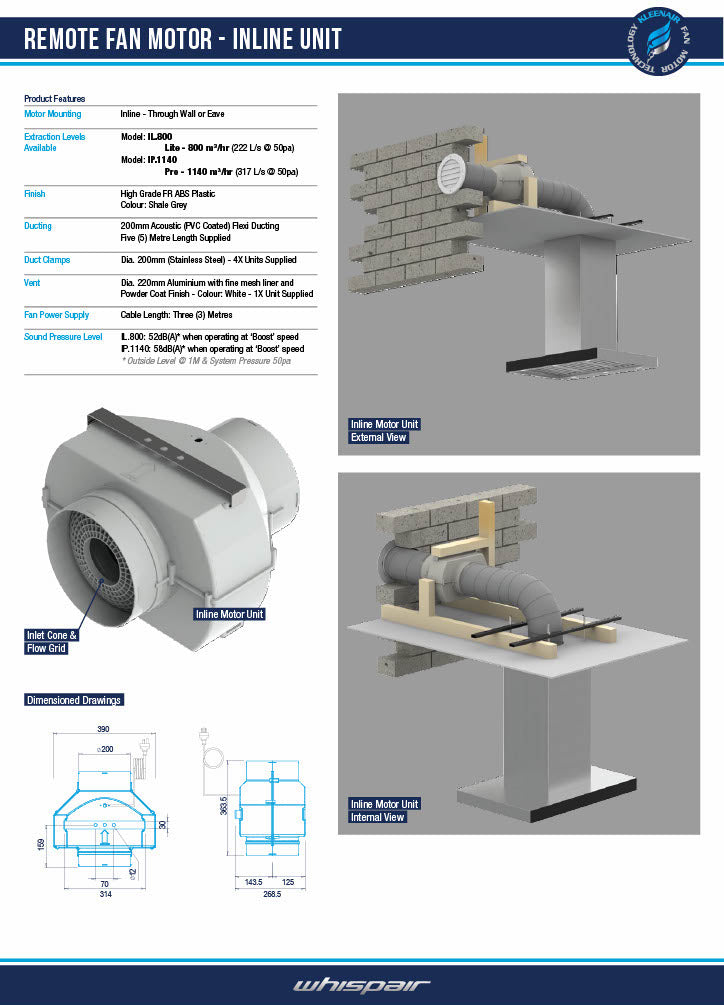

INLINE REMOTE MOTOR SPEC SHEET 1

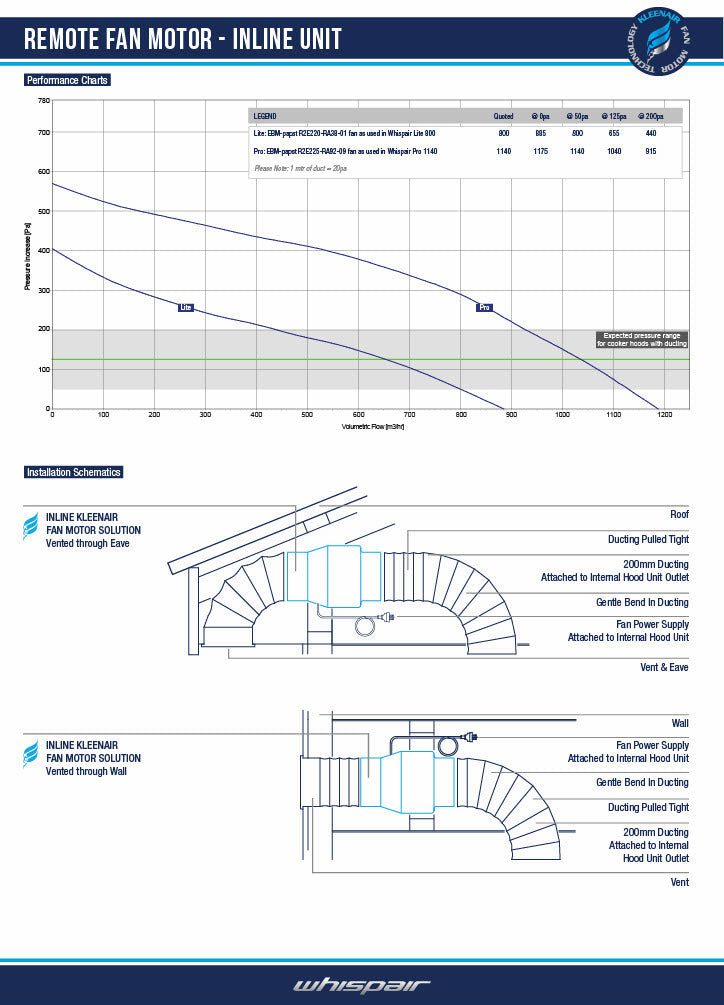

INLINE REMOTE MOTOR SPEC SHEET 2
