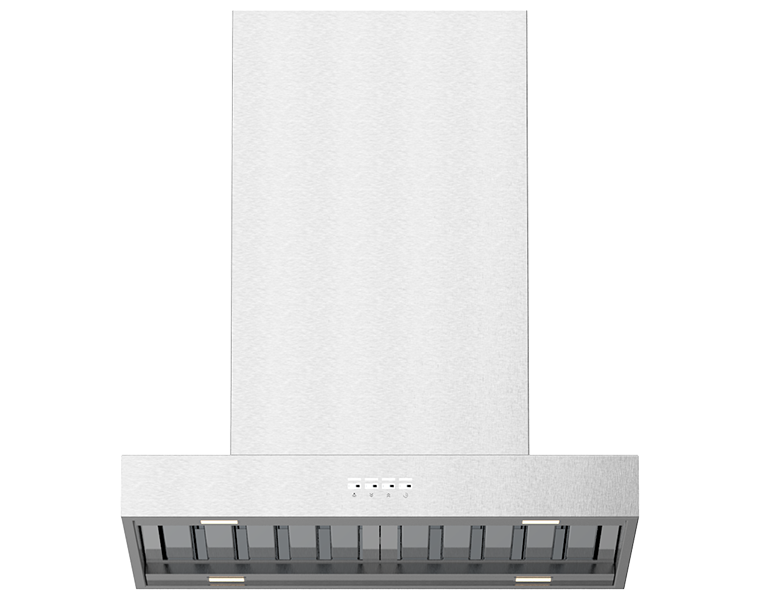

Whispair X5S06S5 Stockholm 60cm Wall Mounted Rangehood

Product Description

Stockholm 60 Wall Mounted

Model Number – X5S06S

• The Whispair Stockholm 90 wall canopy rangehood is ideal for cooking surfaces 75cm to 100cm in width. The ‘T-shape’ design features a 75mm high front fascia to give sleek aesthetic to your kitchen. Featuring Whispair’s exclusive S-Flow ‘commercial-grade’ baffle filtration system and LED lighting.

Product Specifications:

• Hood Mounting: Wall Hung (Canopy)
• Cooking Coverage: Suits 50cm – 70cm cooking surfaces
• Filtration: Baffle Filters 2x (H-25)
• Finish: AISI304 1.0mm High Grade Stainless Steel
• Controls: LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator
• Speed Settings: 3 Speed + Boost Mode
• Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
• Ducting (Remote)
• Hood Width: 600mm
• Hood Depth: 500mm
• Hood Height: 75mm Front Fascia

Sound Pressure Levels (Nominal):

Hood on Boost (Max) Speed Level

On Board Motor Solutions

• Power 1,020 Motor: 53.9dB(A)
• Ultra 1,680 Motor: 56.5dB(A)

Remote (External or Inline) Motor Solutions

• Lite 800 Motor: 39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
• Pro 1140 Motor: 49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
• Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)

Product Variations:

• X5S06S5.IL - Remote Motor – Inline - Lite 800m3/hr - Through Wall or Eave
• X5S06S5.EL - Remote Motor – External - Lite 800m3/hr - Through Roof or Wall
• X5S06S5.IP - Remote Motor – Inline Pro - 1140m3/hr - Through Wall or Eave
• X5S06S5.EP - Remote Motor – External - Pro 1140m3/hr - Through Roof or Wall
• X5S06S5.EPP - Remote Motor – External - Pro Plus 2010m3/hr - Through Roof or Wall
• X5S06S5.OP/T - On Board - Power 1020m3/hr - Top Ducted
• X5S06S5.OP/B - On Board - Power 1020m3/hr - Rear Ducted
• X5S06S6.OU/T - On Board - Ultra 1680m3/hr - Top Ducted
• X5S06S6.OU/B - On Board - Ultra 1680m3/hr - Rear Ducted

For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

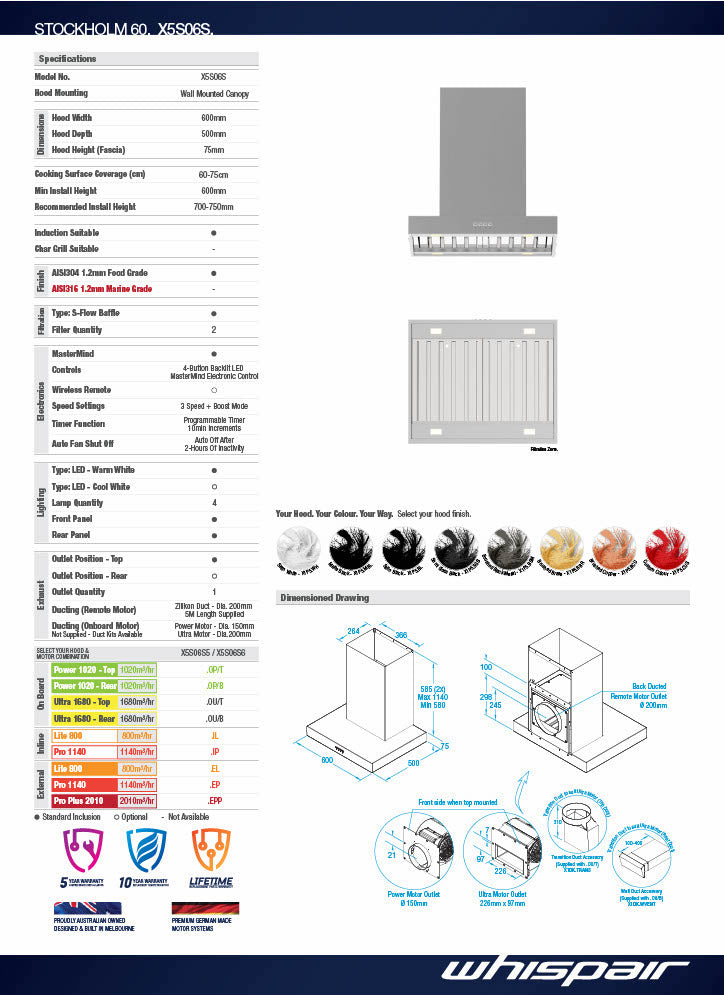

SPECIFICATIONS SHEET

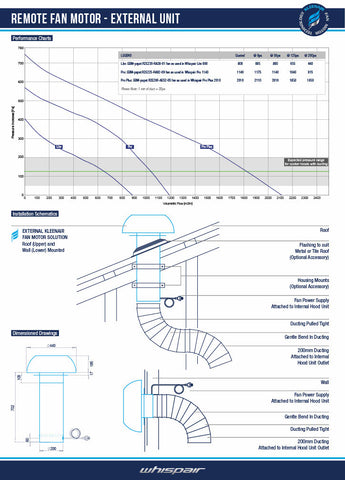

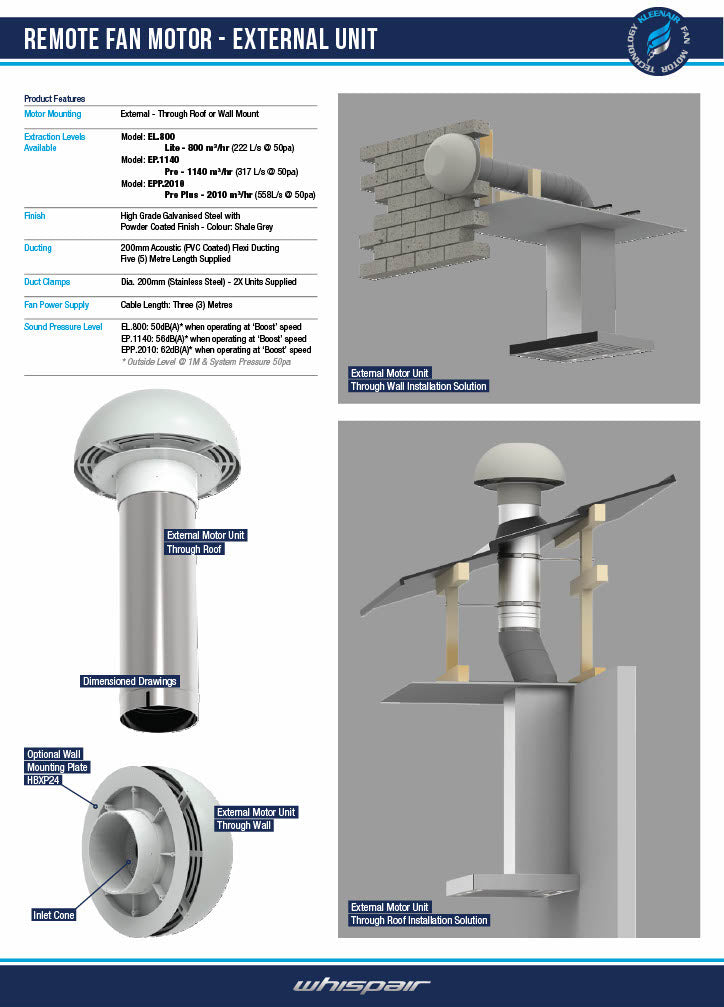

EXTERNAL REMOTE MOTOR SPEC SHEET 1
EXTERNAL REMOTE MOTOR SPEC SHEET 2

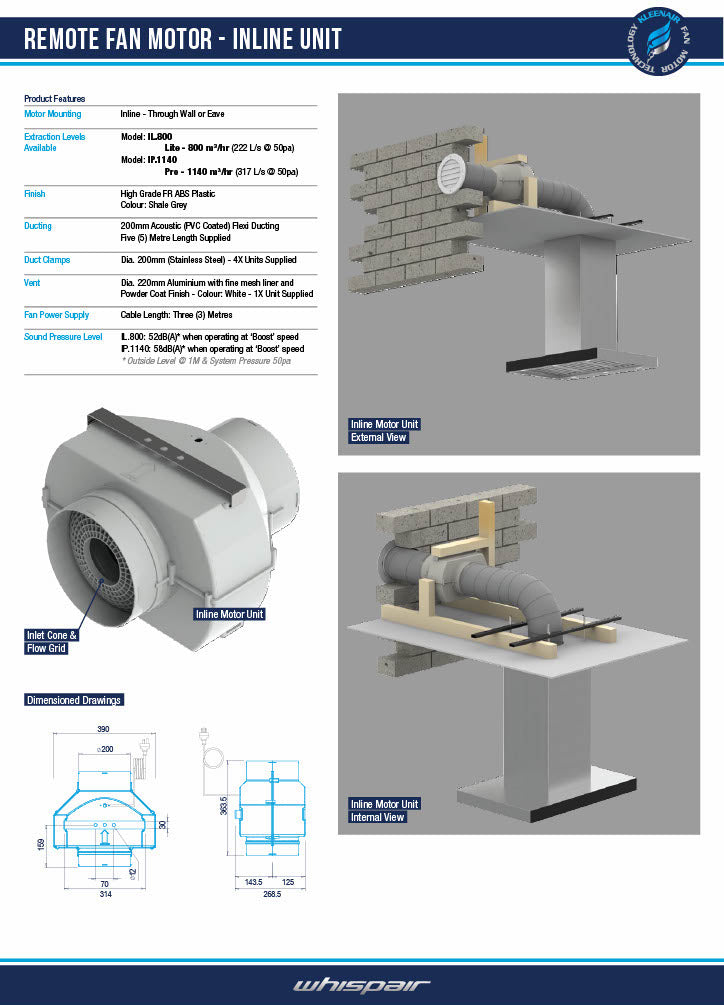

INLINE REMOTE MOTOR SPEC SHEET 1

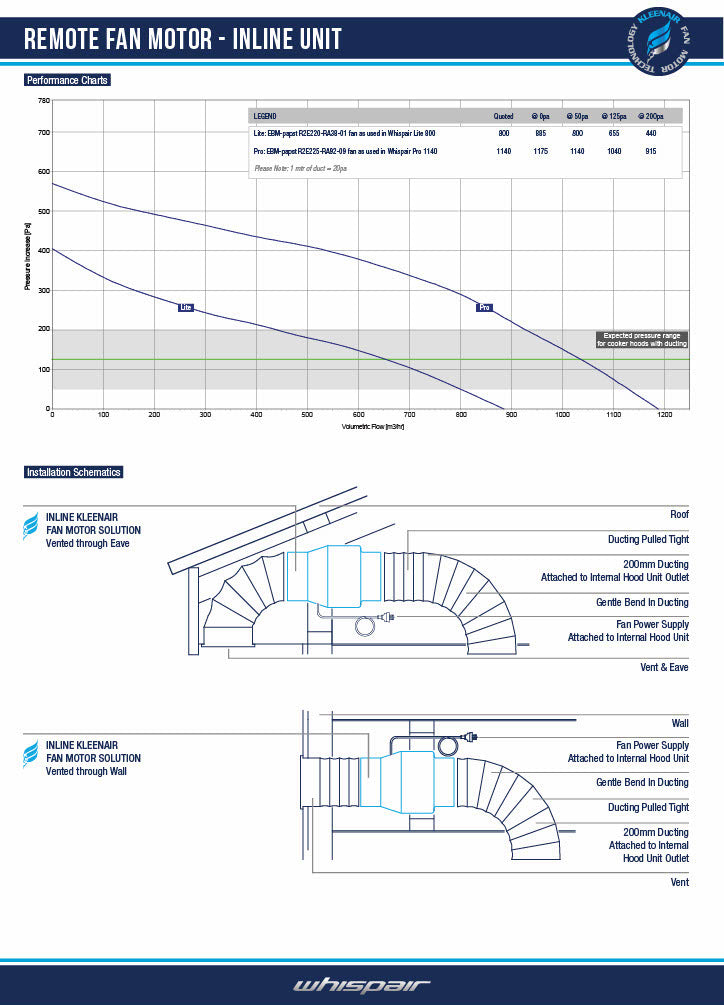

INLINE REMOTE MOTOR SPEC SHEET 2
