Whispair X3W16S5 Washington 160cm Alfresco BBQ Undermount Rangehood

$5,480.00 Regular price $5,880.00
free delivery australia wide!
Want to know more about this product?

Please email or call us on 9336 2288 to get in touch with our showroom for more information

Product Description

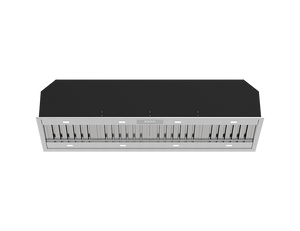

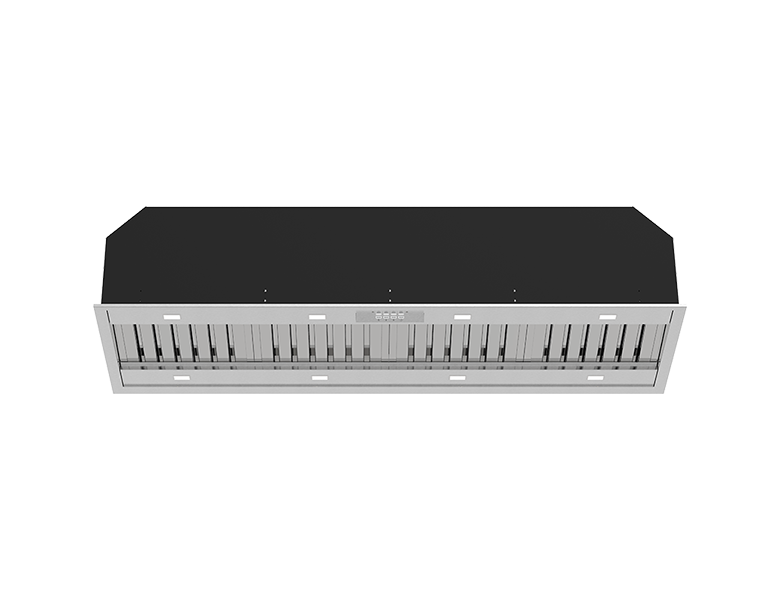

Washington 160 Undermount Alfresco

Model Number – X3W16S

  • The Whispair Washington 160 alfresco (BBQ) undermount rangehood is designed for use over a BBQ and is ideal for cooking surfaces 120cm to 170cm in width. Designed to fit in a deeper (500mm) overhead cupboard or bulkhead. Offering additional front-to-rear coverage for use over a BBQ. The Washington 160 Super Deep boosts a ‘twin’ motor configurations which see the undermount chassis partnered with two remote motor systems that extract independently through two separate duct outlets. All Whispair alfresco (BBQ) hoods AISI316 ‘marine-grade’ stainless steel which will ensure even in coastal conditions your hood will stand the test of time.

Product Specifications:

  • Hood Mounting: Built In (BBQ Under Mount)
  • Cooking Coverage: Suits 120cm – 160cm cooking surfaces
  • Filtration: Baffle Filters 4x (H-25)
  • Finish: AISI316 1.2mm High Grade Stainless Steel
  • Controls: LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator
  • Speed Settings: 3 Speed + Boost Mode
  • Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
  • Ducting: 200mm Acoustic Flexi Ducting – Five (5) Metre Length Supplied
  • Hood Width: 1560mm
  • Hood Depth: 480mm
  • Hood Height: 330mm (plus 25mm Top Outlet)

Sound Pressure Levels (Nominal):

Hood on Boost (Max) Speed Level

On Board Motor Solutions

  • Power 1,020 Motor: 53.9dB(A)
  • Ultra 1,680 Motor: 56.5dB(A)

Remote (External or Inline) Motor Solutions

  • Lite 800 Motor: 39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
  • Pro 1140 Motor: 49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
  • Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)

Product Variations:

  • X3W16S5.2IP - "Twin" Remote Motor – Inline - "Twin" Pro 1140m3/hr - Through Wall or Eave
  • X3W16S5.2EP - "Twin" Remote Motor – External - "Twin" Pro 1140m3/hr - Through Roof or Wall
  • X3W16S5.2EPP - "Twin" Remote Motor – External - "Twin" Pro Plus 2010m3/hr - Through Roof or Wall

For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

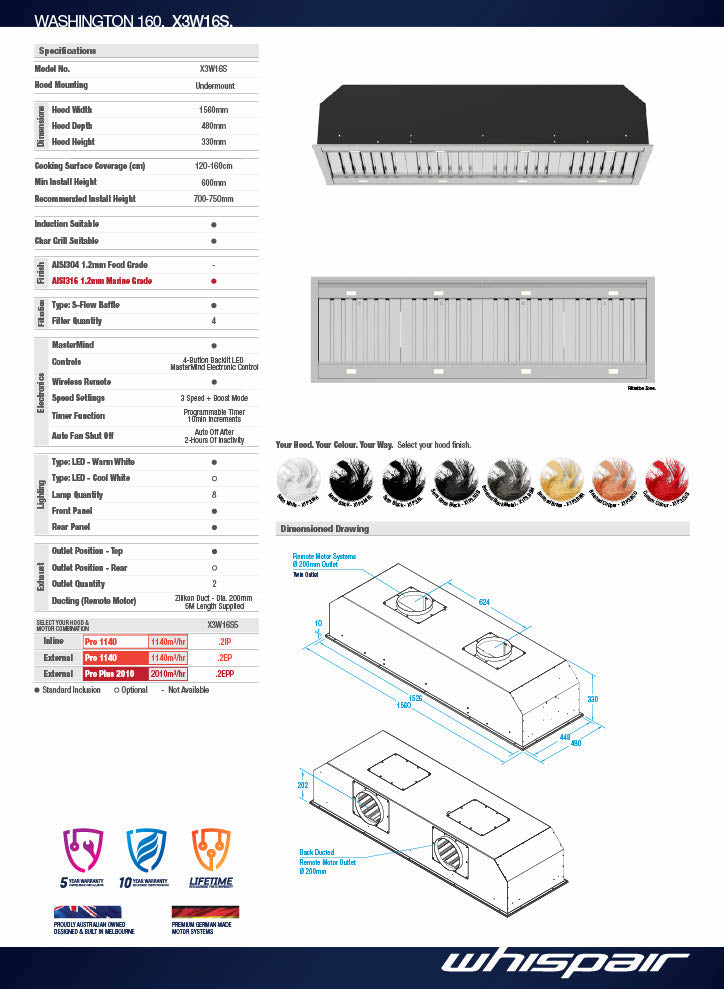

SPECIFICATIONS SHEET

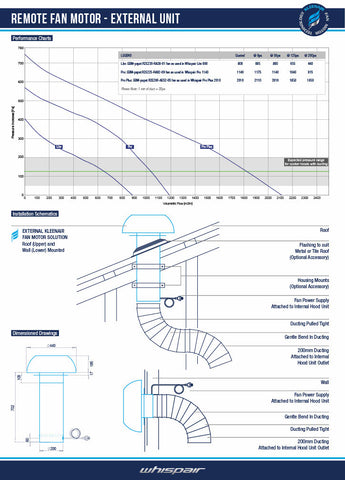

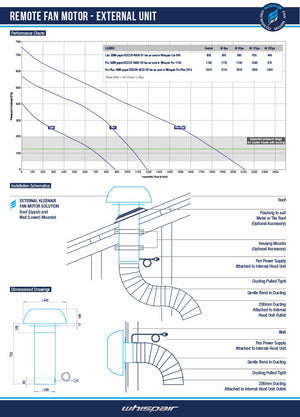

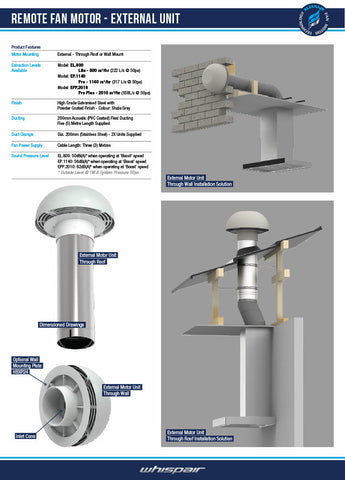

EXTERNAL REMOTE MOTOR SPEC SHEET 1
EXTERNAL REMOTE MOTOR SPEC SHEET 2

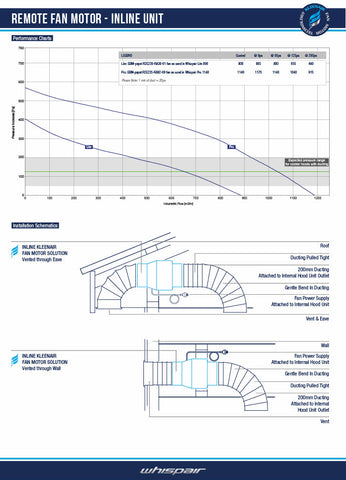

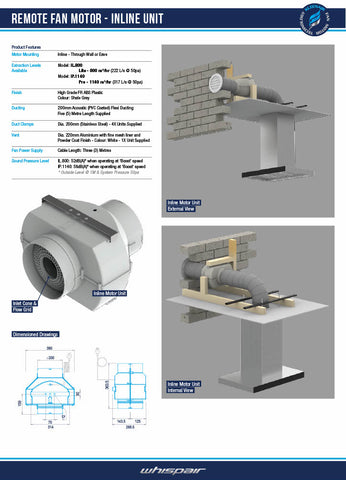

INLINE REMOTE MOTOR SPEC SHEET 1
INLINE REMOTE MOTOR SPEC SHEET 2
