Product Description

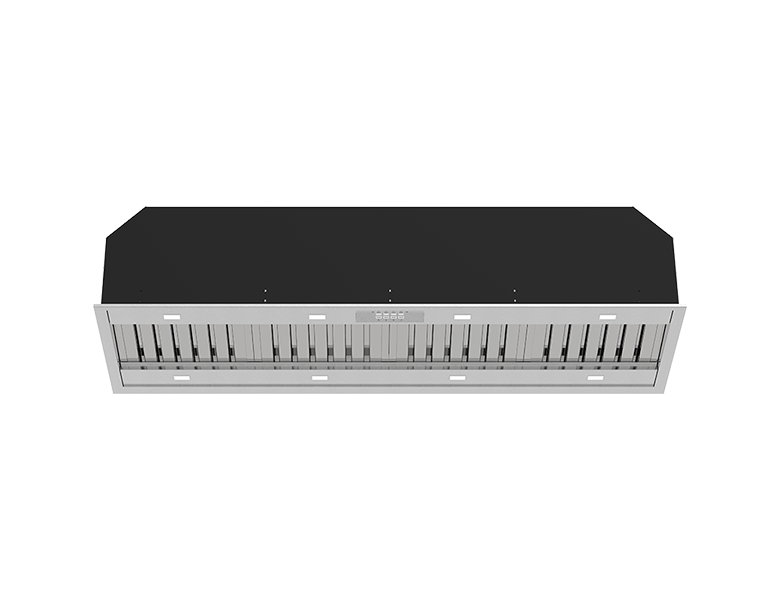

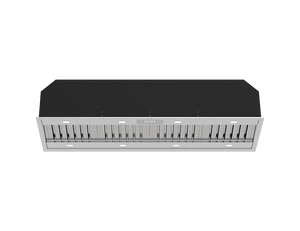

Monte Carlo 160 Mega Deep Undermount
Model Number – X3MM16S
- The Whispair Monte Carlo 160 Mega Deep undermount rangehood is ideal for cooking surfaces 120cm to 170cm in width. Designed to fit in a deeper (500mm) overhead cupboard or bulkhead. Offering additional front-to-rear coverage for those with deep cookers or cooking surfaces with high-powered burners positioned toward the front of the cooktop. The Monte Carlo 160 Super Deep boasts a ‘twin’ motor configuration which see the undermount chassis partnered with two on board or two remote motor systems that extract independently through two separate duct outlets.
Product Specifications:
- Hood Mounting: Built In (Under Mount)
- Cooking Coverage: Suits 120cm – 160cm cooking surfaces

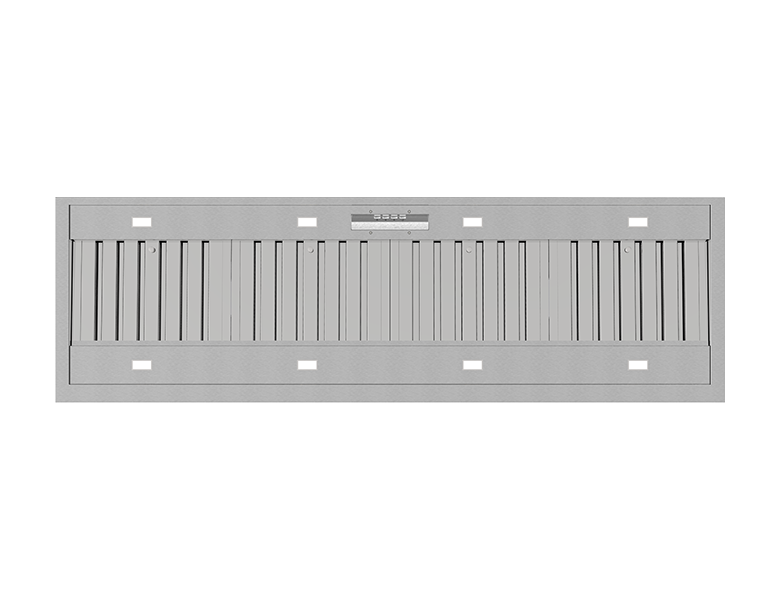

- Filtration: Baffle Filters 4x (H-25)
- Finish: AISI316 1.2mm Marine Grade Stainless Steel
- Controls: LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator
- Speed Settings: 3 Speed + Boost Mode
- Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
- Ducting (Remote): 200mm Acoustic Flexi Ducting – Five (5) Metre Length – 2x Supplied
- Hood Width: 1560mm
- Hood Depth: 480mm
- Hood Height: 330mm (plus 25mm Top Outlet)
Sound Pressure Levels (Nominal):
Hood on Boost (Max) Speed Level
On Board Motor Solutions
- Power 1,020 Motor: 53.9dB(A)
- Ultra 1,680 Motor: 56.5dB(A)
Remote (External or Inline) Motor Solutions
- Lite 800 Motor: 39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
- Pro 1140 Motor: 49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
- Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)
Product Variations:
- X3MM16S5.2IP - "Twin" Remote Motor – Inline - "Twin" Pro 1140m3/hr - Through Wall or Eave
- X3MM16S5.2EP - "Twin" Remote Motor – External - "Twin" Pro 1140m3/hr - Through Roof or Wall
- X3MM16S5.2EPP - "Twin" Remote Motor – External - "Twin" Pro Plus 2010m3/hr - Through Roof or Wall
- X3MM16S6.2OU/T - "Twin" On Board - "Twin" Ultra 1680m3/hr - Top Ducted
- X3MM16S6.2OU/B - "Twin" On Board - "Twin" Ultra 1680m3/hr - Rear Ducted
For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

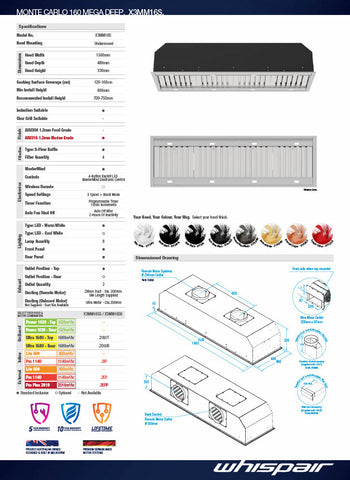

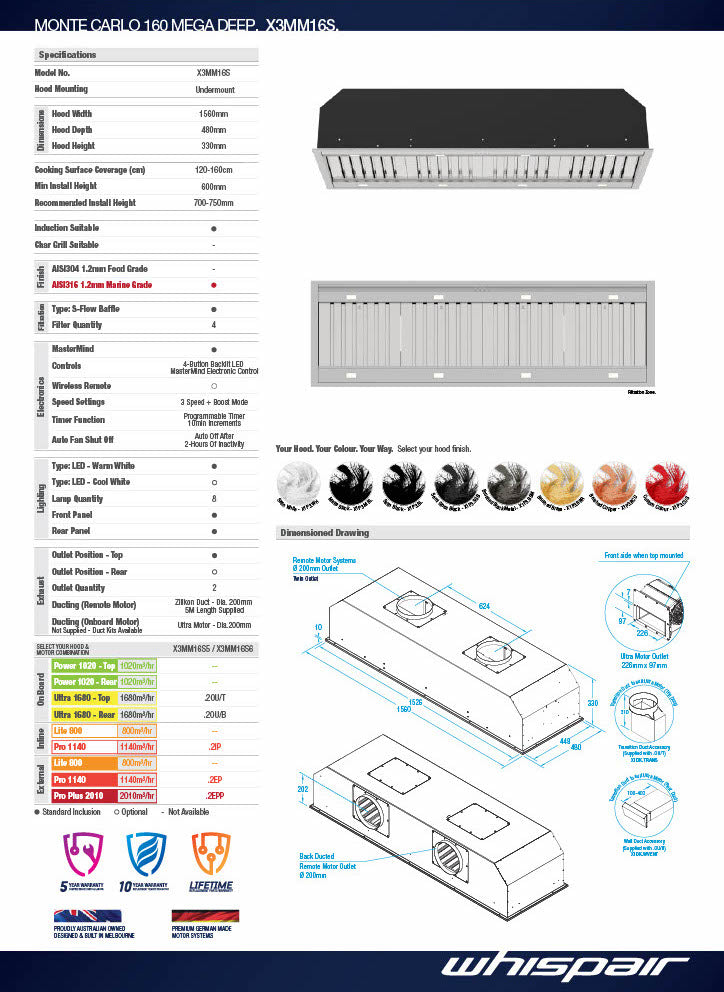

SPECIFICATIONS SHEET

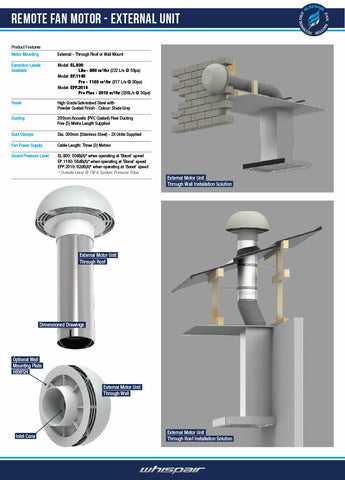

EXTERNAL REMOTE MOTOR SPEC SHEET 1

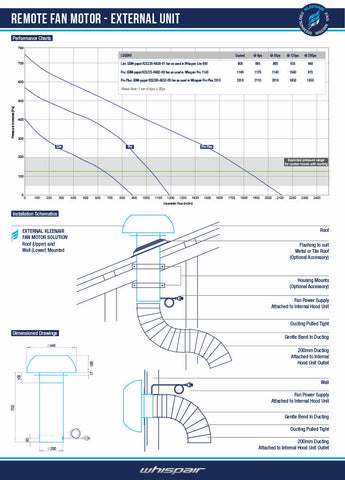

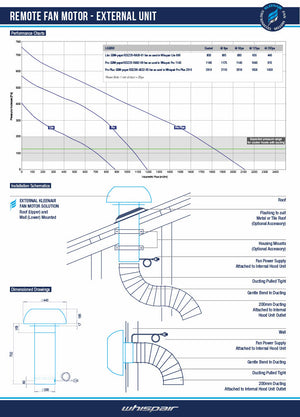

EXTERNAL REMOTE MOTOR SPEC SHEET 2

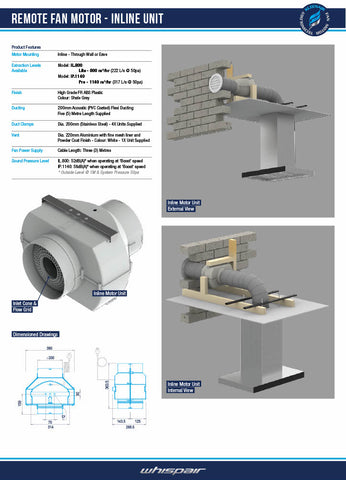

INLINE REMOTE MOTOR SPEC SHEET 1

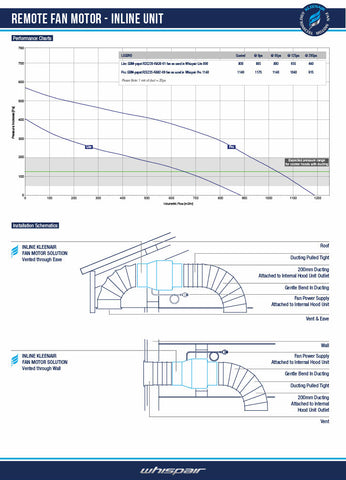

INLINE REMOTE MOTOR SPEC SHEET 2
