Whispair X3M12S5 Monte Carlo 120cm Undermount Rangehood

$2,790.00 Regular price
free delivery australia wide!
Want to know more about this product?

Please email or call us on 9336 2288 to get in touch with our showroom for more information

Product Description

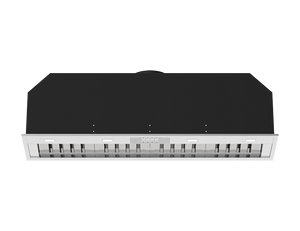

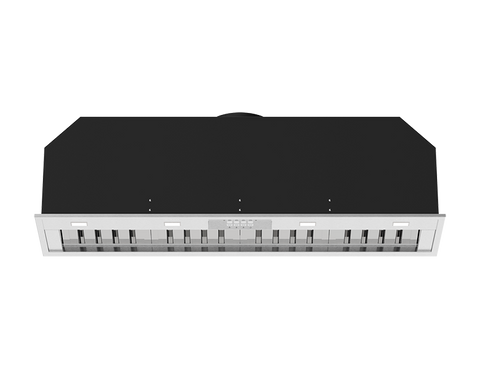

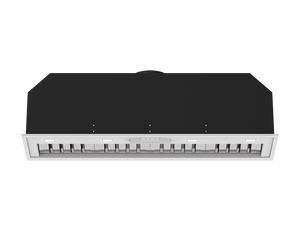

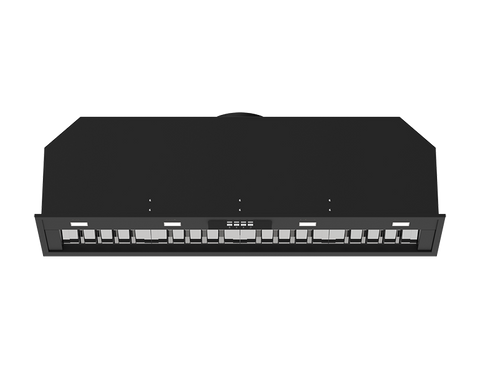

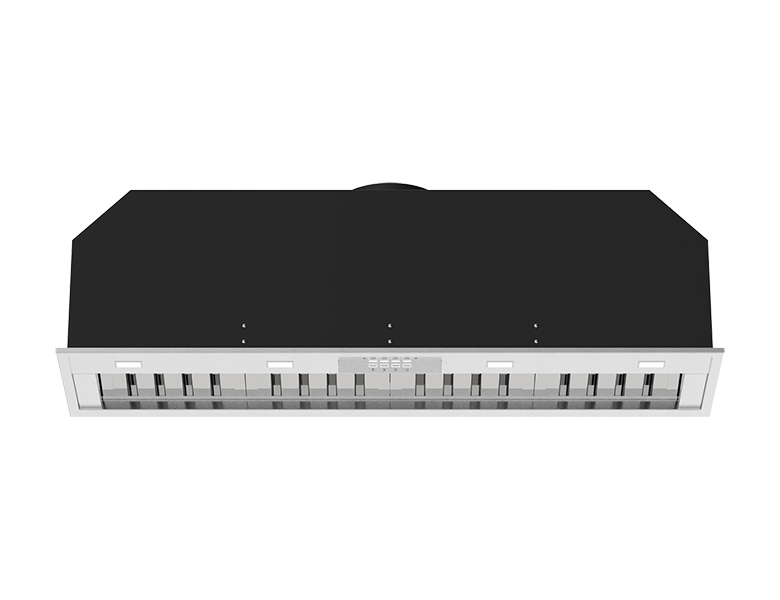

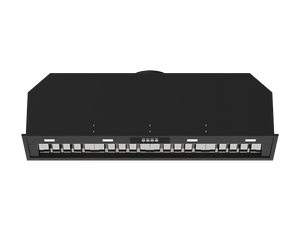

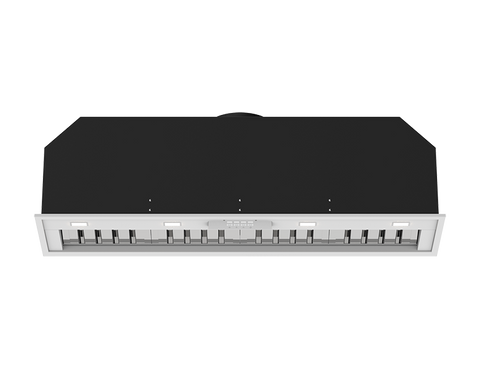

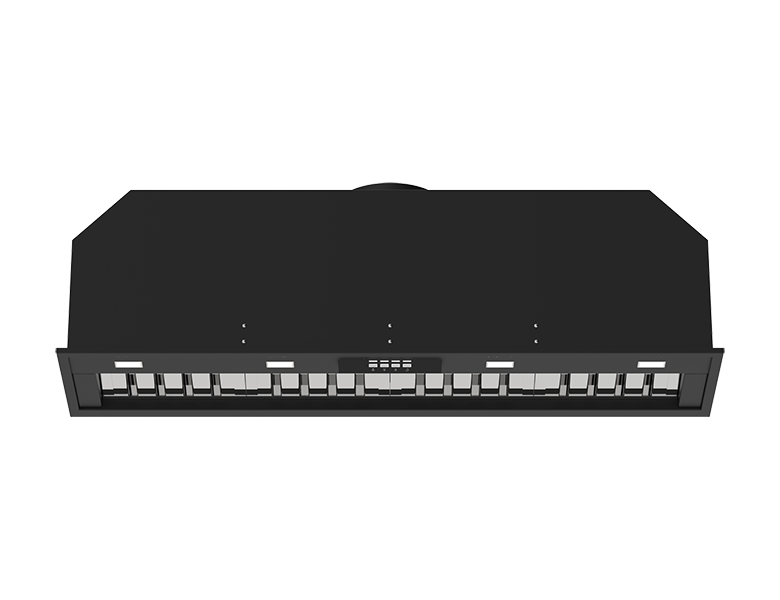

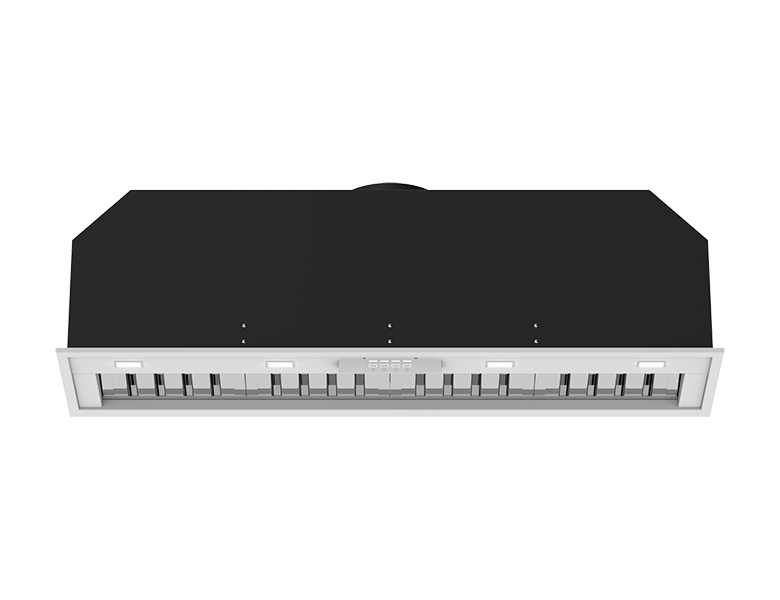

Monte Carlo 120 Undermount

Model Number – X3M12S

  • The Whispair Monte Carlo 120 undermount rangehood is ideal for cooking surfaces 100cm to 120cm in width. Designed to fit in an ‘Australian standard’ (1200mm wide x 300mm Deep) overhead cupboard. With Whispair?s hallmark innovation and design, the ingenious remote motor technology combines S-Flow baffle filtration to create a revolutionary design in terms of aesthetics, performance and efficiency.

Product Specifications:

  • Hood Mounting: Built In (Under Mount)
  • Cooking Coverage: Suits 100cm – 120cm cooking surfaces

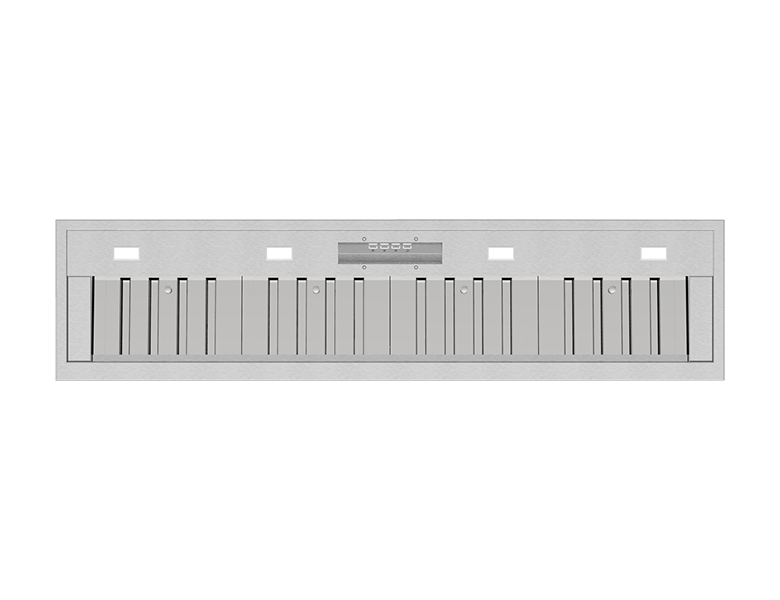

  • Filtration: Baffle Filters 4x (H-25)
  • Finish: AISI304 1.2mm High Grade Stainless Steel
  • Controls: LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator
  • Speed Settings: 3 Speed + Boost Mode
  • Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
  • Ducting (Remote)
  • Hood Width: 1160mm
  • Hood Depth: 280mm
  • Hood Height: 330mm (plus 25mm Top Outlet)

Sound Pressure Levels (Nominal):

Hood on Boost (Max) Speed Level

On Board Motor Solutions

  • Power 1,020 Motor: 53.9dB(A)
  • Ultra 1,680 Motor: 56.5dB(A)

Remote (External or Inline) Motor Solutions

  • Lite 800 Motor: 39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
  • Pro 1140 Motor: 49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
  • Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)

Product Variations:

  • X3M12S5.IP - Remote Motor – Inline Pro 1140m3/hr - Through Wall or Eave
  • X3M12S5.EP - Remote Motor – External Pro 1140m3/hr - Through Roof or Wall
  • X3M12S5.EPP - Remote Motor – External Pro Plus 2010m3/hr - Through Roof or Wall
  • X3M12S5.OP/T - On Board - Power 1020m3/hr - Top Ducted
  • X3M12S5.OP/B - On Board - Power 1020m3/hr - Rear Ducted
  • X3M12S6.OU/T - On Board - Ultra 1680m3/hr - Top Ducted
  • X3M12S6.OU/B - On Board - Ultra 1680m3/hr - Rear Ducted

For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

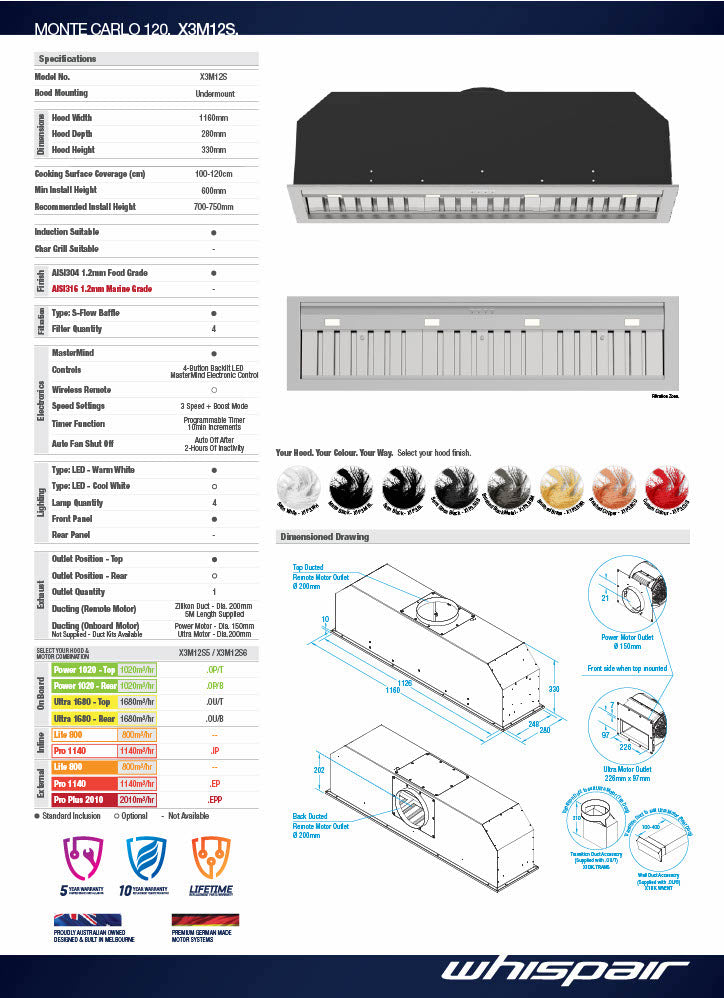

SPECIFICATIONS SHEET

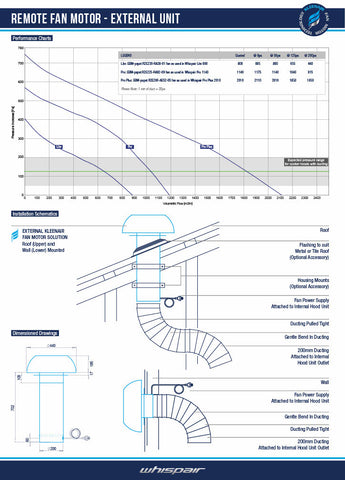

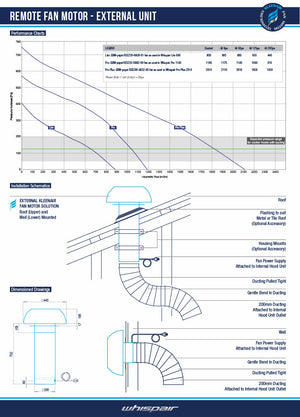

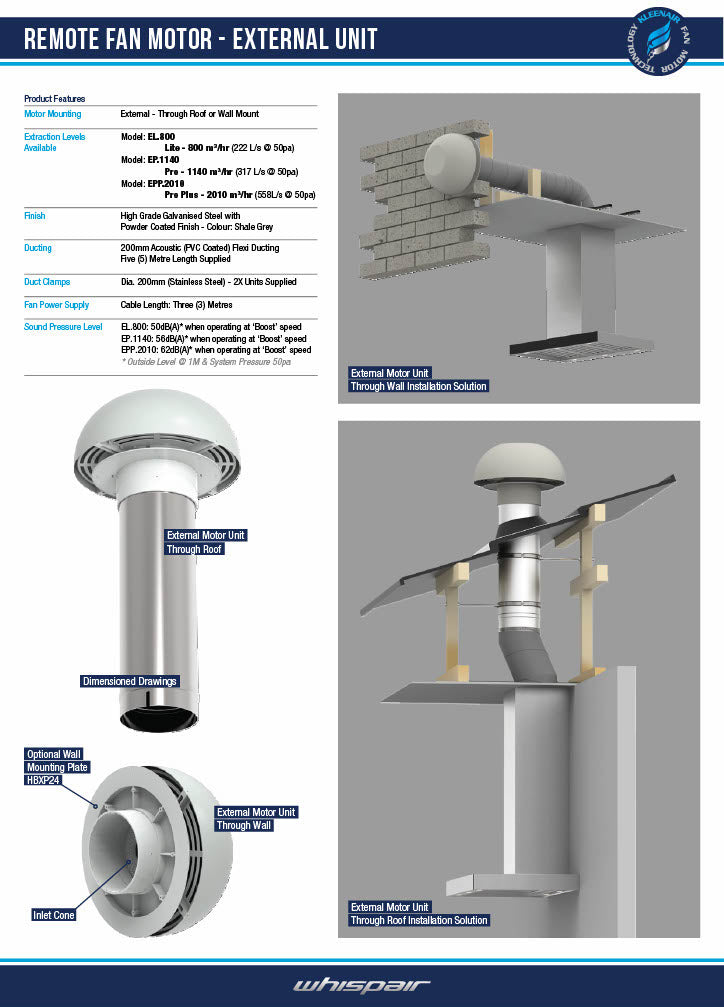

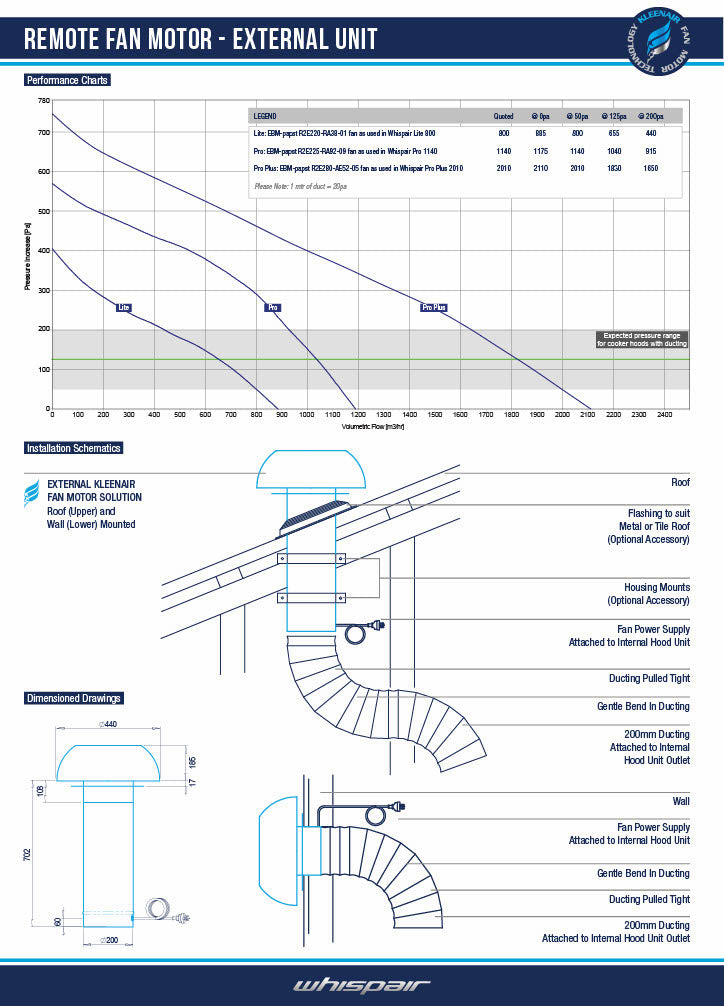

EXTERNAL REMOTE MOTOR SPEC SHEET 1
EXTERNAL REMOTE MOTOR SPEC SHEET 2

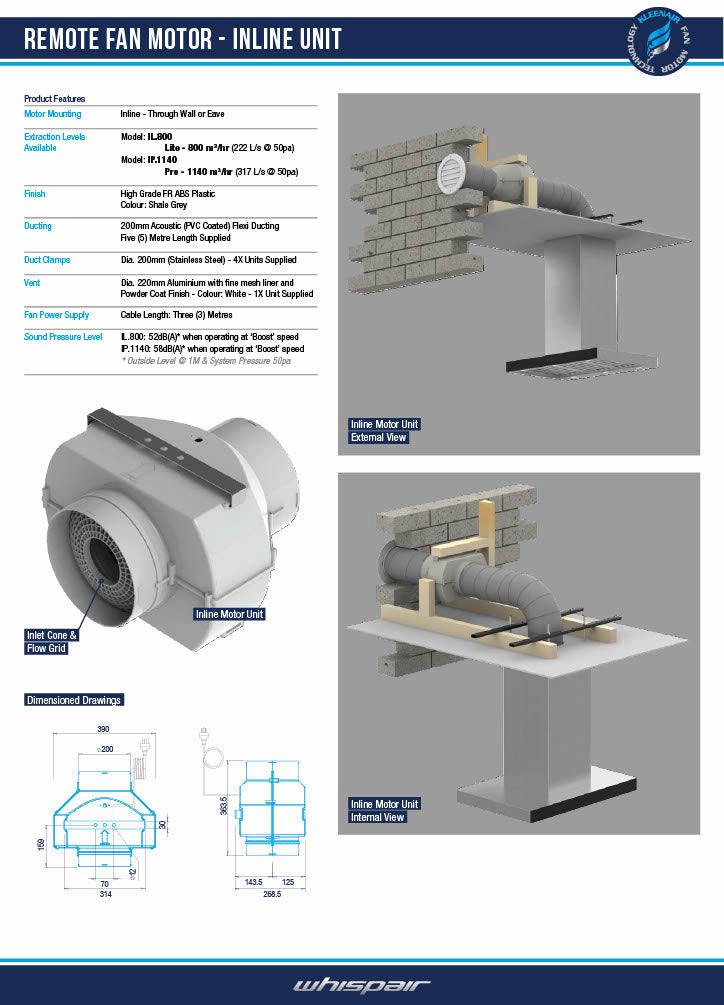

INLINE REMOTE MOTOR SPEC SHEET 1

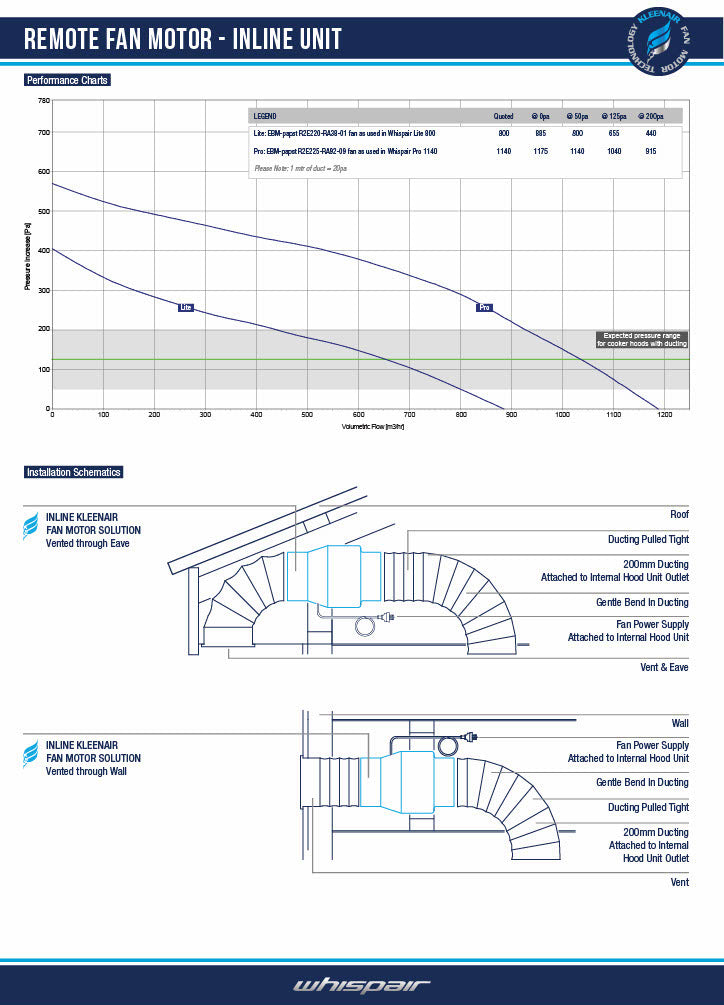

INLINE REMOTE MOTOR SPEC SHEET 2
