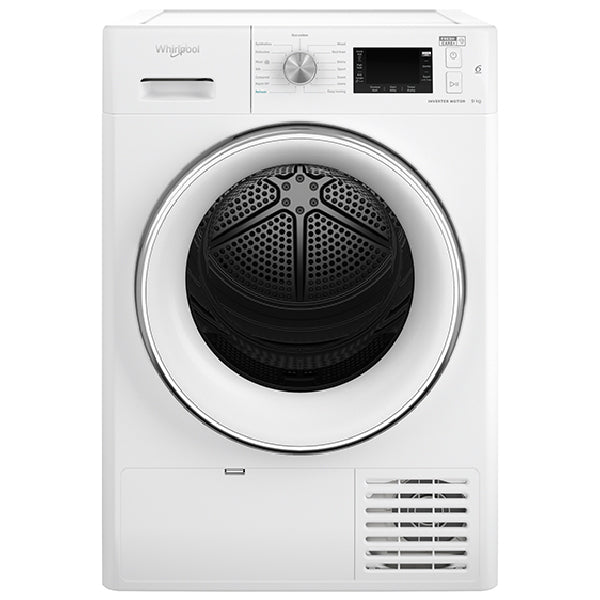

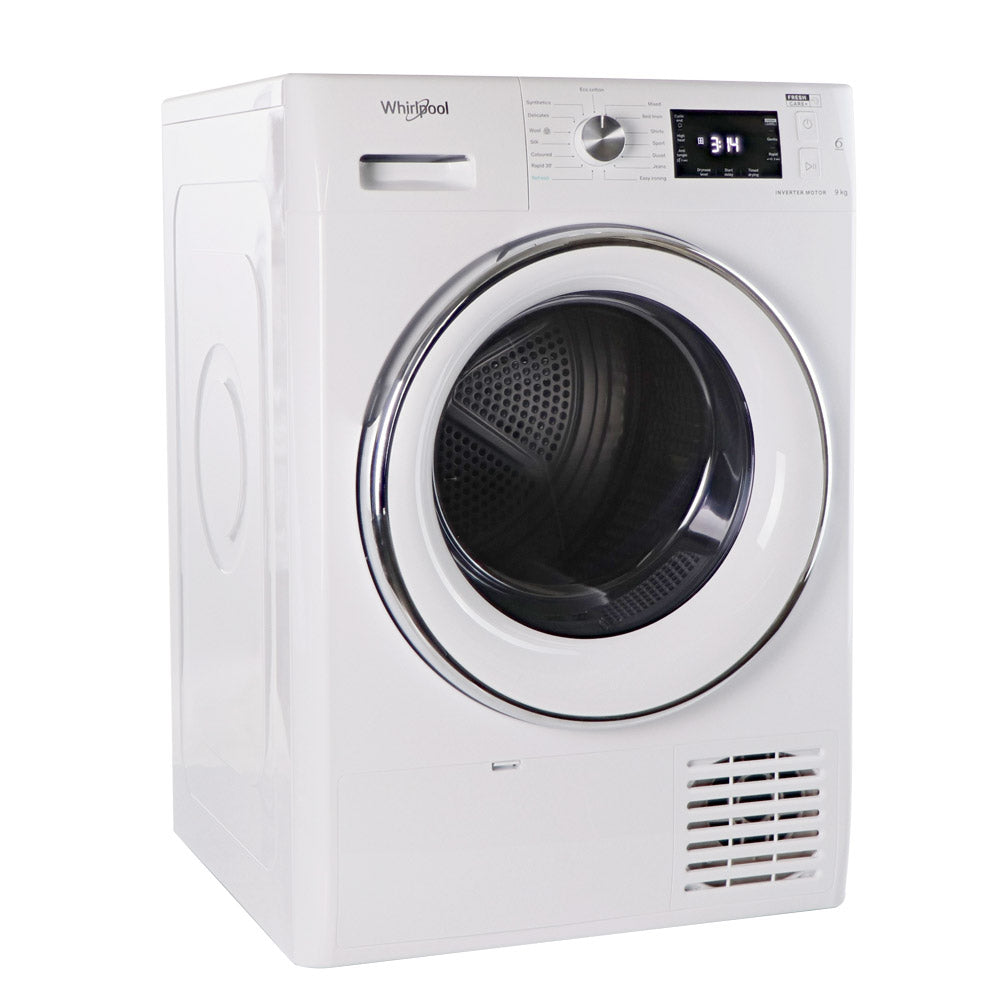

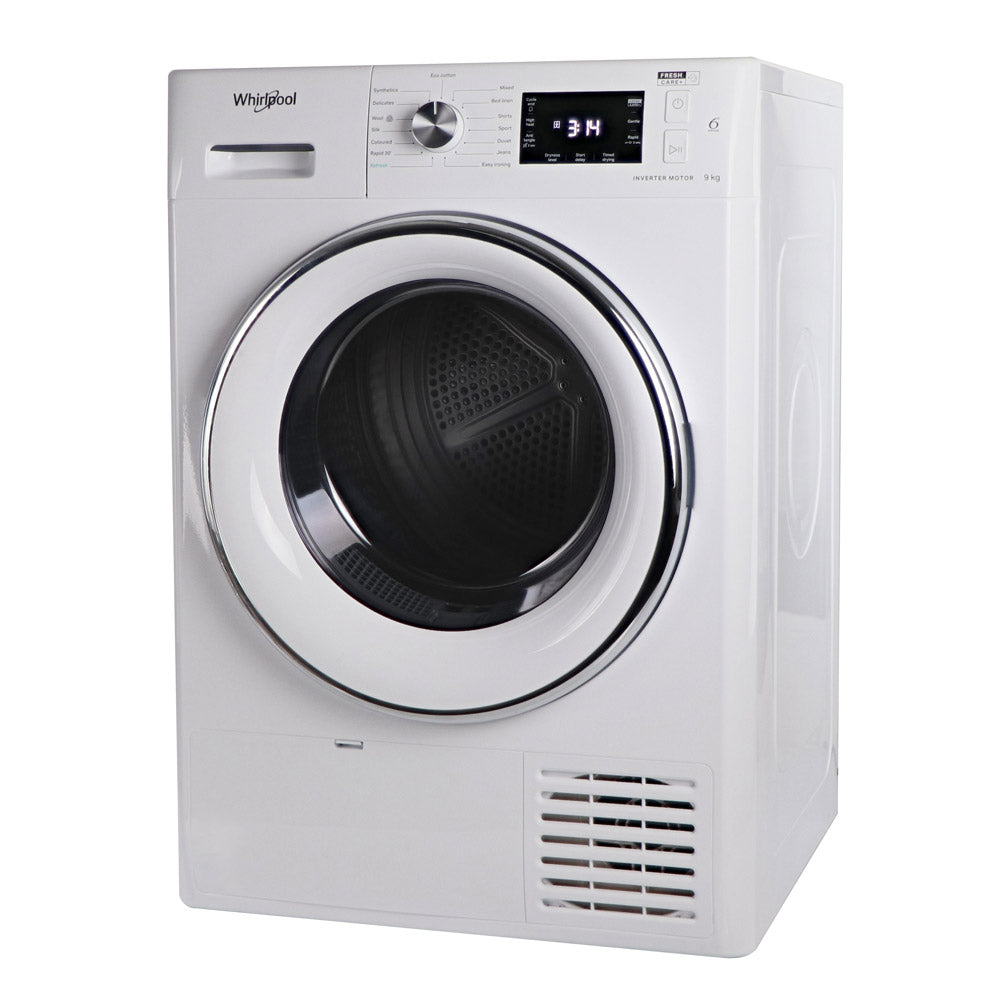

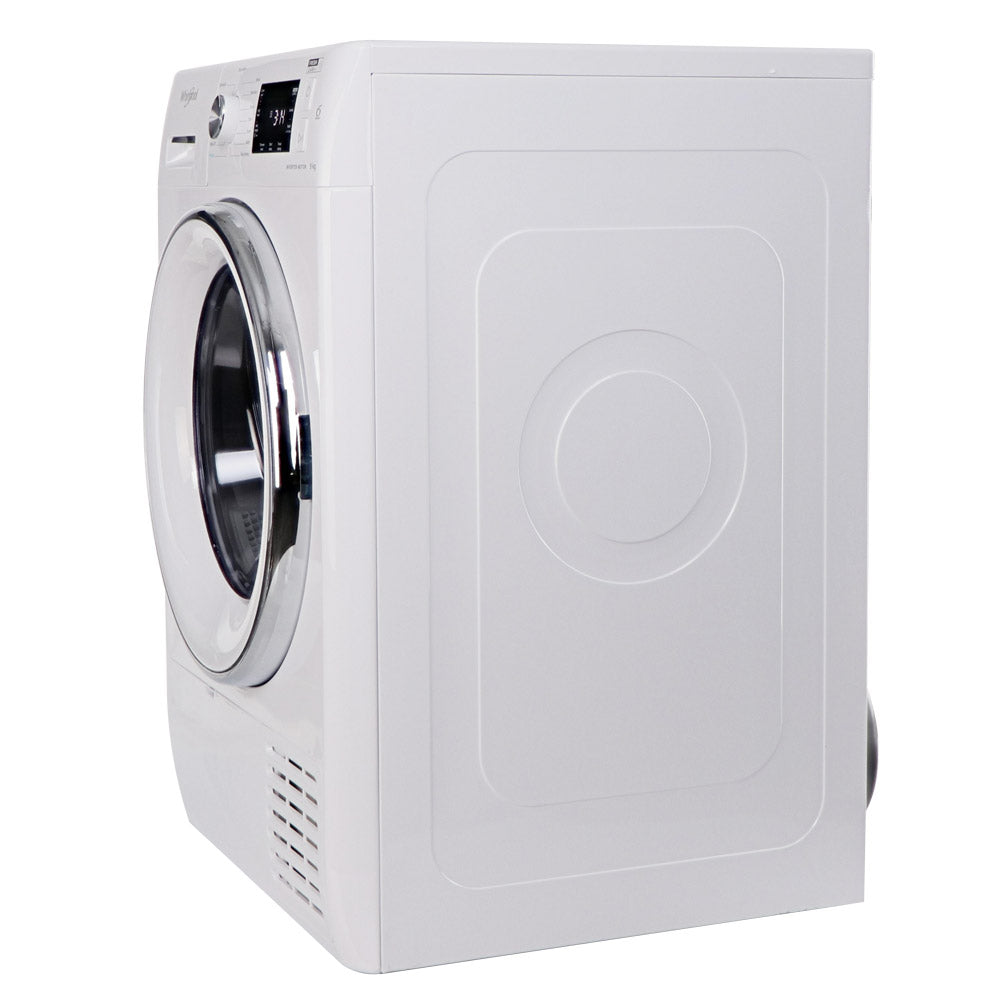

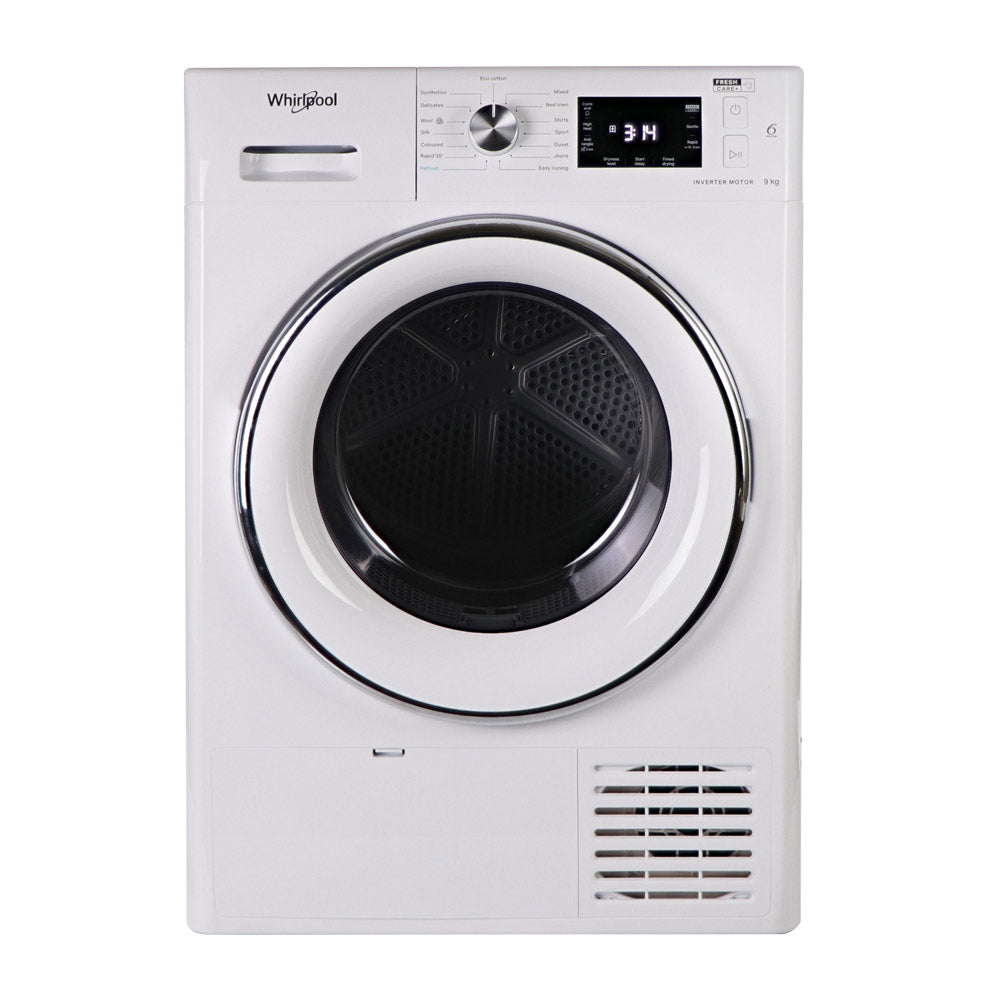

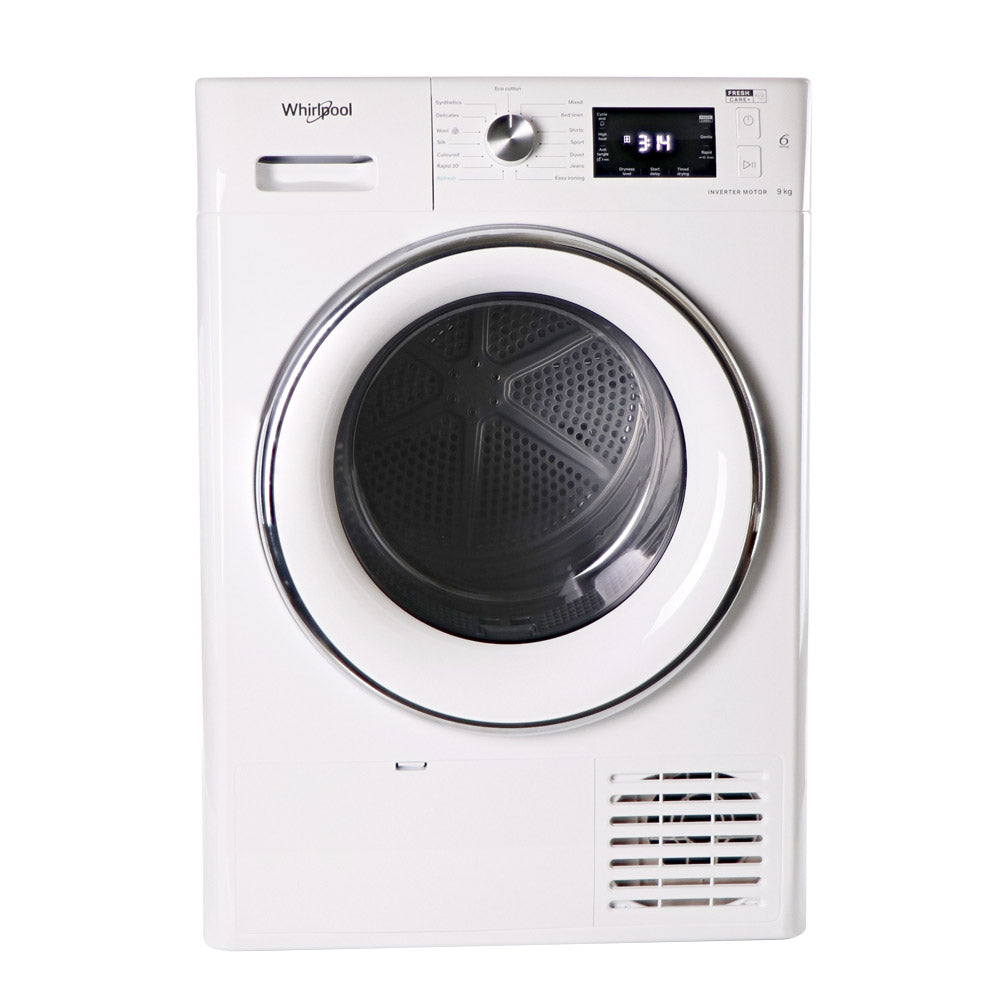

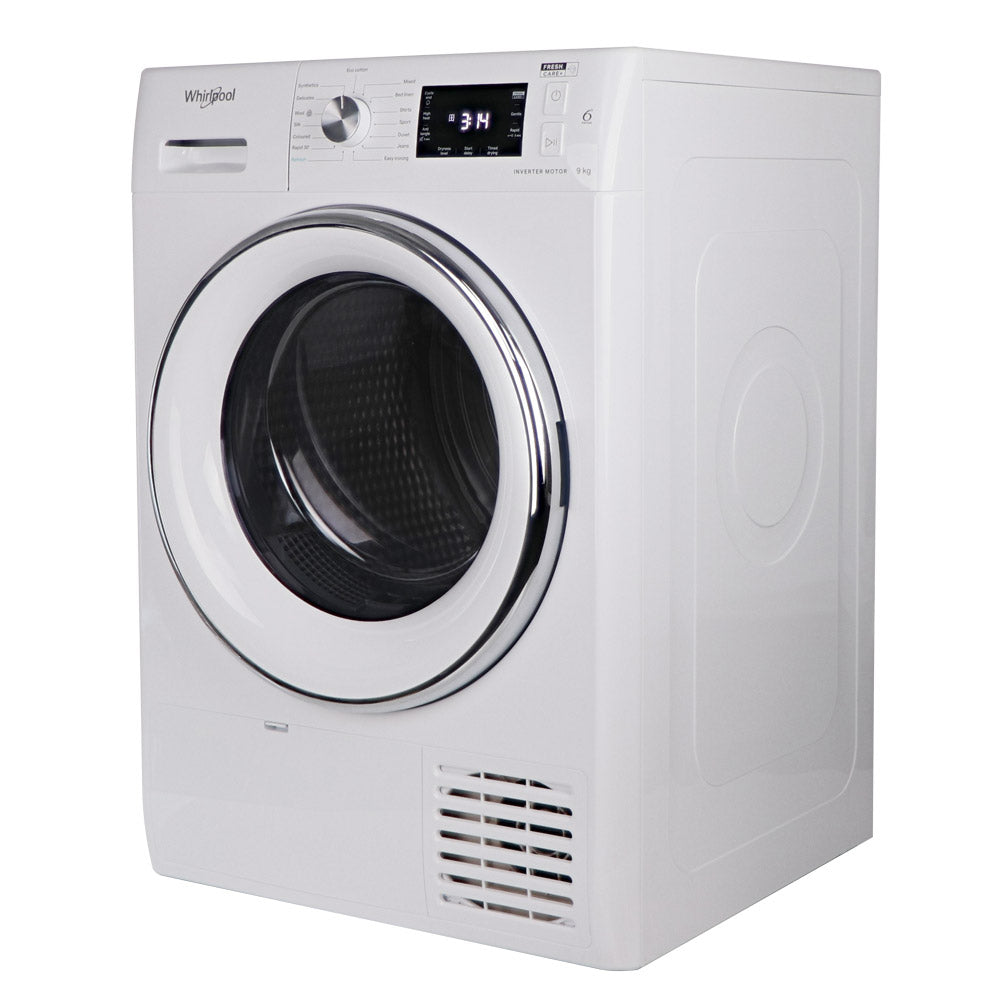

Whirlpool WHP80250 9Kg 6th SENSE HeatPump Dryer

• 6th SENSE Technology: recognises the amount of laundry in the drum and sets the right drying time accordingly. Matching the cycle to the load optimises energy use and avoids running longer than needed.
• FreshCare+: if garments are left in the drum after the cycle, the dryer controls temperature and drum rotation for up to 6 hours to prevent bacterial build-up, odours and creasing. Laundry can be unloaded when it suits rather than the moment the cycle ends.
• Woolmark Blue certification: the wool cycle is approved by The Woolmark Company for drying wool garments labelled hand wash, provided they are dried according to Whirlpool's instructions. Fine knitwear stays soft and smooth without being left to dry flat.
• Steam Refresh: a dedicated 20-minute cycle sends a flow of fresh air through the fibres to remove unpleasant smells, relax fibres and smooth creases. Garments that are not dirty can be freshened and worn again without an unnecessary wash.
• 8 Star heat pump efficiency: the heat pump system achieves an 8 Star energy rating with a registered energy consumption of 152 kWh per year, keeping running costs low for frequent drying.
• Four dryness levels: Iron dry, Hanger dry, Cupboard dry and Extra dry set the residual moisture left in the garments, from slightly damp for easier ironing through to ready to wear.

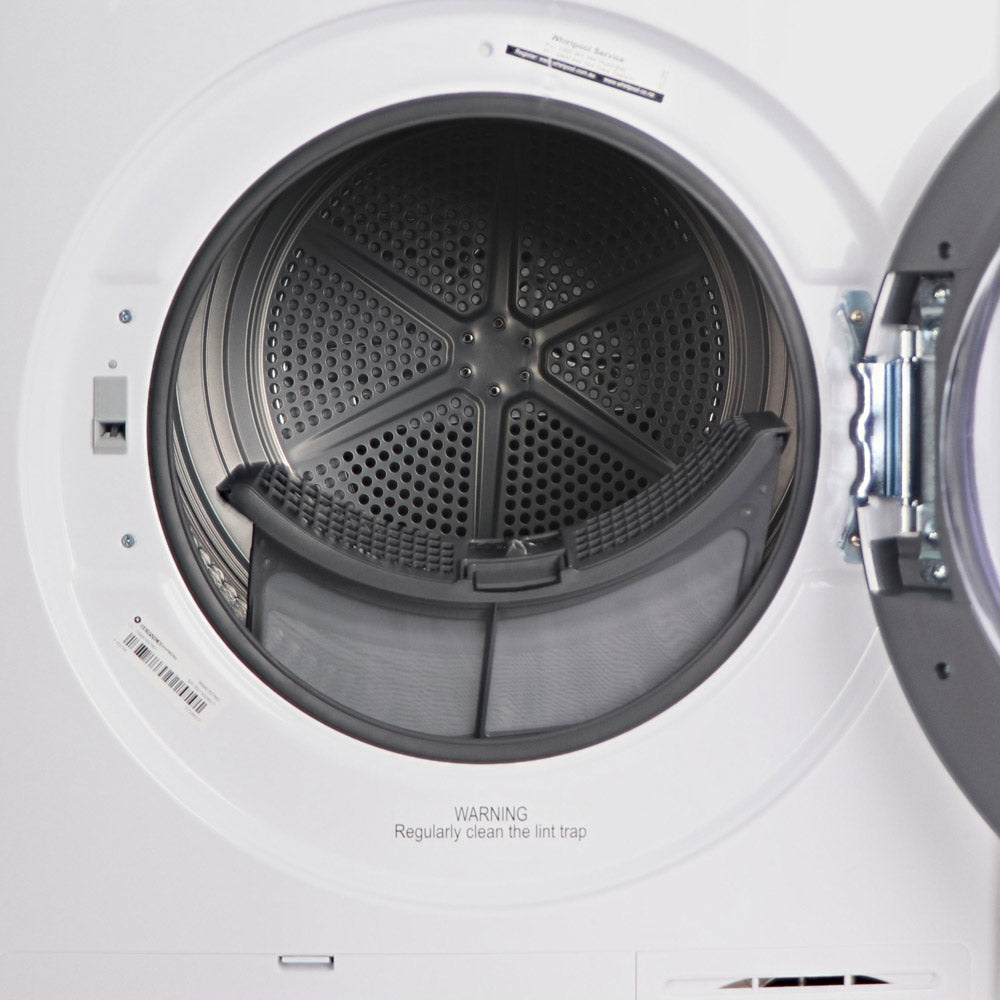

• Easy-access filtration: a door filter and a bottom filter behind the lower door collect lint during drying, and the bottom filter lifts out by its handle for rinsing. A display indicator signals when the filters need cleaning.
• Anti tangle: modifies the drum movement to give a tumbling action that reduces tangling and knotting of clothes, with best results on smaller loads.
• Timed drying and start delay: set a fixed drying time for individual items, or delay the start so the cycle finishes at a more convenient time.
• Key lock: a long press makes every control except the On/Off button inaccessible, preventing settings from being changed mid-cycle by curious children.

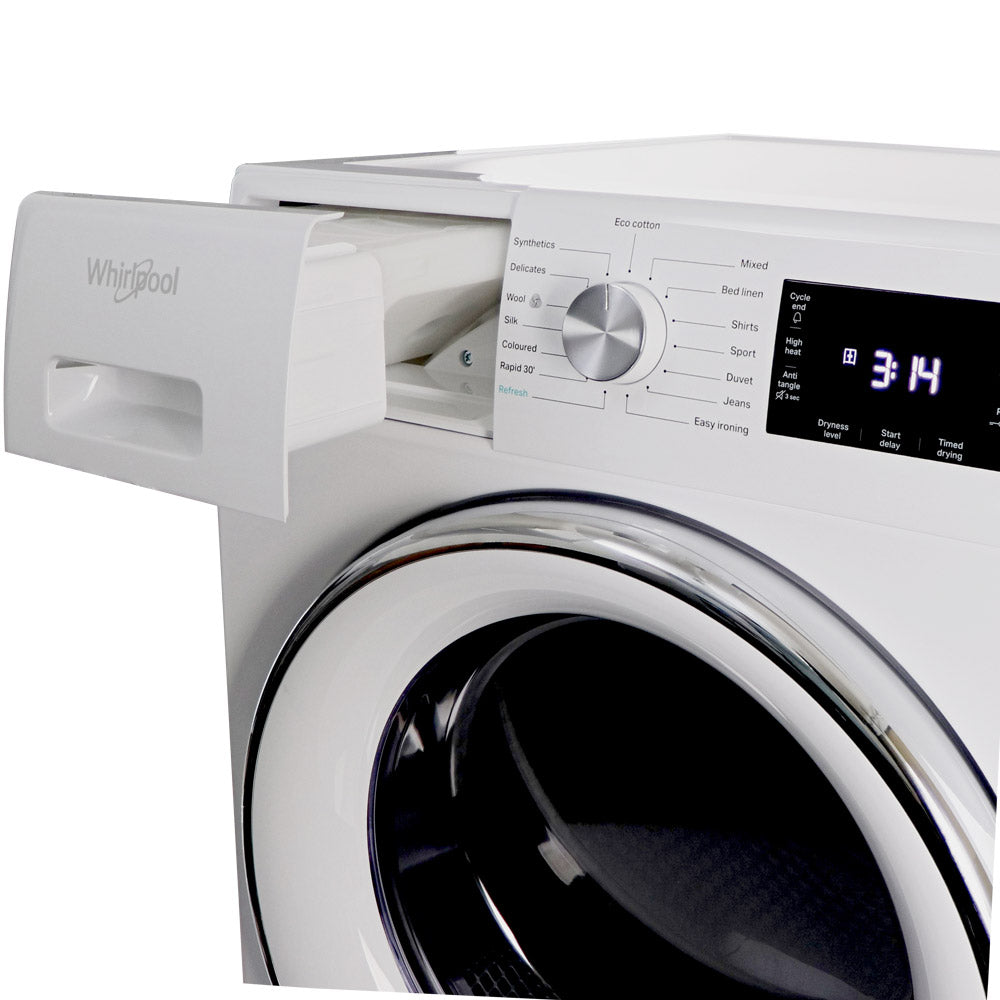

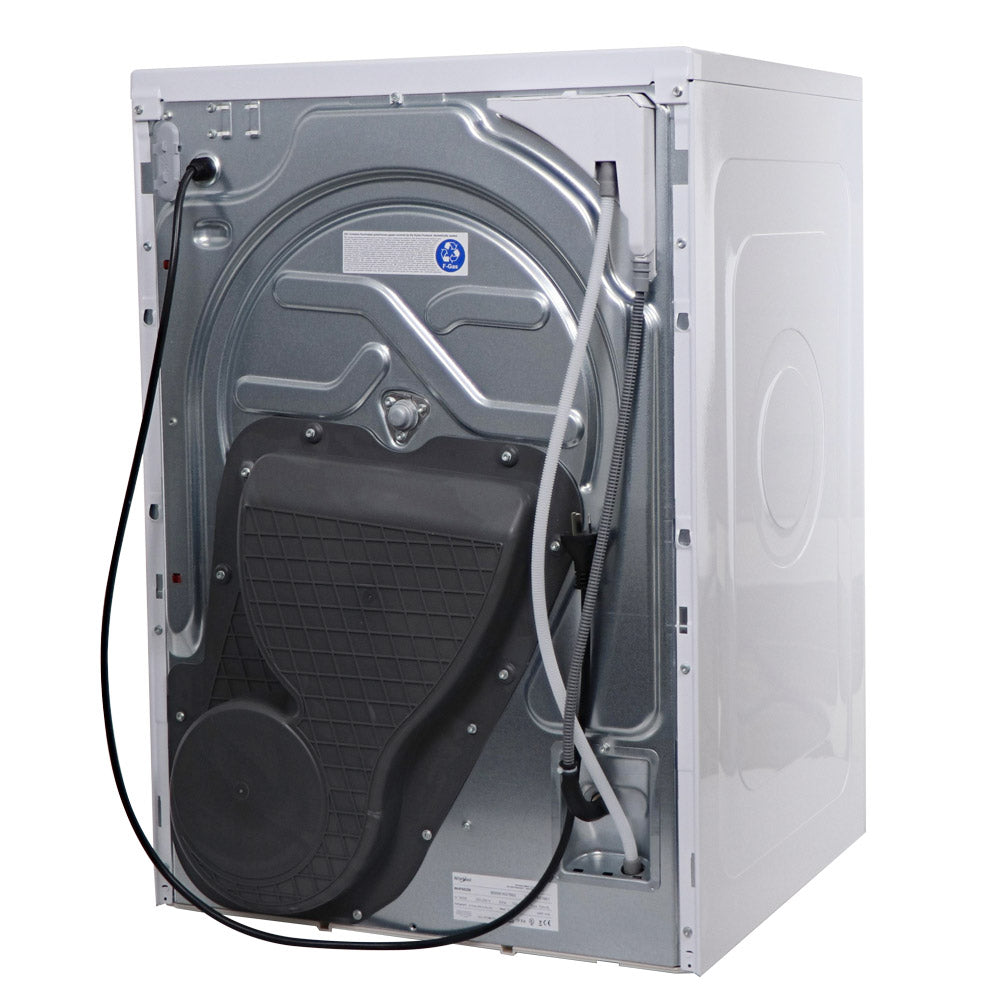

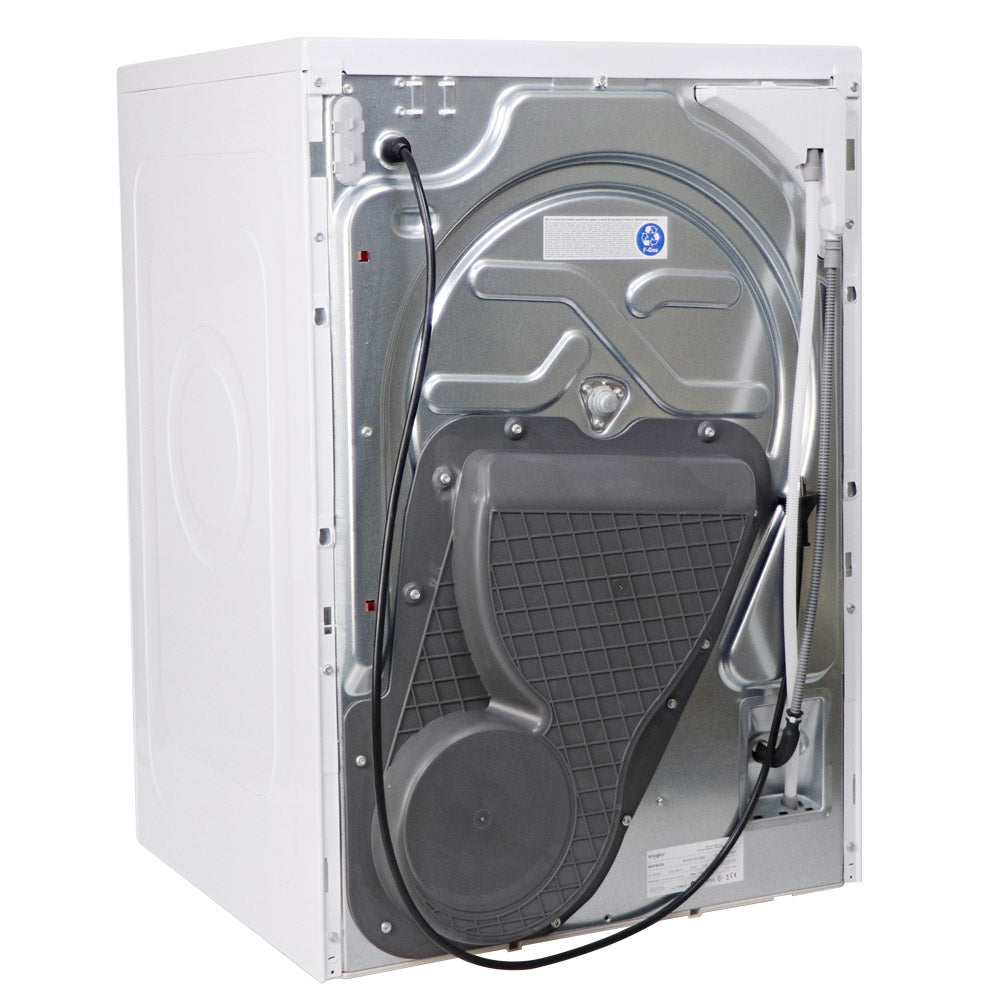

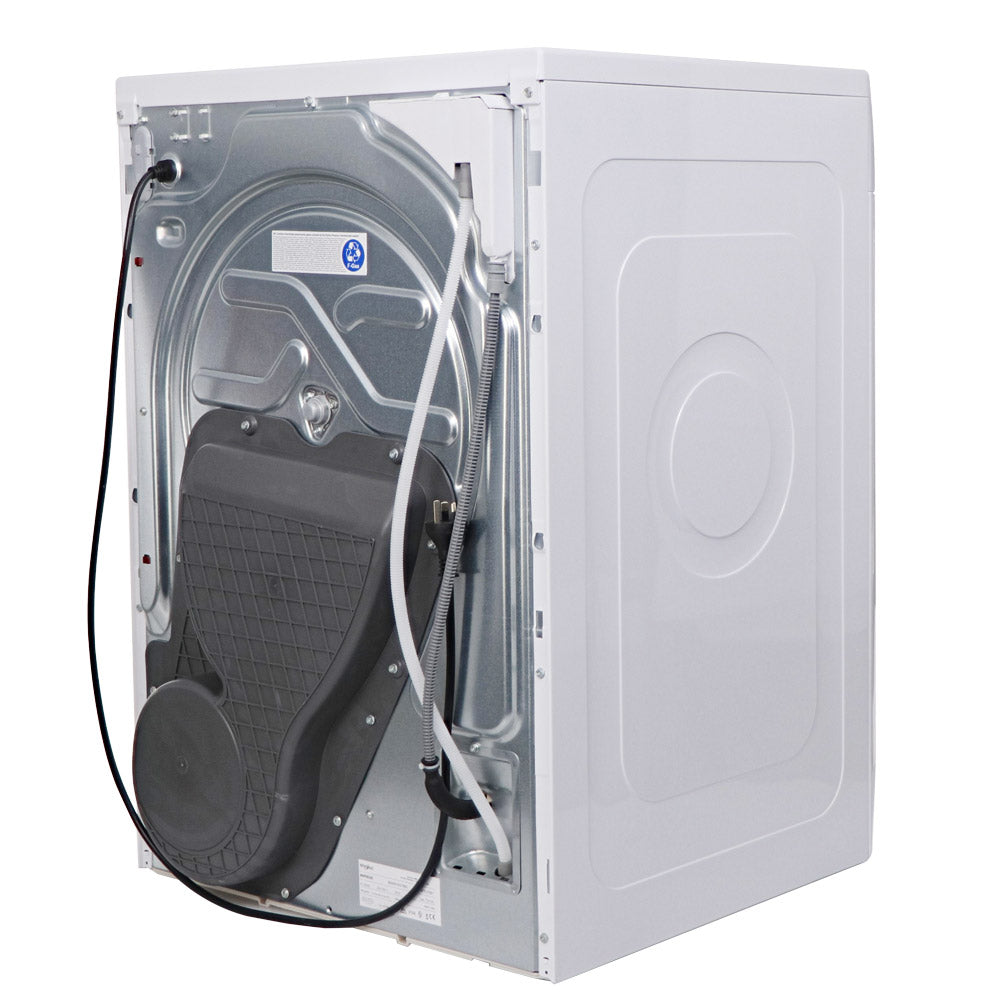

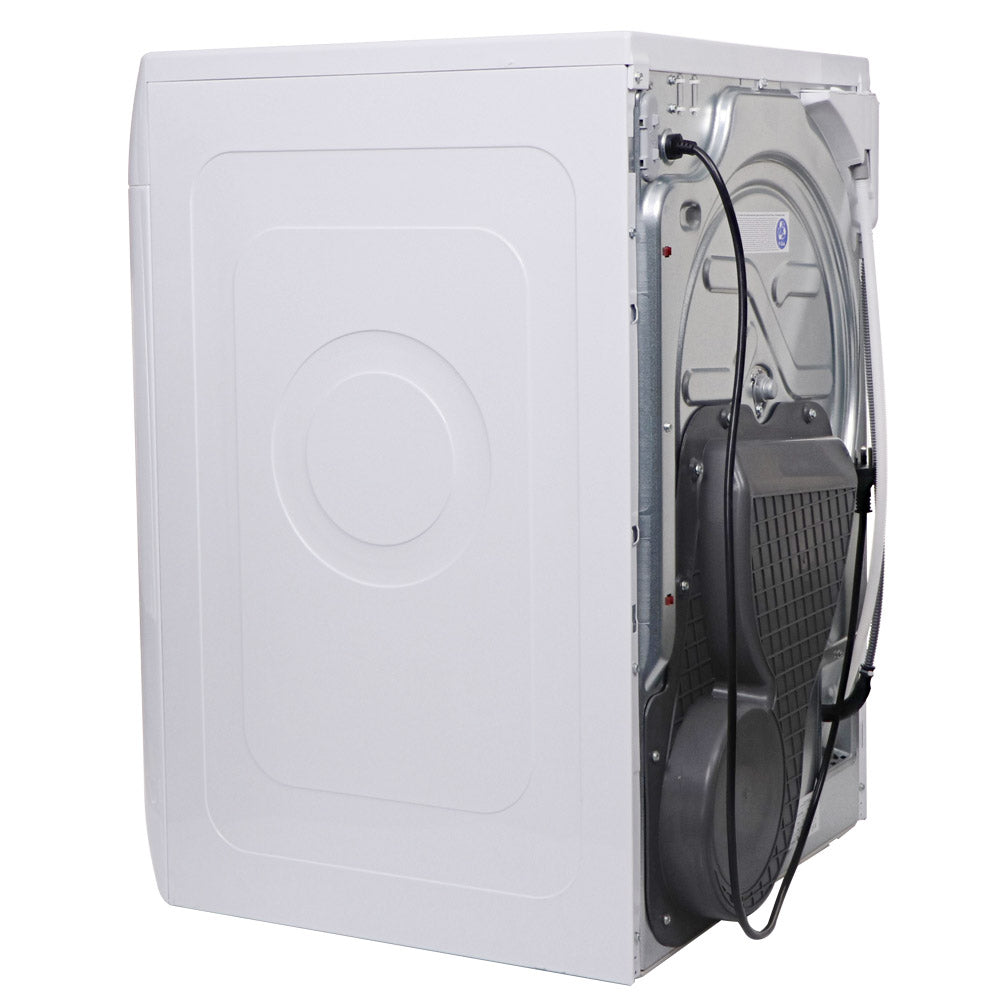

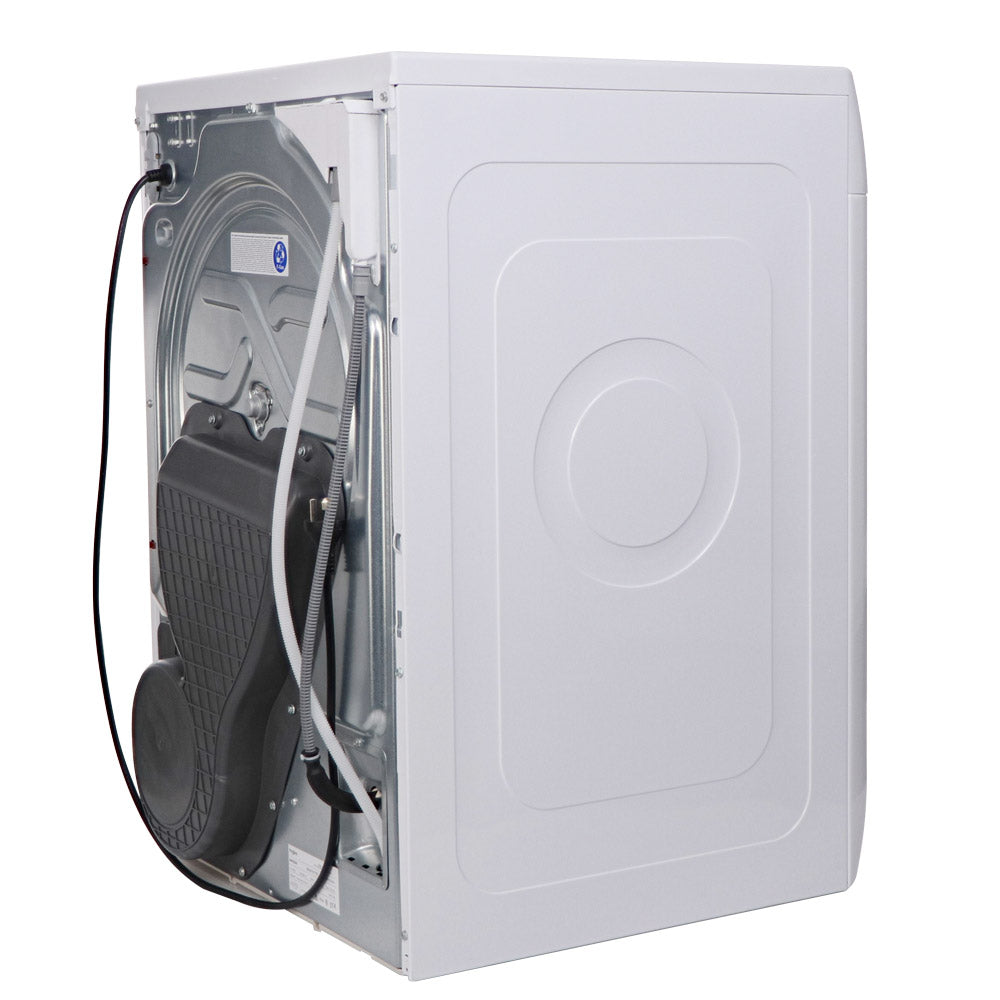

• Flexible water drainage: condensed water collects in a removable water tank that is emptied after each cycle, or the rear drain hose can be connected to the household drain so the tank never needs emptying.
• Automatic switch-off: if the dryer is not switched off manually, it turns itself off about a quarter of an hour after the cycle ends to save energy.

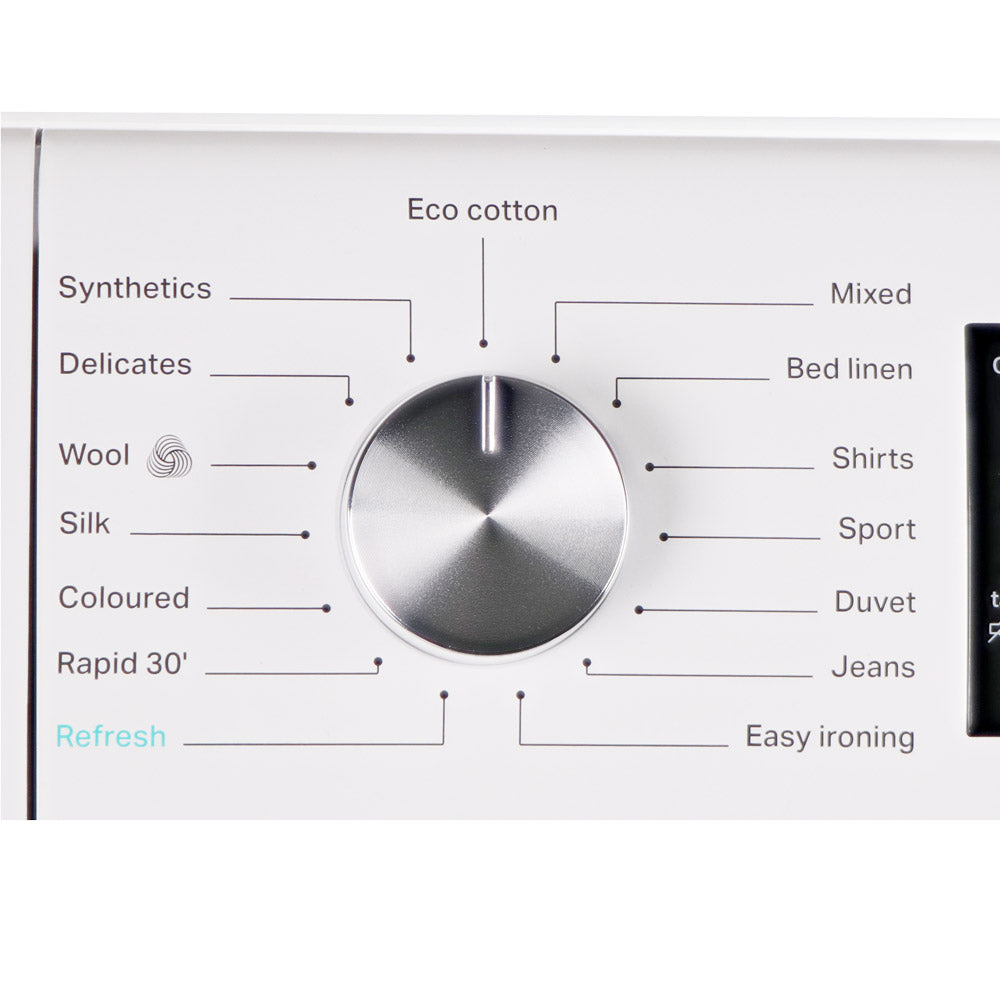

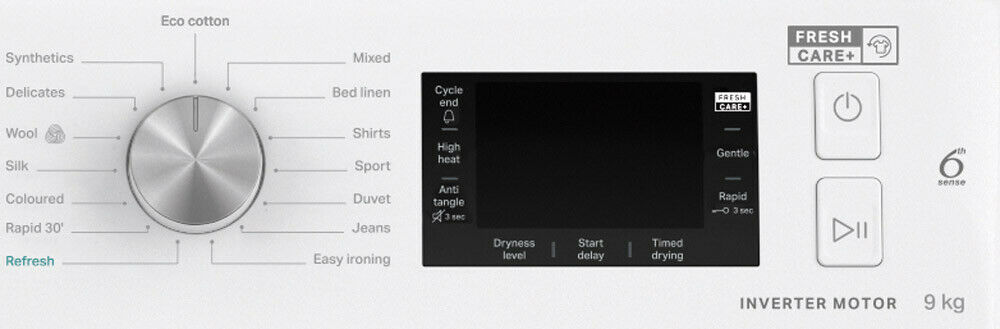

• Eco Cotton: standard cotton programme for normally wet cotton laundry, up to 9kg; the most energy-efficient programme for drying cotton.
• Mixed: dries cotton and synthetic fabrics together, up to 4kg.
• Bed Linen: for drying cotton sheets, up to 9kg.
• Shirts: for shirts made from cotton or cotton blend and synthetics, up to 3kg.
• Sport: for sports garments made of synthetics or cotton, up to 4kg.
• Duvet: for bulky items such as a single duvet.
• Jeans: for cotton jeans-wear and robust cotton garments such as denim trousers and jackets, up to 3kg.
• Easy Ironing: extends the fibres of garments to make ironing and folding easier; for small loads of cotton or cotton blends that are already dry.
• Refresh: a short programme of about 20 minutes that refreshes fibres and garments with fresh air; for garments that are already dry.

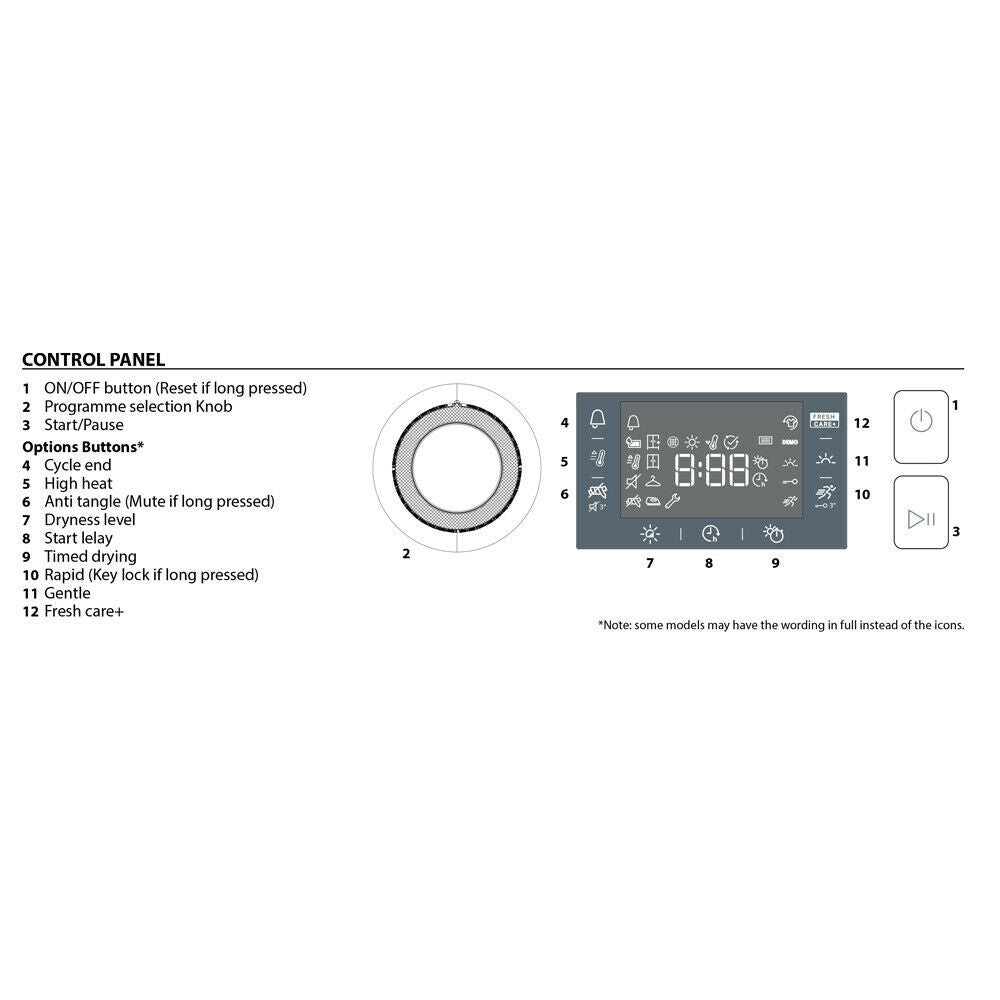

• Options: Dryness Level, Timed Drying, Start Delay, High Heat, Anti Tangle, Gentle, Rapid, FreshCare+, Cycle End, Key Lock and Mute.

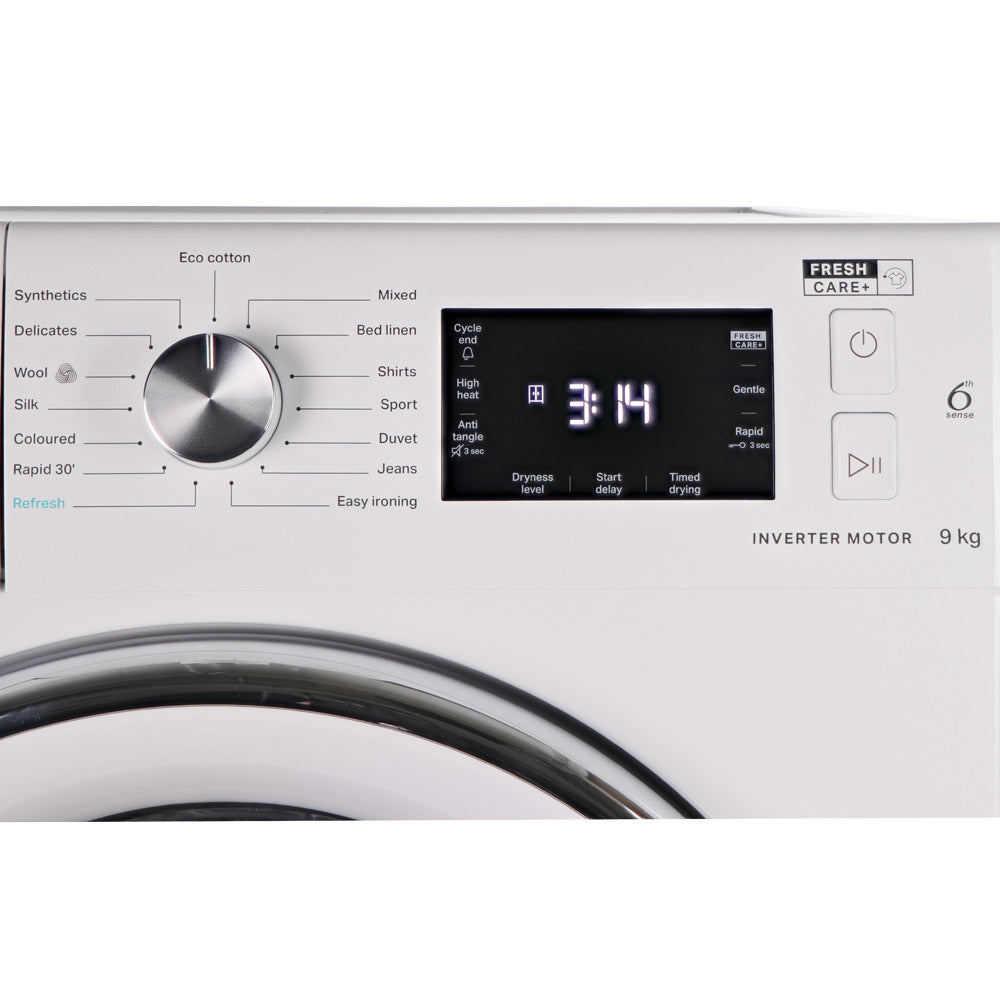

• Indicators: dryness level, cycle phase (drying, cool down, end of cycle), empty water tank, clean door filter and clean bottom filter.

• Model: WHP80250
• Type: Heat Pump Dryer
• Body Colour: White
• Dryer Capacity: 9kg
• Drum Size: 120L Usable
• Tub Material: Stainless Steel
• Display: LCD Digital
• Control: Electronic
• No. Of Programmes: 9
• Dryness Levels: 4 (Iron Dry, Hanger Dry, Cupboard Dry, Extra Dry)
• Reverse Tumble Action: Yes
• Child Lock: Yes (Key Lock)
• Progress Indicator: Yes (display)
• Countdown Indicator: Yes (digital display)
• Noise: 64 dB(A)
• Energy Rating: 8 Star
• Energy Consumption: 152 kWh per year
• Registration Number: ACD0781
• Electrical Input: 850W
• Voltage: 220-240V, 50Hz
• Total Current: 10A
• Power Consumption (Off Mode): 0.50W
• Power Consumption (Left-On Mode): 1.00W

• Installation type: Freestanding, handled and installed by two or more persons.
• Placement: Install against a wall to limit access to the rear, and do not stand the dryer on carpet that obstructs the ventilation openings in its base.
• Ventilation: The room must be adequately ventilated (open door, ventilation grid or slot larger than 500 cm²) to avoid backflow of gases from appliances burning other fuels, including open fires.
• Room temperature: Install in a room between 5°C and 35°C, and stand the dryer upright for at least 6 hours before first use.
• Under-bench clearances: When installed under a worktop, allow 10mm between the top panel and any object above it, and 15mm between each side and adjacent walls or cabinetry.
• Door clearance: Must not be installed behind a lockable door, a sliding door or a door hinged on the opposite side to the dryer door in a way that restricts full opening of the dryer door.
• Near a gas or coal stove: A heat-insulating plate of 85cm x 57cm must be fitted between the dryer and the stove.
• Water drainage: The water tank must be correctly inserted, and the rear drain hose fixed either to the dryer's water tank or to the domestic drain.
• Electrical supply: 220-240V, 50Hz, 10A earthed supply, 850W electrical input; disconnection by an accessible plug or upstream multi-pole switch, with no extension leads, multiple sockets or adapters.
• Stacking: Stacking on a washing machine is only possible with the appropriate stacking kit; confirm compatible washer models with Whirlpool After-Sales Service or your dealer.

Warranty coverage

Whirlpool appliances are distributed in Australia by Arisit Pty Limited and are backed by a 2-year manufacturer's warranty, giving you confidence in the quality and performance of every appliance across their range of kitchen and laundry products.

• All Whirlpool appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, ovens, freestanding cookers & microwaves): 2 years — Defects in materials and workmanship, domestic use only

Proof of purchase is required for all warranty claims. To activate your warranty, register your product within 30 days of purchase at whirlpool.com.au. The warranty is transferable to a subsequent owner within the warranty period, provided Whirlpool is notified in writing with the new owner's details.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Replaced or repaired components carry the remaining warranty period or 3 months, whichever is greater

What's not covered

• Incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, neglect, or abnormal use
• Damage from fire, water, vermin, insects, or external electrical faults
• Blockages caused by foreign objects
• Cosmetic damage that does not affect the functioning of the product
• Consumables such as light bulbs, filters, and other wear items
• Unauthorised modifications or repairs
• Commercial use of domestic appliances
• Inadequate or incorrect venting
• Excessive use of cleaning products or cleaning agents

Conditions

• Cooktops, ovens, and rangehoods must be installed by a licensed electrician or gas plumber
• Must be used and maintained in accordance with the Use and Care Guide or Instruction Manual
• Product must be registered within 30 days of purchase at whirlpool.com.au to activate the warranty
• Any transport damage must be reported within 7 days of delivery
• Proof of purchase must be provided with all claims
• The warranty is transferable to a subsequent owner provided Whirlpool is notified in writing within a reasonable time of the sale, with the new owner's name, contact details, place and date of purchase, and model and serial number

Making a claim

Contact Arisit on 1300 762 219 or submit a service request at whirlpool.com.au. For large appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, and ovens), an authorised Whirlpool service technician will be sent to assess the claim. For smaller appliances such as microwaves, you may be asked to bring the product to your nearest authorised service agent. Please have your model number, serial number, and proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Energy and time figures for the WHP80250 are measured on the Eco Cotton programme at the Extra Dry level under AS/NZS 2442.2. A full 9kg load uses 2.07 kWh over 211 minutes and a half load of 4.5kg uses 1.20 kWh over 131 minutes, while a 4kg Synthetics load uses 0.73 kWh over 95 minutes. The heat pump circuit is a hermetically sealed unit containing 0.18kg of R134a refrigerant.

Actual cycle times depend on load size, fabric type, the spin speed used in the washing machine and any options selected, and the remaining time shown on the display is checked and adjusted continuously throughout the cycle. Drying takes longer when the room temperature falls outside the 14°C to 30°C range, and loads spun at a higher speed in the washer dry faster.

The WHP80250 is registered with the Australian Government Energy Rating register under registration number ACD0781. Whirlpool appliances are distributed in Australia by Arisit Pty Limited, 40-50 Mark Anthony Drive, Dandenong South VIC 3175.

• Dryer: 1 x WHP80250 9kg heat pump clothes dryer in White.
• Water tank: Removable condensed-water tank, fitted.
• Filters: Door filter and bottom filter, fitted.

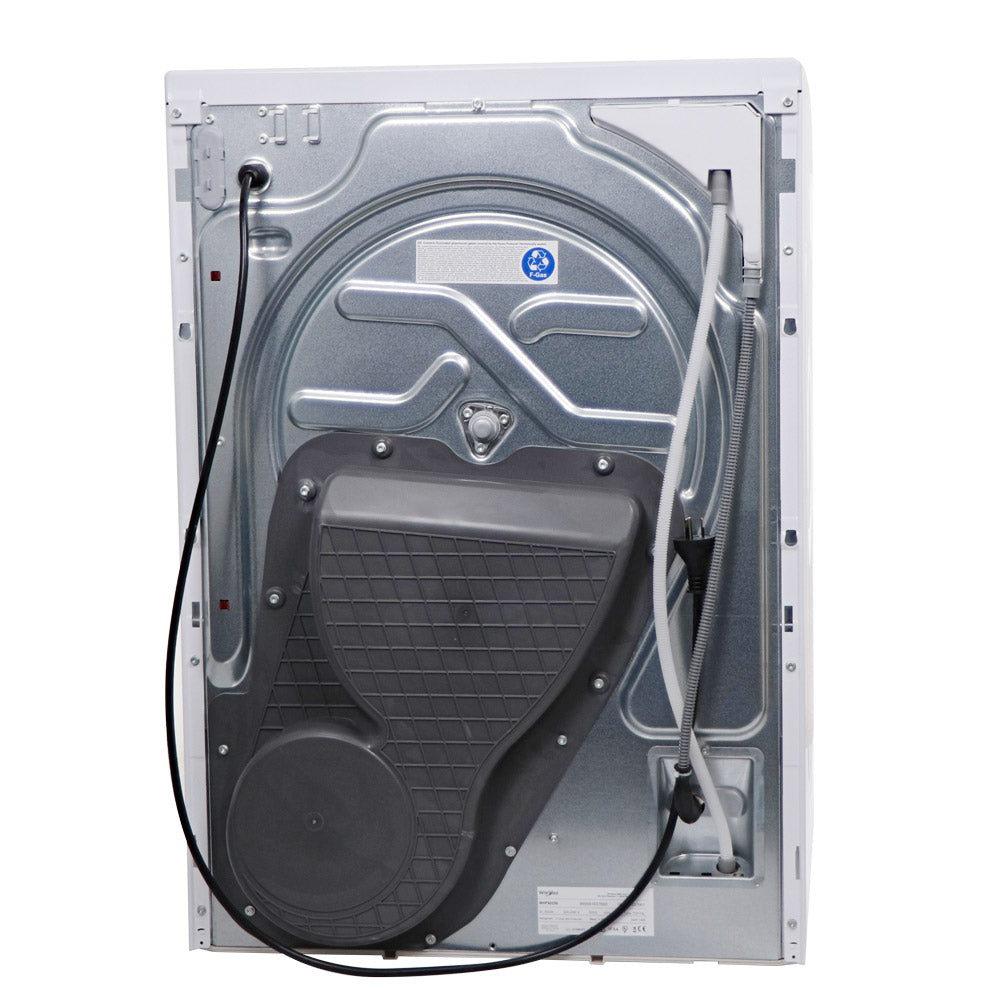

• Drain hose: Fitted at the rear for connection to the water tank or the domestic drain.
• Documentation: Quick Guide and Safety Instructions.

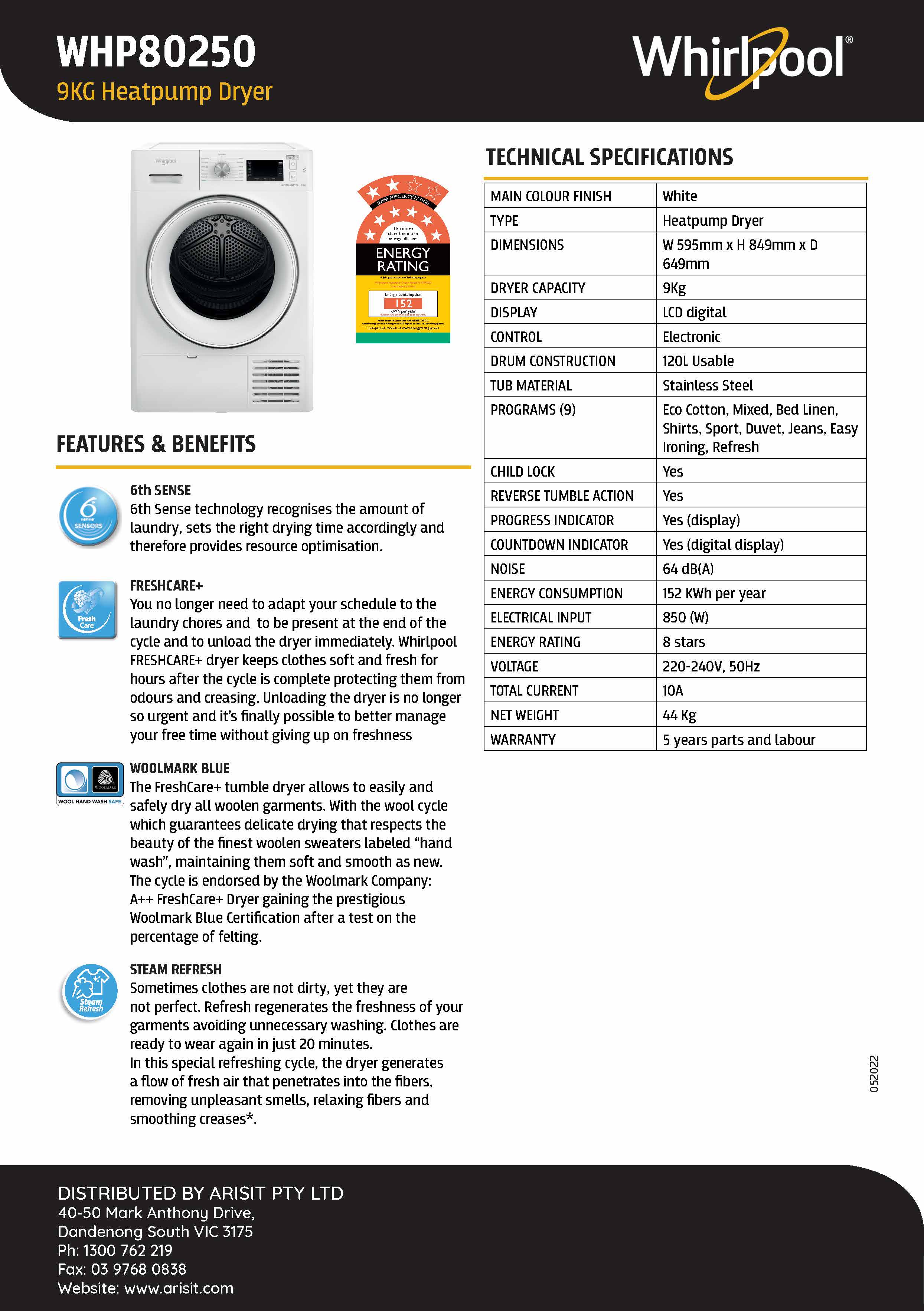

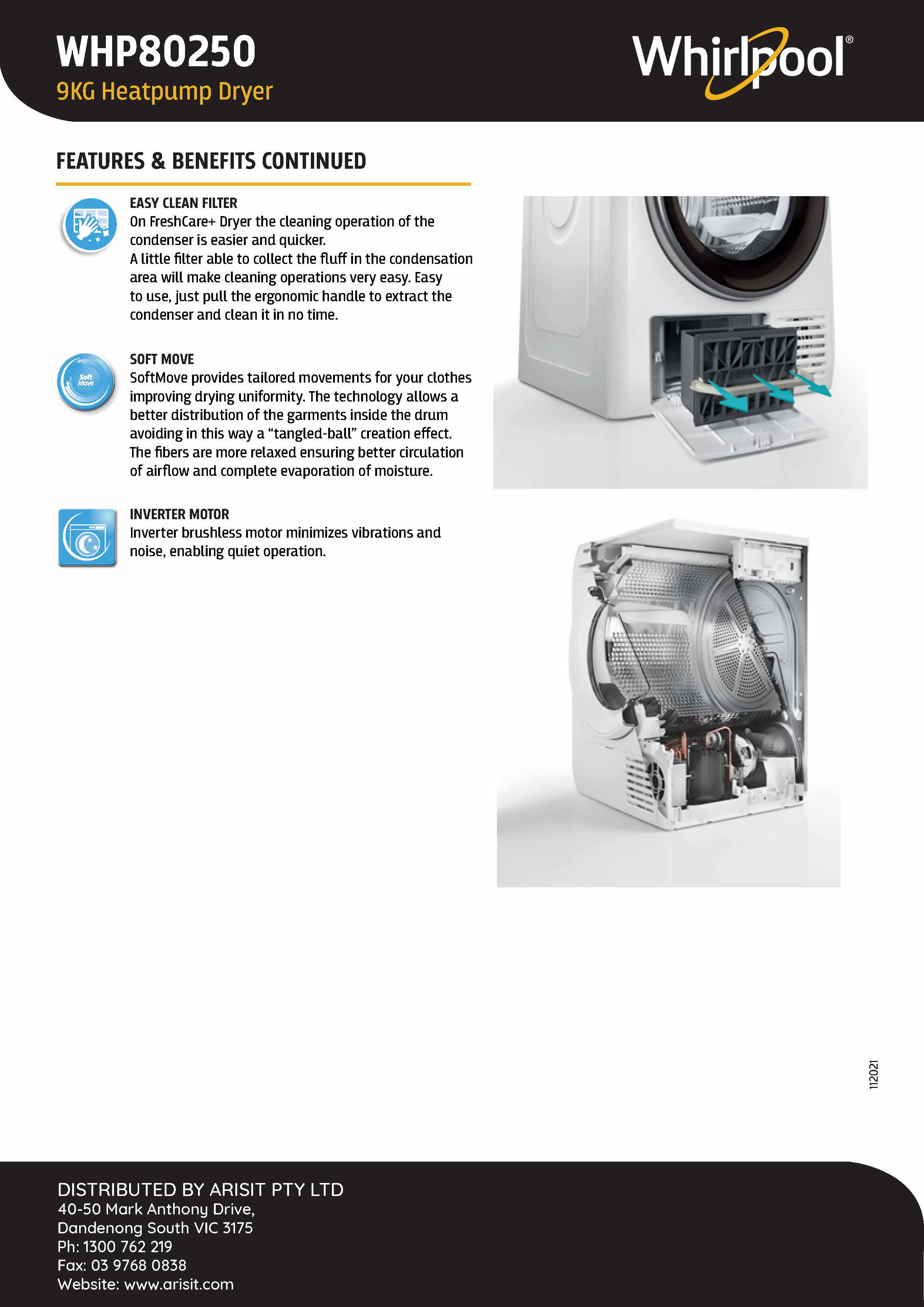

• WHP80250 SPECIFICATION SHEET (PDF)
