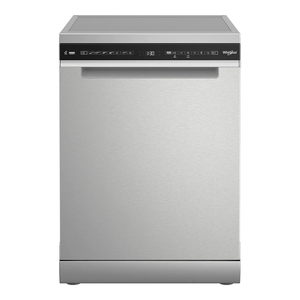

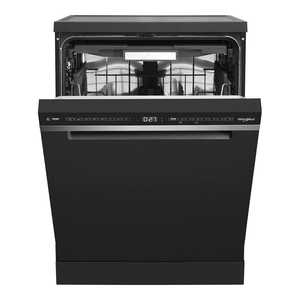

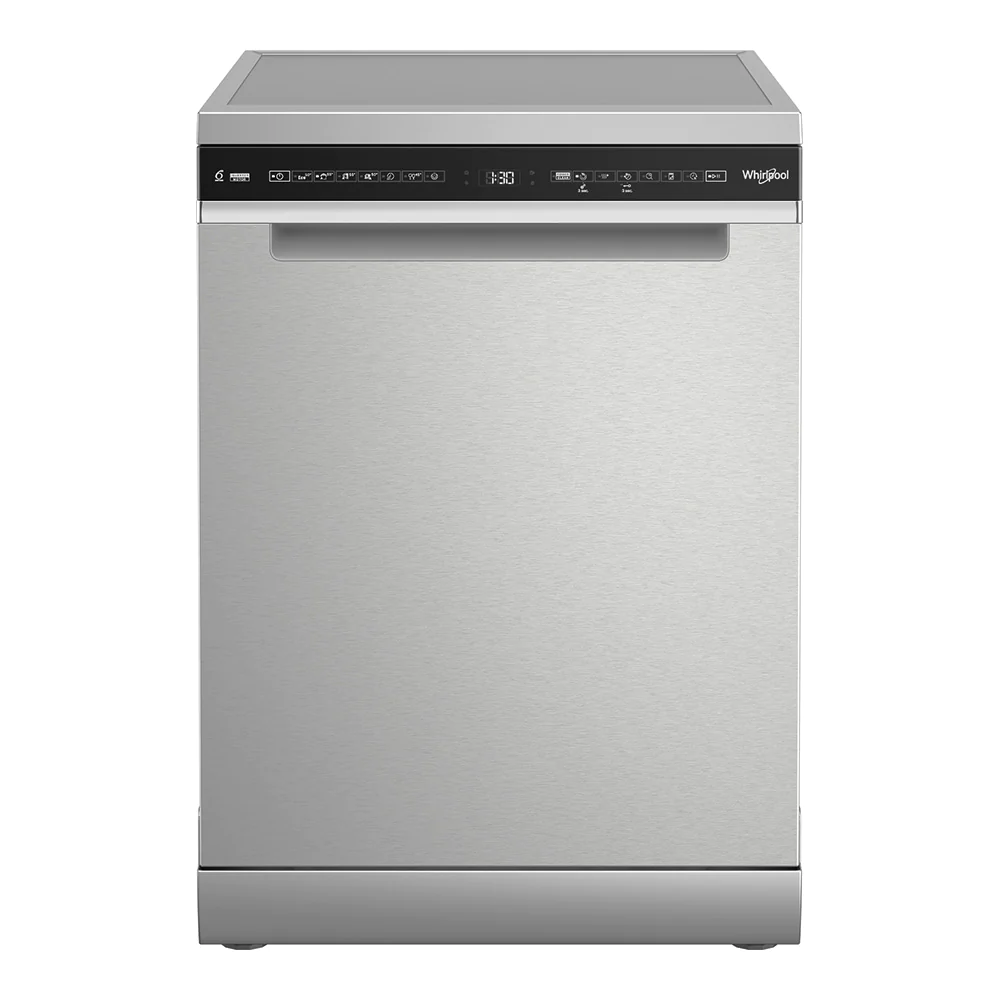

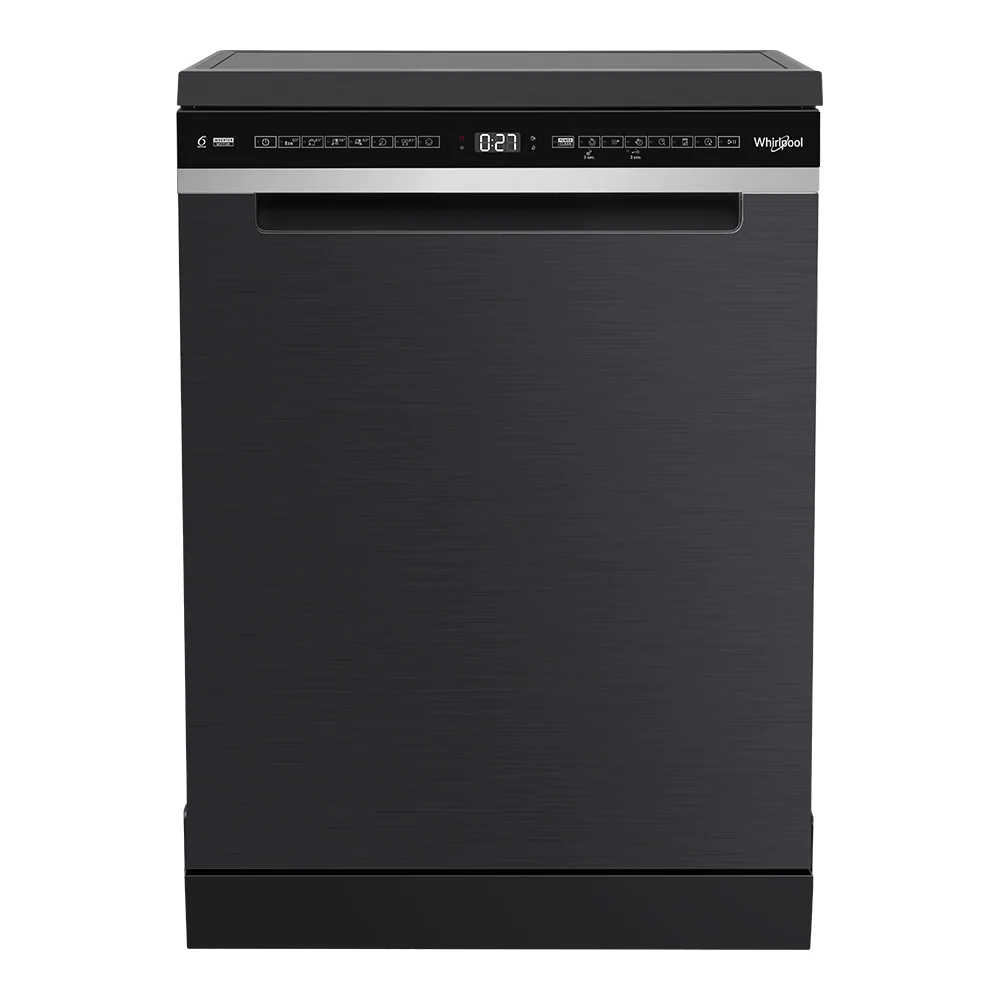

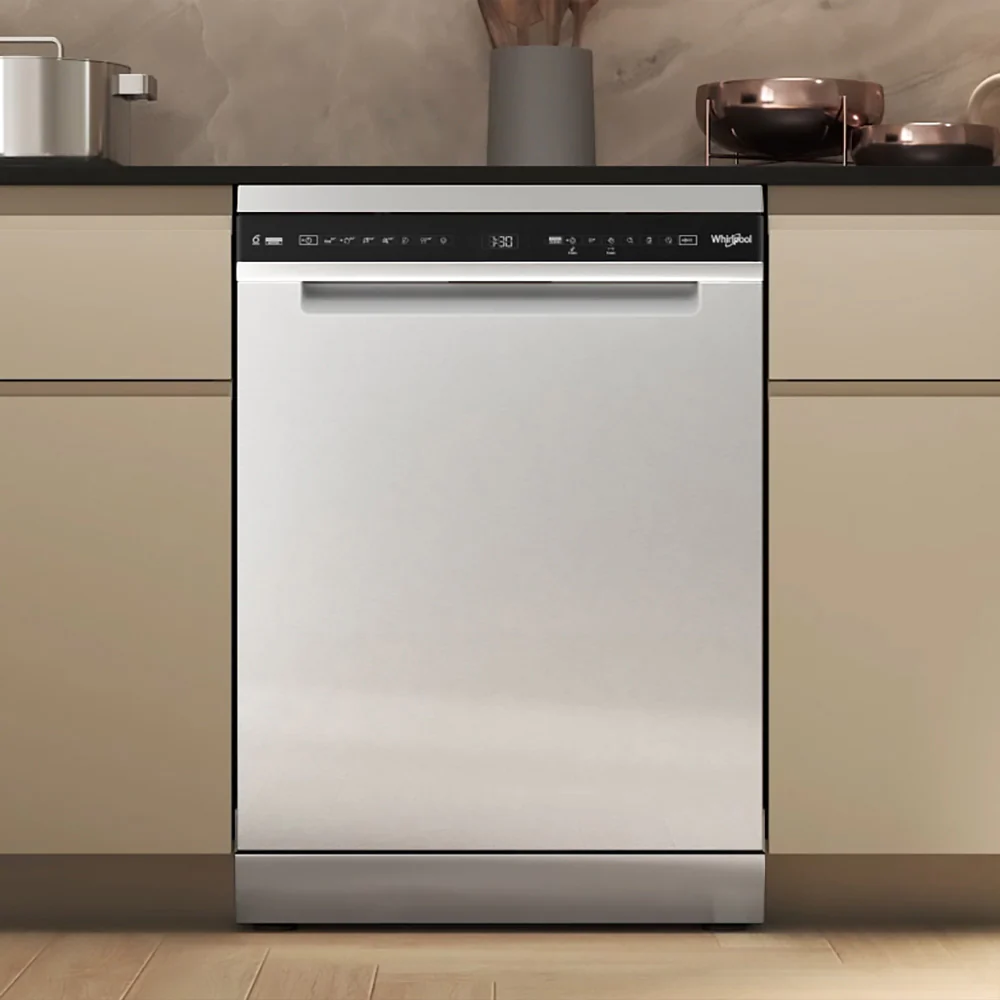

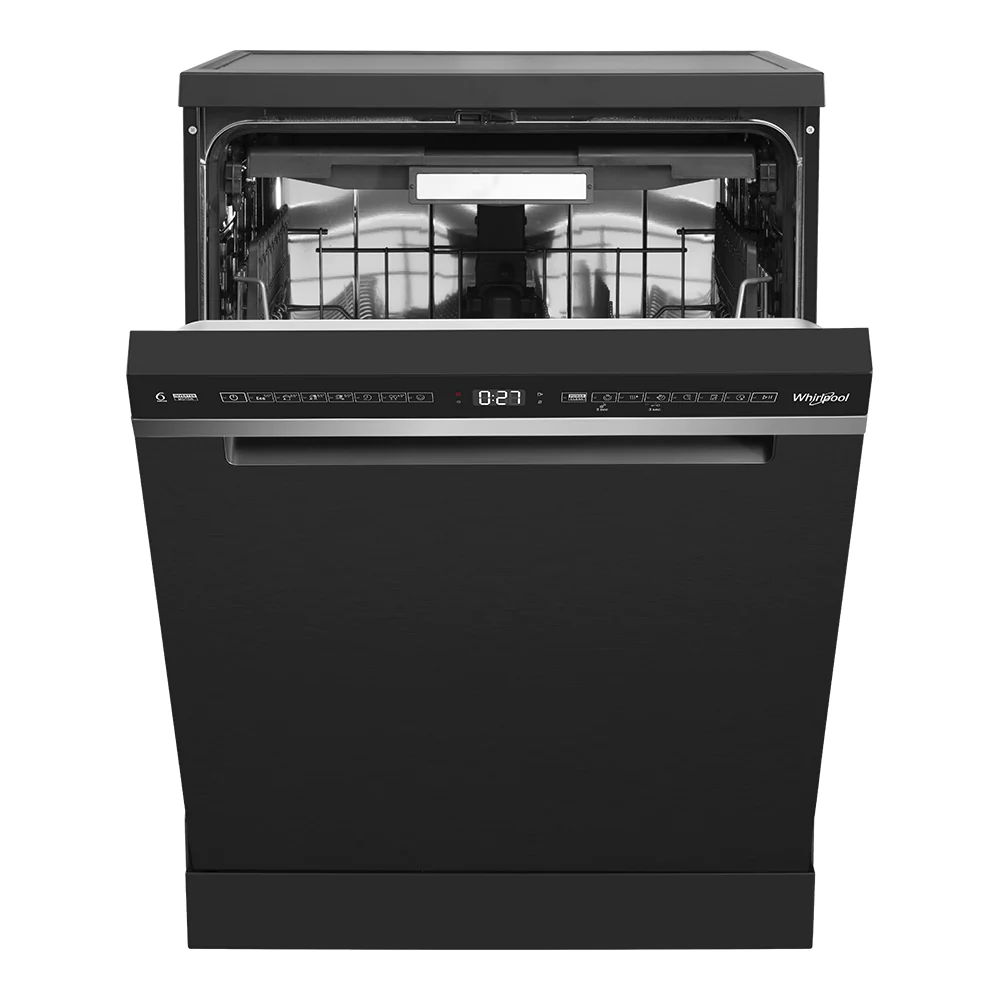

Whirlpool WDFS3L5P 60cm Power Clean Maxi-Tub 15 Place Setting Freestanding Dishwasher

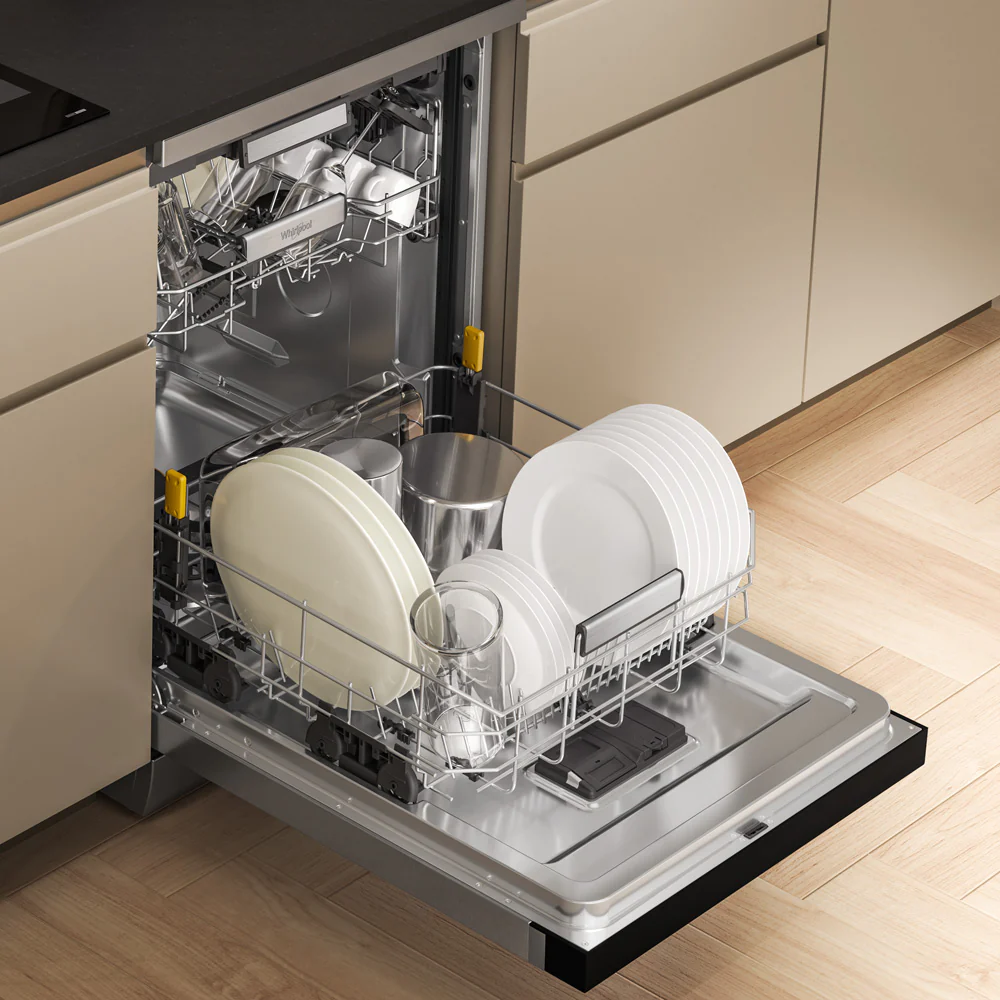

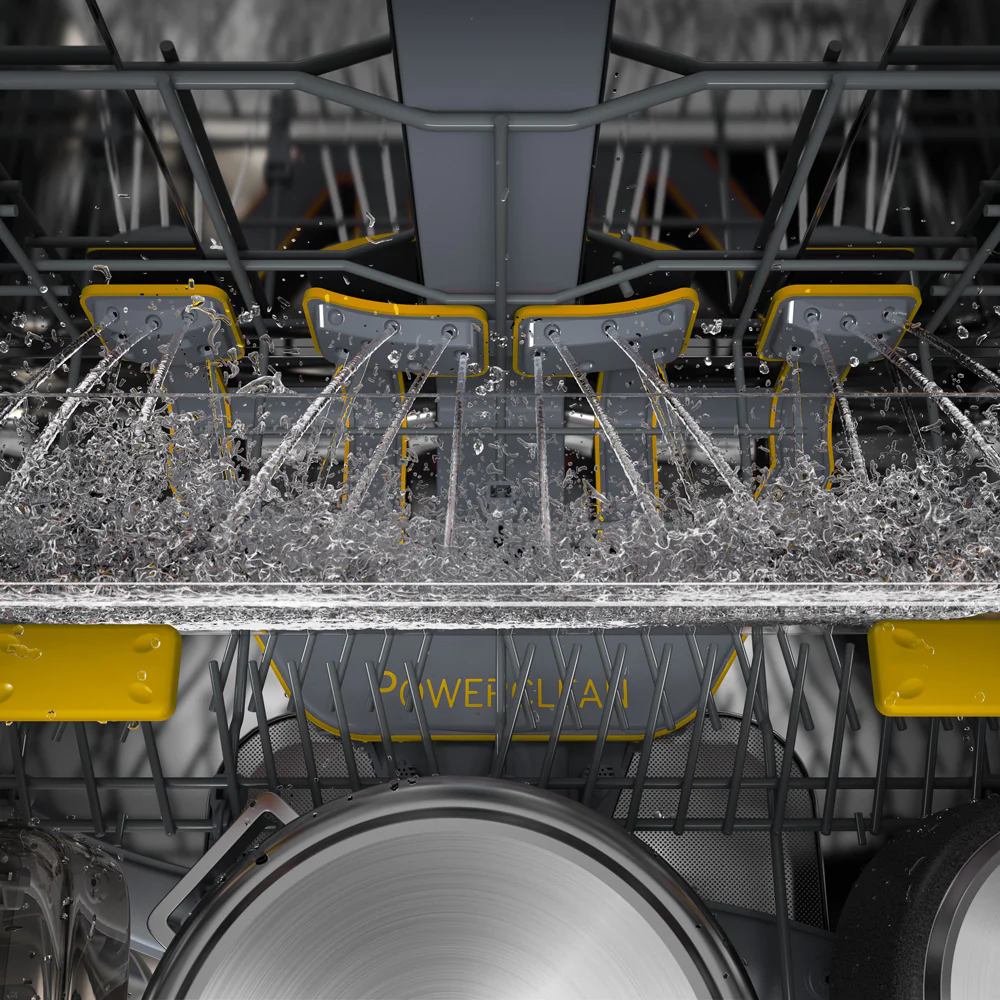

• Power Clean Pro: additional power jets at the rear of the cavity give a more intensive wash in the lower rack; fold down the rear plate holders and lean pots and casseroles towards the jets, then select the Power Clean option.
• 6th SENSE Technology: automatically senses how dirty the dishes are and adapts the cycle time and water pressure accordingly, saving water, energy and time.

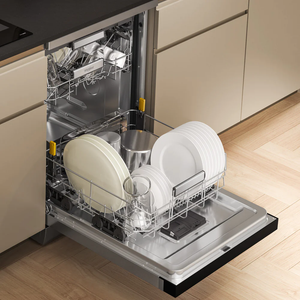

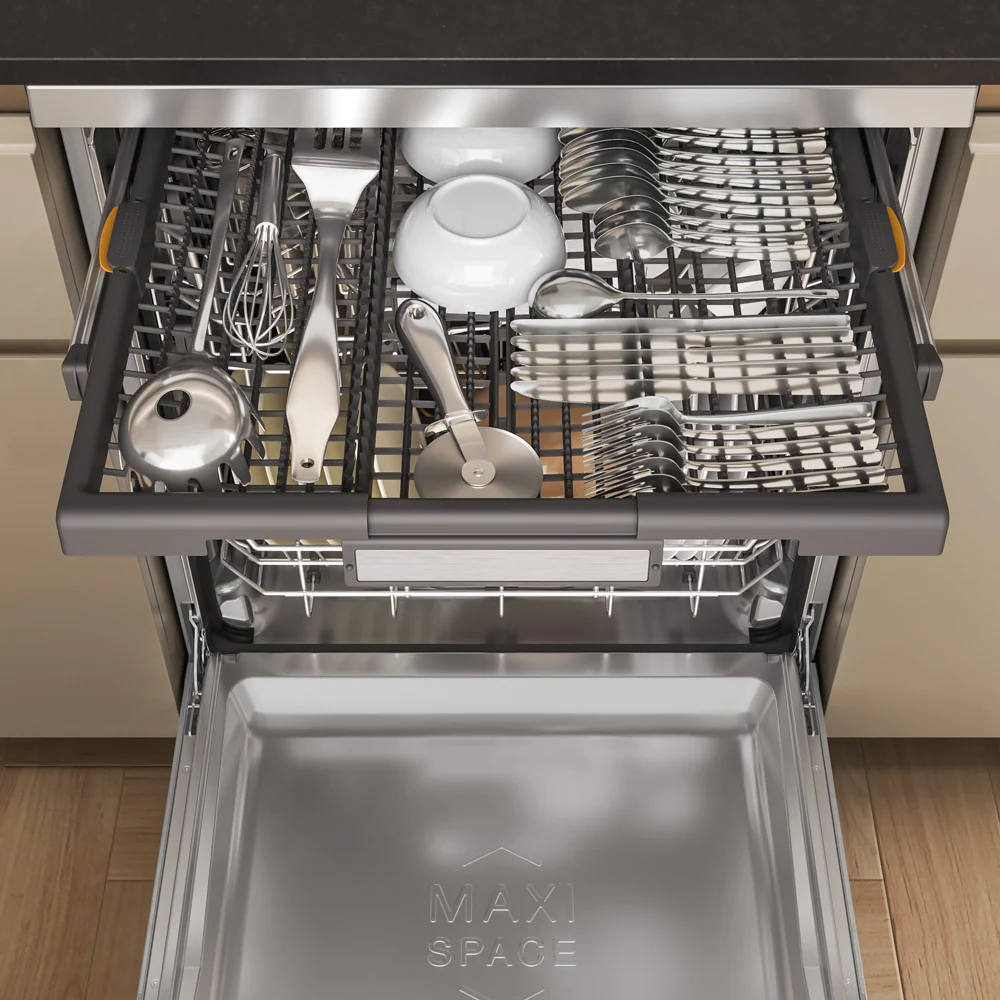

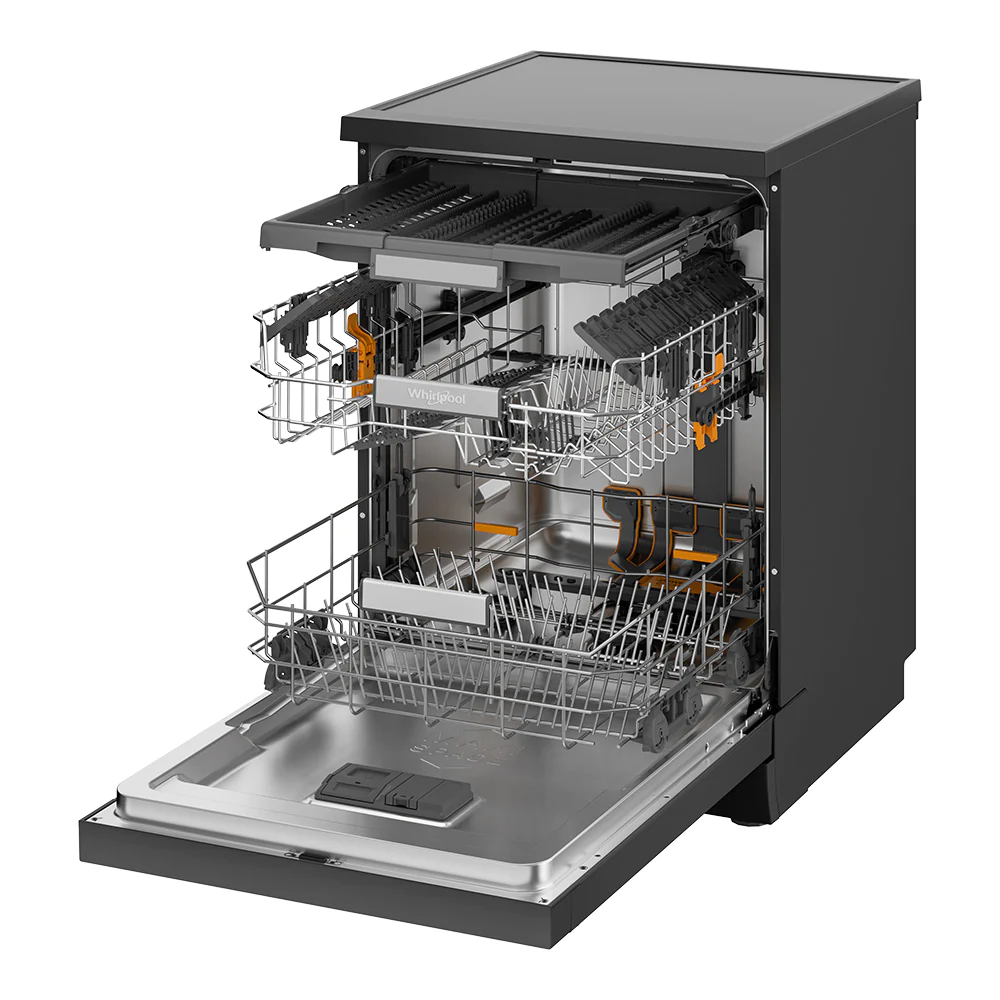

• Modular third rack: a dedicated top rack for cutlery and utensils, with two sliding side trays so taller items can be loaded in the upper rack below.

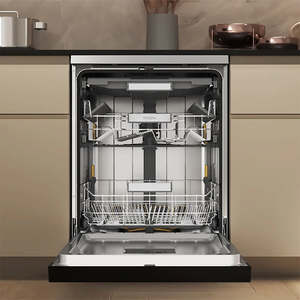

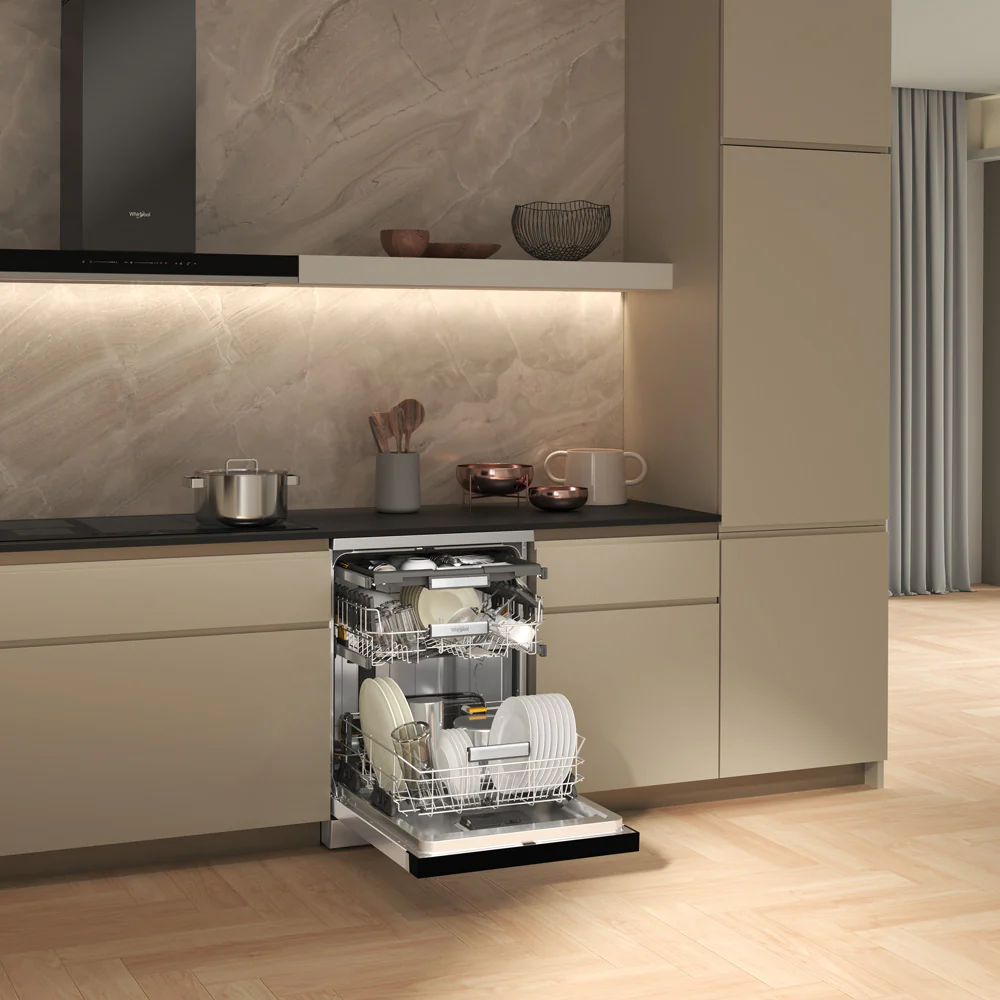

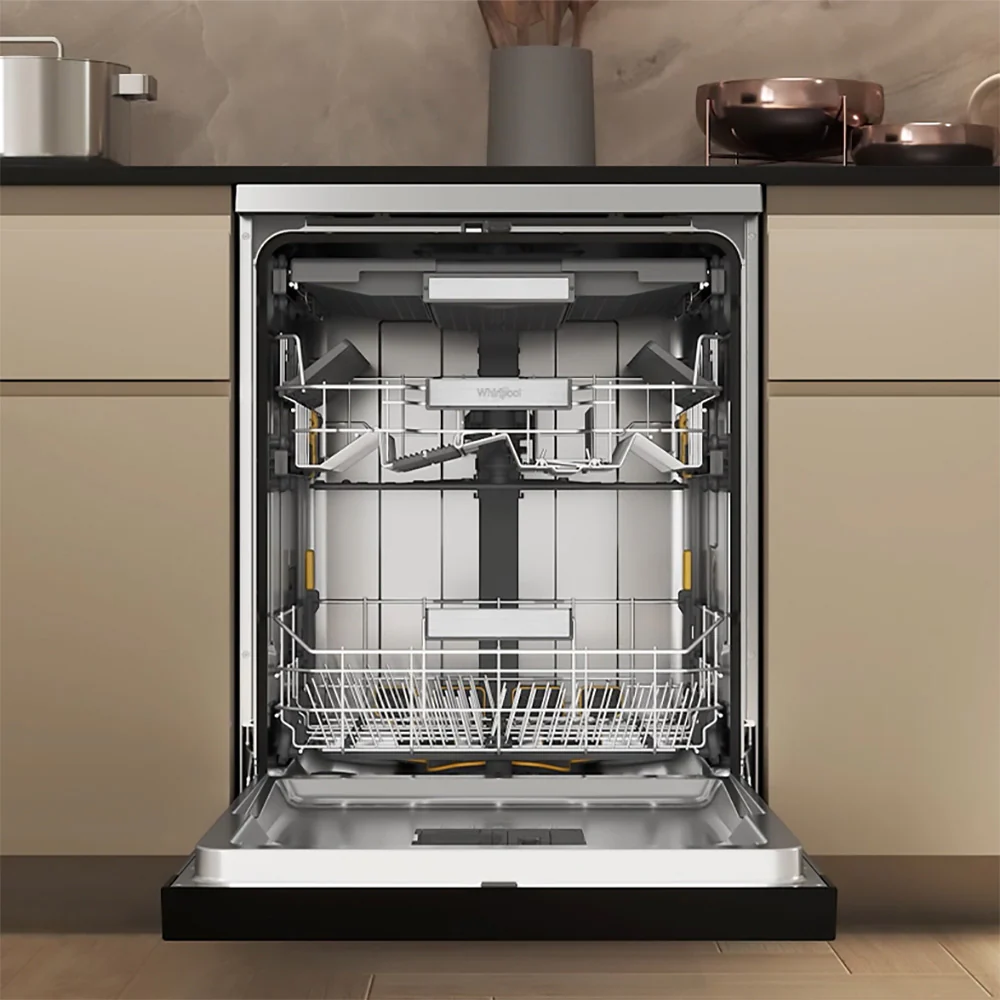

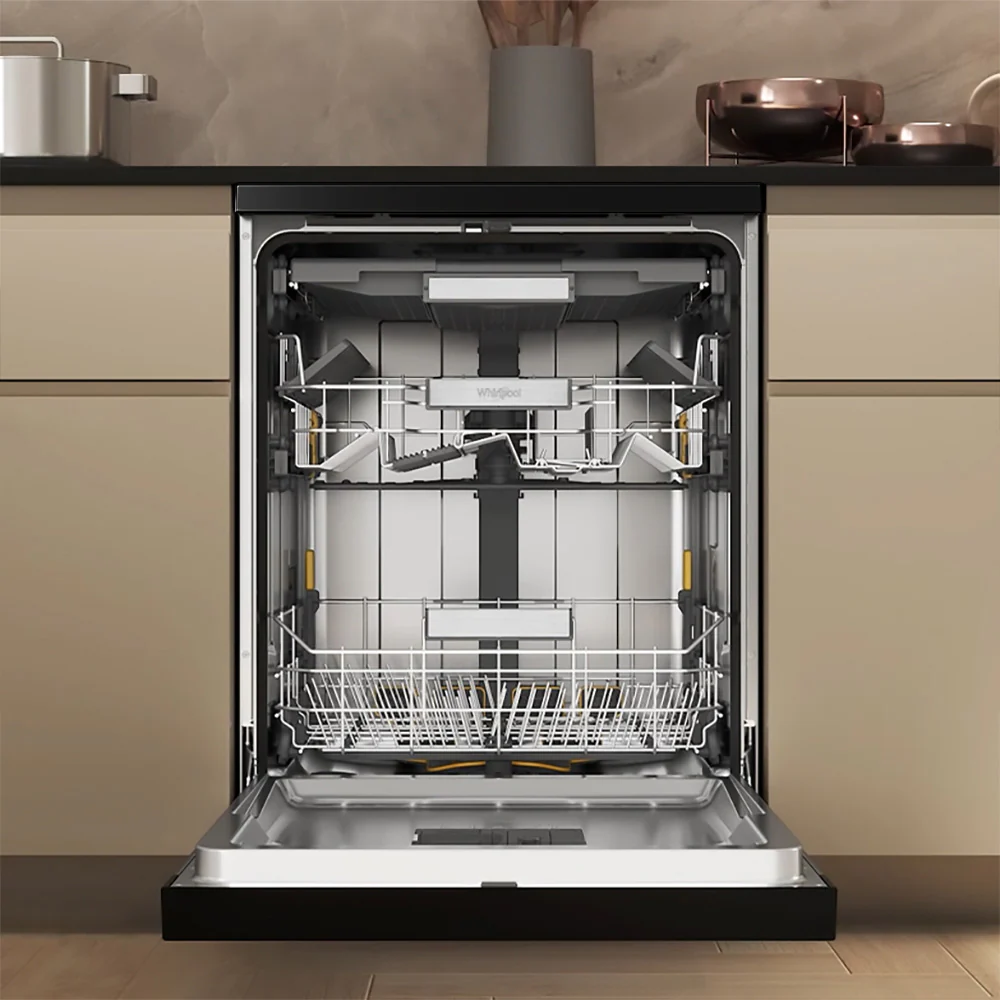

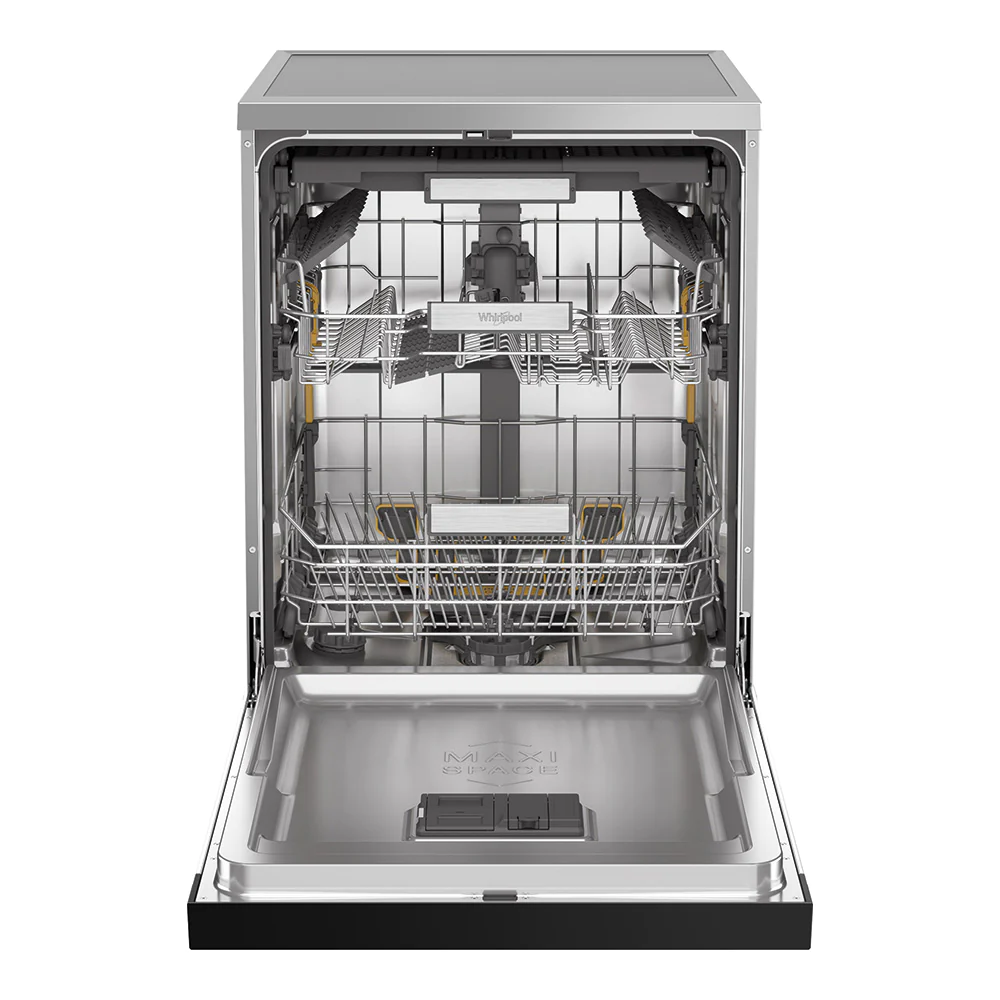

• Maxi-Space: a larger internal usable space gives you greater ease and versatility to fit all your soiled dishes, with capacity for 15 place settings.
• NaturalDry: the door opens automatically at a temperature that is safe for your kitchen furniture to ensure better, more natural drying, with a protection foil supplied for steam protection.
• Sani Rinse: increases the final rinse temperature and adds an antibacterial wash, ideal for sanitising crockery and feeding bottles.
• Half Load: if there are not many dishes to be washed, a half load saves water, electricity or time depending on the selected programme.
• Extra Dry and Silent: Extra Dry raises the final rinse temperature and extends drying, while Silent limits noise for night-time operation.

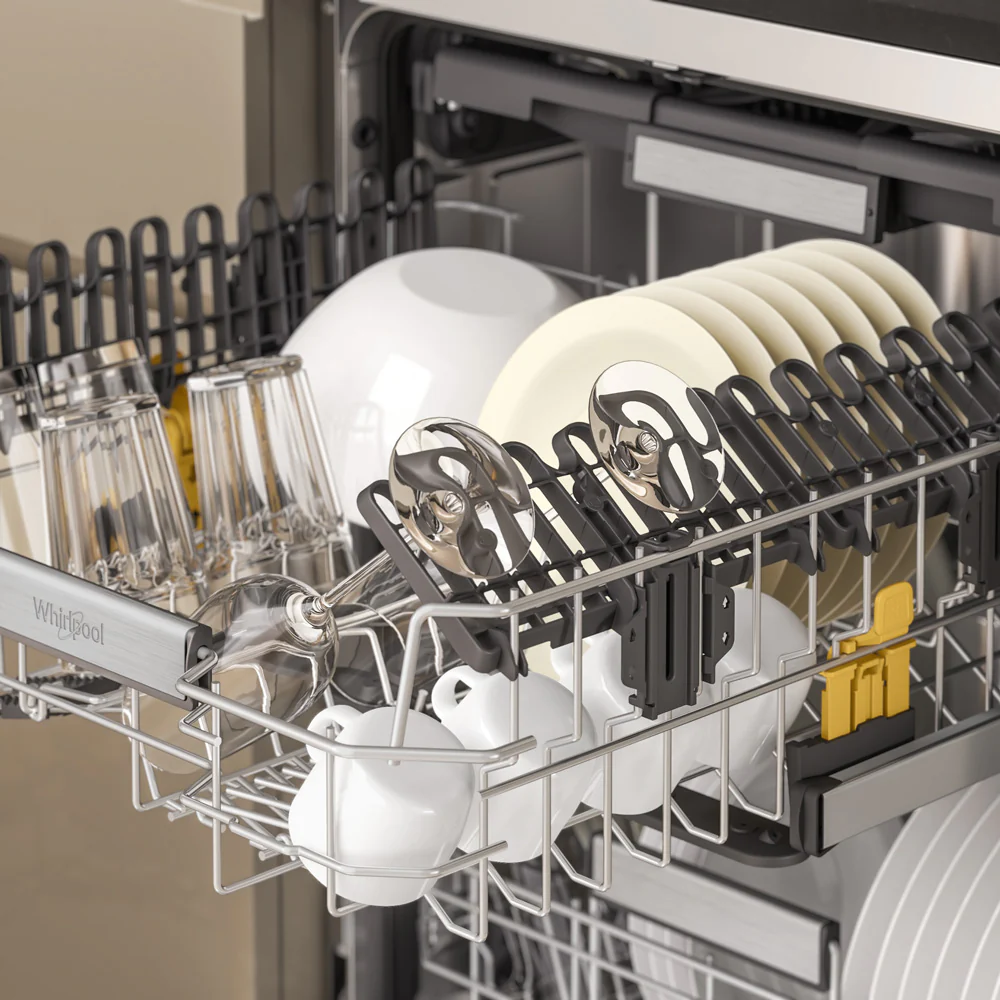

• Flexible upper rack: the upper rack height can be adjusted without pressing the levers, with foldable side flaps and slots that hold wine glasses safely by the stem.
• Delay start and key lock: delay the start from 30 minutes up to 24 hours, and lock the control panel with a 3-second press of the Silent button.
• Descale alert: detects limescale build-up on internal components and prompts you to run the Self-Clean programme with a descaling product.
• Aquastop: safety protection against water leaks, with dual inverter motors for energy-efficient, quiet operation.

• Eco 50°: environmentally friendly standard cycle for normally soiled loads with low energy consumption; about 3 hours 40 minutes, 11.15 litres and 0.62 kWh per cycle. Used for the AS/NZS 2007 energy rating.
• Auto Intensive 65°: automatic programme for heavily soiled crockery, especially pots and saucepans (not for delicate items); 2:25 to 3:10 hours.
• Auto Mixed 55°: automatic programme for mixed soiled dishes with dried food residues; 1:20 to 3:00 hours.
• Auto Fast 50°: automatic programme for everyday mixed soiled crockery with optimal cleaning and drying in a shorter time; 1:00 to 1:50 hours.
• Rapid 45°: for lightly soiled dishes without dried food residues, with no drying phase; 30 to 40 minutes.
• Crystals 45°: a gentler 45°C programme for glassware and delicate crockery; 1:40 to 1:50 hours.
• Prewash: refreshes crockery planned to be washed later, used without detergent; 12 minutes.
• Self-Clean 65°: maintenance programme run only when the dishwasher is empty, using a dishwasher maintenance or descaling product; 1 hour 15 minutes.
• Options: Power Clean, Half Load, Extra Dry, Silent, Sani Rinse and Delay (30 minutes to 24 hours); not all options can be used together.

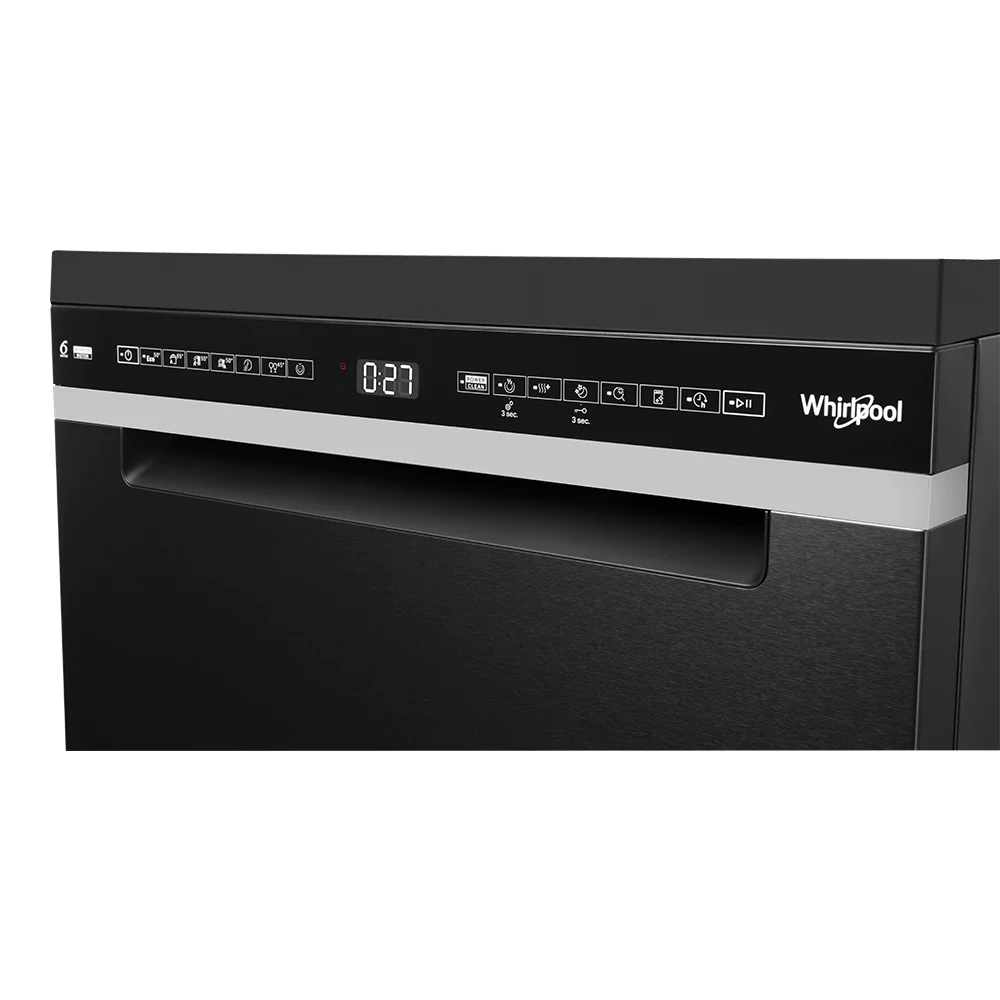

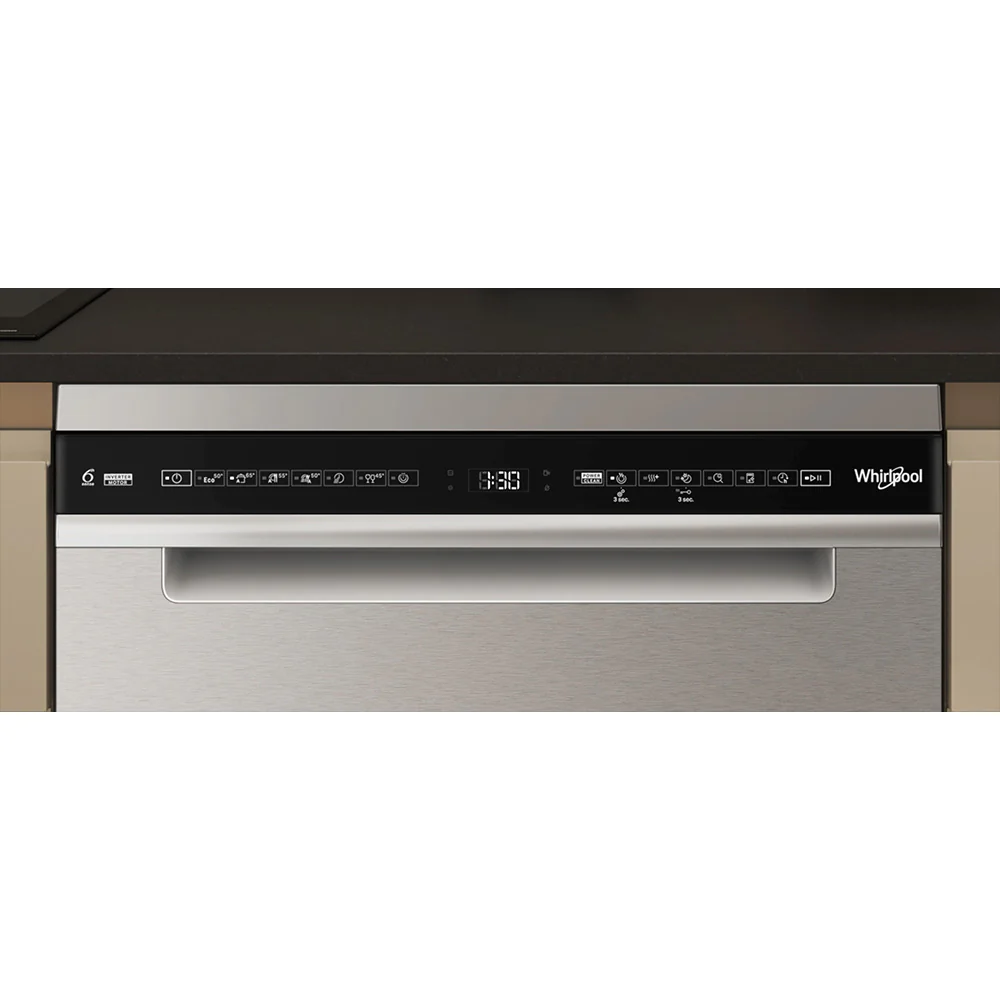

• Settings and indicators: Key Lock, adjustable water hardness, rinse aid dosage, NaturalDry and sound settings, plus salt, rinse aid, closed water tap and descale indicators.

• Model: WDFS3L5P (WDFS3L5PIXAU, WDFS3L5PBSAU)
• Type: Freestanding Dishwasher with Power Clean Pro
• Width: 60cm
• Place Settings: 15
• Display: LED
• Control: Touch
• Door / Handle Design: Square
• No. Of Programs: 8
• Options: Power Clean, Half Load, Extra Dry, Silent, Sani Rinse
• Delay Start: 0:30 to 24 hours
• Drying System: NaturalDry (automatic door opening)
• Safety: Aquastop, Key Lock
• Motors: Dual inverter
• Racks: Modular cutlery rack, height-adjustable upper rack with double cup shelves and lower rack with pan holder
• Noise: 41 dB(A)
• Energy Rating: 4 Star
• Energy Consumption: 246 kWh per year
• Energy Registration Numbers: ADW1059, ADW1306
• Water Rating: 5.5 Star
• Water Consumption: 11.1 litres per wash - Eco 50°C, in accordance with AS/NZS 6400
• Registration Number: D02862 (WDFS3L5PIXAU), D02861 (WDFS3L5PBSAU)
• Licence Number: 0367
• Voltage: 220-240V
• Current: 10A
• Plug Type: Australian
• Electrical Cord Length: 130cm
• Inlet Hose Length: 155cm
• Outlet Hose Length: 150cm

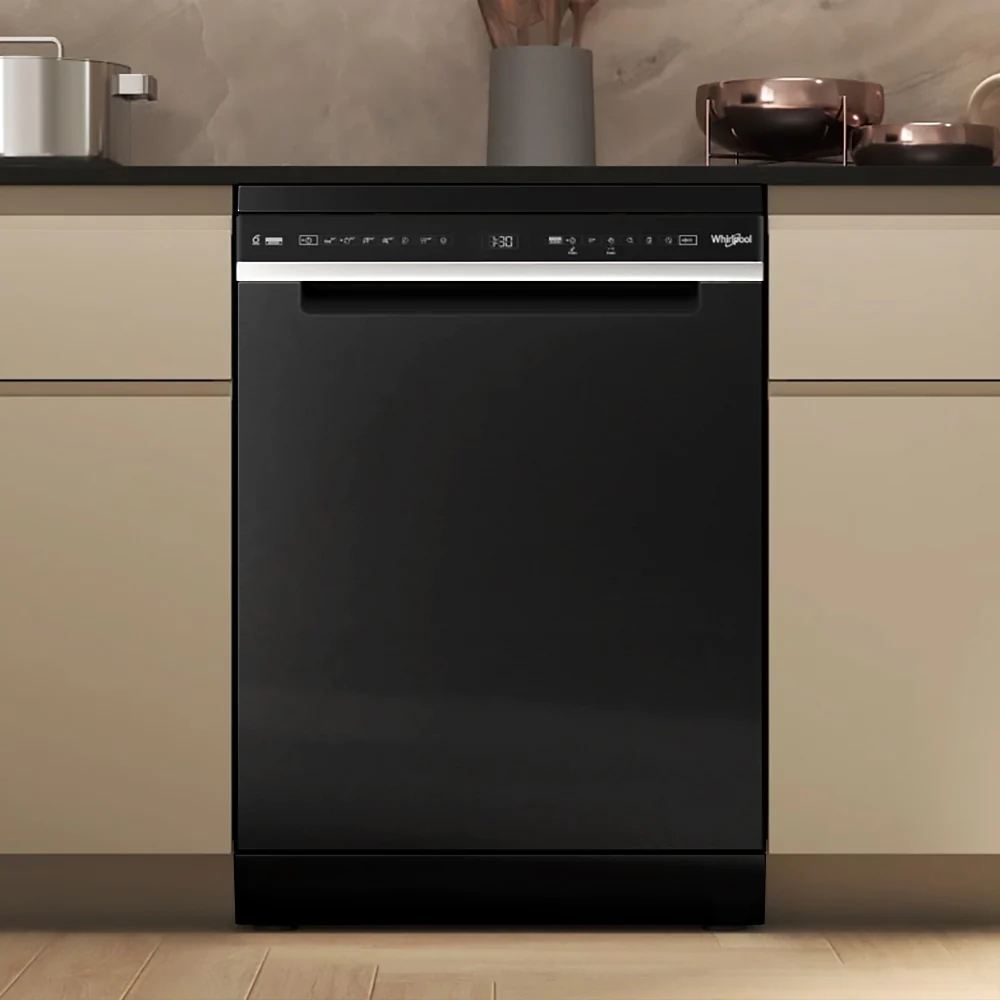

• Installation type: Freestanding dishwasher; it can also be slid under a benchtop after removing the worktop, as shown in the installation guide.
• Under-bench cavity: Minimum 600mm wide, 560mm deep and 820mm high, with the dishwasher fixed to the underside of the benchtop using the supplied screws.
• Levelling: Level the dishwasher using the adjustable feet before use.

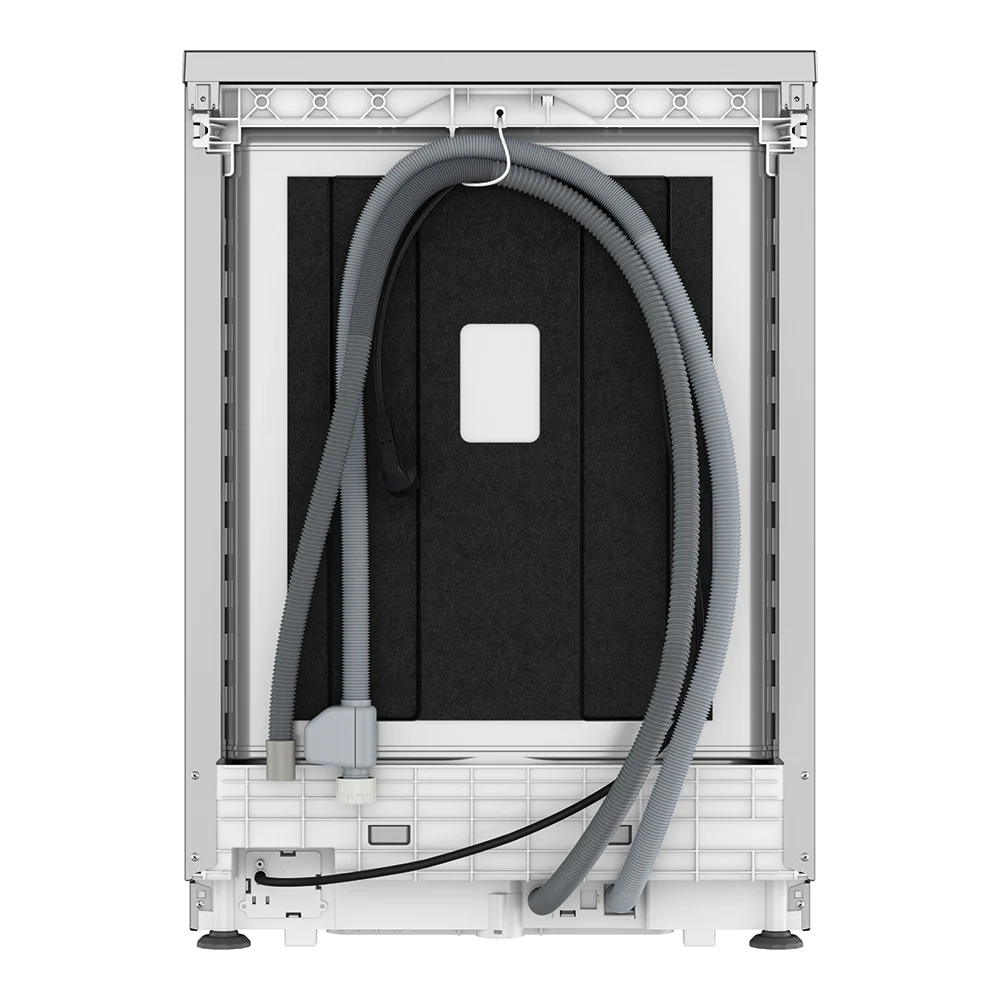

• Water supply: Connect to the water tap with the supplied inlet hose (approx. 1500mm); water pressure between 0.05 MPa (0.5 bar) and 1 MPa (10 bar).
• Drain: The drain hose (approx. 1500mm) must not be kinked, and the drain connection must be at a height between 400mm and 800mm with a minimum internal diameter of 25mm.
• Electrical supply: 220-240V, 10A earthed power outlet within reach of the approx. 1300mm power cord.
• NaturalDry protection foil: Fit the supplied steam protection foil under the benchtop as shown in the installation guide, and remove all transport protection parts before first use.

Warranty coverage

Whirlpool appliances are distributed in Australia by Arisit Pty Limited and are backed by a 2-year manufacturer's warranty, giving you confidence in the quality and performance of every appliance across their range of kitchen and laundry products.

• All Whirlpool appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, ovens, freestanding cookers & microwaves): 2 years — Defects in materials and workmanship, domestic use only

Proof of purchase is required for all warranty claims. To activate your warranty, register your product within 30 days of purchase at whirlpool.com.au. The warranty is transferable to a subsequent owner within the warranty period, provided Whirlpool is notified in writing with the new owner's details.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Replaced or repaired components carry the remaining warranty period or 3 months, whichever is greater

What's not covered

• Incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, neglect, or abnormal use
• Damage from fire, water, vermin, insects, or external electrical faults
• Blockages caused by foreign objects
• Cosmetic damage that does not affect the functioning of the product
• Consumables such as light bulbs, filters, and other wear items
• Unauthorised modifications or repairs
• Commercial use of domestic appliances
• Inadequate or incorrect venting
• Excessive use of cleaning products or cleaning agents

Conditions

• Cooktops, ovens, and rangehoods must be installed by a licensed electrician or gas plumber
• Must be used and maintained in accordance with the Use and Care Guide or Instruction Manual
• Product must be registered within 30 days of purchase at whirlpool.com.au to activate the warranty
• Any transport damage must be reported within 7 days of delivery
• Proof of purchase must be provided with all claims
• The warranty is transferable to a subsequent owner provided Whirlpool is notified in writing within a reasonable time of the sale, with the new owner's name, contact details, place and date of purchase, and model and serial number

Making a claim

Contact Arisit on 1300 762 219 or submit a service request at whirlpool.com.au. For large appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, and ovens), an authorised Whirlpool service technician will be sent to assess the claim. For smaller appliances such as microwaves, you may be asked to bring the product to your nearest authorised service agent. Please have your model number, serial number, and proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The WDFS3L5P is registered on the Australian Government Energy Rating register with a 4 Star rating and an energy consumption of 246 kWh per year, under registration numbers ADW1059 and ADW1306 for both colours. Under the Water Efficiency Labelling and Standards (WELS) scheme it holds a 5.5 Star water rating at 11.1 litres per wash on the Eco 50°C programme, with registration numbers D02862 (WDFS3L5PIXAU) and D02861 (WDFS3L5PBSAU) and licence number 0367.

The energy consumption figure is based on the Eco 50°C programme used seven times per week on a cold water connection, tested in accordance with AS/NZS 2007.2. Actual energy use and running costs will depend on how you use the appliance. Programme durations are estimates and the sensor calibration can add up to 20 minutes.

Packaging dimensions are W 625mm x H 910mm x D 675mm. Whirlpool appliances are distributed in Australia by Arisit Pty Limited, 40-50 Mark Anthony Drive, Dandenong South VIC 3175.

• Dishwasher: 1 x WDFS3L5P 60cm freestanding dishwasher in the selected colour.
• Racks: Modular third cutlery rack, upper rack with double cup shelves and rubber mat for glass protection, and lower rack with pan holder.
• Salt funnel: Funnel for filling the salt reservoir.
• Installation fittings: Fixing screws and NaturalDry steam protection foil.
• Documentation: Daily reference guide and installation guide.

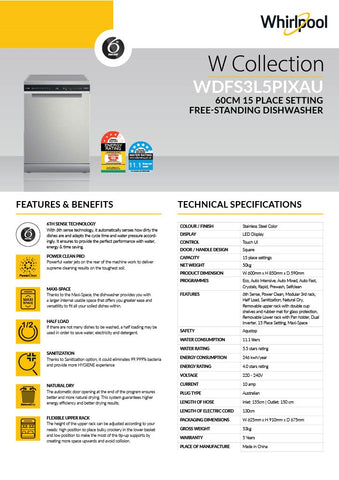

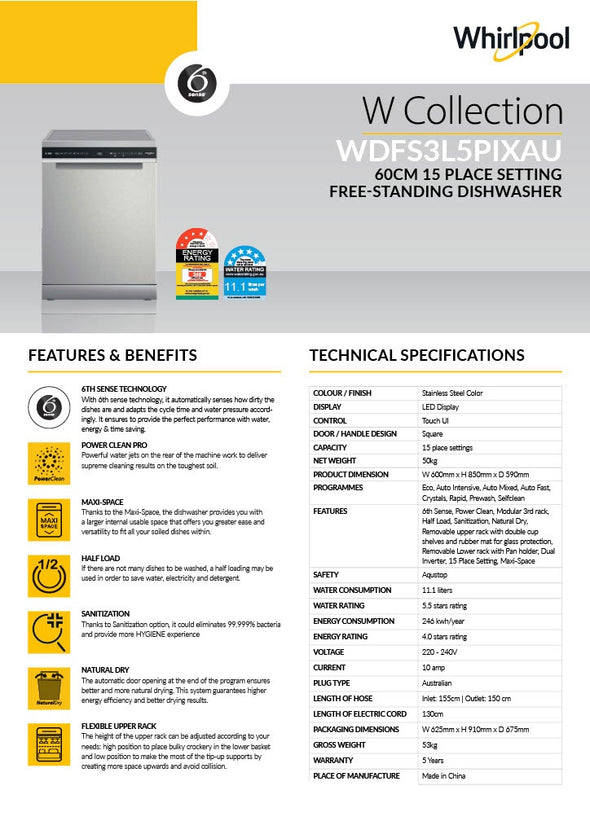

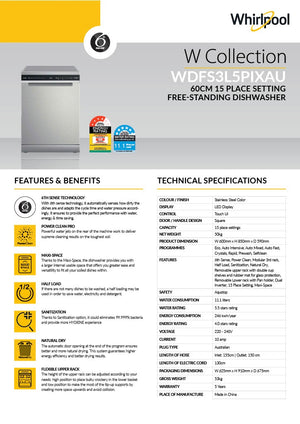

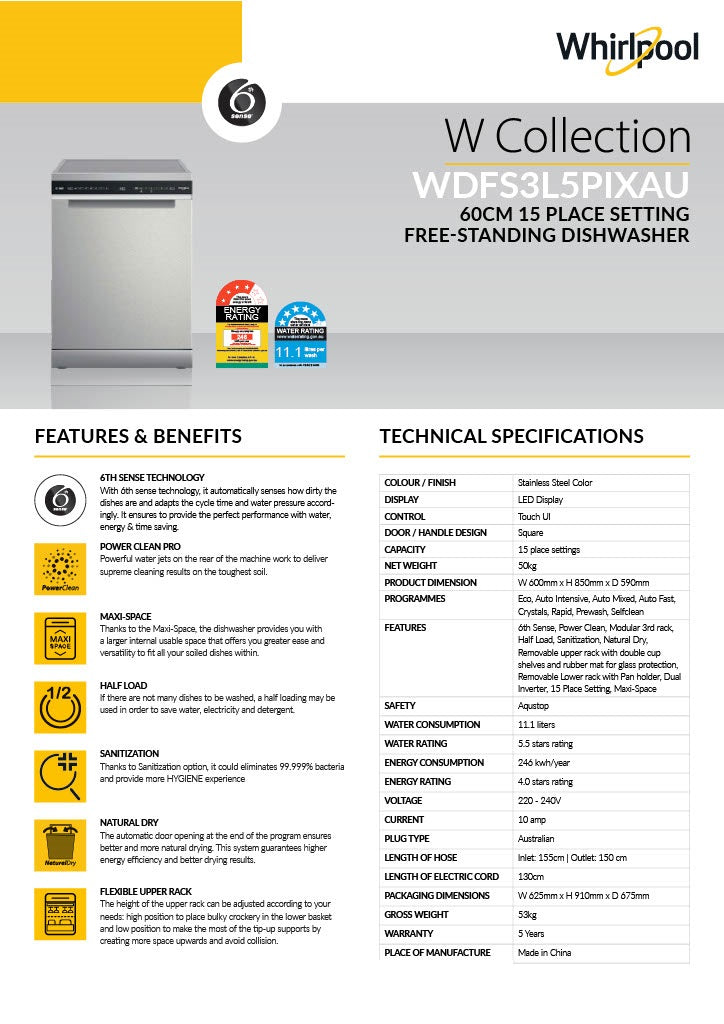

• WDFS3L5PIXAU SPECIFICATION SHEET (PDF)
