Whirlpool W4OMK581HU1 60cm Wide Built-In Multi-Function Oven with Air Fry and Smart Clean

• 71L capacity: a large enamelled cavity with 5 shelf positions, with room for family roasts, multiple trays and batch baking.
• Air Fry: crisp up foods with minimal oil, ideal for frozen foods such as fries and chicken nuggets, as well as fresh vegetables, meats and fish.
• Cook 3: cook 3 different dishes at the same time on different levels, thanks to an airflow that stops aromas and flavours from mixing.
• Forced Air: preheated air is circulated through the cavity by a convection system for moist, juicy results, with up to 3 shelves in use at once.
• Smart Clean: a hydrolytic steam cycle that works with the special easy-clean enamel to clean without detergent or odours.

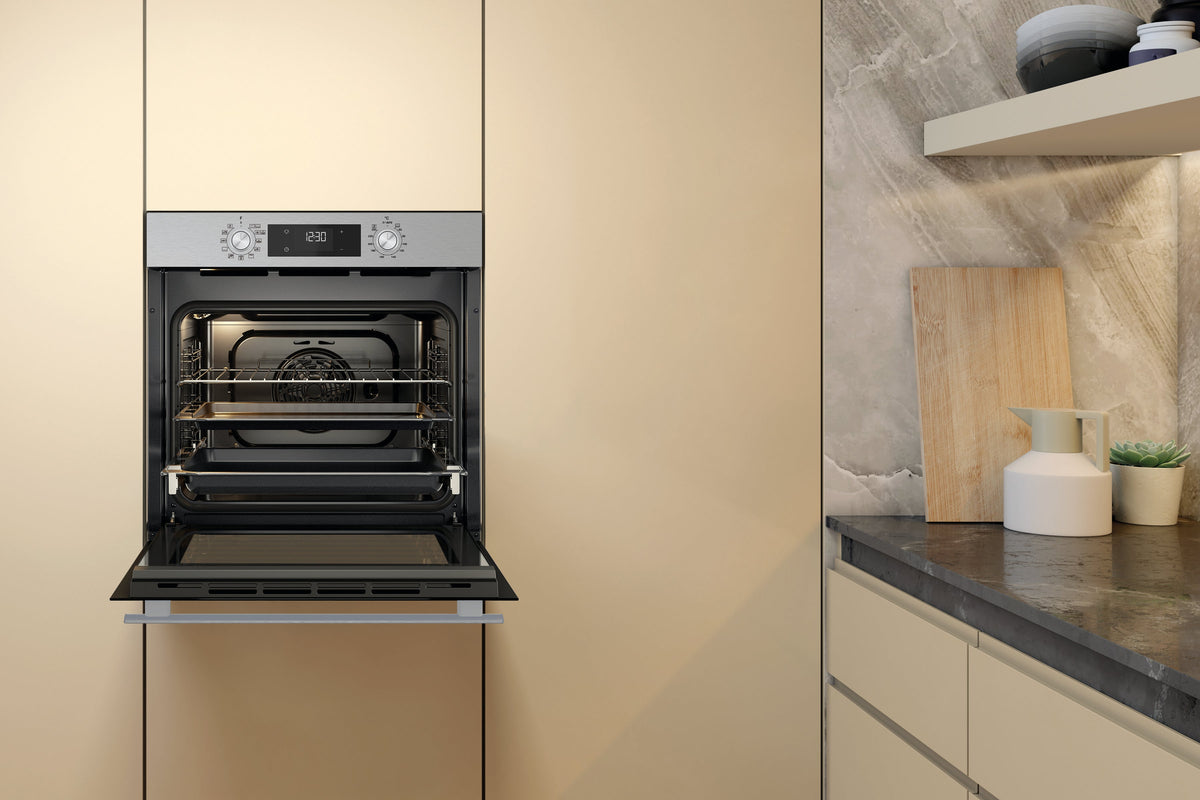

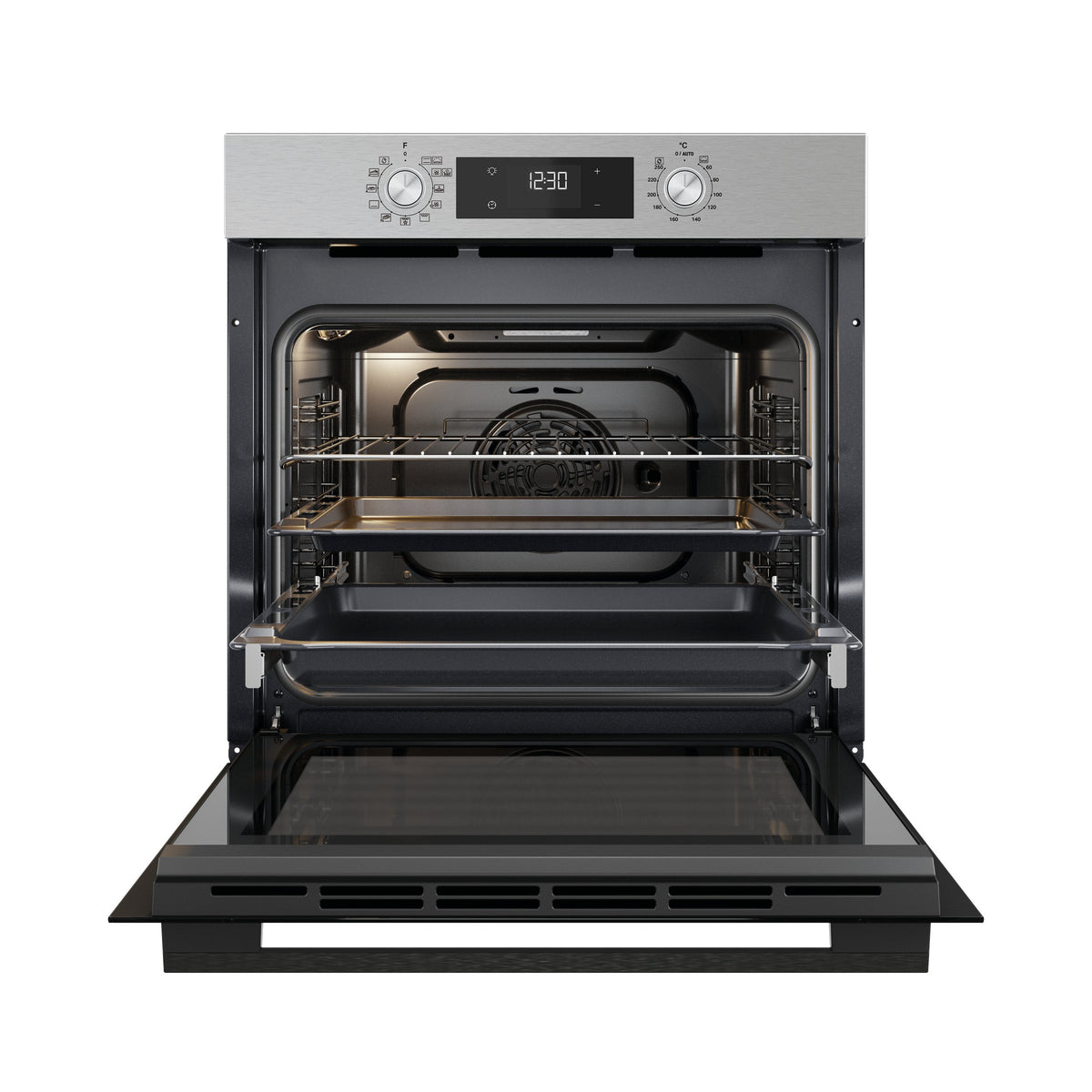

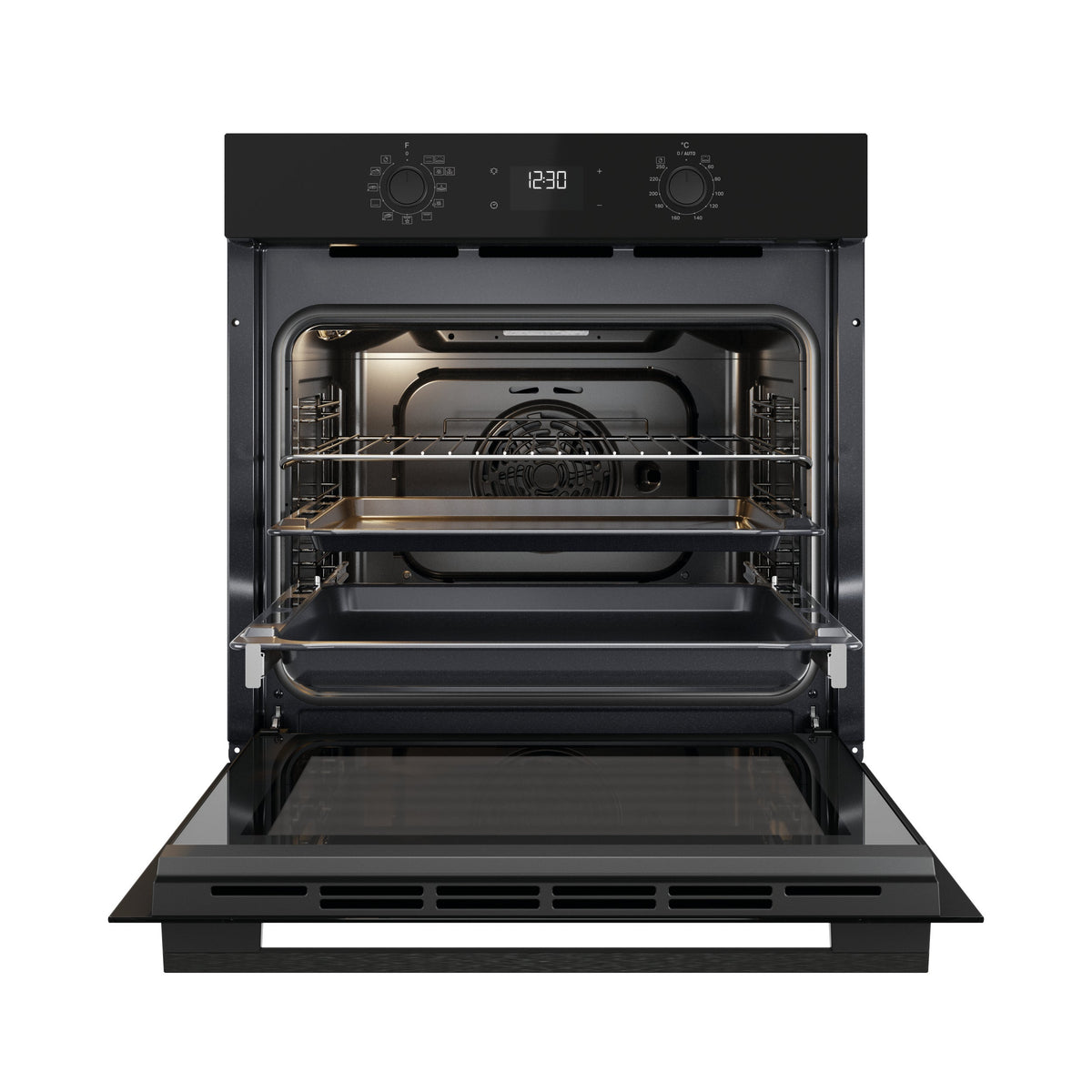

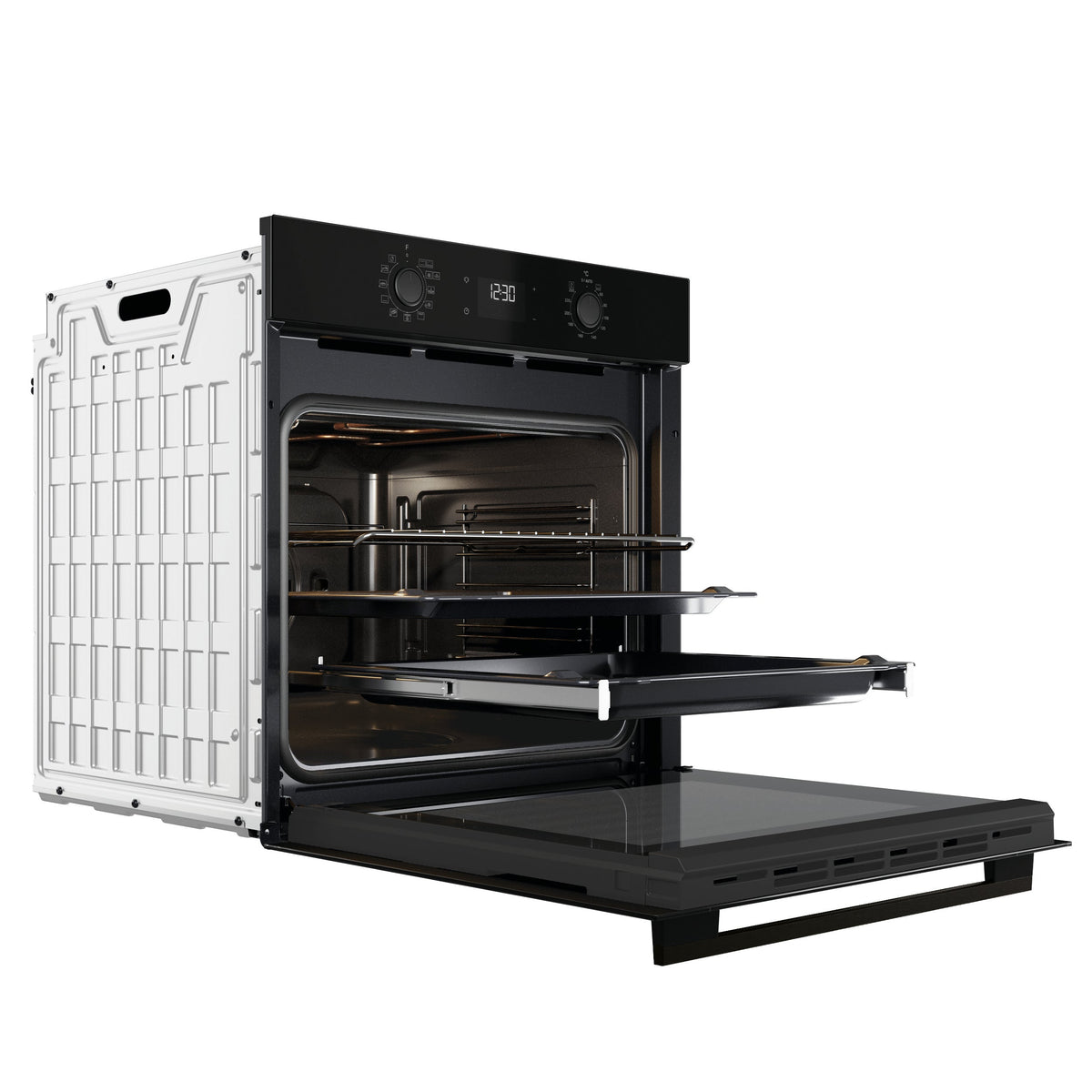

• Telescopic rails: a pair of rails that makes it easy to check on cooking, and to insert, slide out or remove shelves and casseroles.

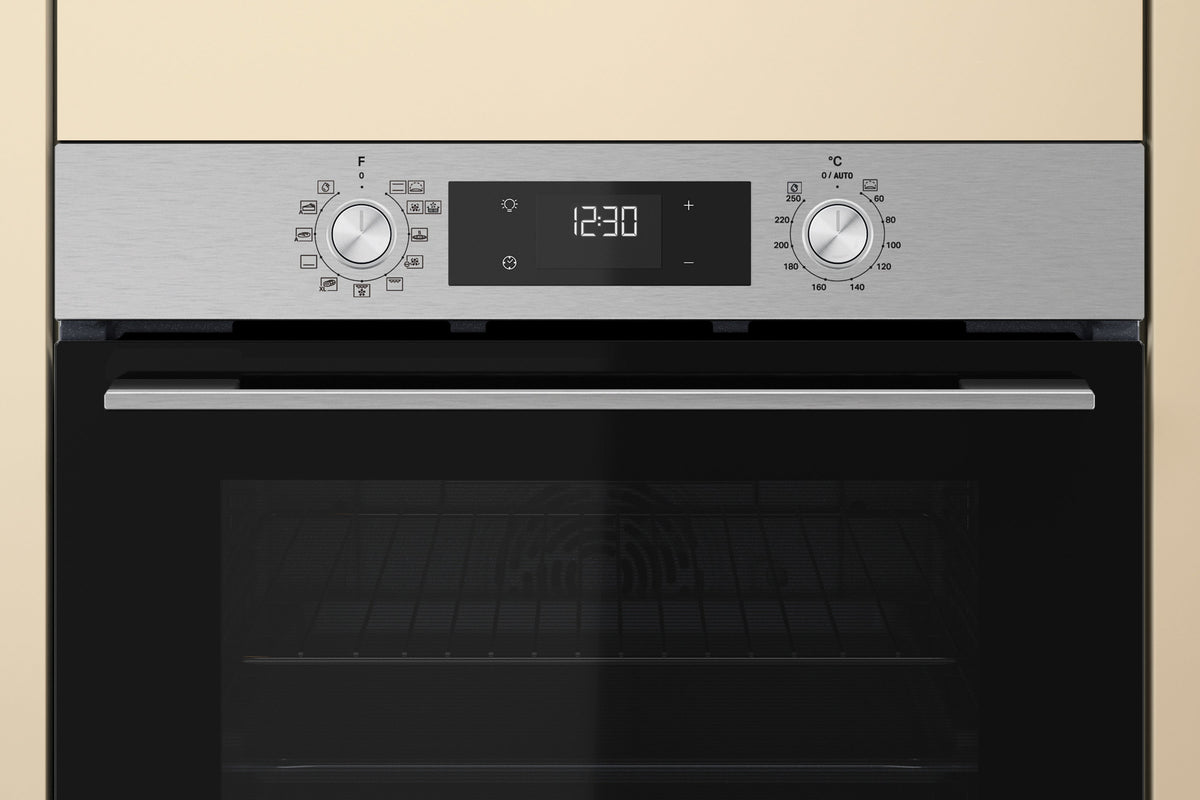

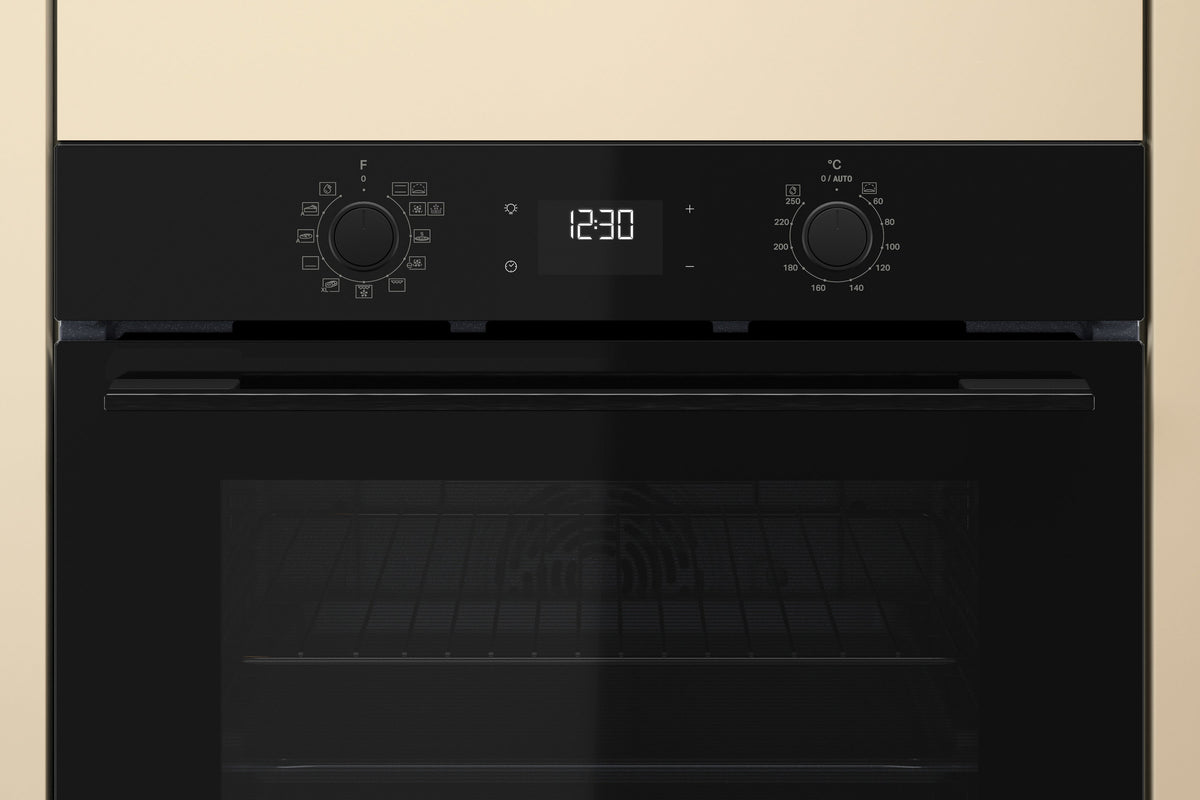

• LED digital display: shows the clock and sets the cooking time, delayed start and timer, with push-in knobs for the function and temperature.
• Bread AUTO and Pastry AUTO: dedicated settings that choose the temperature and baking time for bread and cakes automatically.
• Eco Forced Air and Maxi Cooking: gentle intermittent air circulation for roasts on a single shelf, and a setting for large joints of meat above 2.5kg.
• Double glass door: a double glass door with a black handle (Black) or stainless steel handle (Stainless Steel), removable for easier cleaning.

Oven functions (per the Whirlpool quick guide):

• Conventional: for cooking any kind of dish on one shelf only.
• Rising: helps sweet or savoury dough to rise. Turn the thermostat knob to the Rising position (40°C) with the selection knob on Conventional, and cover the dough with a wet cloth or put a pan of water in the base of the cavity.
• Forced Air: for cooking different foods that need the same temperature on several shelves (maximum three) at the same time, without odours being transferred from one food to another.
• Air Fry: the cavity heats up while the fan circulates hot air, for many foods with less oil. Place the food in a single layer on the Air Fry basket without overlapping, put the basket on the wire shelf and add a baking tray on a lower level to catch crumbs and drips. Avoid using multiple trays.
• Pizza: for baking different types and sizes of pizza and bread. Swap the position of the baking trays halfway through cooking.
• Eco Forced Air: for roasts and stuffed roasting joints on a single shelf, with gentle intermittent air circulation so food does not dry out excessively. The light stays off during cooking but can be switched on again.
• Grill: for grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, place a dripping pan on any level below the wire shelf with 200ml of drinking water.
• Turbo Grill: for roasting large joints of meat (legs, roast beef, chicken). Use a dripping pan below the wire shelf with 200ml of drinking water to collect the cooking juices.
• Maxi Cooking: for large joints of meat above 2.5kg. Turn the meat over during cooking so both sides brown evenly, and baste it every so often.
• Bottom Heating: for browning the bottom of dishes, and recommended for slow cooking, finishing very liquid dishes or concentrating sauces and gravies.
• Bread AUTO: automatically selects the temperature and baking time for bread. Start with the oven cold and leave the thermostat knob on 0/AUTO.
• Pastry AUTO: automatically selects the temperature and baking time for cakes. Start with the oven cold and leave the thermostat knob on 0/AUTO.
• Smart Clean: a low-temperature steam cycle. Pour 100-120ml of drinking water into the bottom of the oven and turn the selection and thermostat knobs to the Smart Clean icon, starting with the oven cold. The guide suggests running it for about 35 minutes.

Controls and daily use:

• Selection knob: turn to a function symbol to switch the oven on, and back to the off position to switch it off.
• Thermostat knob: turn to the required temperature to start the selected function. The function will not start with the knob on 0/AUTO.
• Display and buttons: set the clock, the cooking duration, the cooking end time for delayed start (not available for Grill and Turbo Grill) and a timer. The light button switches the oven light on or off.

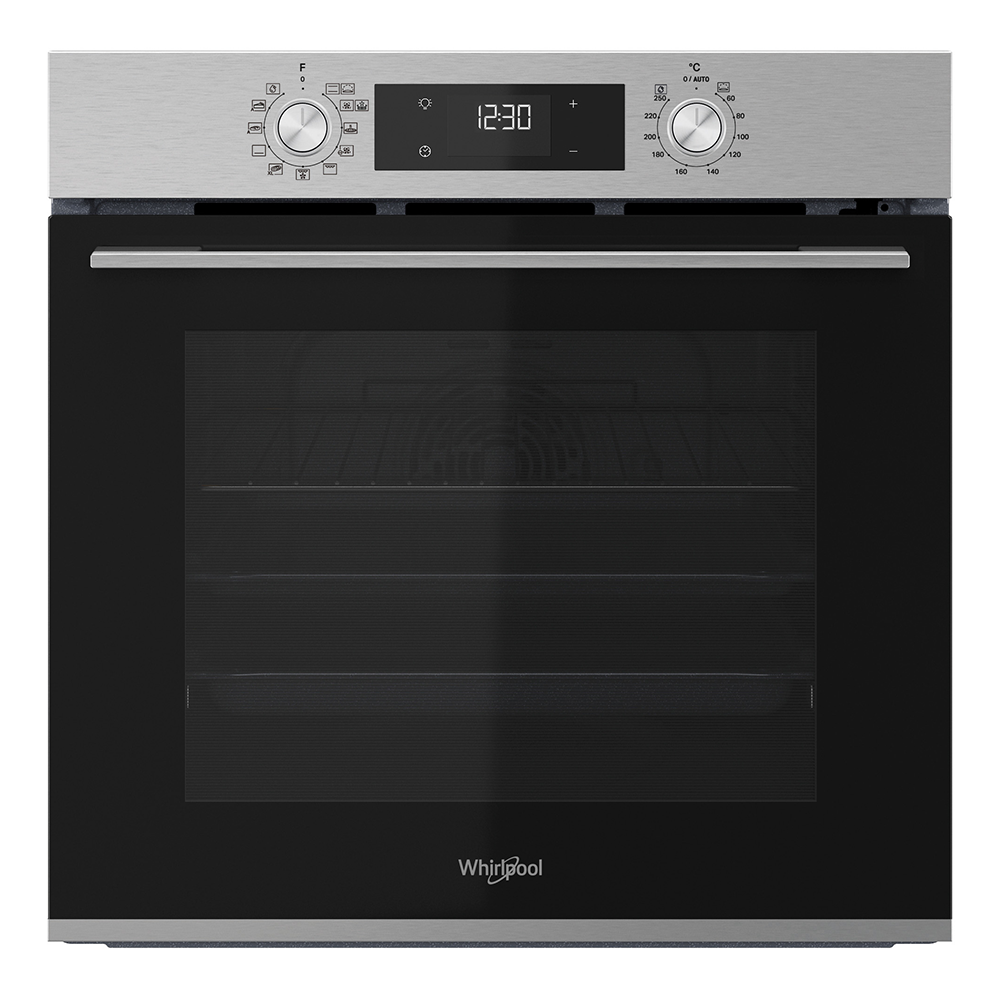

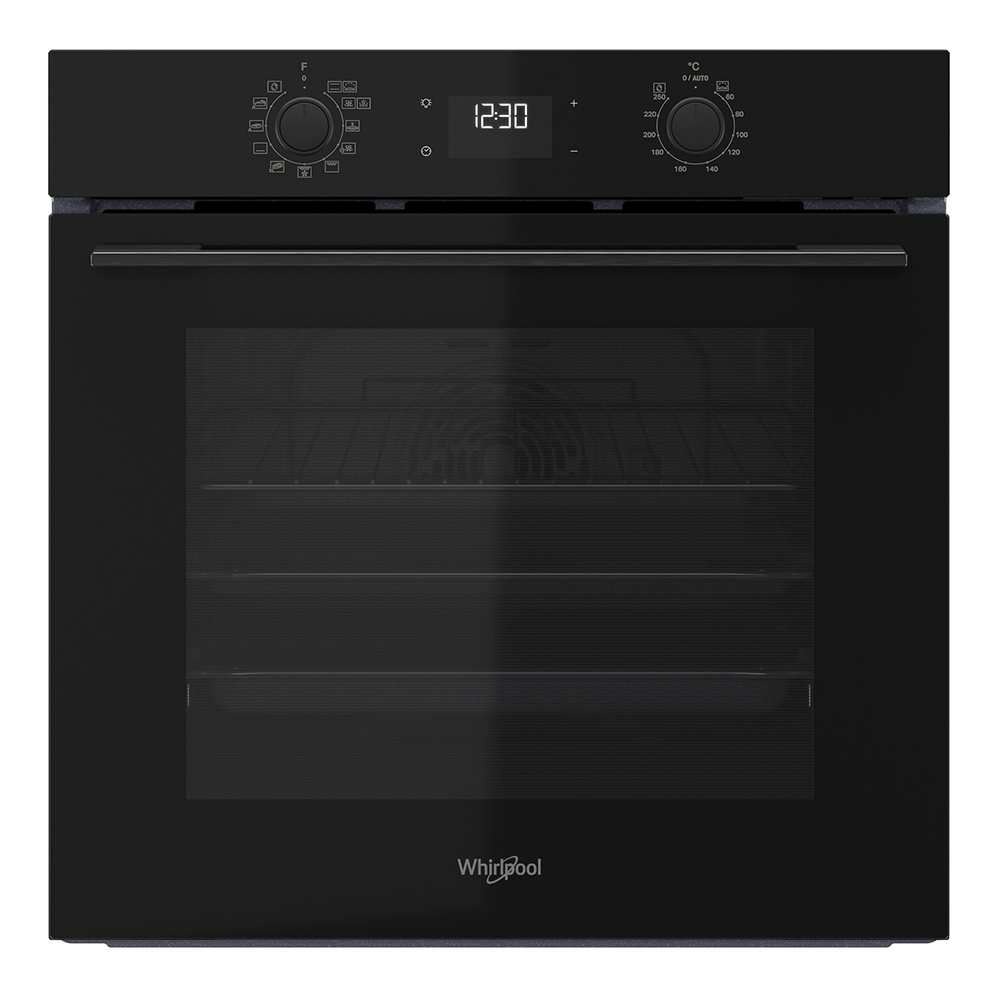

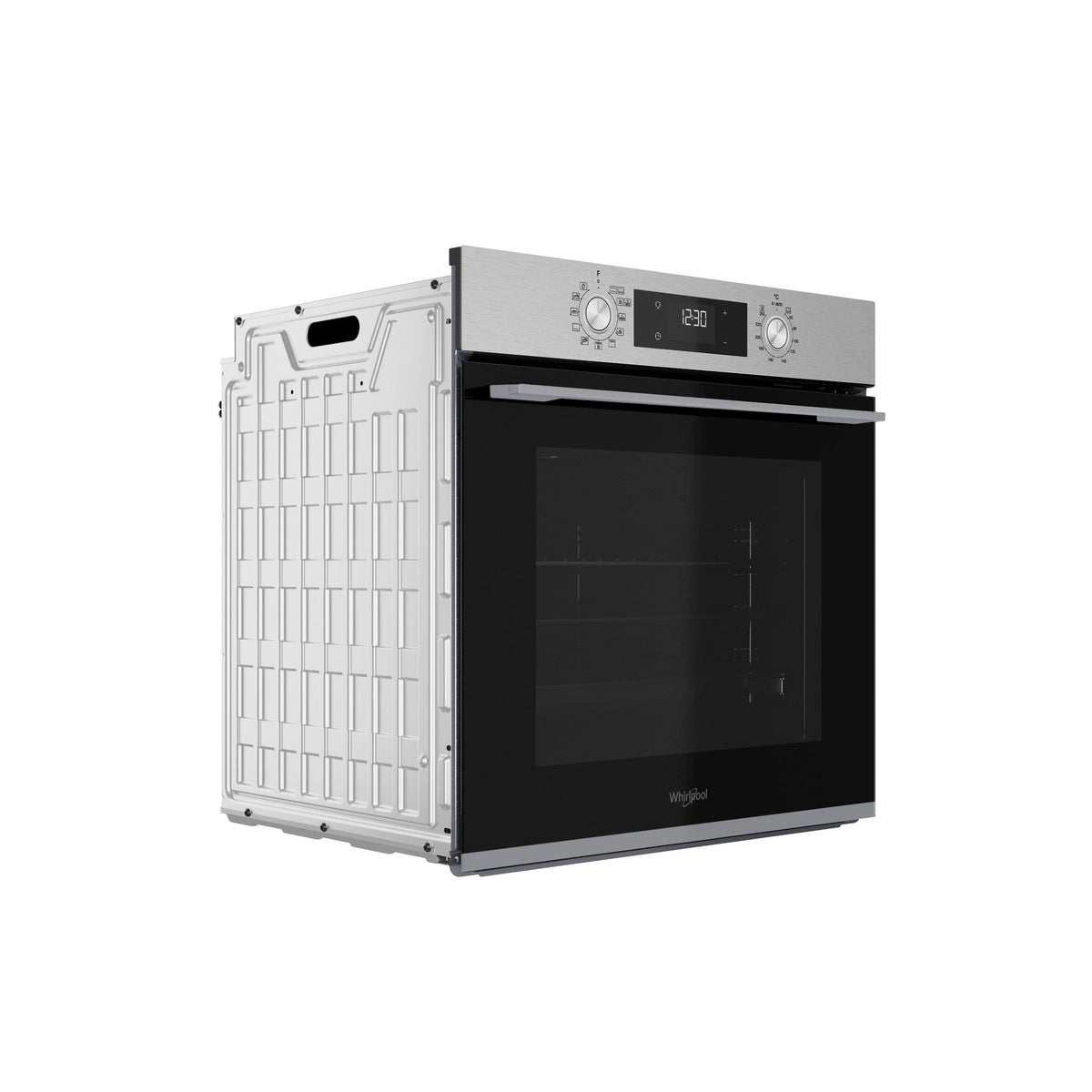

• Model: W4OMK581HU1BAUS (Black), W4OMK581HU1XAUS (Stainless Steel)
• Type: 60cm Built-In Electric Multi-Function Oven with Air Fry and Hydrolytic Cleaning
• Colour / Finish: Black or Stainless Steel
• Display: LED Digital
• Control: Push Knobs
• Door / Handle Design: Double Glass Door with Black Handle (Black) or Stainless Steel Handle (Stainless Steel)
• Cavity Type: Enamelled
• Capacity: 71L
• Cooking Shelves: 5 Shelves
• Functions: Conventional, Forced Air, Grill, Turbo Grill, Bottom Heating, Rising, Air Fry, Pizza, Eco Forced Air, Maxi Cooking, Bread AUTO, Cake AUTO, Delay Start
• Heating Temperature: 50°C to 250°C (Black), 60°C to 250°C (Stainless Steel)
• Cleaning: Hydrolytic (Smart Clean)
• Maximum Total Power: 2,900W
• Voltage and Current: 220-240V, 13 amp
• Electrical Cord: 100cm
• Country of Origin: Poland

• Installer: the oven must be installed and connected by a qualified person.
• Cut-out: W 560mm x H 583mm x D 560mm, for installation under a counter or in a wall cabinet unit.
• Electrical: 220-240V, 2,900W, 13 amp with a 100cm supply cord.
• Installation guide: follow the installation guide supplied with the oven for ventilation gaps and cabinet requirements.

Warranty coverage

Whirlpool appliances are distributed in Australia by Arisit Pty Limited and are backed by a 2-year manufacturer's warranty, giving you confidence in the quality and performance of every appliance across their range of kitchen and laundry products.

• All Whirlpool appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, ovens, freestanding cookers & microwaves): 2 years — Defects in materials and workmanship, domestic use only

Proof of purchase is required for all warranty claims. To activate your warranty, register your product within 30 days of purchase at whirlpool.com.au. The warranty is transferable to a subsequent owner within the warranty period, provided Whirlpool is notified in writing with the new owner's details.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Replaced or repaired components carry the remaining warranty period or 3 months, whichever is greater

What's not covered

• Incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, neglect, or abnormal use
• Damage from fire, water, vermin, insects, or external electrical faults
• Blockages caused by foreign objects
• Cosmetic damage that does not affect the functioning of the product
• Consumables such as light bulbs, filters, and other wear items
• Unauthorised modifications or repairs
• Commercial use of domestic appliances
• Inadequate or incorrect venting
• Excessive use of cleaning products or cleaning agents

Conditions

• Cooktops, ovens, and rangehoods must be installed by a licensed electrician or gas plumber
• Must be used and maintained in accordance with the Use and Care Guide or Instruction Manual
• Product must be registered within 30 days of purchase at whirlpool.com.au to activate the warranty
• Any transport damage must be reported within 7 days of delivery
• Proof of purchase must be provided with all claims
• The warranty is transferable to a subsequent owner provided Whirlpool is notified in writing within a reasonable time of the sale, with the new owner's name, contact details, place and date of purchase, and model and serial number

Making a claim

Contact Arisit on 1300 762 219 or submit a service request at whirlpool.com.au. For large appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, and ovens), an authorised Whirlpool service technician will be sent to assess the claim. For smaller appliances such as microwaves, you may be asked to bring the product to your nearest authorised service agent. Please have your model number, serial number, and proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

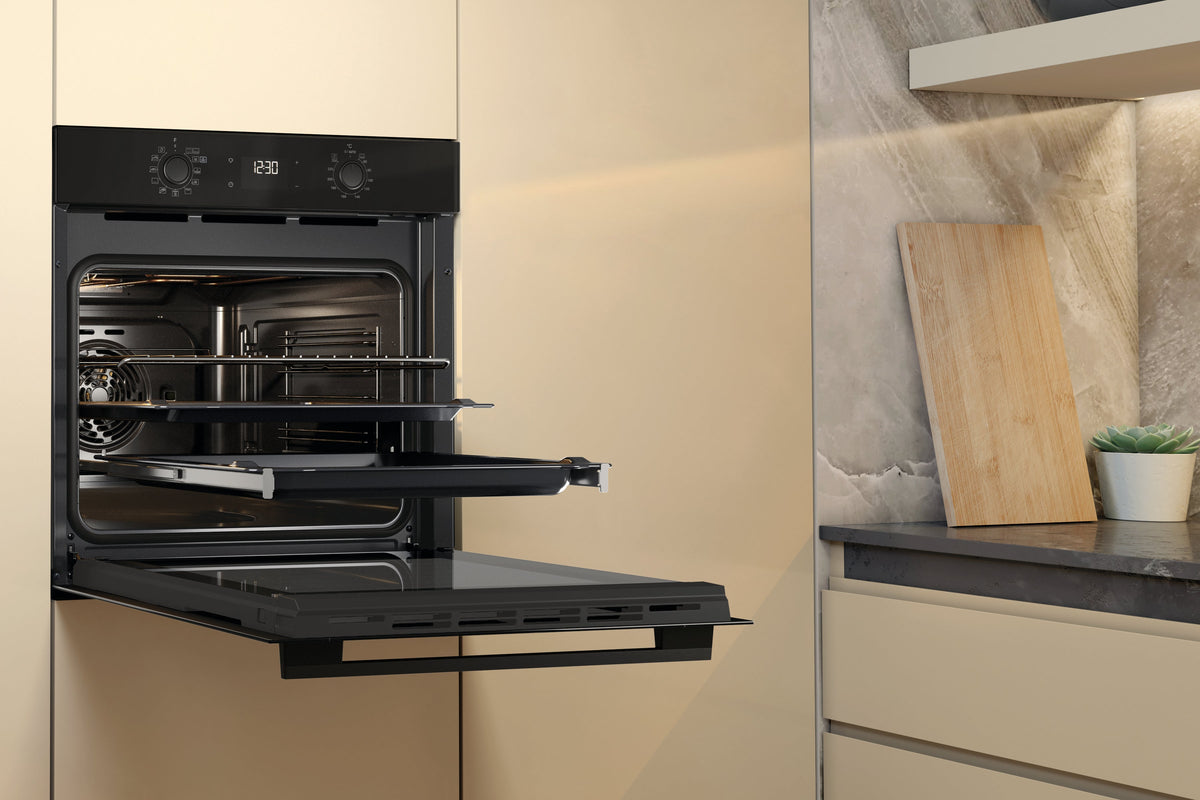

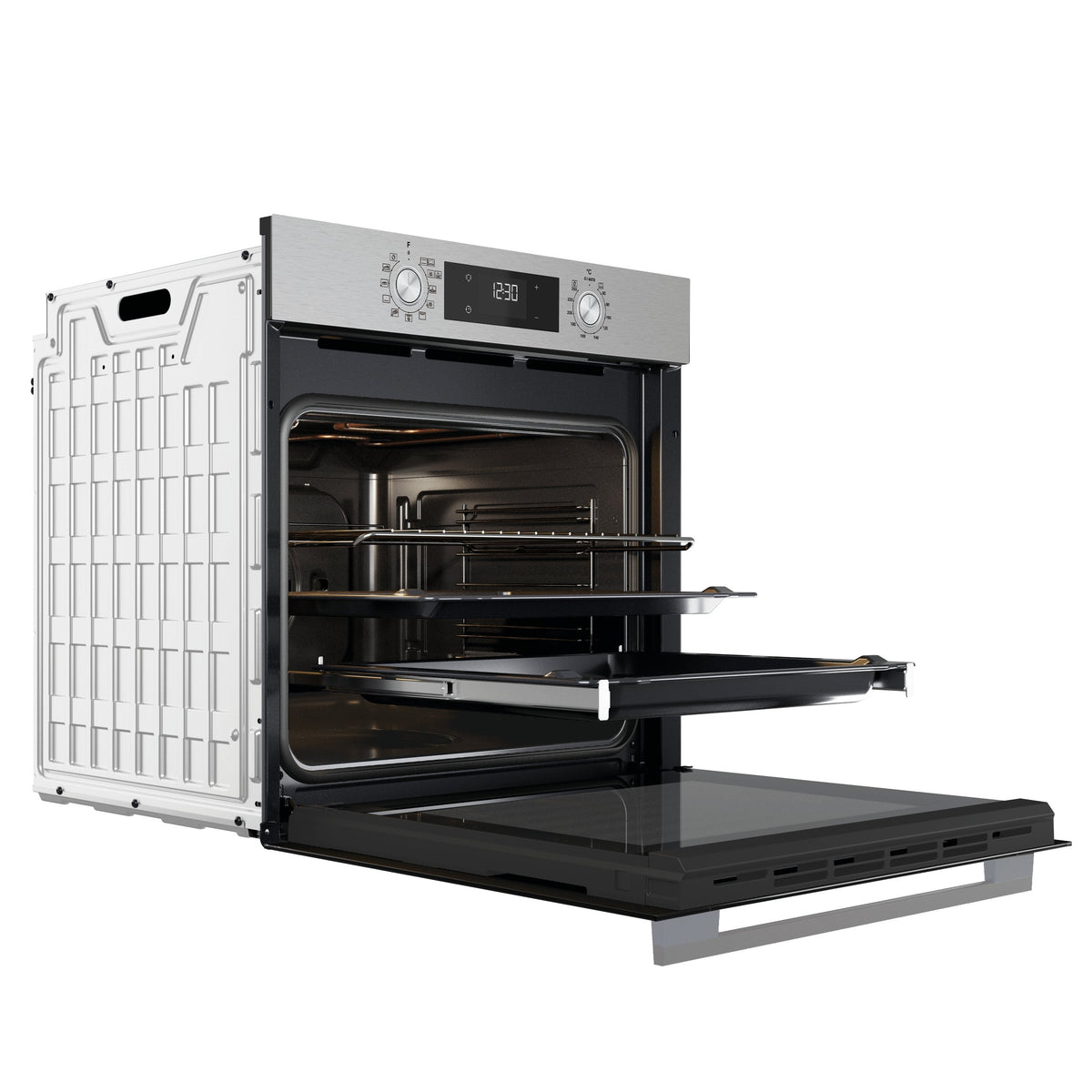

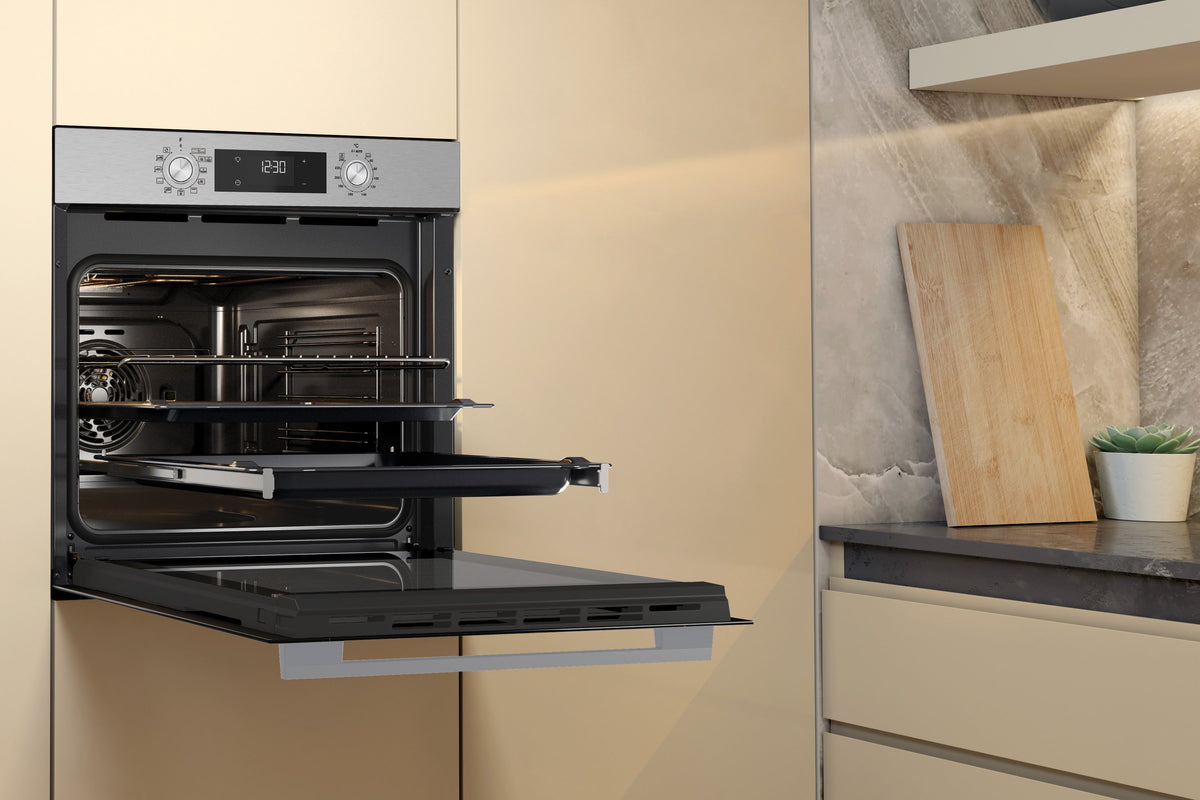

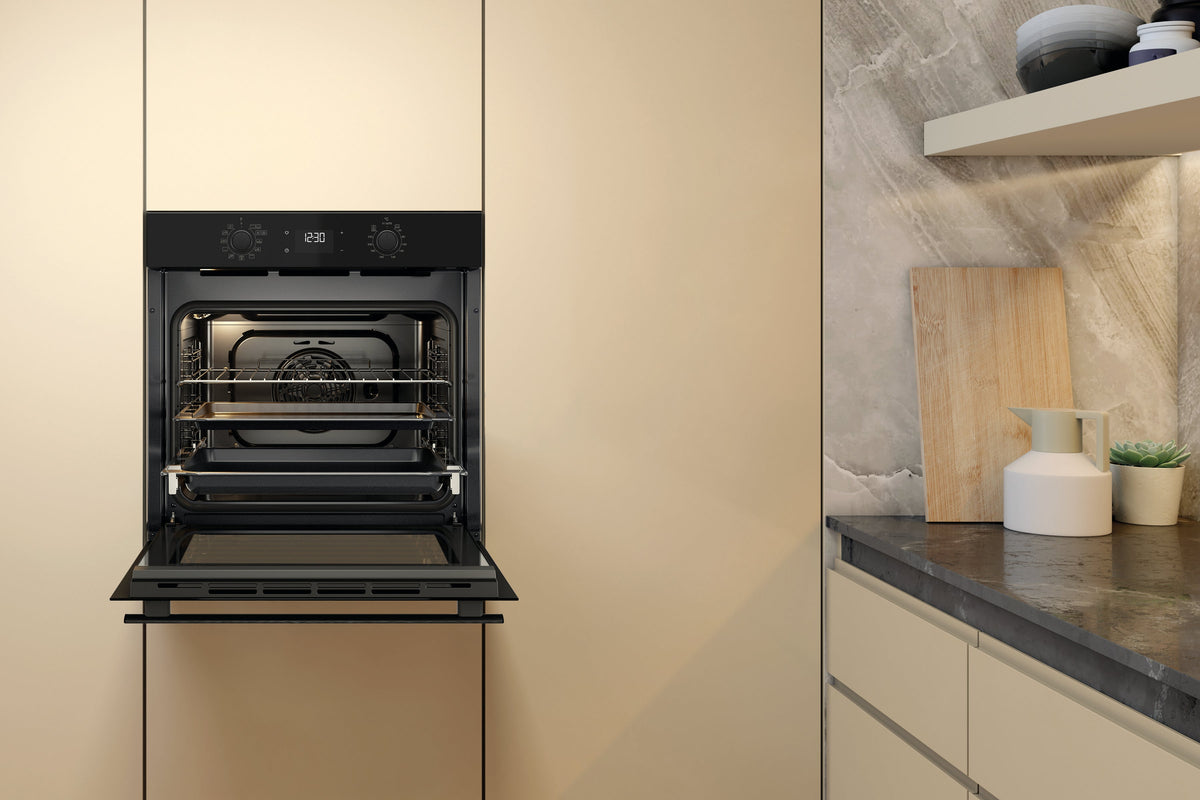

This oven pairs Air Fry and Cook 3 with a pair of telescopic rails, so a heavy tray of roast vegetables or a full dinner can be checked and slid out smoothly instead of lifted. The rails come already fitted, but remove the protective tape and foil from them before first use. If you want to take them out for cleaning, pull the lower part of the runner to release the lower hooks and lift it off the upper hooks, then press it back until the lower hooks click.

The use and care guide includes an Air Fry cooking table with starting points for most foods: frozen fries (500-700g) at 200°C for 20 to 30 minutes, frozen chicken nuggets (500-700g) at 200°C for 15 to 20 minutes, fish sticks at 220°C for 15 to 20 minutes, fresh breaded zucchini (400g) at 200°C for 15 to 20 minutes, homemade fries (300-800g) at 200°C for 25 to 40 minutes and chicken wings (200-800g) at 220°C for 20 to 40 minutes. Always put the Air Fry tray on the wire shelf, spread oil evenly on fresh or homemade foods, add an empty tray on the lowest level to catch grease and mix the food halfway through.

On first use the display will ask you to set the time, then heat the empty oven at 250°C for about one hour with the room ventilated, to burn off any manufacturing odours. Bread AUTO and Pastry AUTO should be started with a cold oven and the thermostat knob left on 0/AUTO. If the display shows Hot, let the oven cool before selecting a function. Both finishes share the same quick guide and features, so choose W4OMK581HU1BAUS for black or W4OMK581HU1XAUS for stainless steel. The supplier lists the energy consumption as to be confirmed.

• Oven: 1 x Whirlpool W4OMK581HU1 60cm Built-In Multi-Function Oven in your chosen finish, Black (W4OMK581HU1BAUS) or Stainless Steel (W4OMK581HU1XAUS).
• Wire shelves: 2 x wire shelf.
• Baking tray: 1 x enamelled baking tray.
• Deep tray: 1 x enamelled deep tray.
• Telescopic rails: 1 x pair of telescopic rails.
• Air Fry basket: 1 x Air Fry basket.

• W4OMK581HU1BAUS Specification Sheet (PDF)
• W4OMK581HU1XAUS Specification Sheet (PDF)
• W4OMK581HU1 User Manual (PDF)
