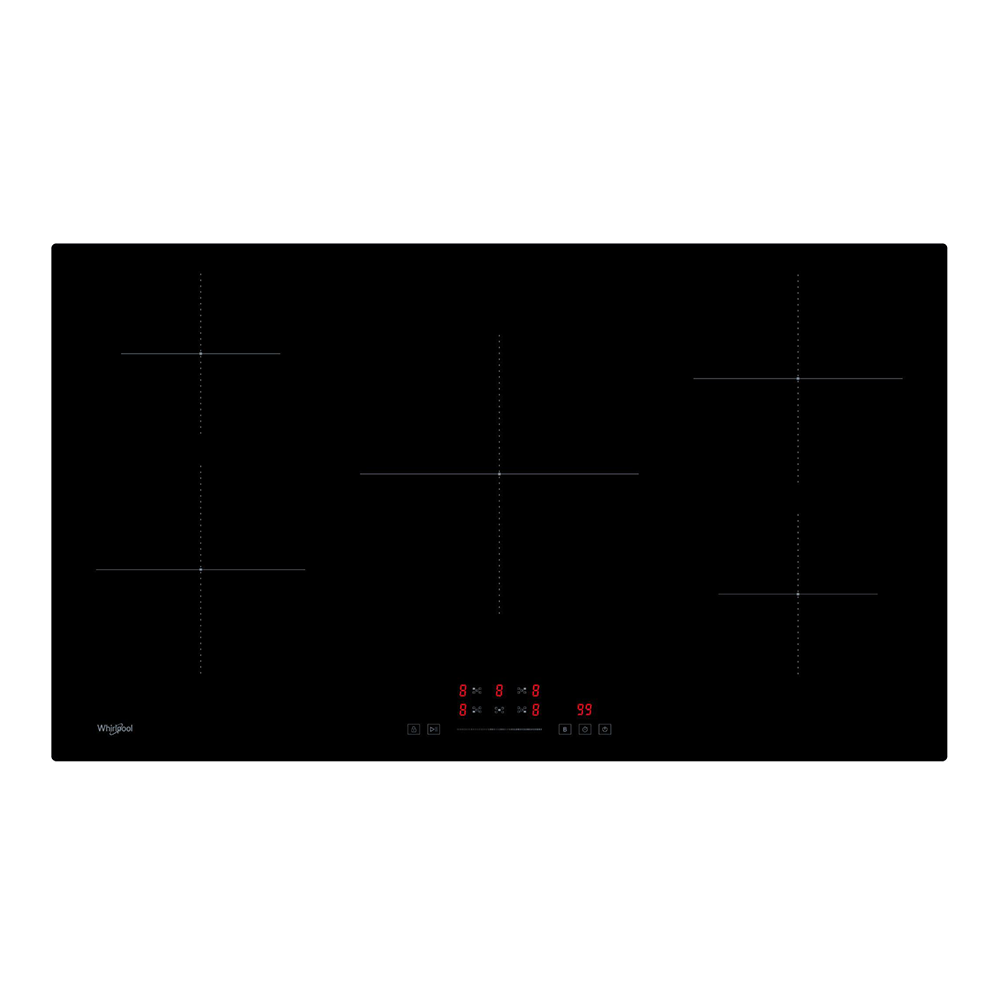

Whirlpool IWSH9051CAUS 90cm Wide 5 Zone Built-In Induction Cooktop with Slider Touch Control

• Induction technology: heats the pan, not the cooktop, reducing energy dispersion for faster and more energy-efficient cooking.
• Booster: every cooking zone is equipped with a Booster function that significantly reduces boiling times.
• Five cooking zones: a 280mm central zone at 2,300W (Booster 3,000W), two 210mm zones at 2,000W (Booster 3,000W) and two 160mm zones at 1,500W (Booster 2,000W): left front 2,000W, left rear 1,500W, central 2,300W, right front 1,500W and right rear 2,000W.
• Black ceramic glass: a completely smooth, flat cooking surface that is extremely easy to clean with just a wipe.
• Slider touch control: select a zone, then slide a finger across the keypad to set the heat across 9 power levels.
• Stop & Go: suspends cooking when you are interrupted and restarts at the same settings with one touch.
• Child Lock: locks the controls to prevent toddlers and children accidentally using the cooktop.
• Timer: use as a minute minder or to switch a zone off automatically, set up to 99 minutes.
• Pan detection: no heating takes place unless a suitable pan is on the cooking zone.
• Residual heat indicator: an "H" shows on each zone that is still hot.
• Auto shutdown: switches a zone off automatically after 8, 4 or 2 hours depending on the power level, if it is forgotten.
• Overheat and overflow protection: the cooktop stops operating if it gets too hot, and shuts off if liquid spills over the control panel.
• Easy-fit installation kit: supplied with fixing clips, screws and a foam gasket for a secure fit into the worktop.

Power level guide (per the Whirlpool use and care guide):

• Levels 1-2: delicate warming of small amounts of food, melting chocolate and butter, and foods that burn quickly.
• Levels 3-4: gentle simmering, slow warming and reheating.
• Levels 5-6: rapid simmering, cooking rice and pancakes.
• Levels 7-8: sautéing, cooking pasta, stir-frying and searing.
• Level 9: bringing soup to the boil and boiling water.

Functions:

• Slider touch control: press and hold ON/OFF for about 3 seconds to switch on, select a zone, then move a finger horizontally across the scroll keypad to set the power from 0 to 9 (default level 5). The controls respond to a light touch of the ball of the finger and beep when a touch registers.
• Booster: select a zone and touch the Booster button to boost it to its maximum power rating for 5 minutes. The display shows "b", and the zone returns to its original setting when the boost finishes. Touch Booster again, or adjust the power level, to cancel.
• Stop & Go: press the Stop & Go button to put all zones on hold (the displays show "P"), and press it again to resume at the same settings. If left active for more than 10 minutes, the cooktop turns itself off.
• Child Lock: press the Child Lock button to lock the controls ("Lo" shows on the timer display). Only ON/OFF and Child Lock remain active. Press and hold Child Lock for 3 seconds to unlock.
• Timer: set up to 99 minutes as a minute minder (does not switch any zone off) or as a zone timer that switches one or more zones off when the time is up. Slide the keypad to set the units digit, press the timer button, then slide to set the tens digit and press the timer button again to confirm. The default is 30 minutes and the buzzer sounds for 30 seconds at the end.
• Pan detection: if the display flashes alternately with the heat setting, no suitable pan is on the zone. The display turns off after 2 minutes, and a zone with an unsuitable or very small item on it switches off after 1 minute.
• Standby auto-off: if no zone is used within 1 minute of switching on, the cooktop turns itself off.
• Residual heat warning: an "H" stays on the zone display until the surface is cool enough to touch.
• Auto shutdown: a zone left on switches off after 8 hours at levels 1-3, 4 hours at levels 4-6, or 2 hours at levels 7-9.
• Overheat protection: the cooktop stops operating automatically if the internal temperature gets too high.
• Overflow protection: if liquid boils over onto the control panel, or a wet cloth covers it, the cooktop shuts off power and the controls stay disabled (except ON/OFF and Child Lock) until the panel is wiped dry.
• Cooling fan: the fan keeps running for about 1 minute after the cooktop is turned off.

• Model: IWSH9051CAUS
• Type: 90cm Built-in Induction Cooktop
• Colour / Finish: Black Ceramic Glass
• Cooking Zones: 5
• Zone Sizes and Power: Central 280mm 2,300W, Booster 3,000W; 2 x 210mm 2,000W, Booster 3,000W (left front, right rear); 2 x 160mm 1,500W, Booster 2,000W (left rear, right front)
• Total Power: 10,200W
• Control: Slider touch control with cooking zone selection, Booster, timer, Child Lock, Stop & Go and ON/OFF
• Location of Controls: Front
• Power Settings: 9 levels
• Functions: Booster, Stop & Go, Timer (up to 99 minutes)
• Energy Input: Electric
• Rated Voltage and Frequency: 220-240V~ or 380-415V 3N~, 50-60Hz
• Power Cord: 110cm (without plug)
• Safety Features: Child Lock, Pan Detection, Residual Heat Indicator, Auto Shutdown, Overheat Protection, Overflow Protection
• Installation: Built-in
• Country of Origin: Asia (as stated by the supplier)

• Cut-out size: W 880mm x D 500mm. Keep at least 50mm of space around the cut-out.
• Worktop: at least 30mm thick, in a heat-resistant material. The adhesive and any sandwich layer must also be heat resistant.
• Clearance above: at least 760mm between the cooking zones and any cupboard above. Walls above the worktop must withstand heat.
• Ventilation: the cooktop must be well ventilated, with the air inlet (at least 20mm) and air outlet (at least 5mm) kept unblocked.
• Under the cooktop: if it is not installed above an oven, a separator panel (not included) must be fitted in the compartment below. It must not be mounted above cooling equipment, dishwashers or rotary dryers.
• Foam gasket: the supplied foam gasket must be attached to the underside of the glass edge before fitting. Do not install the cooktop without it.
• Fixing: secure with the supplied fixing clips and screws (2 of each).
• Electrical: 220-240V~ or 380-415V 3N~, 50-60Hz, 10,200W. The appliance has a large power rating and must be connected by a qualified electrician. If wired directly to the mains, an all-pole circuit breaker with at least a 3mm contact gap is required. The cable must not be bent or compressed.
• Handling: handle and install with two or more people, wearing protective gloves. Carry out all cabinet cutting before fitting and remove sawdust.

Warranty coverage

Whirlpool appliances are distributed in Australia by Arisit Pty Limited and are backed by a 2-year manufacturer's warranty, giving you confidence in the quality and performance of every appliance across their range of kitchen and laundry products.

• All Whirlpool appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, ovens, freestanding cookers & microwaves): 2 years — Defects in materials and workmanship, domestic use only

Proof of purchase is required for all warranty claims. To activate your warranty, register your product within 30 days of purchase at whirlpool.com.au. The warranty is transferable to a subsequent owner within the warranty period, provided Whirlpool is notified in writing with the new owner's details.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Replaced or repaired components carry the remaining warranty period or 3 months, whichever is greater

What's not covered

• Incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, neglect, or abnormal use
• Damage from fire, water, vermin, insects, or external electrical faults
• Blockages caused by foreign objects
• Cosmetic damage that does not affect the functioning of the product
• Consumables such as light bulbs, filters, and other wear items
• Unauthorised modifications or repairs
• Commercial use of domestic appliances
• Inadequate or incorrect venting
• Excessive use of cleaning products or cleaning agents

Conditions

• Cooktops, ovens, and rangehoods must be installed by a licensed electrician or gas plumber
• Must be used and maintained in accordance with the Use and Care Guide or Instruction Manual
• Product must be registered within 30 days of purchase at whirlpool.com.au to activate the warranty
• Any transport damage must be reported within 7 days of delivery
• Proof of purchase must be provided with all claims
• The warranty is transferable to a subsequent owner provided Whirlpool is notified in writing within a reasonable time of the sale, with the new owner's name, contact details, place and date of purchase, and model and serial number

Making a claim

Contact Arisit on 1300 762 219 or submit a service request at whirlpool.com.au. For large appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, and ovens), an authorised Whirlpool service technician will be sent to assess the claim. For smaller appliances such as microwaves, you may be asked to bring the product to your nearest authorised service agent. Please have your model number, serial number, and proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

With five zones across 90cm, including a large 280mm central zone, this cooktop suits keen cooks and entertainers who run several pots and pans at once. Pans should have a flat base that sits flush against the glass and matches the size of the zone, always centred on it, because a smaller pot reduces efficiency. When two zones in the same vertical direction are in use, boosting one lowers the other to level 2 if it was set higher, so it helps to plan which pans get the Booster.

The slider control rewards a light, deliberate touch: slide the ball of the finger horizontally across the keypad, keeping it clean and dry, because even a thin film of water can make it hard to operate. A setting is confirmed once the display stops flashing, after about 5 seconds. For the timer, the slider sets the units digit first, then the tens digit, and the timer button confirms each step.

For stir-frying, the use and care guide suggests an induction-compatible flat-based wok or large frying pan, having every ingredient ready, cooking large quantities in several smaller batches, then cooking the meat first and setting it aside, stir-frying the vegetables until crisp and turning the zone down before returning the meat and adding the sauce. The cooktop is for household and similar use, not professional or outdoor use, and should not be used if the glass is cracked. If power is cut during cooking all settings are cancelled, and people with a pacemaker or similar medical device should consult their doctor or the device manufacturer.

• Cooktop: 1 x Whirlpool IWSH9051CAUS 90cm 5 Zone Built-In Induction Cooktop with 110cm power cord (without plug).
• Easy-fit installation kit: 2 x fixing clips and 2 x screws.
• Foam gasket: supplied in a plastic bag, to be attached to the underside of the glass before installation.
