Product Description
You won't see it, but you'll feel it
- Thermonet features 3.5mm TwistedTwin cable, self-adhesive mesh and our low-profile cold tail connection cable. These features make up what we call LayFlat Technology because this combination neutralises tension in the finished product and makes Thermonet easier to fit.
Safe, simple and reliable
- Thermonet underfloor heating cables have a tough fluoropolymer coating on the outside and internal conductors, a continuous armoured earth sheath and multi-shrand twin conductors.
- The conductors as twisted together to eliminate electromagnetic field (EMF) and neutralise the stress, expansion and contractions of the cable along the entire length; resulting in a more robust longer lasting cable.
Lifetime Warranty
- We are so confident of the quality of our German-made Thermonet Underfloor Heating that we give each system a warranty that lasts a Lifetime with 3 year warranty on our Thermostats.
TwistedTwin cable construction
- The unique stress free cable construction creates a longer lasting heating cable with zero electromagnetic field (Zero EMF).
Full self adhesive mesh
- Thermonet is installed wire-side-down which means the heating cable is protected from damage during installation by the hard wearing mesh layer.
Heating cable protection
- Thermonet is installed wire-side-down which means the heating cable is protected from damage during installation by the hard wearing mesh layer.
Minimal height build-up
- Utilising innovative extrusion processes provides real ‘lay flat’ technology that makes installing Thermonet easy. The matting system is only 3.5mm thick with a low profile cold tail of only 4mm thick which is typically concealed within the tile adhesive layer.

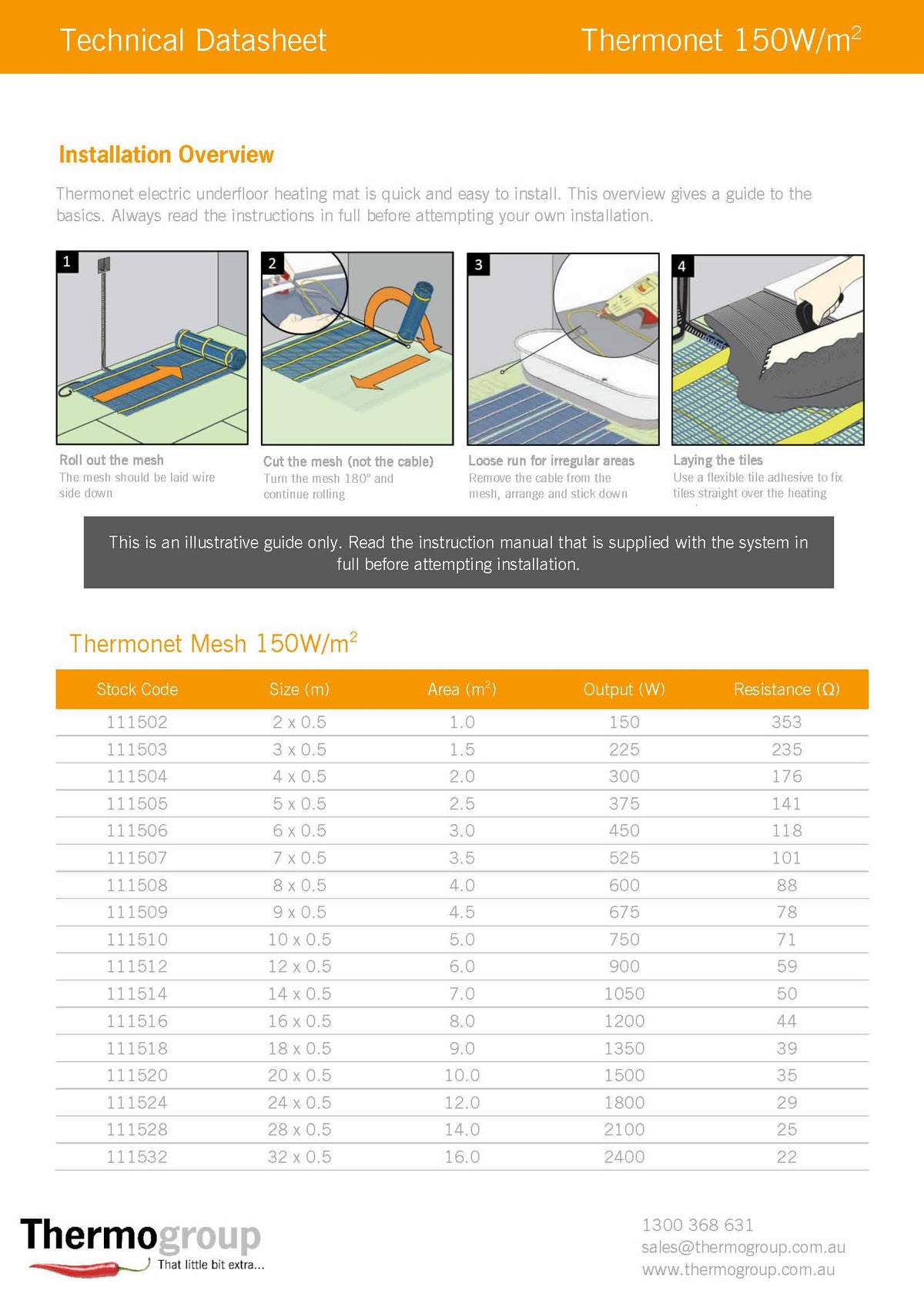

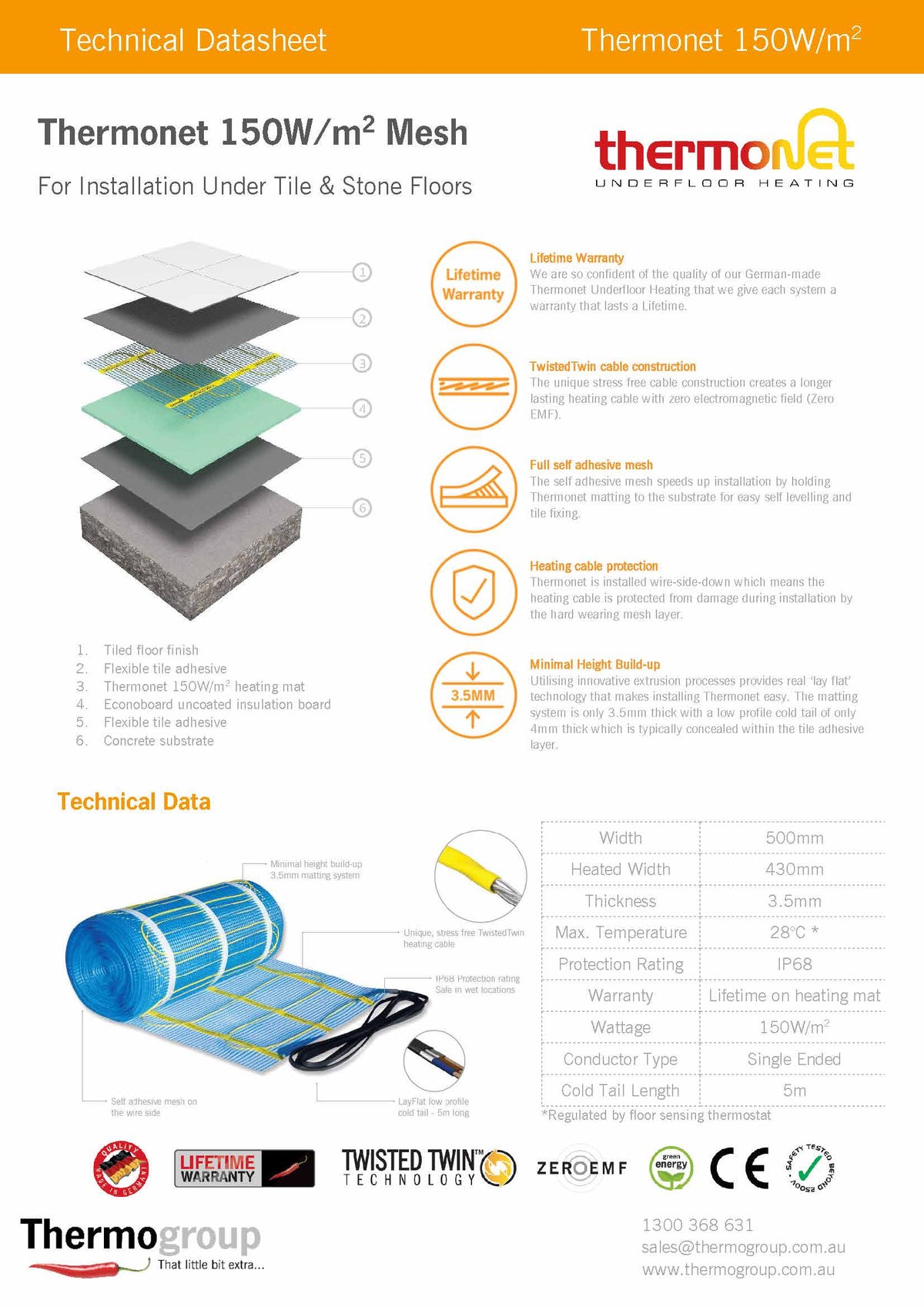

TECHNICAL DATA
- Width: 500mm
- Heated width: 430mm
- Thickness: 3.5mm
- Max. temperature: 28°C *
- Protection Rating: IP68
- Warranty: Lifetime on heating mat
- Wattage: 150W/m²
- Conductor Type: Single Ended
- Cold Tail Length: 5m
