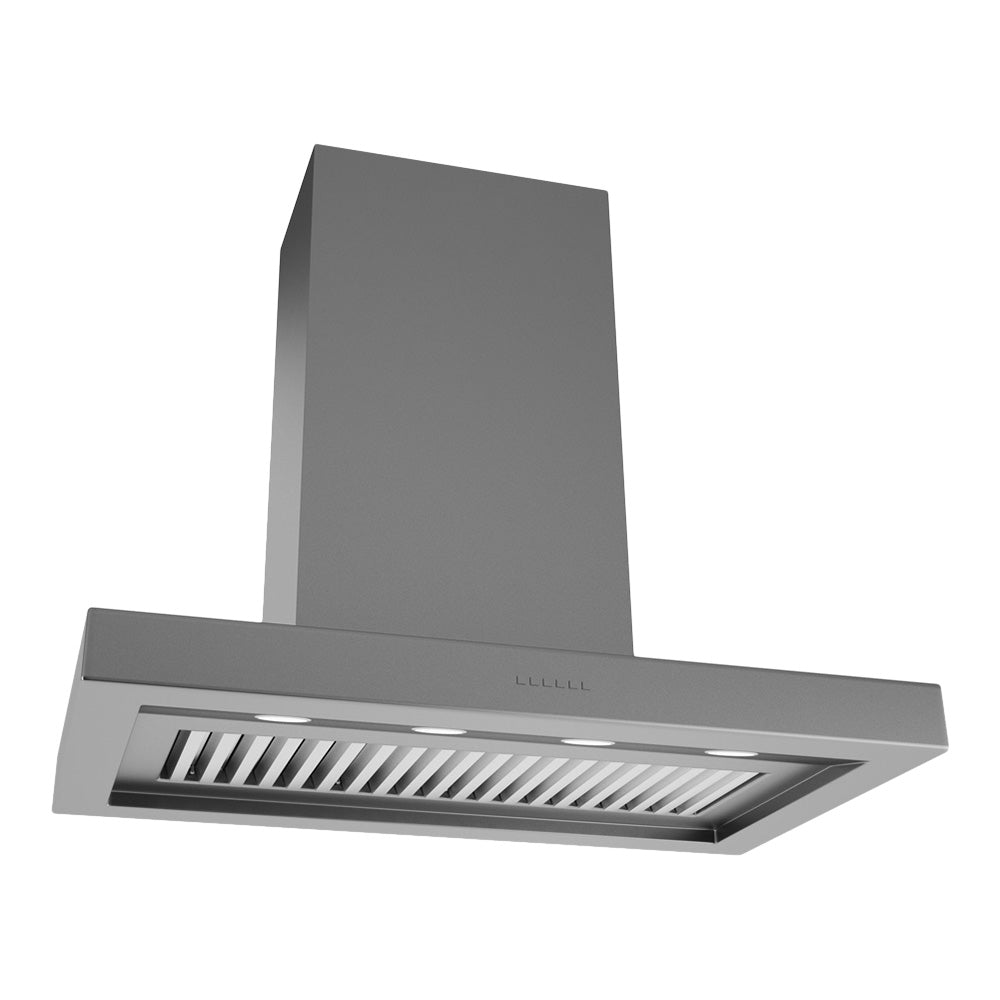

Smart SMARH120 1200mm Alfresco BBQ Canopy Rangehood With Twin Motors

• Twin onboard Green Energy motors: a European made motor setup delivers up to 2000m³/h of extraction with a maximum power draw of 564W, quickly removing smoke, steam, heat, odours and airborne particles.
• Four speed settings: three fan speeds plus a booster, controlled by push buttons on the hood.
• 316 marine grade stainless steel: designed for outdoor use as it resists corrosion, which matters most within five kilometres of the coast where salt in the air can shorten the life of a rangehood.

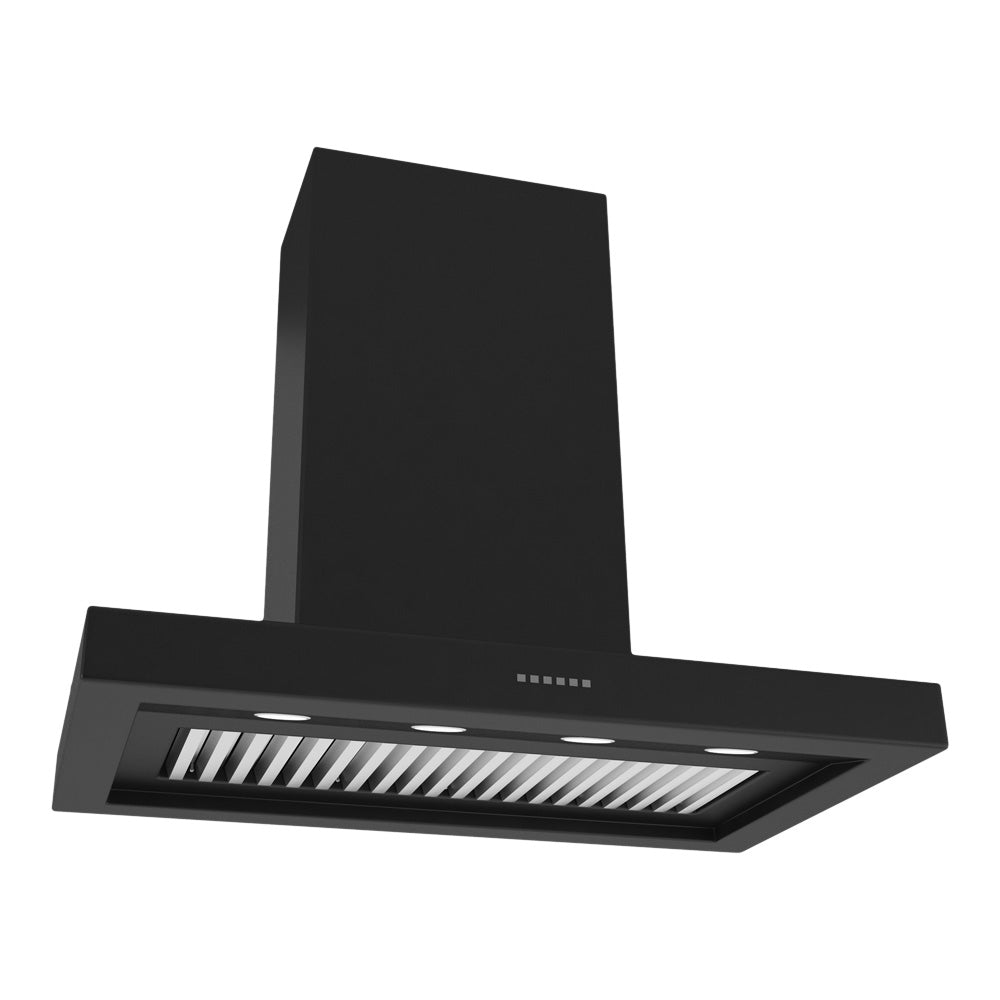

• Two finishes: Stainless Steel, or Black marine grade stainless steel to suit a darker alfresco kitchen.
• LED lighting: 4 x 6W LEDs are energy efficient, resilient to heat and give bright light over the cooking surface.
• Two 25mm baffle filters: interlocking C-shaped baffles capture grease and smoke, offer flame barrier protection for your ductwork and carry a lifetime warranty.
• 10 minute run-on timer: keeps the fan running after cooking to clear lingering smoke and odours, then switches off.
• Automatic shut-off: the rangehood switches itself off after 4 hours of use so you do not have to remember.
• Filter cleaning reminder: after 30 hours of operation the control panel flashes to show the filters are due for cleaning.
• Extra deep coverage: a 700mm deep body gives more front-to-back coverage over the cooking area.
• Quiet operation: an approximate noise range of 45dBA to 70dBA, depending on speed and installation.
• Enclosed alfresco ready: meets the minimum 2000m³/h airflow the manual specifies for enclosed outdoor areas, and works with an optional gas interlock system.
• 200mm ducting: an outlet collar with non-return valves connects to 200mm semi-rigid or solid ducting.
• Three year warranty: 3-year parts and labour warranty from Smart.

• Control panel: push buttons control the light, four fan speeds and the 10 minute shut-off timer.
• Light on / off: one button turns the LED lights on and off.
• Fan speeds 1 to 3: three extraction speeds for everyday cooking through to heavier smoke and steam.
• Fan speed 4 (booster): the highest extraction setting for heavy smoke, high heat cooking or strong odours.
• 10 minute shut-off timer: runs the fan for 10 minutes after cooking to clear the air, then switches off.
• Filter cleaning reminder: after 30 hours of operation the control panel flashes. Press the timer button to reset it once the filters have been cleaned.
• Automatic shut-off: switches the rangehood off after it has been running for more than 4 hours.
• Optional gas interlock: an Air Check interlock system can link the rangehood to an electronic gas valve, so a gas BBQ cannot be lit until the extraction reaches optimum airflow.
• Placement: mount the hood so the filters are between 1200mm and 1600mm above the cooking surface for the best performance.

• Models: SMARH120SS (stainless steel), SMARH120B (black)
• Finish: 316G marine stainless steel, in Stainless Steel or Black
• Country of origin: Italy
• Speed settings: 4
• Motor: Twin onboard Green motors
• Motor extraction: 2000m³/h (approximate, varies with installation)
• Filter type: 2 x 25mm baffle filters
• Noise level: 45dBA to 70dBA (approximate)
• Lighting: 4 x 6W LEDs
• Auto shut-off: After 4 hours
• Electrical requirement: 10AMP, 240V, Class I (earthed)
• Maximum power: 564W
• Ducting size: 200mm diameter (210mm exhaust hole)
• Maximum ducting length: 7 metres
• Recommended install height: 1200mm to 1600mm above the cooking surface
• Warranty: 3 years

• Qualified installer: the rangehood must be installed and connected to the power supply by a qualified technician. It is heavy, so two people are required for installation.
• Installation height: the filters must be no closer than 1200mm and no further than 1600mm from the cooking surface, measured from the top of the grills to the underside of the hood. Installing above the maximum height may compromise the warranty.
• Wall bracket: use the bracket template to mark the holes, pre-drill with an 8mm bit, fit the plastic dowels and fix the bracket level with a spirit level. Two people then lift the hood and drop the horizontal support bar onto the fixed bracket.
• Flue covers: fit the upper flue cover into the lower flue cover, telescope it to the ceiling and fix the top bracket. The flue cover must not be fixed permanently, so it can be removed for servicing.
• Ducting: prepare a 210mm exhaust hole and use 200mm constant diameter semi-rigid or solid ducting of no more than 7 metres. Flexible ducting is not permitted under any circumstances. Each elbow reduces duct efficiency by about 1 metre, and ducting must not be screwed to the hood because it can stop the non-return valves moving.
• Ducting kits and warranty: Sirius EasyKits and ducting components are recommended. The Smart warranty covers only Smart products, and non-Smart accessories including ducting may attract charges if they are the cause of a fault.
• Power: a 240 volt supply with an earth connection on a 10 amp circuit. If the hood has a plug, it must stay easily reachable, otherwise a disconnection device is required in the fixed wiring.
• Ventilation: provide adequate ventilation when the hood is used with gas or other fuel appliances, and have flued gas appliances tested by a competent person after installation.
• Covered or enclosed areas: an alfresco area is outdoors when it has natural ventilation, for example no more than 3 walls with the open side at least 25% of the perimeter. Enclosed areas that do not meet this require a rangehood with at least 2000m³/h airflow.
• Cabinetry and cut-outs: do not cut cabinetry until you have the rangehood on site, and measure the physical product first.
• User manual: read the user manual thoroughly before installing or using the rangehood.

Warranty coverage

Smart is a proudly Australian-owned and operated brand distributed by Arisit Pty Limited, offering a premium range of gas BBQs, electric BBQs, alfresco rangehoods, pizza ovens, and outdoor refrigeration. All Smart products are backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every product.

• Built-in & freestanding gas BBQs: 3 years — Parts and labour
• Wall mounted electric BBQ: 3 years — Parts and labour
• Alfresco rangehoods: 3 years — Parts and labour
• Rangehood baffle filters: Lifetime — Against defects in materials and workmanship
• Pizza ovens: 2 years — Parts and labour
• Drinks chillers & wine fridges: 3 years — Parts and labour

Proof of purchase is required for all warranty claims. Products must be inspected for damage prior to installation. BBQ covers and other accessories are not included in the product warranty.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Parts and labour costs within the applicable warranty period
• Lifetime coverage on rangehood baffle filters against manufacturing defects

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, accidental damage, or neglect
• Normal wear and tear including rust caused by inadequate maintenance or cleaning
• BBQ covers and accessories
• Damage caused by power surges or incorrect gas or electrical supply
• Repairs or modifications carried out by unauthorised parties
• Scratches, dents, or cosmetic damage identified after installation

Conditions

• Gas BBQs must be installed by a licensed gas plumber
• Electric BBQs and rangehoods must be installed by a licensed electrician
• Flexible ducting must not be used for rangehood installation — semi-rigid or solid ducting required
• Must be used and maintained in accordance with manufacturer instructions
• Products must be inspected for damage prior to installation
• Register your product at smartbbqs.com.au/pages/product-registration
• Proof of purchase must be provided with all claims

Making a claim

Contact Smart BBQ on 03 9768 0866 or via the contact form at smartbbqs.com.au/pages/contact. For warranty claims, contact Arisit on 1300 762 219 or email arisitwarranties@arisit.com. Please have your proof of purchase and product serial number ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The SMARH120 is built for the conditions that wear outdoor appliances out fastest. The 316 marine grade stainless steel is the grade chosen for coastal homes, so if you live within five kilometres of the sea, the hood is designed to cope with the salt in the air. The Black model uses the same marine grade steel, so choosing it is a matter of style rather than a trade-off in durability.

Performance depends on the install as much as the hood. Twin motors reach their full extraction when the ducting is 200mm throughout, as short as possible with few bends, and the hood sits between 1200mm and 1600mm above the cooking surface. Because the motors are onboard, there is no separate external motor to position, and the hood only needs a 10 amp power supply.

If your alfresco area is partly enclosed, check the wall and opening rules in the manual, because enclosed areas need at least 2000m³/h extraction, which this model delivers. For a gas BBQ, ask your installer about the optional interlock system that stops the BBQ being lit until the rangehood is moving enough air.

• Rangehood: 1 x Smart SMARH120 1200mm alfresco canopy rangehood with twin onboard motors (Stainless Steel or Black, depending on the colour selected).
• Baffle filters: 2 x 25mm baffle filters.
• Wall bracket: supplied wall bracket with plastic dowels and screws, and a bracket template.
• Flue covers: upper and lower flue covers with a top fixing bracket and fixing screws.
• Documentation: user manual.
• Not included: ducting is sold separately.
