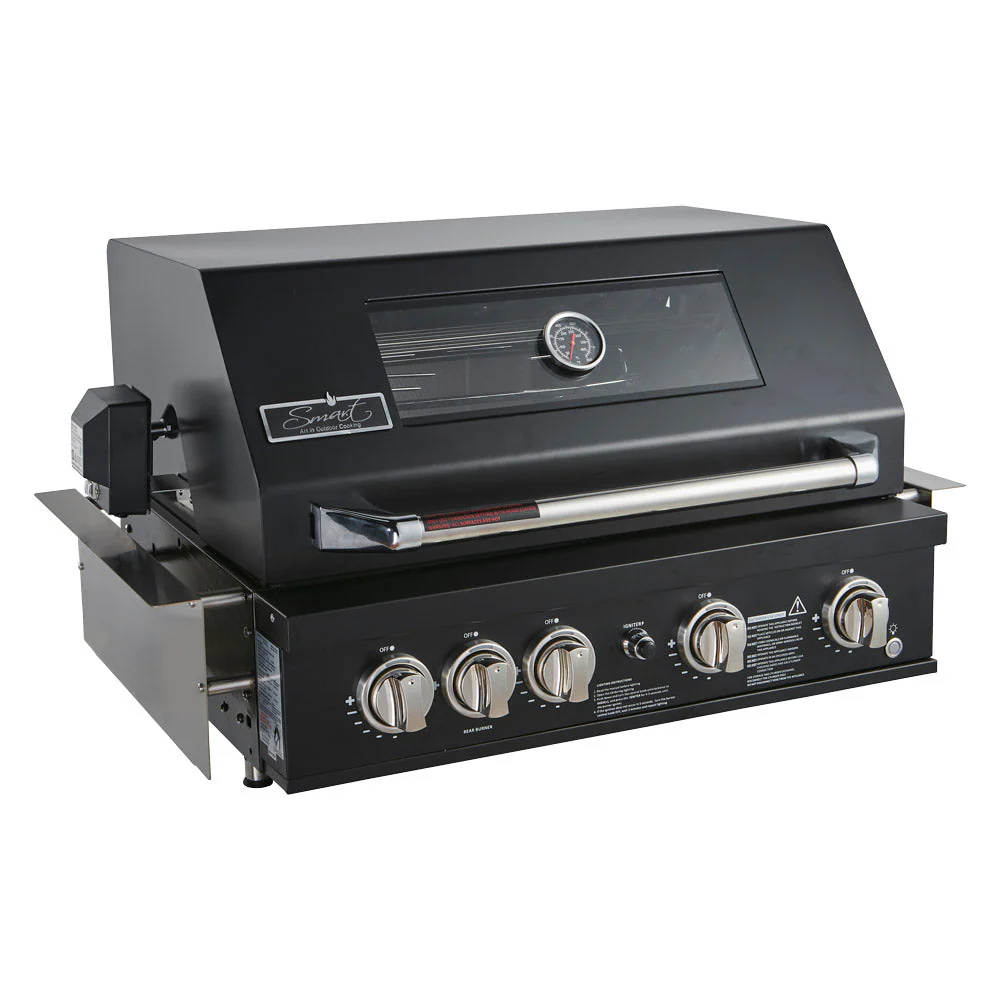

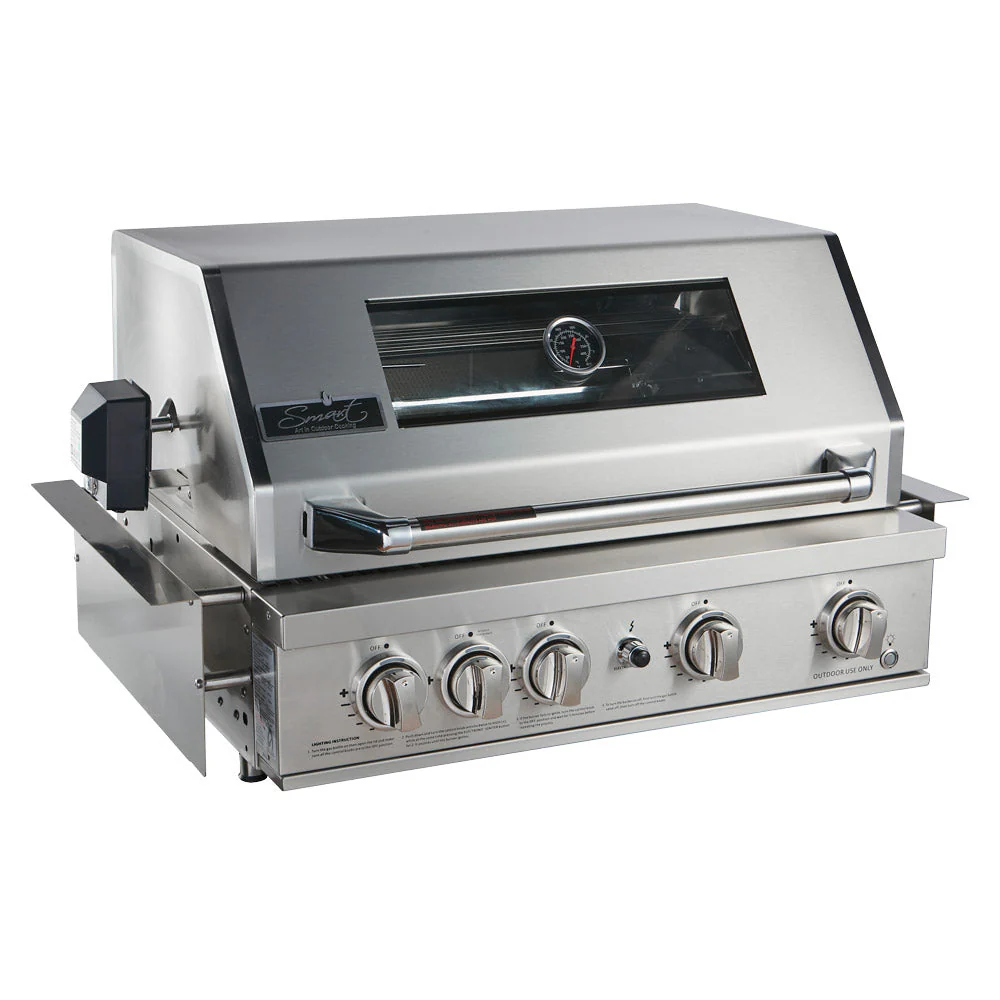

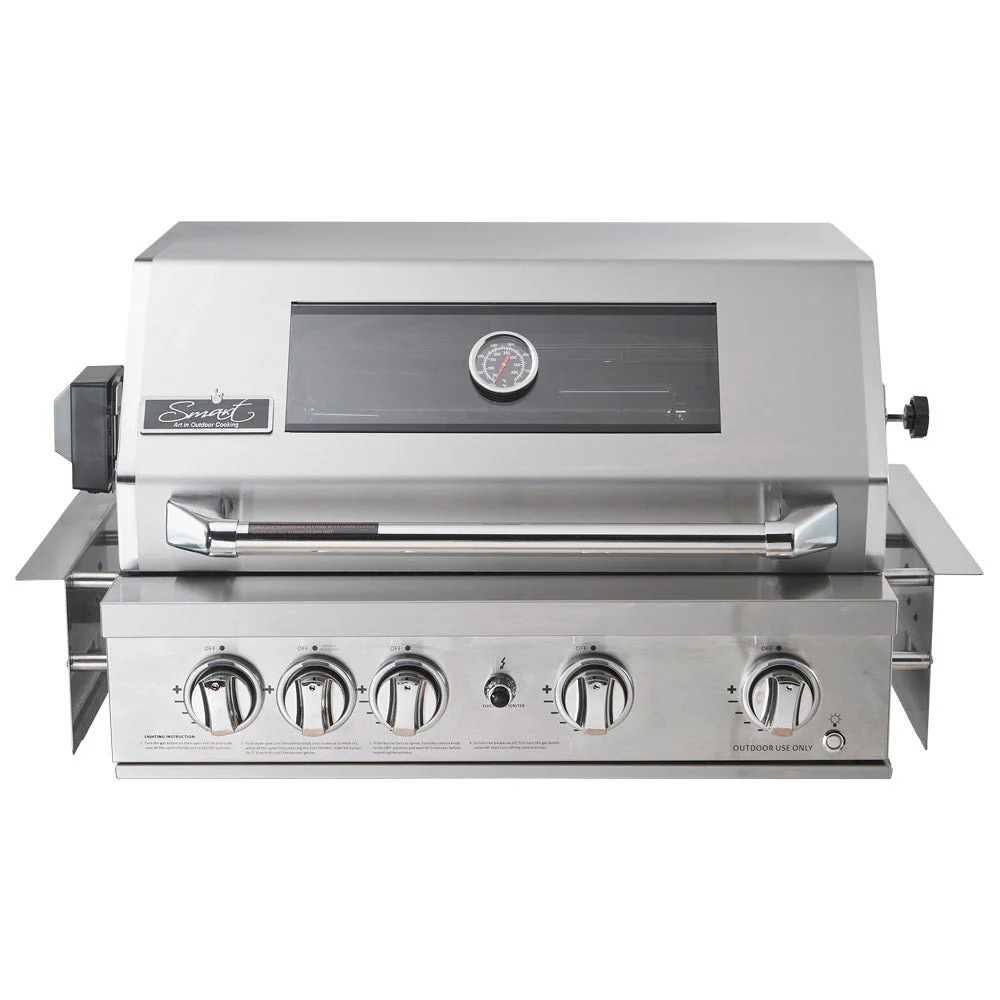

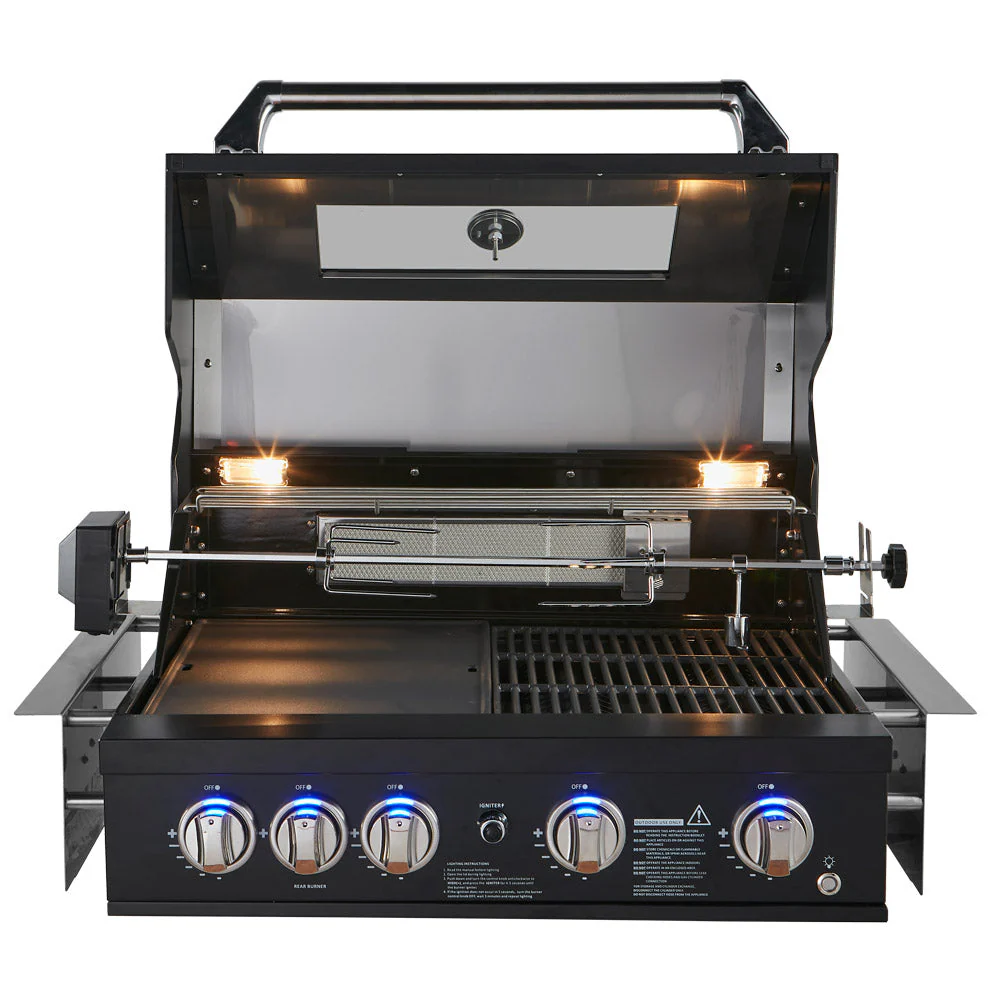

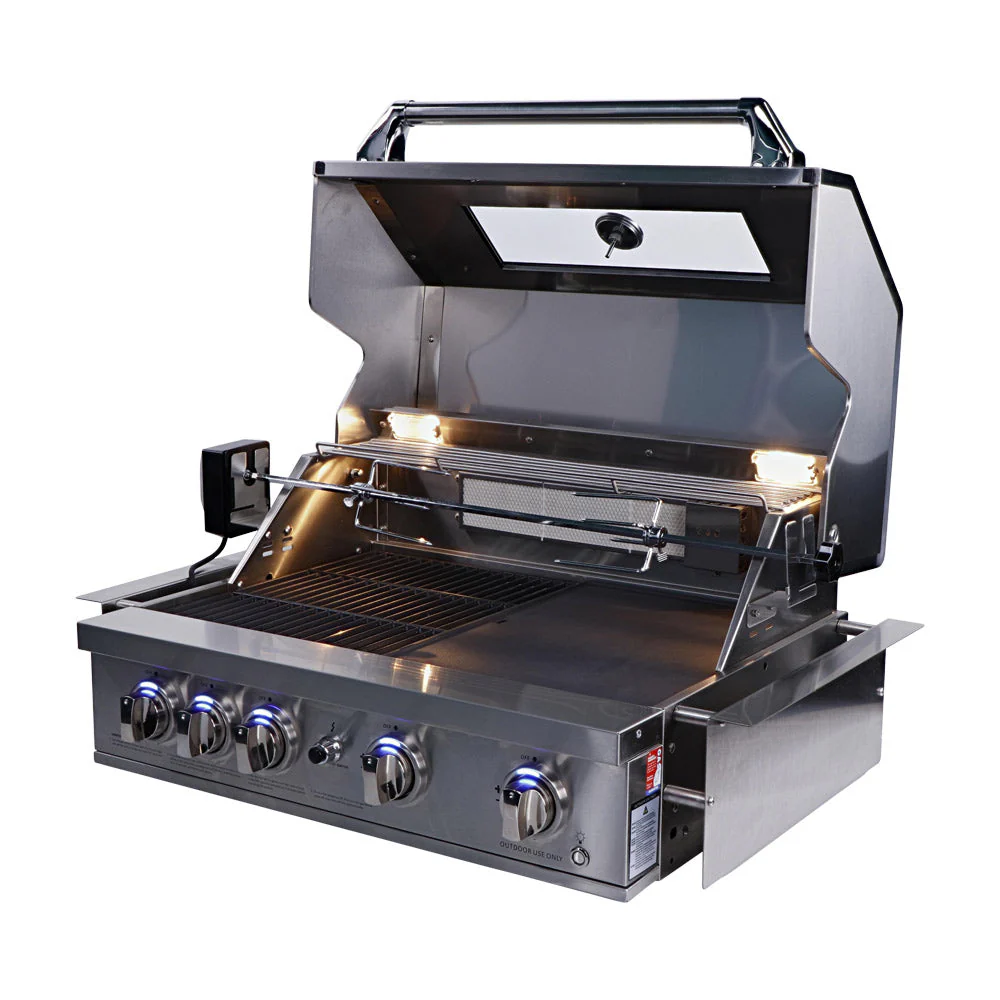

Smart 401WB 4 Burner Built-In Gas BBQ With Rotisserie & Rear Infrared Burner

• Built-in design: sits into your outdoor kitchen cabinetry for a modern, stylish finish, with three installation methods to suit different cabinetry.
• Motorised rotisserie: plugs into a standard 10 amp power point and includes the rotisserie arm and forks, rated for a roast of up to 7kg.
• Rear infrared burner: infrared style cooking gives quick searing heat with high radiant temperatures to lock in flavour, on a one-speed setting.
• Viewing window: lets you watch the rotisserie and roasting with the hood down.
• Slimline double-skinned hood: the double layer improves insulation and heat retention with the hood closed, for better efficiency and a steadier temperature.
• Integrated thermostat: a thermostat built into the hood gives an accurate reading of the temperature inside the BBQ when roasting with the hood closed.
• High quality burners: 4 x 304 stainless steel tube burners (13MJ/h each on LPG) with 304 stainless steel flame tamers spread heat evenly and reduce flare-ups.
• Two cast iron grill plates: one open grill plate and one solid flat plate that reverses for a smooth or ridged finish, each 355mm x 455mm, for even heat and good heat retention.
• Stainless steel warming rack: extra space to keep cooked food warm while you finish the rest.
• Comfort electronic ignition: one-hand push electric ignition lights the burners without matches or lighters.
• Lighting: under-hood lighting lights up the cooking area and each control knob has a long-lasting, energy efficient blue LED for easy night-time cooking.
• 304 grade stainless steel: very resistant to heat and salt to help avoid corrosion and decay in the harsh Australian climate. The Black model adds a black powder coated finish.
• Oil management system: a removable front drip tray and grease cup make fats and oils easy to manage and clean.
• Free weather-proof cover: a UV protected cover helps your BBQ last longer and look better.
• LPG ready, convertible to natural gas: supplied with LPG jets and convertible to natural gas by a licensed professional using a conversion kit (sold separately).
• Enclosed alfresco certified: certified for enclosed alfresco areas (a roof and 3 walls with 25% natural ventilation), with a range hood and optional interlock system recommended.

• Burner control: four control knobs set each of the main burners independently, each lit with a blue LED, and the rear infrared burner is used for the rotisserie.
• Lighting the BBQ: open the hood and check every knob is off, then push down and turn a knob anticlockwise to HIGH while the igniter sparks. If it does not light, turn the knob off, wait a few minutes and try again, then light the other burners in sequence. Make sure the hood is open when lighting the main burners and the rear infrared burner.
• Manual match lighting: the user manual describes lighting a burner with a match if the electronic ignition is not working.
• First use: light all the main burners and run them on HIGH for 15 minutes with the hood closed to heat clean the internal parts and dissipate odour from the finish. Some colour change in the cooking area is normal.

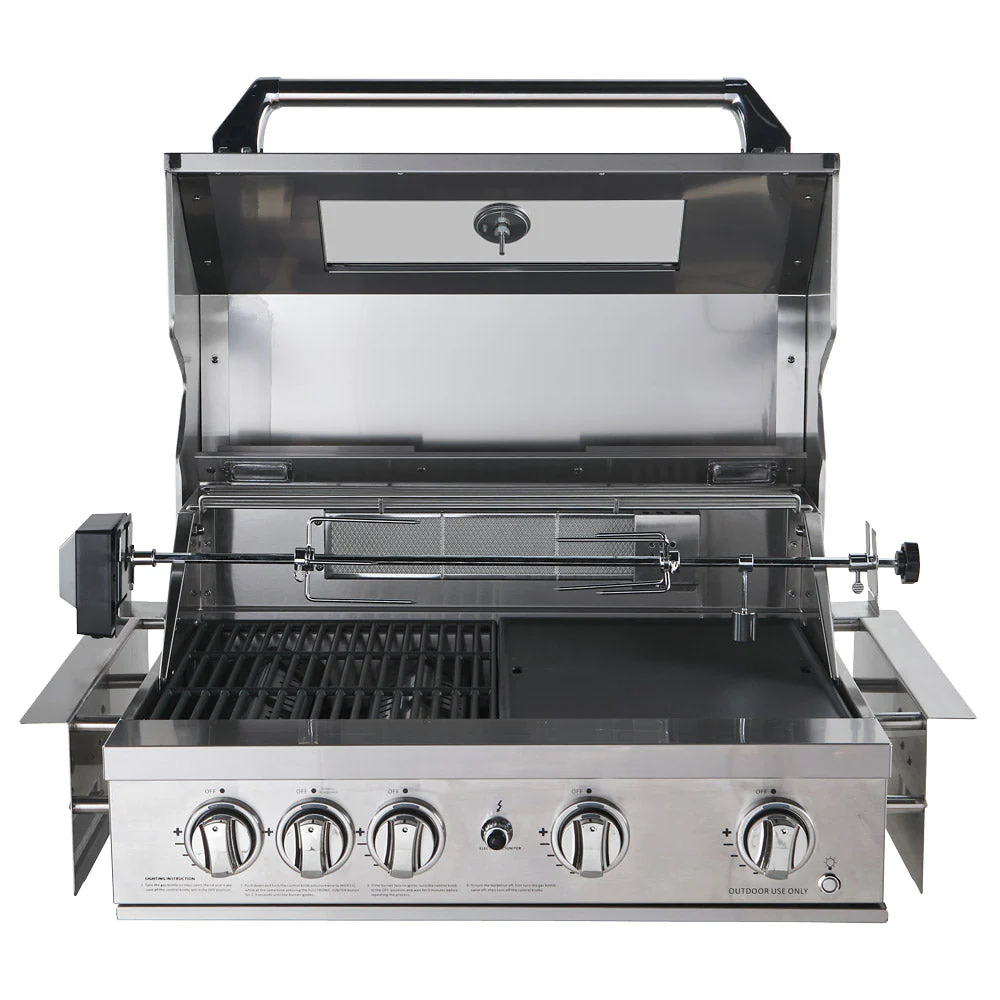

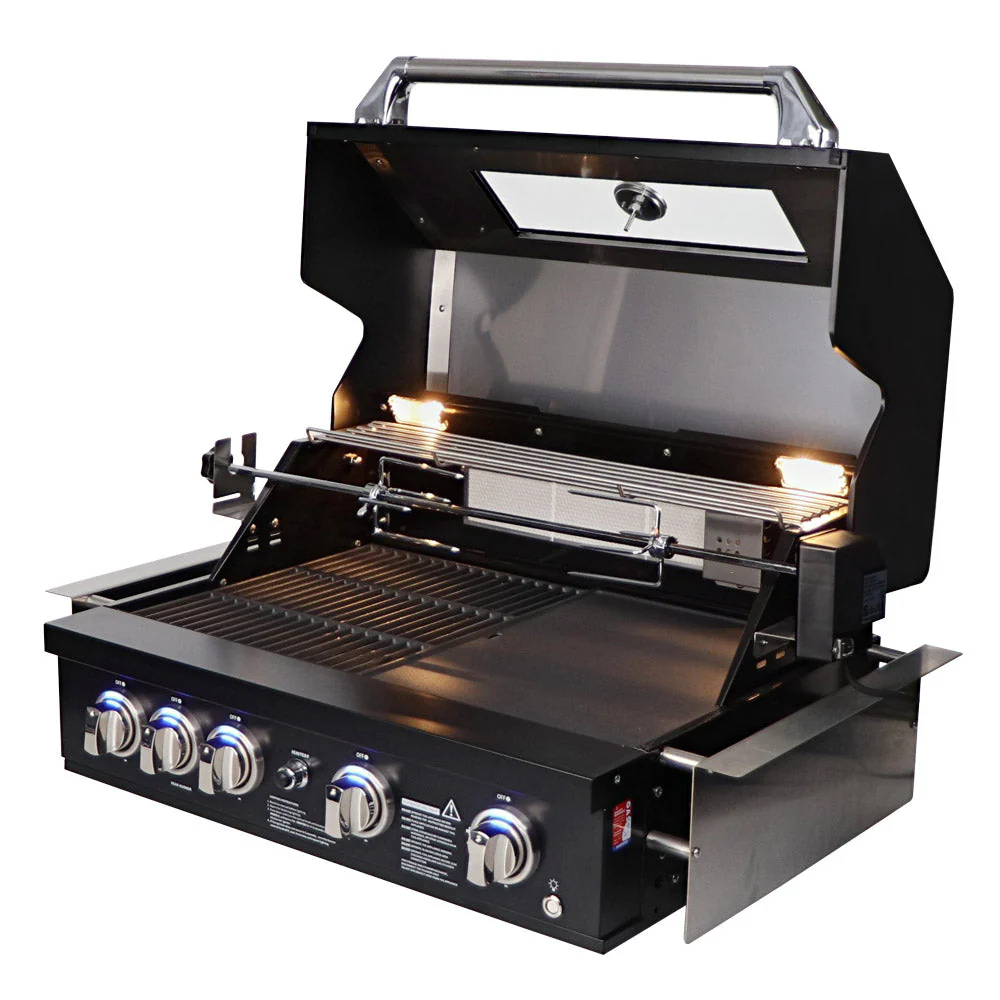

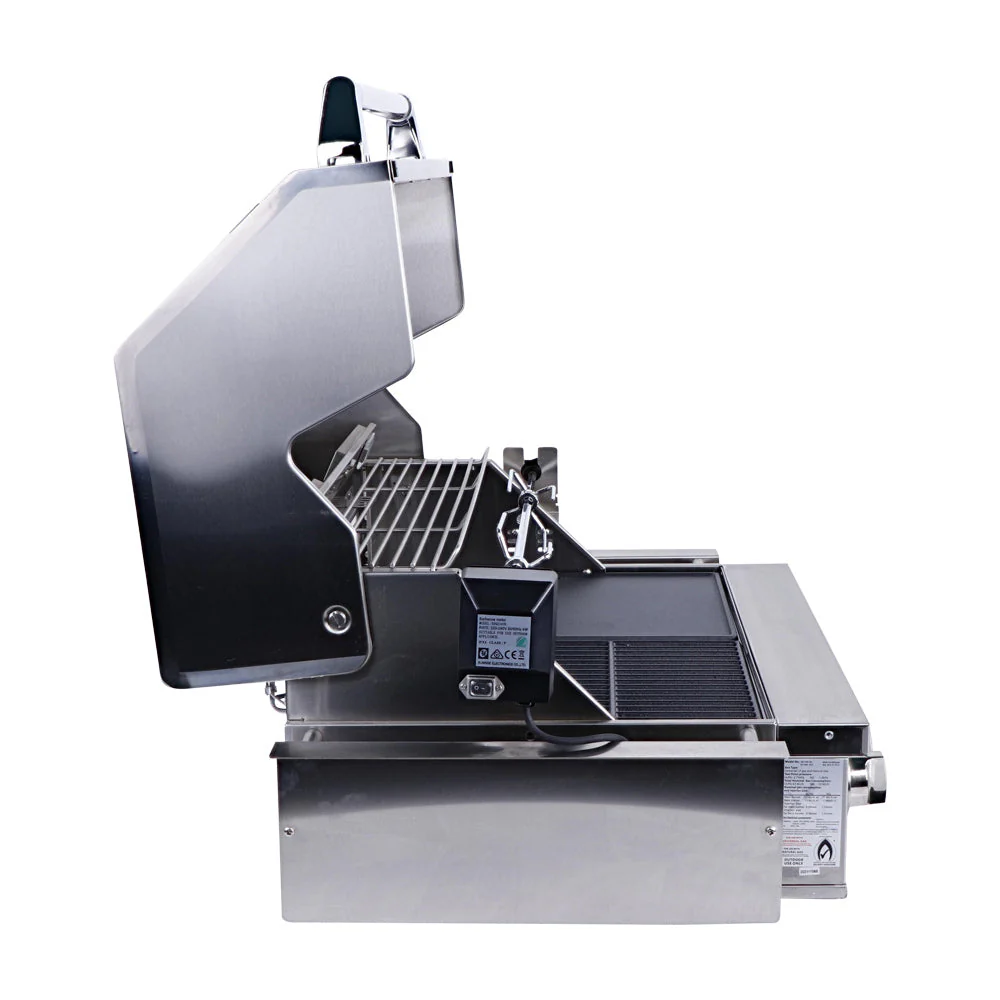

• Rotisserie roasting: fit the rotisserie arm and forks, plug the motor into a standard 10 amp power point and use the rear infrared burner for even roasting of cuts up to 7kg, watching progress through the viewing window.
• Roasting with the hood closed: the double-skinned hood holds heat and the integrated thermostat shows the temperature inside. With the hood closed and all burners on, keep them on the LOW flame position.
• Open grill plate: for direct-heat grilling of steaks, sausages, chops and vegetables.
• Solid flat plate: for flat-top cooking such as eggs, onions, seafood and burgers, and it reverses for a smooth or ridged finish.
• Warming rack: keeps cooked food warm above the heat while you finish the rest.
• Fuel setting: set for LPG by the manufacturer and convertible to natural gas by a licensed gas fitter following the user manual.
• Safety note: the BBQ does not have flame failure safety shut-off. Do not use charcoal or briquettes, do not use plastic or glass utensils on the BBQ, and never use it with a cover on.

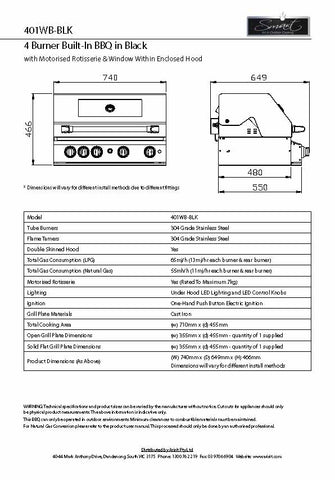

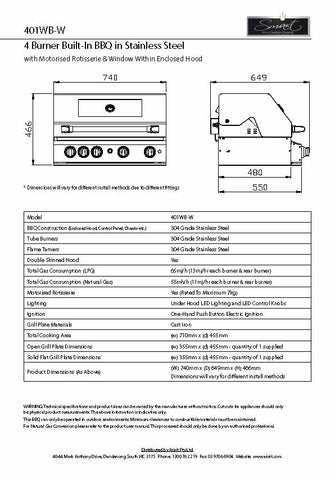

• Models: 401WB-W (stainless steel), 401WB-BLK (black)
• AGA gas approval number: AGA 8138G
• Fuel: LPG as supplied, convertible to natural gas with a conversion kit
• Test point pressure: LPG 2.75 kPa, natural gas 1.0 kPa
• Construction: 304 grade stainless steel (black powder coated on the Black model)
• Tube burners: 4 x 304 grade stainless steel
• Flame tamers: 304 grade stainless steel
• Rear infrared burner: Yes, one-speed
• Double skinned hood: Yes
• Total gas consumption (LPG): 65MJ/h (13MJ/h each burner and rear burner)
• Total gas consumption (natural gas): 55MJ/h (11MJ/h each burner and rear burner)
• Motorised rotisserie: Yes, maximum 7kg
• Control lighting: Blue LED on each control knob
• Internal cavity lighting: Yes, under-hood lighting
• Ignition: Comfort electronic ignition
• Electrical: AC adaptor, input 230-240VAC 50Hz, output 12VAC 2000mA. The rotisserie motor plugs into a standard 10 amp power point.
• Flame failure safety shut-off: No
• Grill plates: Cast iron, 1 x open and 1 x solid flat, each 355mm x 455mm
• Total cooking area: 710mm x 455mm
• Maximum gas cylinder size: 9kg
• Installation: Built-in, certified for enclosed alfresco areas. A range hood with optional interlock is recommended.

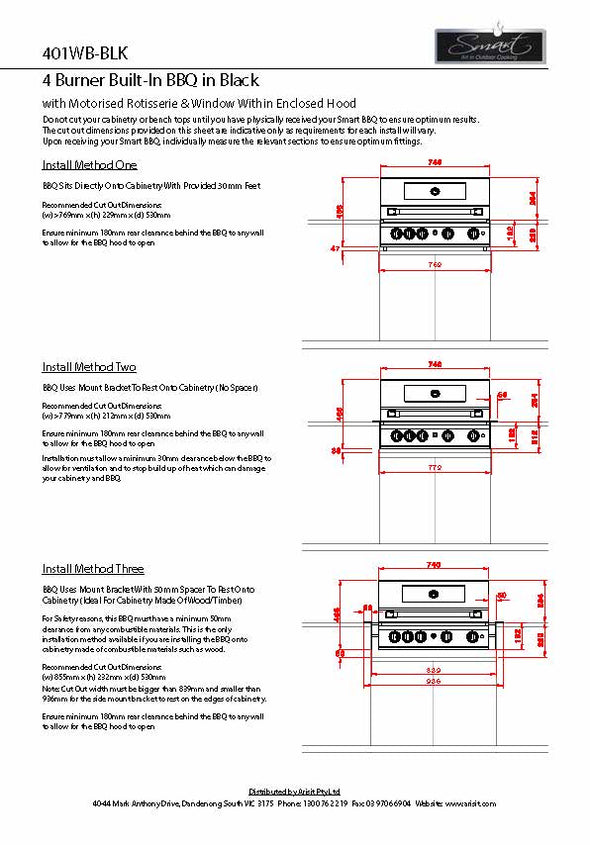

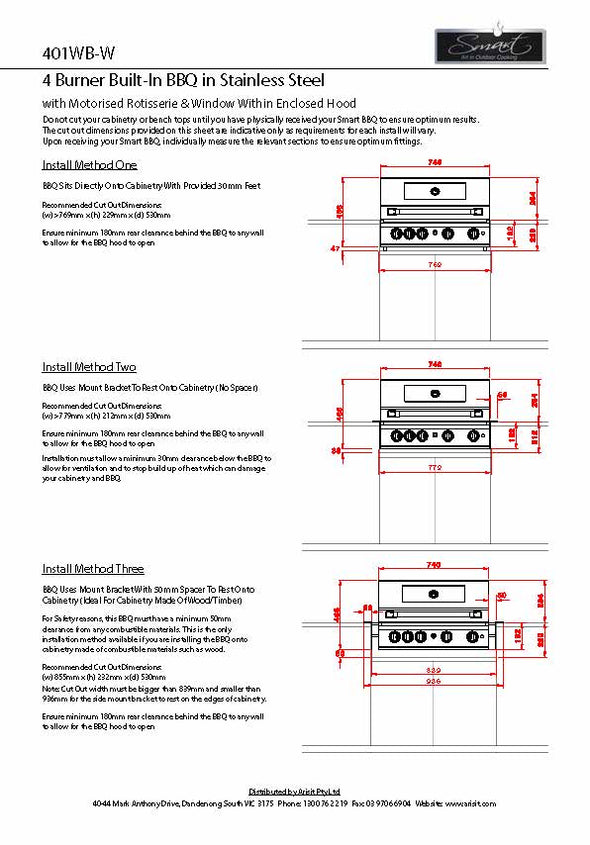

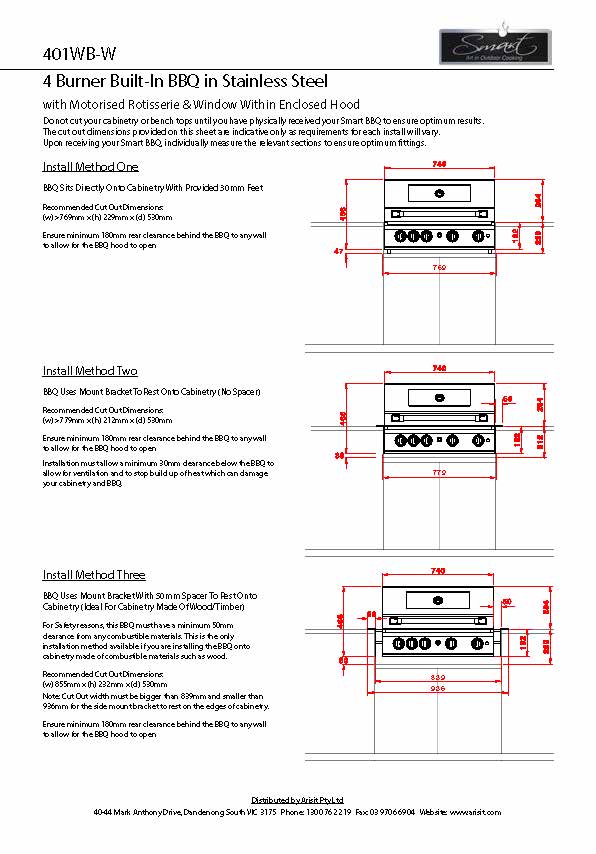

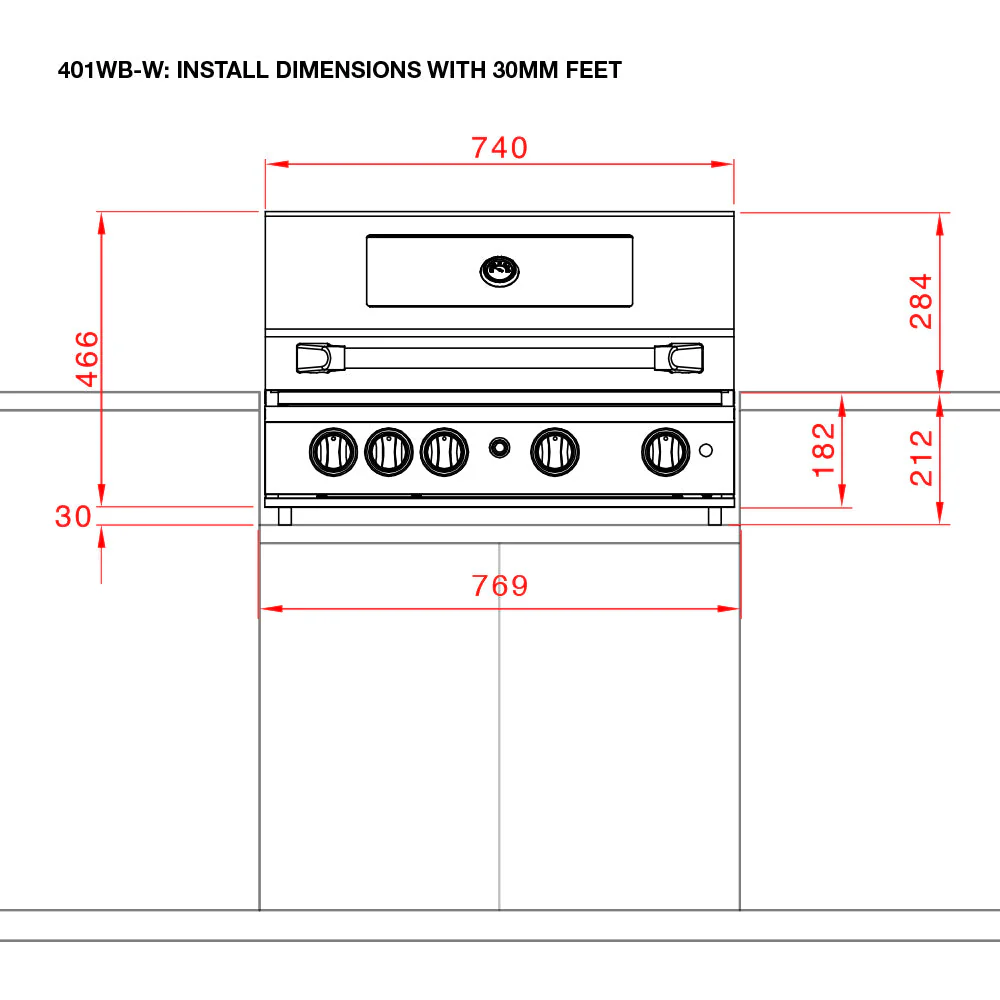

• Method 1, 30mm feet: the BBQ sits directly on the cabinetry on the supplied 30mm feet. Recommended cut-out is wider than 769mm x 229mm high x 530mm deep.

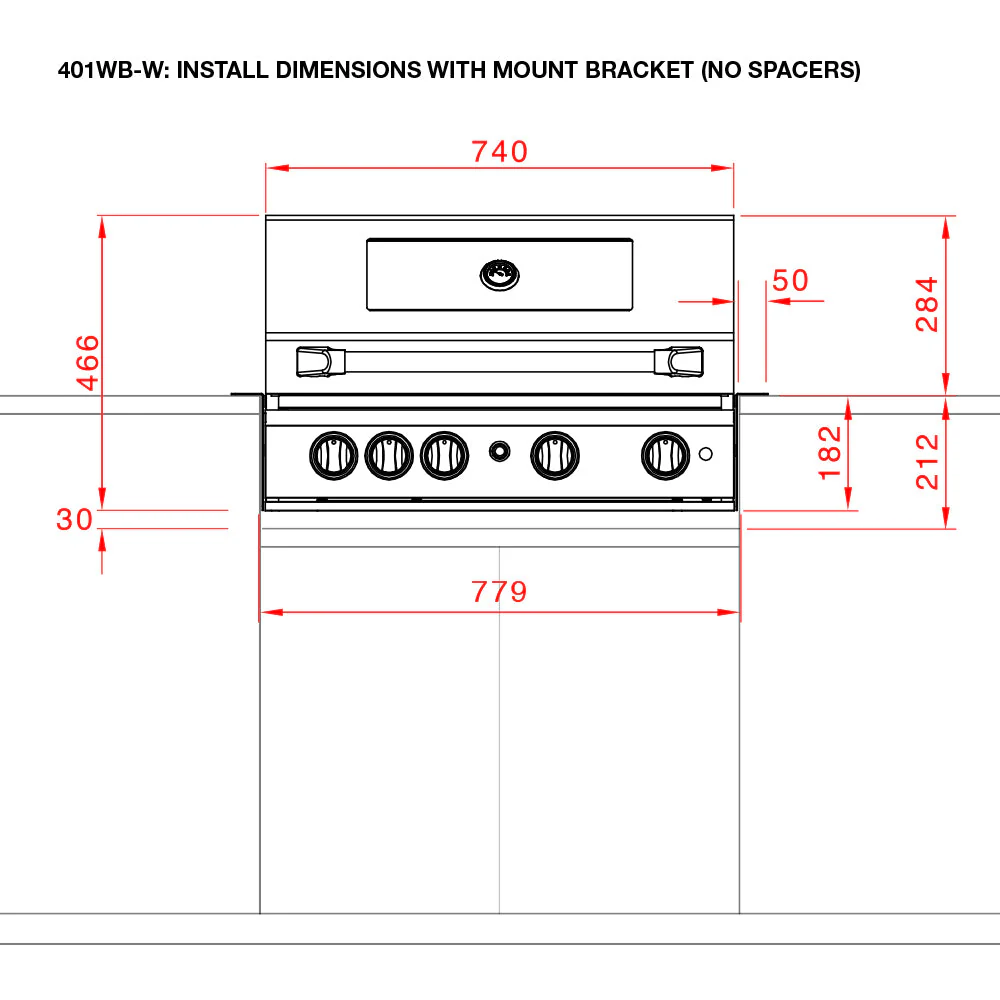

• Method 2, mount bracket (no spacers): the BBQ rests on the cabinetry using the side mount bracket. Recommended cut-out is wider than 779mm x 212mm high x 530mm deep.

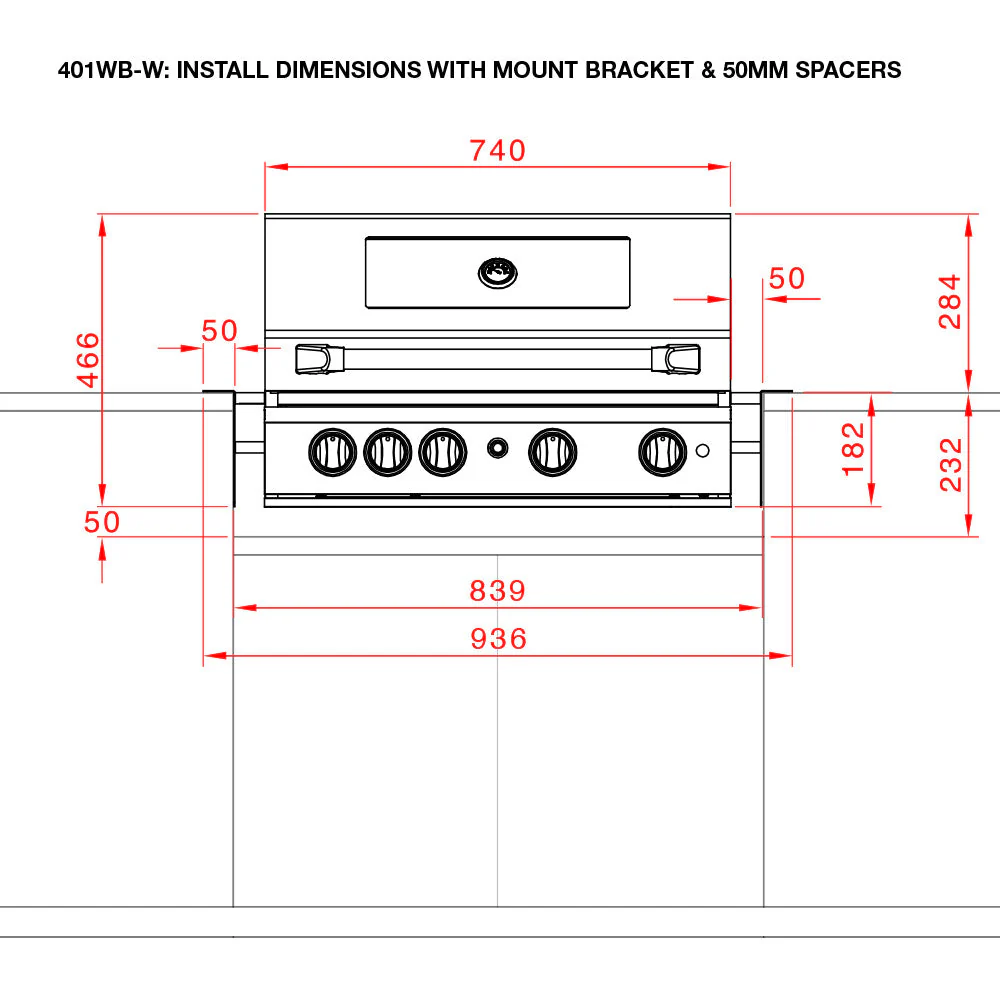

• Method 3, mount bracket with 50mm spacers: ideal for timber cabinetry and the only method for cabinetry made of combustible materials. Recommended cut-out is 855mm x 232mm high x 530mm deep, and the cut-out width must be bigger than 839mm and smaller than 936mm so the bracket rests on the cabinetry edges.
• Cut-out sizes: do not cut your cabinetry or benchtop until you have the BBQ on site and have measured it, as the cut-out sizes are indicative only.
• Clearances: allow at least 180mm behind the BBQ to any wall so the hood can open, and at least 30mm clearance below the BBQ for ventilation. Keep at least 50mm from combustible materials.
• Enclosure: the cut-out enclosure material must be non-combustible, the ventilation of the BBQ and gas cylinder compartment must never be blocked, and floor clearance and a cavity beneath the BBQ must be kept.
• Gas cylinder: do not place the gas cylinder directly underneath the BBQ. The maximum cylinder size is 9kg, and spare cylinders must be stored outdoors and not in the cabinet.
• Gas connection: installation and any natural gas conversion must be done by a licensed gas fitter or plumber. Natural gas inlet piping must be at least 15mm in diameter with a lever operated shut-off valve near the appliance, and any flexible hose must be AGA certified to AS/NZS 1869 with an internal diameter of at least 10mm. The conversion kits do not include the female bayonet fitting for wall connection, which your gas fitter or plumber must supply.
• Power: the supplied transformer connects to a 230-240V power point and must be fixed well away from the BBQ, and the rotisserie motor needs a standard 10 amp power point. The ignition also needs 1 x AA battery, which is not included. Keep all cords and electrical components dry.
• Outdoor and alfresco areas: use outdoors with natural ventilation, or in an enclosed alfresco area with a roof and 3 walls and at least 25% natural air ventilation. The BBQ is not for indoor use.
• Range hood: a range hood with optional interlocking system is recommended for enclosed alfresco areas.
• User manual: read the user manual thoroughly before installing or using the BBQ.

Warranty coverage

Smart is a proudly Australian-owned and operated brand distributed by Arisit Pty Limited, offering a premium range of gas BBQs, electric BBQs, alfresco rangehoods, pizza ovens, and outdoor refrigeration. All Smart products are backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every product.

• Built-in & freestanding gas BBQs: 3 years — Parts and labour
• Wall mounted electric BBQ: 3 years — Parts and labour
• Alfresco rangehoods: 3 years — Parts and labour
• Rangehood baffle filters: Lifetime — Against defects in materials and workmanship
• Pizza ovens: 2 years — Parts and labour
• Drinks chillers & wine fridges: 3 years — Parts and labour

Proof of purchase is required for all warranty claims. Products must be inspected for damage prior to installation. BBQ covers and other accessories are not included in the product warranty.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Parts and labour costs within the applicable warranty period
• Lifetime coverage on rangehood baffle filters against manufacturing defects

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, accidental damage, or neglect
• Normal wear and tear including rust caused by inadequate maintenance or cleaning
• BBQ covers and accessories
• Damage caused by power surges or incorrect gas or electrical supply
• Repairs or modifications carried out by unauthorised parties
• Scratches, dents, or cosmetic damage identified after installation

Conditions

• Gas BBQs must be installed by a licensed gas plumber
• Electric BBQs and rangehoods must be installed by a licensed electrician
• Flexible ducting must not be used for rangehood installation — semi-rigid or solid ducting required
• Must be used and maintained in accordance with manufacturer instructions
• Products must be inspected for damage prior to installation
• Register your product at smartbbqs.com.au/pages/product-registration
• Proof of purchase must be provided with all claims

Making a claim

Contact Smart BBQ on 03 9768 0866 or via the contact form at smartbbqs.com.au/pages/contact. For warranty claims, contact Arisit on 1300 762 219 or email arisitwarranties@arisit.com. Please have your proof of purchase and product serial number ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The 401WB is for the cook who wants a built-in BBQ that does more than grill. The motorised rotisserie and rear infrared burner turn it into an outdoor oven for whole chickens and larger roasts, and the viewing window lets you check on them without losing heat. When you want something quicker, the open and flat cast iron plates cover everything from steaks to breakfast.

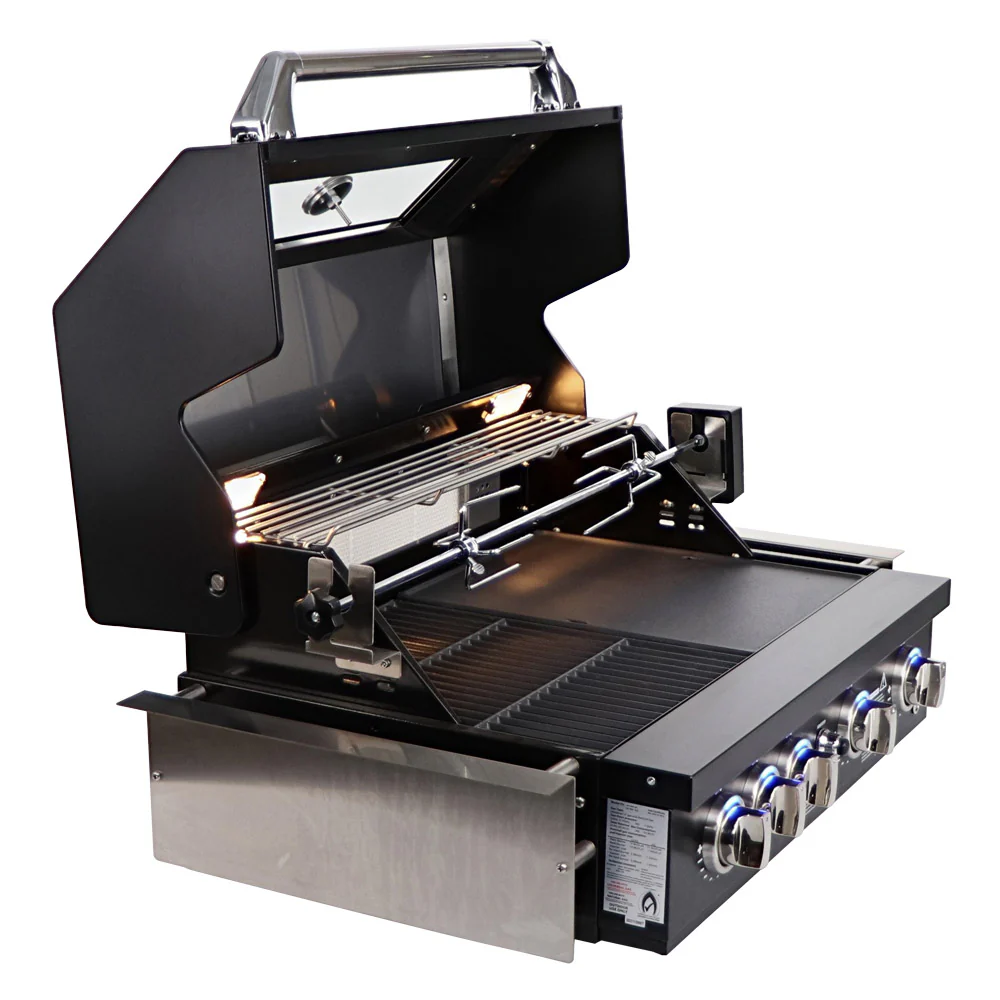

Both finishes share the same burners, plates, rotisserie and controls, and the Black model simply adds a black powder coated finish over the 304 stainless steel. The same specifications and cut-out sizes apply to both, so you can choose purely on the look of your outdoor kitchen.

Cabinetry matters with this one. Three installation methods are available, and timber cabinetry must use the bracket and 50mm spacer method, so plan the cut-out around your cabinet maker. The BBQ is supplied for LPG and can be converted to natural gas by a licensed gas fitter, who will need to supply a wall bayonet fitting, and a range hood with optional interlock is recommended in enclosed alfresco areas.

• BBQ: 1 x Smart 401WB 4 burner built-in gas BBQ with rotisserie and rear infrared burner (Stainless Steel or Black, depending on the colour selected).
• Motorised rotisserie: 1 x motorised rotisserie with rotisserie arm and forks.
• Cast iron open grill plate: 1 x, 355mm x 455mm.
• Cast iron solid flat plate: 1 x, 355mm x 455mm, reversible smooth or ridged.
• Flame tamers: 4 x stainless steel flame tamers.
• Warming rack: 1 x stainless steel warming rack.
• Drip tray and grease cup: 1 x removable front drip tray with grease cup.
• Mounting brackets: side mount brackets and 30mm feet for the installation methods.
• Transformer and cable: 1 x power adaptor with cable for the ignition and lighting.
• Cover: 1 x free UV protected weather-proof cover.

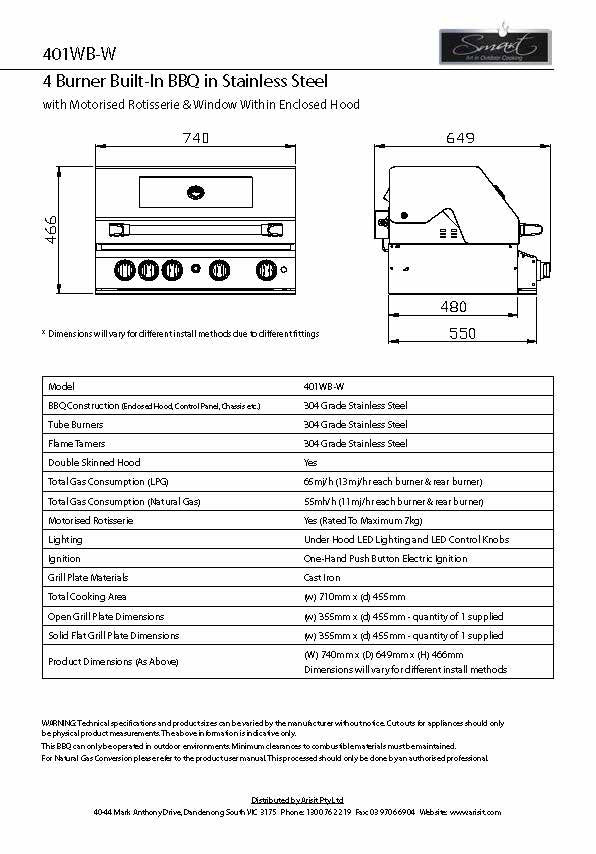

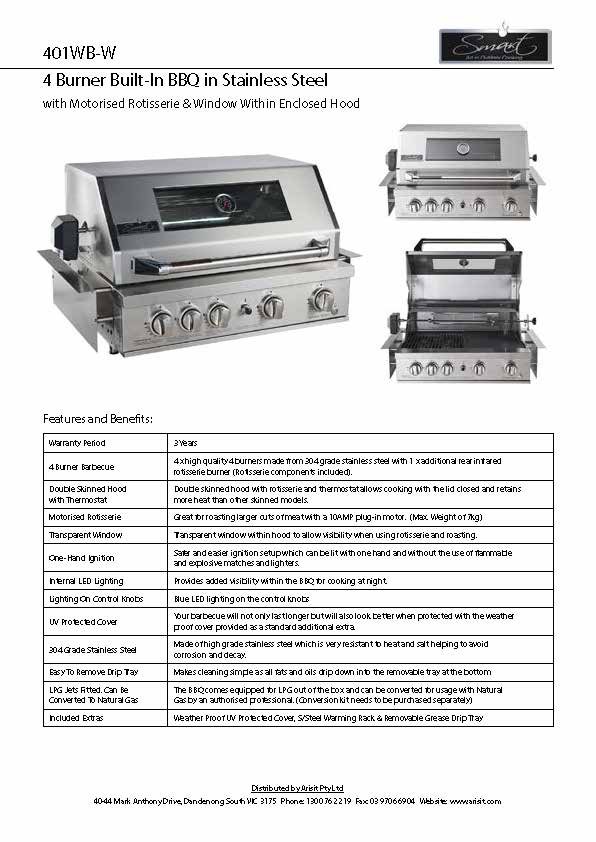

• 401WB-W PRODUCT SPECIFICATION SHEET (PDF)

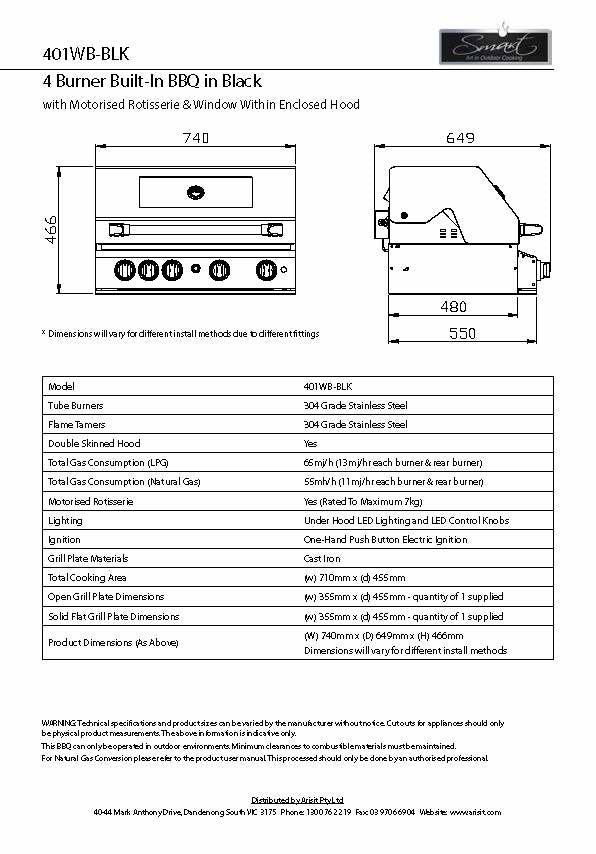

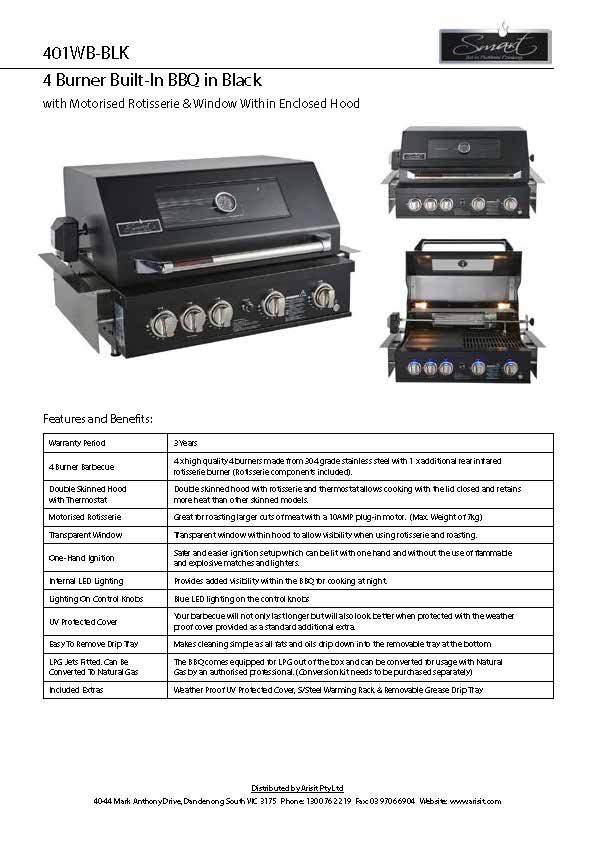

• 401WB-BLK PRODUCT SPECIFICATION SHEET (PDF)
• 401WB USER MANUAL (PDF)
