Product Description
ABOUT THIS MODEL:

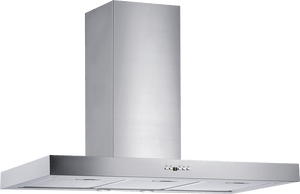

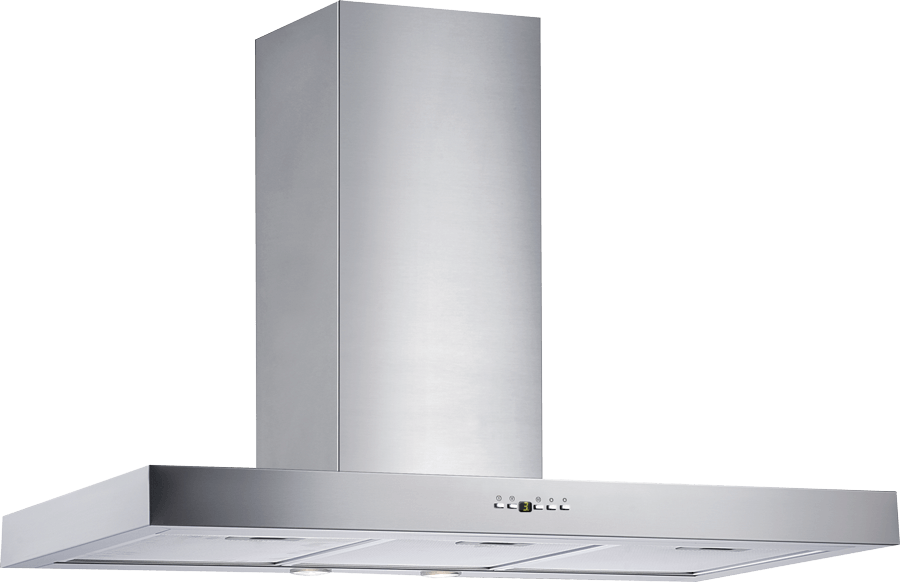

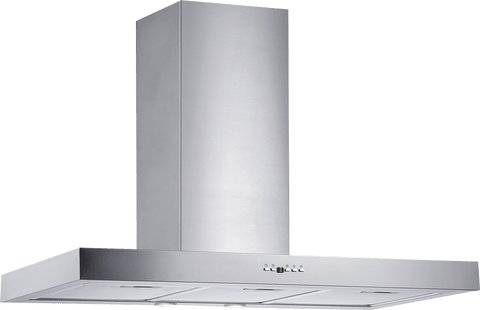

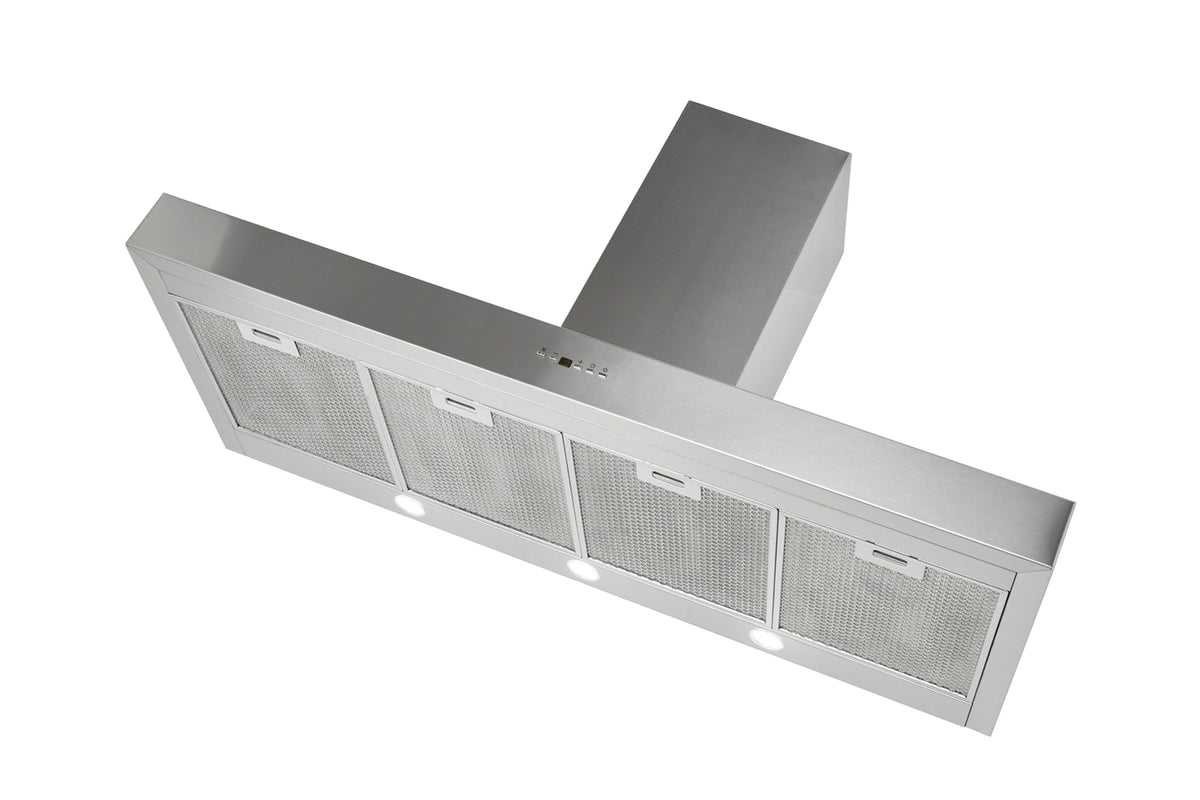

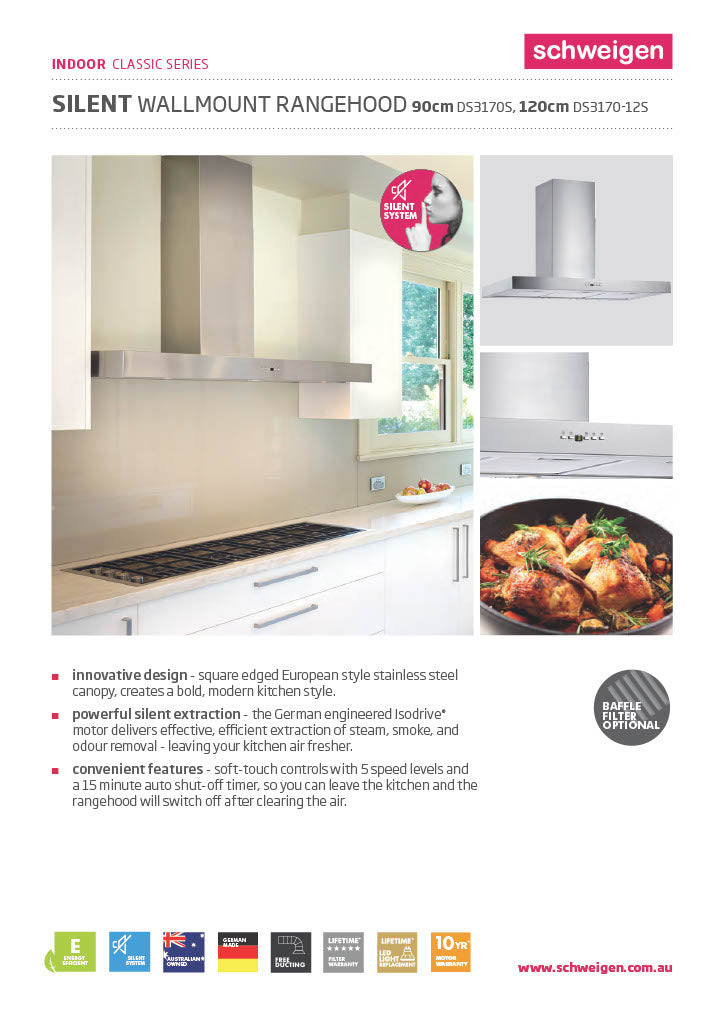

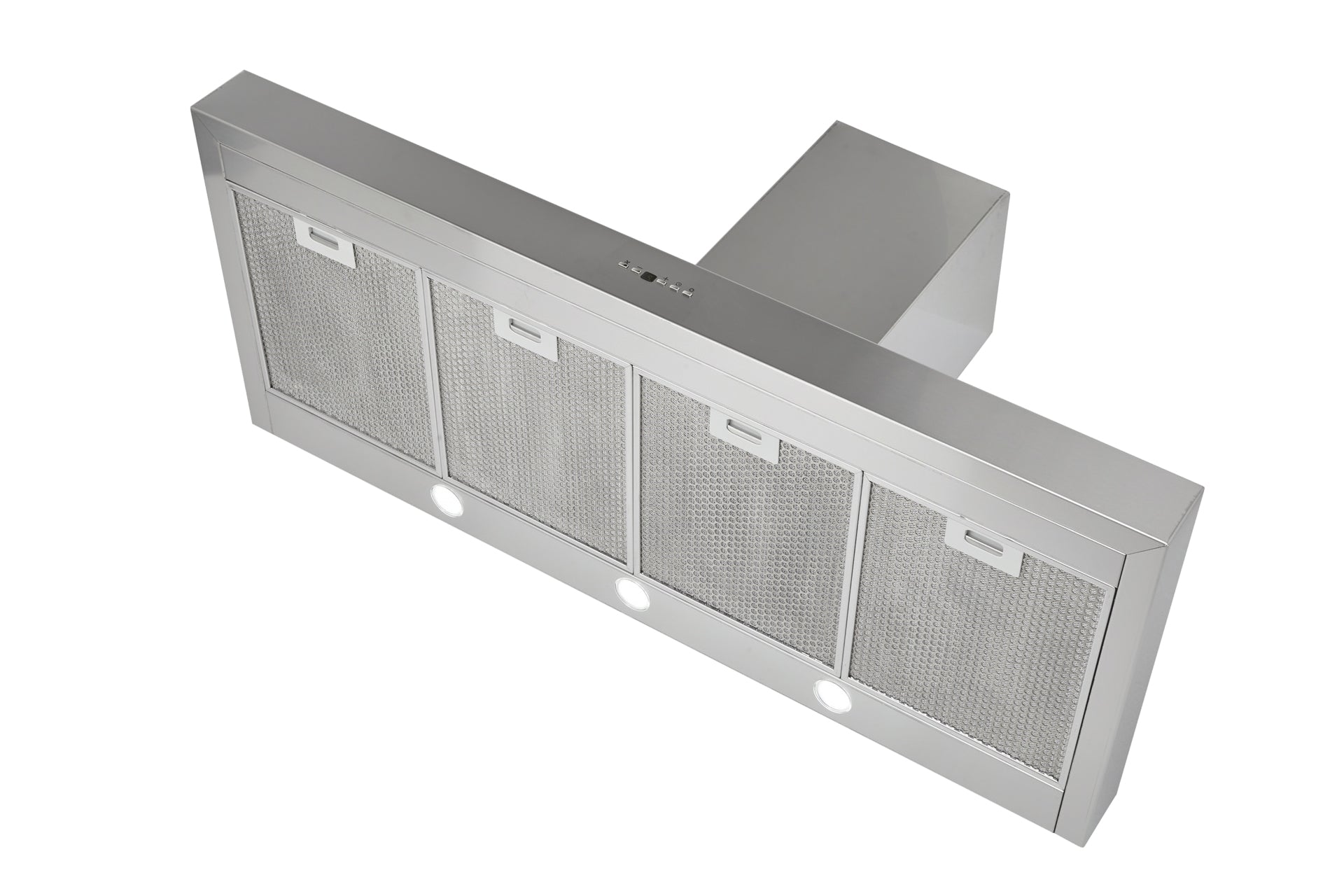

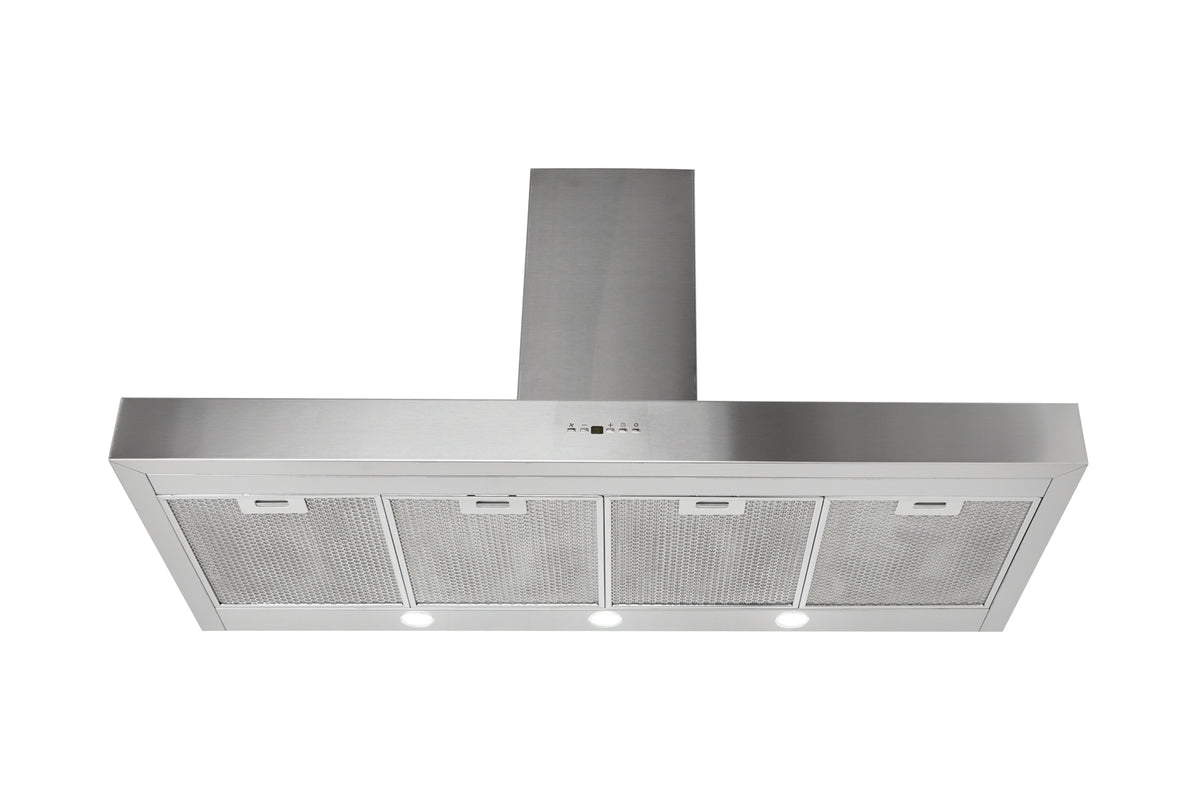

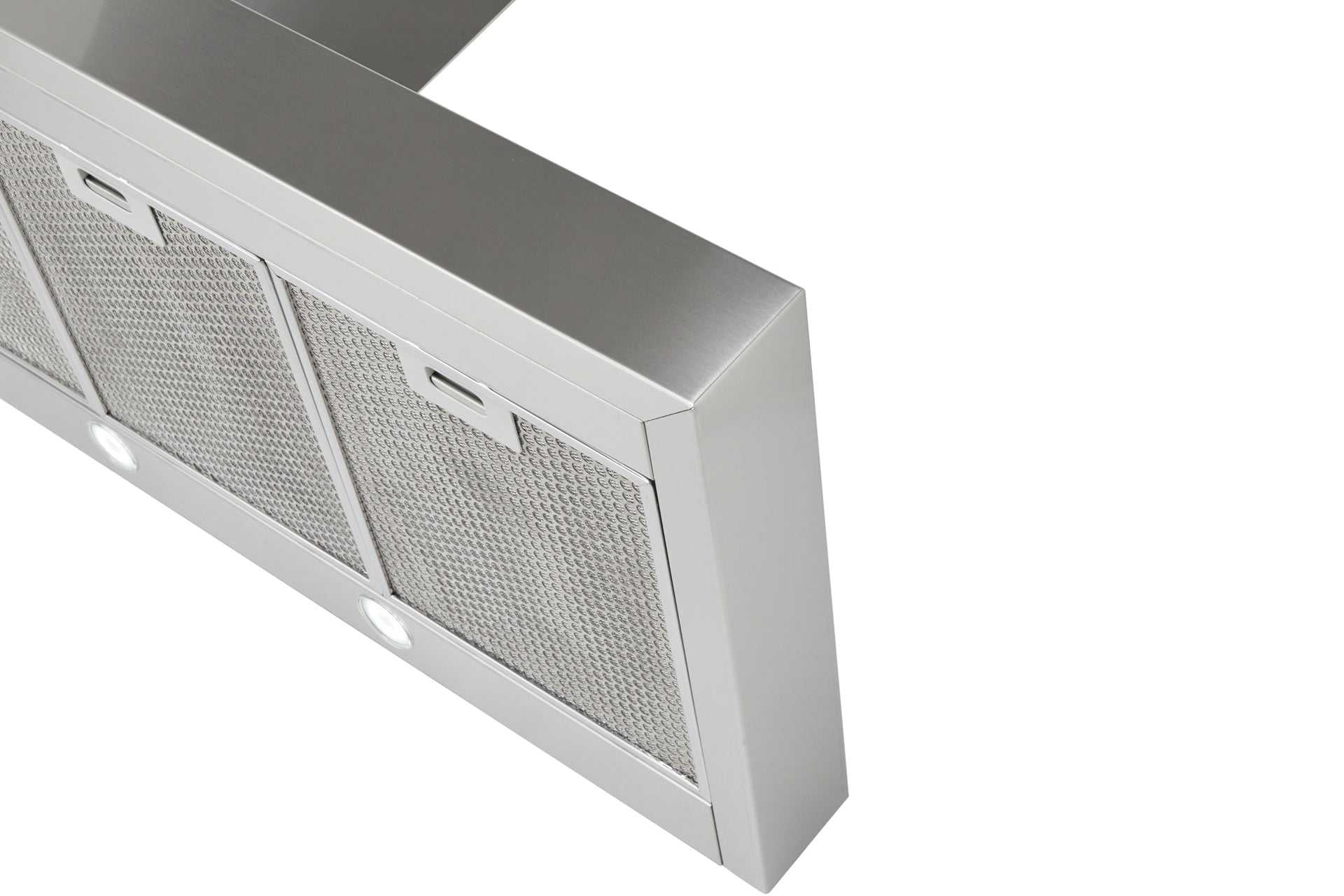

The DS3170-12S with its square-edged European-style stainless steel canopy is extremely popular in modern kitchens.
Featuring powerful silent extraction, soft-touch controls with 5 speed levels, 15-minute auto shut-off timer and twin LED down-lights. Comes with dishwasher-safe mesh filters for easy maintenance. (Baffles are also available as an option).
Height of this unit is variable: 670-1190mm.
WARRANTIES:
- 10 Years : Motor Warranty
- 5 Years: Canopy Warranty
- Lifetime: Filter Warranty
- Lifetime: GU10 LED Globe Warranty
FEATURES:
- Powerful silent extraction: The German-engineered Isodrive® motor delivers silent, efficient extraction of steam, smoke and odours - leaving your kitchen fresher for longer.
- Energy-efficient: The Schweigen Isodrive® motors are amongst the most energy-efficient in the market, requiring just 57 watts of power to run on some models.

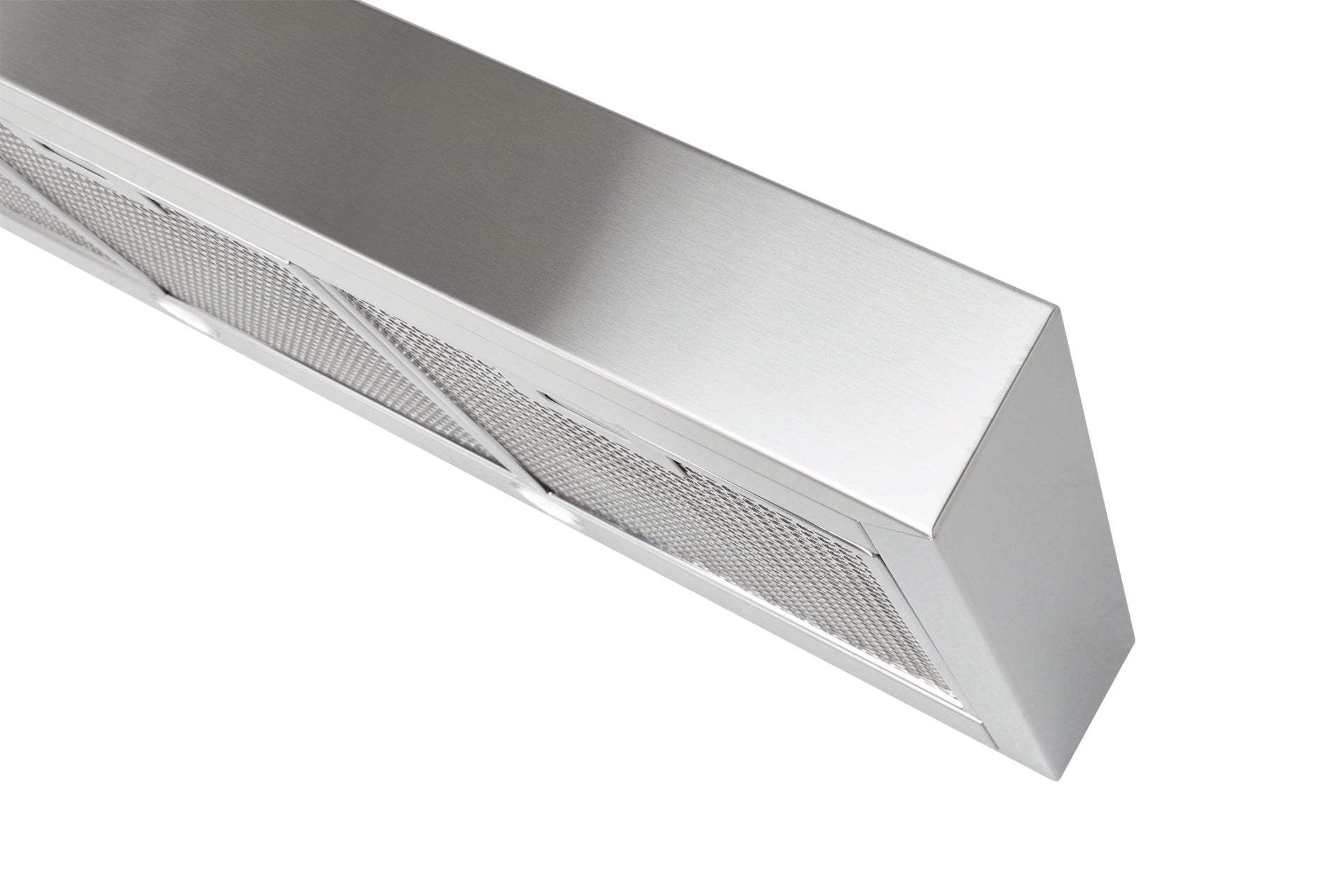

- Innovative design: This stainless steel canopy with square-edged Euro-styling creates a bold modern kitchen look.

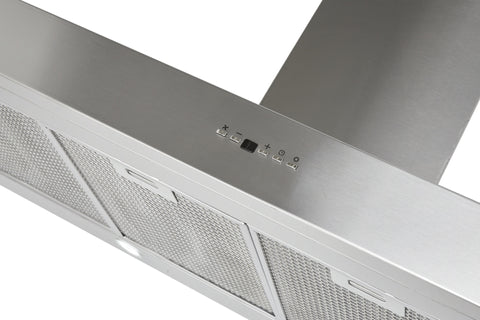

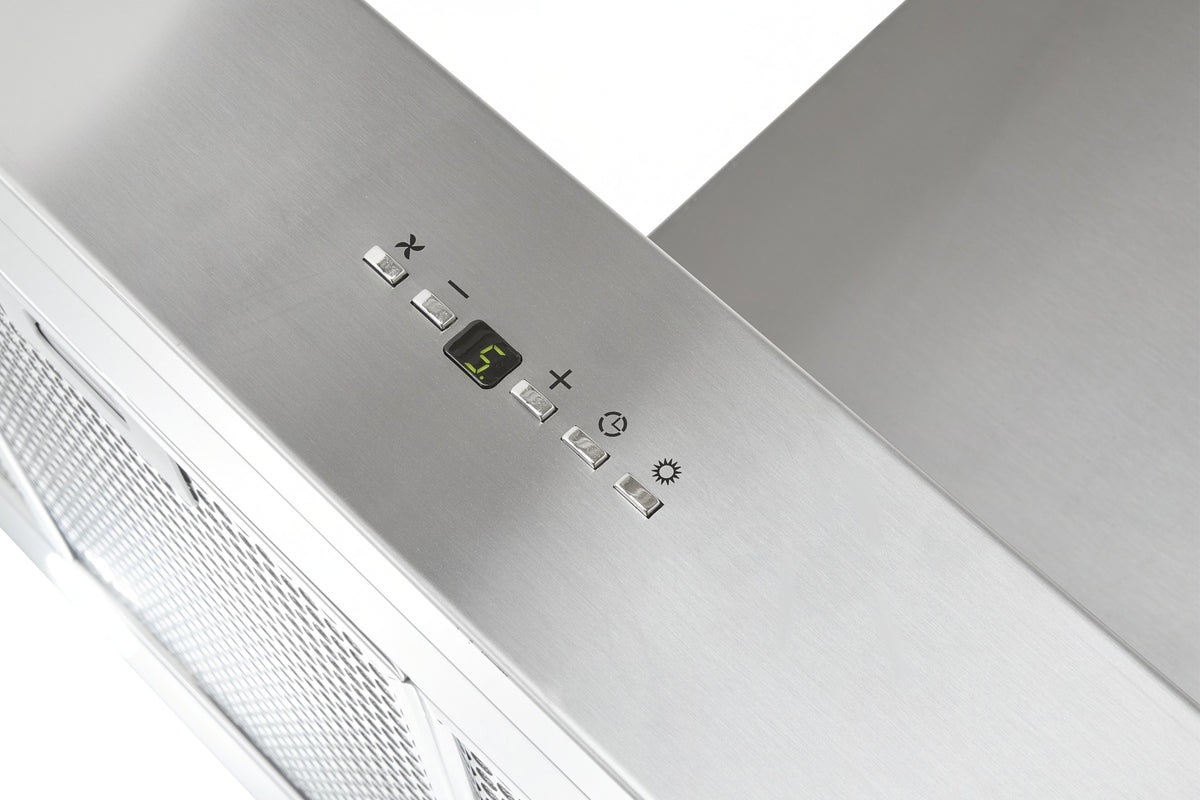

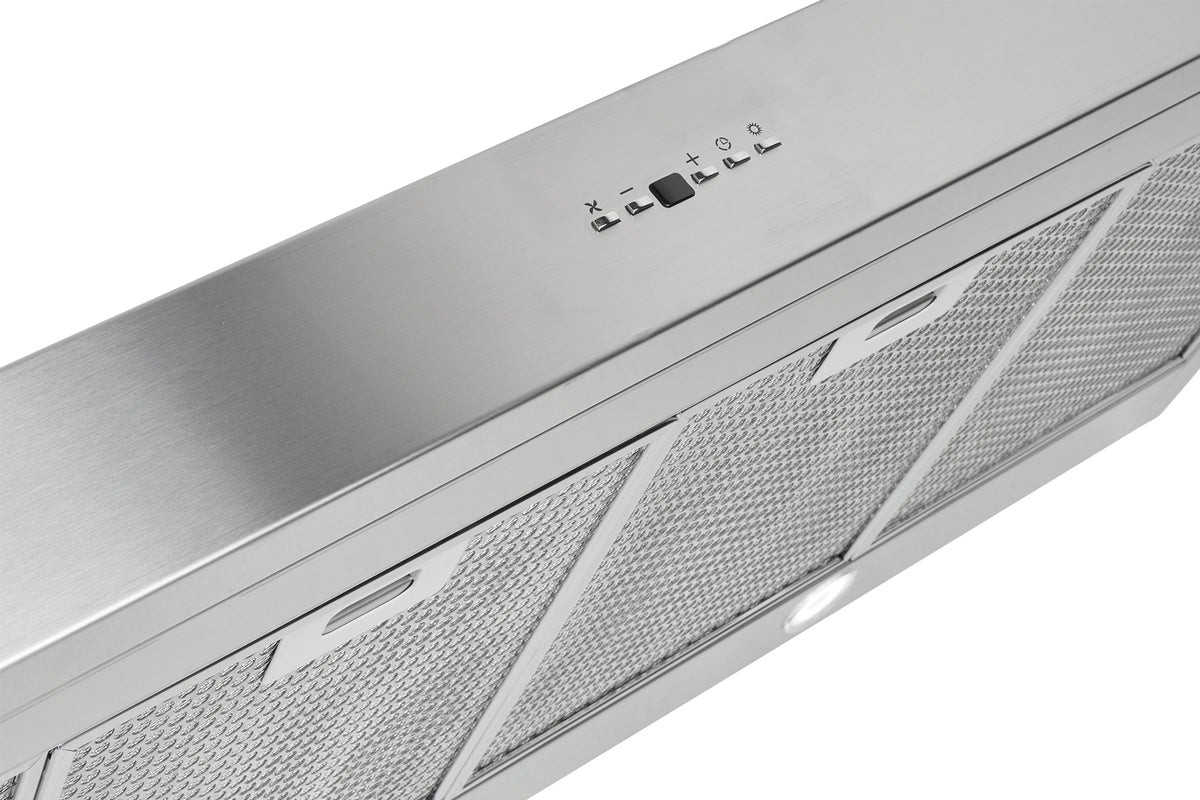

- Convenient features: Soft-touch controls, 5 speed levels, 15-minute auto shut-off timer and LED lighting.
- Flexible & functional: With multiple motor options, there is a suitable extraction power for all cooking styles.

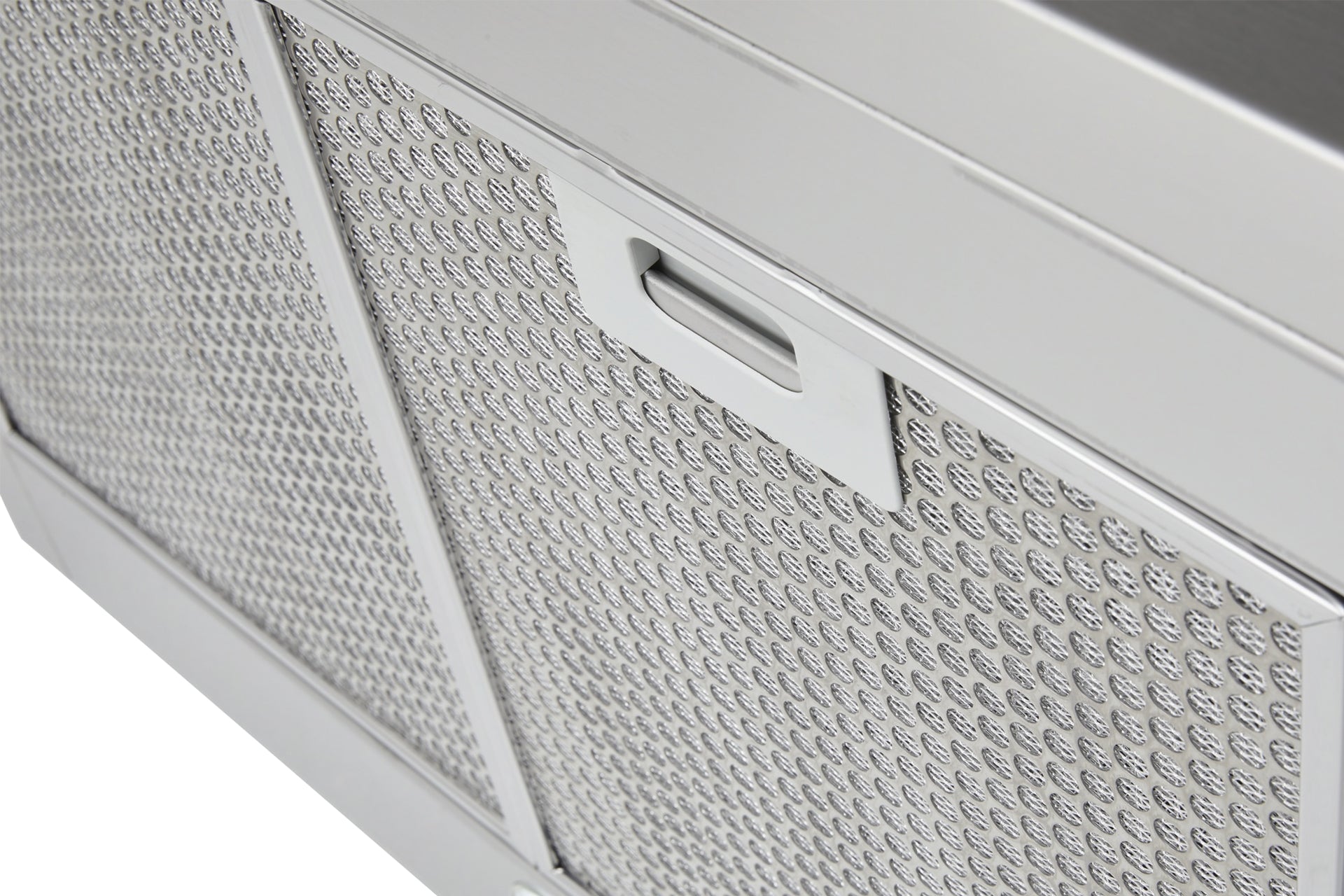

- High-quality filters: Schweigen’s high-quality filters are easy to remove and dishwasher-safe. Baffles also available as an option.
- Schweigen SteelFlexâ„¢ included: Comes with free Schweigen SteelFlexâ„¢ high-performance safety ducting - fire, pest and crush proof, guaranteed for life.
- Warranties: Enjoy peace of mind with 10-year warranty on silent Isodrive® systems, 5-year warranty on canopies, plus lifetime warranty on filters and GU10 LED globes.*
SPECIFICATIONS:
Dimensions
- Width: 1200mm
- Depth: 500mm
- Height: 1190mm
Lights + Filters
- Lights: 3 LED
- Light Wattage: 3

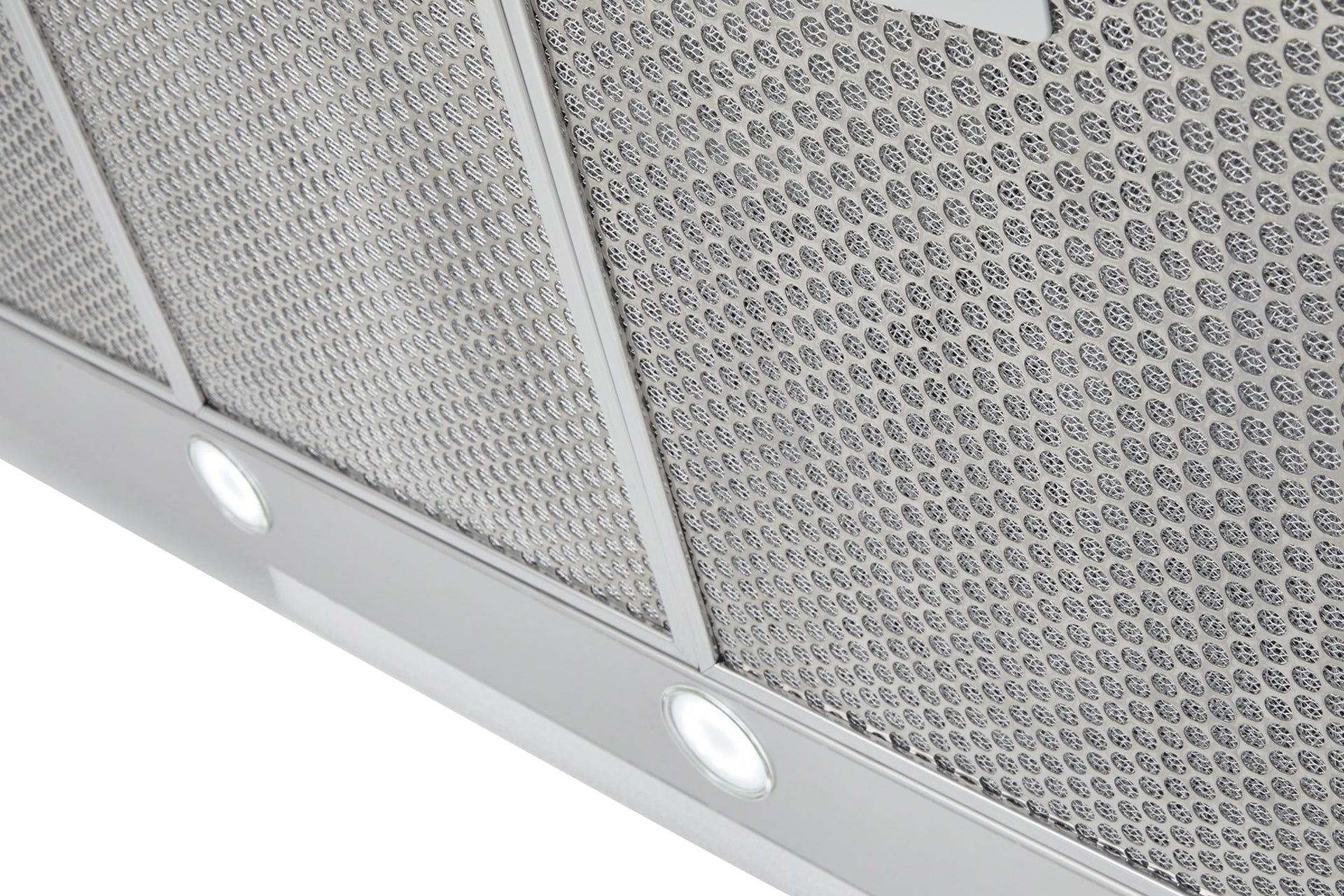

- Filter Type: Stainless Steel - Mesh
- Filter Qty.: 4
Product Details
- Product Code: DS3170-12S
- Finish: Stainless Steel
- Fan Speed Levels: 5
- Airflow (m3/h): 1600 | 3200

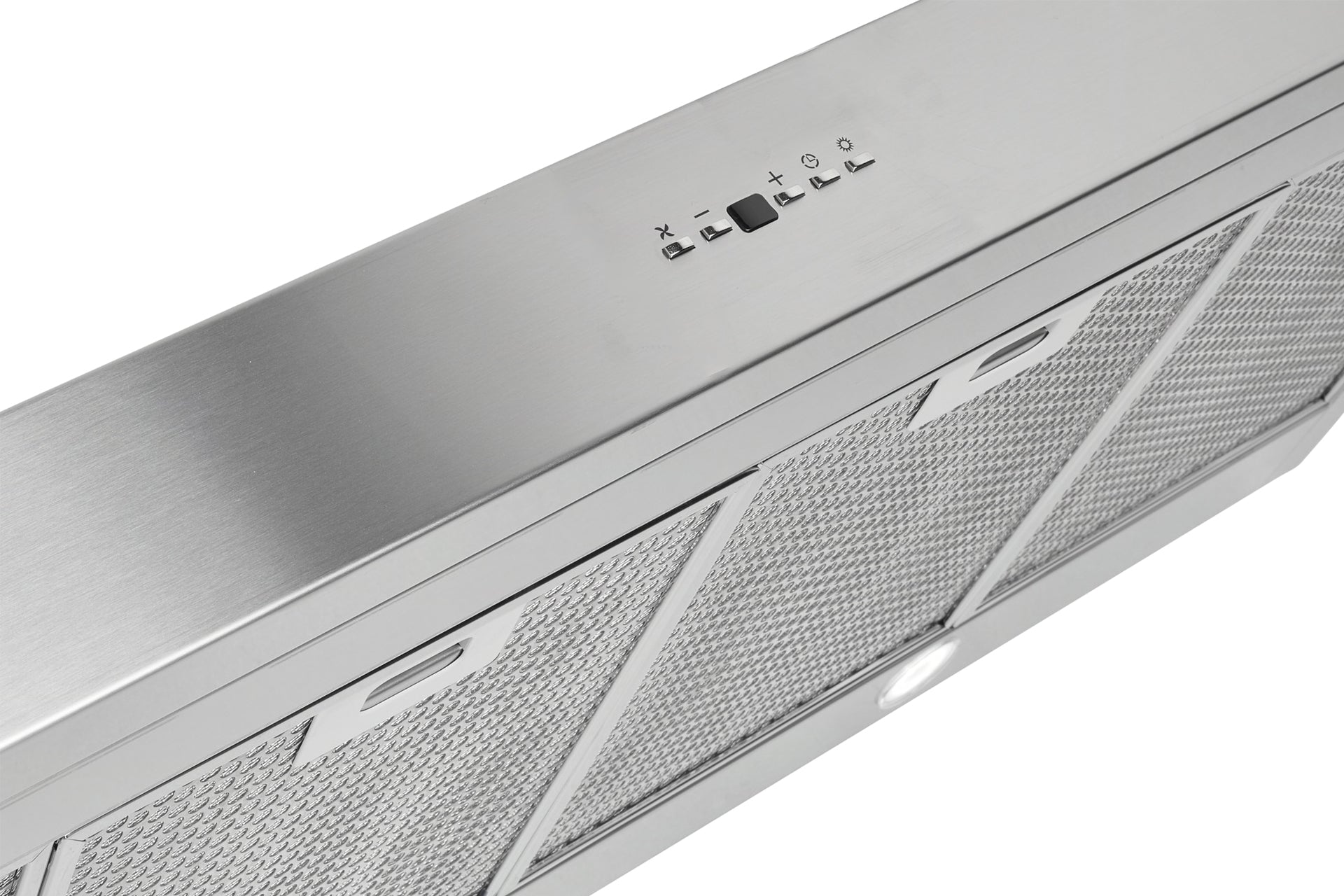

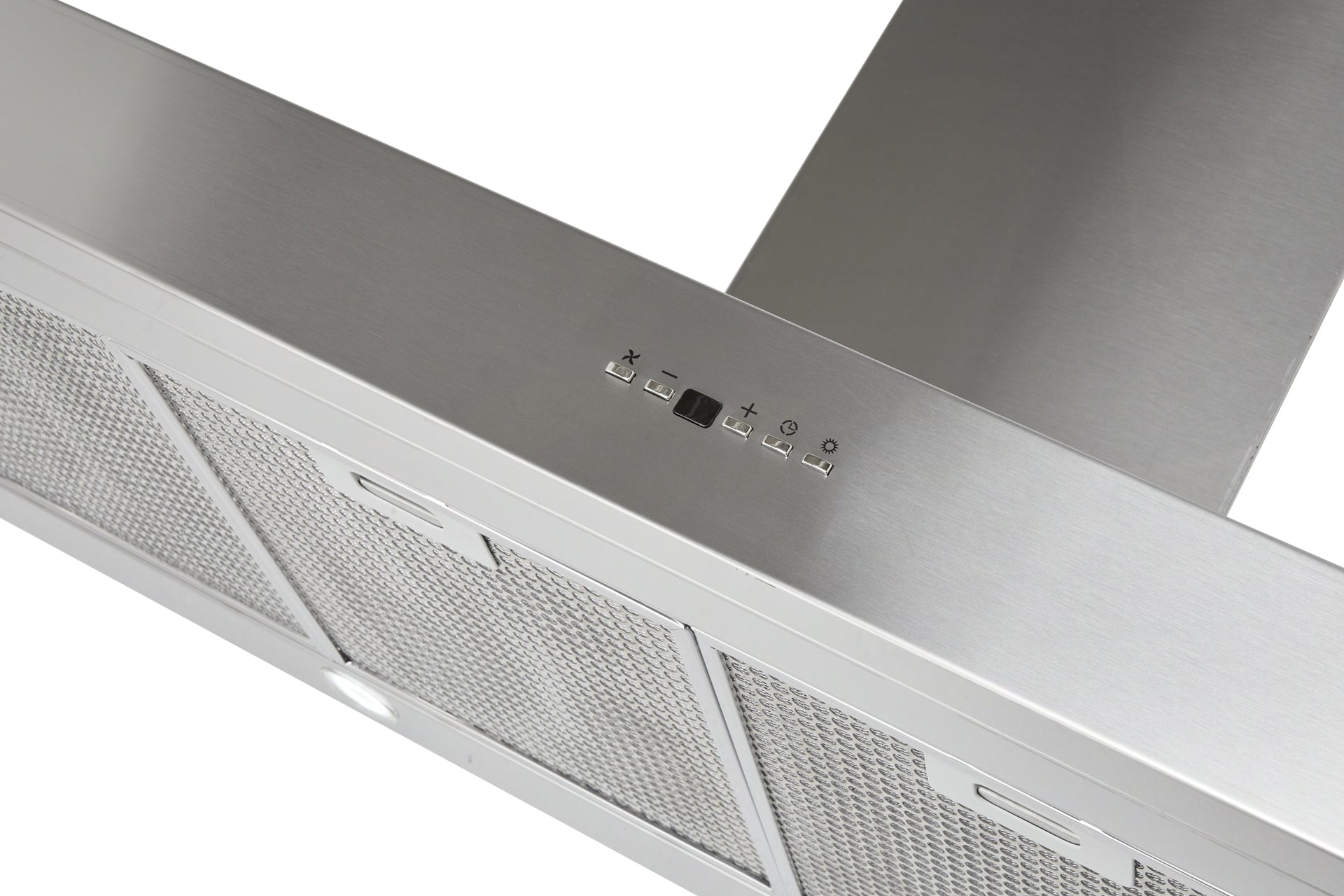

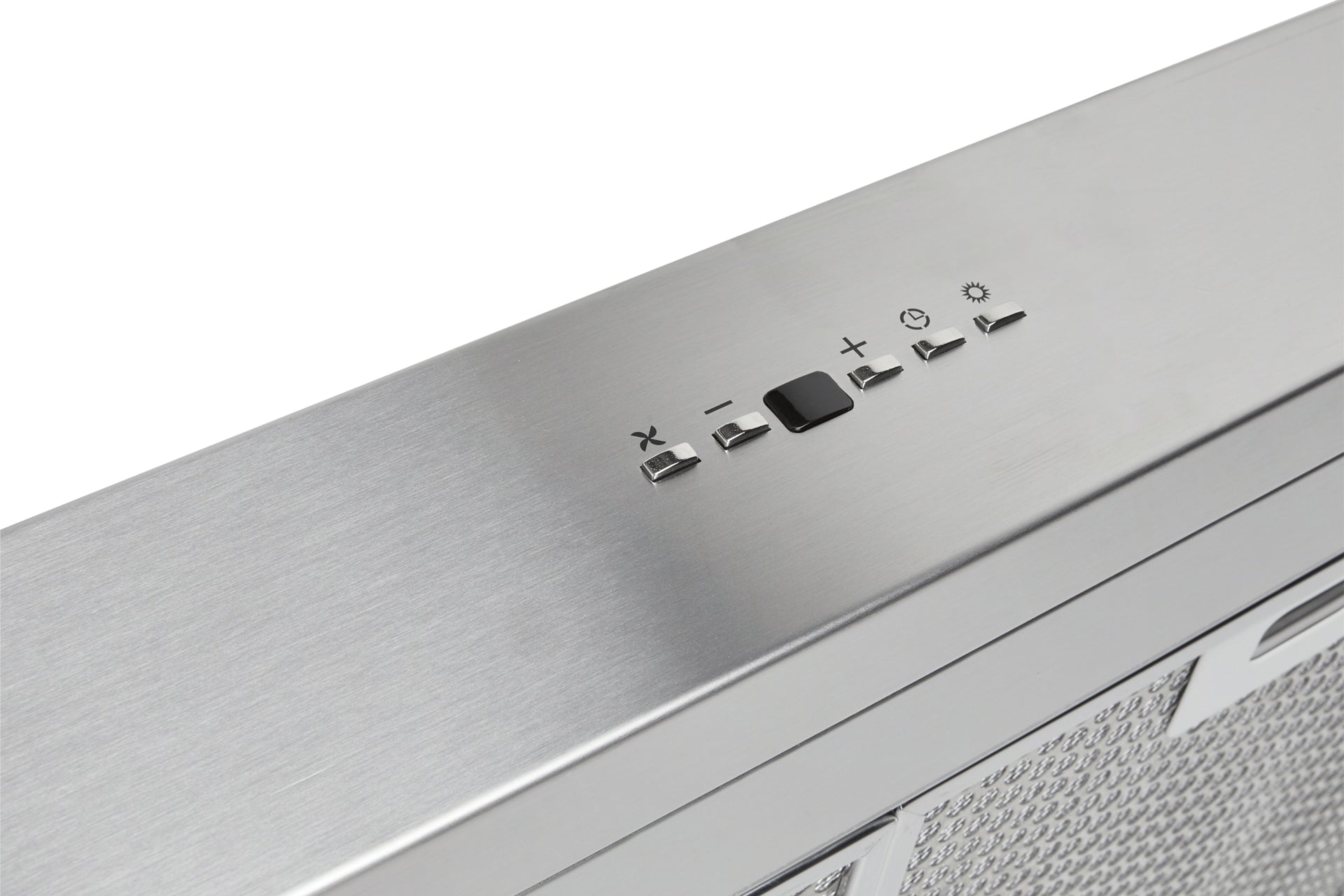

- Control: Soft-touch
MOTOR OPTIONS:
Isodrive SP Motor - 1600m3/h (HEAVY)
Details:
- Ideal for high-spice Asian and Indian cooking; best option for induction cooktops.
- BAL-40 certified by CSIRO.
- 1600 m3/hr airflow.
- Minimum ducting run required for silent operation: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motor and fan made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 155W - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 200mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (200mm/6m), 3.5m 10amp cable, weather guard, metal riser pipe (200mm), wall hanging bracket, backdraft shutter and ring clamps.
- 10-year warranty.
Isodrive INLINE Motor - 1600m3/h (HEAVY)
Details:
- Quiet & Powerful Ventilation
- Ideal for kitchens with long or complex duct runs.
- BAL-40 certified by CSIRO.
- 1600 m3/hr airflow.
- Designed to relocate the motor away from the hood (e.g., into the roof space or attic) for a much quieter cooking experience.
- Provides strong airflow to effectively remove smoke, steam, and odors from the kitchen.
- Helps maintain better indoor air quality and reduces moisture buildup.
- Flexible installation options – motor mounts within the ductwork for retrofit or new builds.
- Durable construction with industrial-quality components designed for longevity.
- Motor housing offers weather protection and is suitable for concealed mounting.
- Compatible with Schweigen SteelFlexâ„¢ high performance safety ducting.
- Supplied with all necessary fixings for straightforward installation.
- Backed by a 10-year warranty for peace of mind.
Isodrive SE Motor - 3200m3/h (EXTREME)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 3200 m3/hr airflow.
- Minimum ducting run required for silent operation: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motor and fan made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 135W - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 250mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlexâ„¢ high performance safety ducting (250mm/4m, 200mm/2m), 3.5m 10amp cable, weather guard, reducer (250mm to 200mm), metal riser pipe (250mm), backdraft shutter and ring clamps.
- 10-year warranty.
DOWNLOADS
Model
Motors
Isodrive SP Motor - 1600m3/hÂ
Isodrive SE Motor - 3200m3/hÂ
