Product Description
ABOUT THIS MODEL:

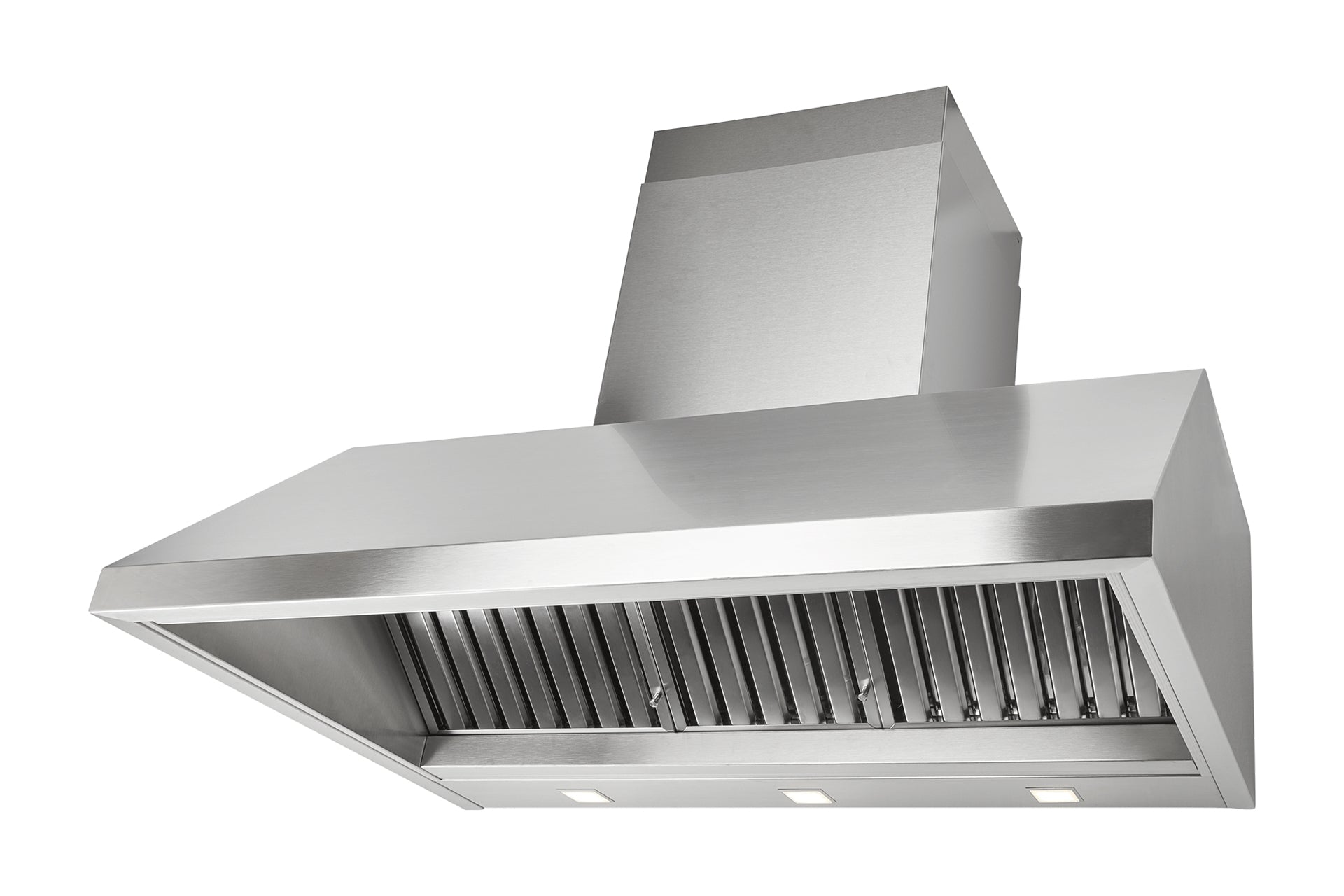

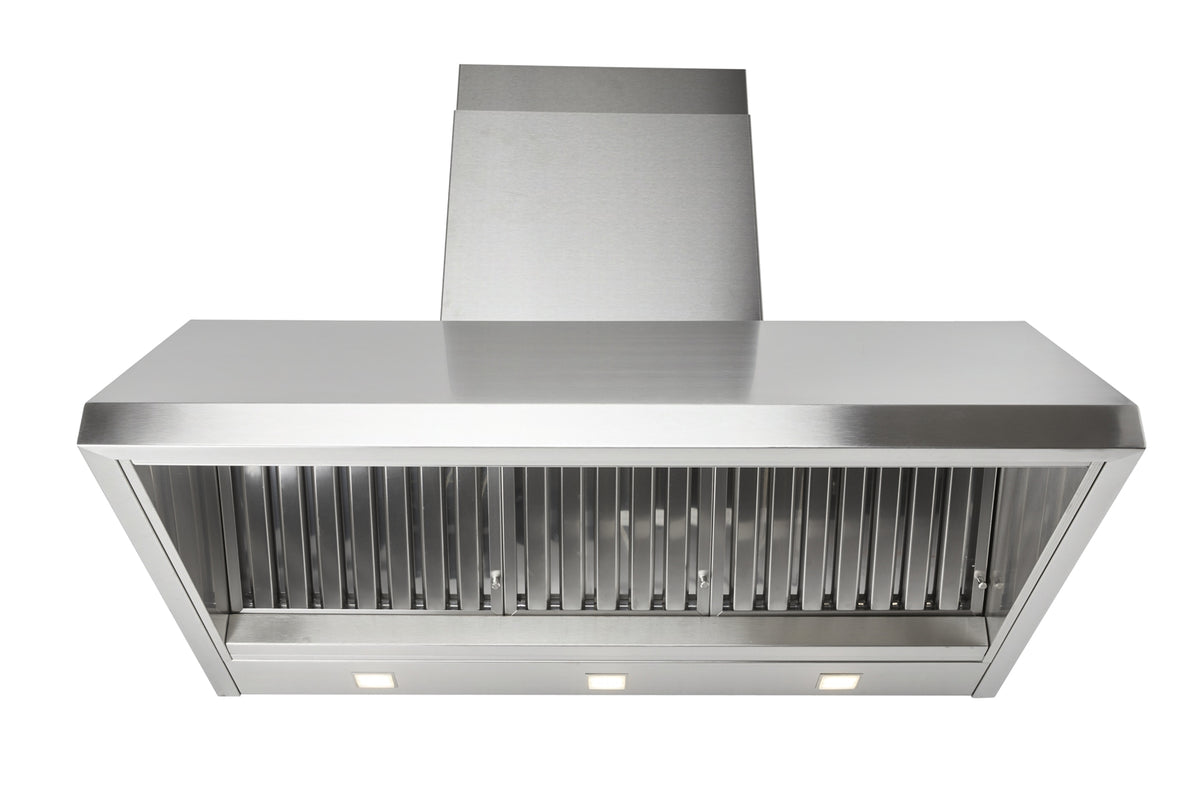

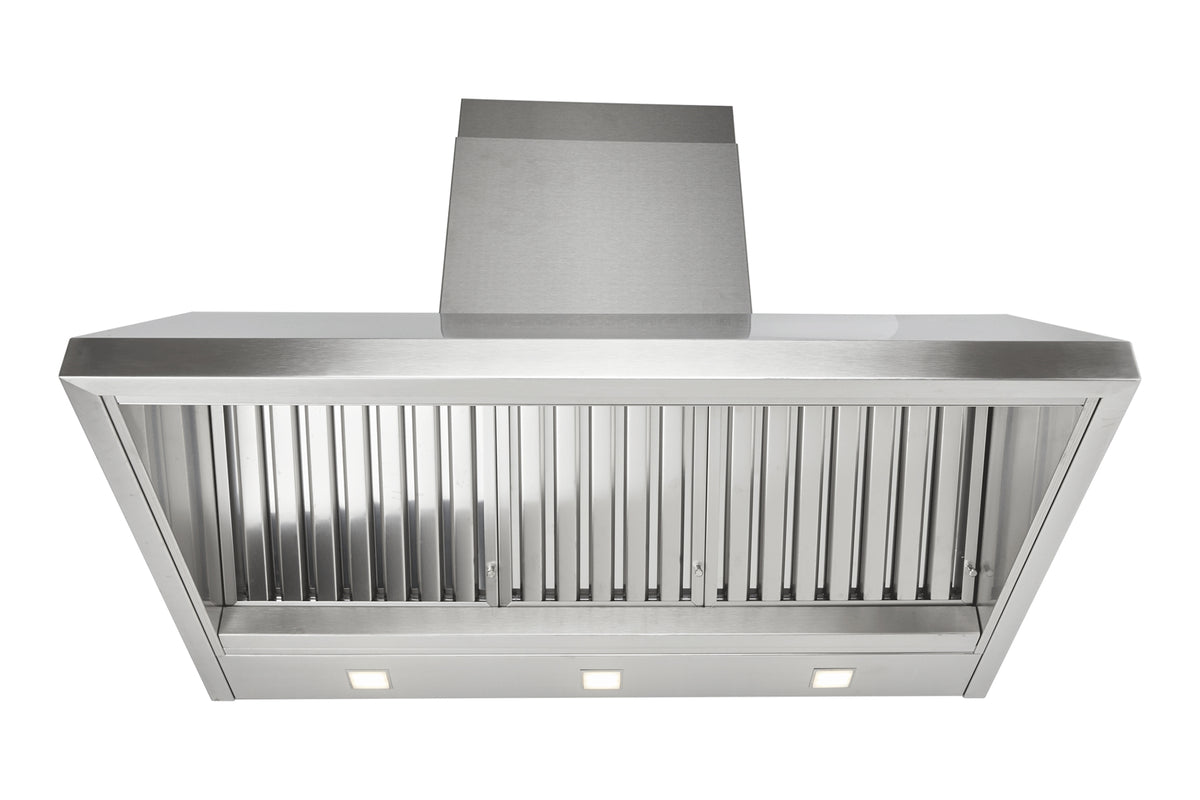

The DBH1200S wallmount rangehood blends cutting-edge technology with sophisticated design. Its ultra-quiet operation powered by the German-made Isodrive® external motor ensures a more refined alfresco cooking experience, while the powerful extraction eliminates airborne grease, smoke and odours with ease.
Crafted with high-grade 304 stainless steel for durability against the harsh Aussie climate, its suite of convenient features include variable speed options, auto shut-off function, touch and remote controls, plus energy efficient LED lighting for enhanced illumination over your cooking station.
Comes with free Schweigen SteelFlex™ high performance safety ducting, 10-year motor warranty, 5-year canopy warranty and lifetime replacement warranty on dishwasher-safe commercial-grade baffles for ultimate peace of mind.
WARRANTIES:
-
10 Years - Motor Warranty
-
5 Years - Canopy Warranty
- Lifetime - Filter Warranty
FEATURES:
- Powerful silent extraction - The German-engineered Isodrive® motor delivers silent, efficient extraction of steam, smoke and odours - leaving your kitchen fresher for longer.
- Modern design - Make a bold design statement in your outdoor cooking area with this stunning rangehood featuring clean lines and modern geometric shapes.
- Convenient features - Touch and remote controlled with 4 speed levels, auto shut-off timer and LED lighting.
- Flexible & functional - With multiple motor options, there is a suitable extraction power for all cooking styles.

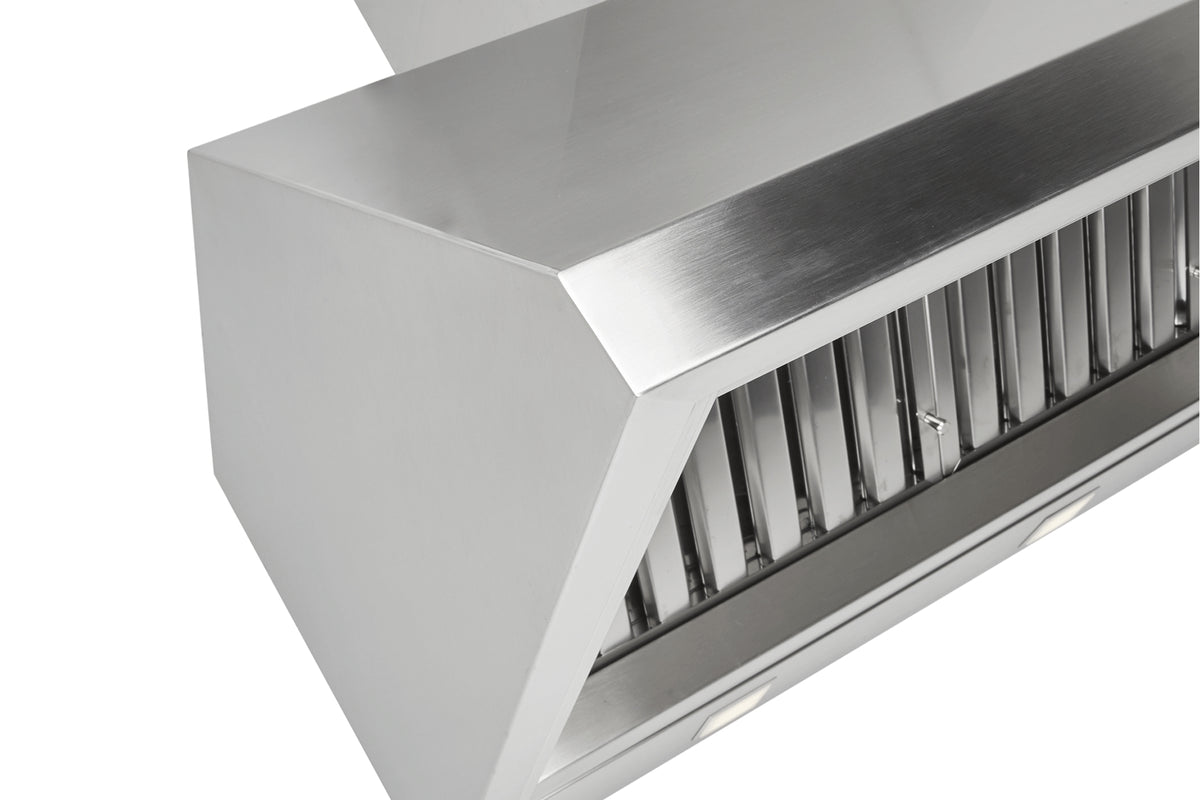

- High-quality construction - 304-grade stainless steel canopy to withstand the harshest of our Australian climates.

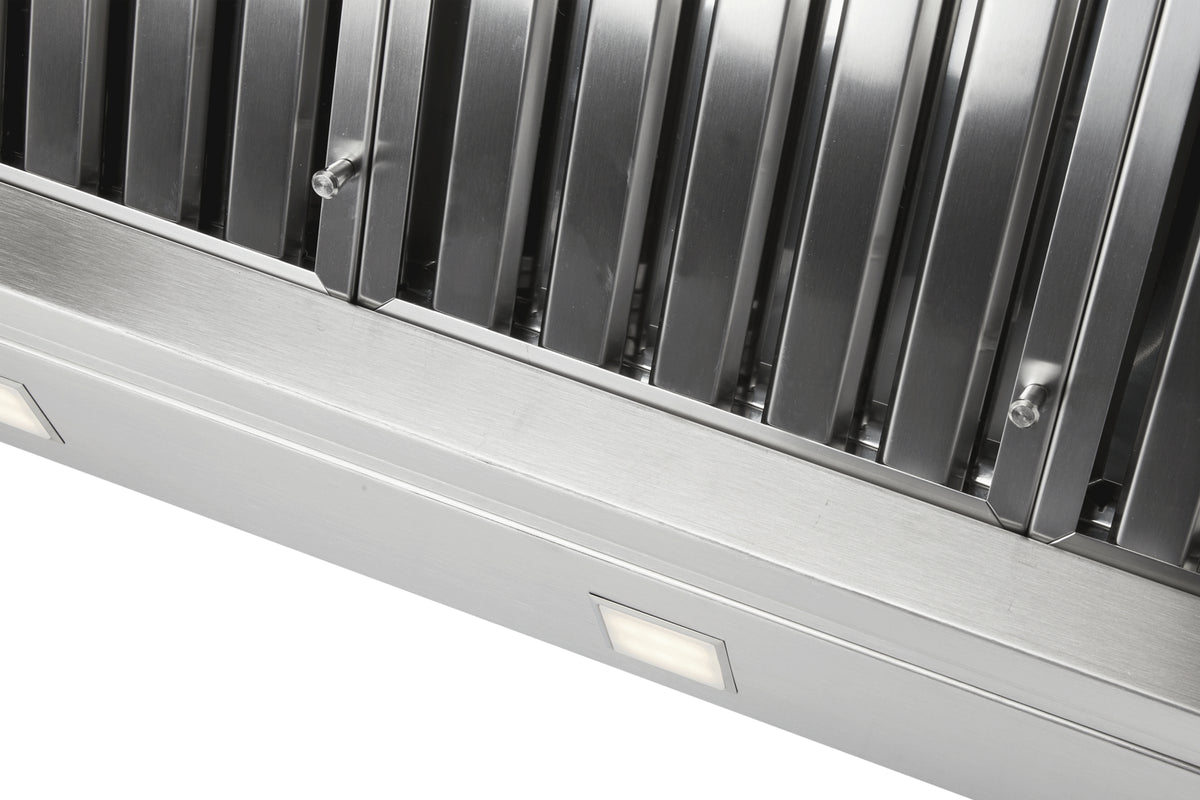

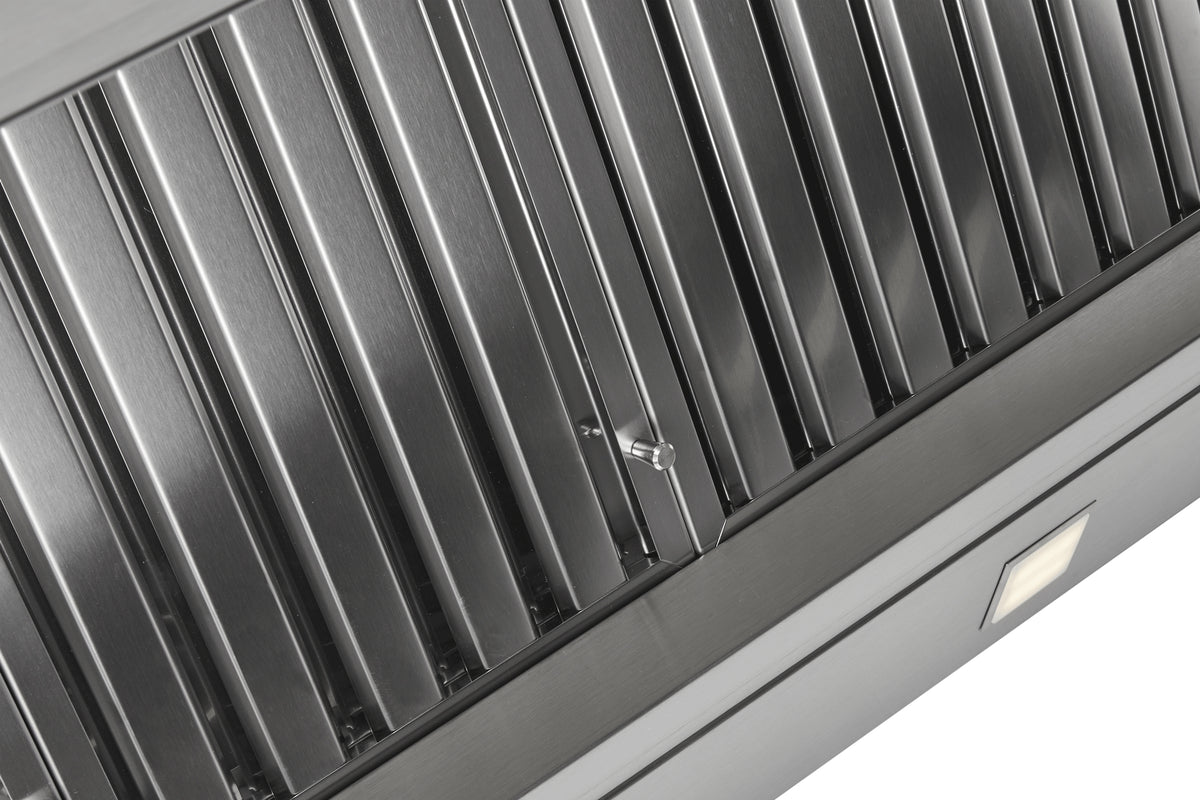

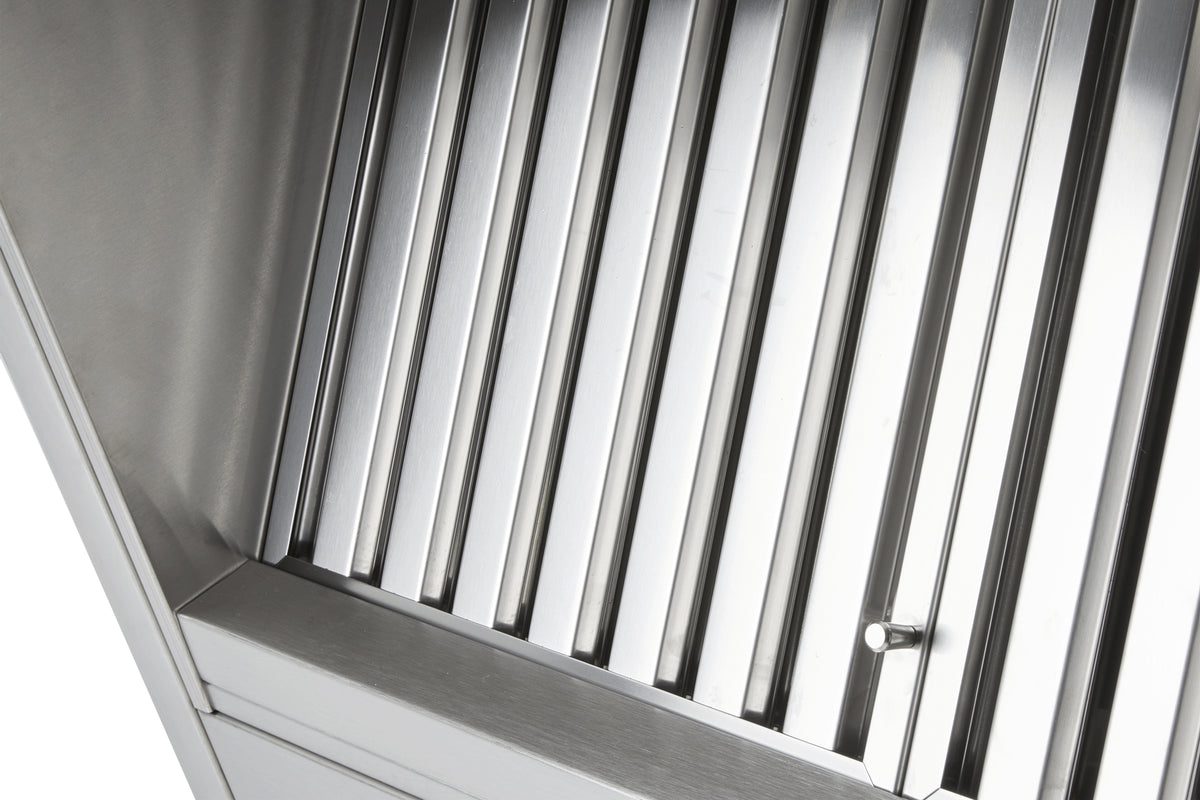

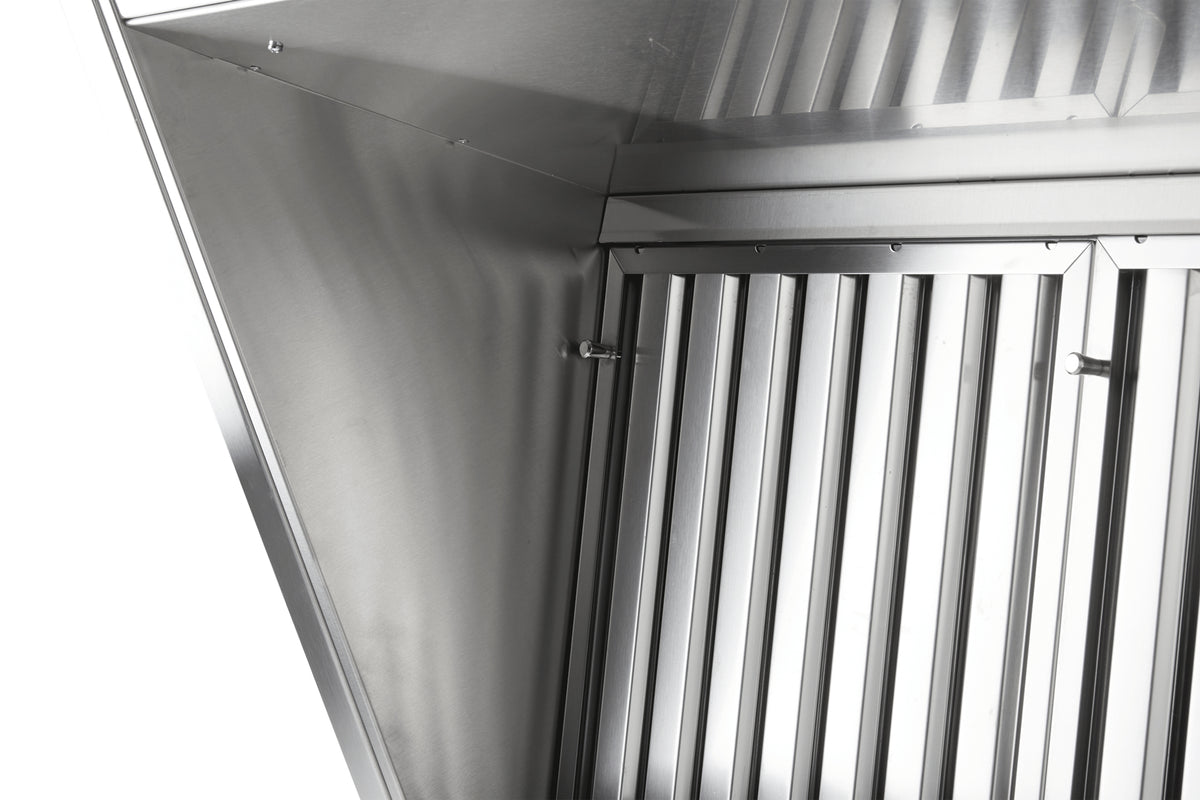

- High-quality baffles - Easy to remove, dishwasher safe stainless steel baffles that are guaranteed for life.
- Schweigen SteelFlex™ included - Comes with free Schweigen SteelFlex™ high-performance safety ducting - fire, pest and crush proof, guaranteed for life.
- Warranties - Enjoy peace of mind with 10-year warranty on silent Isodrive® system, 5-year warranty on canopy and lifetime warranty on filters.*
SPECIFICATIONS:

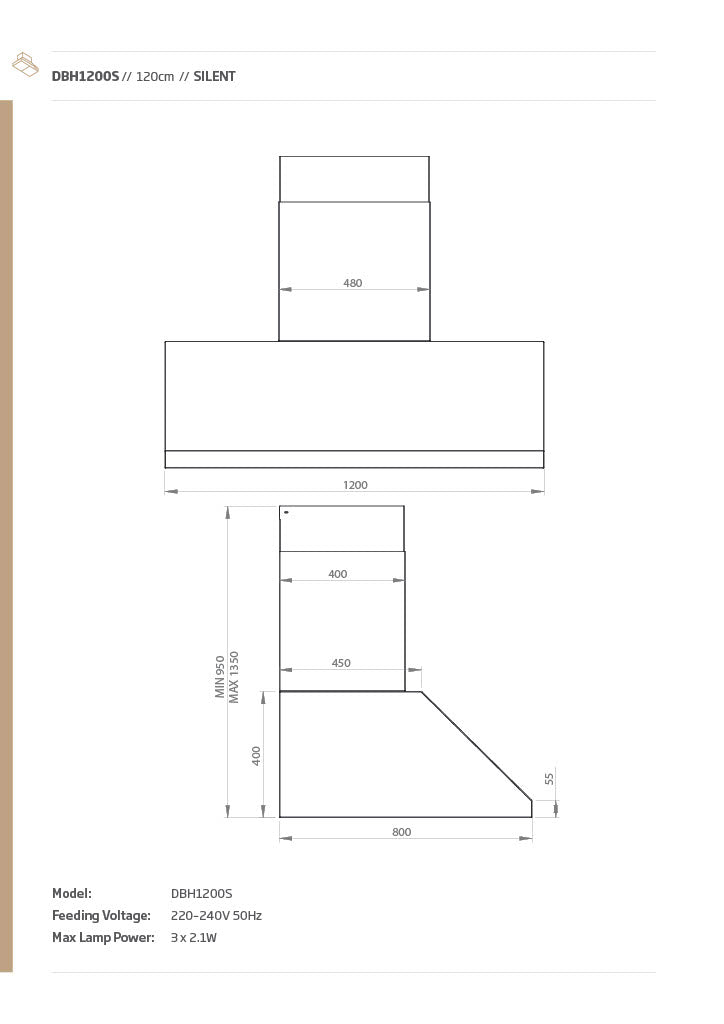

Dimensions:
-
Width: 1200mm
-
Depth: 800mm
-
Height: 950mm
Lights + Filters:
-

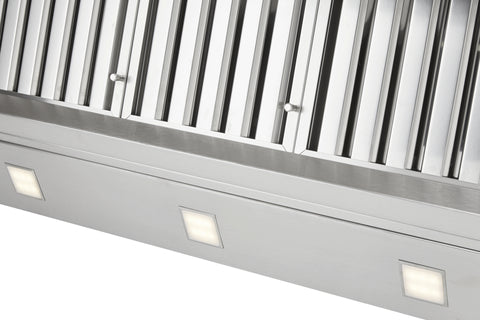

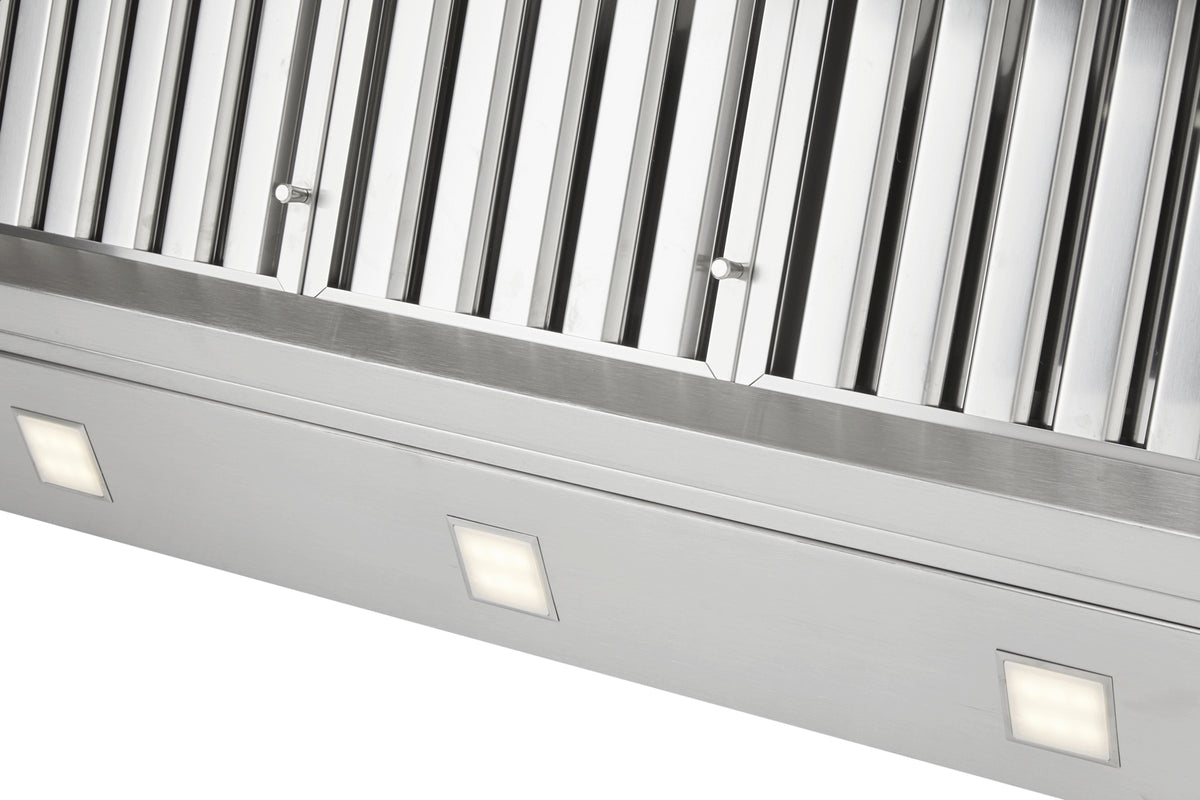

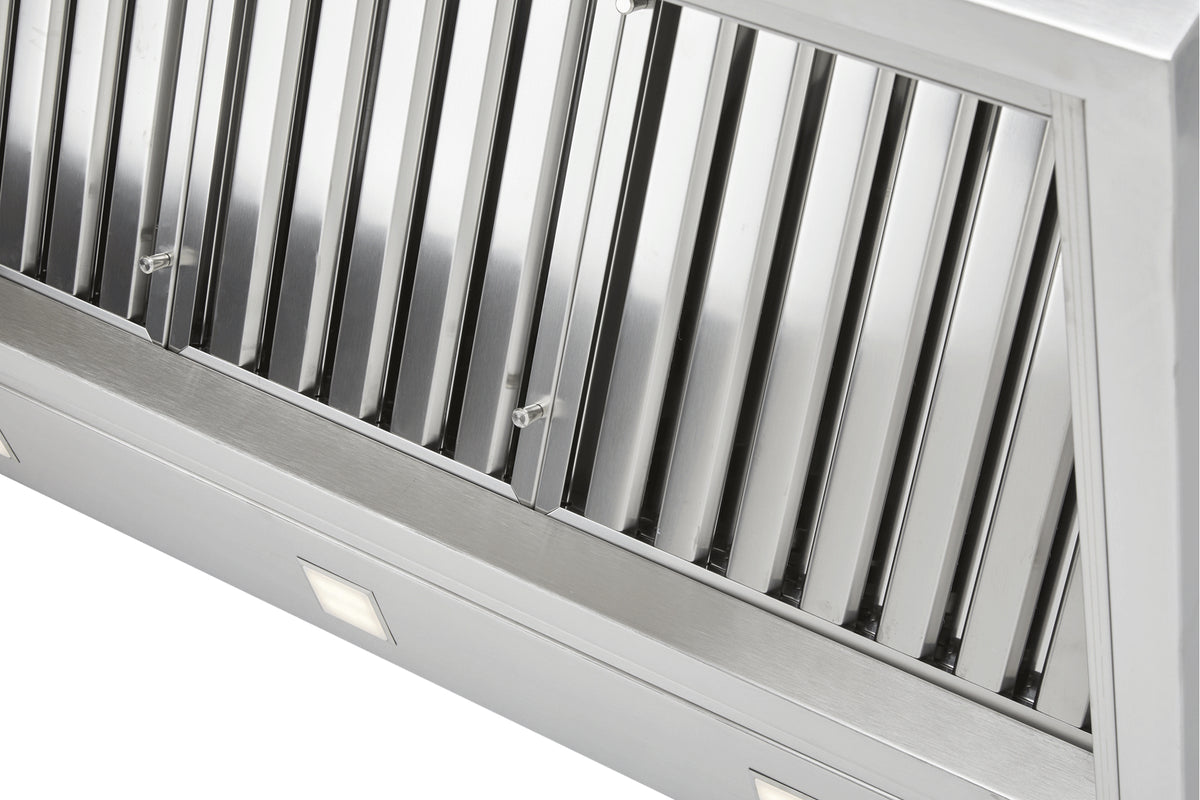

Lights: 3 LED
-
Light Wattage: 3 x 2.1W
-
Filter Type: Stainless Steel - Baffle
- Filter Qty.: 3
Product Details:
-
Product Code: DBH1200S
-
Finish: 304 Stainless Steel
-
Fan Speed Levels: 4
-
Airflow: 3000 | 3200 | 5000

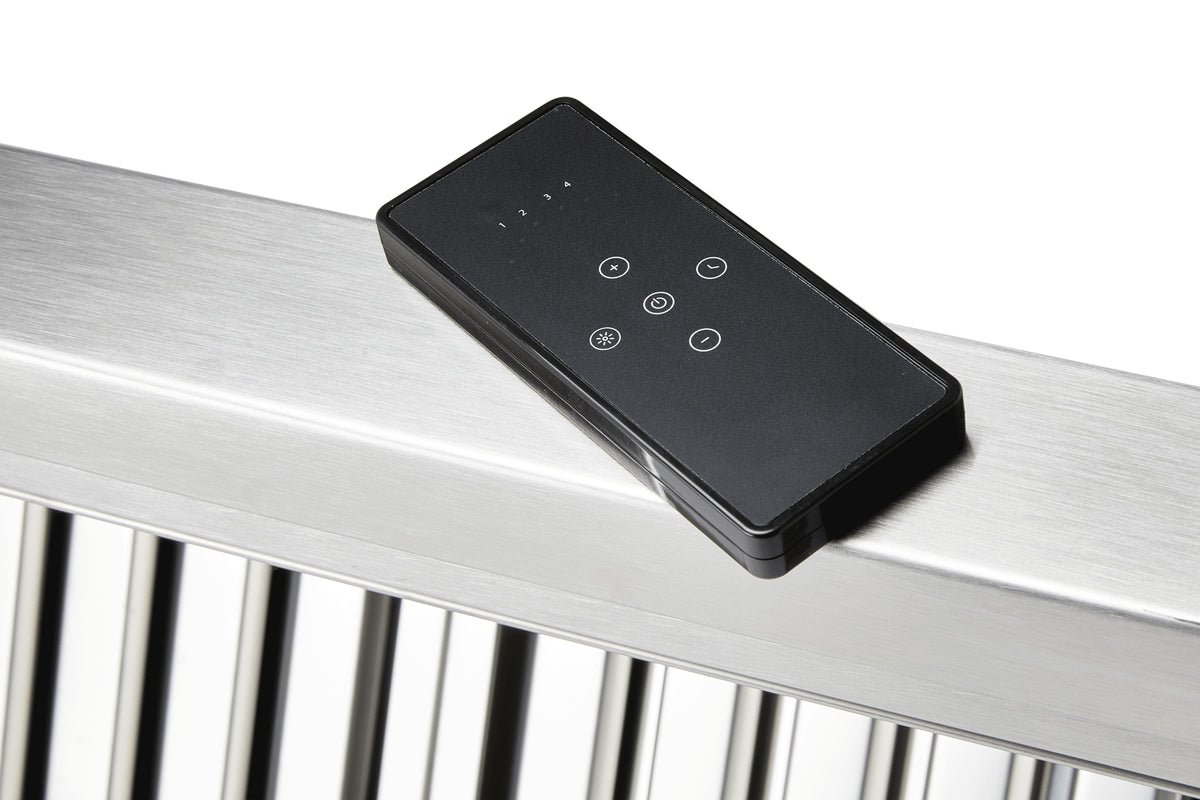

- Control: Touch & Remote
MOTOR OPTIONS:
Isodrive SP2 Motor - 3000m3/h (SUPREME)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 3000 m3/hr airflow from twin motors.
- Minimum ducting run required for silent operation with each motor: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motors and fans made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 155W each - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 200mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlex™ high performance safety ducting (200mm/6m),
- 3.5m 10amp cable, weather guard, metal riser pipe (200mm), wall hanging bracket, backdraft shutter and ring clamps.
- 10-year warranty.
Isodrive SE Motor - 3200m3/h (EXTREME)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 3200 m3/hr airflow.
- Minimum ducting run required for silent operation: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fan.
- Industrial quality motor and fan made in Germany and rated at 40,000 hours.
- Motor is a high efficiency PSC type and rated at 135W - about as much to run two 70W light globes.
- Roof and wall mounting with IPX4 degree of weather protection - electrics are totally concealed.
- Motor housing is powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motor mounts onto a 250mm metal pipe for ultimate strength and allows for easy Dektite roof sealing.
- Comes with Schweigen SteelFlex™ high performance safety ducting (250mm/4m, 200mm/2m), 3.5m 10amp cable, weather guard, reducer (250mm to 200mm), metal riser pipe (250mm), backdraft shutter and ring clamps.
- 10-year warranty.
Isodrive SE2 Twin Motors - 5000m3/h (EXTREME TWIN)
Details:
- Ideal for all cooking styles.
- BAL-40 certified by CSIRO.
- 5000 m³/hr airflow from twin motors.
- Minimum ducting run required for silent operation with each motor: 6m with 2 soft bends.
- Super quiet, long vane, backward curved centrifugal fans.
- Industrial quality motors and fans made in Germany and rated at 40,000 hours.
- Motors are high efficiency PSC type and rated at 135W each – about as much to run two 70W light globes per motor.
- Roof and wall mounting with IPX4 degree of weather protection – electrics are totally concealed.
- Motor housings are powder coated galvanized steel, which can be painted to any colour of your choice.
- Simple installation: The motors mount onto a 250mm metal pipe for ultimate strength and allow for easy Dektite roof sealing.
- Comes with Schweigen SteelFlex™ high performance safety ducting (250mm/4m, 200mm/2m per motor), 3.5m 10amp cable, weather guards, reducers (250mm to 200mm), metal riser pipes (250mm), backdraft shutters and ring clamps.
- 10-year warranty.
DOWNLOADS
Model
Motors
Isodrive SP2 Twin Motors - 3000m3/h
Isodrive SE Motor - 3200m3/h
