Product Description

Product Overview:

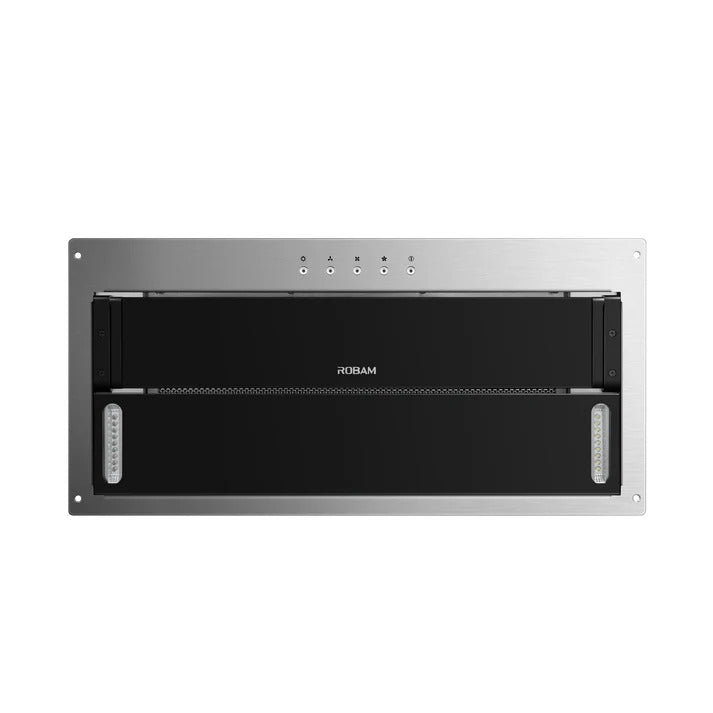

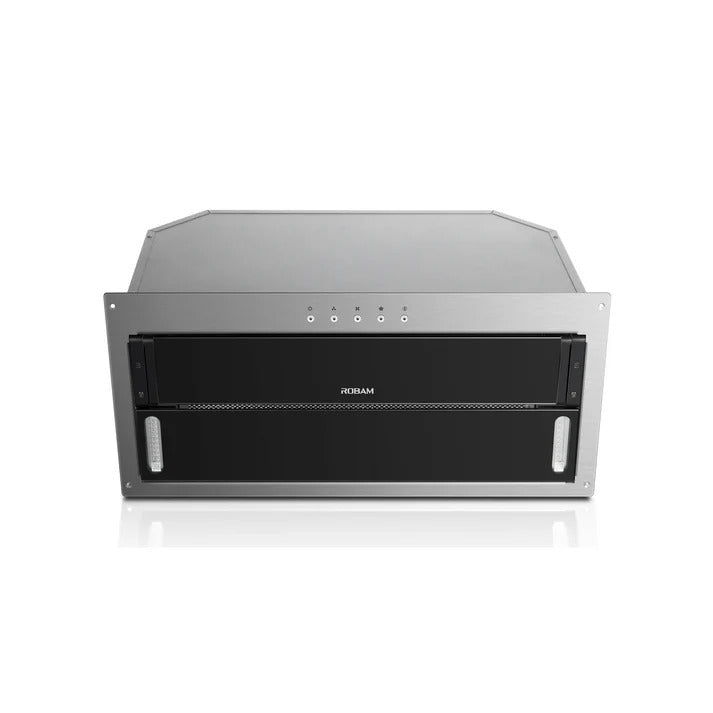

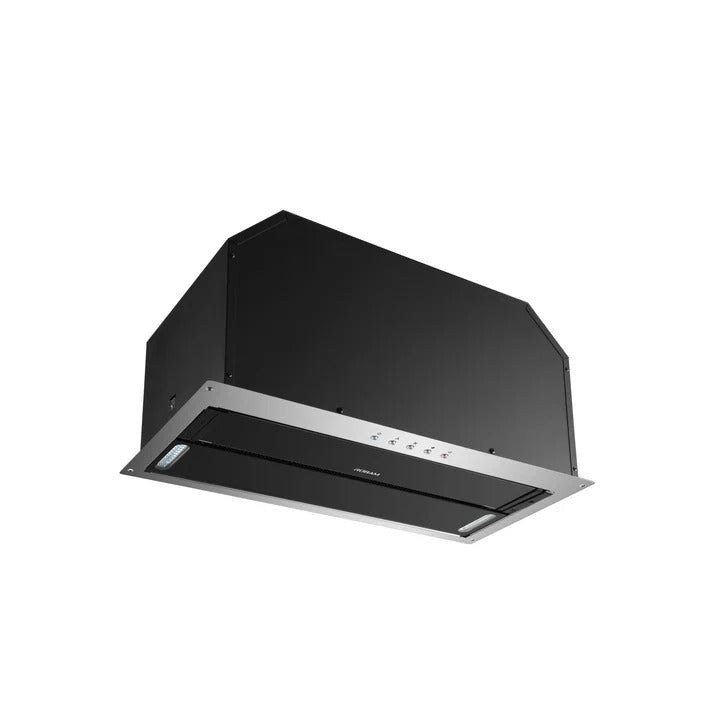

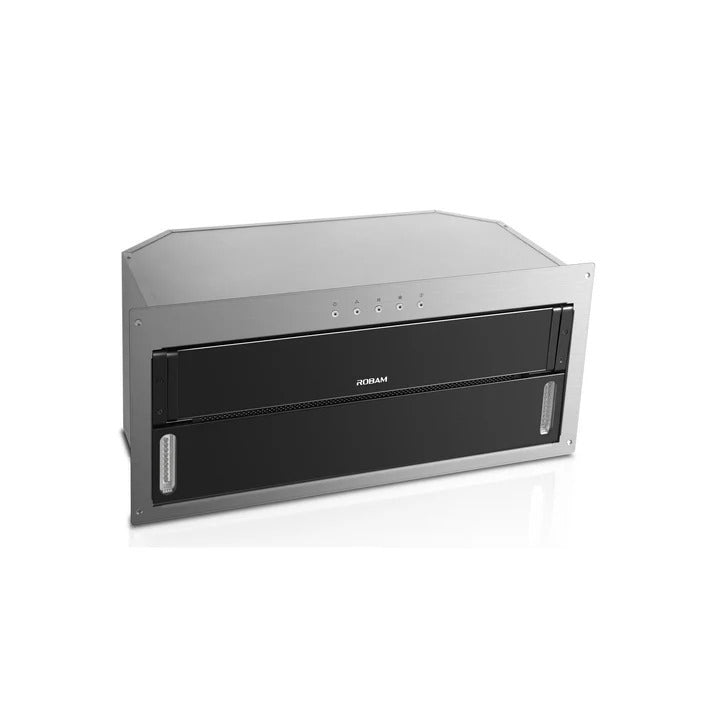

The Robam A520 is a concealed undermount rangehood available in 600mm and 900mm widths, finished with a glossy black tempered-glass panel and stainless steel body. Designed to sit within overhead cabinetry, it provides a streamlined alternative to a visible canopy while retaining a motorised front extraction panel, three fan speeds and dedicated cooktop lighting.

When switched on, the front glass panel opens automatically to enlarge the extraction area and direct cooking vapours towards the filter. The panel opens to an angle of up to 130 degrees, helping the compact 290mm-deep body capture smoke and airborne grease without requiring a projecting canopy over the cooking surface.

A 210W DC motor delivers an unrestricted airflow rate of 1,180m³/h and a standard IEC airflow rating of 800m³/h, supported by maximum static pressure of 450Pa. Low, medium and high fan settings allow extraction to be adjusted for different cooking conditions, while a 60-second delayed shut-off cycle helps clear residual vapour after cooking has finished.

Product Features:

• Concealed undermount installation integrates neatly into overhead cabinetry.
• Motorised front glass panel automatically opens during operation to improve smoke capture.
• Powerful 800m³/h IEC airflow removes smoke, grease and cooking odours efficiently.
• Three fan speeds provide flexible extraction for everyday cooking through to high-heat cooking.
• 210W DC motor delivers strong airflow with efficient performance.
• Dual LED lights illuminate the cooking surface.

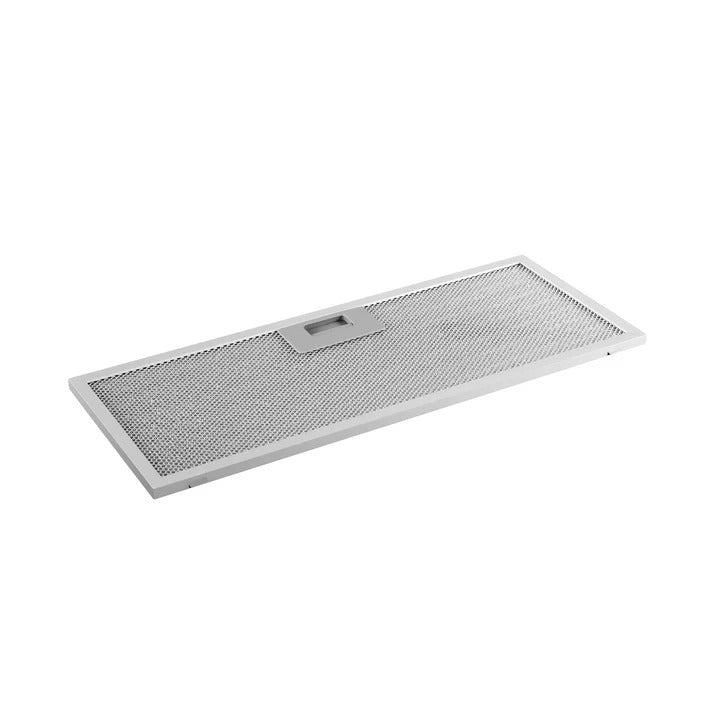

• Dishwasher-safe aluminium grease filters simplify routine cleaning.
• 60-second delay shut-off continues extracting residual vapours after cooking.

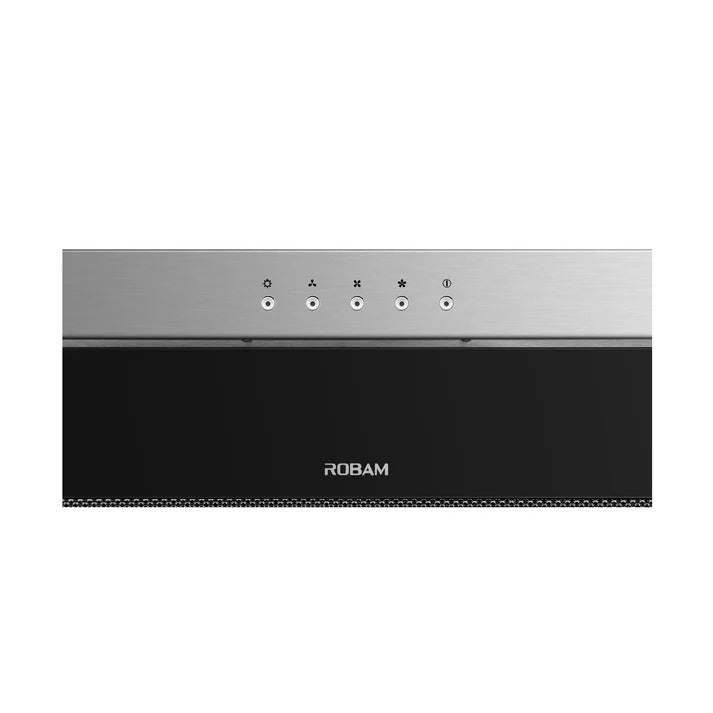

• Electronic touch controls provide simple operation.
• Available in 600mm and 900mm widths.

Colour / Finishes:

• Gloss Black Tempered Glass & Stainless Steel — CXW-210-A520 (600)
• Gloss Black Tempered Glass & Stainless Steel — CXW-210-A520 (900)

Programmes / Functions:

• Low Speed: Gentle extraction for simmering, steaming and light everyday cooking.
• Medium Speed: Balanced airflow for general cooking and moderate steam.
• High Speed: Maximum extraction for frying, grilling and high-heat cooking.
• LED Lighting: Illuminates the cooking surface independently of the extraction fan.
• Delay Shut-off: Continues operating for 60 seconds after cooking to help remove remaining smoke and odours.

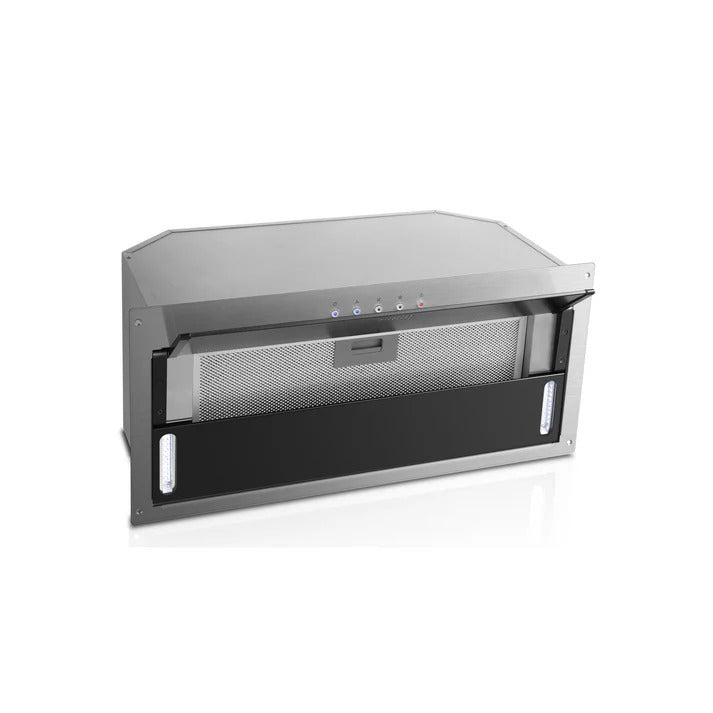

• Filter Access Mode: Automatically opens the front glass panel to provide access for filter removal and cleaning.

Cleaning & Maintenance:

• Dishwasher-safe aluminium grease filters simplify routine cleaning.
• Wipe the glass and stainless steel surfaces with a soft damp cloth and mild detergent.
• Avoid abrasive cleaners, scourers and harsh chemicals that may damage the finish.
• Clean the grease filters regularly to maintain optimum extraction performance.
• Carbon filters (when fitted for recirculating installation) should be replaced periodically in accordance with the manufacturer's recommendations.

Specifications:

• Appliance type: Undermount rangehood
• Installation: Ducted
• Motor type: DC motor
• Fan speeds: 3
• IEC airflow: 800m³/h
• Maximum unrestricted airflow: 1,180m³/h
• Maximum static pressure: 450Pa
• Maximum noise level: 56dB(A)
• Controls: Electronic touch controls
• Lighting: 2 × LED lights
• Motor power: 210W
• Total power: 213W
• Power supply: 220–240V / 50Hz
• Exhaust outlet: Ø150mm
• Delay shut-off: 60 seconds

Product Measurements:

60cm Wide

• Dimensions (W × H × D): 600 × 290 × 290mm
• Cabinet Cut-out: 560 × 276mm

90cm Wide

• Dimensions (W × H × D): 900 × 290 × 290mm
• Cabinet Cut-out: 860 × 276mm

Product Weight:

• 60cm Wide Product Weight: 9.5kg
• 90cm Wide Product Weight: 11.5kg

Installation & Requirements:

• Concealed undermount installation.
• Suitable for installation within overhead cabinetry.
• Minimum installation height above cooktop: 650mm.
• Ø150mm duct connection.
• Ducted externally for optimum performance.
• Standard 220–240V / 50Hz electrical supply.
• Installation by a suitably qualified installer is recommended.
• Refer to the installation guide for cabinetry clearances and ducting requirements.

Country of Origin:

• Made In China

Extra Information:

The Robam A520 combines a concealed undermount design with a motorised front glass panel that automatically opens during operation to improve extraction efficiency. The removable aluminium grease filters are dishwasher safe for straightforward maintenance, while the integrated LED lighting provides clear illumination across the cooking surface. Optional carbon filters are available for selected recirculating installations where external ducting is not practical.

Included Products / Accessories:

• Aluminium grease filters
• Mounting screws
• Screw caps
• User manual

Warranty:

Robam rangehoods are backed by a 10 year warranty on the motor and a 2 year warranty on parts. Cooktops, ovens, dishwashers, and microwaves carry a 2 year manufacturer's warranty on parts and labour. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads:

• USER MANUAL (PDF)
