Product Description

Product Overview:

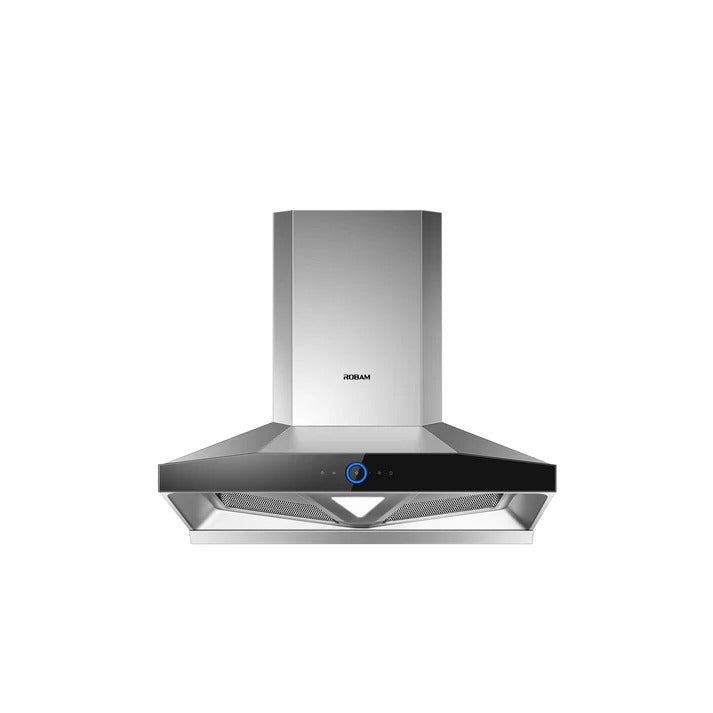

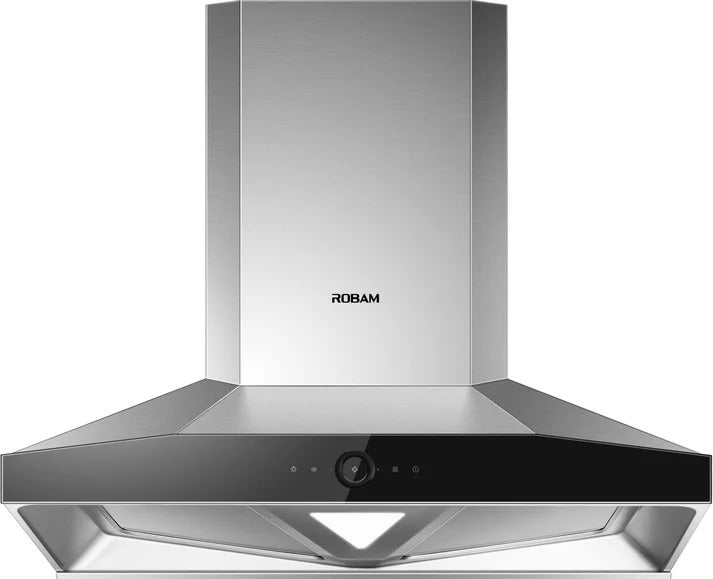

The Robam 88H1S 90cm Wide Canopy Rangehood combines powerful extraction performance with contemporary styling, making it an ideal solution for modern kitchens where intensive cooking is part of everyday life. Finished in premium black tempered glass with a slim stainless steel body, the wall-mounted canopy design provides both an elegant focal point and exceptional ventilation performance for open-plan living spaces.

Engineered with ROBAM's latest generation brushless DC motor and proprietary Dual-Cavity Dual Suction technology, the 88H1S is designed to rapidly capture smoke, grease, steam and cooking odours directly at the source before they disperse throughout the kitchen. Delivering an unrestricted airflow of up to 2,460m³/h, an EN standard airflow rating of 1,680m³/h, and an impressive 1,120Pa maximum static pressure, it is particularly suited to high-temperature cooking methods including stir-frying, searing, grilling and wok cooking where conventional rangehoods often struggle to maintain effective extraction.

Despite its exceptional extraction capacity, the advanced brushless motor has been engineered to reduce vibration while maintaining quiet operation. Combined with three selectable fan speeds, an intelligent Turbo mode, LED task lighting and automatic delayed shut-down, the 88H1S delivers excellent day-to-day usability while maintaining the premium finish expected from one of the world's largest specialist kitchen appliance manufacturers.

Product Features:

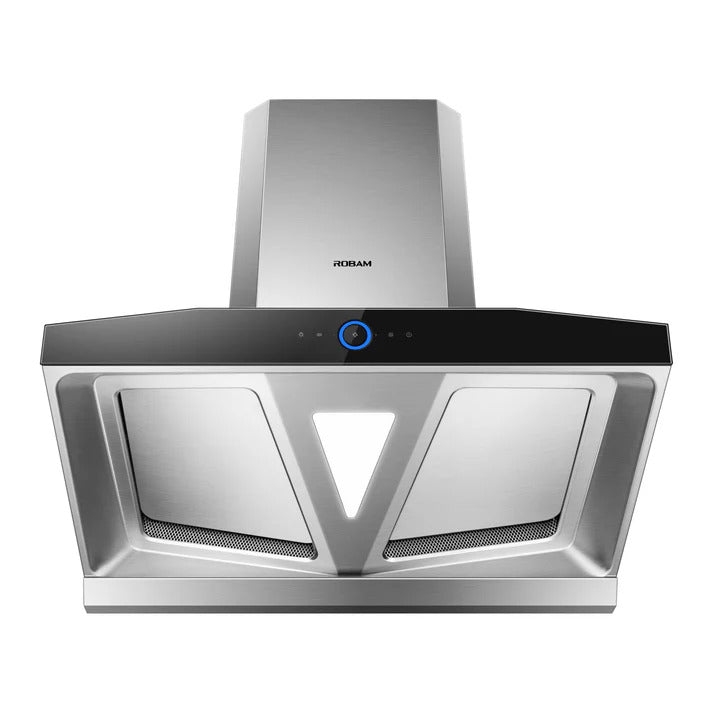

• Dual-Cavity Dual Suction Technology: A dual intake design increases the smoke capture area, helping collect grease, steam and cooking fumes before they escape into the surrounding kitchen.
• Brushless DC Motor: High efficiency brushless motor technology provides powerful airflow while reducing mechanical wear, vibration and operating noise compared to conventional motors.
• Exceptional Extraction Performance: Produces an unrestricted airflow of up to 2,460m³/h, making it suitable for demanding cooking applications and larger kitchen spaces.
• EN Standard Airflow Rating: Certified airflow performance of 1,680m³/h under European Standard testing conditions.
• High Static Pressure: Generates up to 1,120Pa of static pressure, helping maintain effective airflow even through longer duct runs or more complex ducting layouts.
• Three-Speed Fan Control: Select from three extraction speeds to match light cooking through to intensive frying and wok cooking.
• Turbo Boost Mode: Instantly activates maximum extraction performance when heavy smoke or strong cooking odours require rapid removal.
• Quiet Operation: Engineered to operate from approximately 40dB(A) on low speed for a more comfortable kitchen environment.
• 99% Grease Separation Efficiency: Designed to effectively separate grease particles before they enter the ducting system, helping reduce internal grease accumulation and maintain extraction efficiency.
• Non-Disassembly Internal Design: Internal airflow system is designed to minimise grease accumulation within the motor housing, reducing maintenance requirements.
• Wash-Free Internal System: Internal construction helps reduce the need for dismantling internal components during routine maintenance.

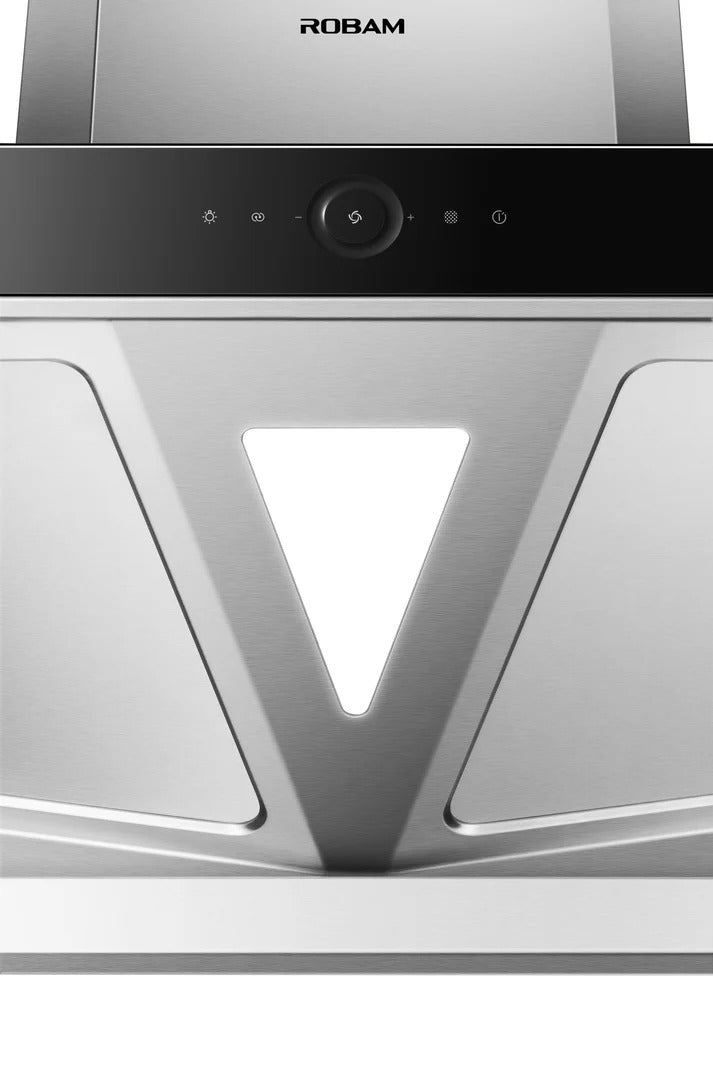

• Integrated LED Lighting: Energy-efficient LED lighting provides bright illumination across the cooking surface while consuming minimal power.
• 60-Second Delay Shut-Off: Continues operating after cooking has finished to remove remaining steam and odours before automatically switching off.
• Filter Cleaning Reminder: Intelligent maintenance reminder alerts users when grease filters should be cleaned to maintain optimum airflow.
• Removable Multi-Layer Mesh Filters: Aluminium mesh grease filters capture airborne grease while remaining easy to remove for regular cleaning.
• Premium Tempered Glass Fascia: Black tempered glass front panel delivers a contemporary appearance while being easy to clean.

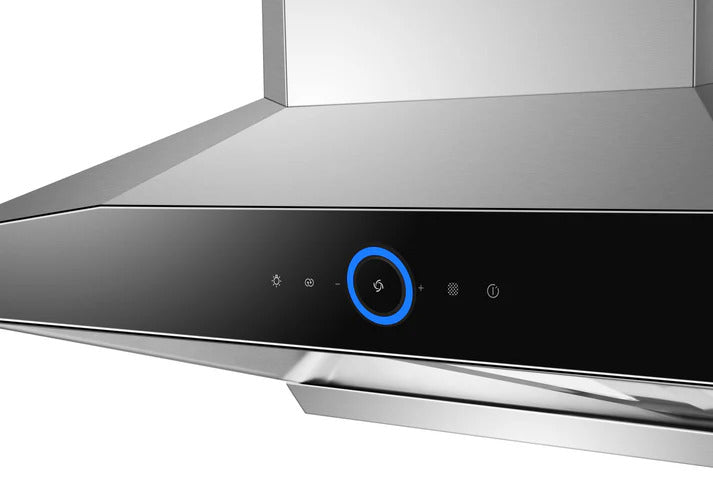

• Touch Control Interface: Intuitive touch controls provide simple adjustment of extraction speed, lighting and operating functions.
• R-Link Smart Connectivity: Compatible with selected ROBAM gas cooktops, allowing the rangehood to communicate automatically with the cooktop for more convenient operation.

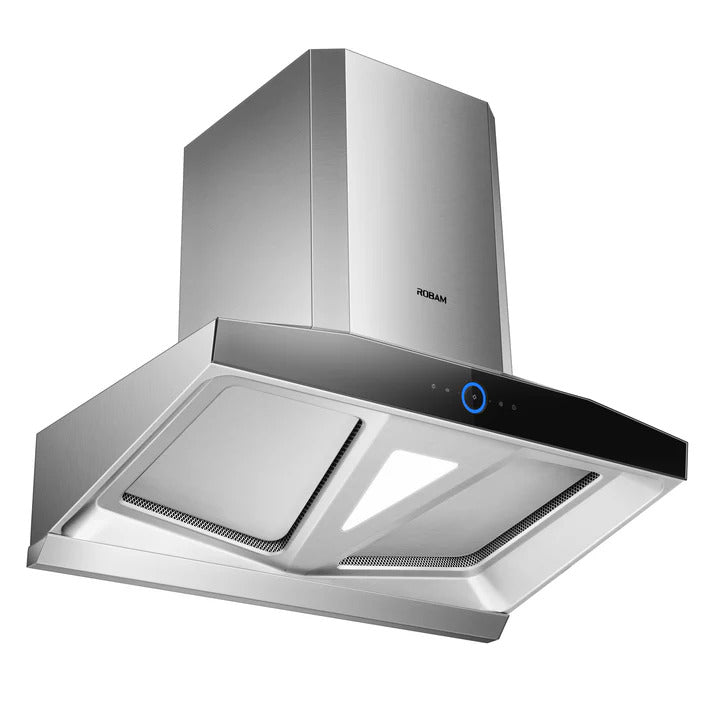

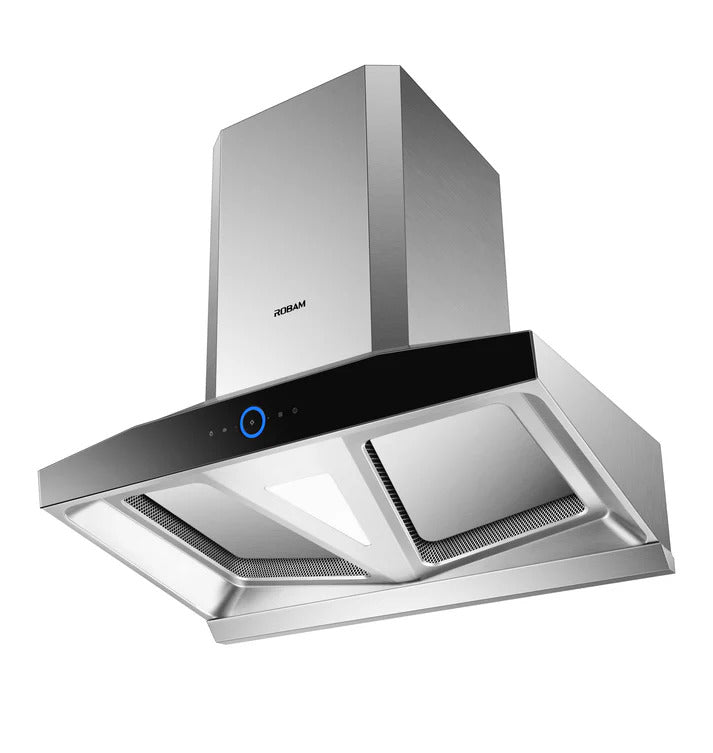

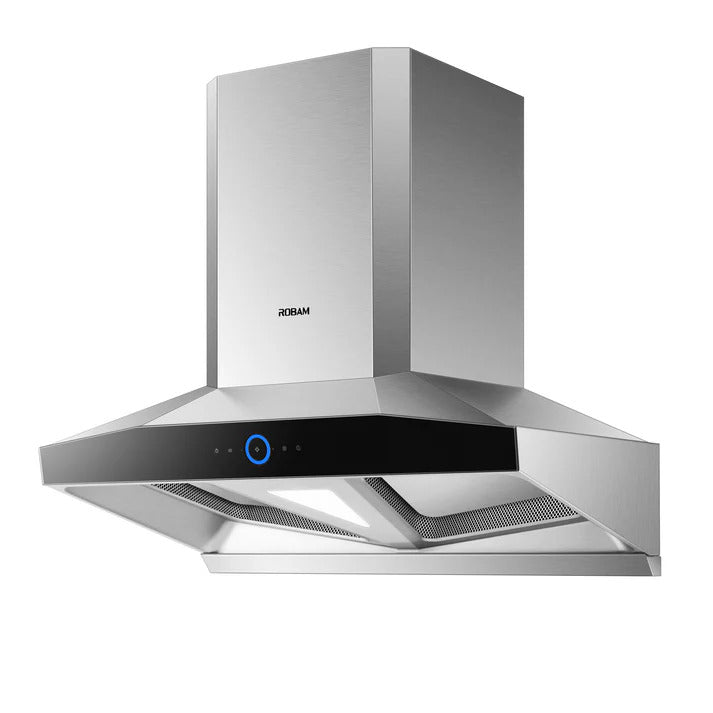

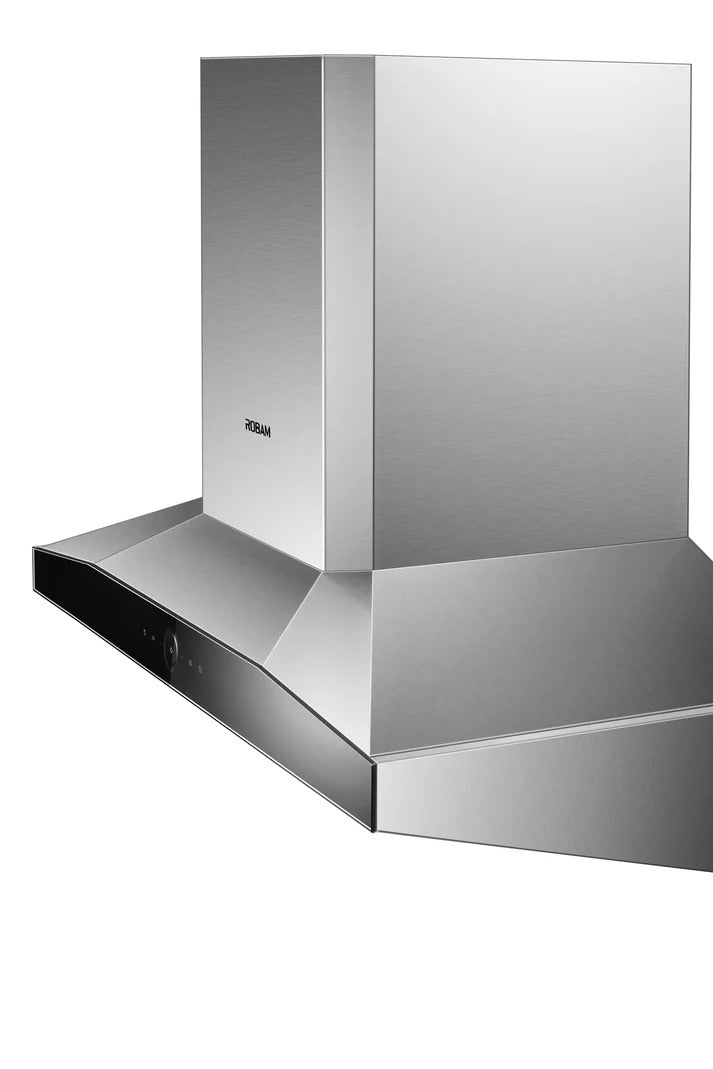

• Wall Mounted Canopy Design: Modern chimney canopy installation provides effective perimeter extraction while creating a striking visual feature within the kitchen.
• Designed for Intensive Cooking: Developed specifically for kitchens where high-output cooking methods generate significant smoke, grease and steam.

Colour / Finishes:

• Black tempered glass with stainless steel — CXW-260-88H1S

Programmes / Functions:

• Level 1 Extraction: Low-speed ventilation for light cooking, simmering and everyday odour removal.
• Level 2 Extraction: Medium-speed airflow for general cooking and everyday ventilation requirements.
• Level 3 Extraction: High-speed extraction for heavier cooking and increased smoke or steam production.
• Turbo Mode: Delivers maximum extraction performance for intensive stir-frying, grilling and high-heat cooking before returning to the normal operating level.
• Delay Shut-Off: Continues operating for approximately 60 seconds after cooking to help clear remaining smoke, steam and cooking odours.
• LED Lighting: Independently controls the integrated cooktop lighting for improved visibility while preparing meals.
• Filter Cleaning Reminder: Monitors operating time and alerts the user when the grease filters require cleaning to maintain optimum performance.
• R-Link Function: Automatically links with compatible ROBAM gas cooktops, activating and managing extraction to suit cooking activity.

Cleaning & Maintenance:

• Grease Filters: Clean the removable mesh grease filters regularly using warm water and a mild detergent to maintain optimum airflow and grease separation efficiency.
• Filter Cleaning Reminder: The rangehood automatically displays a cleaning reminder after approximately 60 hours of cumulative operation. Reset the reminder after the filters have been cleaned.
• Exterior Surfaces: Wipe the tempered glass and stainless steel surfaces with a soft cloth and neutral detergent after cooking to remove grease and fingerprints. Avoid abrasive cleaners or scouring pads.
• Control Panel: Clean the touch controls using a soft damp cloth only. Prevent cleaning solutions from coming into direct contact with the control interface.
• Internal Components: Do not wash the motor or internal electrical components with water. Always disconnect the appliance from the power supply before carrying out maintenance.
• Lighting: Allow the LED light to cool before cleaning or servicing the appliance.
• Regular Maintenance: Clean the rangehood according to cooking frequency to help maintain extraction performance, reduce grease build-up and extend the life of the appliance.

Specifications:

• Product Type: Wall-mounted canopy rangehood
• Width: 900mm
• Model: 88H1S
• SKU: CXW-260-88H1S
• Finish: Black tempered glass with stainless steel
• Installation Type: Wall mounted
• Ventilation Type: Ducted
• Motor Type: Brushless DC motor
• Fan Speeds: 3
• Turbo Function: Yes
• EN Standard Airflow: 1,680m³/h
• Maximum Unrestricted Airflow: 2,460m³/h
• Maximum Static Pressure: 1,120Pa
• Grease Separation Rate: Up to 99%
• Noise Level: Approximately 40dB(A) (low speed)
• Lighting: Integrated LED
• LED Power: 6W
• Filter Type: Multi-layer aluminium mesh grease filters
• Filter Cleaning Reminder: Yes
• Delay Shut-Off: 60 seconds
• Smart Connectivity: R-Link compatible
• Control Type: Touch controls
• Rated Voltage: 220–240V
• Frequency: 50Hz
• Rated Motor Power: 266W
• Maximum Power: 336W
• Duct Outlet: Round duct connection
• Suitable for Ducted Installation: Yes

Product Measurements:

• Product Dimensions (W × H × D): 895 × 812 × 512mm

Product Weight:

• Net Weight: 33kg

Installation & Requirements:

• Installation Type: Wall-mounted canopy rangehood.
• Ventilation: Designed for ducted extraction.
• Electrical Supply: 220–240V / 50Hz.
• Professional installation is recommended in accordance with the manufacturer's installation instructions.
• Recommended installation height above electric or induction cooktops: 650–750mm.
• Recommended installation height above gas cooktops: 650–750mm.
• Ducting should be kept as short and straight as possible to maximise airflow performance.
• Minimise unnecessary bends within the ducting system to reduce airflow resistance.
• External vent termination should allow unrestricted airflow.
• Ensure adequate make-up air is available within the kitchen during operation.
• Installation should comply with all applicable Australian electrical and building regulations.

Extra Information:

ROBAM is recognised as one of the world's leading specialist kitchen appliance manufacturers, with decades of experience developing premium ventilation systems for demanding home cooking environments. The 88H1S has been engineered to deliver exceptional airflow performance while maintaining low operating noise through its advanced brushless motor technology.

Unlike conventional rangehoods that rely solely on airflow volume, the combination of high static pressure and ROBAM's Dual-Cavity Dual Suction design enables the 88H1S to capture smoke and grease more effectively, particularly during high-temperature cooking where rising vapours can quickly spread beyond the cooking surface. This makes the appliance particularly well suited to households that frequently prepare Asian cuisine, grilled dishes or other intensive cooking styles.

Routine maintenance has also been carefully considered through the inclusion of removable aluminium grease filters, intelligent filter cleaning reminders and a wash-free internal airflow system designed to minimise grease accumulation within the motor housing.

Included Products / Accessories:

• Aluminium mesh grease filters
• Integrated LED lighting
• Chimney flue cover
• Installation hardware
• Installation instructions
• User manual

Warranty:

Robam rangehoods are backed by a 10 year warranty on the motor and a 2 year warranty on parts. Cooktops, ovens, dishwashers, and microwaves carry a 2 year manufacturer's warranty on parts and labour. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads:

• USER MANUAL (PDF)
