Product Description

Product Overview:

The Robam 87H6S 60cm Integrated Rangehood is designed to deliver powerful extraction performance while remaining discreetly concealed within overhead cabinetry. Its ultra-slim integrated profile maximises cupboard storage and creates a clean, uninterrupted kitchen aesthetic suited to contemporary homes.

Powered by a high-efficiency 260W brushless DC motor, the 87H6S provides up to 1380m³/h IEC airflow with intelligent automatic speed adjustment that continually optimises ventilation performance. Smart connectivity, touchless gesture control and ROBAM's CleanAir™ recirculation technology combine to create an advanced ventilation solution for both ducted and recirculating installations.

Finished with tempered glass and stainless steel construction, the rangehood incorporates an easy-clean nano-coated exterior, Fresh Air circulation mode and seamless R-Link connectivity with compatible ROBAM cooktops for greater convenience during everyday cooking.

Product Features:

• High-performance BLDC motor: 260W brushless DC motor delivers powerful, energy-efficient ventilation.
• 1380m³/h IEC airflow: Provides rapid removal of cooking smoke, grease and odours.
• 2400m³/h unrestricted airflow: High-capacity internal airflow system for demanding cooking environments.
• Smart Speed Control: Automatically adjusts extraction performance to suit duct resistance.
• AI Gesture Control: Operate the rangehood with a simple hand wave without touching the controls.
• R-Link™ connectivity: Automatically synchronises operation with compatible ROBAM cooktops.
• CleanAir™ recirculation technology: Advanced filtration helps remove grease, odours and airborne cooking particles.
• Fresh Air System: Circulates and refreshes indoor air when the rangehood is not actively extracting.
• Daikin OPTOOL™ nano-coating: Anti-stain surface helps resist grease and simplifies cleaning.
• Ultra-slim integrated design: Conceals neatly within cabinetry while maximising available storage space.
• Tempered glass and stainless steel construction: Premium materials designed for everyday durability.

Colour / Finishes:

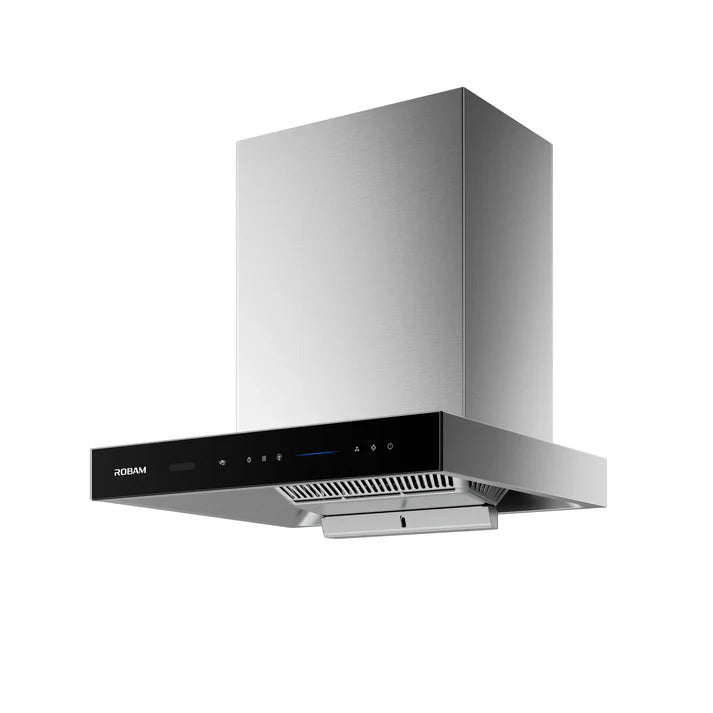

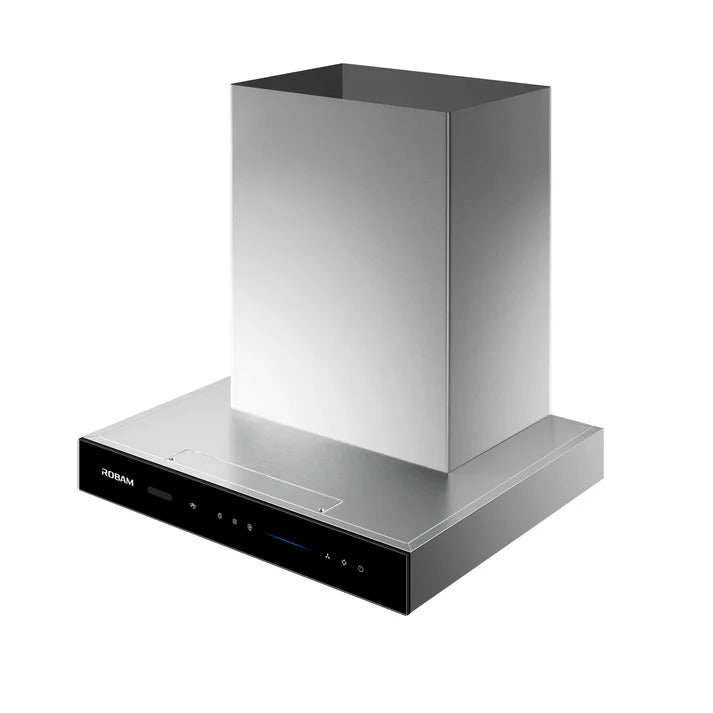

• Glossy Black — CXW-260-87H6S

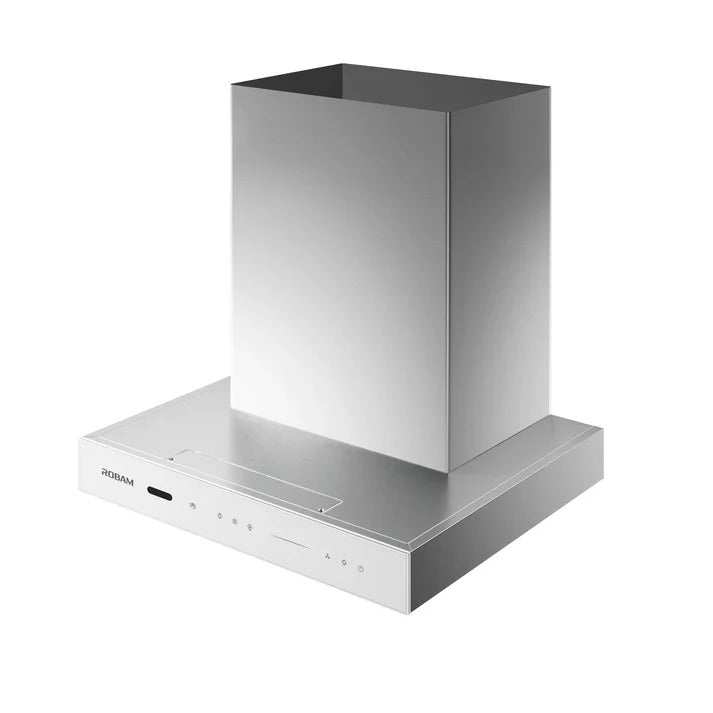

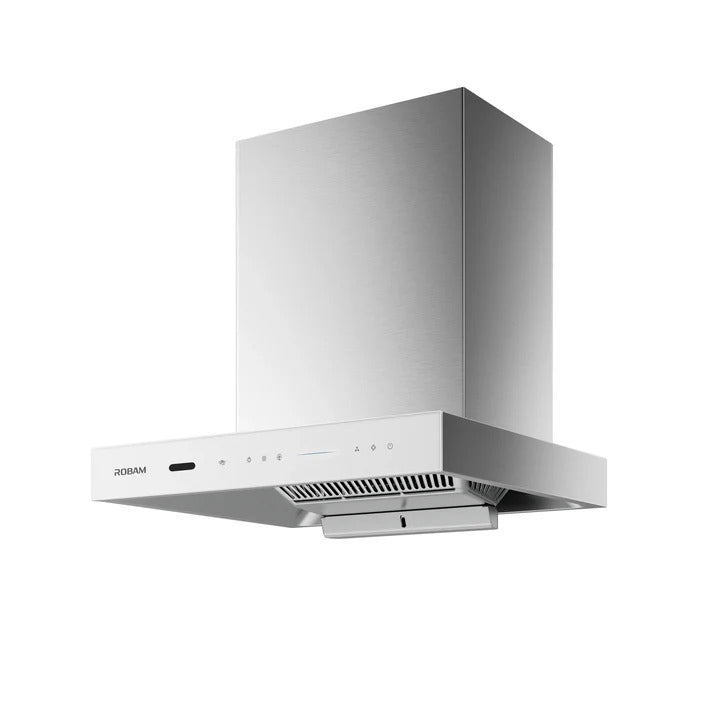

• Glossy White — CXW-260-87H6SW

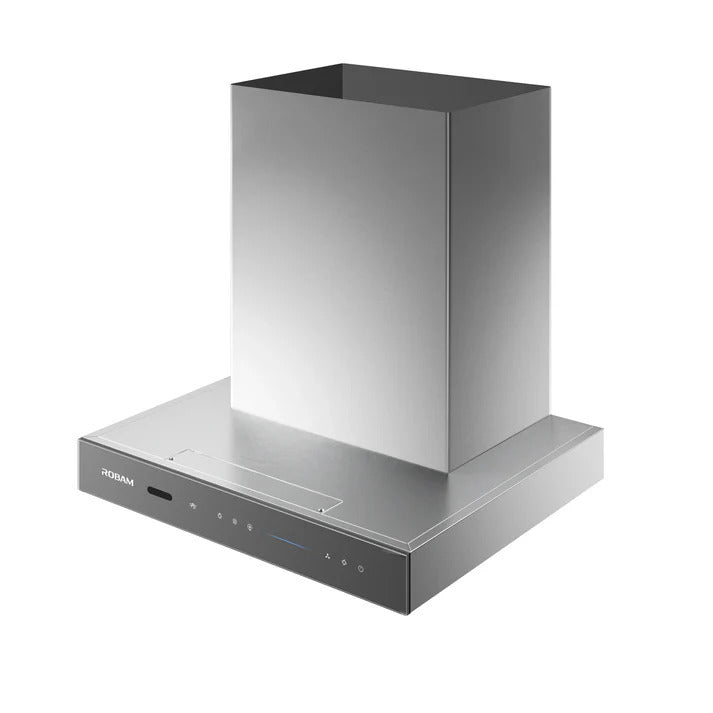

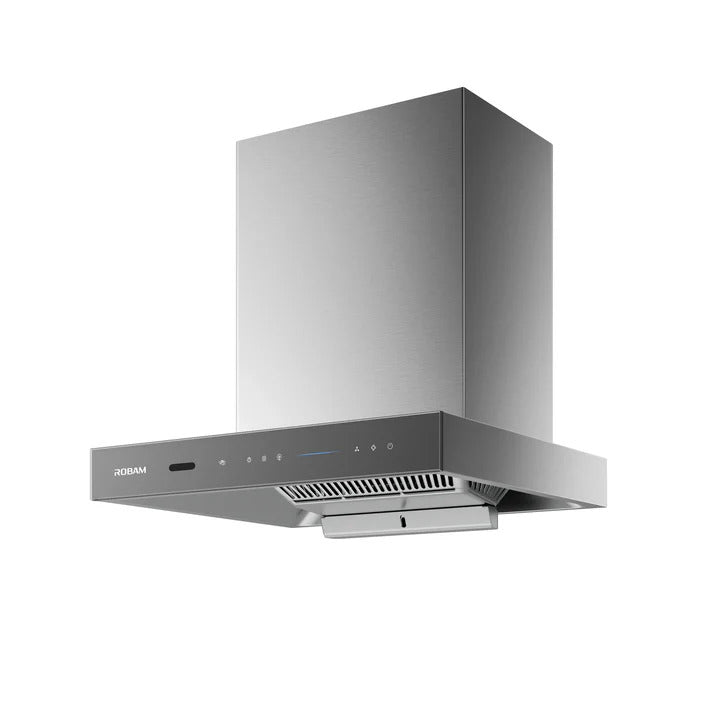

• Matte Grey — CXW-260-87H6SY

Programmes / Functions:

• 9 Speed Levels: Provides nine selectable fan speeds to suit different cooking intensities.
• Turbo Mode: Delivers maximum extraction power for heavy smoke, steam and cooking odours.
• Auto-Adjust Speed Control: Automatically adjusts extraction performance to match duct resistance for optimal airflow.
• Wave Gesture Control: Enables touch-free operation using simple hand gestures.
• R-Link™ Sync: Automatically switches the rangehood on or off when paired with a compatible ROBAM cooktop.
• Delay Shut-Off: Continues extracting residual steam and odours for a short period after cooking.
• Fresh Air System: Automatically exchanges indoor air every 24 hours to help maintain a fresher kitchen environment.
• LED Lighting: Illuminates the cooking surface with integrated energy-efficient lighting.

Cleaning & Maintenance:

• Daikin OPTOOL™ Nano Coating: Helps resist grease build-up for easier day-to-day cleaning.
• Dishwasher-Safe Dual Filters: Stainless steel baffle filters can be removed and cleaned in the dishwasher.
• Regular Surface Cleaning: Wipe the exterior after cooking using a soft cloth and a neutral detergent.
• Oil Cup Maintenance: Check and empty the oil cup regularly to maintain efficient operation.
• Avoid Abrasive Cleaners: Do not use scouring pads, brushes or harsh cleaning agents that may damage the finish.

Specifications:

• Rangehood type: Integrated / Built-in
• Extraction type: Convertible (Ducted or Recirculating)
• Motor: Brushless DC (BLDC)
• Motor power: 260W
• Standard IEC airflow: 1380m³/h
• Unrestricted airflow: 2400m³/h
• Maximum static pressure: 1200Pa
• Maximum noise level: 57dB(A)
• Fan control: 3-speed intelligent control
• Auto Speed Control: Yes
• Smart features: Yes
• Gesture control: AI Wave Control
• Cooktop connectivity: R-Link™
• Build material: Tempered Glass & Stainless Steel
• Lighting: 2W LED
• Delay shut-off: Yes
• Fresh Air mode: Yes
• Filter type: Baffle filter
• Power supply: 220–240V / 50–60Hz

Product Measurements:

• Dimensions (W × D × H): 595 × 510 × 560–880 mm

Product Weight:

• Product Weight: 21.6kg

Installation & Requirements:

• Installation type: Fully integrated under-cabinet installation
• Venting configuration: Convertible – suitable for ducted or recirculating installation
• Duct type: Round
• Power supply: 220–240V / 50–60Hz
• Electrical connection: Refer to installation instructions
• Professional installation: Recommended for optimum ventilation performance and compliance with local regulations.

Country of Origin:

• Made In China

Extra Information:

The Robam 87H6S is engineered to integrate seamlessly into modern cabinetry, providing powerful ventilation while maintaining a clean, minimalist kitchen aesthetic. Its concealed installation allows the focus to remain on the kitchen design without compromising extraction performance.

The advanced BLDC motor delivers high airflow with improved energy efficiency and reduced operating noise compared to conventional motors. Intelligent Auto Speed Control continuously monitors airflow resistance and adjusts motor performance to maintain optimal extraction efficiency.

R-Link™ technology enables compatible ROBAM cooktops and the rangehood to communicate automatically, activating ventilation when cooking begins and adjusting extraction as cooking intensity changes. AI Gesture Control allows simple hands-free operation, while the Fresh Air mode periodically circulates indoor air to help maintain a fresher kitchen environment.

The removable stainless steel baffle filters are designed for easy maintenance and can be cleaned regularly to maintain optimum extraction performance. The integrated LED lighting provides clear illumination across the cooking surface while consuming minimal energy.

Included Products / Accessories:

• Rangehood: Robam 87H6S Integrated Rangehood.
• Stainless steel baffle filters: Pre-installed.
• LED lighting: Integrated.
• Installation components: Supplied as standard by the manufacturer.
• User documentation: Installation and operating instructions.

Warranty:

Robam rangehoods are backed by a 10 year warranty on the motor and a 2 year warranty on parts. Cooktops, ovens, dishwashers, and microwaves carry a 2 year manufacturer's warranty on parts and labour. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• USER MANUAL (PDF)
