Product Description

Product Overview:

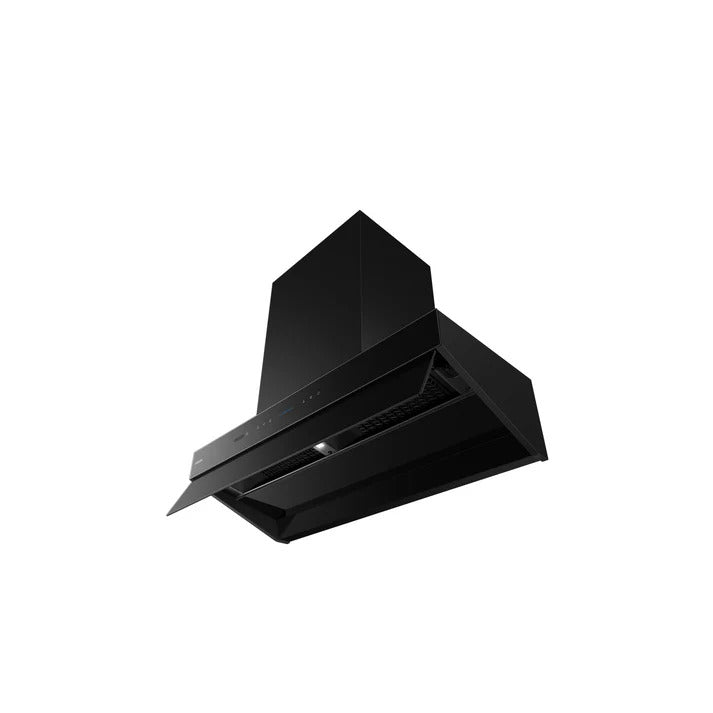

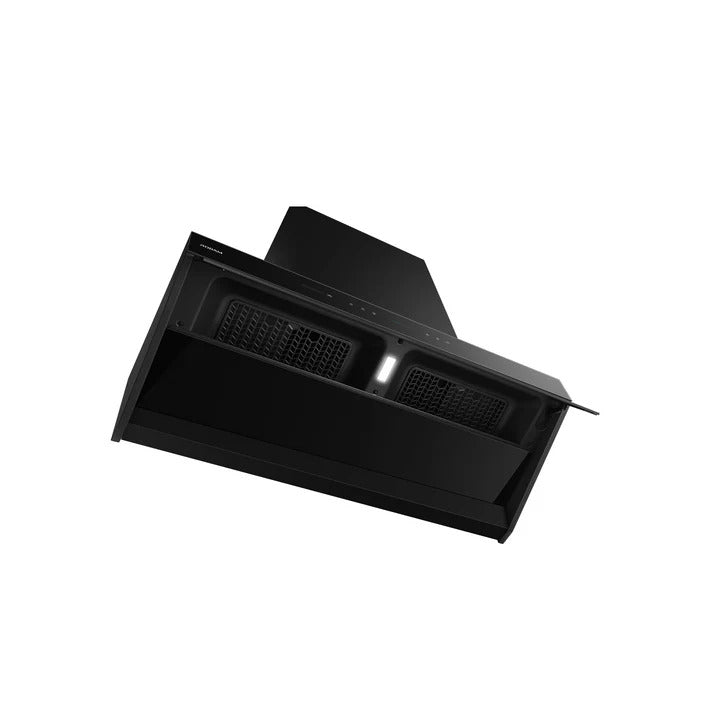

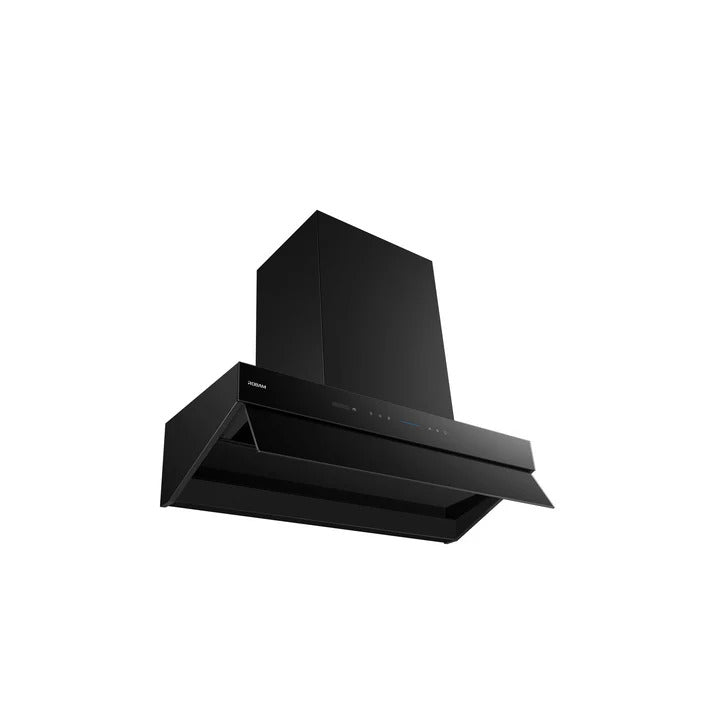

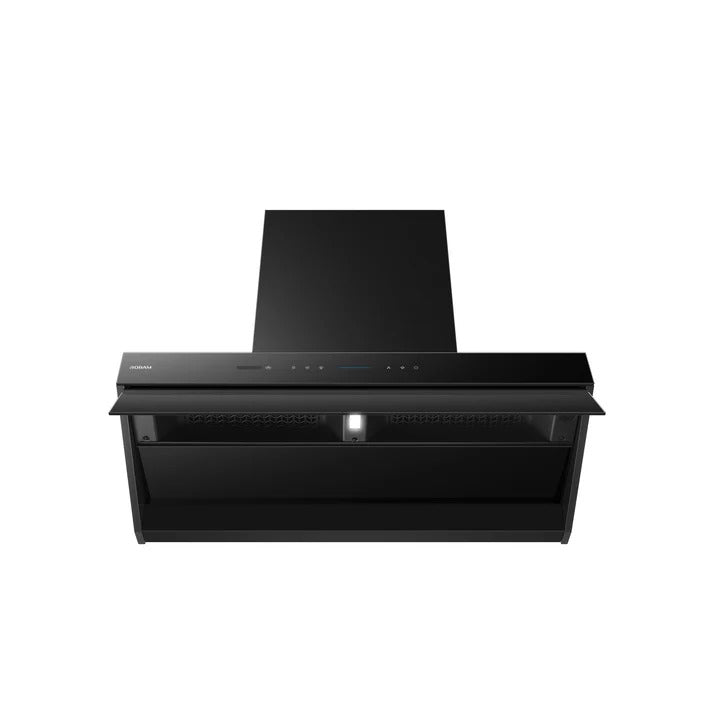

The Robam 87H2S is a premium 90cm wall-mounted canopy rangehood engineered for high-performance kitchen ventilation. Finished in elegant glossy black tempered glass, it combines powerful extraction, intelligent automation and contemporary styling to create a statement appliance suited to modern Australian kitchens. With an unrestricted airflow capacity of up to 2,510m³/h and an advanced BLDC motor, it is designed to rapidly remove smoke, steam, grease and cooking odours generated during intensive cooking.

At the heart of the 87H2S is Robam's intelligent Auto-Adjust Speed Control system. Using an integrated sensing chip, the rangehood continuously monitors duct resistance and automatically adjusts motor output to maintain optimum airflow and static pressure. Whether installed with a long flue or a smaller diameter duct, the system helps deliver consistent extraction performance without requiring manual adjustment. Maximum static pressure reaches an impressive 1,300Pa, enabling effective ventilation even through more demanding duct configurations.

Designed with everyday convenience in mind, the 87H2S incorporates AI Gesture Control, R-Link smart connectivity with compatible Robam cooktops, whisper-quiet operation from just 39dB, and a dishwasher-safe Bionic Leaf oil filter. Every element has been developed to simplify operation while delivering exceptional ventilation performance for passionate home cooks.

Product Features:

• Auto-Adjust Speed Control: Intelligent sensing technology continuously monitors duct resistance and automatically adjusts motor speed to maintain optimum extraction performance.
• Intelligent sensing chip: Delivers consistent airflow and pressure by responding in real time to changing ventilation conditions.
• High static pressure performance: Produces up to 1,300Pa of static pressure to maintain strong extraction through longer duct runs and more restrictive installations.
• Rapid fume extraction: High-capacity airflow quickly captures smoke, grease, steam and cooking odours from intensive cooking.
• BLDC inverter motor: Brushless DC motor technology delivers high airflow, improved efficiency, quieter operation and enhanced long-term reliability.
• Whisper-quiet operation: Advanced acoustic engineering, including 4,271 noise-reducing micro-holes and 40% additional sound-absorbing insulation, reduces operating noise to as little as 39dB while maintaining powerful extraction.
• AI Gesture Control: Operate the rangehood with simple hand gestures, allowing speed adjustments without touching the control panel.
• Touch-free convenience: Gesture operation helps minimise fingerprints and keeps the tempered glass fascia cleaner during cooking.
• R-Link smart connectivity: Automatically switches the rangehood on and off when paired with a compatible Robam cooktop, delivering seamless ventilation throughout the cooking process.
• Three fan speeds: Easily select the appropriate extraction level for everything from gentle simmering to high-heat wok cooking.
• Smart features: Integrated intelligent controls optimise everyday operation and user convenience.
• Bionic Leaf oil filter: Innovative filter design channels oil efficiently while separating grease from cooking fumes.
• High grease separation efficiency: Engineered to achieve greater than 98% oil separation for cleaner internal operation and improved long-term performance.
• Dishwasher-safe filter: Grease filter removes easily for convenient dishwasher cleaning.
• LED lighting: Bright integrated LED lighting provides clear illumination across the entire cooking surface.
• Premium tempered glass construction: Durable tempered glass front panel provides a refined appearance while remaining easy to maintain.
• Glossy black finish: Contemporary finish complements modern kitchen designs and premium cooking appliances.

Colour / Finishes:

• Glossy Black: CXW-260-87H2S

Programmes / Functions:

• Auto-Adjust Speed Control: Automatically adjusts motor speed to compensate for duct resistance, maintaining optimum airflow and extraction performance.
• Turbo Function: Activates maximum extraction power for intensive cooking, then automatically returns to normal operation after the boost period.
• 9 Speed Levels: Provides nine fan speed settings to suit everything from light simmering to high-heat cooking.
• AI Gesture Control: Enables touch-free operation using simple hand gestures to adjust fan speeds.
• R-Link Smart Connectivity: Automatically communicates with compatible Robam cooktops to switch the rangehood on, adjust extraction and activate delayed shut-off.
• Delay Shut-Off: Continues extracting residual smoke, steam and odours after cooking before automatically switching off.
• LED Lighting: Illuminates the cooking surface with integrated energy-efficient LED lighting that can be operated independently of the fan.
• Filter Clean Reminder: Monitors operating hours and alerts when the grease filter requires cleaning to maintain optimum performance.

Cleaning & Maintenance:

• Dishwasher-safe mesh grease filter: The Bionic Leaf mesh filter removes easily for convenient dishwasher cleaning.
• Bionic Leaf filter design: Engineered to direct captured oil into the collection area while efficiently separating grease from cooking fumes.
• Automatic cleaning reminder: After approximately 60 hours of accumulated operation, the cleaning reminder flashes to indicate the grease filter should be cleaned.
• Cleaning mode: Holding the cleaning reminder button places the rangehood into cleaning mode, stopping the fan while allowing safe filter removal and maintenance.
• Easy-clean tempered glass: The smooth black tempered glass front panel can be wiped clean with a soft cloth and a mild, non-abrasive detergent.
• Regular maintenance: Robam recommends cleaning the exterior after cooking and maintaining the grease filter regularly to preserve airflow performance and extend the life of the appliance.

Specifications:

• Rangehood type: Wall-mounted canopy
• Installation type: Ducted
• Width: 900mm
• Motor type: Brushless DC (BLDC)
• Motor power: 260W
• Fan speeds: 3
• Auto speed control: Yes
• AI Gesture Control: Yes
• Smart features: Yes
• R-Link connectivity: Yes
• Unrestricted airflow: 2,510m³/h
• Standard IEC airflow: 1,680m³/h
• Maximum static pressure: 1,300Pa
• Maximum noise level: 39dB
• Construction: Tempered glass with black coating
• Glass panel colour: Glossy Black
• Lighting: LED
• Filter type: Bionic Leaf grease filter
• Grease filter: Dishwasher safe
• Power supply: 220–240V / 50Hz

Product Measurements:

• Dimensions (W × D × H): 895 × 370 × 742mm

Product Weight:

• Product weight: 30.5kg

Installation & Requirements:

• Installation type: Wall-mounted canopy.
• Ventilation: Ducted installation.
• Recommended installation height: 650–750mm above the cooking surface.
• Installation options: Suitable for installation with or without an overhead cabinet.
• Power supply: 220–240V / 50Hz.
• Professional installation: Recommended in accordance with the manufacturer's installation instructions.
• Ducting performance: The intelligent airflow management system is designed to automatically compensate for varying duct resistance, including longer flue installations, to maintain optimum extraction efficiency.

Country of Origin:

• Made In China

Extra Information:

Robam developed the 87H2S to maintain powerful extraction performance under a wide range of installation conditions. Unlike conventional rangehoods that can lose efficiency as duct resistance increases, the integrated sensing system automatically adjusts motor output to compensate for changing airflow resistance. This allows the rangehood to maintain strong extraction performance even when installed with longer chimney flues.

The advanced acoustic design combines thousands of precision-engineered noise reduction micro-holes with additional sound-absorbing insulation to minimise operating noise without compromising airflow. This enables the rangehood to deliver exceptionally quiet operation while maintaining high extraction performance during everyday cooking.

When paired with a compatible Robam cooktop, R-Link technology automatically synchronises operation between both appliances. The rangehood activates as cooking begins and adjusts ventilation when required, creating a more seamless cooking experience while reducing the need for manual operation.

The removable Bionic Leaf grease filter has been engineered to encourage efficient oil drainage while capturing grease particles before they enter the motor system. The filter is fully dishwasher safe, making routine maintenance straightforward.

Included Products / Accessories:

• Bionic Leaf grease filter
• LED lighting
• User manual
• Installation components

Warranty:

Robam rangehoods are backed by a 10 year warranty on the motor and a 2 year warranty on parts. Cooktops, ovens, dishwashers, and microwaves carry a 2 year manufacturer's warranty on parts and labour. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads:

• USER MANUAL (PDF)
