Product Description

Product Overview:

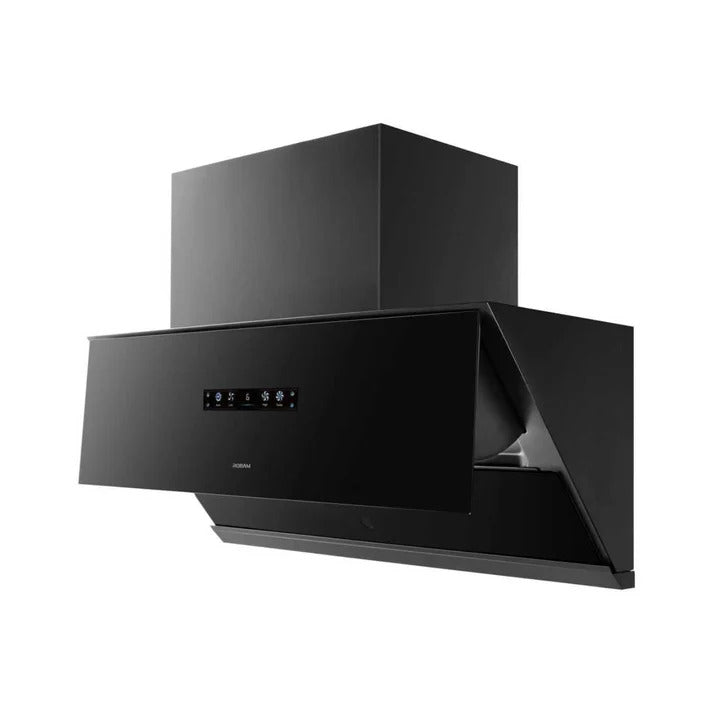

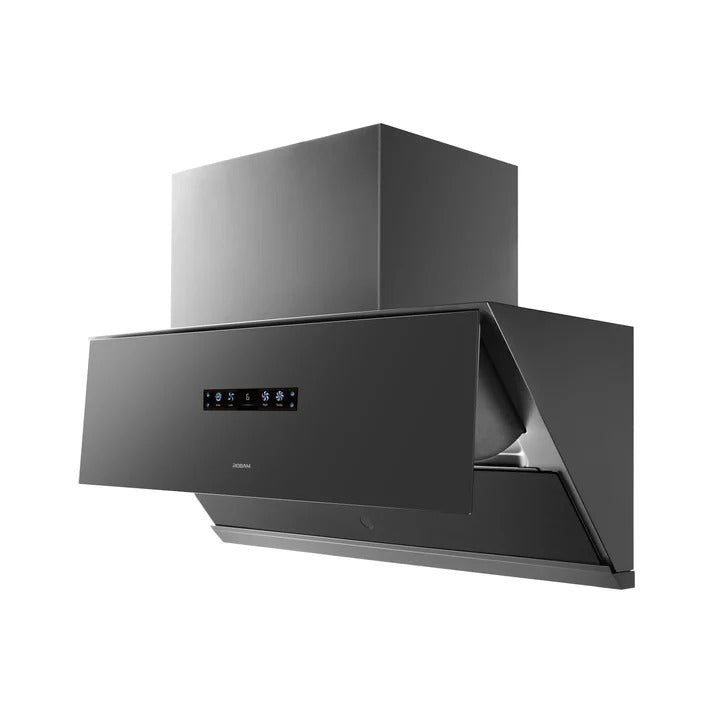

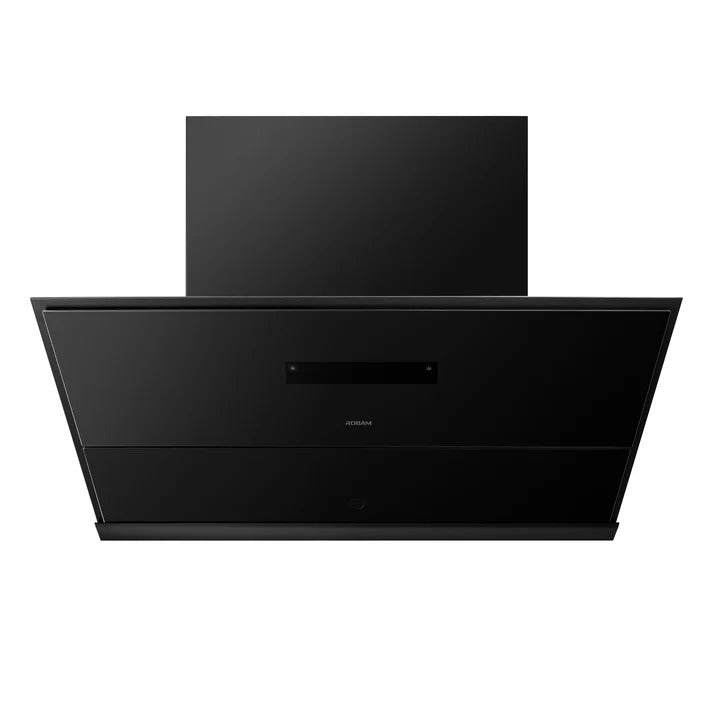

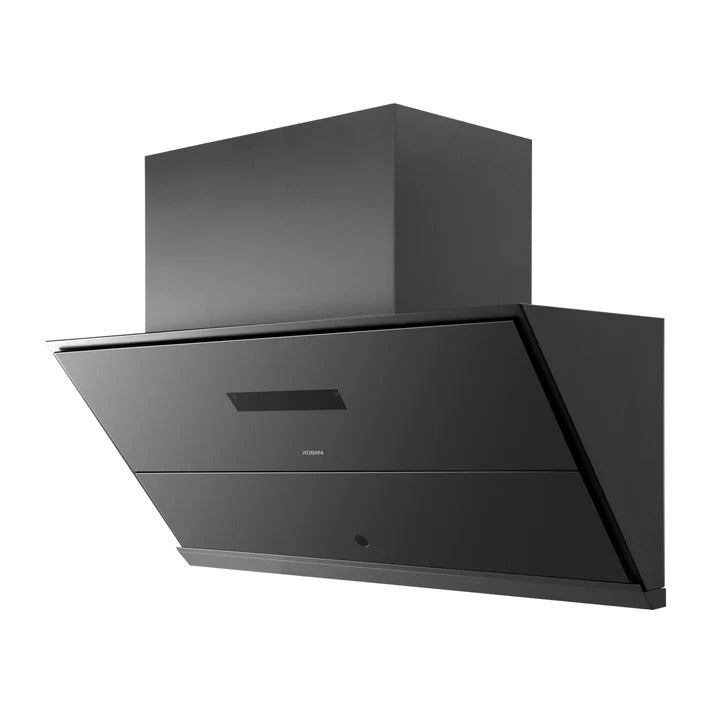

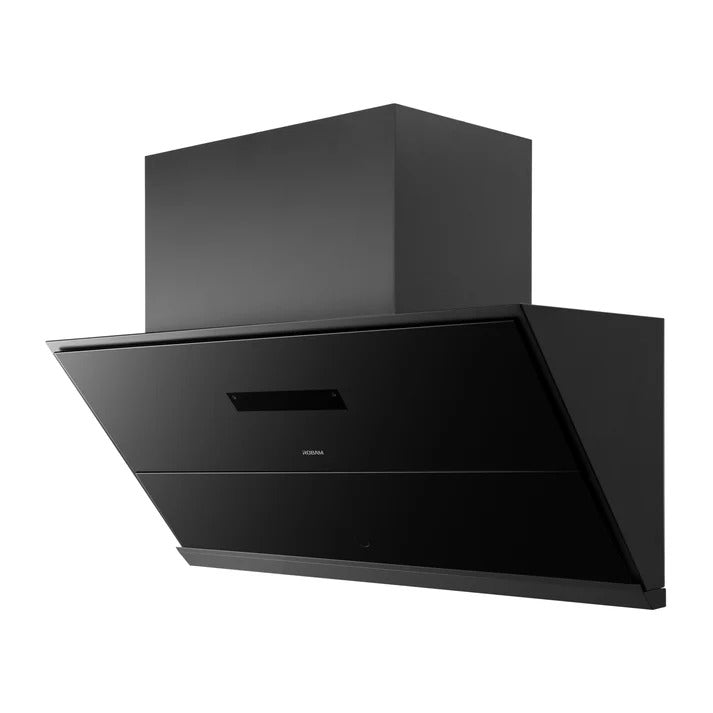

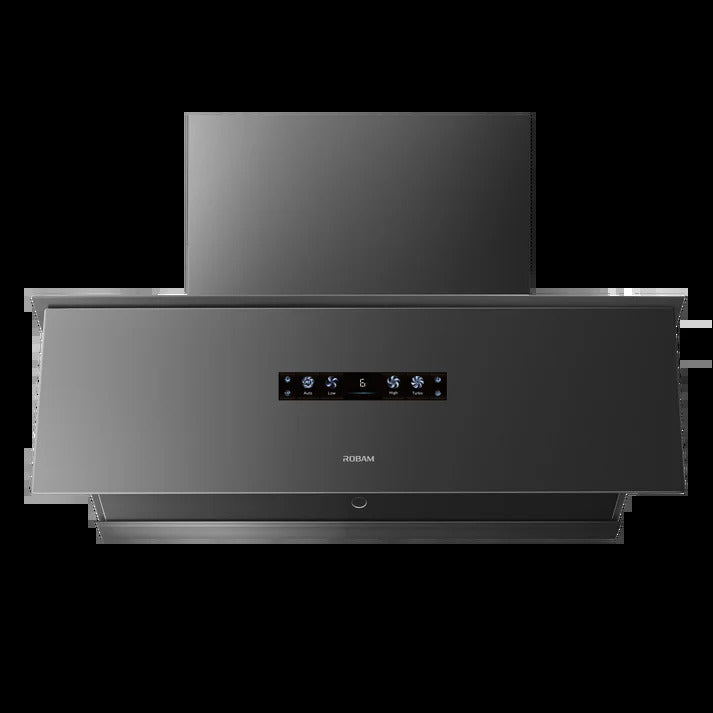

The Robam 58H2S 90cm Wide Side Suction Rangehood combines powerful extraction performance with intelligent automation to create a cleaner and more comfortable cooking environment. Designed with Robam's signature side suction architecture, the extraction inlet is positioned closer to the cooking surface than conventional canopy rangehoods, helping to capture smoke, steam, grease and cooking odours before they disperse throughout the kitchen. The slim profile, premium glass fascia and concealed intake create a contemporary appearance suited to modern kitchen designs while maintaining exceptional ventilation performance.

At the heart of the 58H2S is Robam's high-efficiency brushless DC (BLDC) motor, engineered to deliver strong airflow while reducing energy consumption and operating noise. Producing up to 1,680m³/h of IEC-rated airflow and a maximum static pressure of 1,100Pa, the rangehood is capable of maintaining effective extraction even through longer duct runs. Combined with Robam's cyclonic airflow design, the system rapidly removes airborne grease particles, cooking fumes and excess heat generated during intensive cooking.

Intelligent technology further enhances everyday operation. TrueAuto continuously monitors cooking conditions and automatically adjusts the extraction speed as smoke and steam levels change, while Robam's R-Link technology allows compatible Robam cooktops to communicate directly with the rangehood for seamless automatic operation. A Fresh Air function provides scheduled air circulation when the kitchen is not in use, and the dishwasher-safe A++ rhombic oil filter simplifies routine maintenance by capturing grease before it reaches the motor. Together, these technologies deliver a premium ventilation solution designed for both everyday family cooking and demanding culinary applications.

Product Features:

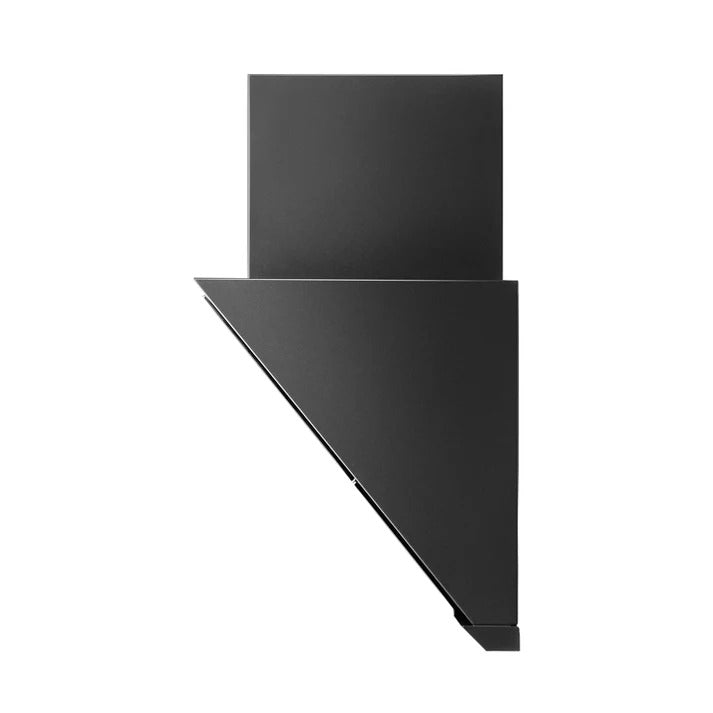

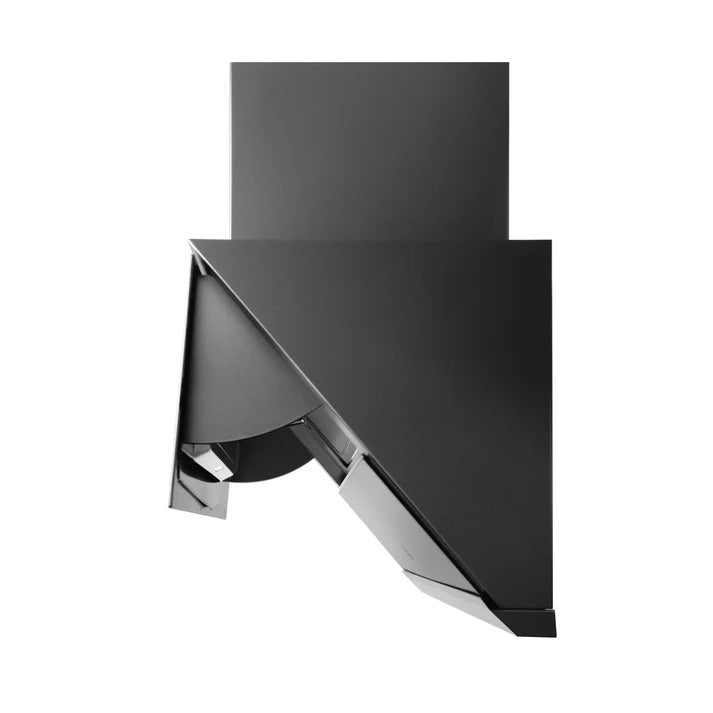

• 45° side suction design: Draws smoke and cooking fumes closer to the cooktop for more efficient extraction.
• High extraction performance: Delivers up to 1,680m³/h IEC airflow for demanding cooking applications.
• BLDC inverter motor: Provides powerful, energy-efficient performance with reduced operating noise.
• TrueAuto technology: Automatically adjusts fan speed according to cooking intensity.
• R-Link connectivity: Compatible Robam cooktops can automatically operate the rangehood.
• Maximum static pressure of 1,100Pa: Maintains effective airflow through ducted installations.
• Three fan speeds: Easily adjust ventilation to suit different cooking styles.

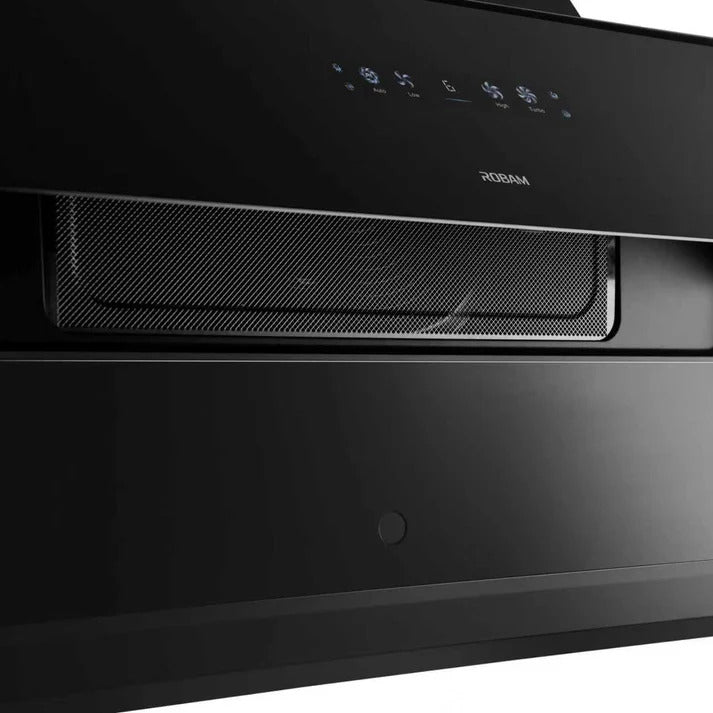

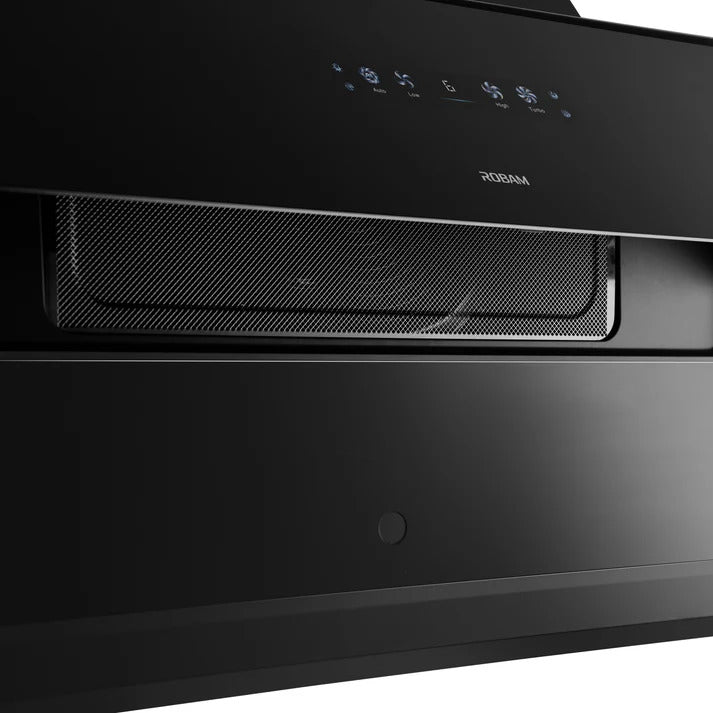

• Touch control panel: Simple capacitive controls with an integrated LED display.
• LED lighting: Brightly illuminates the cooking surface while using minimal energy.

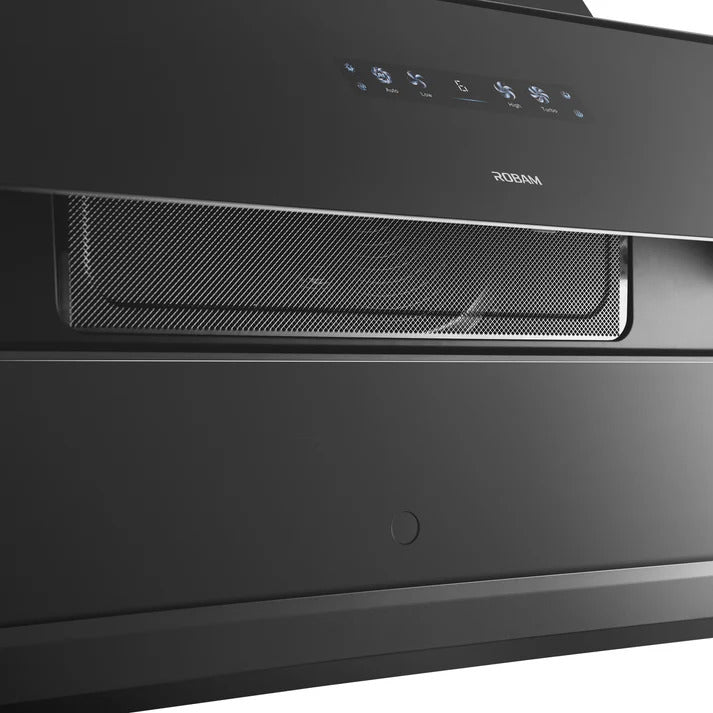

• A++ rhombic grease filter: Effectively captures grease while supporting consistent airflow.
• Dishwasher-safe filter: Removable filter allows quick and easy cleaning.
• Fresh Air function: Periodically refreshes indoor air when the kitchen is not in use.
• Tempered glass front panel: Durable finish designed to complement modern kitchen interiors.
• Wall-mounted installation: Designed for installation above 90cm cooking appliances.

Colour / Finishes:

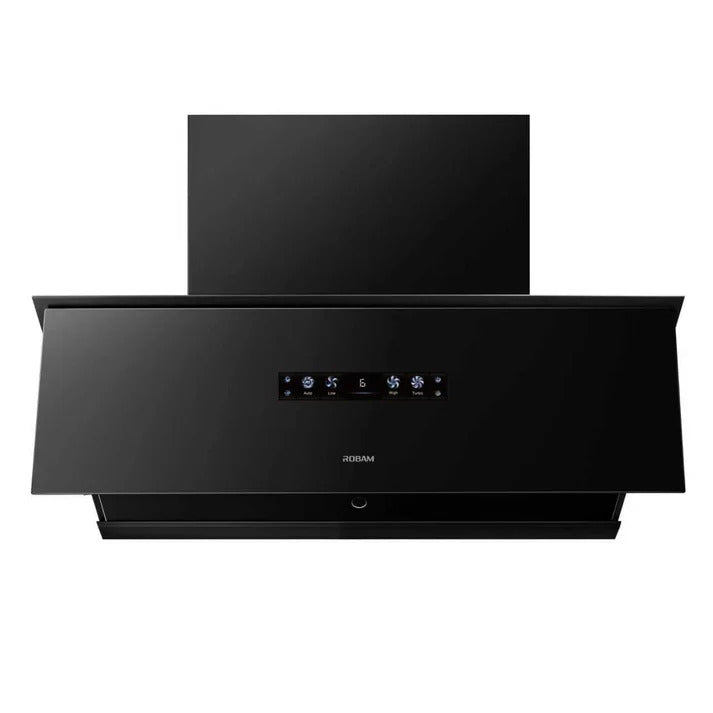

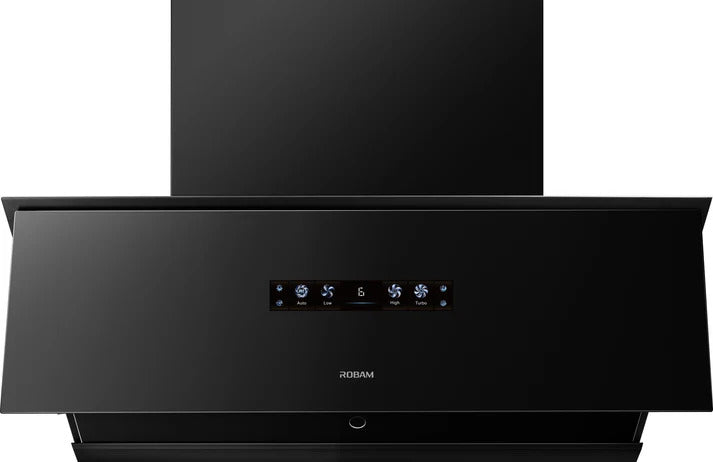

• Gloss Black — CXW-260-58H2SF

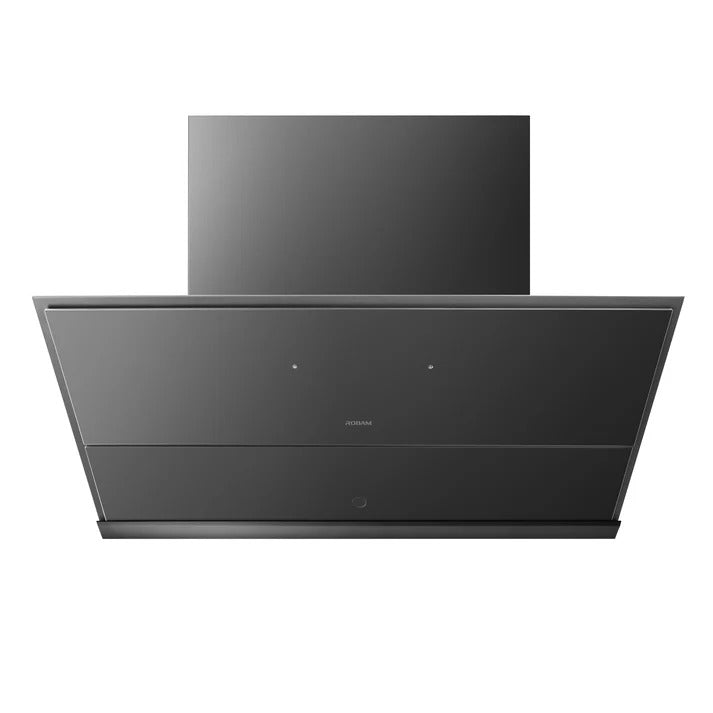

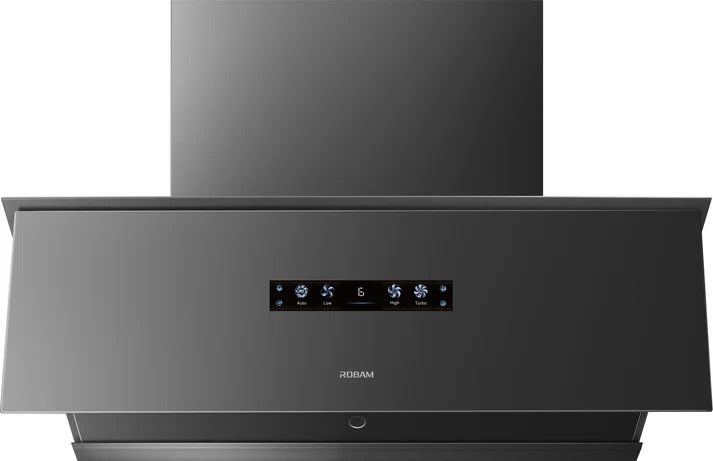

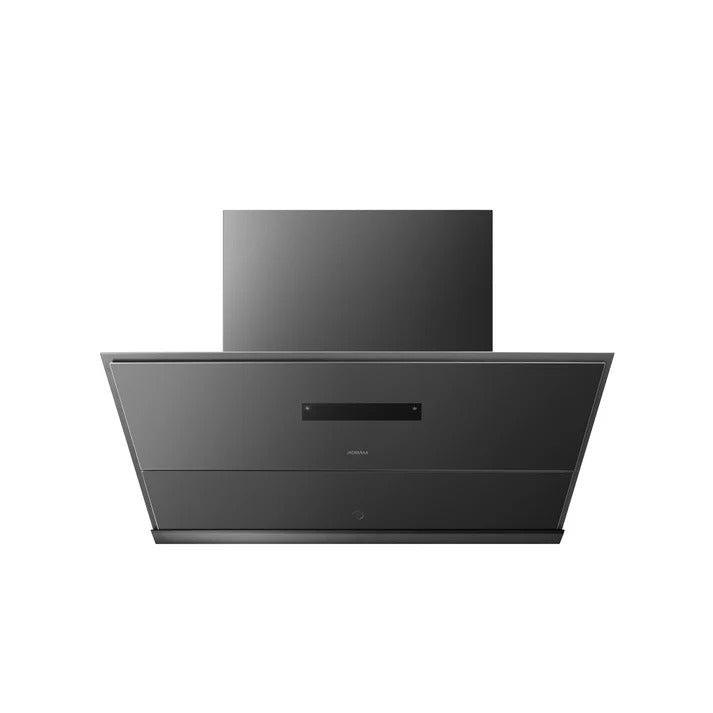

• Matte Grey — CXW-260-58H2SFY

Programmes / Functions:

• TrueAuto: Automatically detects changes in smoke and steam levels, adjusting the extraction speed to maintain effective ventilation.
• R-Link: Synchronises the rangehood with compatible Robam cooktops, automatically switching the hood on and adjusting fan speed during cooking.
• Fresh Air Mode: Periodically refreshes the kitchen by automatically circulating air after cooking has finished.
• LED Lighting: Provides bright, energy-efficient illumination across the cooking surface for improved visibility.
• 3-Speed Fan Control: Allows you to manually select the extraction level to suit light simmering through to high-heat cooking.
• Delay Shut-Off: Continues extracting residual smoke and odours for a short period after cooking before automatically switching off.

Cleaning & Maintenance:

• The removable A++ aluminium rhombic grease filter is dishwasher safe for quick and convenient cleaning.
• Clean the grease filter regularly to maintain optimum extraction performance and airflow.
• Wipe the tempered glass front panel with a soft microfibre cloth and a non-abrasive glass cleaner.
• Clean the touch control panel using a damp soft cloth without excessive moisture.
• Avoid abrasive cleaners, scouring pads and solvent-based products that may damage the glass or surface finish.
• Ensure power is disconnected before carrying out any cleaning or maintenance.
• Periodically inspect the ducting and air outlet to ensure unrestricted airflow and maximum extraction efficiency.

Specifications:

• Product type: Wall-mounted side suction rangehood
• Width: 90cm
• Extraction type: Ducted
• Motor type: BLDC inverter motor
• Motor power: 260W
• Maximum IEC airflow: 1,680m³/h
• Maximum unrestricted airflow: 2,520m³/h
• Maximum static pressure: 1,100Pa
• Fan speeds: 3
• Control type: Capacitive touch controls
• Display: LED display
• Lighting: LED
• Automatic operation: TrueAuto
• Smart connectivity: R-Link
• Grease filter: A++ rhombic aluminium filter
• Grease filter cleaning: Dishwasher safe
• Fresh Air mode: Yes
• Front panel: Tempered glass
• Installation type: Wall mounted
• Power supply: 220–240V
• Frequency: 50Hz
• Rated power: 272W

Product Measurements:

• Product dimensions (W × H × D): 895 × 351 × 645mm

Product Weight:

• Net weight: 27.5kg

Installation & Requirements:

• Installation type: Wall mounted.
• Designed for ducted extraction to achieve optimum ventilation performance.
• Suitable for installation above a 90cm cooktop.
• Should be installed in accordance with the manufacturer's installation instructions and all applicable local regulations.
• Professional installation is recommended to ensure correct operation and ventilation performance.

Country of Origin:

• Made In China

Extra Information:

The Robam 58H2S has been engineered to deliver powerful extraction while maintaining a clean, streamlined appearance. Its side suction design positions the extraction inlet closer to the cooking surface, helping capture smoke, grease and steam before they disperse throughout the kitchen. Combined with a high-performance BLDC motor, the rangehood provides strong airflow and high static pressure to support efficient extraction across a wide range of cooking styles.

For added convenience, TrueAuto technology continuously monitors cooking conditions and automatically adjusts the extraction level to suit the amount of smoke and steam being produced. Compatible Robam cooktops can also communicate directly with the rangehood through R-Link technology, automatically activating ventilation and adjusting fan speed as cooking intensity changes. The removable dishwasher-safe grease filter simplifies ongoing maintenance, while integrated LED lighting provides clear illumination of the cooking surface.

Included Products:

• Robam 58H2S Rangehood
• Aluminium A++ Rhombic Grease Filter
• LED Light Module
• Installation Kit
• User Manual

Warranty:

Robam rangehoods are backed by a 10 year warranty on the motor and a 2 year warranty on parts. Cooktops, ovens, dishwashers, and microwaves carry a 2 year manufacturer's warranty on parts and labour. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads:

• USER MANUAL (PDF)
