Qasair WVC-200 (129) Wall Vent Cover for Single Motor

Qasair WVC-200 (129) Wall Vent Cover for Single Motor

$155.00
available online
SKU: WVC-200-(129)
By Qasair
Barcode: 0080687484966
Why You’ll Love It
  • Matched Qasair compatibility: Designed for 200mm round single-motor Qasair ducting rather than adapted from generic ductwork.
  • Rigid, non-flammable construction: Supports a safer and more durable extraction pathway.
  • Performance-conscious sizing: Helps preserve the duct format required for effective airflow.
  • Australian manufacture: Made as part of Qasair’s purpose-designed ducting system.
Ideal For
  • Homeowners completing a Qasair rangehood installation who want every duct component matched to the appliance
  • Kitchen designers planning the extraction route early so cabinetry and ceiling spaces accommodate correctly sized ductwork
  • Installers who need a purpose-designed wall-vent cover for a clean, properly sealed connection
  • Renovations prioritising rigid, non-flammable metal ducting that carries cooking fumes safely outdoors
View details

Product Overview

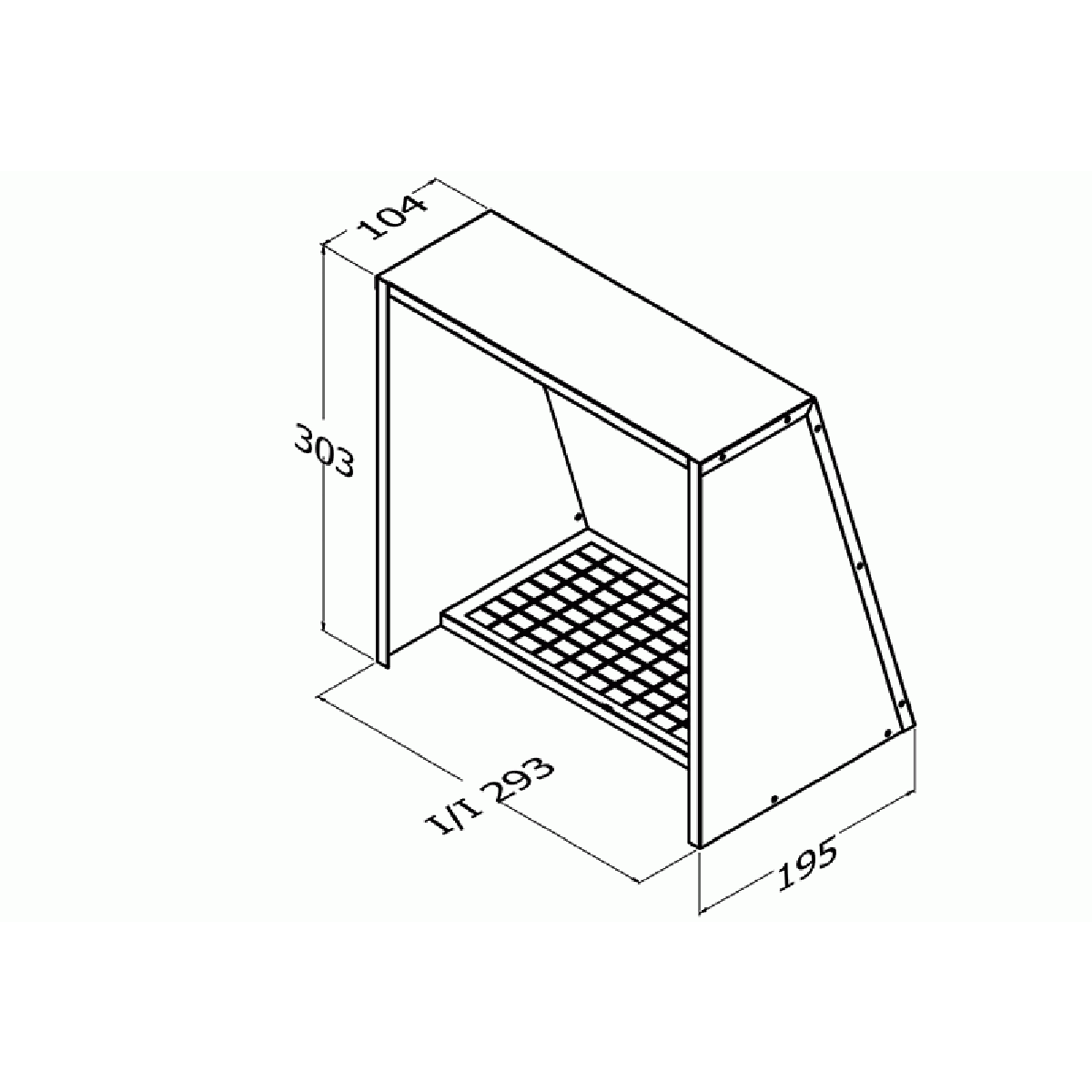

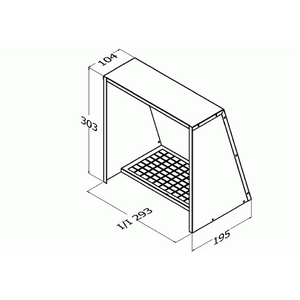

The Qasair WVC-200 (129) Wall Vent Cover for Single Motor is a purpose-designed wall-vent cover for 200mm round single-motor Qasair ducting. It forms part of Qasair’s coordinated rigid-metal ducting range, allowing the extraction route to be planned with components matched to the rangehood’s motor configuration and outlet format.

Qasair ducting is CAD-designed and manufactured in Ringwood, Victoria using non-flammable metal construction. Correct sizing, careful route planning and properly sealed joints help protect airflow and carry cooking fumes safely to the outside atmosphere.

Product Details & Specifications

Product Features
  • Purpose-designed system compatibility: Matches 200mm round single-motor Qasair ducting for a more dependable, specification-led installation.
  • Rigid metal construction: Zinc Alume construction provides a non-flammable alternative to flexible or plastic ducting.
  • Airflow-conscious design: Supports the duct format specified for the relevant Qasair motor configuration without unnecessary restriction.
  • Australian made: Manufactured as part of Qasair’s coordinated ducting range in Ringwood, Victoria.
Programmes / Functions
Product Specifications
  • Brand: Qasair
  • Model: WVC-200
  • Condari reference number: 129
  • Product type: Wall-Vent Cover
  • Ducting system: single motor
  • Material / finish: Zinc Alume
  • Construction: CAD-designed rigid, non-flammable metal ducting
  • Country of manufacture: Australia
  • Duct format: 200mm diameter
Product Measurements
  • Duct connection: 200mm diameter
Product Weight
Installation & Requirements
  • Confirm system compatibility: Check the rangehood outlet, single motor configuration and adjoining Qasair duct components before ordering.
  • Vent outdoors: The completed duct run must discharge to the outside atmosphere, never into a ceiling or wall cavity.
  • Maintain the specified duct size: Do not reduce the duct cross-sectional area, as this can restrict airflow and affect rangehood performance.
  • Use rigid, non-flammable materials: Do not substitute flexible ducting or plastic PVC pipe.
  • Seal all joints: Fit each connection securely and seal with suitable duct tape or silicone so fumes cannot escape into the building.
Colour/Finishes
  • Zinc Alume
Warranty
  • Standard warranty: 36 months from the consumer’s date of purchase against defects in materials and workmanship.
  • Conditions: Coverage is subject to personal domestic use and installation in accordance with Qasair instructions.
  • Installation responsibility: Incorrect duct sizing, excessive duct runs or non-compliant installation may affect performance and warranty coverage.
  • Australian Consumer Law: Warranty benefits are additional to rights and remedies available under Australian Consumer Law.
Country Of Origin
Extra Information

The WVC-200 (129) is intended to be specified as one component within a complete Qasair ducting layout. Confirm the code, motor grouping, route direction and adjoining pieces before purchase, as Qasair duct components are purpose-specific rather than universal fittings.

Qasair recommends planning ductwork early in the kitchen-design process. Short, correctly sized and well-sealed rigid-metal runs help minimise resistance and support the extraction performance expected from the rangehood.
Included Products / Accessories
  • 1 × Qasair WVC-200 wall-vent cover
Manuals & Files

Disclaimer

Product images are for illustrative and presentation purposes only. Any accessories, fittings, or additional items shown may not be included with the product unless explicitly stated in the product description. Please refer to the product specifications and inclusions for full details.
